NIBE™ F2040Chapter |2

Document information
This technical manual is a complement to the Installer
handbook for F2040, containing:
■Description of functions and component description.
■Information to facilitate fault-tracing.
■Instructions for replacing components.
■Wiring diagram
■Supplementary technical information.
Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance is designed for use in a
home environment and not intended
to be used by persons (including chil-
dren) with reduced physical, sensory or
mental capabilities, or lack of experi-
ence and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety. This
in accordance to applicable parts of the
low-voltage directive 2006/95/EC, LVD.
The appliance is also intended for use
by experts or trained users in shops,
hotels, light industry, on farms and in
similar environments. This in accordance
to applicable parts of the machinery
directive 2006/42/EC.
Children should be supervised to ensure
that they do not play with the appli-
ance.
This is an original instruction manual.
Translation is not allowed without ap-
proval from NIBE.
Rights to make any design or technical
modifications are reserved.
©NIBE 2015.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
3Chapter 1 | Important informationNIBE™ F2040
1 Important information

Serial number
The serial number for F2040 can be found on the side
of the foot.
F2040-8
LEK
DATA
Serial number
F2040-12
LEK
DATA
Serial number
F2040-16
LEK
DATA
Serial number
Caution
Always give the product's serial number when
reporting a fault.
NIBE™ F2040Chapter 1 | Important information4

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: inf[email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
5Chapter 1 | Important informationNIBE™ F2040

General
F2040-8
LEK
GQ1
DH
UB3
EP1
EB11
CM
20S
63H1
LPT
SM2
SM1
FM01
PWB2 PWB3 PWB1
BT12
BT15
BP4
QN2
BT3
PF3
HS1
EP2
GQ10 QN1
BP2
QM35
QM36
BP1
QN3
CH
EB10
AA23
X1
F TBBT14 Tho-D
Tho-SBT17
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
PF1PF3
Tho-A
BT28
Tho-R1 Tho-R2
BT16
NIBE™ F2040Chapter 2 | The heat pump design6
2 The heat pump design

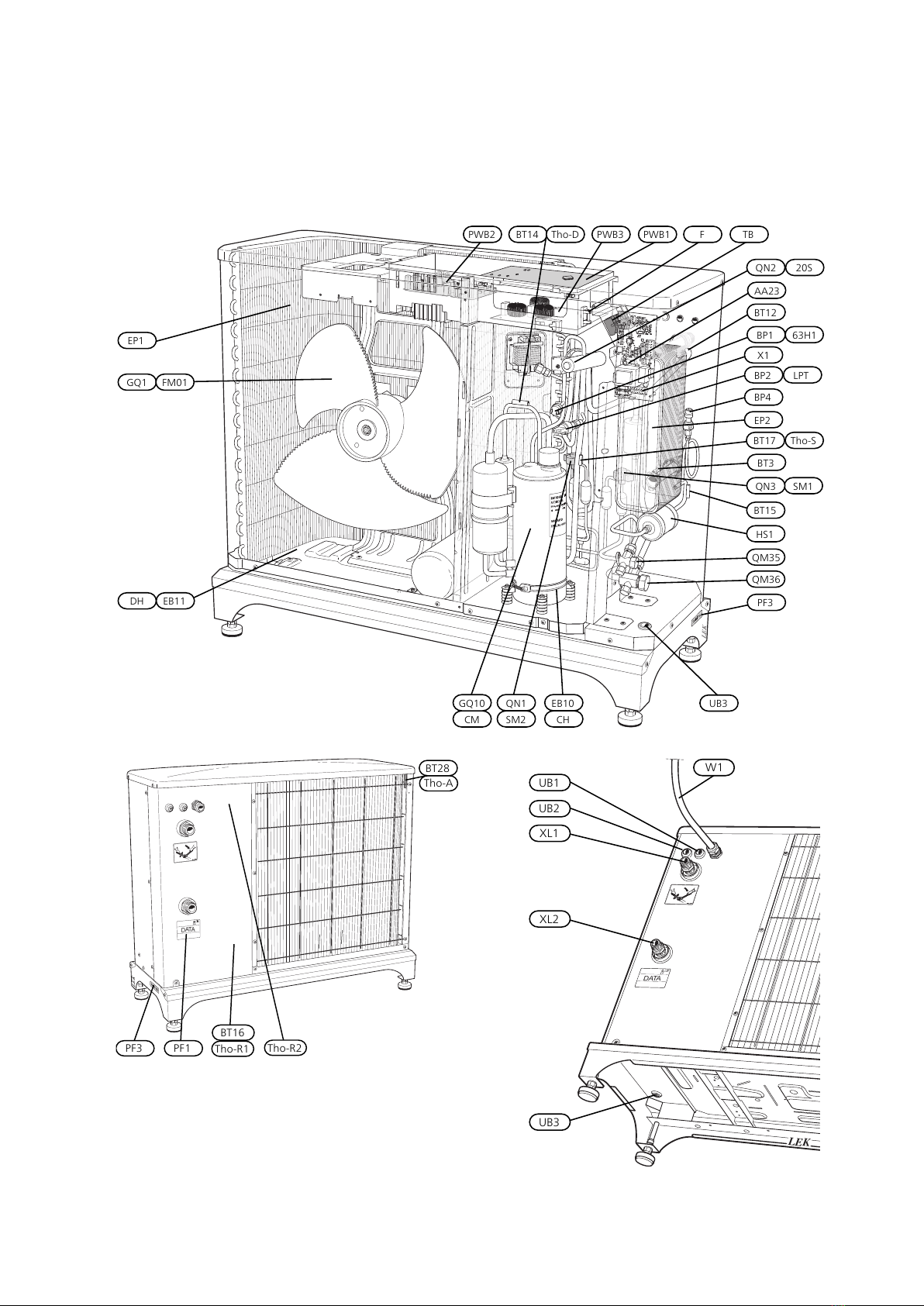

F2040-12
LEK
QN1
GQ1
GQ10 QM35
QN3
QM36
TB
BP1
QN2
PWB1
PWB2
PWB3
DH
UB3
BT3
BP4
PF3
BT15
EP1
EP2
HS1
BP2
BT12
X1
EB11
CM
20S
63H1
LPT SM2
SM1
FM01
CH
EB10
AA23
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DATA
Tho-A
BT28
PF1PF3 Tho-R1
BT16
Tho-R2
7Chapter 2 | The heat pump designNIBE™ F2040

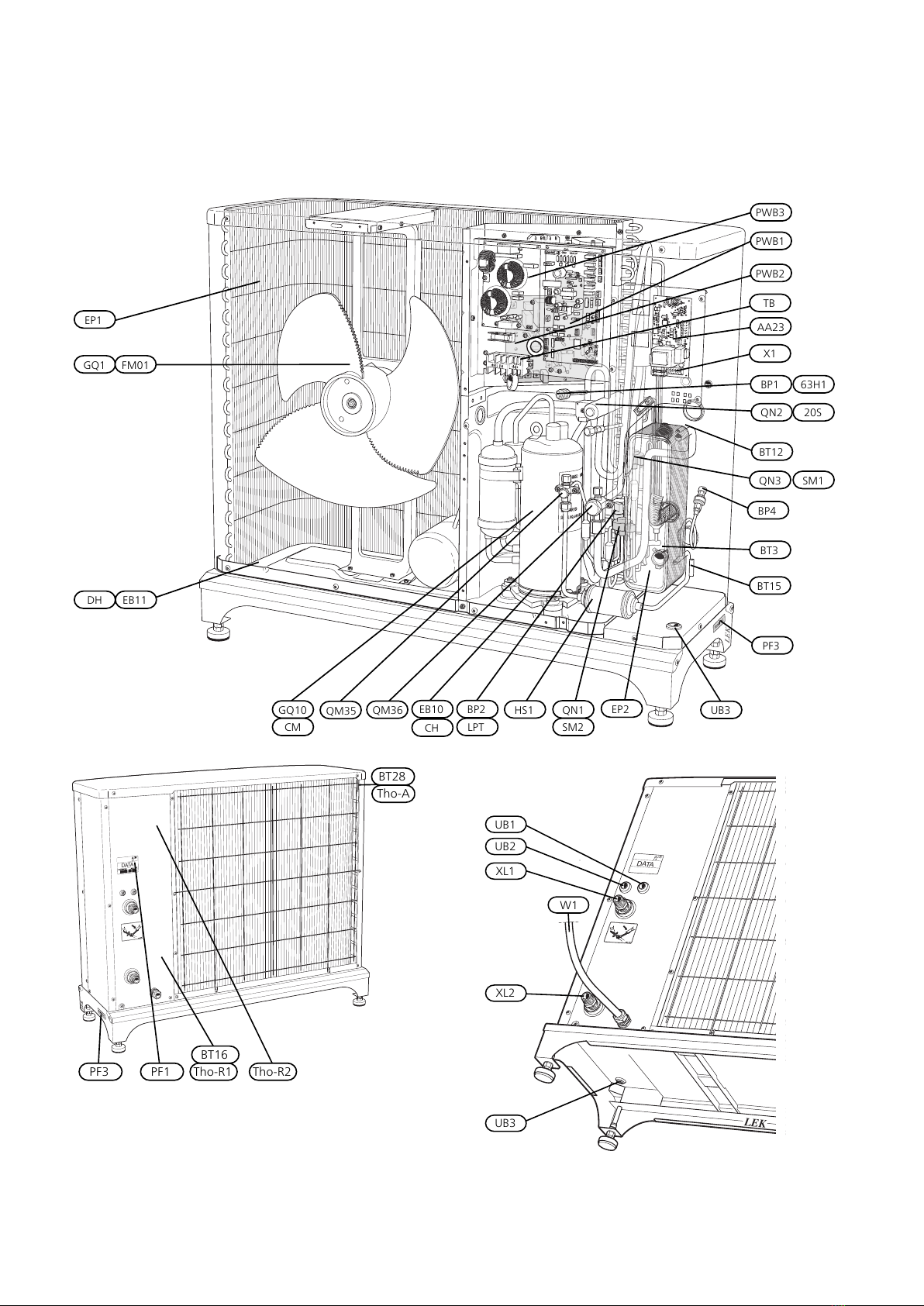

F2040-16
LEK
GQ1
DH
X1
CM
63H1
CH
SM2
SM1
FM01
PWB2 PWB3 PWB1
QN2 20S
BT12
TB
BP1
PF3
QN3
BP4
BT3
BT15
UB3
GQ10 HS1
QN1
EP2
QM36
QM35
EB11
GQ2 FM02
EP1
F
LPT
BP2
AA23
Tho-D
BT14 EB10
Tho-SBT17
NIBE™ F2040Chapter 2 | The heat pump design8

LEK
DATA
XL2
UB1
UB2
XL1
UB3
W1
LEK
DATA
PF3 PF1
BT28
Tho-A
Tho-R1 Tho-R2
BT16
9Chapter 2 | The heat pump designNIBE™ F2040

List of components F2040-8, -12, -16
Pipe connections
Service valve, liquid sideQM35
Service valve, gas sideQM36
Connection, heating medium out ofF2040,
G1" (Ø28 mm)
XL1
Connection, heating medium in to F2040,
G1" (Ø28 mm)
XL2
Sensors etc.
High pressure pressostatBP1 (63H1)
Temperature sensor, heating medium return
line
BT3
Temperature sensor, condenser supply lineBT12
Temperature sensor, fluid pipeBT15
Low pressure transmitterBP2 (LPT)
High pressure sensorBP4
Electrical components

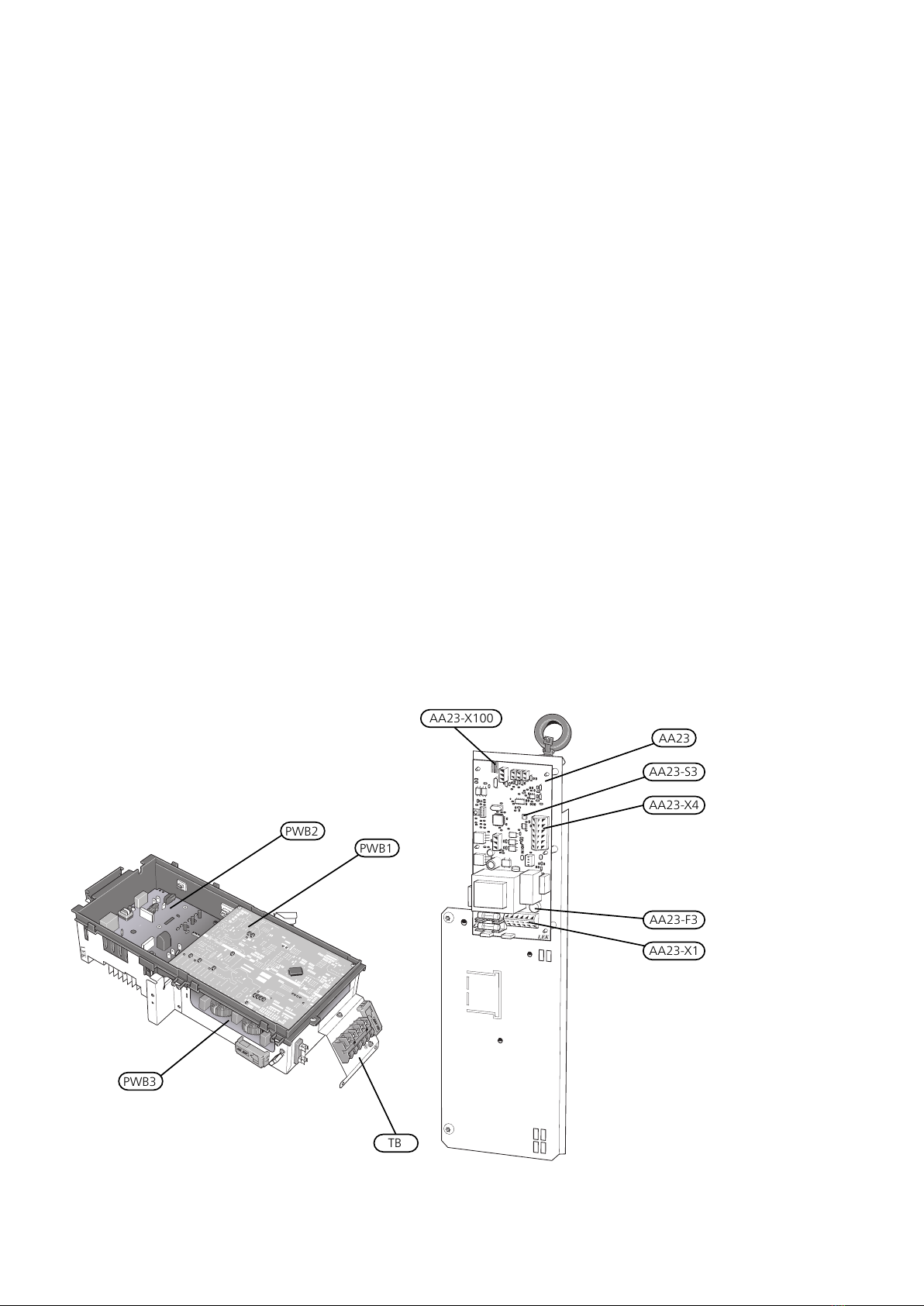

Communication boardAA23
Fuse for external heating cable (250 mA),
max 45 W.
AA23-F3
DIP switch, addressing of outdoor unitAA23-S3
Terminal block, KVRAA23-X1
Terminal block, communication from indoor
module
AA23-X4
Communication with TBAA23-
X100
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
FanGQ1
(FM01)
FanGQ2
(FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
Terminal block, incoming supply and com-
munication with board AA23
TB
Cooling components
4-way valveQN2 (20S)
CompressorGQ10 (CM)
Expansion valve, coolingQN3 (SM1)
Expansion valve, heatingQN1 (SM2)
Evaporator (air coil, copper pipe with alu-
minium flange)
EP1
Condenser (ACH 30, copper/stainless steel)EP2
Drying filterHS1
Miscellaneous
Type platePF1
Serial numberPF3
Cable gland, incoming supplyUB1
Cable grommet, communicationUB2
Cable grommet, heating cable (EB14)UB3
Cable, incoming supplyW1
NIBE™ F2040Chapter 2 | The heat pump design10

Electrical connection
Electrical components

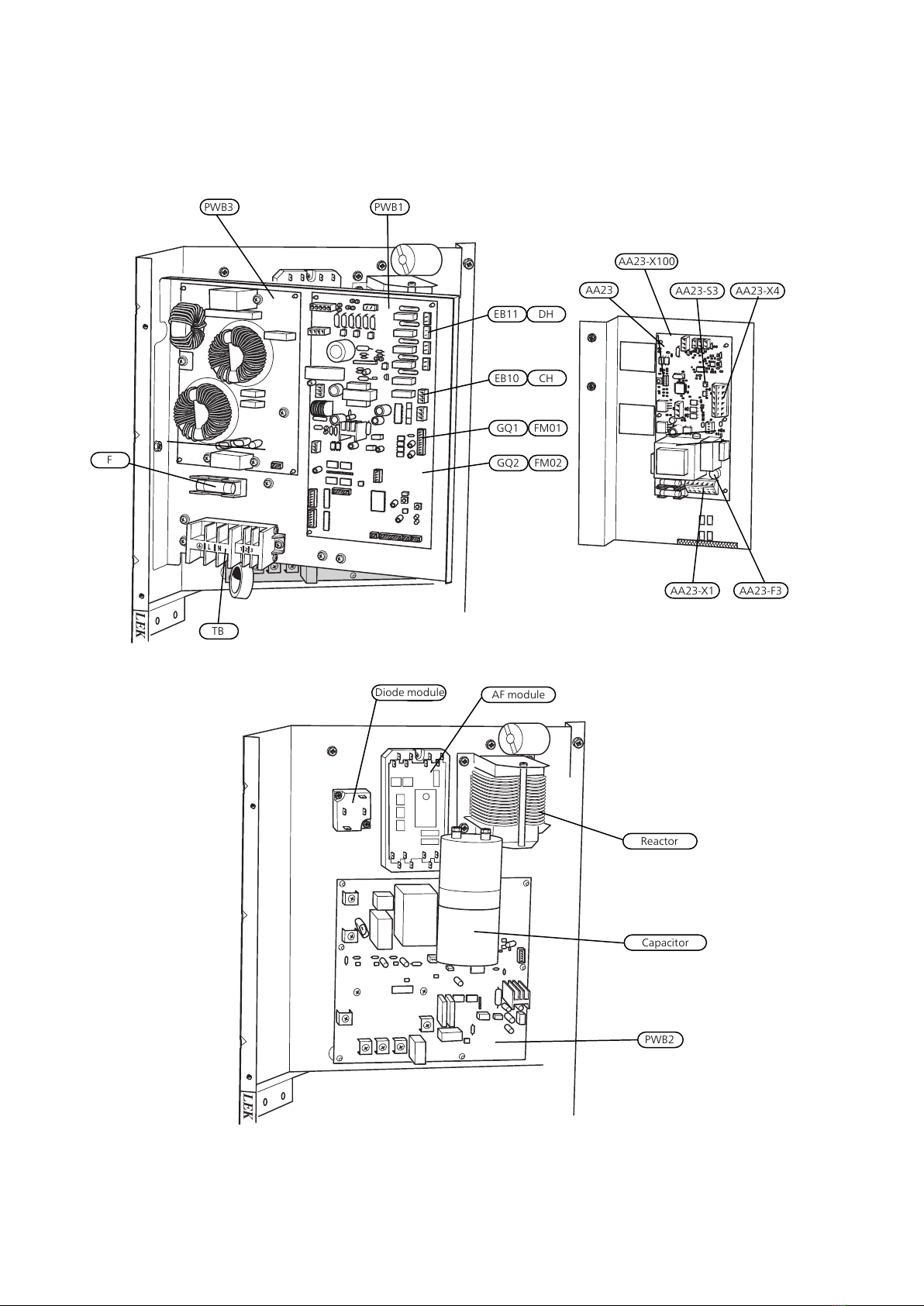

Communication boardAA23
Fuse for external heating cable (250 mA),
max 45 W.
AA23-F3
DIP switch, addressing of outdoor unitAA23-S3
Terminal block, KVRAA23-X1
Terminal block, communication from indoor
module
AA23-X4
Communication with TBAA23-
X100
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
FanGQ1
(FM01)
FanGQ2
(FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
Terminal block, incoming supply and com-
munication with board AA23
TB
F2040-8
LEK
LEK
AA23
AA23-F3
AA23-X4
AA23-X1
AA23-S3
PWB2
PWB1
PWB3
AA23-X100
TB
11Chapter 2 | The heat pump designNIBE™ F2040

F2040-12
Främre el
Bakre el
LEK LEK
EB11
PWB3 PWB1
EB10
AA23
FM01TB
F
AA23-F3
AA23-X4
AA23-X1
DH
CH
GQ1
AA23-S3
AA23-X100
Främre el
Bakre el
LEK LEK
PWB2
Capacitor
Reactor
AF module
Diode module
NIBE™ F2040Chapter 2 | The heat pump design12

F2040-16
Främre el
Bakre el
LEK LEK
PWB3 PWB1
EB10
FM01
AA23-X4
DH
CH
GQ1
TB
AA23-X1 AA23-F3
EB11
F
AA23 AA23-S3
FM02GQ2
AA23-X100
Främre el
Bakre el
LEK LEK
PWB2
PWB2
Capacitor
Reactor
AF module
Diode module
13Chapter 2 | The heat pump designNIBE™ F2040

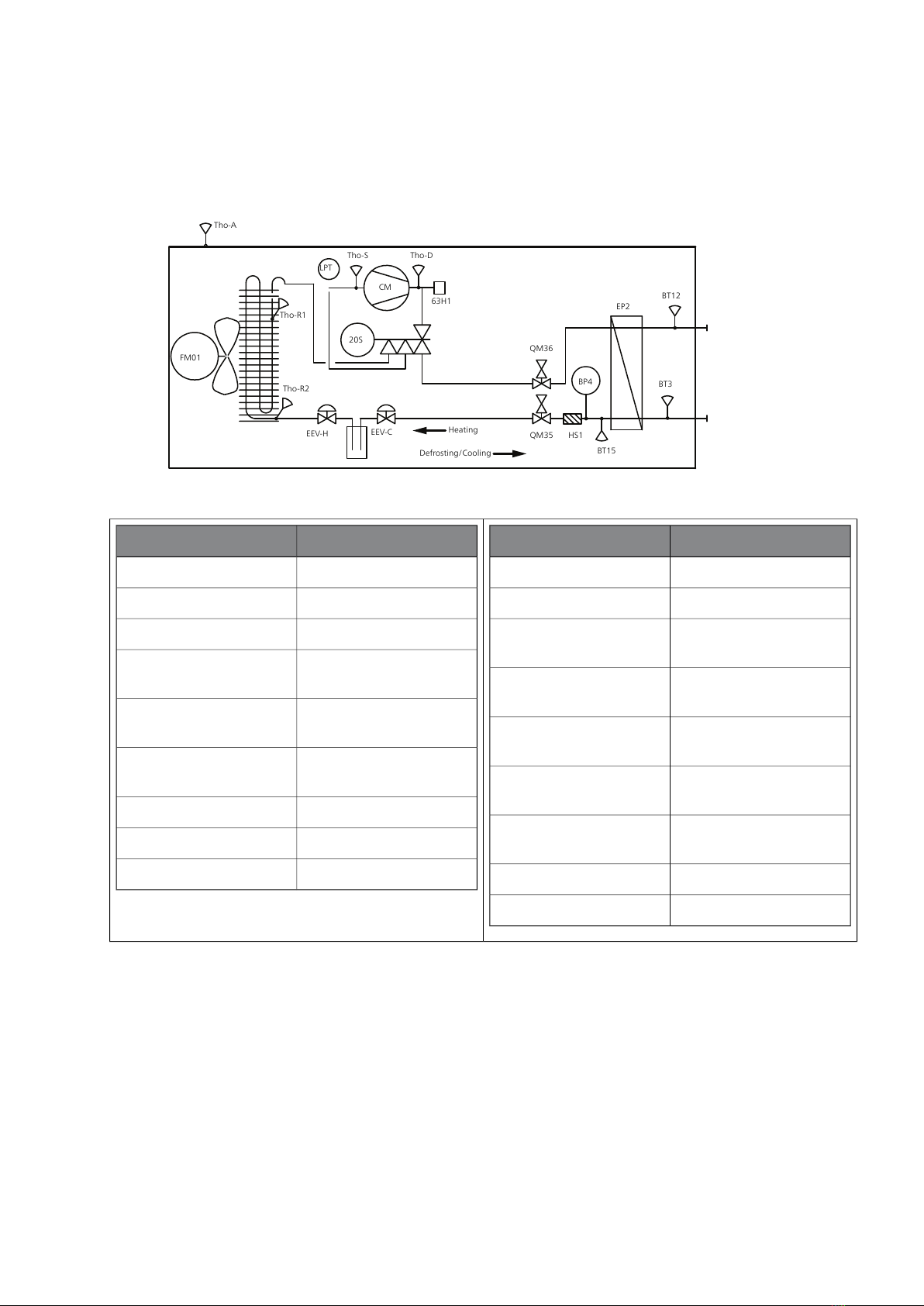

Principle of operation
Defrosting/Cooling
Tho-D
Tho-S
LPT
20S
Tho-R1
EEV-H EEV-C
FM01
CM
63H1
BP4 BT3
BT12
EP2
BT15
HS1
Tho-A
Heating
QM36
QM35
Tho-R2
InformationDesignation
Drying filterHS1
Low pressure transmitterBP2 (LPT)
Temperature sensor, ambi-
ent
BT28 (Tho-A)
Temperature sensor, hot
gas
BT14 (Tho-D)
Temperature sensor, heat
exchanger out
BT16 (Tho-R1)
Temperature sensor, heat
exchanger, in
Tho-R2
Temperature sensor, suc-
tion gas
BT17 (Tho-S)
Service valve, liquid sideQM35
Service valve, gas sideQM36
InformationDesignation
4-way valveQN2 (20S)
High pressure pressostatBP1 (63H1)
Pressure sensor, condenserBP4
Temperature sensor, heat-
ing medium return line
BT3
Temperature sensor, con-
denser supply line
BT12
Temperature sensor, fluid
pipe
BT15
CompressorGQ10 (CM)
CondenserEP2
FanGQ1 (FM01)
NIBE™ F2040Chapter 3 | System description14
3 System description

Sensor internal
Sensors etc.
FunctionLocationNameDesigna-
tion
Protects the compressor against pressures that are
too high during normal operation.
On hot gas line.High pressure switch
(41.5 bar)
BP1
Protects the compressor against pressures that are
too low.
On suction gas line.Low pressure transmit-
ter
BP2
Stopping the compressor at high pressure.On hot gas line.High pressure sensorBP4
Stopping the compressor at high temp.On return line at the condens-
er.
Return pipeBT3
Stopping the compressor at high temp.On supply line at the con-
denser.
Flow pipeBT12
View.On the liquid line after the
condenser.
Fluid pipeBT15
15Chapter 3 | System descriptionNIBE™ F2040

System diagram

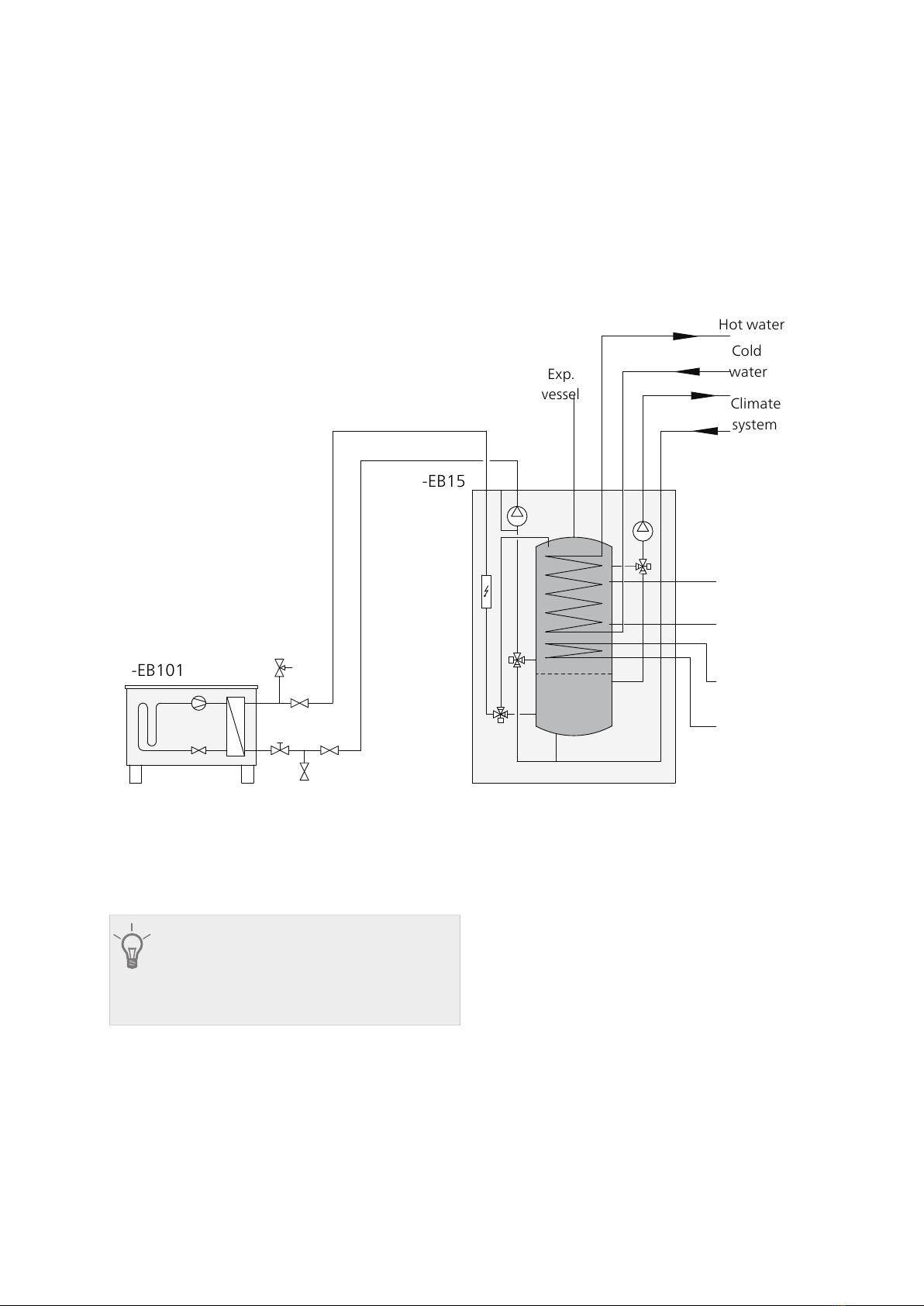

System principle Docking
Example of docking F 2040 to VVM 310/VVM 500.
F2040 can also be connected to SMO20, SMO40 and
VVM320.
-EB101
-EB15
Hot water
Cold
water
Exp.
vessel Climate
system
TIP
Several system principles available at
www.nibe.se/docking.
Refer to the Installer manual for description
of possible docking alternatives.
NIBE™ F2040Chapter 3 | System description16

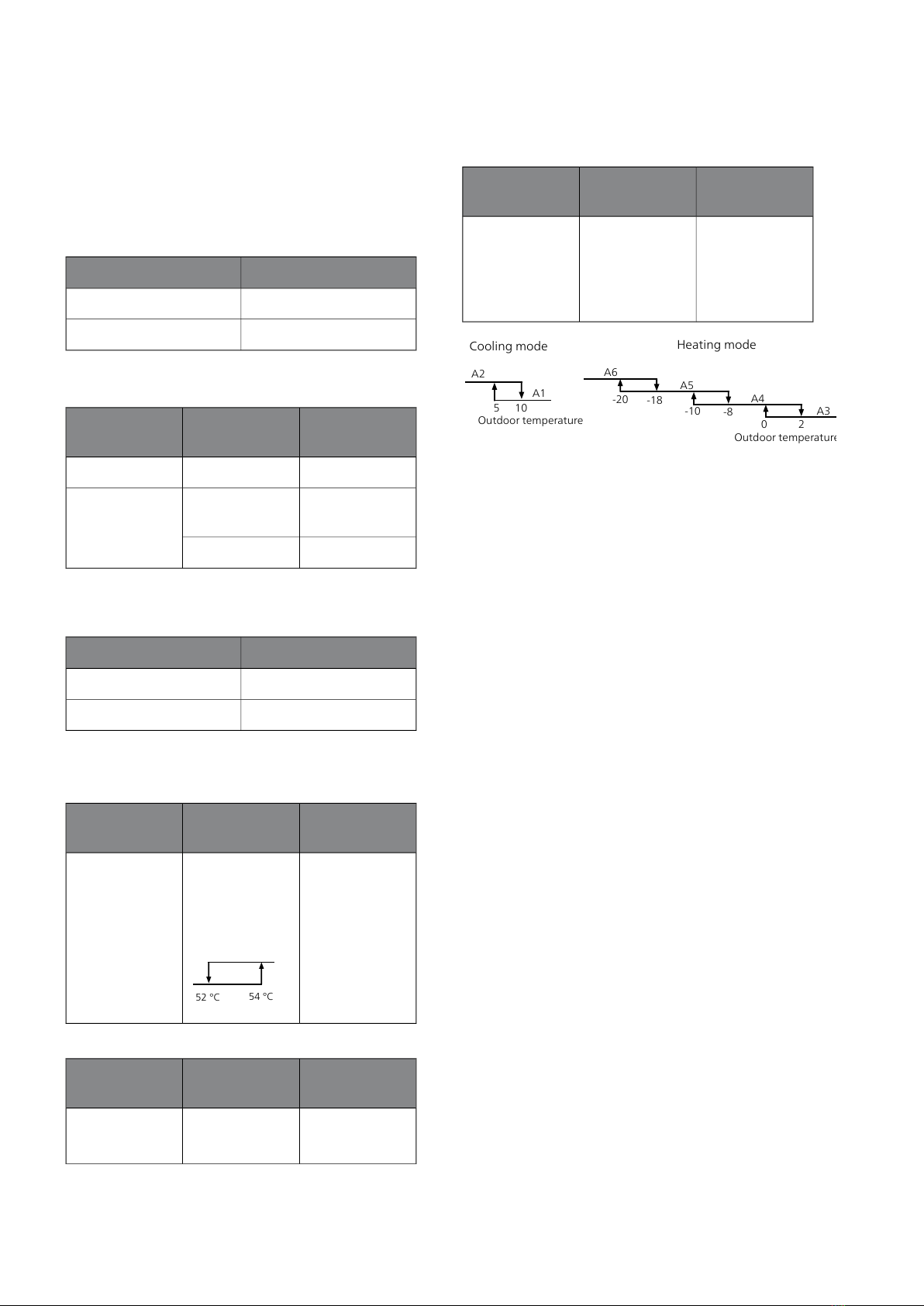

Compressor operation
Max speed
Max speed:
Speed F2040 (rps)State
80Cooling mode
120Heating mode
Max speed can be restricted in menu 9.1.9.
Max speed at high outdoor temperature:
Speed F2040
(rps)
Sensor temper-
ature (Tho-A)
State
75Tho-A > 40 °CCooling mode
85-2 < Tho-A =<
18°C
Heating mode
60Tho-A > 18 °C
Min speed
Min speed:
Speed F2040 (rps)State
20Cooling mode
25Heating mode
Min speed during high condensing in heating mode:
Lowest compressor speed changes according to follow-
ing table
Speed F2040
(rps)
State
35Condenser tem-
perature or liquid
line temp., the
one that is
greatest
Heating mode
52 °C 54 °C
Min speed at low outdoor temperature:
Speed F2040
(rps)
State
0A1Cooling mode
+15A2
Speed F2040
(rps)
State
0A3Heating mode
+10A4
+20A5
+30A6
Cooling mode Heating mode
A2
A1
510
Outdoor temperature
A6
-20 -18
-10 -8
02
A5
A4
A3
Outdoor temperature
17Chapter 4 | Description of functionsNIBE™ F2040
4 Description of functions

The compressor's speed change
The compressor's greatest speed change is 6 rps/30 sec.
Compressor start
The compressor restarts if the following conditions are
met:
■The inner unit sends start signals.
■More than three minutes have passed since the
compressor was stopped.
The compressor's speed is calculated by the connected
indoor unit which requests the necessary output.
Upon first start-up in heating operating mode, after
the current has be switched on, the outdoor unit delays
the compressor start by 30 minutes, to prevent oil being
drained from the compressor.
During the delay, ”Protection” appears in menu 5.0.
Start procedure for the compressor
Process 1
The compressor usually starts with process 1.
The compressor starts at a speed of 30 rps and attempts
to meet a target speed of "55 rps" with a speed increase
of 5 rps / 5 sec.
Defrosting stops when the pressure difference exceeds
0.34 MPa in heating operation.. In cooling operation
it is stopped when the low pressure is 0.8 MPa. When
the pressure difference is achieved the target speed is
changed to "A" rps and maintained for "B" minutes.
B minA rpsState
420Cooling mode
255Heating mode
Process 2
First start after the heat pump has been powerless.
The compressor starts at a speed of 30 rps and attempts
to meet a target speed of "55 rps" with a speed increase
of 5 rps / 5 sec.
Defrosting stops when the pressure difference exceeds
0.34 MPa in heating operation.. In cooling operation
it is stopped when the low pressure is 0.8 MPa. The
compressor then holds "A rps" for "B min".
B minA rpsState
1030Cooling mode
1030Heating mode
Process 3
If both the following conditions are met:
■Restart of the compressor in heating operation if the
compressor has been stopped for 2 hours or more.
■Ambient temp. at restart is lower than 0 °C.
The compressor starts at a speed of 30 rps and attempts
to meet a target speed of "55 rps" with a speed increase
of 5 rps / 5 sec.
Defrosting stops when the pressure difference exceeds
0.34 MPa in heating operation.. In cooling operation
it is stopped when the low pressure is 0.8 MPa. The
compressor then holds "A rps" for "B min".
B minA rpsState
1540Heating mode
NIBE™ F2040Chapter 4 | Description of functions18
