Nibe F2040 Series User manual

User manual
LEK
LEK
LEK
UN
F2040
6, 8, 12, 16 – UK 1x230V
Air/water heat pump
UHB EN 1746-4
231847

Table of Contents
31 Important information
3Installation data
4Safety information
6Serial number
7Country specific information
8F2040 – An excellent choice
92 The heat pump – the heart of the house
9Heat pump function
11Contact with F2040
12Maintenance of F2040
173 Disturbances in comfort
17Troubleshooting
184 Technical data
195 Glossary
23Item register
F2040Chapter |2

1 Important information
Installation data
F2040Product
Serial number
Installation date
Installer
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
3F2040Chapter 1 | Important information

Safety information
SEMKO text
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2017.
NOTE
F2040 must be installed via an isolator switch with a minimum
breaking gap of 3 mm.
NOTE
If the supply cable is damaged, only NIBE, its service representative
or similar authorised person may replace it to prevent any danger
and damage.
F2040Chapter 1 | Important information4

Symbols
NOTE
This symbol indicates danger to person or machine .
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
The CE mark is obligatory for most products sold in the EU, regardless
of where they are made.
CE
Classification of enclosure of electro-technical equipment.IP24
Danger to person or machine.
!
Read the User Manual.
5F2040Chapter 1 | Important information

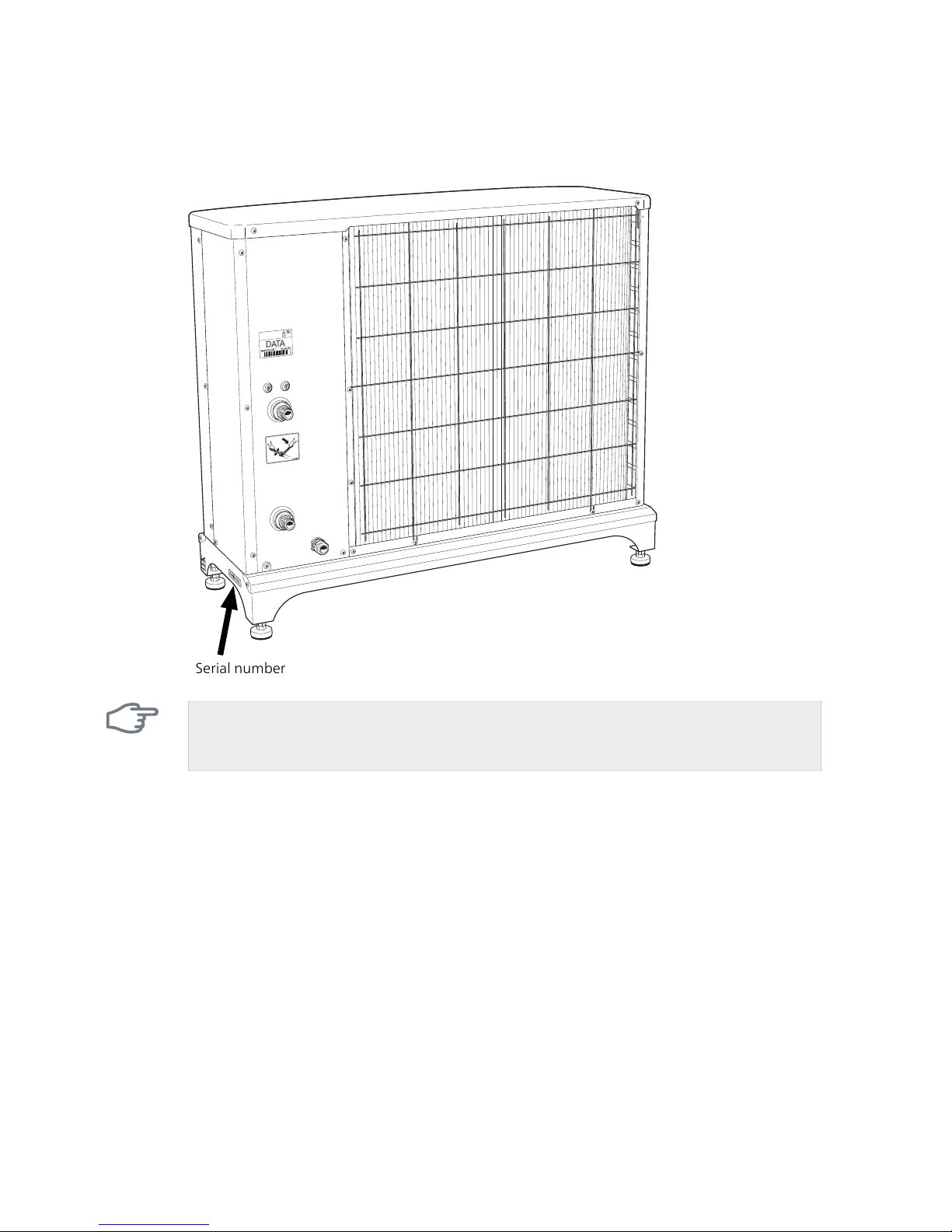

Serial number
The serial number for F2040 can be found on the side of the foot.
LEK
DATA
Serial number
Caution
You need the product's (14 digit) serial number for servicing and support.
F2040Chapter 1 | Important information6

Country specific information
Great Britain
This installation is subject to building regulation approval, notify the local
Authority of intention to install.
Use only manufacturer’s recommended replacement parts.
Nibe is a licensed member of the Benchmark Scheme which aims to im-
prove the standards of installation and commissioning of domestic heating
and hot water systems in the UK and to encourage regular servicing to
optimise safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater In-
dustry Council. For more information visit www.centralheating.co.uk
7F2040Chapter 1 | Important information

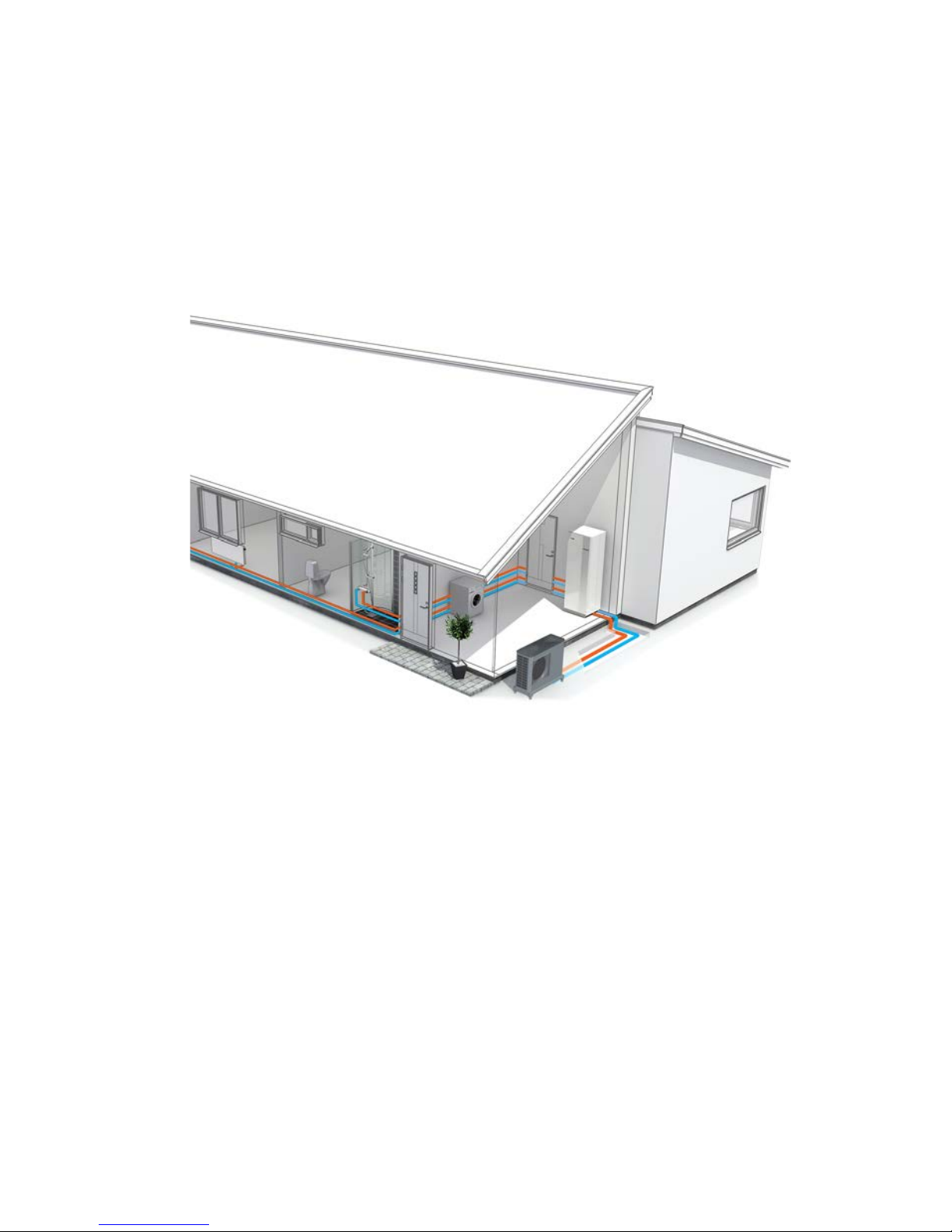

F2040 – An excellent choice
F2040 is an air/water heat pump, specially designed for the Nordic climate,
which uses the outdoor air as its energy source.
The heat pump is intended for connection to water borne heating systems
and can both heat hot water effectively at high outdoor temperatures
and give a high output to the heating system at low outdoor temperatures.
If the outdoor temperature drops to a level below the stop temperature
all heating must then occur with external additional heat.
Excellent properties for F2040:
■Efficient twin rotary compressor
Efficient twin rotary compressor that operates at temperatures down
to -20 °C.
■Intelligent control
F2040 connected to intelligent control for optimum control of the heat
pump.
■Fan
F2040 has automatic capacity regulation of the fan.
■Long service life
The material has been chosen for a long service life and is designed to
withstand the Nordic outdoor conditions.
The material has been chosen for a long service life.
■Many possibilities
F2040 is intended to be combined with NIBE indoor module VVM / NIBE
control module SMO. There is a wide range of system solutions and ac-
cessories for indoor modules and control modules.
■Silent operation
F2040 has a silent operation function that allows scheduling when F2040
must operate at an even quieter noise level.
F2040Chapter 1 | Important information8

2 The heat pump – the heart of
the house

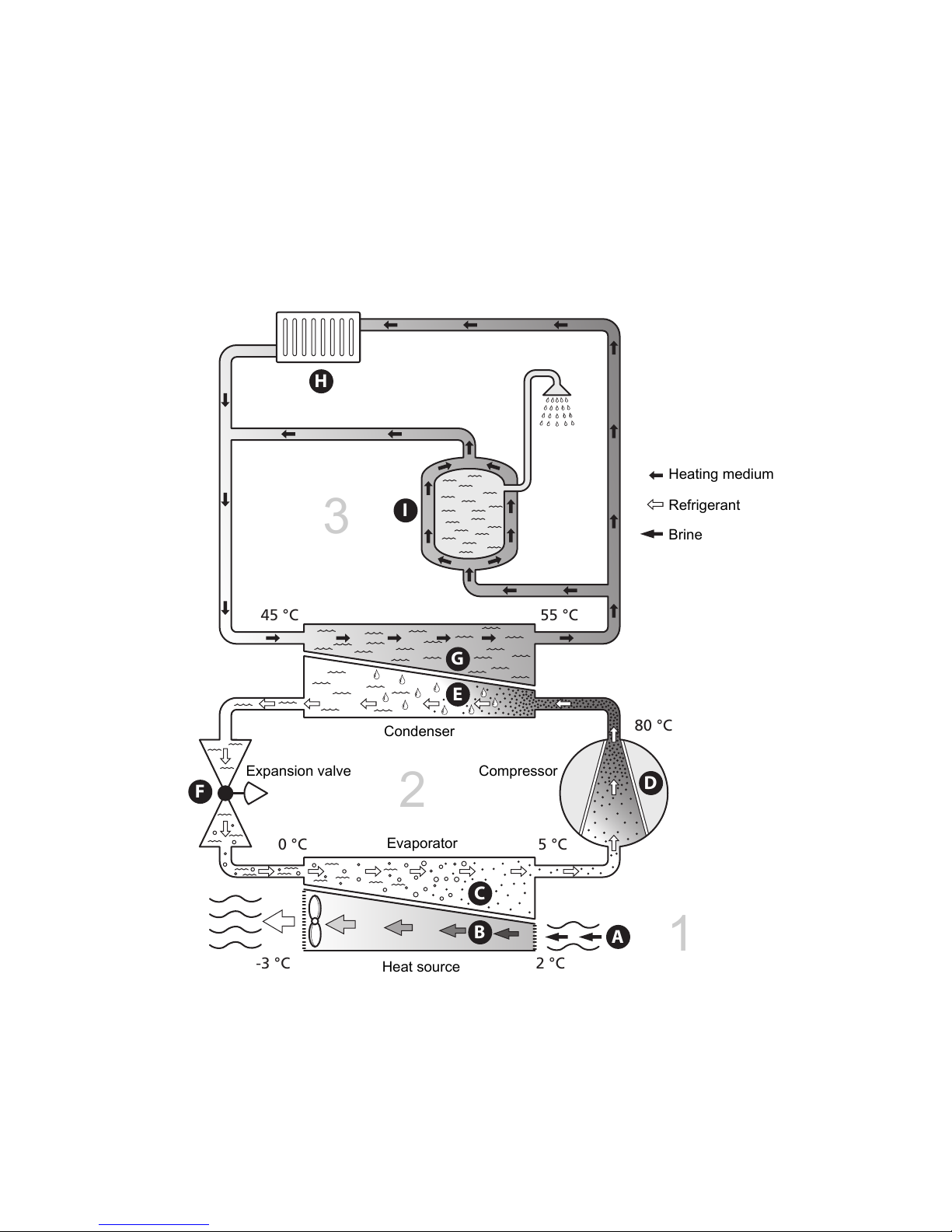

Heat pump function
Värmebärare
Köldmedium
Uteluft
Förångare
Kondensor 80 °C
2 °C-3 °C
5 °C0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
Heating medium
Värmebärare
Köldmedium
Köldbärare
Värmekälla
Förångare
Kondensor 100 °C
0 °C-3 °C
-2 °C
50 °C40 °C
Expansionsventil Kompressor
A
D
F
H
B
C
E
G
Brine
Refrigerant
Evaporator
Condenser
Expansion valve Compressor
Heat source 1
2
3
The temperatures are only examples and may vary between different installations and
time of year.
9F2040Chapter 2 | The heat pump – the heart of the house

An air/water heat pump can use the outdoor air to heat a property. The
conversion of the outdoor air's energy to property heating occurs in three
different circuits. In the brine circuit, (1) , free heat energy is retrieved from
the surroundings and transported to the heat pump. In the refrigerant
circuit, (2) , the heat pump increases the retrieved heat's low temperature
to a high temperature. In the heating medium circuit, (3) , the heat is dis-
tributed around the house.
Outdoor air
The outdoor air is sucked into the heat pump.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air
releases the heating energy to the refrigerant and the air's temperature
drops. The cold air is then blown out of the heat pump.
B
Refrigerant circuit
A gas circulates in a closed system in the heat pump, a refrigerant, which
also passes the evaporator. The refrigerant has a very low boiling point. In
the evaporator the refrigerant receives the heat energy from the outdoor
air and starts to boil.
C
The gas that is produced during boiling is routed into an electrically
powered compressor. When the gas is compressed, the pressure increases
and the gas’s temperature increases considerably, from approx. 5 °C to
approx. 80 °C.
D
From the compressor, gas is forced into a heat exchanger, condenser,
where it releases heat energy to the heating system in the house,
whereupon the gas is cooled and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve,
where the pressure drops so that the refrigerant returns to its original
temperature. The refrigerant has now completed a full cycle. It is routed
to the evaporator again and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved
by the climate system's water, heating medium, which is heated to 55 °C
(supply temperature).
G
The heating medium circulates in a closed system and transports the heated
water's heating energy to the house water heater and radiators/heating
coils.
H
The temperatures are only examples and may vary between different installations and
time of year.
F2040Chapter 2 | The heat pump – the heart of the house10

Contact with F2040
F2040 is controlled in various ways depending on your system. Your contact
with the heat pump takes place via your indoor module (VVM) or control
module (SMO). See relevant manual for more information.
During installation, the installation engineer adjusts the necessary settings
for the heat pump in the indoor module or control module, so that the
heat pump works optimally in your system.
11F2040Chapter 2 | The heat pump – the heart of the house

Maintenance of F2040
Regular checks
When your heat pump is located outdoors some external maintenance is
required.
NOTE
Insufficient maintenance can cause serious damage to F2040, which is
not covered by the guarantee.
Checking grilles and bottom panel
Check that the inlet grille is not clogged by leaves, snow or anything else
regularly throughout the year.
You should be vigilant during windy conditions and/or in the event of
snow as the grilles can become blocked.
Also check that the drain holes in the bottom panel (three) are free from
dirt and leaves.
Regularly check that condensation is routed away correctly through the
condensation pipe. Ask your installer for assistance if required.
LEK
LEK
LEK
LEK

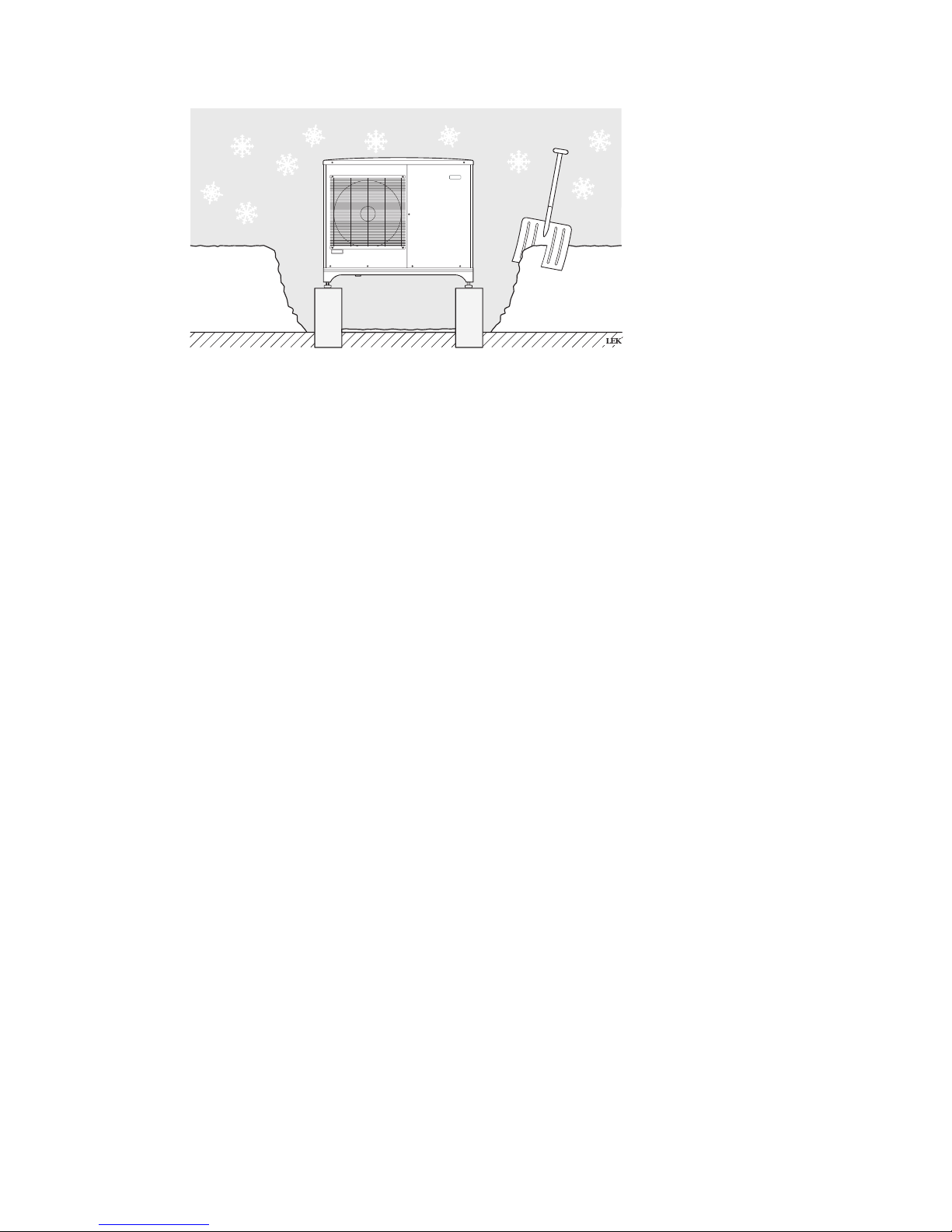

Prevent snow building up and covering the grille on F2040.
F2040Chapter 2 | The heat pump – the heart of the house12

LEK
LEK
LEK
LEK
Keep free of snow and/or ice.
Cleaning the outer casing
If necessary the outer casing can be cleaned using a damp cloth.
Care must be exercised so that the heat pump is not scratched when
cleaning. Avoid spraying water into the grilles or the sides so that water
penetrates into F2040. Prevent F2040 coming into contact with alkaline
cleaning agents.
In event of long power cuts
In the event of prolonged power failures it is recommended that the part
of the heating system located outdoors is drained. Your installer has in-
stalled a shut off and drain valve to facilitate this. Call and ask your installer
if you are unsure.
Silent mode
The heat pump can be set to "silent mode", which reduces the heat pump's
noise level. The function is useful when F2040 must be placed in noise
sensitive areas. The function should only be used for limited periods as
F2040 may not reach its dimensioned output.
Saving tips
Your heat pump installation produces heat and cooling and/or hot water.
This occurs via the control settings you made.
Factors that affect the energy consumption are, for example, indoor tem-
perature, hot water consumption, the insulation level of the house and
whether the house has many large window surfaces. The position of the
house, e.g. wind exposure is also an affecting factor.
Also remember:
13F2040Chapter 2 | The heat pump – the heart of the house

■Open the thermostat valves completely (except in the rooms that are to
be kept cooler for various reasons, e.g. bedrooms). The thermostats slow
the flow in the heating system, which the heat pump wants to com-
pensate with increased temperatures. It then works harder and consumes
more electrical energy.
■Reduce or adjust the settings for heating in any external control systems.
Power consumption
Energiförbrukning fördelat över året
jan feb mars april maj juni juli aug sep okt nov dec
Månad
% av årsförbrukningen
0%
5%
10%
15%
20%
25%
The air/water heat pump's energy distribution spread across the year
Month
Jan Feb Mar April May June July Aug Sep Oct Nov Dec
% of annual
consumption
Increasing the indoor temperature one degree increases power consump-
tion by approx. 5%.
Domestic electricity
In the past it has been calculated that an average Swedish household has
an approximate annual consumption of 5000 kWh domestic electri-
city/year. In today's society it is usually between 6000-12000 kWh/year.
Approx.
annual
con-
sump-
tion
(kWh)
Normal Output
(W)
Equipment
StandbyOpera-
tion
3802200TV (Operation: 5 h/day, Standby: 19 h/day)
901011Digital box (Operation: 5 h/day, Standby:
19 h/day)
45515DVD (Operation: 2 h/week)
F2040Chapter 2 | The heat pump – the heart of the house14

Approx.
annual
con-
sump-
tion
(kWh)
Normal Output
(W)
Equipment
672160TV games console (Operation: 6 h/week)
50140Radio/stereo (Operation: 3 h/day)
1202100Computer incl. screen (Operation: 3 h/day,
standby 21 h/day)
175-60Bulb (Operation 8 h/day)
58-20Spot light, Halogen (Operation 8 h/day)
165-100Cooling (Operation: 24 h/day)
380-120Freezer (Operation: 24 h/day)
365-1500Stove, hob (Operation: 40 min/day)
310-3000Stove, oven (Operation: 2 h/week)
730-2000Dishwasher, cold water connection (Opera-
tion 1 time/day)
730-2000Washing machine (Operation: 1 times/day)
730-2000Tumble drier (Operation: 1 times/day)
100-1000Vacuum cleaner (Operation: 2 h/week)
50-400Engine block heater (Operation: 1 h/day, 4
months a year)
100-800Passenger compartment heater (Operation:
1 h/day, 4 months a year)
These values are approximate example values.
Example: A family with 2 children live in a house with 1 flat-screen TV, 1
digital box, 1 DVD player, 1 TV games console, 2 computers, 3 stereos, 2
bulbs in the WC, 2 bulbs in the bathroom, 4 bulbs in the kitchen, 3 bulbs
outside, a washing machine, tumble drier, fridge, freezer, oven, vacuum
cleaner, engine block heater = 6240 kWh domestic electricity/year
Energy meter
Check the accommodation's energy meter regularly, preferably once a
month. This will indicate any changes in power consumption.
Newly built houses usually have twin energy meters, use the difference to
calculate your domestic electricity.
15F2040Chapter 2 | The heat pump – the heart of the house

New builds
Newly built houses undergo a drying out process for a year. The house
can then consume significantly more energy than it would thereafter.
After 1-2 years the heating curve should be adjusted again, as well as the
offset heating curve and the building's thermostat valves, because the
heating system, as a rule, requires a lower temperature once the drying
process is complete.
F2040Chapter 2 | The heat pump – the heart of the house16

3 Disturbances in comfort
Troubleshooting
NOTE
Work behind covers secured by screws may only be carried out by, or
under the supervision of, a qualified installation engineer.
NOTE
F2040 communicates all alarms to the indoor module/control module
(VVM / SMO).
Basic actions
■Make sure that the air flow to F2040 is not blocked by foreign objects.
■Check that F2040 does not have any external damage.
Ice build-up in the fan, grille and/or fan cone on F2040
Contact your installer!
Large amount of water below F2040
Check that the water drainage via the condensation pipe (KVR 10) is
working.
17F2040Chapter 3 | Disturbances in comfort

4 Technical data
Detailed technical specifications for this product can be found in the in-
stallation manual (www.nibe.co.uk).
F2040Chapter 4 | Technical data18

5 Glossary
Additional heat
The additional heat is the heat produced in addition to the heat supplied
by the compressor in your heat pump. Additional heaters can be for ex-
ample, immersion heater, electric heater, solar power system,
gas/oil/pellet/wood burner or district heating.
Ambient temperature sensor
A sensor that is located outdoors on or close to the heat pump. This sensor
tells the heat pump how hot it is where the sensor is located.
Balance temperature
The balance temperature is the outdoor temperature when the heat
pump’s stated output is equal to the building’s output requirement. This
means that the heat pump covers the whole building’s output requirement
down to this temperature.
Charge coil
A charge coil heats the domestic hot water (tap water) in the water heater
with heating water (heating medium) from F2040.
Charge pump
See "Circulation pump".
Circulation pump
Pump that circulates liquid in a pipe system.
Climate system
Climate systems can also be called heating systems. The building is heated
using radiators, under floor coils or convector fans.
Coil tank
A heater with a coil in it. The water in the coil heats the water in the
heater.
Compressor
Compresses the gas state refrigerant. When the refrigerant is compressed,
the pressure and the temperature increase.
19F2040Chapter 5 | Glossary

Condenser
Heat exchanger where the hot gas state refrigerant condenses (cooled
and becomes a liquid) and releases heat energy to the house heating and
hot water systems.
COP
If a heat pump has COP of 5, this means that you only pay for a fifth of
your heating demand. This is the efficiency of the heat pump. This is
measured at different measurement values, e.g.: 7 / 45 where 7 stands
for the outdoor temperature and where 45 stands for how many degrees
the supply temperature is maintaining.
Disturbances in comfort
Disturbances in comfort are undesirable changes to the hot water/indoor
comfort, for example when the temperature of the hot water is too low
or if the indoor temperature is not at the desired level.
A malfunction in the heat pump can sometimes be noticed in the form of
a disturbance in comfort.
In most cases, the heat pump notes malfunctions and indicates this with
alarms in the display.
Domestic hot water
The water one showers in for example.
Double-jacketed tank
A heater with domestic hot water (tap water) is surrounded by an outer
vessel with boiler water (to the house radiators/elements). The heat pump
heats the boiler water, which in addition to going out to the all the house
radiators/elements, heats the domestic hot water in the inner vessel.
Efficiency
A measurement of how effective the heat pump is. The higher the value
is the better it is.
Electrical addition
This is electricity that, for example, an immersion heater uses as addition
during the coldest days of the year to cover the heating demand that the
heat pump cannot manage.
Evaporator
Heat exchanger where the refrigerant evaporates by retrieving heat energy
from the air which then cools.
F2040Chapter 5 | Glossary20
