NICOLAZZI Canterbury Z2632 User manual

Classic Prov Swiv Basin Twinner Lever Handle
Art: Z2632
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable

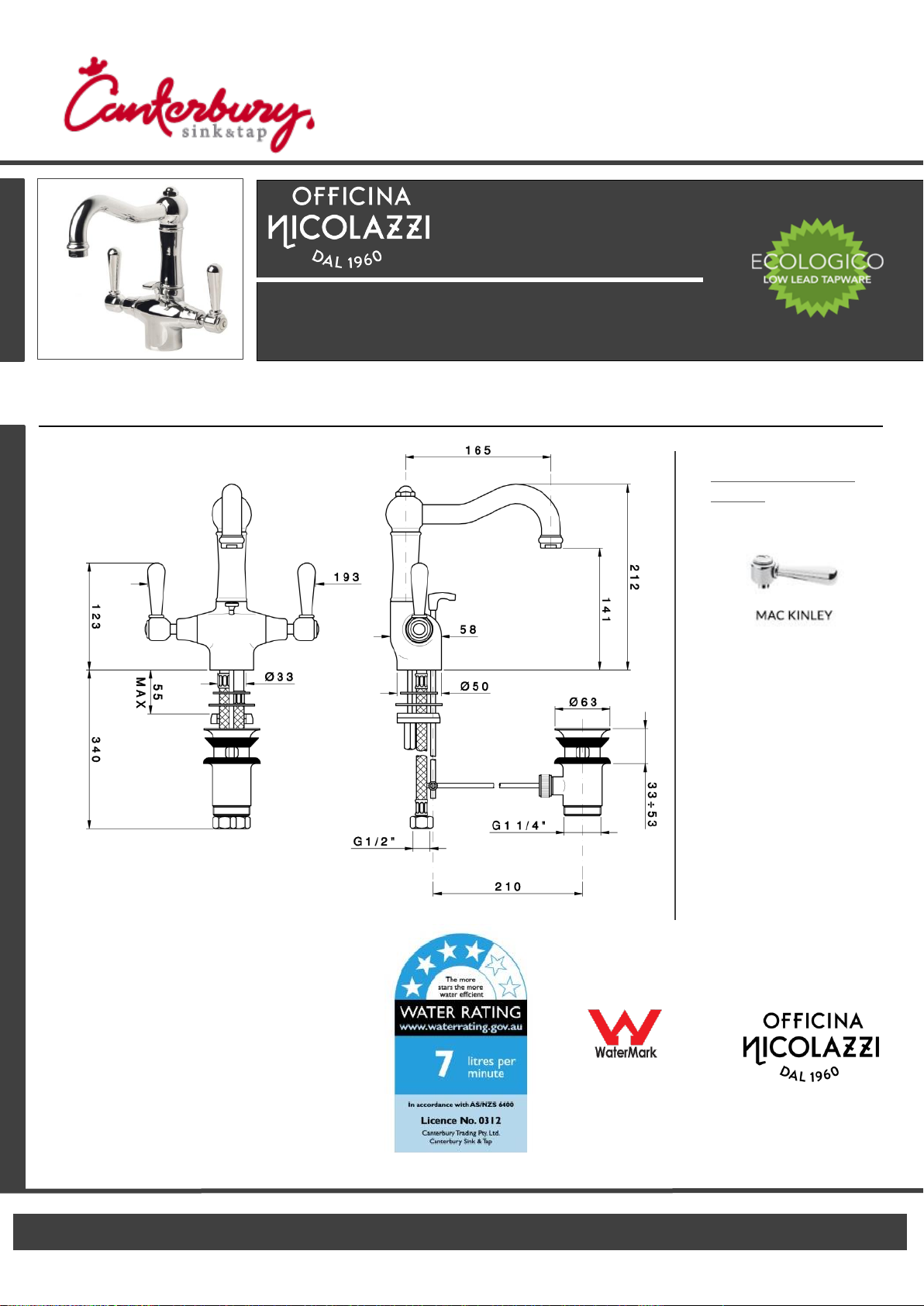

Specifications
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
Further information Phone [phone] [e-mail]
Available replacement
handles:

CAREFULLY READ THROUGH THESE INSTRUCTIONS BEFORE INSTALLATION AND USE OF ALL TAP WARE AND WALL
VALVES
INSTALLATION and WARRANTY INSTRUCTIONS
TECHNICAL INFORMATION
All flexible hoses are designed and manufactured for use with water in exposed locations only. Do not expose to
household cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
All connections with threads M10x1 male must be hand tighten. Do not over tighten. Over tightening may cause
damage to the hose.
All tap ware washers and o-rings are designed and manufactured for use with water. Do not expose to household
cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
Our tap ware is designed for use with the temperatures and pressures listed below:
minimum cold water supply 10 °C
maximum hot water supply 62 °C
minimum pressure 100 kPa
maximum pressure 500 kPa
maximum fixing torque value = 13.6 Nm
Please note: The recommended pressure for best performance is between 270 kPa and 420 kPa. More pressure than
420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware.
Do not use any Nicolazzi tap ware with sulphurous water.
The minimum temperature for all tap ware is 10 degrees Celsius . Below 10 degrees Celsius will void the warranty.
When available, filter systems must be placed between hot and cold supply lines and the tap ware. Improper use or
non-use of filters may make diverting tap ware with hand sprays perform poorly.
Don't modify the tap ware and their components.
Use only original spare parts if there are replacements to be ordered. Installation must be made by authorized
plumbers or installers. Improper installation or diagnosis of problems is not covered by the warranty. Yearly
maintenance of cleaning and flushing is recommended.
Operation and use of any tap ware or wall valve that do not conform to these technical instructions will void the
warranty.
Important Notice Model : Z2632
Further information Phone [phone] [e-mail]
2

Installation Instructions Model : Z2632
Further information Phone [phone] [e-mail]
❷
3
❶
Preparation
Tap body
Flush out the pipework to remove any foreign matter.
Tap body cut out hole sizes : Maximum 33mm diameter.
Under side clearance : Maximum 55mm
Continue…….
Install the pop-up waste body top section 1, and
waste body bottom section 4, to the basin as
shown.
Ensure that the top seal 2, and bottom seal 3, are
installed correctly, to ensure proper functioning
of the pop-up waste system and prevent any
water leakage.

Installation Instructions Model : Z2632
Further information Phone [phone] [e-mail]
❷
❸
4
❶
Continue…….

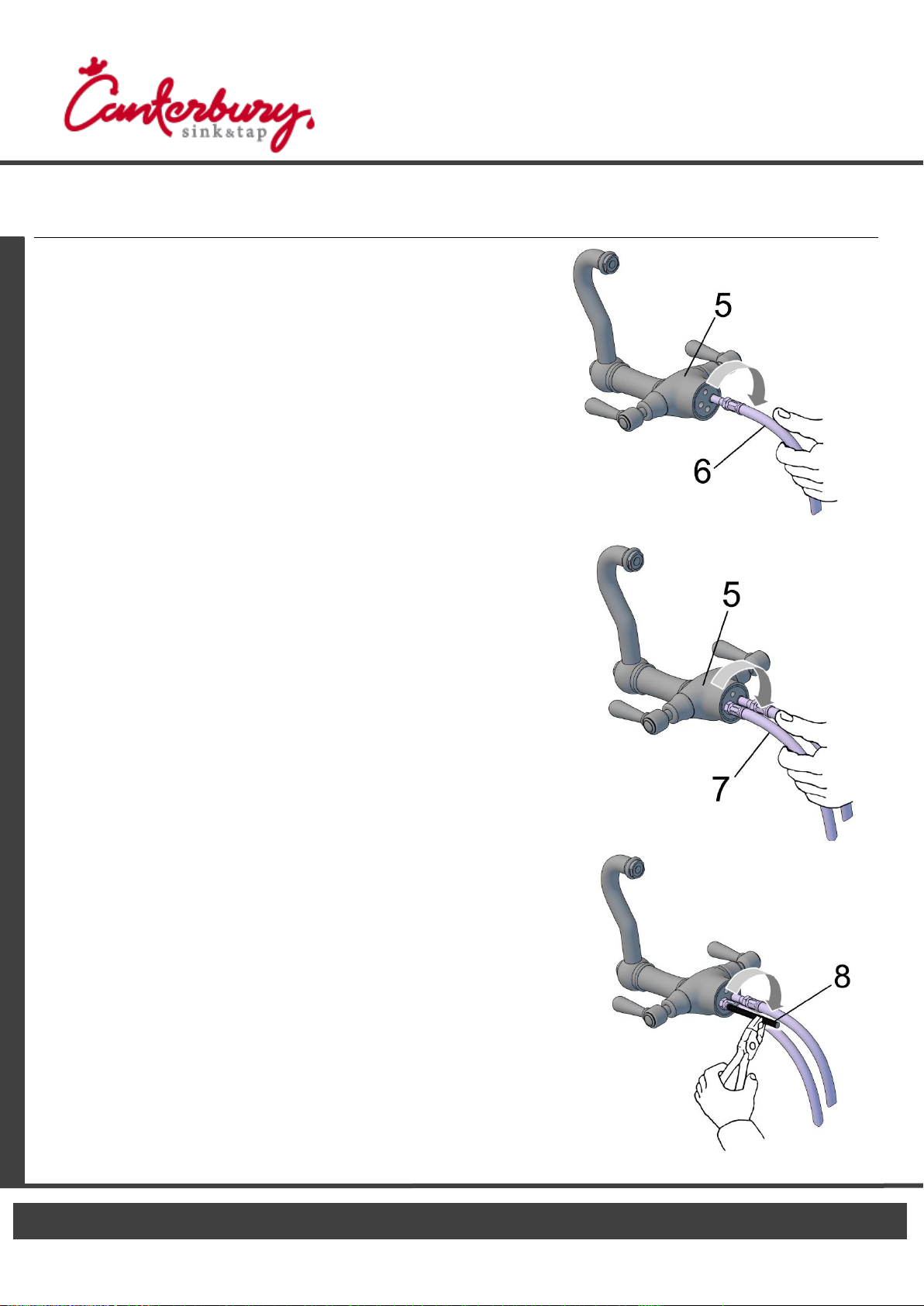

Install the water supply hose 6, into tap
the body 5.
- Note: Hand tighten only, DO NOT over
tighten- 6!
Install the second water supply hose 7, on
to tap body 5.
- Note: Hand tighten the supply hose only, DO
NOT over tighten- 7!
Install the supplied mounting stud 8, and
verify that it is securely installed.
- Note: Hand tighten the supply hose only, DO
NOT over tighten- 8!

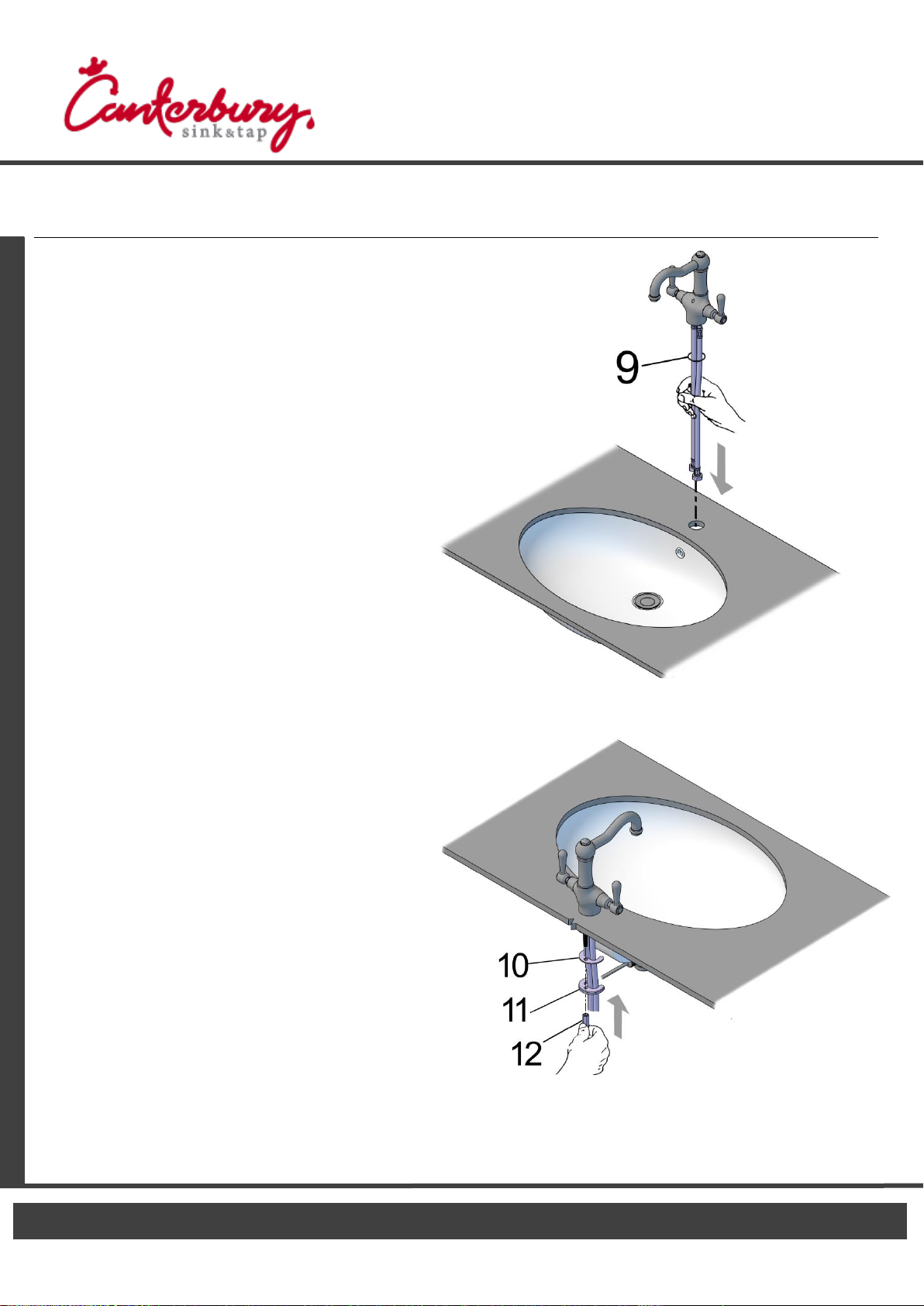

Under the counter top, stack the supplied
half ring rubber gasket 10, above the half
ring mounting plate 11, and feed them onto
the stud. Then screw the mounting nut 12,
onto the stud. Screw the mounting stud
until the half ring rubber mates up with the
underside of the top.
Feed the O-ring 9, over the water supply
hoses.
Note: Feed the water supply hoses through
the cut out hole, ensuring that they are not
bent or kinked, as this could result in
permanent damage or leakage. Locate the
tap over the mounting hole carefully.
Installation Instructions Model : Z2632
Further information Phone [phone] [e-mail]
❺
5
❹
Continue…….

Installation Instructions Model : Z2632
Further information Phone [phone] [e-mail]

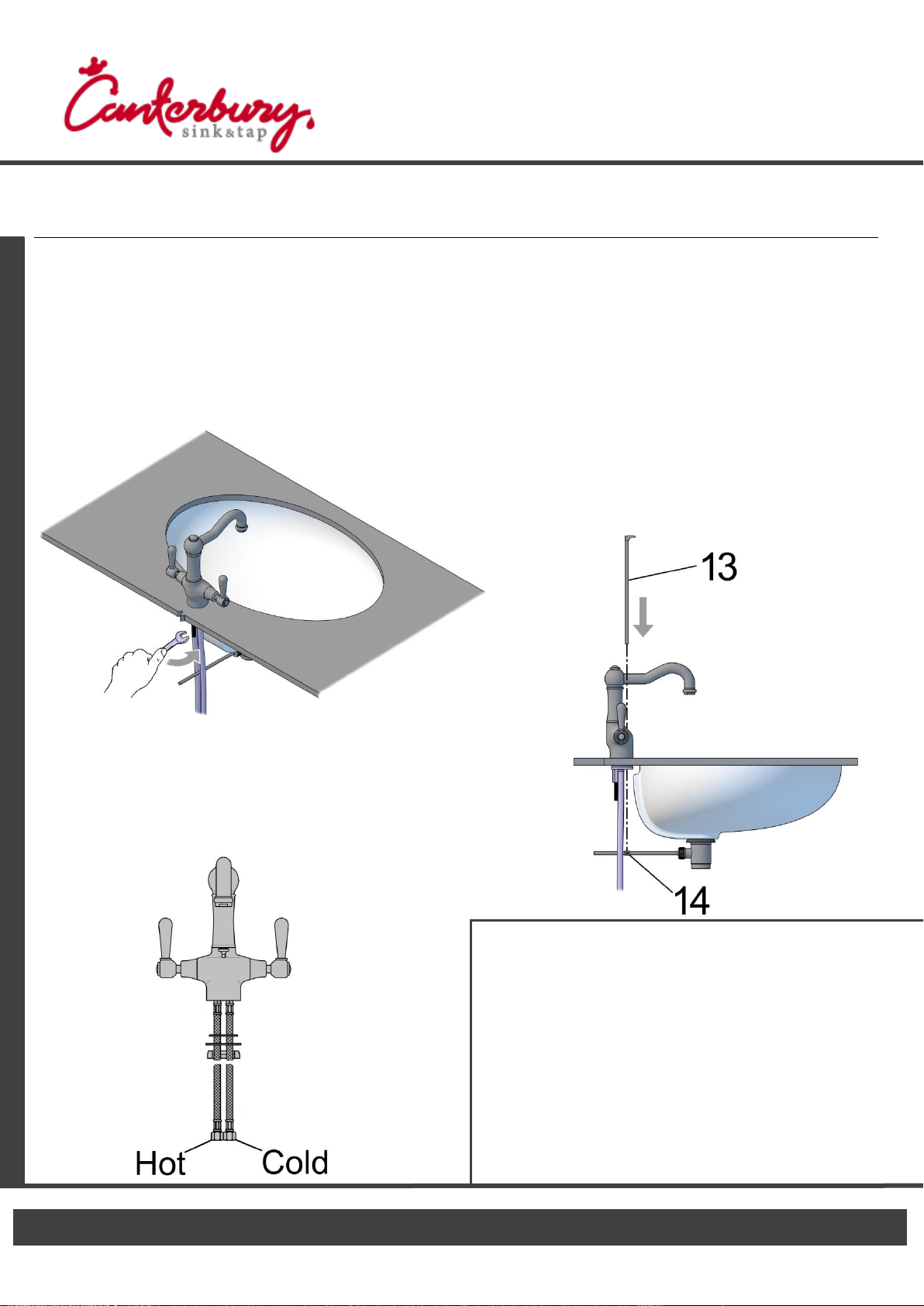

Check the position of the tap on the counter top,
and then tighten the nut using a 13mm spanner or
smooth jawed shifter.
Note: The under counter mounting surface must be
flat. If the mounting surface is irregular, the nut may
not be secured, and the tap will be loose on the
sink.
❼
6
❻
Install the vertical waste pop-up rod 13, by
feeding it through the hole in the top of the tap
body.
Feed the bottom end of the vertical pop-up rod
onto the articulated joint 14, located on the
horizontal waste pop-up rod.
Adjust the length of the vertical pop-up rod to
ensure the proper working of the pop-up
stopper.
Ensure that the locking screw on the articulated
joint is firmly secured.
Before use
Turn on the Hot and Cold supplies to the tap.
Maximum temperature for Hot water supply to the
tapware is 62 °C.
Minimum recommended pressure is 100 kPa —
Maximum recommended pressure is 500 kPa.
Check the installation carefully for leaks.
If further building work is to be carried out in the
vicinity of the tapware, it should be covered to prevent
paint, adhesive, etc. from damaging the surface.
❽
Connect hot and cold water supplies to the
flexi tail hoses.
Ensure all connections are firmly tightened.

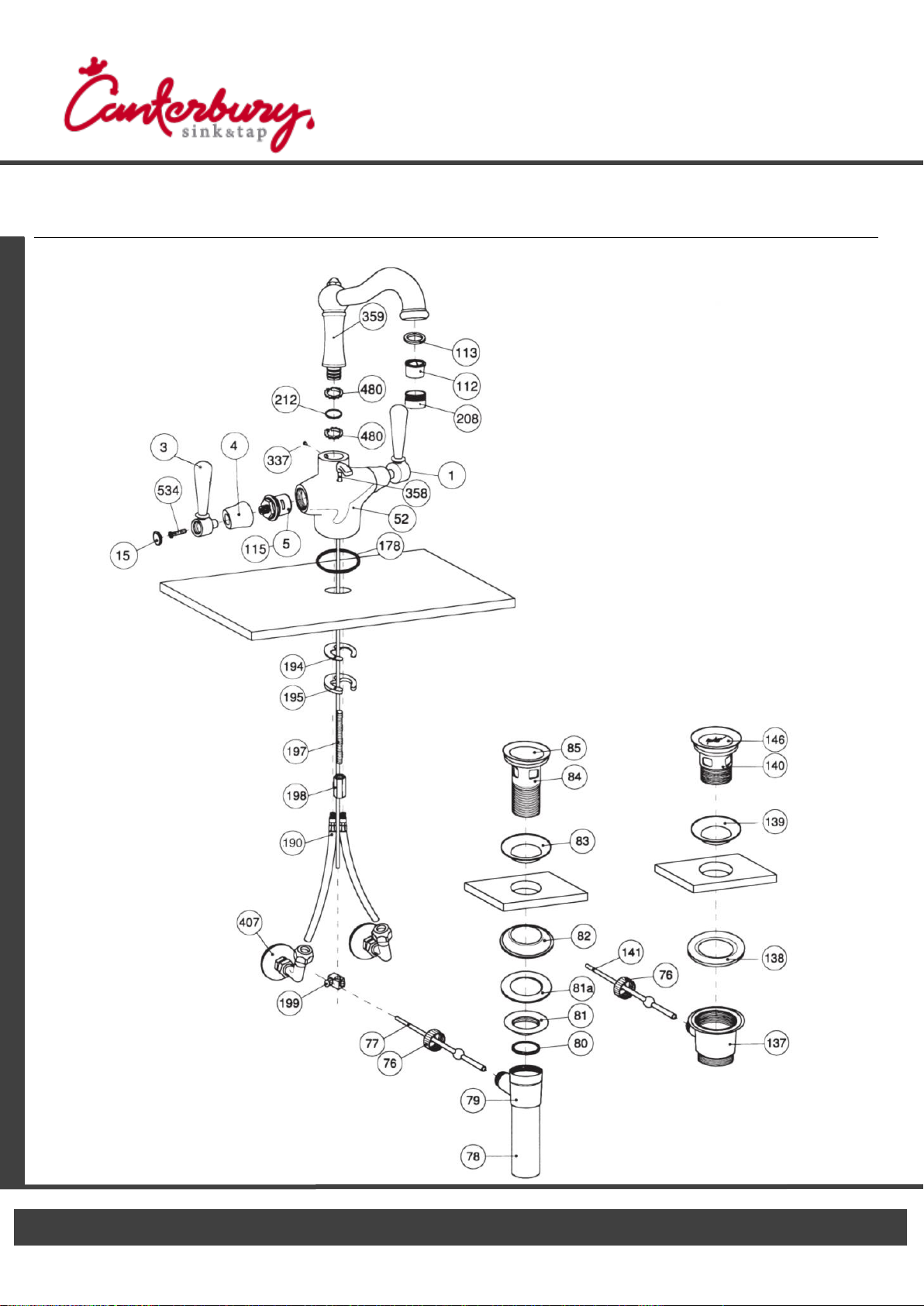

Spare Parts list Model : Z2632
Further information Phone [phone] [e-mail]
7

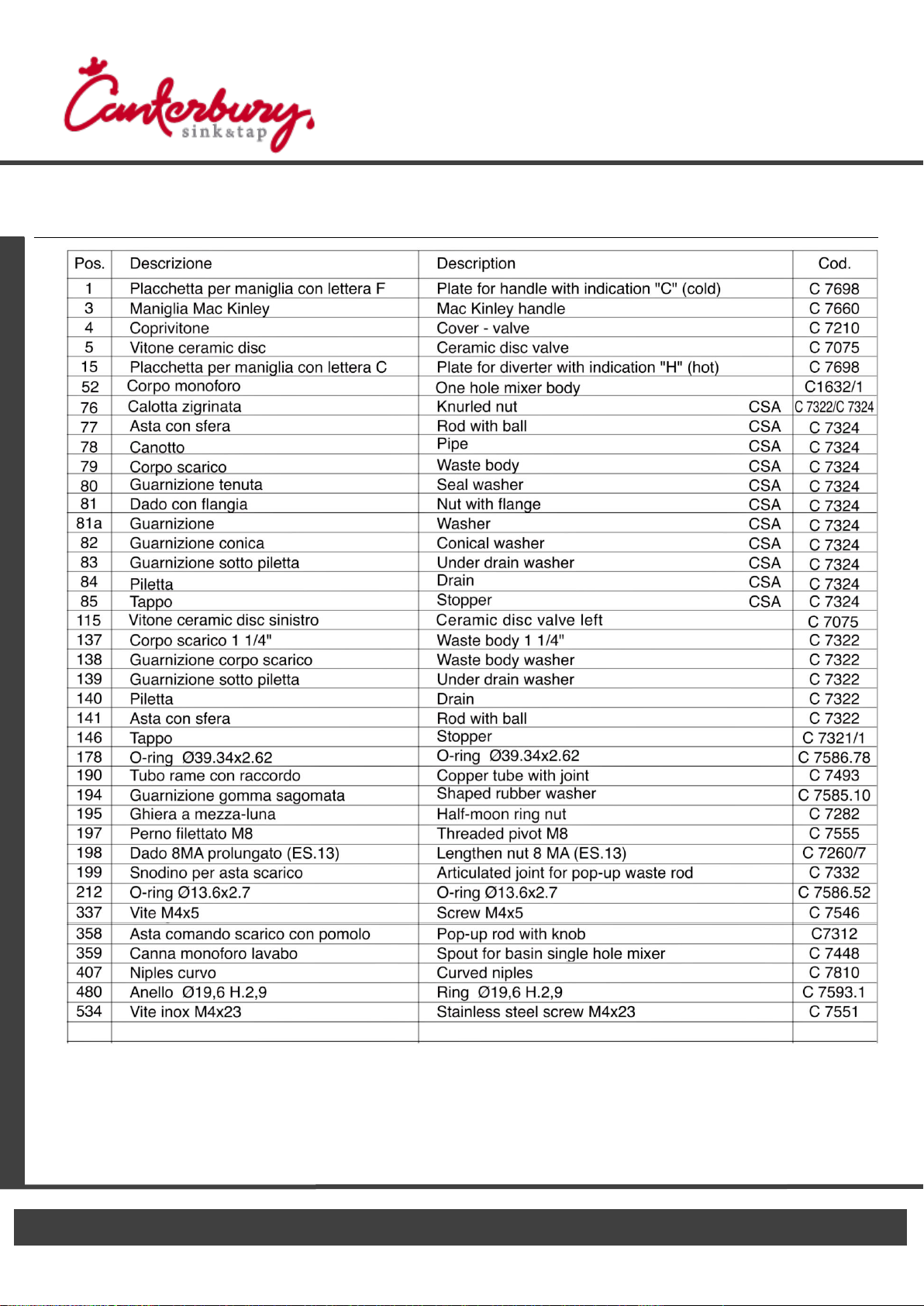

Spare Parts list Model : Z2632
Further information Phone [phone] [e-mail]
8

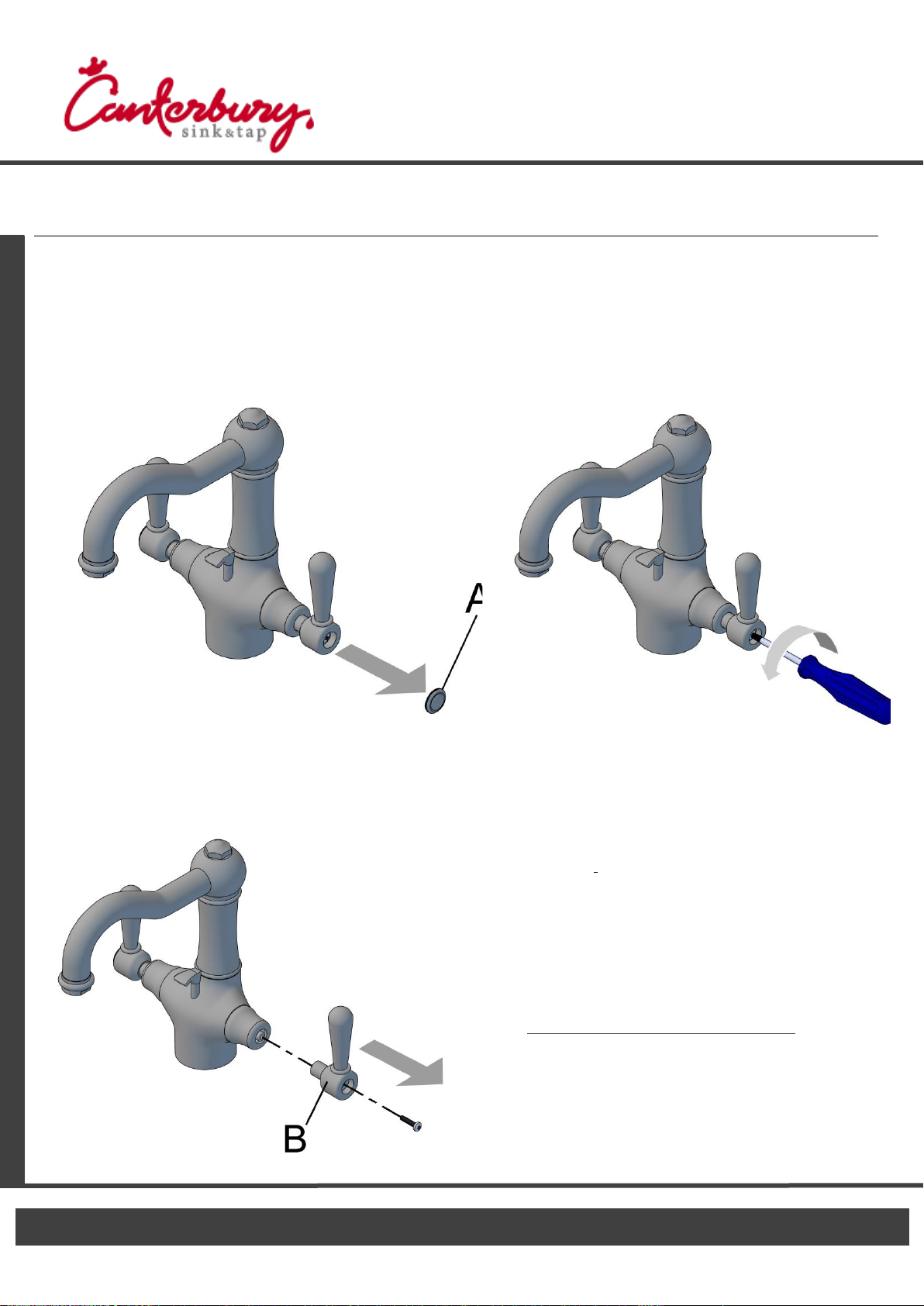

Using a Philips head screw driver, unscrew
the handle retaining screw.
Care and Maintenance Instructions Model : Z2632
❶
❷
Unscrew and remove the indice button
A, from the tap handle body.
9
To reassemble, reverse the disassembly
procedure.
The retaining screw only needs to be hand tight.
NOTE: DO NOT OVER TIGHTEN, HAND TIGHT
ONLY !
Do not over tighten as this could damage the
ceramic cartridge!
Removing and replacing a handle
MODEL SHOWN :Z2632
Available replacement handles:
-60 Mac Kinley handle
❸
❹
Once the retaining screw is loose, lift and
remove the handle B, from cartridge
spline.
Further information Phone [phone] [e-mail]

Care and Maintenance Instructions Model : Z2632
10
MAINTENANCE FOR SINGLE HOLE TWO LEVER TAP WARE
INSTRUCTIONS FOR REPLACEMENT OF THE HOT OR COLD CARTRIDGE
Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or
kinking of supply hoses.
If the hand spray is leaking, do not replace the diverter. Service or replace the hand
spray if there is a continous leak.
Install new cartridge.
Secure the cartridge with a smooth jawed shifter.
Install the handle and retaining flange, and hand
tighten only. DO NOT USE A SHIFTER TIGHTEN BY
HAND ONLY!
Turn on supply line and test for leaks. (Not shown).

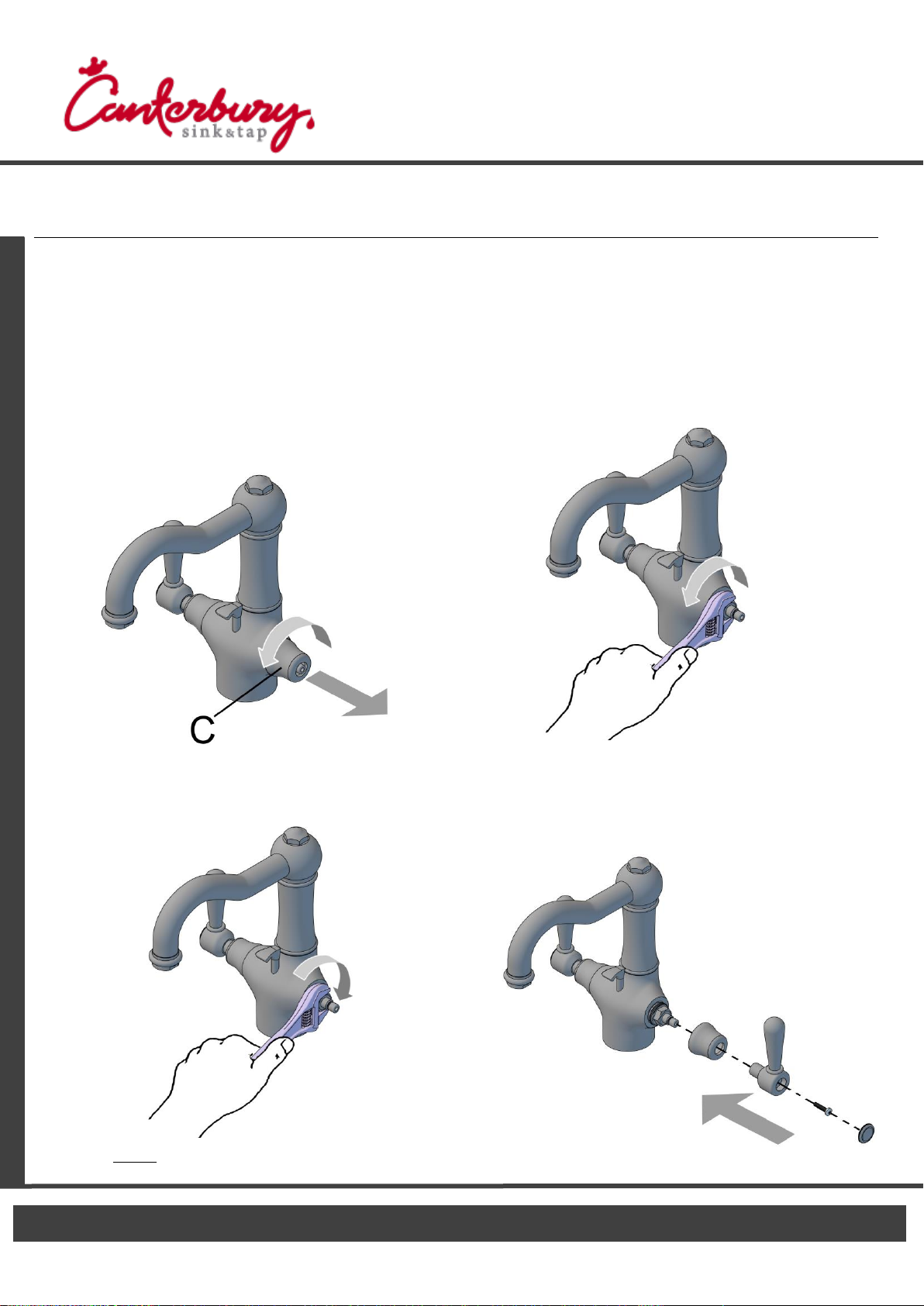

Turn off the hot and cold supply lines to the tap set.
(Not shown).
Remove the handle. Refer to “Removing and
replacing a handle” section, page 9.
Unscrew and remove tap cover cap C.
Remove the cartridge with a 17mm spanner or
smooth jawed shifter.
Note: Do not over tighten as this could damage the ceramic cartridge!
❶
❷
❸
❹
Further information Phone [phone] [e-mail]

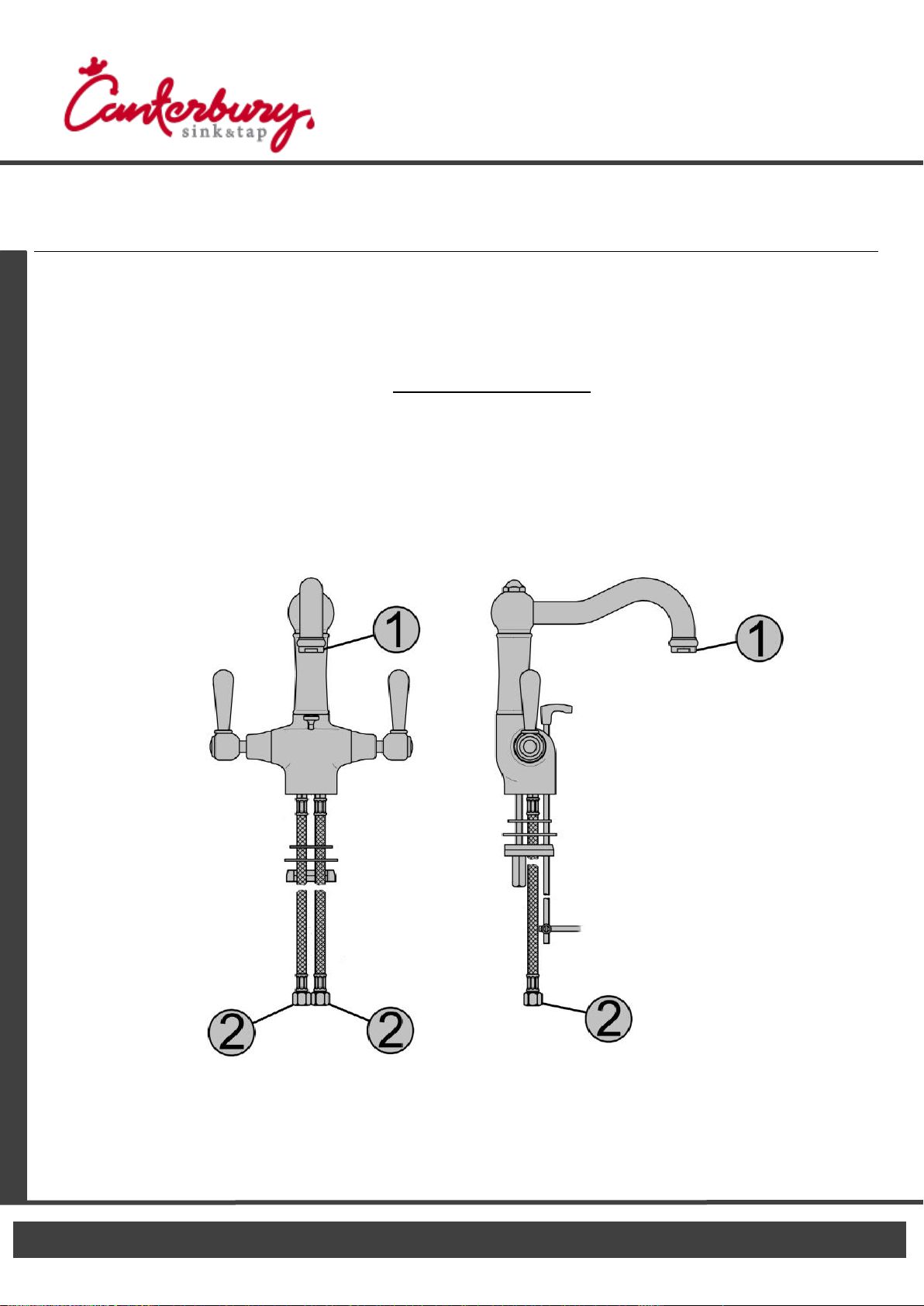

LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS
Current bathroom taps have a max flow rate of 7 Litres per minute from the aerator and the hand spray.
If you are experiencing low flow from the spout: Do not change the cartridge
• Unscrew and clean the aerator -1
• Check the supply lines for kinks or obstructions-2
• Make sure the supply line stops are fully on. (Not shown.)
Care and Maintenance Instructions Model : Z2632
Further information Phone [phone] [e-mail]
11

Care of external finishes
Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the
fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft
liquid soap and water to clean the surface. Use a soft brush to clean any gaps. Avoid any products that have
ammonia or alcohol like Windex, Jif or Ajax. These products can damage the finish leaving black or white spots.
Never use on abrasive products on tap ware or this will devoid the warranty.
Live Finishes DO NOT carry a warranty as they are living finishes and will change over time.
Raw Brass, Brush Brass (To make the brass lighter again rub the brass tap with lemon juice, this will lighten the dark
colouring).
Shiny Brass, Polished Nickel has an ageing process and will tarnish over time.
Tuscan Brass is a living finish and also carries NO warranty. It will lighten with use. To extend the life of the finish,
apply Bruno’s Wax by patting it on, letting it dry and patting it off. Never rub or buff this finish.
WARNING: The use of cleaning products not recommended might irreparably harm the surfaces of the tap, which in
such cases are not covered by our warranty.
Lime scale build up
The tap is fitted with an aeration device in the Hot/Cold water outlet.
This may need occasional cleaning especially in hard water areas.
This is accomplished by unscrewing the outlet in a counter clockwise direction, dismantling and
leaving the inner screen mesh immersed over night in vinegar
