Akicon 40118 User manual

PACKING LIST
C
D
A
B
Optional accessories
C
Optional accessories
A
B
D
After you open this package, please check to ensure that all of the following
items are included.
IMPORTANT NOTICES: For easy installation, please read all the instruction completely before
beginning. Before installing this product, make sure that water line trash is cleared to avoid
blockage.
A- Faucet B- Mounting Nut + Washer (2)
C- Pop-up assembly( Optional accessories) D- Allen Wrench
CAUTION: Maintenance
1. Replacement parts may be available at the store where you purchased your faucet.
2. Always turn off water and relieve pressure before working on your faucet.
NOTES: Cleaning Instructions
1. To keep the faucet clean, you should clean the faucet frequently and regularly.
2. Clean the faucet with clear water or mild liquid, rinse the faucet with clear water and
then dry the faucet with soft cotton cloths.
3. Do not use any abrasive cleansers, cloths, or paper towel.4. Do not use any acid or
abrasive detergent.
Basin Faucet / Vessel Faucet
Model: 40118
40118A1
Questions, problems, missing parts?
call Akicon Customer Service 8 a.m.-6p.m. EST, Monday-Friday
Phone: [phone], Email: [email protected]
AKICONSHOP.COM
4
EX: E001001T Rev:A

After installation is complete, remove aerator and
rotate handle to the close position. Turn Water
Supply Valves on, and check all connections for leak.
Turn faucet on and allow both hot and cold water to
run at least one minute each. Replace Aerator.
Turn off water and relieve pressure before working
on your faucet! Unscrew Handle Assembly, then pull
out handle assembly from valve stem with force.
Remove handles, unscrew cartridge
assembly and inspect. Replace parts
as necessary. Reassemble parts by
reversing steps.
4-2
Press stopper to keep or release water.
5
5. Cartridge Function
Hot Cold
Close
Open
67
Lift the handle up, the cartridge will be activated
allowing water to flow. The water flow will increase by
continuing to rotate handle. By rotating the handle to
the right, the water temperature will decrease to cold
flow only. By rotating Handle to the left, the water
temperature will increase to hot only.
7. Handle Removal
8. Cartridge Removal
6. Faucet Start Up
8
MAINTENANCE AND CARE
2-2
3
Connect hot and cold water flexible hoses to
the Water Supply Valves.
4-1
Unscrew Locknut. Make sure the Rubber Washer in
the right position under Flange. Insert Pop-up
Assembly into Sink drain Hole. From underneath,
tighten with Lockset.
From underside sink, place Plastic Washer and Metal
Washer onto screw tube and tighten with Mounting
Nut by hand. Before final tightening, make sure
Spout and Handle facing forward.
If necessary,tighten mounting nut using a Adjustable
wrench until the faucet is firmly connected to the
Wash Basin.
1
2-1
2-3
You should clean all the dirts from valve outlets.
Turning off the water supply valves. This is usually
found near the water meter. If you are replacing an
existing faucet, remove the faucet from the sink and
clean the sink surface thoroughly.
Make sure the Rubber Washer is placed onto the
bottom of Base Ring. With the Handle and spout
facing forward, install faucet through the hole in the
sink.

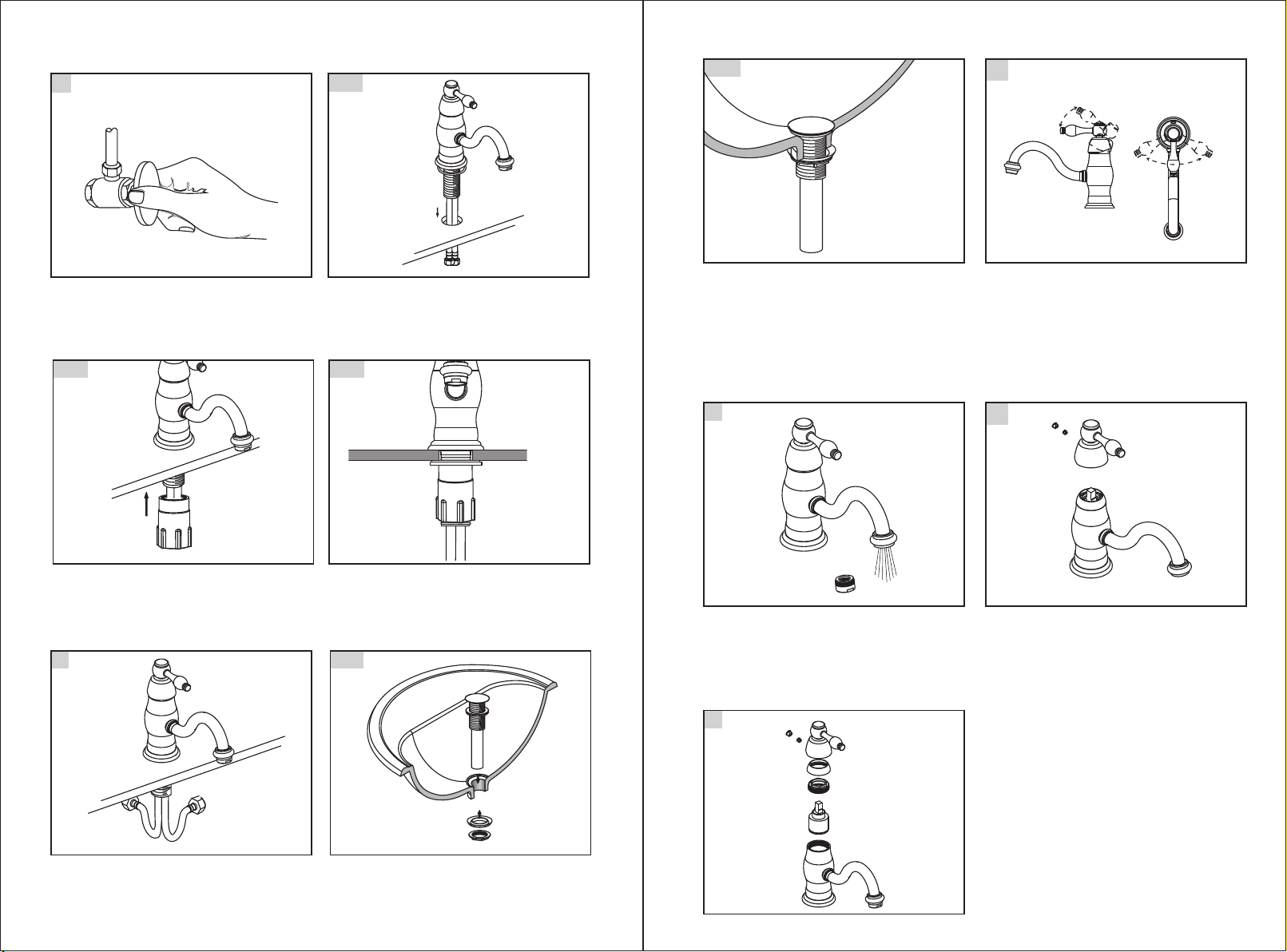

INSTALLATION PROCEDURES
3. Water Supply Line Connections 4. POP-UP Assembly Installation
1. Turn Off Water Supply 2. Install Faucet
