Night Owl BTD2 Series User manual
Bluetooth® Recorder User’s Manual
Support.NightOwlSP.com
Built-In Bluetooth® Wireless Setup
Monitor not Required
What Models Does This Manual Cover?
BTD2 Series
DVR Component Model #: DVR-BTD2-81
DVR-BTD2-16
DVR-BTD2-161
Camera Component Model #: CM-DP2LSA-B
BTD8 Series
DVR Component Model #: DVR-BTD8-41
DVR-BTD8-8
DVR-BTD8-81
DVR-BTD8-82
DVR-BTD8-8-4POE-2
Camera Component Model #: CM-DP8LSA-B
BTWN8 Series
WNVR Component Model #: WNVR-BTWN8-1
WNVR-BTWN8-1-V2
Camera Component Model #: WNIP-8LTA-BS / U
WNIP-8LTA-BS-V2
iii
We welcome you to the Night Owl family and thank you for choosing us to help safeguard
your home or business. All of our products are proudly designed and engineered right
here in the U.S.A. Night Owl complies with the U.S. government’s stance on protecting
our nation from companies that violate human rights and threaten our national security.
Unlike other brands, we are not on any national security threat lists, nor do we do
business with companies that are. We prioritize your privacy and safety because we value
both as much as you do.
Some Basic Info
This manual covers the basic setup and functionality of our new Bluetooth® recorders.
It will walk you through adding compatible cameras to your recorder using our new
Bluetooth® Wireless Setup, as well as your recorder’s menu options. With Bluetooth®,
setup is now easier than ever. A TV or monitor is no longer required. Once your system’s
app on your Smart Device. If you prefer, you can still connect a TV or monitor and follow
along, it’s just not required.
Bluetooth® models we have. This manual covers our BTD2 and BTD8 Series DVRs and
BTWN8 Series Wi-Fi NVRs. Some sections/steps may only apply to certain models. But
don’t worry! We will clearly note these sections for you.
Thank you for choosing Night Owl Security!
IMPORTANT: If you are uncertain what model you have
and whether a section or step applies, your
Series and Model # can be found on the
support sticker on top of your recorder!
Is Internet Required?
While Internet is not required, it is STRONGLY RECOMMENDED. Without an Internet
connection, you can still use your device’s Bluetooth® Wireless Setup to get the product
remotely from a Smart Device or computer.
We STRONGLY RECOMMEND you connect your recorder to the Internet, at least for initial
overall health of your system and allows our technical support team to assist you, should
you need support. I
encourage customers to stay connected to the Internet. If you are NOT connecting your
section of this manual).
Warranty and Additional Help
manufacturing defects in material and workmanship. Please see the warranty section
of this manual for exclusions and additional details. Not all features and capabilities are
shared across all models. You may see features which are not applicable. Additionally, this
manual contains screen images that may not exactly match those on your TV/Monitor/
Smart Device.
System Requirements
Please be sure that your PC / MAC®
• PC Operating System: Windows® 10 and above
• MAC Operating System: MAC OS X® 10.9 and above
• Android™: 8.0 and above
• iOS®: 12.4 and above
We provide a database of self-help material on your product’s support
page on our support site. Simply visit Support.NightOwlSP.com and
recorder) into the search bar. In addition to warranty and technical
www.youtube.com/
nightowlsp
IMPORTANT:
iv
v
Table of Contents
FCC Warnings . . . . . . . . . . . . . . . . .iv
Safety Instructions . . . . . . . . . . . . . . 1
Initial Setup . . . . . . . . . . . . . . . . . . 2
Step 1. Verify Your Package Contents . . . . . . . 2
BTD2 / BTD8 Series Package Contents . . . . 2
BTWN8 Series Package Contents . . . . . . 3
BTD2 / BTD8 Series Recorder Descriptions . . 4
BTWN8 Series Recorder Description. . . . . 5
. . . . . . 6
Step 2. Download the Night Owl Protect App and Create
and Verify Your Account . . . . . . . . . 6
. . . . . . 8
BTD2 / BTD8 Series Wired Recorder . . . . . 8
BTWN8 Series Wi-Fi Recorder . . . . . . . 11
. . . . . . . . . 13
® Wireless Setup . . . 13
. . . . 17
Step 5. Install the Cameras . . . . . . . . . . . 20
Plan Your Installation . . . . . . . . . . 20
Install the Cameras . . . . . . . . . . . 21
Step 6. Additional Cameras . . . . . . . . . . 22
BTD2 / BTD8 Series Wired Recorder . . . . . 22
A) Adding Additional Wired BNC Cameras . . 22
B) Adding Additional Wired IP Cameras . . . 22
C) Wi-Fi Expandability . . . . . . . . . 23
Compatibility . . . . . . . . . . 23
Connectivity . . . . . . . . . . . 24
BTWN8 Series Wi-Fi Recorder . . . . . . . 29
A) Pairing a Replacement / Add On Wi-Fi IP
Camera . . . . . . . . . . . . . 29
B) Adding Other Wi-Fi Devices . . . . . . 32
Log In from a TV or Monitor . . . . 33
Log In with Night Owl Protect Account . . . . . . . 33
Log In with Local Password . . . . . . . . . . . 34
Log In Information Icon . . . . . . . . . . . . 35
. . . . . . . . . 36
Shut Down . . . . . . . . . . . . . . . . . 37
View Layouts . . . . . . . . . . . . . . . . 38
Playback. . . . . . . . . . . . . . . . . . 39
Backing Up / Exporting Recordings for
Long-Term Storage . . . . . 41
. . 41
Exporting / Saving a Recording . . . . . . . . . . 43
System Info . . . . . . . . . . 45
About Menu . . . . . . . . . . . . . . . . 45
Device Name . . . . . . . . . . . . . 46
Firmware Version . . . . . . . . . . . 46
Language . . . . . . . . . . . . . . 48
Monitor Resolution . . . . . . . . . . . 48
Date and Time Menu . . . . . . . . . . . . . 49
Camera Menu . . . . . . . . . . . . . . . 50
Recording Settings . . . . . . . . . . . 52
Voice Alerts / Siren . . . . . . . . . . . 52
Copy Settings . . . . . . . . . . . . . 53
Remove Camera Option . . . . . . . . . 53
Account Menu. . . . . . . . . . . . . . . . 54
Storage Menu . . . . . . . . . . . . . . . . 55
Diagnostics Menu . . . . . . . . . . . . . . 56
Network Menu . . . . . . . . . . . . . . . 58
. . . . . . . . . . . . 60
Reset Menu . . . . . . . . . . . . . . . . 61
Resetting / Forgot Your Password . . . . 63
Reset Your Password from the Night Owl Protect App . . 63
Reset Your Password from the Web Portal . . . . . . 63
the Internet) . . . . . . . . . . . . . 64
Appendix. . . . . . . . . . . . . . . . . . . 65
. . . . . . . . . 65
. . . . . . . . . . 65
Glossary . . . . . . . . . . . . . . . . . 66
User Information. . . . . . . . . . . . . . . 67
Warranty. . . . . . . . . . . . . . . . . . . 68
Table of Contents
vi
FCC Warnings
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Compliance Statement
These limits are designed to provide reasonable protection against frequency
interference in residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed or used in accordance with the
is no guarantee that interference will not occur in television reception, which can be
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION
the unit not expressly approved by the part responsible for compliance could void the user’s
authority to operate the equipment.
1
Safety Instructions
Use the provided power adapter.
Never insert metal into the recorder case or its openings.
Inserting metal into the recorder case may cause electric shock.
Do not operate in wet or dusty areas.
Avoid placing the recorder in areas such as a damp basement or dusty attic.
Do not expose the recorder to rain or use near water.
If the recorder accidentally gets wet, unplug it and contact technical support immediately.
Keep product surfaces clean and dry.
To clean the outside case of the recorder, use a lightly dampened cloth. Do not use
cleaning solutions or solvents.
Do not install near any heat sources.
Do not install the recorder near any heat sources such as stoves, heat registers, radiators,
Unplug the recorder when moving it.
Make sure that the recorder is unplugged before you move it. When moving this device,
be sure to handle it with care.
Make sure there is good air circulation around the recorder.
This recorder uses an internal hard drive, that generates heat during operation for video
storage. Do not block the vents on the recorder as these vents reduce the generated heat
while the system is running. Place this product in a well-ventilated area.
Do not attempt to remove the top cover.
If you observe any abnormal operation, unplug the recorder immediately and contact
technical support. Do not attempt to open the recorder to diagnose the cause of the
problem. Removing the cover may void your warranty.
Handle the recorder carefully.
If you drop the recorder on any hard surface, it may damage the device. If the recorder
doesn’t work properly due to physical damage, contact an authorized dealer for repair.
It is recommended to use your recorder with an uninterruptible power supply (UPS).
Connecting your recorder and cameras to a UPS allows continuous operation even during
power outages. The run-time duration will depend on the rating of the UPS used.
CAUTION
You may be subjected to severe electrical shock if you remove the cover of the recorder.
Initial Setup
system. Again, our new Bluetooth® Wireless Setup provides an A-Z setup right from
the convenience of your Smart Device without the need for a TV or monitor. There
clearly mark these for you. For sections that only apply to our BTD2 or BTD8 Series
recorders, you will see . If a section only applies
to our BTWN8 Series Wi-Fi recorder, you will see .
Night Owl STRONGLY RECOMMENDS that you complete the following sections in
• Step 1. Verify Your Package Contents

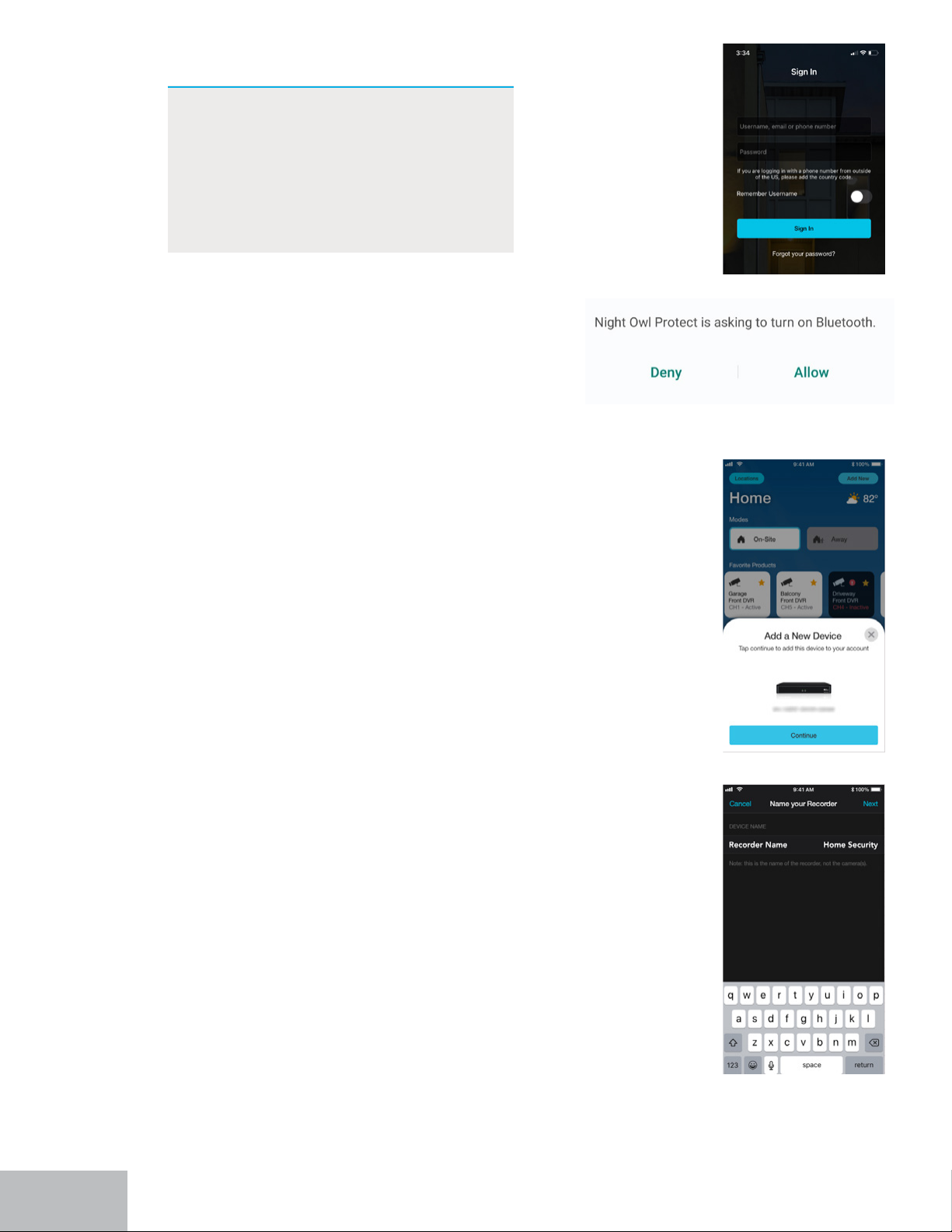

• Step 2. Download the Night Owl Protect App and Create and Verify Your Account
• Step 5. Install the Cameras
• Step 6. Additional Cameras

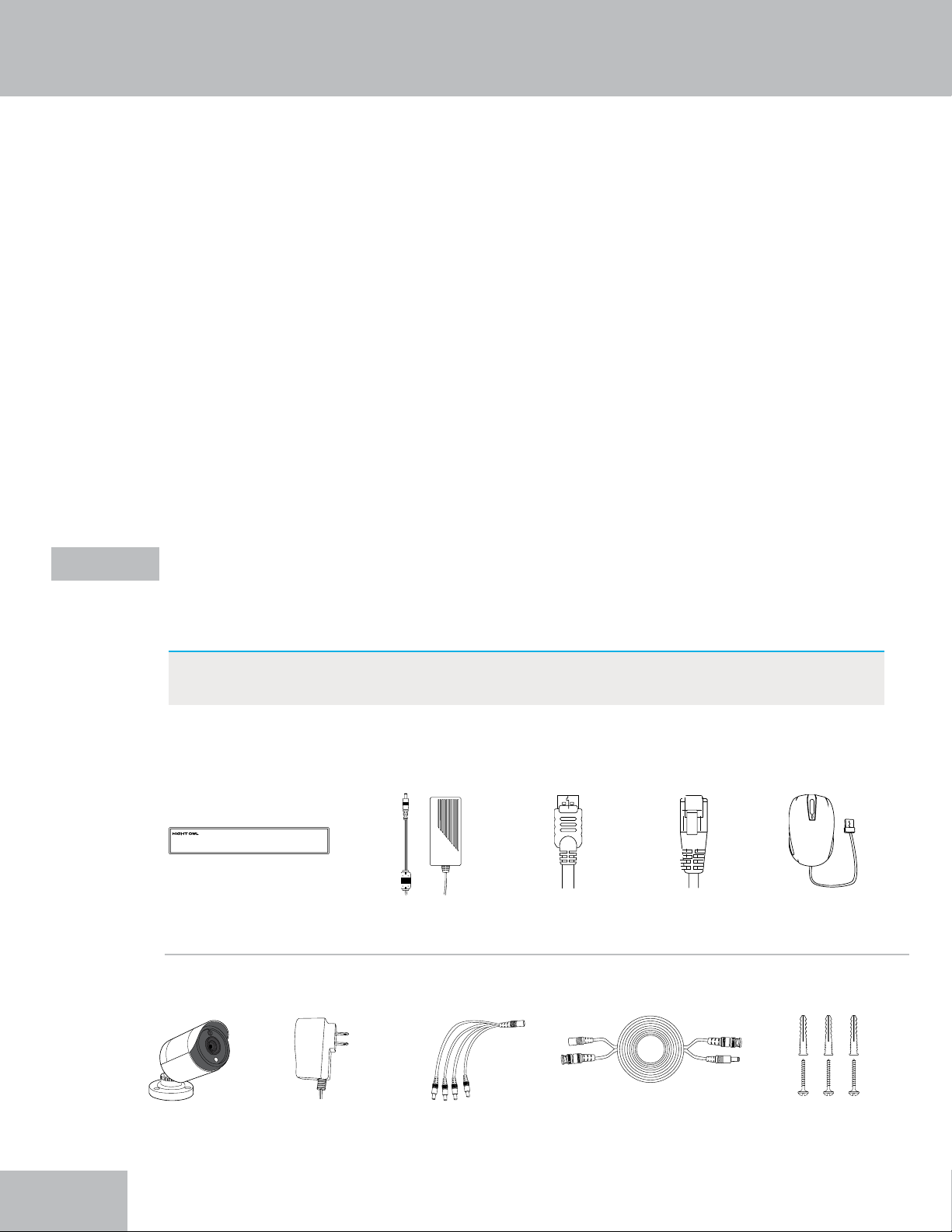

BTD2 / BTD8 Series Package Contents
Verify Your Package Contents
Before you begin to install your system, ensure you can identify all of the parts
listed in this section. Images may vary slightly based on your model number.
Step 1.
IMPORTANT: The exact components of your system, images and quantities may
vary depending on your model number.
2
DVR
DVR Power Adapter
Camera Power
Power
6 ft. Ethernet
60 ft. Video/
Power Cables
USB Mouse
Mounting
DVR / Accessories
Wired BNC Camera / Accessories
NOTE: ONLY included with BTD8 Series Model # DVR-BTD-8-4POE-2
Mounting
Waterproof
60 ft. Ethernet
Cables
Wired IP Camera / Accessories
BTWN8 Series Package Contents
WNVR
AC Powered
Wi-Fi IP
WNVR Power Adapter
9 ft. Camera Power
Adapter
Camera Antenna
6 ft. Ethernet
USB Mouse
WNVR Antenna
Mounting
WNVR / Accessories
Camera / Accessories
3
Compatible Devices
This system includes Wi-Fi IP cameras, but is
compatible with other Night Owl Wi-Fi devices.
Please scan the QR Code for more information on
other compatible Wi-Fi devices that can be added.
RESET LAN1 LAN2 LAN3 LAN4 WAN
Items Not Included NOTE:
Required), it must have a minimum
included Night Owl accessories. Third-party
accessories may not work correctly.
Monitor
Bluetooth® Setup)
Router / Network
Access Point
4
BTD2 / BTD8 Series Recorder Descriptions
BTD2 / BTD8 Series Recorder

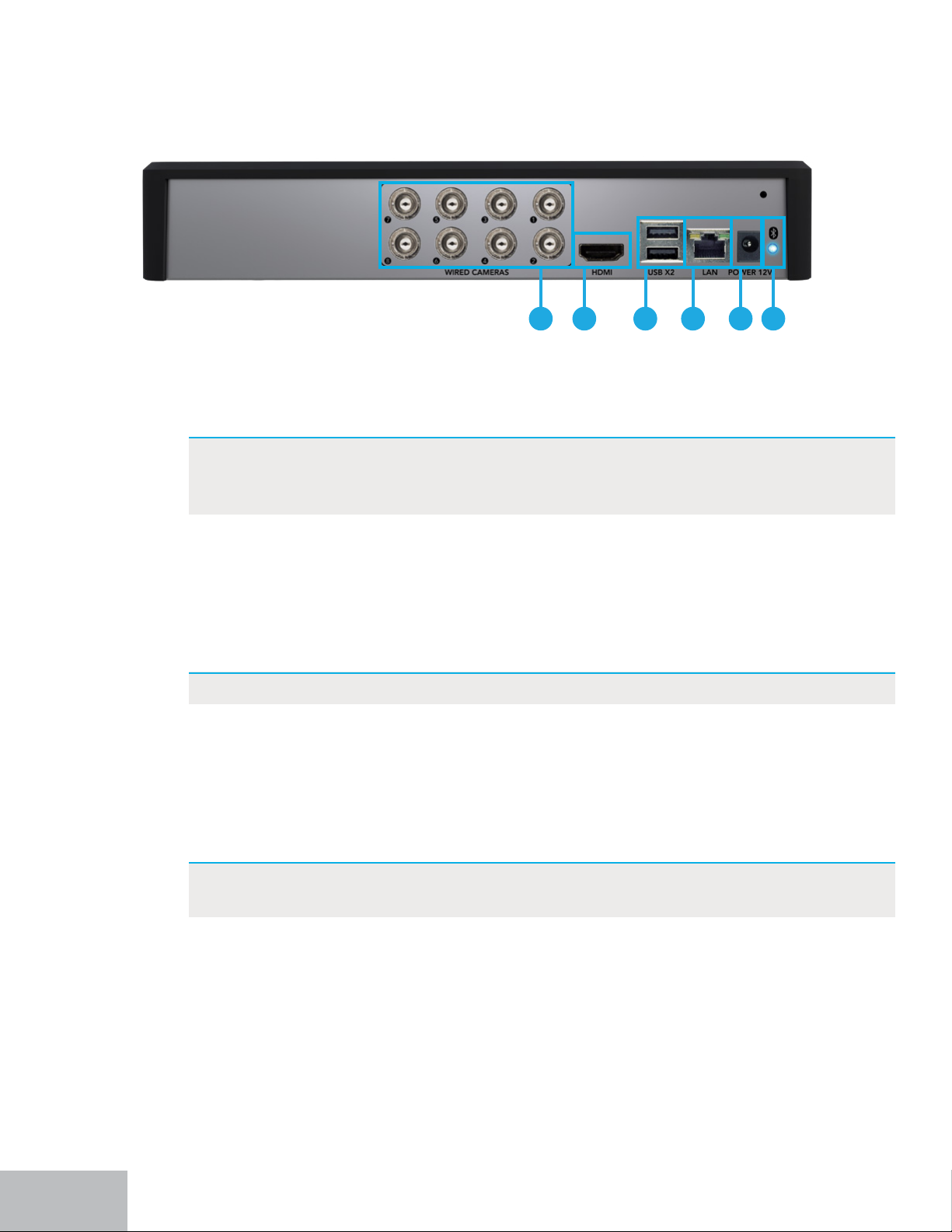

1. Video In (Wired BNC Cameras): Connect your cameras to one of the “Wired Cameras”
Video Input Ports using the provided video power cable. The number of ports will vary
based on your model number.
NOTE: The recorder automatically detects the camera. Before turning the
recorder on, make sure the cameras are connected to the recorder and a
power source.

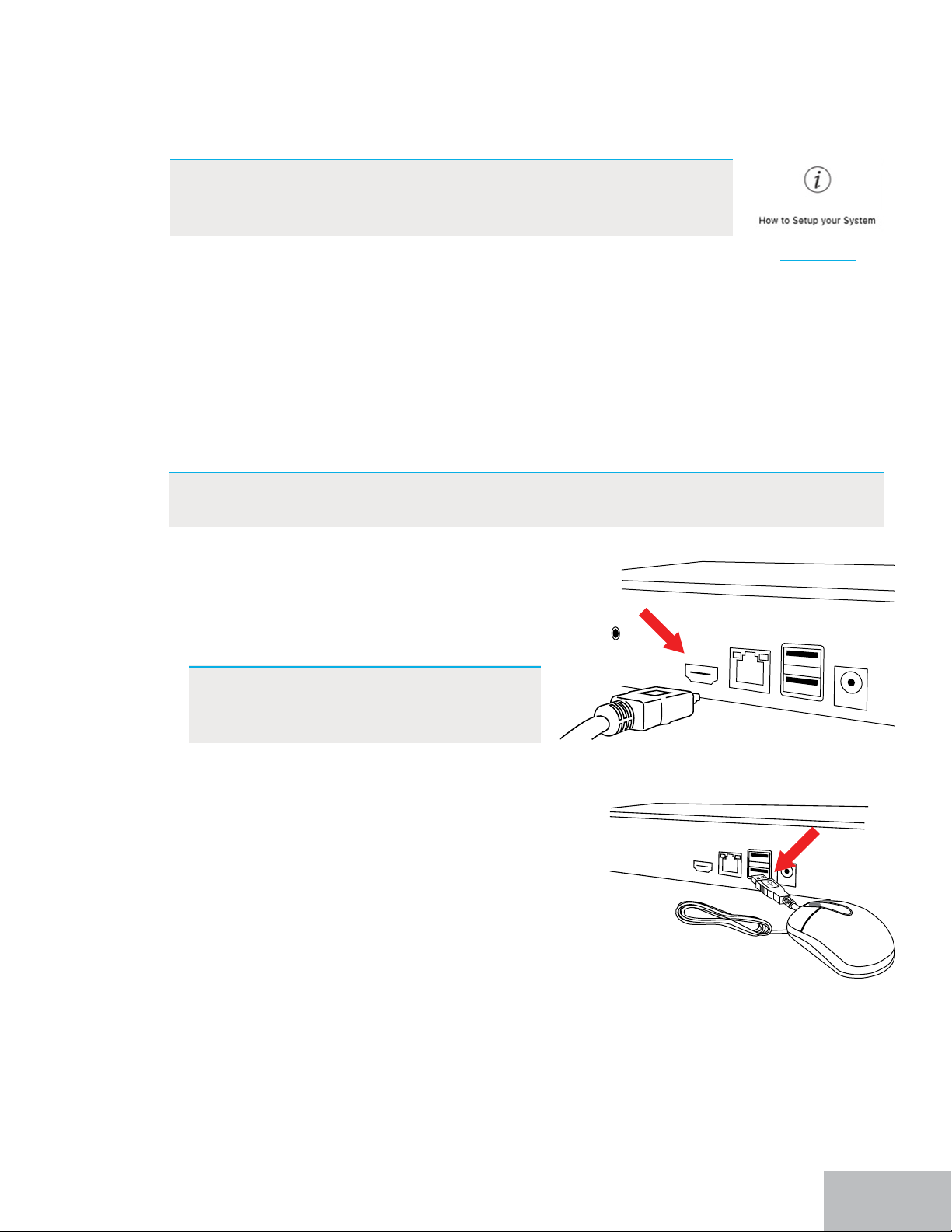

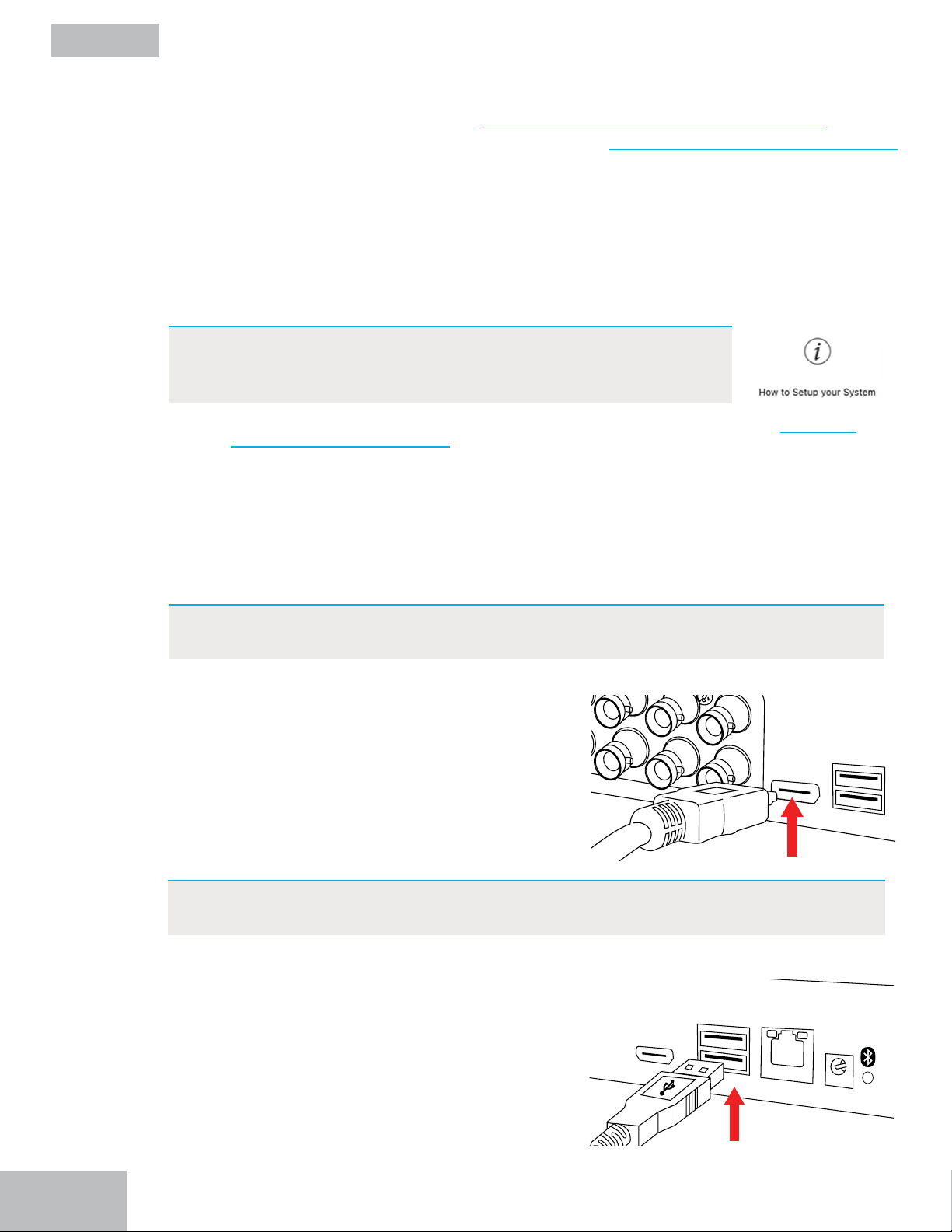

2. HDMI: While not required, you may connect the recorder to a TV or monitor using the
3. USB Ports: Connect a USB mouse to a USB port to navigate the recorder’s settings
video backup.
NOTE:
4. LAN (Strongly Recommended): Connect your recorder to the Internet using an
Ethernet cable. Again, while not required, this is strongly encouraged to get the full use
network access point or router.
5. Power Input: Connect the recorder power adapter to this port to power the recorder.
NOTE:
location to ensure that all components function properly.
6. Bluetooth® Indicator Light: Once the recorder is powered on, this light should turn
blue to indicate that the recorder’s Bluetooth®
when no device is linked and turn solid blue when a device is paired to the recorder.
1 2 3 4 5 6
BTD8 Series Recorder Model # DVR-BTD-8-4POE-2 (ONLY)
7. Video In (Wired IP Cameras): In addition to 8 wired BNC cameras, this model can hold
here using the provided Ethernet cabling.
8. Power Switch: This model has a power switch. Once you have connected the power
supply, ensure you turn the power switch to the ON position.
17
8
2 345 6
BTWN8 Series Recorder Description
1. HDMI: While not required, you may connect the recorder to a TV or monitor using the
2. LAN (Strongly Recommended): Connect your recorder to the Internet using an
Ethernet cable. Again, while not required, this is strongly encouraged to get the full use
network access point.
3. USB Ports: Connect a USB mouse to a USB port to navigate the recorder’s settings
video backup.
NOTE:
4. Power Input: Connect the recorder power adapter to this port to power the recorder.
NOTE:
location to ensure that all components function properly.
5. Wi-Fi Antenna Mounts: Connect the two Wi-Fi NVR antennas to these ports. This is
how the Wi-Fi NVR wirelessly communicates with your cameras.
6. Bluetooth® Indicator Light: Once the recorder is powered on, this light should turn
blue to indicate that the recorder’s Bluetooth®
when no device is linked and turn solid blue when a device is paired to the recorder.
5
*Steps 1 through 6 on previous page
16
5 5
2 3 4
How to Use a Wired USB Mouse
Scroll Wheel
Live Viewing:
Double-click the left button on any camera view in split-screen mode to bring it to full
screen display. Double-click again to return to split-screen mode. Right-click to show
the Tool Bar at the bottom of the screen. Left click on the Tool Bar or Menu to access
the device’s features.
In Setup:
Left click to make a selection. Right-click to cancel setup or return to the previous
To Enter Values:
which supports numbers, letters, and symbols. The Shift function will access symbols
in addition to upper case letters.
Download the Night Owl Protect App and Create and Verify
Your Account
Step 2.
IMPORTANT: Night Owl STRONGLY RECOMMENDS that you download the Night
Owl Protect App and create an account. This will allow you to use
this system’s Bluetooth®
which makes setting up the system much quicker and easier. A TV
app to remotely access and view your system right from your Smart
Device or computer, from anywhere! An Internet connection is
required for remote access. With Single Sign-On you can conveniently
access multiple devices with one set of login credentials and with
6
If you will be accessing your new Night Owl system from a TV or monitor, you will need
to connect the provided wired USB mouse. The mouse lets you navigate the menus
and adjust settings that appear on your TV or monitor screen.
IMPORTANT: To access the system from a
TV or monitor, you must use a
wired USB mouse. We cannot
guarantee compatibility or
functionality with wireless mice.
7
1. Download the Night Owl Protect App from the Apple App or
Google Play Store. If you have previously downloaded the
app and created an account, proceed to Initial Setup.
2. Follow the prompts on the Night Owl Protect App to create
be sent to your mobile phone to verify the account being
created.
3. Finish creating your account and create a personal PIN
number that you will enter upon each login to the app.
4. Ensure you verify your email address. This will register you
in our technical support database, streamlining the support
should you need help. It will also generate an email to you
with your product’s support links. To verify, tap Account >>>
your name >>> Email >>> and then follow the on-screen
prompts.
6.
to begin connecting the components of your system.
5. For more information on the Night Owl Protect App,
articles/360044127354-Night-Owl-ProtectMobile-App-CMS
8
your new system, it is time to get the hardware connected. If you have a BTD2 or
BTD8 Series DVR, please proceed to If you
have a BTWN8 Series Wi-Fi NVR, please proceed to
Step 3.
A) BTD2 / BTD8 Series Wired Recorder
1. Visit Support.NightOwlSP.com
A.
Plug the other end of the cable into your
TV or Monitor.
B. Plug the USB mouse into the USB port on
the back of the DVR.
3. Click
2.
recorder) into the search bar
IMPORTANT: If you will be using a TV or monitor for setup or viewing your cameras
TIP:
NOTE:
is plugged into.
Click Here
9
Perform the following steps to get the rest of the hardware setup!
1. Plug one end of the included Ethernet cable
into the LAN port on the back of the DVR.
NOTE: Night Owl recommends
connecting to the Internet for
the best user experience.
2. Plug the other end of the Ethernet cable into
a port on the back of your router / network
access point.
NOTE: As long as your DVR is hardwired
using Ethernet cabling, you can
connect to any working network
access point. See your product
manual for more details.
4. Connect the video / power cable labeled TO
DVR ONLY to an open video input on the DVR.
NOTE: Make sure you twist and lock
BNC connectors.
5. Connect the red female power leads of the
video / power cables to the male power
splitter ends.Make sure you twist and lock
BNC connectors.
3. Connect the end of the camera’s cable to
the end of a video / power cable labeled TO
CAMERA ONLY.
RESET LAN1 LAN2 LAN3 LAN4 WAN
From Camera
ConnectorsConnectors
IMPORTANT: BEFORE installing, connect
and test each camera locally to
To CAMERA
To C
A
6. Connect the power splitter to the camera
power adapter and plug the adapter into a
surge protector or Uninterruptible Power
7. Connect the DVR power adapter to the Power
Input on the rear of the DVR.
8. Plug the DVR power adapter into a surge
protector or Uninterruptible Power Supply
NOTE: Make sure the UPS or surge
protector is switched ON.
9. Insert one end of the Wired IP Camera’s 60 ft.
Ethernet cable into the cable covers. Connect
the covered end of the Ethernet cable to the
camera’s power cable. Make sure the UPS or
surge protector is switched ON.
Adapter
Splitter
Additional Steps For BTD8 Series (Model# DVR-BTD-8-4POE-2)
One of our BTD8 Series Bluetooth® systems includes both wired BNC and wired
IP cameras. If you have this model, please view the additional steps below for
connecting your wired IP cameras.
IMPORTANT: These steps ONLY apply to BTD8 Series
Completion
10. Input the other end of the Wired IP Camera’s
60 ft. Ethernet cable into an open Ethernet
the DVR. Repeat this step for all Wired IP
Cameras.
10
11
B) BTWN8 Series Wi-Fi Recorder
View the steps below to your get your recorder and devices setup.
1. Visit Support.NightOwlSP.com
3. Click
2.
recorder) into the search bar
IMPORTANT: If you will be using a TV or monitor for setup or viewing your cameras
A.
the other end of the cable into your TV or
Monitor.
NOTE: To view cameras, TV or Monitor
must be tuned to the same input
B. Plug the USB mouse into the USB port on the
back of the WNVR.
Click Here
TIP:
12
Perform the following steps to get the rest of the hardware setup!
1. Connect the two antennas to the antenna
ports on the rear of the recorder.
4. Connect the WNVR power adapter to the
Power Input on the rear of the WNVR.
2. Plug one end of the included Ethernet cable
into the LAN port on the back of the WNVR.
NOTE: Night Owl recommends
connecting to the Internet for
the best user experience.
3. Plug the other end of the Ethernet cable into
a port on the back of your router / network
access point.
NOTE: As long as your WNVR is
hardwired using Ethernet
cabling, you can connect to any
working network access point.
See your product manual for
RESET LAN1 LAN2 LAN3 LAN4 WAN
5. Plug the WNVR power adapter into a surge
protector or Uninterruptible Power Supply
NOTE: Make sure the UPS or surge
protector is switched ON.
13
IMPORTANT: This system includes Wi-Fi IP cameras, but is
compatible with other Night Owl Wi-Fi devices.
Please scan the QR Code for more information on
other compatible Wi-Fi devices that can be added.
IMPORTANT: If you have a TV or monitor connected, you will see
setup information appear on the screen as you
complete the Bluetooth® setup. A TV or monitor is not
required for this setup but can be used for viewing.
6. Scan the QR Code to view the WNVR and AC Powered Wi-Fi IP
Camera Setup Video.
Series:
WNIP2 / WNIP8
Model #’s:
WNIP-2LTA-BS
WNIP-2LTA-BS-U
WNIP-2LTAW-BS-U
WNIP-8LTA-BS
WNIP-8LTA-BS
WNIP-8LTA-BS-U
Now that you have the Night Owl Protect App downloaded, have created an account
Again, we STRONGLY RECOMMEND using the preferred Option 1: Easy Bluetooth®
Wireless Setup. This method is quick and easy and does not require you to connect
a TV or monitor or USB mouse. Instead, it lets you set up the recorder right from the
app using Bluetooth®.
You can still connect to a TV or monitor, it’s just not required. If you do not wish to use
Bluetooth®, you may perform an Option 2: Manual Setup (TV / Monitor). View the
options below based on your preference.
Step 4.
Option 1: Easy Bluetooth® Wireless Setup
14
1. Sign In to the Night Owl Protect App.
3. With Bluetooth® enabled and the recorder
powered on, the app will use Bluetooth® to
scan for available devices that can be added.
The app will show a pop up asking if you
want to Add a New Device. Tap
4. Take a moment to name your new recorder.
For instance, if this system is for your home,
you name it is how it will appear in the app.
2.
Bluetooth® is not enabled, you will be asked
to allow access.
NOTE: The screens in these steps may
vary slightly based on whether
you are using an iOS or Android
device. If a step is substantially
applies to iOS or Android, we
will let you know.
Other manuals for BTD2 Series
1
This manual suits for next models
16
Table of contents
Popular Measuring Instrument manuals by other brands
AVL DITEST
AVL DITEST DPM 800 user manual
S+S Regeltechnik
S+S Regeltechnik THERMASGARD RGTM1-I Operating Instructions, Mounting & Installation
ANATEL
ANATEL A643a Operator's manual
Leupold
Leupold RX-1200i Complete Operation Manual
Neriox
Neriox 129603 operating instructions
Tii technologies
Tii technologies 506F-01 Series Installation notes
