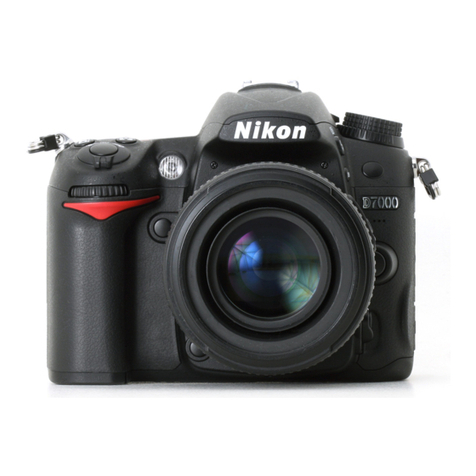

Nikon D7000 Operating instructions

作成承認印 配布許可印
Ｍ
サービス
計画課
󲩊󲨽󲩈󲨹󲩁󲩊󲨘 󲩅󲨹󲩆󲩍󲨹󲩄
󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩
󲨻󲩧󲩨󲩱󲩪󲩡󲩟󲩠󲩬󲨘󲪀󲨘󲨪󲨨󲨩󲨨󲨘󲩚󲩱󲨘󲩆󲩡󲩣󲩧󲩦󲨘󲨻󲩧󲩪󲩨󲩧󲩪󲩙󲩬󲩡󲩧󲩦󲨦
󲨹󲩤󲩤󲨘󲩊󲩡󲩟󲩠󲩬󲩫󲨘󲩊󲩝󲩫󲩝󲩪󲩮󲩝󲩜󲨦
󰼖󰡠󲁊󲁠󳇶󱏭󳆾 󲨙󲨙
󲩈󲩪󲩡󲩦󲩬󲩝󲩜󲨘󲩡󲩦󲨘󲩂󲩙󲩨󲩙󲩦󲨘󲩇󲩛󲩬󲩧󲩚󲩝󲩪󲨘󲨪󲨨󲨩󲨨
󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
logo_Q0750
100617_Gdesign_ito
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨯󲨨󲨨󲨨󲨘󲨥
Contents
Disassembly........................................................................................................................D1
Warning.......................................................................................................................................................D1
1.󳆎External Appearance .............................................................................................................................D2
Battery cover unit..................................................................................................................................D2
External part ..........................................................................................................................................D2
Bottom cover unit..................................................................................................................................D3
2. Rear Cover ..............................................................................................................................................D4
Rear cover unit ......................................................................................................................................D4
TFT monitor window ............................................................................................................................D5
Rear FPC unit........................................................................................................................................D5
Rear button ............................................................................................................................................D7
Selector lock lever.................................................................................................................................D7
TFT monitor ..........................................................................................................................................D8
LV lever.................................................................................................................................................D8
3. TOGO PCB/Image Sensor ......................................................................................................................D9
SD cover unit.........................................................................................................................................D9
Discharge of main condenser ................................................................................................................D9
Front cover unit ...................................................................................................................................D10
Shield plate..........................................................................................................................................D11
TOGO PCB unit..................................................................................................................................D12
Image sensor unit ................................................................................................................................D13
4. Top Cover..............................................................................................................................................D15
I/F cover unit .......................................................................................................................................D15
Grip cover unit ....................................................................................................................................D16
Top cover unit......................................................................................................................................D16
LCD window.......................................................................................................................................D18
SB PCB unit ........................................................................................................................................D19
Command dial unit..............................................................................................................................D20
AF assist lamp unit..............................................................................................................................D21
Top LCD unit ......................................................................................................................................D21
Power dial............................................................................................................................................D22
Shoe base.............................................................................................................................................D24
SB lower case unit...............................................................................................................................D25
Top cover FPC unit .............................................................................................................................D28
Release mode dial lock button ............................................................................................................D30
Eyelet...................................................................................................................................................D30
5. Separation of Front Body from Rear Body...........................................................................................D31
6. Rear Body .............................................................................................................................................D33
IF PCB unit..........................................................................................................................................D33
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨯󲨨󲨨󲨨󲨘󲨥
Relay-PCB...........................................................................................................................................D35
DCDC ISC PCB unit...........................................................................................................................D36
Connector PCB unit ............................................................................................................................D38
PD PCB unit........................................................................................................................................D40
GND plate/Shield plate .......................................................................................................................D40
Bottom base unit..................................................................................................................................D41
Main condenser unit............................................................................................................................D42
Battery contact.....................................................................................................................................D43
7. Front Body ............................................................................................................................................D43
Shutter unit ..........................................................................................................................................D43
AF sensor unit .....................................................................................................................................D45
8. Separation of Prism Box from Front Body...........................................................................................D46
Aperture control unit ...........................................................................................................................D47
Connection-FPC..................................................................................................................................D48
AF-M lever unit...................................................................................................................................D48
MD PCB unit.......................................................................................................................................D49
Mirror driving unit ..............................................................................................................................D50
Horizontal lever/Vertical lever ............................................................................................................D50
AF motor unit......................................................................................................................................D52
Bayonet................................................................................................................................................D53
Apertrue couping ring unit ..................................................................................................................D54
Lens contact FPC unit .........................................................................................................................D55
Lens release button unit.......................................................................................................................D57
Mirror driving unit ..............................................................................................................................D57
Mirror box unit....................................................................................................................................D58
9. Prixm Box .............................................................................................................................................D59
Metering FPC unit...............................................................................................................................D59
Penta FPC unit.....................................................................................................................................D59
LCD unit..............................................................................................................................................D60
Screen BOX unit .................................................................................................................................D60
Eyepiece block unit .............................................................................................................................D61
Assembly/Adjustment .......................................................................................................A1
1. Prism Box................................................................................................................................................A1
Eyepiece block unit ...............................................................................................................................A1
Penta prism............................................................................................................................................A1
Screen BOX unit ...................................................................................................................................A3
LCD unit................................................................................................................................................A3
Penta FPC unit.......................................................................................................................................A4
Metering FPC unit.................................................................................................................................A5
2. Front Body ..............................................................................................................................................A6
Mirror box unit......................................................................................................................................A6
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨯󲨨󲨨󲨨󲨘󲨥
Mirror driving unit ................................................................................................................................A7
Lens release button unit.........................................................................................................................A8
Lens contact FPC unit ...........................................................................................................................A9
Aperture coupling ring unit.................................................................................................................A10
Bayonet................................................................................................................................................A12
Adjustment of aperture coupling ring .................................................................................................A13
AF motor unit......................................................................................................................................A14
Horizontal lever/Vertical lever ............................................................................................................A15
Mirror driving unit ..............................................................................................................................A17
MD PCB unit.......................................................................................................................................A18
AF-M lever unit...................................................................................................................................A19
Connection-FPC..................................................................................................................................A19
Aperture control unit ...........................................................................................................................A20
Height adjustment of AF coupling shaft .............................................................................................A21
Height adjustment of aperture lever....................................................................................................A21
3. Mounting of Prism Box on Front Body ................................................................................................A22
AF sensor unit .....................................................................................................................................A23
Adjustment of AF-sensor mounting base............................................................................................A24
Adjustment of main mirror and sub-mirror.........................................................................................A25
Shutter unit ..........................................................................................................................................A27
X-delay adjustment value....................................................................................................................A28
4. Rear Body .............................................................................................................................................A29
Battery contact.....................................................................................................................................A29
Main condenser unit............................................................................................................................A30
Bottom base unit..................................................................................................................................A31
Shield plate/GND plate .......................................................................................................................A32
PD PCB unit........................................................................................................................................A33
Connector PCB unit ............................................................................................................................A34
DCDC ISC PCB unit...........................................................................................................................A36
Relay-PCB...........................................................................................................................................A38
IF PCB unit..........................................................................................................................................A39
5. Mounting of Front Body on Rear Body................................................................................................A42
Inspection and adjustment of ange-back (body-back) ......................................................................A44
6. Top Cover..............................................................................................................................................A45
Eyelet...................................................................................................................................................A45
Release mode dial lock button ............................................................................................................A45
Drip-proof sponge ...............................................................................................................................A46
Top cover FPC unit .............................................................................................................................A48
SB lower case unit...............................................................................................................................A50
Shoe base.............................................................................................................................................A55
Power dial............................................................................................................................................A55
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨯󲨨󲨨󲨨󲨘󲨥
Top LCD unit ......................................................................................................................................A57
AF assist lamp unit..............................................................................................................................A58
Command dial unit..............................................................................................................................A59
SB PCB unit ........................................................................................................................................A59
LCD window.......................................................................................................................................A61
Top cover unit......................................................................................................................................A61
Grip cover unit ....................................................................................................................................A63
I/F cover unit .......................................................................................................................................A64
7. Rear Cover ............................................................................................................................................A65
LV lever ...............................................................................................................................................A65
TFT monitor ........................................................................................................................................A65
Selector lock lever...............................................................................................................................A66
Rear button ..........................................................................................................................................A66
Rear FPC unit......................................................................................................................................A67
TFT monitor window ..........................................................................................................................A68
8. Image Sensor/TOGO PCB....................................................................................................................A69
Image sensor unit ................................................................................................................................A69
TOGO PCB unit..................................................................................................................................A70
How to connect camera and PC ..........................................................................................................A72
How to install inspection and adjustment software for camera body (except imaging) .....................A72
Inspection and adjustment for AE-CCD positioning...........................................................................A72
Inspection and adjustment of parallax.................................................................................................A76
Shield plate..........................................................................................................................................A84
9. External Appearance .............................................................................................................................A85
Front cover unit ...................................................................................................................................A85
SD cover unit.......................................................................................................................................A86
Rear cover unit ....................................................................................................................................A86
Necessary inspection and adjustment of camara body (except imaging) when parts are
replaced ............................................................................................................................A88
Firmware update .......................................................................................................................................A88
Inspection and adjustment for AE accuracy..............................................................................................A88
X-delay adjustment ...................................................................................................................................A89
Inspection and adjustment for AF accuracy..............................................................................................A90
Inspection and adjustment of X-position ..................................................................................................A91
Conrmation of data .................................................................................................................................A94
Switch information monitor......................................................................................................................A94
Inspection of sequence operation..............................................................................................................A94
Inspection of sequence error .....................................................................................................................A94
CPU version, number of release times......................................................................................................A94
Inspection of LCD light-up.......................................................................................................................A94
Inspection of motor operation...................................................................................................................A94
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨯󲨨󲨨󲨨󲨘󲨥
Reset of compensated AF defocus amount ...............................................................................................A94
Rewriting of offset value of AF adj. lens..................................................................................................A94
Bottom cover unit .....................................................................................................................................A95
External part..............................................................................................................................................A96
Battery cover unit......................................................................................................................................A96
Necessary inspection and adjustment of imaging when parts are replaced...............A97
Image adjustment 1...................................................................................................................................A98
Image adjustment 2...................................................................................................................................A98
Image adjustment 3...................................................................................................................................A98
Image adjustment 4...................................................................................................................................A99
Image adjustment 5.................................................................................................................................A101
White (hot/bright) pixel compensation against dark background...........................................................A101
Inspection and adjustment of shutter via shot image..............................................................................A101
Inspection and adjustment of gradient sensor........................................................................................A101
Obtaining of reference value...................................................................................................................A102
Inspection and adjustment of TFT ..........................................................................................................A103
Factory default setting.............................................................................................................................A103
Conrmation of data ...............................................................................................................................A103
Version no. /Serial no..............................................................................................................................A103
Inspection and adjustment of "∞ (innity)" focus .................................................................................A104
Measurement of consumption current value...........................................................................................A104
Operation check of image sensor cleaning .............................................................................................A106
Charts .................................................................................................................................C1
Size of D7000 parallax chart.......................................................................................................................C1
Size of D7000 X-chart ................................................................................................................................C1
Size of D7000 Y-chart................................................................................................................................. C2
D7000 Parallax chart...................................................................................................................................C3
D7000 X-chart ............................................................................................................................................ C4
D7000 Y-chart ............................................................................................................................................. C5
Gradient-sensor chart..................................................................................................................................C6
Inspection standards .........................................................................................................R1
Wiring.................................................................................................................................E1
Mounting Drawing ............................................................................................................E2
FUSE arrangement............................................................................................................E3
Tool list................................................................................................................................T4
Screw sheet ......................................................................................................................... S1
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨩・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
Disassembly
Warning
Points to notice for Lead-free solder products
Lead-free solder is used for this product.
For soldering work, the special solder and soldering iron are required.
Do not mix the lead-free solder with the conventional solder.
Use the special soldering iron respectively for lead-free solder and lead solder. They cannot
be used in common.
•
•
•
•
There are high voltage parts inside. Be careful of this electric shock,
when you remove the cover.
You must discharge the main condenser according to the instruction
of this repair manual after you remove the cover.
WARNING!
Caution:
󲼓In disassembly/(re)assembly, be sure to use conductive mat (J5033) and wrist strap (J5033-5) in order to
protect electric parts from static electricity.
󲼔Before disassembling, be sure to remove batteries or AC power cord.
󲼕
their types, etc.
󲼖
ref. In this manual, the application of grease and adhesive is indicated by coloring
󳆎CFD-409Z 󳆎EDB0011
(grease: yellow/adhesive: red) or J-number.
Note:
󲼓What are used in this manual may differ from the actual products in forms, etc.
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨪・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
󲨫󲨭󲪇
#B151
#69
#549
Battery cover unit
・Remove the battery cover unit (#B151) at the below angle.
・Remove the power back contact cover (#69).
・Remove the cover (#549).
1.󳆎External Appearance
External part
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨫・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#657×7
#620
#711×2
#476
#477
#475
#75
#786
#784
#783
#785
#810
#25
Bottom cover unit
・Take out the screw (#620).
・Take out the seven screws (#657).
・Remove the bottom cover unit.
Bottom cover unit
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨬・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#613×2
#614
#614×2
#675
#B407
Rear cover unit
・Take out the two screws (#613).
・Take out the screw (#614).
・Lift the rear cover unit.
・Disconnect the two FPCs.
・Peel off the rear rubber unit (#B407).
・Take out the two screws (#614).
・Take out the screw (#675).
2. Rear Cover
Rear cover unit
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨭・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#402
#833
[Red]
[Blue]
#733
TFT monitor window
・Remove the TFT monitor window (#402).
Rear FPC unit
・Peel off the tape (#733).
・Peel off the two gaskets (#833).
・Unsolder the two wires.
・Disconnect the FPC.
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨮・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#422
＝#675×14
#415
#424
#B1016
・Take out the fourteen screws (#675).
・Remove the each retainer plate (#415, #422, and #424).
・Remove the rear FPC unit (#B1016).
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨯・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#671
#B420
#416
#413
#414
#412
#427
#429
#421
#428
Rear button
Selector lock lever
・Take out the screw (#671).
・Remove the selector SW unit (#B420).
・Remove the selector lock lever (#416).
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨰・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#486 #723
#482#483
#481
#672×4
#1049
#406
#610×2
#1026
#485
TFT monitor
・Take out the four screws (#672).
・Remove the retainer plate (#406) and TFT monitor (#1049).
LV lever
・Remove the spring (#486).
・Remove the E-ring (#723).
・Take out the two screws (#610).
・Remove the holder plate (#485) and live-view lever FPC unit (#1026).
・Remove the button (#482), spring (#483), LV lever (#481).
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨱・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#614×4
TA-0015 (8.5×17)
2KΩ/5W
#B431
#436
#435
#440
#859
SD cover unit
・Open the SD cover.
・Take out the four screws (#614).
・Remove the SD cover unit.
・Peel off the tape [TA-0015 (8.5×17)].
・Discharge the main condenser.
Discharge of main condenser
3. TOGO PCB/Image Sensor
SD cover unit
There are high voltage parts inside. Be careful of this electric shock,
when you remove the cover.
You must discharge the main condenser according to the instruction
of this repair manual after you remove the cover.
WARNING!
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨩󲨨・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#614×2
#611×2
#389×2
#390×2
#616
#394
#397
#27
#B24RP
Front cover unit
・Insert a lumirror sheet, etc, into the gap of the top cover pop-up section as below. Then raise the section by
sliding the sheet in the direction of the arrow.
Approx.
2cm
Approx.
4 cm
・Take out the two screws (#614).
・Remove the front cover unit.
・Take out the two screws (#611).
Front cover unit
Lumirror sheet
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨩󲨩・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#683
#617
#78
#683
#79
・Take out the screw (#683).
・Take out the screw (#617).
・Remove the shield plate (#78).
＝Unhook ×2
・Take out the screw (#683).
・Remove the shield plate (#79).
＝Unhook ×2
Shield plate
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨩󲨪・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
・Remove the six FPCs and the harness.
・Take out the four screws (#683).
Inside
Inside
TOGO PCB unit
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨩󲨫・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
#B1001RP
#1041
・Remove the TOGO PCB unit (#B1001RP).
Image sensor unit
・Disconnect the both ends of the connection-FPC (#1041).
The three terminals are being assembled into the
I/F cover unit, so remove [#B1001RP] by sliding it
in the direction of the arrow.
NICS

󲩎󲨺󲨹󲨪󲨱󲨨󲨨󲨩󲨥󲩊󲨦󲨫󲨰󲨩󲨬󲨦󲨹
󲨥󲨘󲨼󲨩󲨬・󲨼󲨯󲨨󲨨󲨨󲨘󲨥
TA-0016 (8×8)×3
#B20051
#678×3
・Take out the three screws (#678).
・Remove the image sensor unit (#B20051).
・Peel off the three pieces of the tape [TA-0016 (8×8)], and remove the harness.
Caution: Some bodies have the washers that are already put on the mounting surface of the image sensor unit.
NICS
