MODULAR MULTIZONE RECEIVER
GXR2

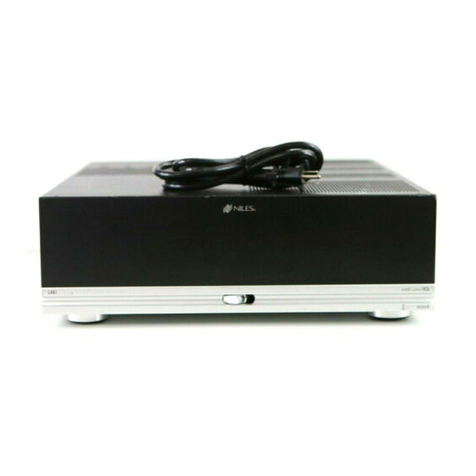

FRONT VIEW
DATA SHEET

Specifications subject to change.WWW.INTELLICONTROL.COM
PRODUCT DETAILS
©2007 Niles Audio Corporation 12331 S.W. 130 Street, Miami, FL 33186 Tel: 800.BUY.HIFI – www.nilesaudio.com – All rights reserved.
Niles, the Niles logos, IntelliControl and IntelliFile are registered trademarks of Niles Audio Corporation. All other trademarks are the
property of their respective owners. Designed and engineered in the USA. 03/07 LT00225B
GXR2 MODULAR MULTI-ZONE RECEIVER
110 VOLT FG01174
220 VOLT FG01190
FEATURES
• Modular MultiZone Receiver distributes up to
six sources to six zones
• Built-in High Current 12-channel Amplifier
delivers 55 watts per channel RMS @ 8 ohm
and 85 watts per channel @ 4 ohm to each of six
zones
• Integrated Six Slot Card Cage accepts
any combination of up to six IntelliControl ICS
integration modules
• Plug and Play Integration of IntelliControl
ICS integration modules
• Reliable “One Touch to Music” operation
using IntelliControl ICS Touch Screens, Keypads
and remote controls
• Party Mode turns on all your favorite areas from
any keypad or remote control
• Global Off turns off all areas from any keypad
or remote control
• Tone Controls fine tune bass and treble in each
separate zone
• Balance Control fine tunes channel levels in
each separate zone
• Programmable Turn-On Volume for each
zone
• Alarm Clock and Sleep Timer for each zone
• Paging/Doorbell Input enables system wide
voice announcements from a phone system or
doorbell sounds from the Niles DBI-1
• Zone Linking allows a grouping of zones to
be controlled as a single zone. Turn-On, Source
selection, Paging and Turn-Off all work in unison,
yet each zone has independent volume adjustment
and muting
• Home Theater Integration Ports enable audio
and video source components shared with the home
theater system to be turned on, controlled via IR and
turned off as needed
• Selectable Fixed/Variable Zone Preamp
Outputs with 12 Volt Triggers for external
amplifier applications
• Source Matching Gain Control ensures
changing sources doesn’t require changing
volume control settings
• Removable Speaker Connectors hold up to
12-gauge speaker wire
• Expandable up to 30 Zones with additional
GXR2s
• Includes Rack Mount Kit and hardware
SPECIFICATIONS
• Agency certifications:
FG01174: Class 2/SELV covering US, Canadian
and EU markets
FG01190: Safety: UL/EN 60065
EMC: CE, CTICK
• 55 watts x 12 channels
• Frequency response: 26-20 kHz +/- 3 db
• Signal to Noise: > = 85 db
• Power supply:
FG01174: AC 120V, 60Hz
FG01190: AC 240V, 50Hz
• Power consumption: 1500 watts maximum
DIMENSIONS
• 17-3/8" wide x 5-3/4" high (including feet)
x 18" deep
WARRANTY AND SHIPPING
• Warranty: Two year limited
• Shipping: Weight: 54 lbs
