Niles Cynema Soundfield CSF48P User manual

CYNEMA SOUNDFIELD '~ SOUNDBAR SYSTEM
BLENDING HIGH FIDELITY AND ARCHITECTURE •

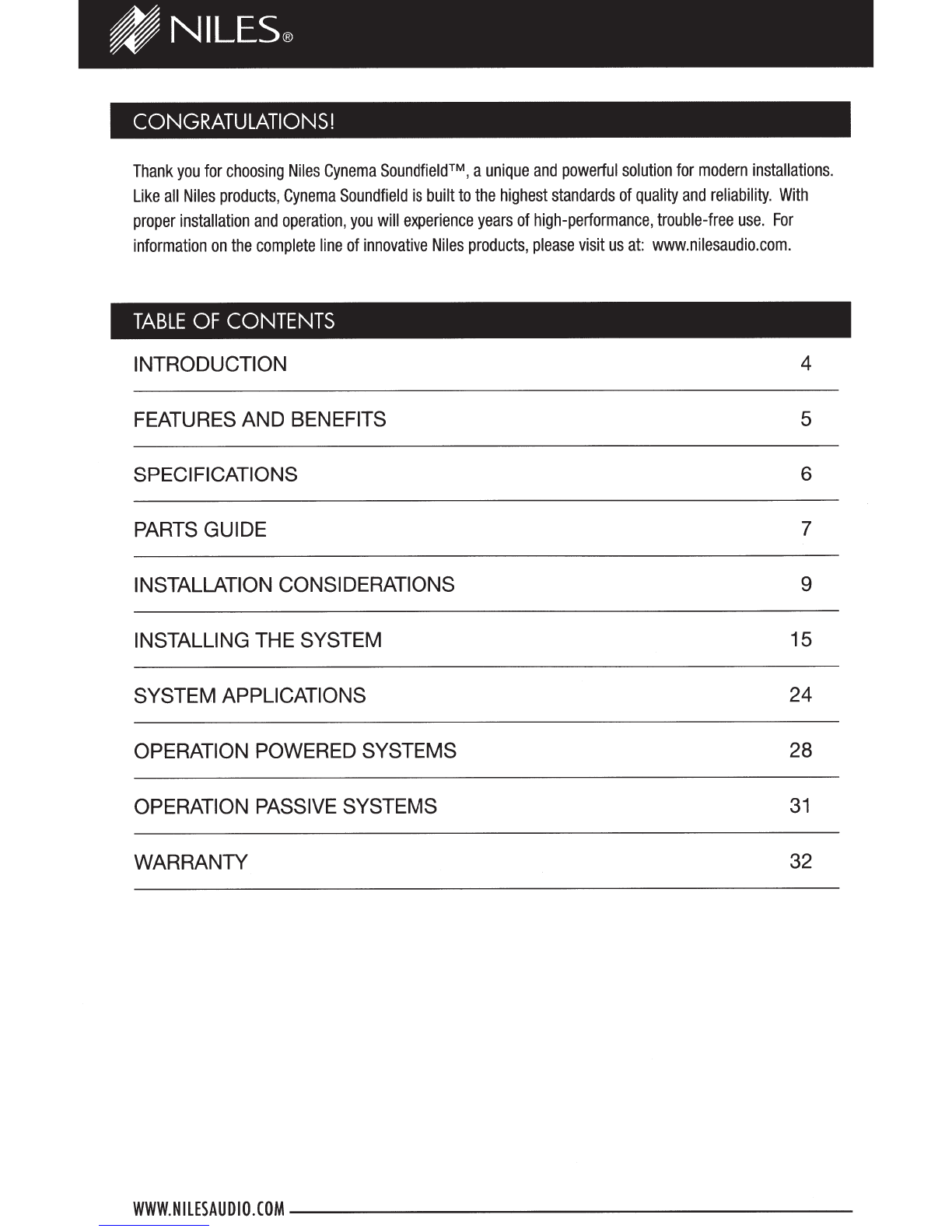

CONGRATULATIONS
I
Thank
you
for
choosing
Niles
Cynema
Soundfield™,
a
unique
and
powerful
solution
for
modern
installations.
Like
all
Niles
products,
Cynema
Soundfield
is
built
to
the
highest
standards
of
quality
and
reliability.
With
proper
installation
and
operation,
you
will
experience
years
of
high-performance,
trouble-free
use.
For
information
on
the
complete
line
of
innovative
Niles
products,
please
visit
us
at:
www.nilesaudio.com.
TABLE
OF
CONTENTS
INTRODUCTION 4
FEATURES AND BENEFITS 5
SPECIFICATIONS 6
PARTS GUIDE
7
INSTALLATION CONSIDERATIONS
9
INSTALLING THE SYSTEM
15
SYSTEM APPLICATIONS
24
OPERATION POWERED SYSTEMS
28
OPERATION PASSIVE SYSTEMS
31
WARRANTY
32
WWW.NILESAUDIO.COM
--------------------

I
CYNEMA
SOUNDFIELD™
SOUNDBAR
SYSTEMS
IMPORTANT
SAFETY
INSTRUCTIONS
1.
Read
these
instructions.
2.
Keep
these
instructions.
3.
Heed
all
warnings.
4.
Follow
all
instructions.
5.
Do
not
use
this
apparatus
near
water.
6.
Clean
only
with
a
dry
cloth.
7.
Do
not
block
any
ventilation
openings.
Install
in
accordance
with
the
manufacturer's
instructions.
8.
Do
not
install
near
any
heat
sources
such
as
radiators,
heat
registers,
stoves
or
other
apparatus
(including
amplifiers)
that
produce
heat.
9.
Do
not
defeat
the
safety
purpose
of
the
polarized
or
grounding-type
plug.
A
polarized
plug
has
two
blades
with
one
wider
than
the
other.
A
grounding-type
plug
has
two
blades
and
a
third
grounding
prong.
The
wide
blade
or
the
third
prong
is
provided
for
your
safety.
If
the
provided
plug
does
not
fit
into
your
outlet,
consult
an
electrician
for
replacement
of
the
obsolete
outlet.
10.
Protect
the
power
cord
from
being
walked
on
or
pinched,
particularly
at
plugs,
convenience
receptacles
and
the
point
where
they
exit
from
the
apparatus.
11.
Only
use
attachments/accessories
specified
by
the
manufacturer.
12.
Use
only
with
the
cart,
stand,
tripod,
bracket
or
table
specified
by
the
manufacturer
or
sold
with
the
apparatus.
When
a
cart
is
used,
use
caution
when
moving
the
cart/apparatus
combination
to
avoid
injury
from
tip-over.
13.
Unplug
this
apparatus
during
lightning
storms
or
when
unused
for
long
periods
of
time.
14.
Refer
all
servicing
to
qualified
service
personnel.
Servicing
is
required
when
the
apparatus
has
been
damaged
in
any
way,
such
as
power
supply
cord
or
plug
is
damaged,
liquid
has
been
spilled
or
objects
have
fallen
into
the
apparatus,
the
apparatus
has
been
exposed
to
rain
or
moisture,
does
not
operate
normally,
or
has
been
dropped.
15.
Do
not
expose
this
apparatus
to
dripping
or
splashing
and
ensure
that
no
objects
filled
with
liquids,
such
as
vases,
are
placed
on
the
apparatus.
16
.
To
completely
disconnect
this
apparatus
from
the
AC
Mains,
disconnect
the
power
supply
cord
plug
from
the
AC
receptacle.
17.
The
power
supply
cord
(sometimes
referred
to
as
the
"Mains
Plug")
is
used
as
the
disconnect
device
and
shall
remain
accessible
and
operable
at
all
times.
18.
Do
not
expose
batteries
to
excessive
heat
such
as
sunshine,
fire
or
the
like.
19.
Open
flame
sources,
such
as
lighted
candles,
should
NOT
be
placed
on
the
apparatus.
WARNING: To
reduce
the
risk
of
fire
or
electric
shock,
do
not
expose
this
apparatus
to
rain
or
moisture.
•
The
lightning
flash
with
arrowhead
symbol,
within
an
equilateral
triangle,
is
intended
to
alert
the
user
to
the
presence
of
uninsulated
"dangerous
voltage"
within
the
product's
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons.
A
The
exclamation
point
within
an
equilateral
triangle
is
intended
to
alert
the
user
to
the
presence
of
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
product.
FCC
Required
Text:
NOTE:
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates,
uses,
and
can
radiate,
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation
.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
-Reorient
or
relocate
the
receiving
antenna.
-Increase
the
separation
between
the
equipment
and
receiver.
-Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
-Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
Changes
or
modifications
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user's
authority
to
operate
the
equipment.
NILES
AUDIO
CORPORATION
-1-800-BUY-HIFI-1-760-710-0992
3

INTRODUCTION
Cynema
Soundfield
delivers
both
unobtrusive
appearance
and
high
performance.
We
created
the
new
term
Cynema
Soundfield
to
describe
the
system
because
it
is
more
than
just
a
soundbar
or
a
collection
of
independent
speakers.
Much
more
versatile
than
a
traditional
soundbar,
speakers
can
be
placed
in
a
variety
of
configurations
to
optimize
audio
performance.
Aesthetically,
the
Cynema
Soundfield's
virtually
flat
appearance
complements
the
latest
flat
panel
displays
perfectly.
Its
unique
in-wall
mounting
system
dramatically
improves
the
ease
of
installation
and
contributes
to
dynamic
audio
reproduction.
Thin
flat
panel
televisions
must
use
thin
speakers.
Thin
speakers
fall
short
of
our
standards
for
high
fidelity.
Niles
Cynema
Soundfield
is
the
solution
that
brings
the
aspects
people
appreciate
most
about
flat
panel
TVs,
unobtrusive
appearance
and
high
performance,
to
the
world
of
installed
audio
products.
:
~~~~
)
.1
""""'""'
I
~~~
;
CSF-~5©J
4
-------------------
WWW.NILESAUDIO.COM

CYNEMA
SOUNDFIELD™
SOUNDBAR
SYSTEMS

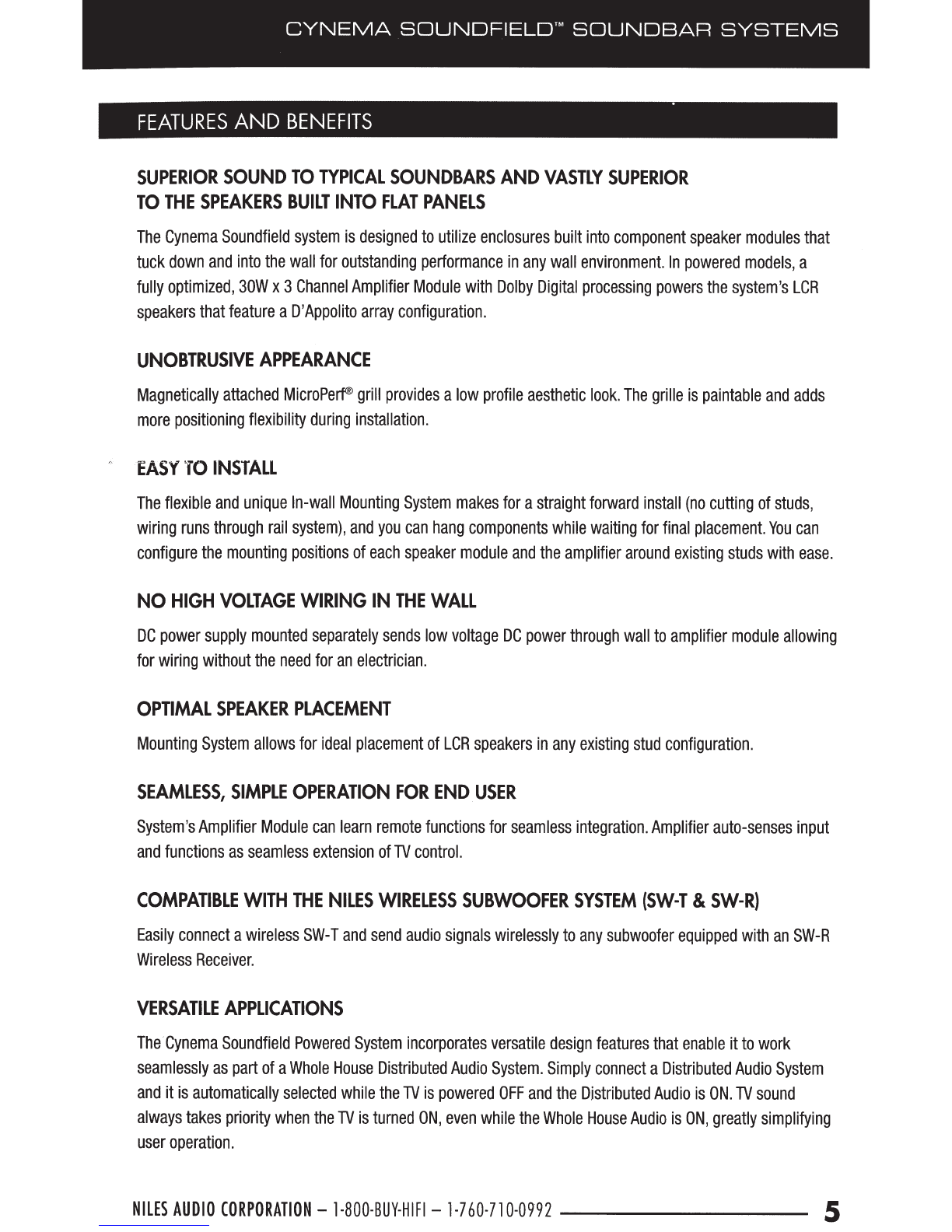

FEATURES
AND
BENEFITS
SUPERIOR
SOUND
TO
TYPICAL
SOUNDBARS
AND
VASTLY
SUPERIOR
TO
THE
SPEAKERS
BUILT
INTO
FLAT
PANELS
The
Cynema
Soundfield
system
is
designed
to
utilize
enclosures
built
into
component
speaker
modules
that
tuck
down
and
into
the
wall
for
outstanding
performance
in
any
wall
environment.
In
powered
models,
a
fully
optimized,
30W
x3
Channel
Amplifier
Module
with
Dolby
Digital
processing
powers
the
system's
LCR
speakers
that
feature
a
D'Appolito
array
configuration.
UNOBTRUSIVE
APPEARANCE
Magnetically
attached
MicroPerf®
grill
provides
a
low
profile
aesthetic
look.
The
grille
is
paintable
and
adds
more
positioning
flexibility
during
installation.
EASY
'fO
INSTALL
The
flexible
and
unique
In-wall
Mounting
System
makes
for
a
straight
forward
install
(no
cutting
of
studs,
wiring
runs
through
rail
system),
and
you
can
hang
components
while
waiting
for
final
placement.
You
can
configure
the
mounting
positions
of
each
speaker
module
and
the
amplifier
around
existing
studs
with
ease.
NO
HIGH
VOLTAGE
WIRING
IN
THE
WALL
DC
power
supply
mounted
separately
sends
low
voltage
DC
power
through
wall
to
amplifier
module
allowing
for
wiring
without
the
need
for
an
electrician.
OPTIMAL
SPEAKER
PLACEMENT
Mounting
System
allows
for
ideal
placement
of
LCR
speakers
in
any
existing
stud
configuration.
SEAMLESS,
SIMPLE
OPERATION
FOR
END
.
USER
System's
Amplifier
Module
can
learn
remote
functions
for
seamless
integration.
Amplifier
auto-senses
input
and
functions
as
seamless
extension
of
TV
control.
COMPATIBLE
WITH
THE
NILES
WIRELESS
SUBWOOFER
SYSTEM
(SW-T
&
SW-R)
Easily
connect
a
wireless
SW-
T
and
send
audio
signals
wirelessly
to
any
subwoofer
equipped
with
an
SW-R
Wireless
Receiver.
VERSATILE
APPLICATIONS
The
-
cynema
Soundfield
Powered
System
incorporates
versatile
design
features
that
enable
it
to
work
seamlessly
as
part
of
a
Whole
House
Distributed
Audio
System.
Simply
connect
a
Distributed
Audio
System
and
it
is
automatically
selected
while
the
TV
is
powered
OFF
and
the
Djstributed
Audio
is
ON.
TV
sound
always
takes
priority
when
the
TV
is
turned
ON,
even
while
the
Whole
House
Audio
is
ON,
greatly
simplifying
user
operation.
NILES
AUDIO
CORPORATION
-1-800-BUY-HIFI-1-760-710-0992
---------
5

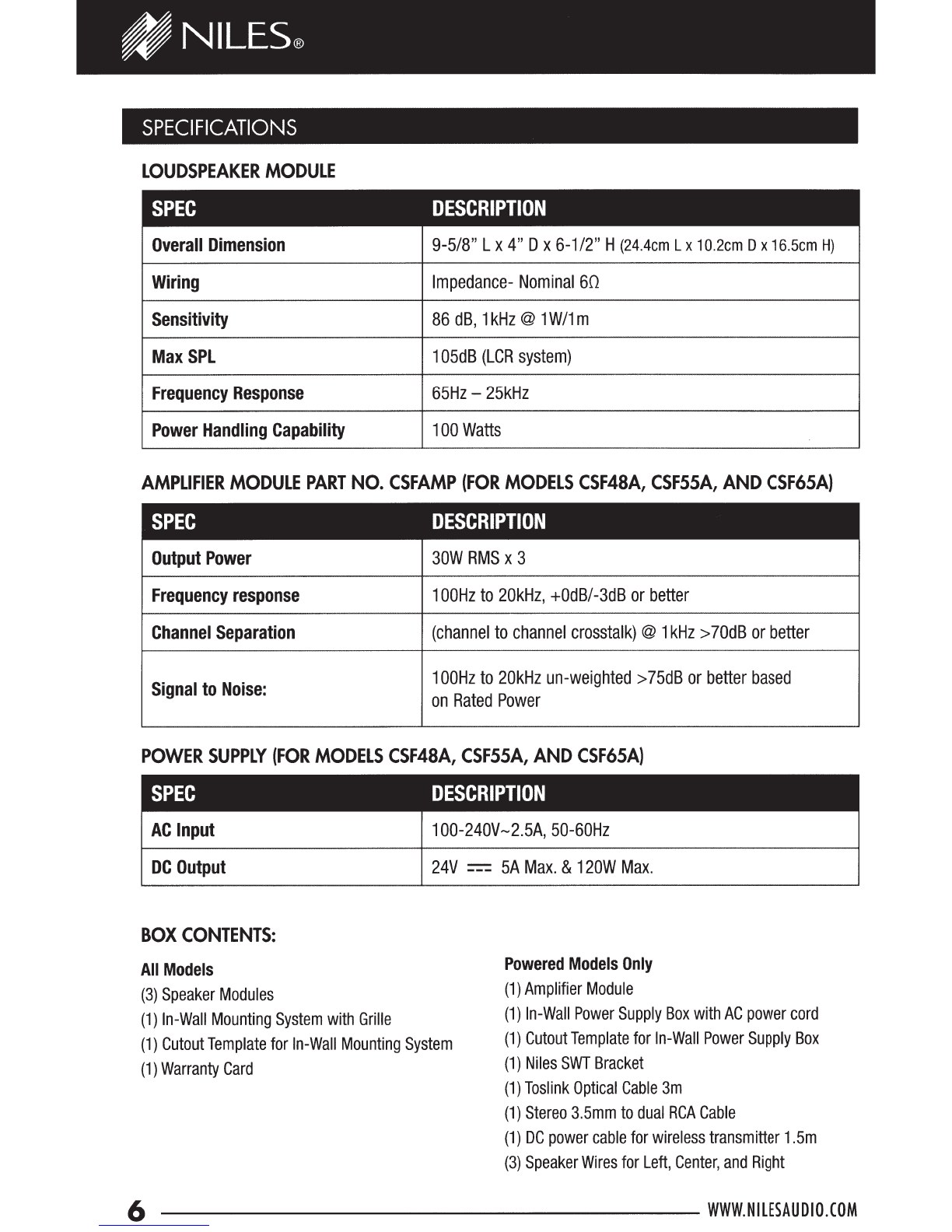

SPECIFICATIONS
LOUDSPEAKER MODULE
SPEC
DESCRIPTION
Overall Dimension
9-5/8" Lx 4" Dx 6-1 /2" H (24.4cm Lx 1 0.2cm Dx 16.5cm H)
Wiring
Impedance- Nominal 60
Sensitivity
86 dB, 1kHz@ 1W/1 m
Max SPL
1 05dB (LCR system)
Frequency Response
65Hz- 25kHz
Power Handling Capability 100 Watts
AMPLIFIER MODULE PART NO. CSFAMP (FOR MODELS CSF48A, CSF55A, AND CSF65A)
SPEC
DESCRIPTION
Output Power
30W RMS x3
Frequency response
1OOHz to 20kHz, +0dB/-3dB or better
Channel Separation
(channel to channel crosstalk) @ 1kHz > 70dB or better
Signal to Noise:
1OOHz to 20kHz un-weighted > 75dB or better based
on Rated Power
POWER SUPPLY (FOR MODELS CSF48A, CSF55A, AND CSF65A)
SPEC DESCRIPTION
AC Input
DC Output
BOX CONTENTS:
All Models
(3) Speaker Modules
(1) In-Wall Mounting System with Grille
1 00-240V-2.5A, 50-60Hz
24V = 5A Max. & 120W Max.
Powered Models Only
(1) Amplifier Module
(1) Cutout Template for In-Wall Mounting System
(1) Warranty Card
(1) In-Wall Power Supply Box with AC power cord
(1) Cutout Template for In-Wall Power Supply Box
(1) Niles SWT Bracket
6
(1) Toslink Optical Cable 3m
(1) Stereo 3.5mm to dual RCA Cable
(1) DC power cable for wireless transmitter 1.5m
(3) Speaker Wires for Left, Center, and Right
-------------------- WWW.NILESAUDIO.COM

CYNEMA
SOUNDFIELDTM
SOUNDBAR
SYSTEMS
SYSTEM

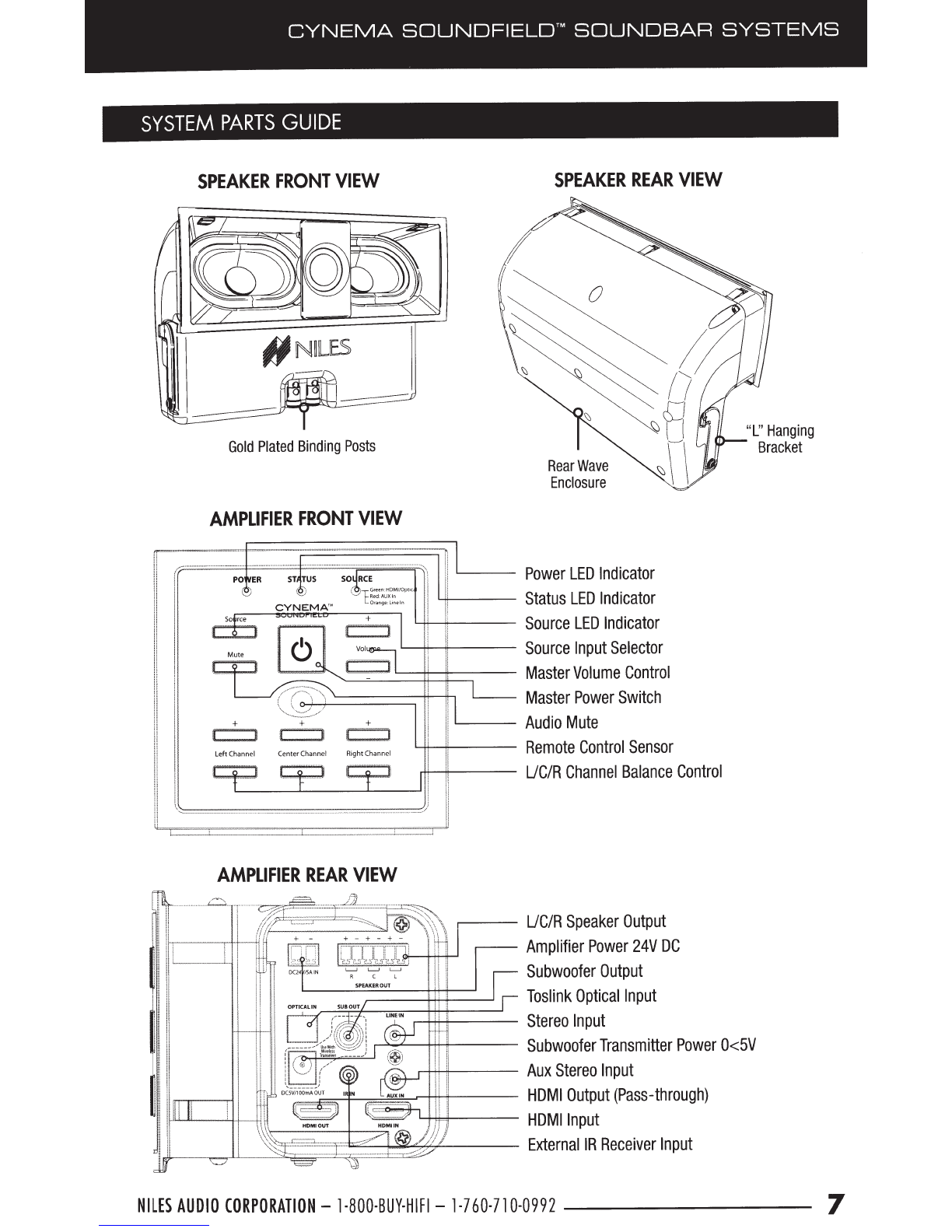

PARTS
GUIDE
SPEAKER
FRONT
VIEW
Gold
Plated
Binding
Posts
AMPLIFIER
FRONT
VIEW
CYNEMA
'"
SPEAKER
REAR
VIEW
Rear
Wave
Enclosure
~---..__
Power
LED
Indicator
L..fi----
Status
LED
Indicator
L.....ft--+----
Source
LED
Indicator
L---f+---+---
Source
Input
Selector
L---++---1!----
Master
Volume
Control
Master
Power
Switch
..____
Audio
Mute
(-
;;
::-::_:;-
\
"---------+!-----#--,
"
"'
-
~
':::~/
.
+ + +
c::::J
c:::J
1!
J
AMPLIFIER
REAR
VIEW
'-++--+----
Remote
Control
Sensor
r++---tt-----
UC/R
Channel
Balance
Control
.------
UC/R
Speaker
Output
Amplifier
Power
24V
DC
Subwoofer
Output
Toslink
Optical
Input
r-++1-+----
Stereo
Input
"L''
Hanging
Bracket
~......__-+++-+------
Subwoofer
Transmitter
Power
0<5V
~=:;:...=~
.......-H+--+----
Aux
Stereo
Input
-
~~
-
--
-:.;~+--~!!.!!..--r-ttt-t----
HDMI
Output
(Pass-
through)
~,____
__
HDMIInput
~:::::
::rr
·
·-!:'''·'''"
'
''=
·":''''·"·''
''
'
'
'·
'1
''''::
:
::.
~~~
~
+------
External
IR
Receiver
Input
NILES
AUDIO
CORPORATION
-1·800-BUY·HIFI-1·760·710-0992
---------
7

8
SYSTEM

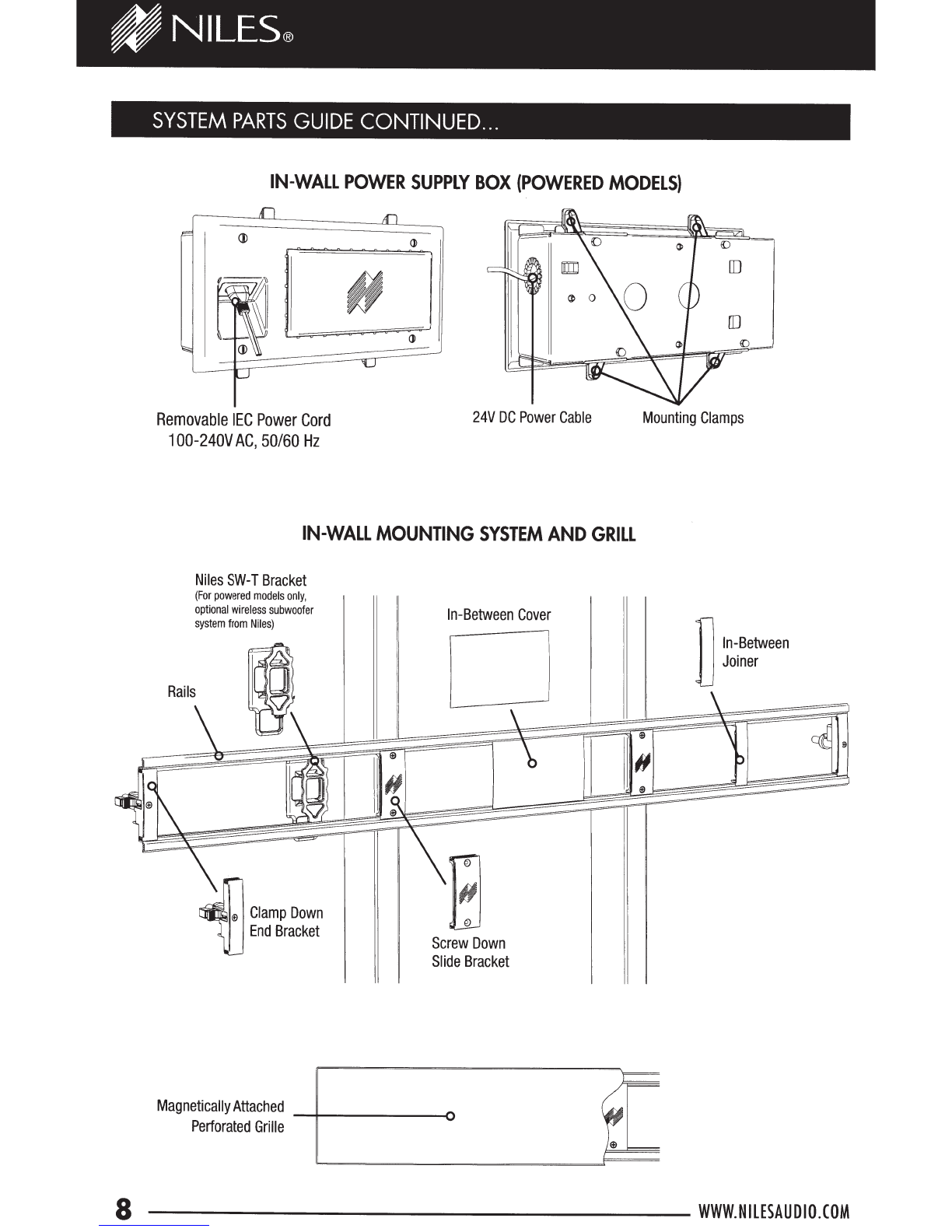

PARTS
GUIDE
CONTINUED
...
IN-WALL
POWER
SUPPLY
BOX
(POWERED
MODELS)
Removable
IEC
Power
Cord
1
00-240V
AC,
50/60Hz
24V
DC
Power
Cable
IN-WALL
MOUNTING
SYSTEM
AND
GRILL
Niles
SW-
T
Bracket
(For
powered
models
only
,
optional
wireless
subwoofer
system
from
Niles)
~ClampDown
lJ
End
Bracket
In-Between
Cover
Screw
Down
Slide
Bracket
Mounting
Clamps
IJ
In-Between
Joiner
--------------------
WWW.NILESAUDIO.COM

CYNEMA
SOUNDFIELD™
SOUNDBAR
SYSTEMS
INSTALLATION
CONSIDERATIONS

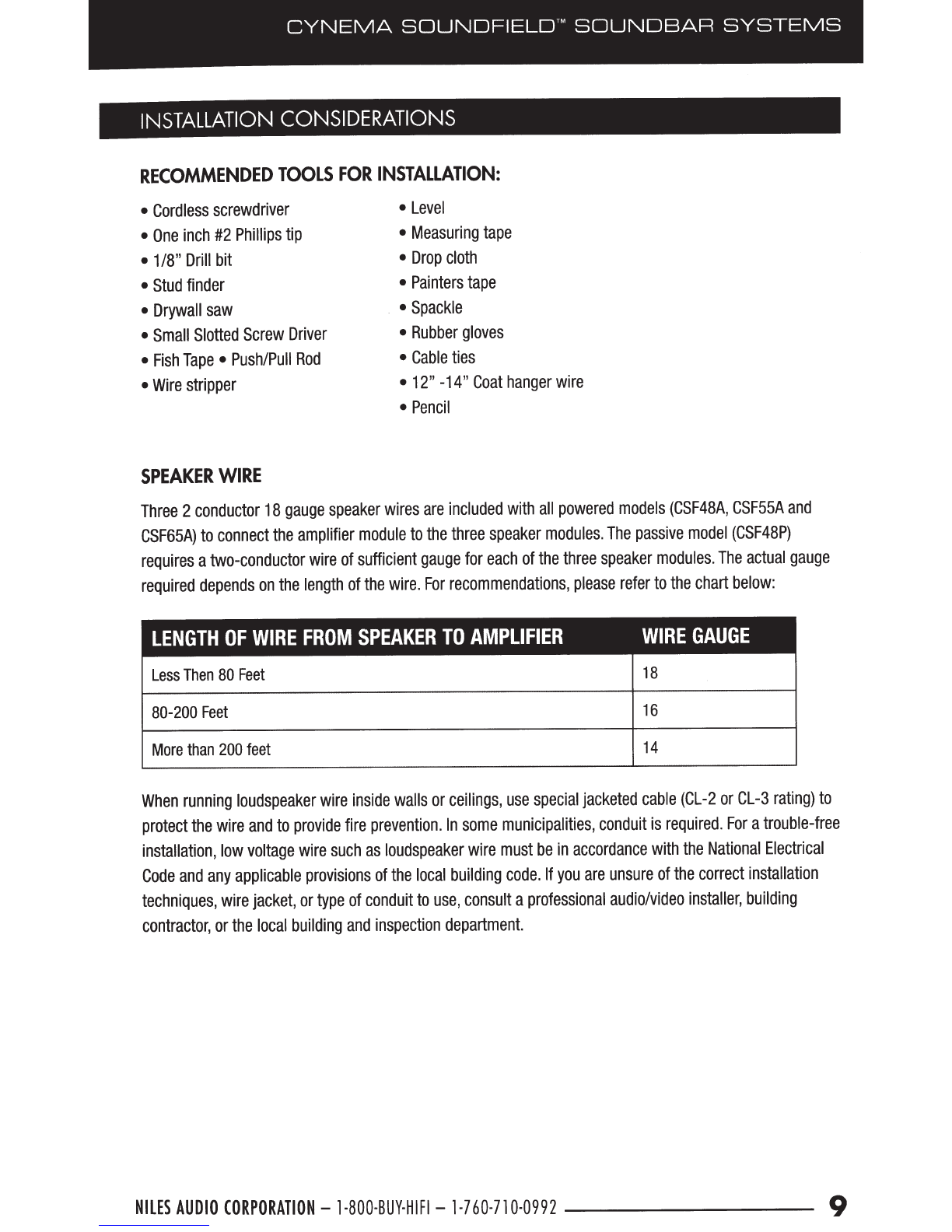

RECOMMENDED
TOOLS
FOR
INSTALLATION:
•
Cordless
screwdriver
•
Level
•
One
inch
#2
Phillips
tip
•
Measuring
tape
•
1/8"
Drill
bit
•
Drop
cloth
•
Stud
finder
•
Painters
tape
•
Drywall
saw
. •
Spackle
•
Small
Slotted
Screw
Driver
•
Rubber
gloves
•
Fish
Tape
•
Push/Pull
Rod
•
Cable
ties
•
Wire
stripper
•
12"
-14"
Coat
hanger
wire
•
Pencil
SPEAKER
WIRE
Three
2
conductor
18
gauge
speaker
wires
are
included
with
all
powered
models
(CSF48A,
CSF55A
and
CSF65A)
to
connect
the
amplifier
module
to
the
three
speaker
modules.
The
passive
model
(CSF48P)
requires
a
two-conductor
wire
of
sufficient
gauge
for
each
of
the
three
speaker
modules.
The
actual
gauge
required
depends
on
the
length
of
the
wire.
For
recommendations,
please
refer
to
the
chart
below:
LENGTH
OF
WIRE
FROM
SPEAKER
TO
AMPLIFIER
WIRE
GAUGE
Less
Then
80
Feet
18
80-200
Feet
16
More
than
200
feet
14
When
running
loudspeaker
wire
inside
walls
or
ceilings,
use
special
jacketed
cable
(CL
-2
or
CL
-3
rating)
to
protect
the
wire
and
to
provide
fire
prevention.
In
some
municipalities,
conduit
is
required.
For
a
trouble-free
installation,
low
voltage
wire
such
as
loudspeaker
wire
must
be
in
accordance
with
the
National
Electrical
Code
and
any
applicable
provisions
of
the
local
building
code.
If
you
are
unsure
of
the
correct
installation
techniques,
wire
jacket,
or
type
of
conduit
to
use,
consult
a
professional
audio/video
installer,
building
contractor,
or
the
local
building
and
inspection
department.
NILES
AUDIO
CORPORATION
-1-800-BUY·HIFI-1-760-710-0992
---------
9

INSTALLATION
CONSIDERATIONS
CONTINUED
...
IN-WALL
MOUNTING
SYSTEM
Note:
Be
very
careful
when
locating
the
IN-WALL
MOUNTING
SYSTEM.
Verify
all
locations
behind
the
wall
are
clear
of
obstructions
before
cutting
into
the
drywall.
The
speaker
mounting
system
requires
a
rectangular
opening
in
the
drywall.
See
below
for
dimensions:

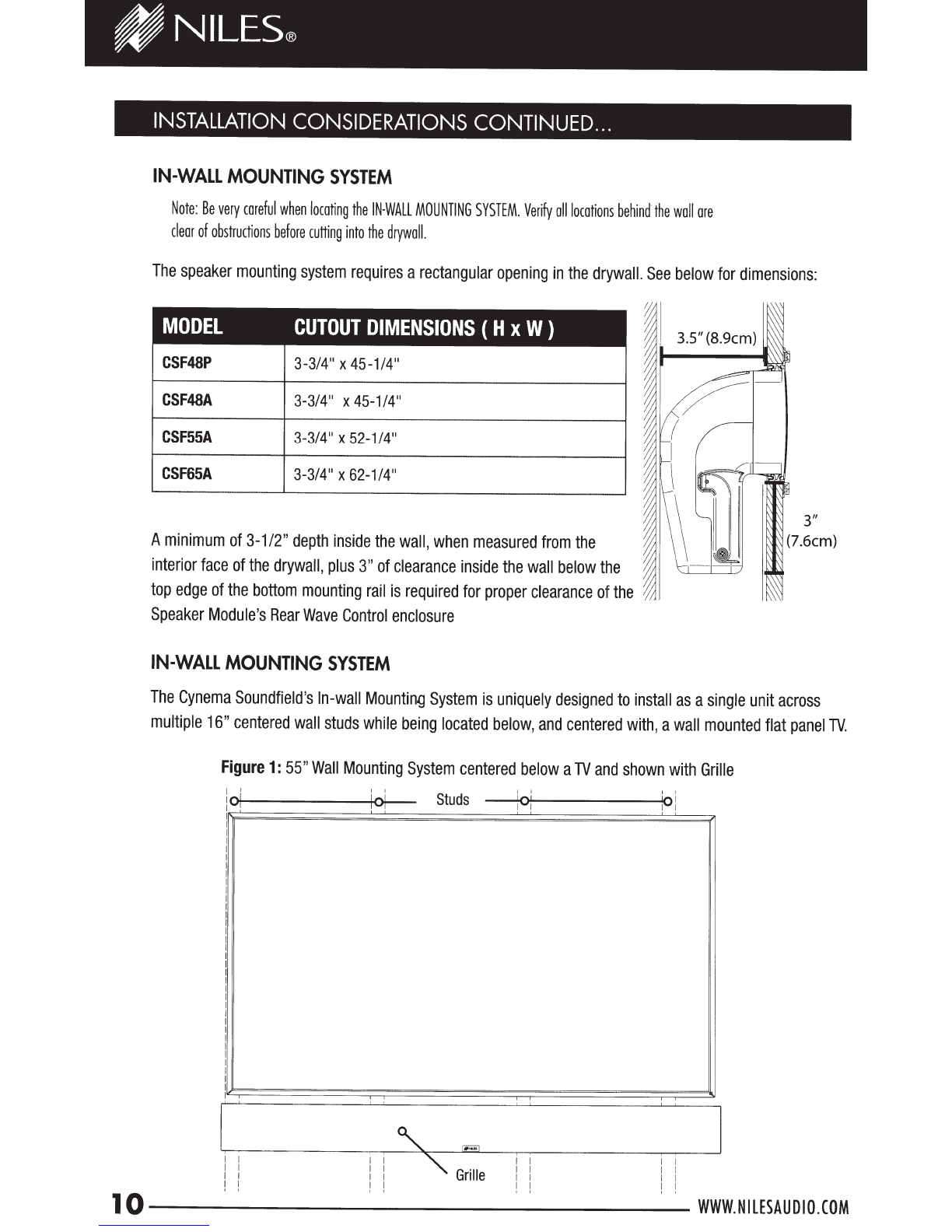

MODEL
CUTOUT
DIMENSIONS
( H
x
W)
CSF48P
3-3/4"
X
45-1/4"
CSF48A
3-3/4
11
X
45-1/4
11
CSF55A
3-3/4"
X
52-1/4"
CSF65A
3-3/4"
X
62-1/4
11
A
minimum
of
3-1
/2"
depth
inside
the
wall,
when
measured
from
the
interior
face
of
the
drywall,
plus
3"
of
clearance
inside
the
wall
below
the
top
edge
of
the
bottom
mounting
rail
is
required
for
proper
clearance
of
the
Speaker
Module's
Rear
Wave
Control
enclosure
IN-WALL
MOUNTING
SYSTEM
/;
3"
(7.6cm)
The
Cynema
Soundfield's
In-wall
Mountirl{)
System
is
uniquely
designed
to
install
as
a
single
unit
across
multiple
16"
centered
wall
studs
while
being
located
below,
and
centered
with,
a
wall
mounted
flat
panel
TV.
Figure
1:
55"
Wall
Mounting
System
centered
below
a
TV
and
shown
with
Grille
'(
Grille
10------------------
WWW.NILESAUDIO.COM

CYNEMA SOUNDFIELD™ SOUNDBAR SYSTEMS
INSTALLATION CONSIDERATIONS CONTINUED ...
IN-WALL MOUNTING SYSTEM
Screw down slide brackets and clamp down end brackets enable proper installation of the movable
speaker and amplifier modules in most installations regardless of the TV's relative position to the wall studs
(see page 12 for installation exceptions that are affected by the relative position of the wall studs).
Figure 2: 55" Wall Mounting System centered below a TV and shown without Grille
Screw Down
Brackets
MODEL
CSF48P
CSF48A
CSF55A
CSF65A
Studs ~H-i --------Hioi
Clamp Down
End Bracket
GRILLE DIMENSIONS ( HxW)
5-1/4
11
X 48
11
5-1/4
11
x48
11
5-1/4
11
X 55
11
5-1/4
11
X 65
11
NILES AUDIO CORPORATION -1-800-BUY-HIFI-1-760-710-0992 ---------
11

NILES®
INSTALLATION
CONSIDERATIONS
CONTINUED
...
IMPORTANT
INSTALLATION
CONSIDERATION
FOR
48"
AND
55"
MODELS:
When
installing
the
48"
model
the
TV's
center
must
be
at
least
3
3/4"
to
the
right
or
left
of
the
wall
stud
center.
When
installing
the
55"
model
the
TV's
center
must
be
at
least
1
/4"
to
the
right
or
left
of
the
wall
stud.
This
allows
for
proper
installation
of
all
three
speaker
modules
into
the
In-Wall
Mounting
System.
(See
Figure
3&
4)
The
65"
model
does
not
require
this
consideration
due
to
its
larger
size.
Figure
3:
48"
System
with
the
TV
center
3
3/4"
from
the
center
of
a
wall
stud
I
Minimum Offset from Stud's Centerline \ TV
relative to Flatpanel's Centerline
and
still
I.
Centerline
being
able
to center Grille with
Flatpanel
.. · .
I
.--- 3
3/4"
-1
Figure
4:
55"
System
with
the
TV
center
1/4"
from
the
center
of
the
a
stud
1V
Centerline
1-
Minimum
Offset from
Stud's
Centerline
i
I
relative to
Flatpanel's
Centerline
and
still
II
being
able
to center
Grille
with
Flatpanel
l
f---
1/4"
I·
I
I
I
II
I II
I
__
--
--·~
-
~
e
~
~
m~
e
11
11
11
®
[J
I
e
0::.
~
(!)
*¥
l
____:rM~
!
J
~
1
~
"
-~
~!
J
I
L _
_:rg
_!
J
i
I
I
I
l
I
12
------------------
WWW.NILESAUDIO.COM

CYNEMA
SOUNDFIELDT~
SOUNDBAR
SYSTEMS
INSTALLATION
CONSIDERATIONS
CONTINUED
...
IN-WALL
MOUNTING
SYSTEM
The
Cynema
Soundfield
In-Wall
Mounting
System
includes
two
rails
that
are
connected
together
using
up
to
four
Screw
Down
Slide
Brackets
as
shown
in
Figure
2
on
page
11.
There
will
be
installations
where
the
right
and
left
end
of
the
rails
do
not
fall
directly
on
a
stud.
Two
Clamp
Down
End
Brackets
are
included
to
secure
rail
ends
that
fall
3
or
more
inches
from
the
nearest
Screw
Down
Sliding
Bracket
by
clamping
the
drywall
as
shown
in
Figure
2
on
page
11.
SPECIAL
INSTALLATION
NOTE:
In
some
installations
the
ends
of
the top
and
bottom
rails
will
fall
too
close
to
the
side
of
a
stud
to
provide
the
Clamp
Down
End
Bracket
with
enough
drywall
for
clamping
and,
at
the
same
time,
not
fall
close
enough
to
the
stud
to
use
the
Screw
Down
Sliding
Bracket
(Figure
5,
A.).
When
this
occurs,
attach
a
wood
furring
strip
flush
on
the
side
of
that
stud
(Figure
5,
B.)
and
use
the
Screw
Down
Slide
Brackets
screwed
into
these
furring
strips
to
secure
the
ends
of
the
rails
(Figure
5,
C.).
Figure
5:
Stud
with
a
furring
strip
and
Screw
Down
Sliding
Bracket
v -
T
J
'-
A
T J
L
B
~
...t::;.....>..
"'\;}'\_
1
$
f1
'-::::::::::..
$
T
I~
~
c
NILES
AUDIO
CORPORATION
-1-800-BUY-HIFI-1-760-710-0992
---------
13

INSTALLATION
CONSIDERATIONS
CONTINUED
...
IN-WALL
POWER
SUPPLY
BOX
(POWERED
MODELS
ONLY)
All
Powered
Cynema
Soundfield
models
(CSF48A,
CSF55A
and
CSF65A)
include
one
In-Wall
Power
Supply
Box.
The
In-Wall
Power
Supply
Box
incorporates
the
Amplifier
Module
power
supply
in
a
flush
mounted
electrical
box.
It
includes
a
removable
AC
power
cord
on
the
front
face
plate,
outside
the
wall,
that
plugs
into
a
standard
AC
wall
outlet.
A
24V
DC
cable
on
the
rear
side,
inside
the
wall,
connects
to
the
Amplifier
Module
that
installs
in
the
In-Wall
Mounting
System
with
the
Speaker
Modules.
The
In-Wall
Power
Supply
Box
is
installed
below
or
directly
behind
a
wall
mounted
TV
next
to
an
AC
outlet
(Figure
6
A,
B).
Figure
6:
In-Wall
Power
Supply
Box
-------J
l
oy
I~
A:
Located
Below
the
TV
B:
Located
Behind
the
TV
IMPORTANT
INSTALLTION
NOTE:
Because
the
24V
DC
cable
provided
is
limited
in
length
and
cannot
be
spliced
or
extended,
you
must
locate
the
In-Wall
Power
Supply
Box
as
close
as
possible
to
the
Amplifier
Module.
In
some
municipalities,
conduit
is
required.
For
a
trouble-free
installation,
low
voltage
wire
must
be
in
accordance
with
the
National
Electrical
Code
and
any
applicable
provisions
of
the
local
building
code.
If
you
ore
unsure
of
the
correct
installation
techniques,
wire
jacket,
or
type
of
conduit
to
use,
consult
a
professional
audio/video
installer,
building
contractor,
or
the
local
building
and
inspection
department.
14
-------------------
WWW.NILESAUDIO.COM

CYNEMA
SOUNDFIELD™
SOUNDBAR
SYSTEMS

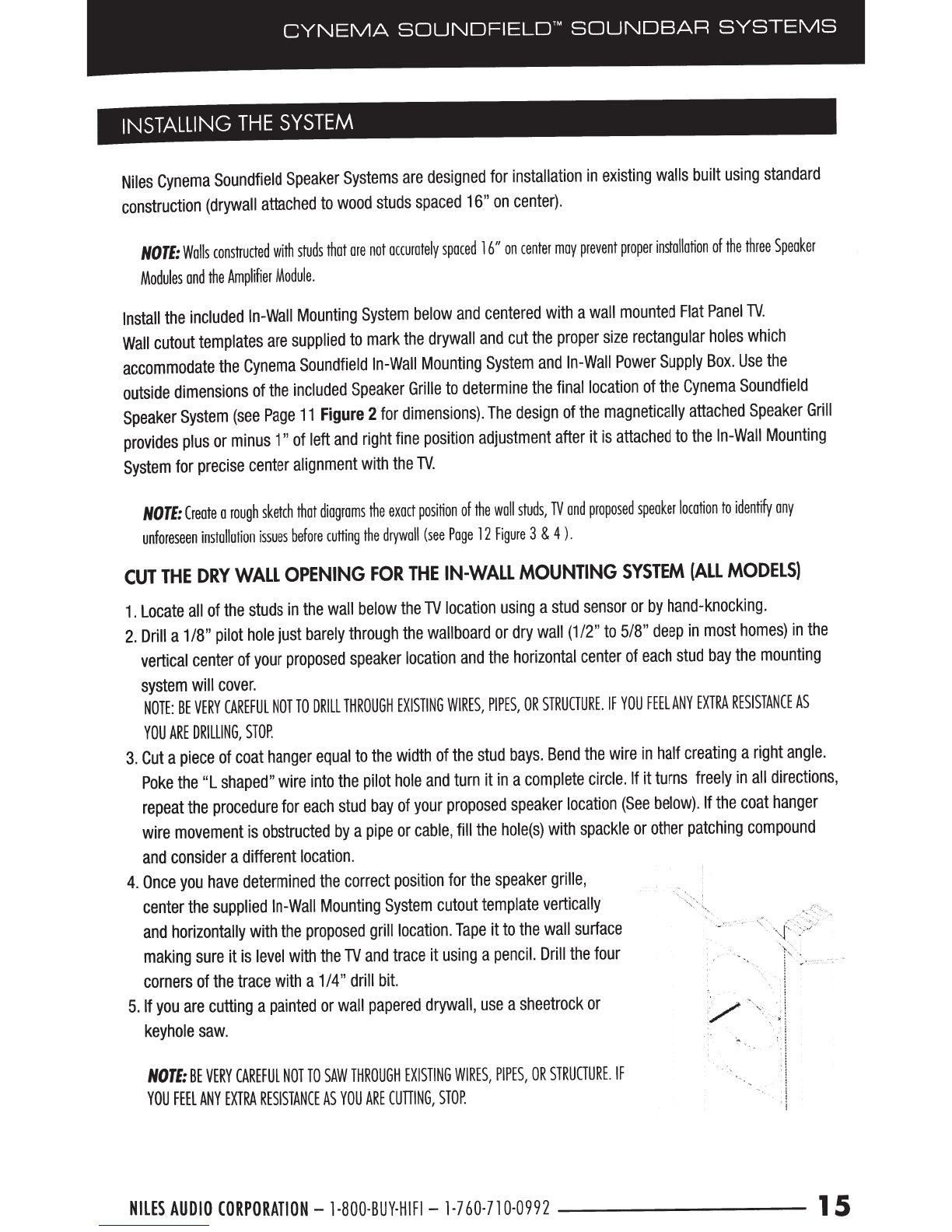

INSTALLING
THE
SYSTEM
Niles
Cynema
Soundfield
Speaker
Systems
are
designed
for
installation
in
existing
walls
built
using
standard
construction
(drywall
attached
to
wood
studs
spaced
16"
on
center).
NOTE:
Walls
constructed
with
studs
that
are
not
accurately
spaced
16"
on
center
may
prevent
proper
installation
of
the
three
Speaker
Modules
and
the
Amplifier
Module.
Install
the
included
In-Wall
Mounting
System
below
and
centered
with
a
wall
mounted
Flat
Panel
TV.
Wall
cutout
templates
are
supplied
to
mark
the
drywall
and
cut
the
proper
size
rectangular
holes
which
accommodate
the
Cynema
Soundfield
In-Wall
Mounting
System
and
In-Wall
Power
Supply
Box.
Use
the
outside
dimensions
of
the
included
Speaker
Grille
to
determine
the
final
location
of
the
Cynema
Soundfield
Speaker
System
(see
Page
11
Figure
2
for
dimensions).
The
design
of
the
magnetically
attached
Speaker
Grill
provides
plus
or
minus
1"
of
left
and
right
fine
position
adjustment
after
it
is
attached
to
the
In-Wall
Mounting
System
for
precise
center
alignment
with
the
TV.
NOTE:
Create
o
rough
sketch
that
diagrams
the
exact
position
of
the
wall
studs,
TV
and
proposed
speaker
location
to
identify
any
unforeseen
installation
issues
before
cutting
the
drywall
(see
Page
12
Figure
3
&
4).
CUT
THE
DRY
WALL
OPENING
FOR
THE
IN-WALL
MOUNTING
SYSTEM
(ALL
MODELS)
1.
Locate
all
of
the
studs
in
the
wall
below
the
lV
location
using
a
stud
sensor
or
by
hand-knocking.
2.
Drill
a
1/8"
pilot
hole
just
barely
through
the
wallboard
or
dry
wall
(1/2"
to
5/8"
deep
in
most
homes)
in
the
vertical
center
of
your
proposed
speaker
location
and
the
horizontal
center
of
each
stud
bay
the
mounting
system
will
cover.
NOTE:
BE
VERY
CAREFUL
NOT
TO
DRILL
THROUGH
EXISTING
WIRES,
PIPES,
OR
STRUCTURE.
IF
YOU
FEEL
ANY
EXTRA
RESISTANCE
AS
YOU
ARE
DRILLING,
STOP.
3.
Cut
a
piece
of
coat
hanger
equal
to
the
width
of
the
stud
bays.
Bend
the
wire
in
half
creating
a
right
angle.
Poke
the
"L
shaped"
wire
into
the
pilot
hole
and
turn
it
in
a
complete
circle.
If
it
turns
freely
in
all
directions,
repeat
the
procedure
for
each
stud
bay
of
your
proposed
speaker
location
(See
below).
If
the
coat
hanger
wire
movement
is
obstructed
by
a
pipe
or
cable,
fill
the
hole(s)
with
spackle
or
other
patching
compound
and
consider
a
different
location.
4.
Once
you
have
determined
the
correct
position
for
the
speaker
grille,
center
the
supplied
In-Wall
Mounting
System
cutout
template
vertically
and
horizontally
with
the
proposed
grill
location.
Tape
it
to
the
wall
surface
making
sure
it
is
level
with
the
lV
and
trace
it
using
a
pencil.
Drill
the
four
corners
of
the
trace
with
a1
/4"
drill
bit.
5.1f
you
are
cutting
a
painted
or
wall
papered
drywall,
use
a
sheetrock
or
keyhole
saw.
NOTE:
BE
VERY
CAREFUL
NOT
TO
SAW
THROUGH
EXISTING
WIRES,
PIPES,
OR
STRUCTURE.
IF
YOU
FEEL
ANY
EXTRA
RESISTANCE
AS
YOU
ARE
CUTTING,
STOP.
NILES
AUDIO
CORPORATION
-1-800-BUY-HIFI-
1-760-710-0992
---------
15

INSTALLING THE SYSTEM CONTINUED...
INSTALL THE IN-WALL POWER SUPPLY BOX (POWERED MODELS ONLY)
1. Choose a location to install the In-Wall Mount Power Supply that is
either behind or below the TV and adjacent to an existing AC outlet
(page 14 Figure 6), Perform the steps listed on page 15 at the proposed
power supply location. Use the supplied In-Wall Power Supply Box
cutout template to mark the wall for cutting if there are no
obstructions found.
Power Supply Cutout
Dimensions (HxW):
3-11 /16" X 8-3/8"
9.4cm x 21.3cm
2. Route the 24V AC power wire on the rear of the power supply into this wall cutout and then out of the wall
at the speaker cutout location.
3. Fold in each of the four mounting clamps and insert the Power Supply Box into the wall cutout. Tighten each
of the four wall clamp screws inside the front edge of the power supply box to secure it in the wall.
DO NOT OVERTIGHTEN.
4. Screw the supplied finish faceplate on to the In-Wall Power Supply Box.
Important: Do not plug in the AC power cord until all other system connections are complete.
ASSEMBLE AND INSTALL THE IN-WALL MOUNTING SYSTEM (ALL MODELS)
1. Determine the number of Screw Down Slide Brackets needed for In-Wall Mounting System by counting the
number of wall studs that are exposed within the drywall cutout.
2. Slide the Screw Down Slide Brackets onto the Top and Bottom Rails as shown in Figure 7 and position them
to align with the exposed wall studs within the drywall cutout.
3. Insert a Clamp Down End Bracket, as shown in Figure 7, on the ends of the Mounting Rails that fall more
than 3" from a Screw Down Slide Bracket. See page 13 Figure 5 when the left or the right end of the
Mounting Rail falls too close to the side of a wall stud to provide the Clamp Down End Bracket with enough
drywall for clamping.
4. Align with and place the assembled In-Wall Mounting
System into the wall cutout and loosely screw the
Screw Down Slide Brackets to the wall studs with the
screws provided. Final tightening of these screws will
occur later in the installation procedure.
Clamp Down End Bracket
Figure 7: In-Wall Mounting System
Screw Down Slide Bracket
16 ------------------- WWW.NILESAUDIO.COM

CYNEMA
SOUNDFIELD™
SOUNDBAR
SYSTEMS
INSTALLING
THE
SYSTEM
CONTINUED
...
INSTALL
WIRES
(PASSIVE
MODELS)
Speaker
Wires:
Route
(3)
two
conductor
speaker
wires
from
the
AV
receiver
into
the
wall
and
then
to
each
speaker
location
utilizing
the
space
between
the
Screw
Down
Slide
Brackets
and
the
wall
stud
to
route
the
wire
from
one
stud
bay
in
the
wall
into
another
(see
Figure
8).
INSTALL
WIRES
(POWERED
MODELS)
Speaker
Wires:
Route
each
of
the
three
supplied
two
conductor
speaker
wires
from
the
amplifier
module
to
the
three
Speaker
Module
locations.
Utilize
the
space
between
the
Screw
Down
Slide
Brackets
and
the
wall
stud
to
route
the
wires
from
one
to
another
(see
Figure
8).
Use
the
black/red
pair
for
the
right
speaker,
the
black/white
pair
for
the
left
speaker
and
the
black/green
pair
for
the
center
speaker.
Power
Supply
Cable:
Route
the
24V
AC
power
supply
wire
inside
the
wall
from
the
rear
of
the
In-Wall
Power
Supply
to
the
Amplifier
Module
location
using
a
fish
tape
or
push/pull
rod.
If
necessary,
utilize
the
space
between
the
Screw
Down
Slide
Brackets
and
the
wall
stud
to
route
the
wire
from
one
to
another
(see
Figure
8).
-~
::
Figure
8:
Routing
Wire
Between
Stud
Bays
TV
Connection:
Route
the
supplied
Toslink
Optical
cable
or
the
Stereo
3.5mm
to
dual
RCA
Cable
or
HDMI
cables
from
the
TV
to
the
Amplifier
Module.
If
necessary,
utilize
the
space
between
the
Screw
Down
Slide
Brackets
and
the
wall
stud
to
route
the
wires
from
one
stud
to
another
(see
Figure
8).
ExternaiiR
Receiver:
In
the
event
that
the
IR
signal
to
the
amplifier
module
itself
is
being
obstructed
or
interfered
with,
the
use
of
an
externaiiR
receiver
may
be
necessary.
Route
the
IR
receiver's
wire
and
3.5
mm
plug
to
the
Amplifier
Module
location.
If
necessary,
utilize
the
space
between
the
Screw
Down
Slide
Brackets
and
the
wall
stud
to
route
from
one
stud
to
another
(see
Figure
8).
Auxiliary
Audio
Source
:
Route
the
supplied
Stereo
3.5mm
to
dual
RCA
Cable
to
connect
an
auxiliary
audio
source.
If
necessary,
utilize
the
space
between
the
Screw
Down
Slide
Brackets
and
the
wall
stud
to
route
the
wire
from
one
stud
bay
in
the
wall
into
another
(see
Figure
8).
Niles
Wireless
Subwoofer
Transmitter
(Optional):
Route
the
supplied
DC
power
cable
for
the
wireless
transmitter
and
a
mono
RCA
audio
cable
(not
supplied)
from
the
Niles
SWT
location
to
the
Amplifier
Module
location.
If
necessary,
utilize
the
space
between
the
Screw
Down
Slide
Brackets
and
the
wall
stud
to
route
the
wire
from
one
stud
bay
to
another
(see
Figure
8).
NILES
AUDIO
CORPORATION
-1·800-BUY·HIFI-
1·760·710·0992
---------
17

INSTALLING
THE
SYSTEM
CONTINUED
...
POSITION
THE
SPEAKER
MODULES
IN
THE
IN-WALL
MOUNTING
SYSTEM
(ALL
MODELS)
The
Speaker
Modules
have
small
"L"
shaped
brackets
on
each
side
for
you
to
use
as
an
installation
aid.
These
"L''
brackets
enable
you
to
temporarily
"hang"
the
Speaker
Modules
on
the
In-Wall
Mounting
System
making
the
speaker
connection
terminals
easy
to
see
and
connect.
Working
within
the
wall
stud
placement,
position
the
center
speaker's
centerline
as
close
to
the
TV
centerline
as
possible,
the
right
speaker
as
far
to
the
right
as
possible
and
the
left
speaker
as
far
to
left
as
possible.
1.
Rotate
the
left
and
right
"L''
brackets
out
to
serve
as
hangers
from
the
In-Wall
Mounting
System.
Hang
the
Speaker
Modules
in
the
position
that
they
will
be
inserted
as
shown
in
Figure
9.
Speaker
Module
Amplifier
Module
Left
"L''
Bracket
Figure
9:
Speaker
and
Amplifier
Module
CONNECT
THE
SPEAKER
MODULES
(ALL
MODELS)
1.
Prepare
the
speaker
wire
by
stripping
1
/4"
-1
/2"
from
each
conductor
(see
Figure
10).
Twist
the
strands
or
tin
the
leads
with
solder
to
ensure
there
are
no
stray
strands
that
could
short
and
possibly
harm
the
amplifier.
2.
Attach
the
stripped
wire
to
the
speaker
wire
terminals
of
the
Speaker
Module
observing
proper
positive
and
negative
polarity.
Figure
10:
Preparing
the
speaker
wire
for
connection
18
------------------
WWW.NILESAUDIO.COM

CYNEMA SOUNDFIELDTM SOUNDBAR SYSTEMS
INSTALLING THE SYSTEM CONTINUED ...

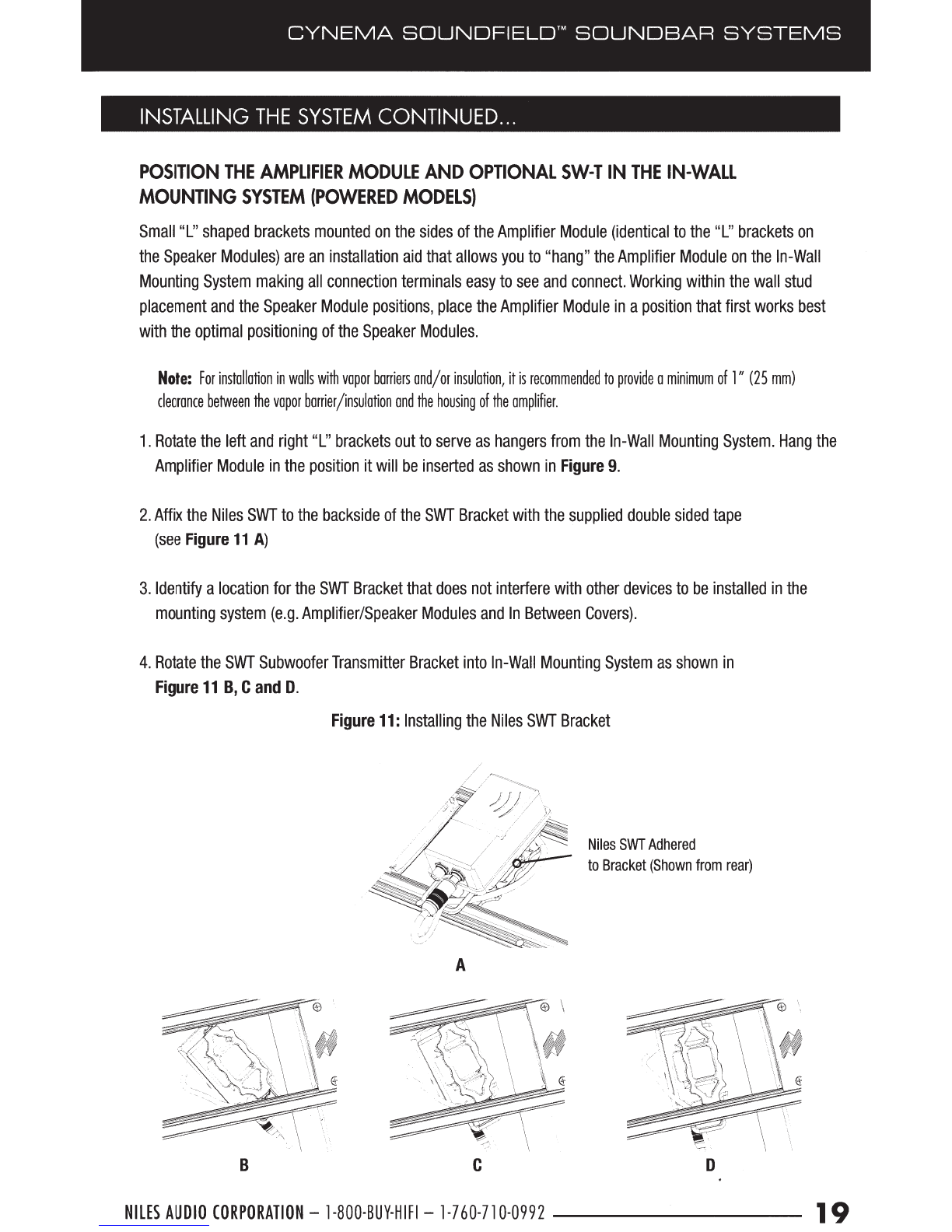

POSITION THE AMPLIFIER MODULE AND OPTIONAL SW-T IN THE IN-WALL
MOUNTING SYSTEM (POWERED MODELS)
Small "L" shaped brackets mounted on the sides of the Amplifier Module (identical to the "L'' brackets on
the Speaker Modules) are an installation aid that allows you to "hang" the Amplifier Module on the In-Wall
Mounting System making all connection terminals easy to see and connect. Working within the wall stud
placement and the Speaker Module positions, place the Amplifier Module in a position that first works best
with the optimal positioning of the Speaker Modules.
Note: For installation in walls with vapor barriers and/or insulation, it is recommended to provide a minimum of 1" (25 mm)
clearance between the vapor barrier/insulation and the housing of the amplifier.
1. Rotate the left and right "L" brackets out to serve as hangers from the In-Wall Mounting System. Hang the
Amplifier Module in the position it will be inserted as shown in Figure 9.
2. Affix the Niles SWT to the backside of the SWT Bracket with the supplied double sided tape
(see Figure 11 A)
3. Identify a location for the SWT Bracket that does not interfere with other devices to be installed in the
mounting system (e.g. Amplifier/Speaker Modules and In Between Covers).
4. Rotate the SWT Subwoofer Transmitter Bracket into In-Wall Mounting System as shown in
Figure 11 B, C and D.
Figure 11: Installing the Niles SWT Bracket
Niles SWT Adhered
to Bracket (Shown from rear)
A
B c D
NILES AUDIO CORPORATION -1-800-BUY-HIFI-1-760-710-0992 ---------
19

INSTALLING
THE
SYSTEM
CONTINUED
...
CONNECT
THE
AMPLIFIER
MODULE
AND
NILES
SWT
(POWERED
MODELS)
1.
Prepare
the
speaker
wire
by
stripping
1/4"
from
each
conductor
(see
Figure
10
on
page
18).
Twist
the
strands
or
tin
the
leads
with
solder
to
ensure
there
are
no
stray
strands
that
could
short
and
possibly
harm
the
amplifier.
2.
Connect
the
speaker
wires
and
the
Amplifier
Module
power
cable
to
the
Amplifier
Module
using
the
supplied
two
phoenix
connectors
and
a
small
screw
slotted
screw
driver
making
sure
to
connect
in
the
proper
order
and
polarity.
3.
Connect
all
the
other
wires
and
cables
routed
to
the
Amplifier
Module
and
SW-
T
as
depicted
in
the
system
diagrams
starting
on
page
24,
that
best
matches
your
configuration.
Important:
Do
not
plug
in
the
AC
power
cord
until
all
other
system
connections
are
complete.
NOTE:
After
ensuring
all
the
connections
ore
mode
correctly,
plug
in
the
AC
power
cord
and
test
the
operation
of
the
system
before
completing
the
installation
in
the
next
steps
and
snapping
the
modules
into
the
roils.

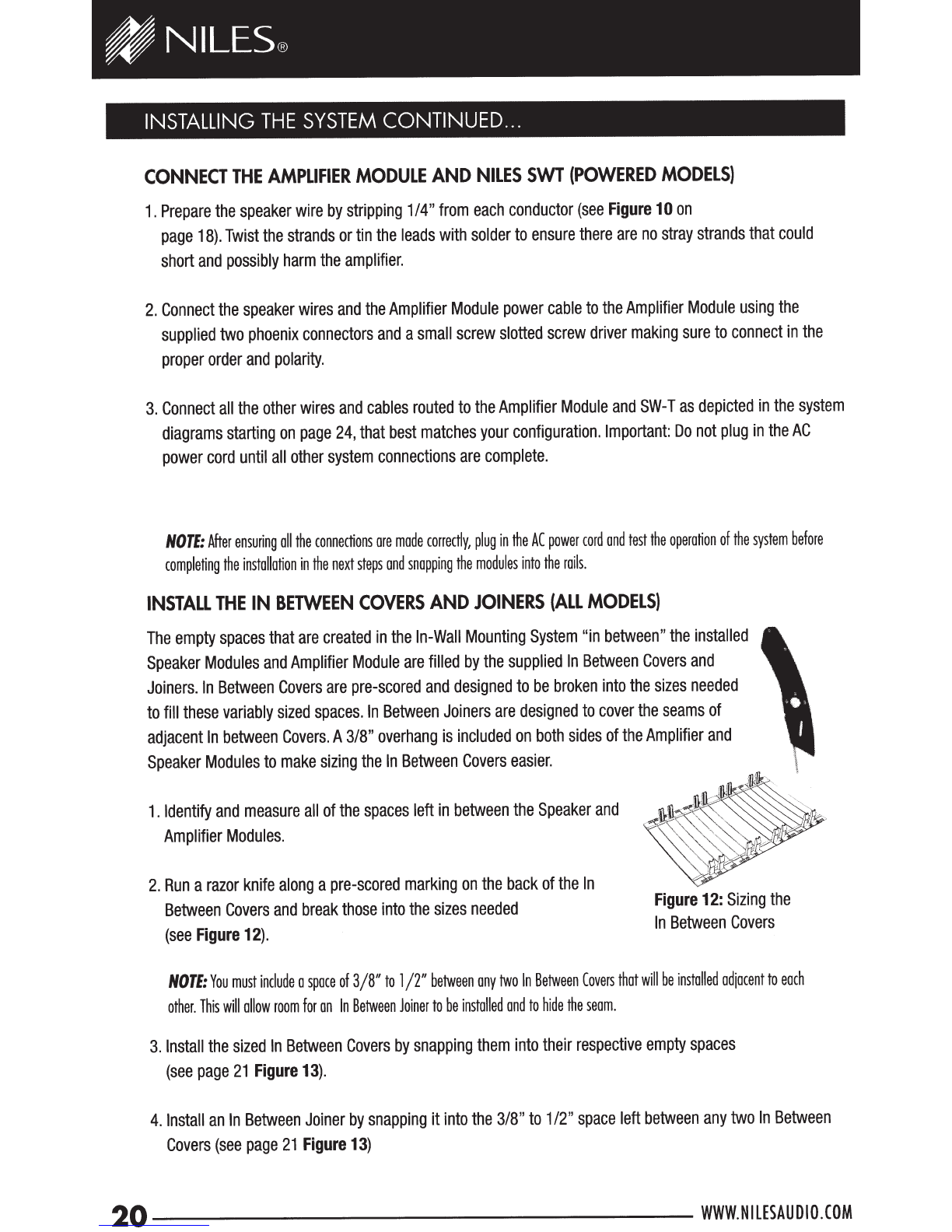

INSTALL
THE
IN
BETWEEN
COVERS
AND
JOINERS
(ALL
MODELS)
The
empty
spaces
that
are
created
in
the
In-Wall
Mounting
System
"in
between"
the
installed
Speaker
Modules
and
Amplifier
Module
are
filled
by
the
supplied
In
Between
Covers
and
Joiners.
In
Between
Covers
are
pre-scored
and
designed
to
be
broken
into
the
sizes
needed
to
fill
these
variably
sized
spaces.
In
Between
Joiners
are
designed
to
cover
the
seams
of
adjacent
In
between
Covers.
A
3/8"
overhang
is
included
on
both
sides
of
the
Amplifier
and
Speaker
Modules
to
make
sizing
the
In
Between
Covers
easier.
1.
Identify
and
measure
all
of
the
spaces
left
in
between
the
Speaker
and
Amplifier
Modules.
2.
Run
a
razor
knife
along
a
pre-scored
marking
on
the
back
of
the
In
Between
Covers
and
break
those
into
the
sizes
needed
(see
Figure
12).
Figure
12:
Sizing
the
In
Between
Covers
NOTE:
You
must
include
a
space
of
3/8"
to
1
/2"
between
any
two
In
Between
Covers
that
will
be
installed
adjacent
to
each
other.
This
will
allow
room
for
on
In
Between
Joiner
to
be
installed
and
to
hide
the
seam.
3.
Install
the
sized
In
Between
Covers
by
snapping
them
into
their
respective
empty
spaces
(see
page
21
Figure
13).
4.
Install
an
In
Between
Joiner
by
snapping
it
into
the
3/8"
to
1/2"
space
left
between
any
two
In
Between
Covers
(see
page
21
Figure
13)
20------------------
