Nilfisk-Advance CarpeTron 18 56245300 User manual

10 - CarpeTron Operator Manual
Revised 8/94 Form Number 56041186
CarpeTron™18
Advance MODEL 56245300
Instructions For Use
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CarpeTron Operator Manual - 11
TABLE OF CONTENTS
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
Introduction.......................................................1
Parts and Service ............................................................. 1
Nameplate ......................................................................... 1
Uncrate the Machine ........................................................ 1
Important Safety Instructions..........................2
Importantes Mesures De Sécurité...................3
Grounding Instructions....................................4
Prepare the Machine for Use ...........................5
Fill the Solution Tank....................................................... 5
Adjust the Brush .............................................................. 5
Know Your Machine..........................................6
Operation...........................................................7
Using the CarpeTron ........................................................ 7
Using the FoamaTron Power Brush Attachment ........... 7
After Use............................................................8
Maintenance......................................................9
Clean the Brush ................................................................ 9
Foam Distribution Manifold ............................................. 9
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CarpeTron Operator Manual - 1
INTRODUCTION
______________________________________________________________________________________________
This manual will help you get the most from your Advance CarpeTron™. Read it thoroughly before operating the
machine. Bold numbers in parentheses, example (2), indicate an item shown on page 6.
This product is intended for commercial use only.
______________________________________________________________________________________________
PARTS AND SERVICE
Repairs, when required, should be performed by your Authorized Advance Service Center, who employs factory
trained service personnel, and maintains an inventory of Advance original replacement parts and accessories.
Call the ADVANCE DEALER named below for repair parts or service. Please specify the Model and Serial Number
when discussing your machine.
(Dealer, affix service sticker here.)
______________________________________________________________________________________________
NAME PLATE
The Model and Serial Number of your machine are shown on the Nameplate on the machine. This information is
needed when ordering repair parts for the machine. Use the space below to note the Model and Serial Number of
your machine for future reference.
MODEL ______________________________________
SERIAL NUMBER ______________________________
______________________________________________________________________________________________
UNCRATE THE MACHINE
When the machine is delivered, carefully inspect the shipping carton and the machine for damage. If damage is
evident, save the shipping carton so that it can be inspected by the trucking company that delivered it. Contact the
trucking company immediately to file a freight damage claim.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

2 - CarpeTron Operator Manual
IMPORTANT SAFETYINSTRUCTIONS
______________________________________________________________________________________________
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using.
WARNING!
To reduce risk of fire, electric shock, or injury:
1 Do not leave the appliance when it is plugged in. Unplug the unit from the outlet when not in use and
before servicing.
2 To avoid electric shock, do not expose to rain. Store indoors.
3 Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4 Use only as described in this manual. Use only manufacturer’s recommended attachments.
5 Do not use with damaged cord or plug. If the appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it to a service center.
6 Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges
or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
7 Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8 Do not handle plug or appliance with wet hands.
9 Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair,
and anything that may reduce air flow.
10 Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
11 Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
12 Turn off all controls before unplugging.
13 Use extra care when cleaning on stairs.
14 Donot usetopick up flammableorcombustible liquidssuchas gasolineoruse in areaswherethey may
be present.
15 Connect to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CarpeTron Operator Manual - 3
______________________________________________________________________________________________
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL)
AVERTISSEMENT:
Pour réduire les risques d’incendie, de choc électrique ou de blessure:
1 Ne pas laisser l’appareil sans surveillance lorsqu’il est branché. Débrancher lorsque l’appareil n’est
pas utilisé et avant l’entretien.
2 Pour réduire les risques de choc électrique, utiliser à l’intérieur seulement.
3 Nepaspermettreauxenfants de joueravecl’appareil. Uneattentionparticulièreest nécessairelorsque
l’appareil est utilisé par des enfants ou à proximité de ces derniers.
4 N’utiliser que conformément à cette notice avec les accessoires recommandés par le fabricant.
5 Ne pas utiliser si le cordon ou la fiche est endommagé. Retourner l’appareil à un atelier de réparation
s’il ne fonctionne pas bien, s’il est tombé ou s’il a été endommagé, oublié à l’extérieur ou immergé.
6 Ne pas tirer soulever ou traîner l’appareil par le cordon. Ne pas utiliser le cordon comme une poignée,
le coincer dans l’embrasure d’une porte ou l’appuyer contre des arêtes vives ou des coins. Ne pas faire
rouler l’appareil sur le cordon. Garder le cordon à l’écart des surfaces chaudes.
7 Ne pas débrancher en tirant sur le cordon. Tirer plutôt la fiche.
8 Ne pas toucher la fiche ou l’appareil lorsque vos mains sont humides.
9 N’insérer aucun objet dans les ouvertures. Ne pas utiliser l’appareil lorsqu’une ouverture est bloquée.
S’assurerquedela poussière, delapeluche,descheveuxou d’autresmatièresneréduisentpasledébit
d’air.
10 Maintenir les cheveux, les vêtements amples, les doigts et toutes les parties du corps à l’écart des
ouvertures et des pièces mobiles.
11 Ne pas aspirer de matières en combustion ou qui dégagent de la fumée, comme des cigarettes, des
allumettes ou des cendres chaudes.
12 Mettre toutes les commandes à la position ARRÊT avant de débrancher l’appareil.
13 User de prudence lors du nettoyage des escaliers.
14 Ne pas aspirer des liquides inflammables or combustibles, comme de l’essence, et ne pas faire
fonctionner dans des endroits ou peuvent se trouver de tels liquides.
15 Ne brancher qu’à une prise de courant avec mise à la terre. Voir les instructions visant la mise à la terre.
CONSERVER CES INSTRUCTIONS
IMPORTANTES MESURES DE SÉCURITÉ
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

4 - CarpeTron Operator Manual

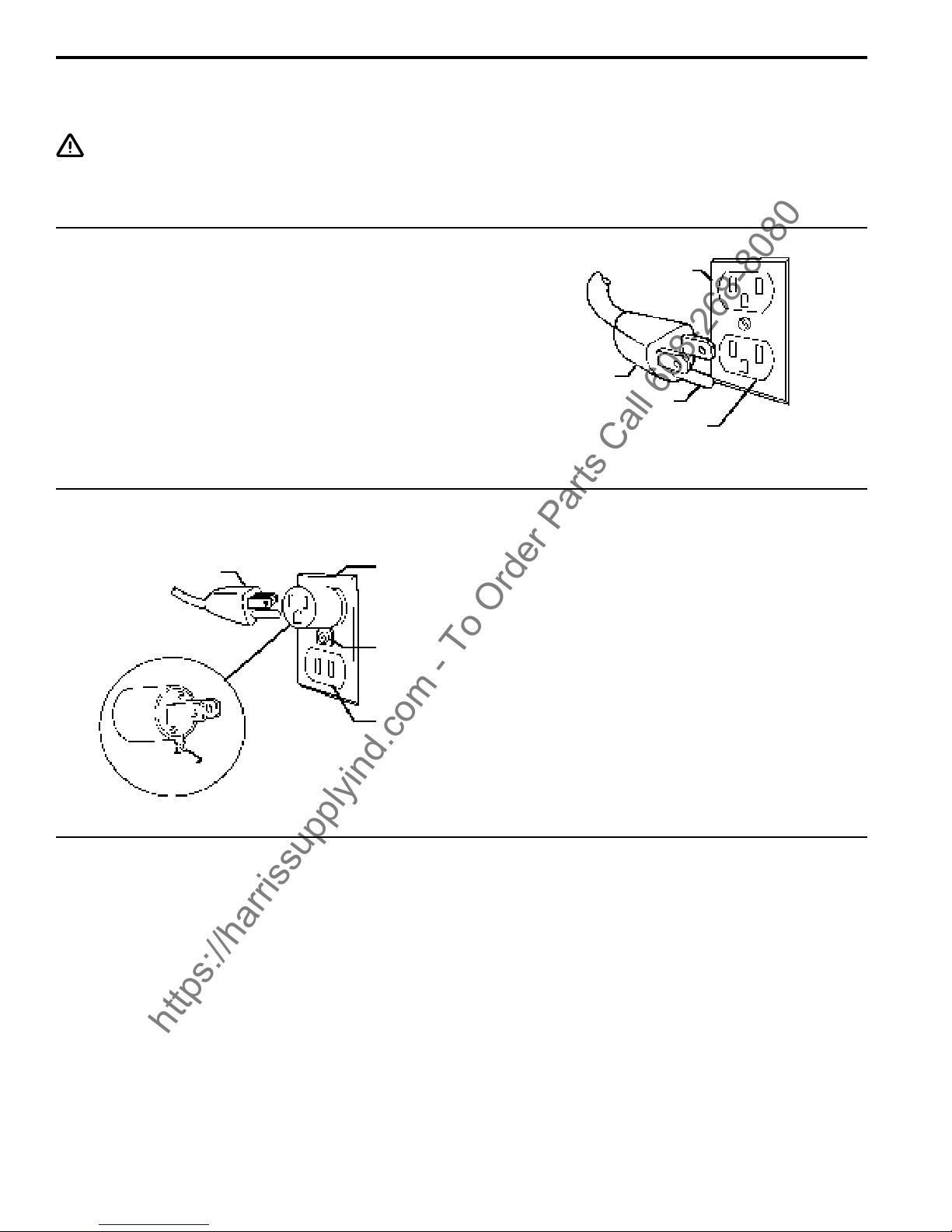

GROUNDINGINSTRUCTIONS
• Replace the plug if the grounding pin is damaged or broken.
• The green (or green/yellow) wire in the cord is the grounding wire. When replacing a plug, this wire must be
attached to the grounding pin only.
• Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong plugs and
outlets. Do not use extension cords more than 50 feet (15 m) long.
Agrounding adaptermustbe installed
as shown here if only two-prong out-
letsareavailable. The outletboxmust
be grounded and the grounding tab
(or wire) on the adapter must be in-
stalled under the head of the screw in
thecenterof theoutletcover. Ground-
ing adapters for 120 volt plugs are
available at most hardware stores.
Groundingadapters arenotapproved
for use in Canada.
GROUNDED
OUTLET BOX
METAL SCREW
TWO-PRONG
OUTLET
GROUNDING
TAB
120 VOLT PLUG
120 volt machines have this kind of three-prong
plug at the end of a three-wire electrical cord. The
grounding pin on this plug grounds the machine
when it is plugged into a three-prong outlet.
________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
WARNING!
Thismachine must be properly grounded to protect the operator from electrical shock. Read the safety instructions
below before operating this machine.
GROUNDED
OUTLET BOX
THREE-PRONG
GROUNDED OUTLET
GROUNDING PIN
120 VOLT PLUG
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CarpeTron Operator Manual - 5
PREPARE THE MACHINE FOR USE
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
FILL THE SOLUTION TANK
1Pre-mix the carpet shampoo with water in a separate, clean container. Follow the instructions on the shampoo
package carefully. For best results, use Arid Foam™ cleaner, which is specially formulated to work with the
CarpeTron.
2Use the funnel supplied with the machine to fill the
solution tank. The funnel allows excess foam to escape;
place a bucket nearby to catch the excess foam. First put
in the pre-mixed shampoo, then continue filling with
water.
3Do not fill above the 3-1/2 gallon line marked on the back
of the machine. Over-filling will result in inadequate
foaming and an over-wet carpet.
4Close the cap tightly on the tank.
CAUTION!
The solution tank may become pressurized during use!
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ADJUST THE BRUSH
1Plug the machine in to a properly grounded outlet. Step down on the Handle Release Pedal (11) and move the
Control Handle (1) to a comfortable operating position.
2Starting with the brush up off the carpet, turn the Twist Grips (2)to start the brush motor. Turn the Brush Adjustment
Knob (9)to lower the brush onto the carpet. Keep turning the knob until the machine just begins to pull away. When
correctly adjusted, the brush will help propel the machine when the Twist Grips are turned.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

6 - CarpeTron Operator Manual
KNOWYOUR MACHINE
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
Use this page to identify items called out in the text.
1Control Handle
2Twist Grip
3Foam Generation Lever
4Attachment Port
5Foam Control Valve
6Solution Tank
7Brush Housing
8Foam Distribution Manifold
9Brush Adjustment Knob
10 Solution Drain
11 Handle Release Pedal
12 Cord Hook
13 Power Cord
14 Solution Fill
15 Accessory Receptacle
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CarpeTron Operator Manual - 7
OPERATION
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
Using the CarpeTron
1Vacuum surface debris from the area to be cleaned. Pre-spray soiled spots.
2Plug the Power Cord (13)into a properly grounded outlet.
3Step on the Handle Release Pedal (11)and lower the handle to a comfortable operating position.
4With the Foam Control Valve (5) in the "Brush" position, push the Foam Generation Lever (3) down. In the down
position, the machine will generate foam continuously until the lever is shut OFF (back to the middle position).
The lever may also be held up in the Temporarily ON position, where it will automatically revert to the OFF position
when released.
5When foam begins to appear at the front of the machine, turn the Twist Grips (2) to start the brush motor. When
correctly adjusted, the brush will help propel the machine (see Adjust the Brush on page 5). Twist the Grips
forward to propel the machine forward, twist them back to propel the machine backward.
6Start at the right side of the room. Working from right to left will prevent leaving a wheel track on the carpet. Make
a forward pass with the foam ON. Turn the foam OFF 2-3 feet before the end of the pass.
7Go over the same path in reverse with the foam OFF.
8Move to the left and repeat steps 6 and 7. Overlap passes at least 2 inches to prevent streaking. In extremely
soiled areas, it may be necessary to move the machine back and forth over the spot several times.
CAUTION!
Always clean the brush when going from one color carpet to another to prevent color transfer!
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
Using the FoamaTron™ Power Brush Attachment
CAUTION!
Before using theFoamaTron, test upholstery for color-fastness. Put some shampoo on a clean, white cloth
and work it into the upholstery fabric in an inconspicuous place. Do not use if color bleeds onto the white
cloth!
1Remove the cap from the Attachment Port (4) on the CarpeTron. Connect the hose from the FoamaTron to the
Attachment Port.
2Move the Foam Control Valve (5) to the "Attachment" position.
3Plug the electrical cord from the FoamaTron into the Receptacle (15)on the CarpeTron.
4Move the Foam Generation Lever (3) DOWN on the CarpeTron for continuous foam generation.
5Turn the foam flow ON at the Power Brush. When foam appears, turn the Power Brush ON. Run the brush
continuously and apply foam as needed. Keep the brush in constant motion over the material being cleaned.
Overlap passes to assure complete coverage and prevent streaking.
CAUTION!
Do not bear down on fabrics with the Power Brush. Bearing down may damage fabrics.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

8 - CarpeTron Operator Manual
AFTERUSE
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
After Using the CarpeTron
1Turn the Foam Generation Lever (3) OFF.
2Move the handle to the upright position to lift the brush off the floor. Always move the handle to the upright
position when the machine is not in use to prevent the brush bristles from being bent over and taking a "set".
3Unplug the Power Cord (13)and wrap it around the Cord Hook(12) and the Handle (1) for storage.
4Drain unused solution from the tank into a separate container for future use. The Drain (10) is located at the
bottom rear of the solution tank.
5Rinse the underside of the Brush Housing (7).
6Wipe the machine with a clean, damp cloth. Store the machine indoors in a clean, dry place.
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
After Using the FoamaTron
1Turn the Foam Generation Lever (3) OFF at the CarpeTron.
2Disconnect the Power Brush from the CarpeTron.
3Carefully rinse the FoamaTron hose and brush with clean water, DO NOT allow water to reach the electric motor!
4Wipe the Power Brush with a clean, damp cloth. Store indoors in a clean, dry place.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CarpeTron Operator Manual - 9
MAINTENANCE
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
WARNING!
Always unplug the power cord before attempting any machine maintenance.
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
CLEAN THE BRUSH
Always clean the brush when going from one color carpet to another to prevent color transfer!
Unplug the machine and tip it back. Rinse the underside of the brush housing with water until the water runs clear.
Clean the brush of any lint or carpet fiber, string or hair.
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
FOAM DISTRIBUTION MANIFOLD
Once a month, or whenever an uneven foam pattern appears, clean out the Foam Distribution Manifold. Remove the
plug (8) and run the bottle brush (included with the machine) through the manifold several times.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

https://harrissupplyind.com-ToOrderPartsCall608-268-8080
