Nilfisk-Euroclean CS7000 User manual

A-English
B-Türkçe
C-български
D-Românesc
Instructions for Use
Original Instructions
Kullanim Talimatlari
Указания за употреба
Instrucţiuni de utilizare
6/11 revised 8/13
FORM NO. 56041980
Models: 56509003(LPG), 56509004(Diesel), 56509005(Battery)
56511002(Petrol)
CS7000
INSTRUCTIONS FOR USE

A-2 / ENGLISH
A-2 - FORM NO. 56041980 - CS7000
TABLE OF CONTENTS
Page
Introduction................................................................................... A-2
Parts and Service ........................................................................... A-3
Nameplate ...................................................................................... A-3
Delivery........................................................................................... A-3
Cautions and Warnings .........................................................A-4 – A-5

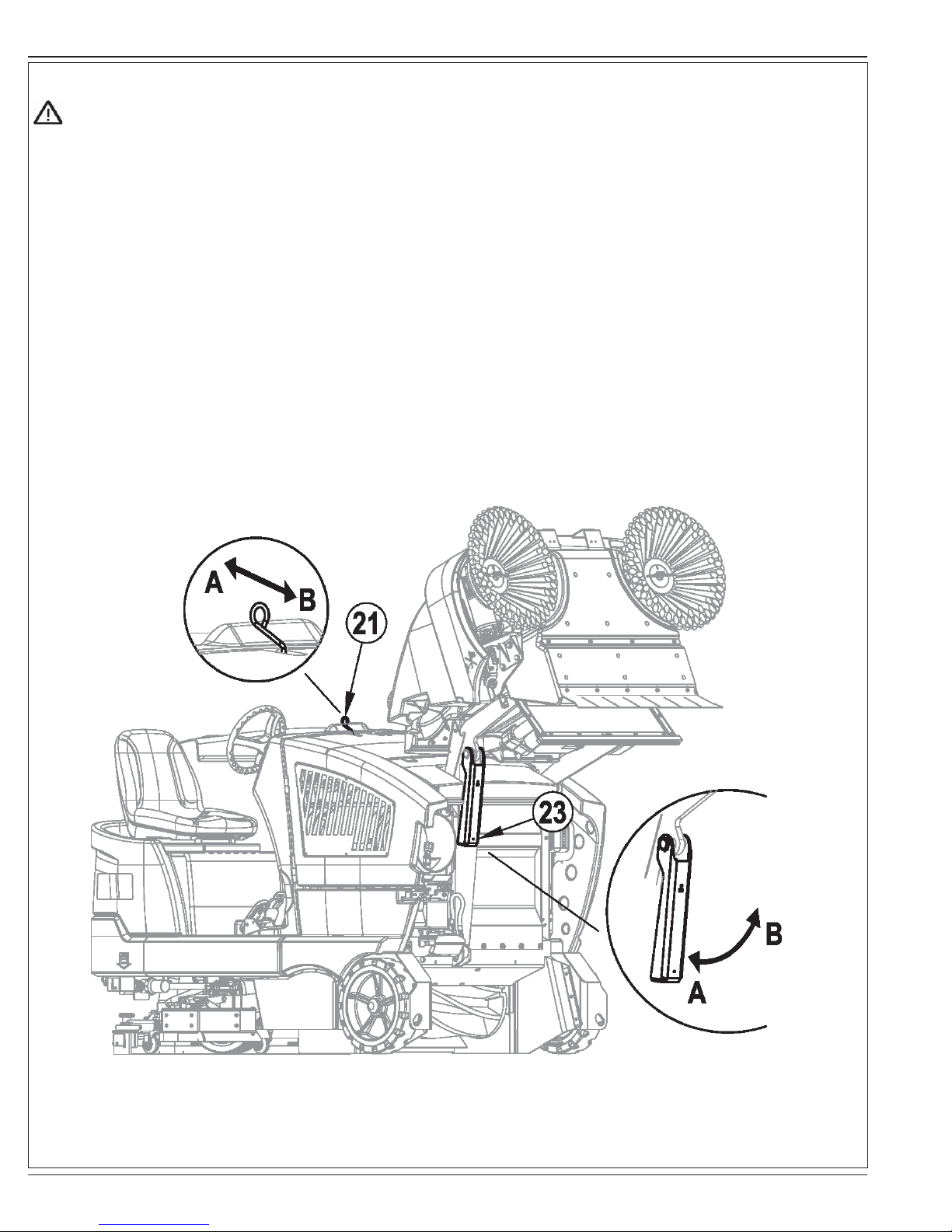

General Information...............................................................A-6 – A-7

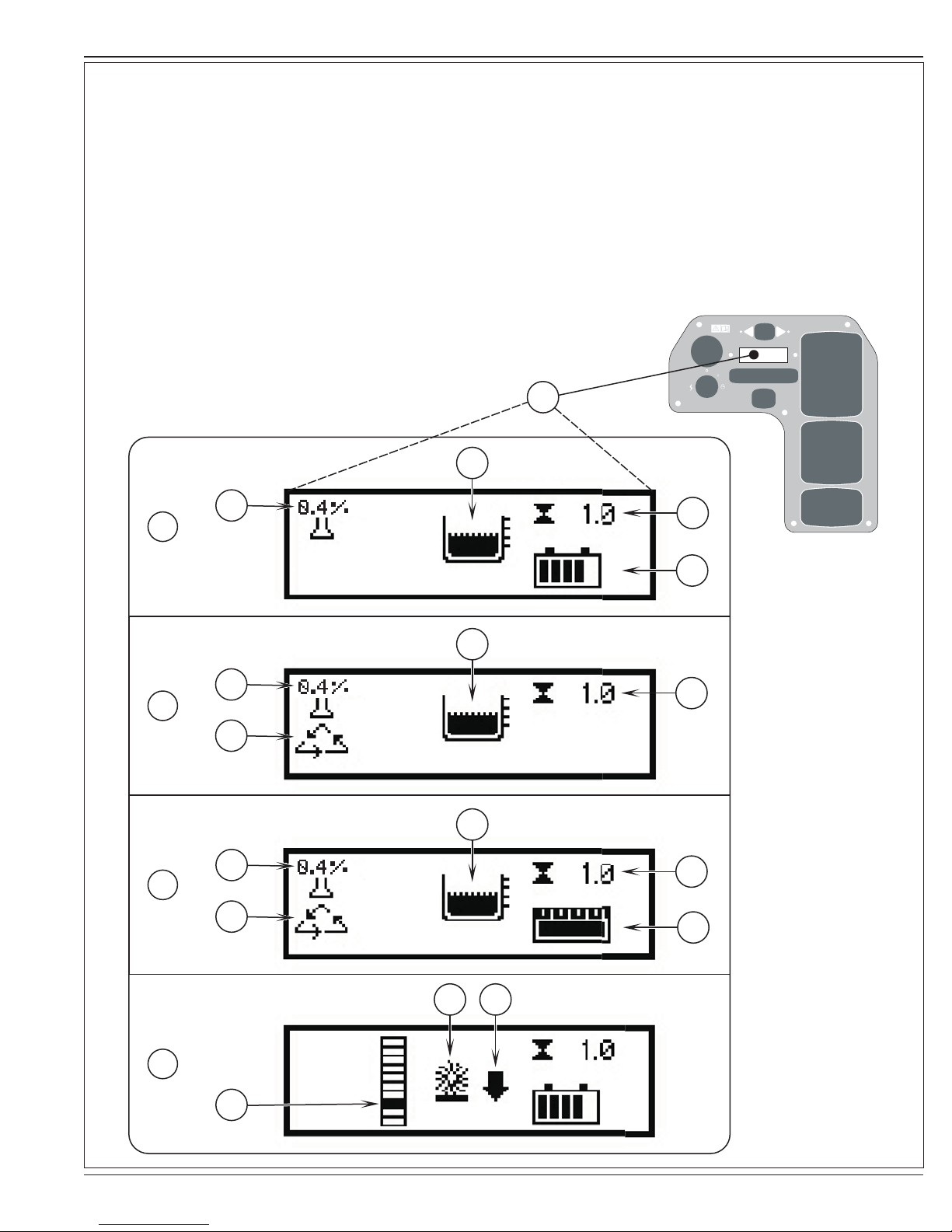

Know Your Machine / Control Panel................................A-8 – A-12
Preparing the Machine for Use
Pre-Operational Checklist............................................................. A-13
Engine Oil................................................................................... A-14
Engine Coolant........................................................................... A-14
Engine Air Filter .......................................................................... A-15

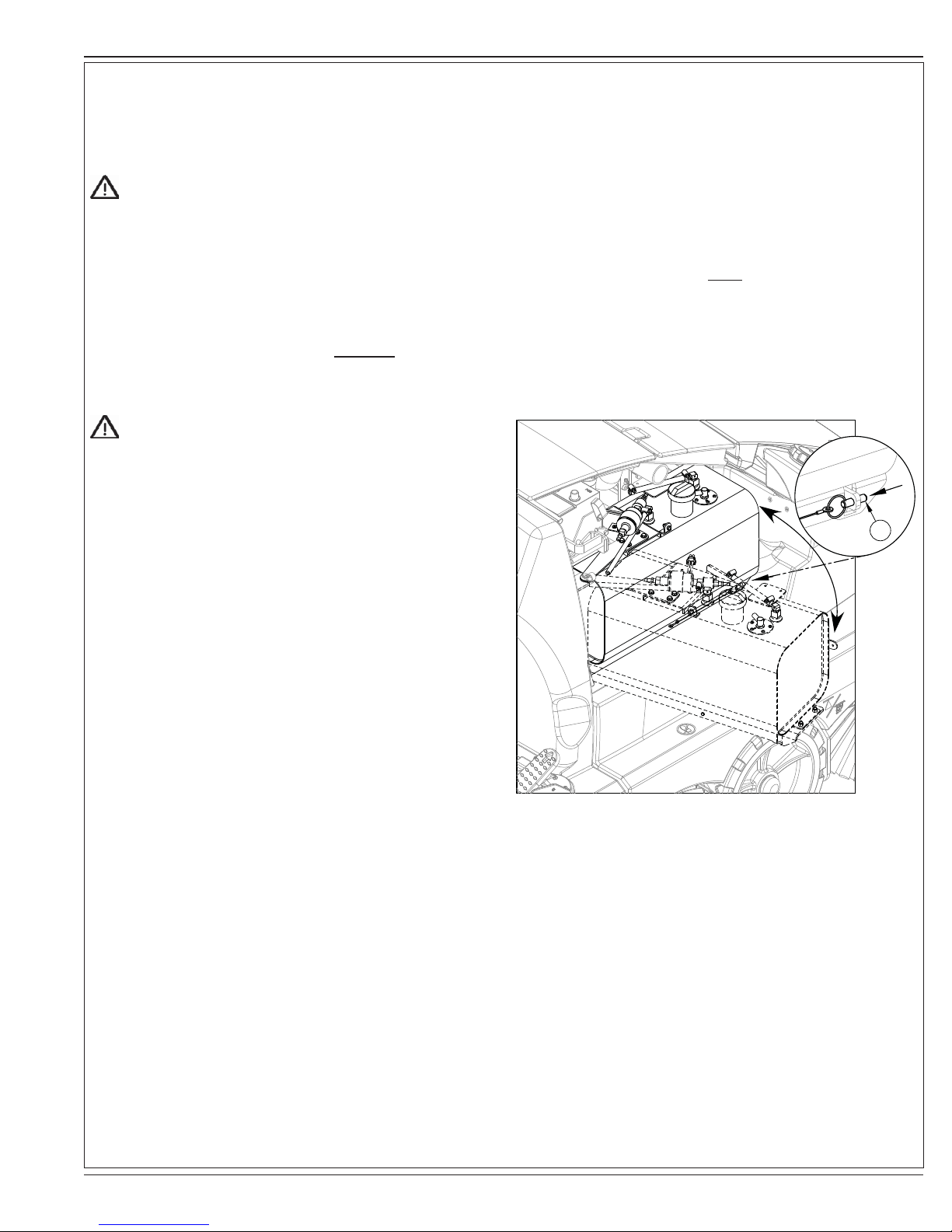

Fuel............................................................................................. A-15

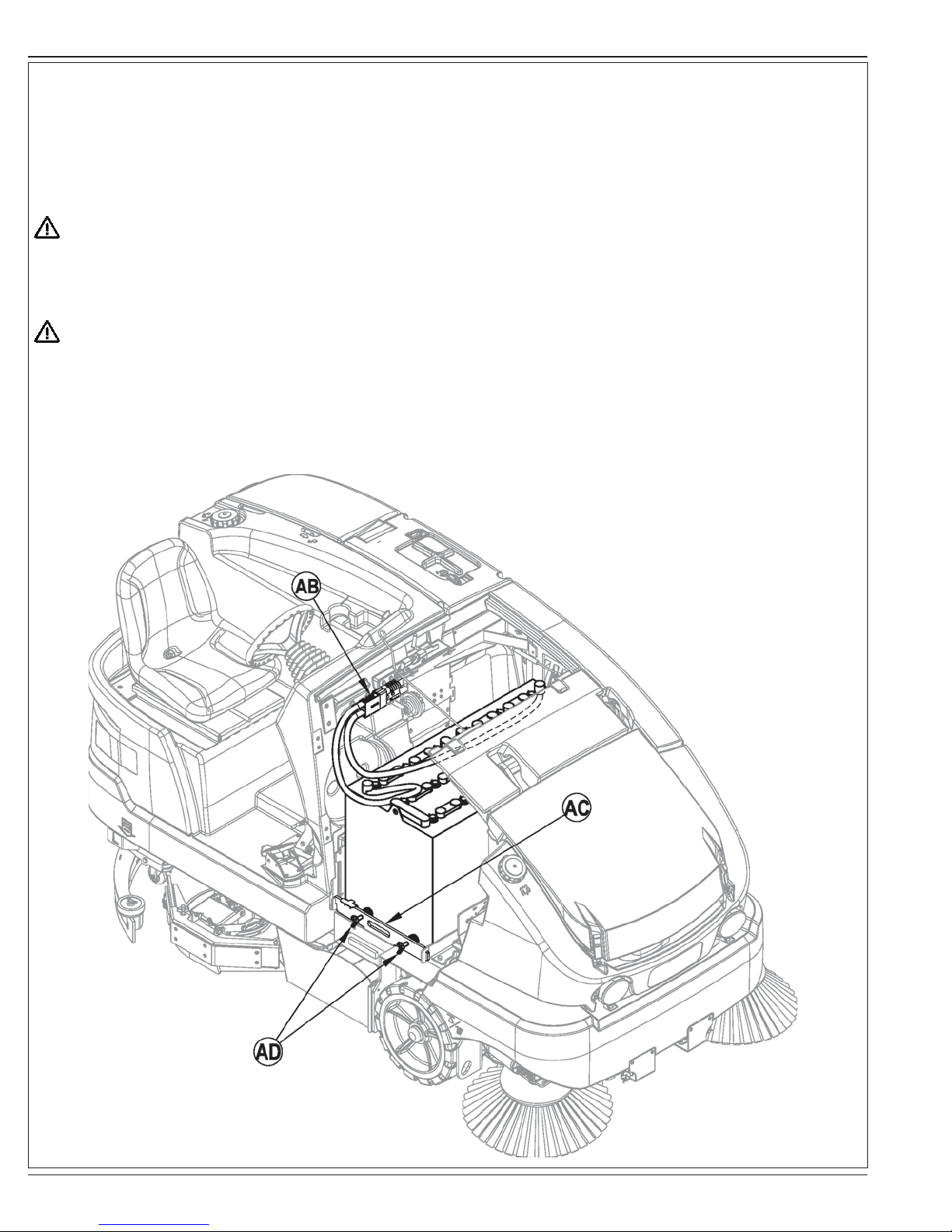

Battery Installation...................................................................... A-16
Main Broom .................................................................................. A-17
Scrub Brushes.............................................................................. A-17
Filling the Solution Tank & DustGuard™ Tank.............................. A-18
Operating the Machine............................................................... A-19
Starting the Diesel Engine............................................................ A-19
Starting the Propane Engine ........................................................ A-19
Starting the Gasoline / Petrol Engine ........................................... A-19
Detergent System (EcoFlex™ only) ..................................A-20 – A-21
Sweeping...........................................................................A-22 – A-23
Emptying the Hopper.........................................................A-22 – A-23
Scrubbing ..........................................................................A-24 – A-25
After Using the Machine............................................................ A-26
Shutting Down the Diesel Engine................................................. A-26
Shutting Down the Propane Engine ............................................. A-26
Shutting Down the Gasoline / Petrol Engine ................................ A-26
Hydraulic Oil ................................................................................. A-26
Maintenance Schedule............................................................... A-27
Lubrication.................................................................................... A-28
Charging the Battery (Battery Models) ......................................... A-29
Charging the Battery Pack (Hybrid Models) ................................. A-30
Main Broom Maintenance..................................................A-31 – A-32
Side Broom Maintenance ............................................................. A-33
Squeegee Maintenance................................................................ A-34
Hopper Dust Control Filter............................................................ A-35
Side Skirt Maintenance................................................................. A-36
Troubleshooting.................................................................A-37 – A-39
Circuit Breaker Location ............................................................... A-37
Technical Specifications ............................................................... A-40
Material Composition and Recyclability........................................ A-41
INTRODUCTION
This manual will help you get the most from your Nilfisk™Sweeper / Scrubber. Read it thoroughly before operating the machine. References to
“right” and “left” in this manual mean right or left as seen from the driver’s seat.
Note: Bold numbers or letters in parentheses indicate an item illustrated on pagesA-8 –A-12 unless referred to a specific figure number.
revised 8/13

ENGLISH /A-3
FORM NO. 56041980 - CS7000 - A-3
PARTSAND SERVICE
Repairs, when required, should be performed by your Authorized Nilfisk Service Center, who employs factory trained service personnel, and
maintains an inventory of Nilfisk original replacement parts and accessories.
Call the Nilfisk Authorized Service named below for repairs or service. Please specify the Model and Serial Number when discussing your
machine.
(Dealer, affix service sticker here.)
NAMEPLATE
The Model Number and Serial Number of your machine are shown on the Nameplate. One nameplate is located on the wall of the operator’s
compartment just below the circuit breaker decal. The second nameplate is located on the chassis beneath the recovery tank. This information is
needed when ordering repair parts for the machine. Use the space below to note the Model Number and Serial Number of your machine for future
reference.
MODEL ________________________________________________
SERIAL NUMBER ________________________________________
DATE CODE ____________________________________________
Note: Reference the separately supplied engine manufacture’s maintenance and operator manual for more detailed engine specification and
service data.
UN-CRATING
Upon delivery, carefully inspect the shipping crate and the machine for damage. If damage is evident, save all parts of the shipping crate so that
they can be inspected by the trucking company that delivered the machine. Contact the trucking company immediately to file a freight damage
claim.
1 After removing the crate, remove the wooden blocks next to the wheels.
2 Check the engine oil and coolant levels.
3 Check the hydraulic oil level.
4 Read the instructions in the Preparing the Machine For Use section of this manual, then fill the fuel tank.
5 Place a ramp next to the front end of the pallet.
6 Read the instructions in the Operating Controls and Operating the Machine sections of this manual and start the engine. Slowly drive the
machine forward down the ramp to the floor. Keep your foot lightly on the brake pedal until the machine is off the pallet.
CAUTION!
• Use extreme CAUTION when operating this machine. Be certain that you are thoroughly familiar with all operating instructions
before using this machine. If you have any questions, contact your supervisor or your local Nilfisk Industrial Dealer.
• If the machine malfunctions, do not try to correct the problem unless your supervisor directs you to do so. Have a qualified
company mechanic or an authorized Nilfisk Dealer service person make any necessary corrections to the equipment.
• Use extreme care when working on this machine. Loose clothing, long hair, and jewelry can get caught in moving parts. Turn the
Key Ignition Switch OFF and remove the key before servicing the machine. Apply the parking brake before getting off of the machine.
Use good common sense, practice good safety habits and pay attention to the yellow decals on this machine.
• Drive the machine slowly on inclines. Use the Brake Pedal (38) to control machine speed while descending inclines. DO NOT turn
the machine on an incline; drive straight up or down.
• The maximum rated incline for sweeping and scrubbing is 10°. The maximum rated incline during transport is 10°.
MODIFICATIONS
Modifications and additions to the cleaning machine which affect capacity and safe operation shall not be performed by the customer or user
without prior written approval from Nilfisk-Advance Inc. Unapproved modifications will void the machine warranty and make the customer liable for
any resulting accidents.

A-4 / ENGLISH
A-4 - FORM NO. 56041980 - CS7000
CAUTIONSAND WARNINGS
Nilfisk uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and take
the necessary steps to protect personnel and property.
DANGER!
Is used to warn of immediate hazards that will cause severe personal injury or death.
WARNING!
Is used to call attention to a situation that could cause severe personal injury.
CAUTION!
Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property.
Read all instructions before using.
GENERAL SAFETY INSTRUCTIONS
Specific Cautions and Warnings are included to warn you of potential danger of machine damage or bodily harm.
This machine is only suitable for commercial use, for example at manufacturing plants, warehouses, cement block & brick facilities,
parking garages, municipal parks, entertainment and transportation facilities.
DANGER!
•This machine emits exhaust gases (carbon monoxide) that can cause serious injury or death, always provide
adequate ventilation when using machine. (Diesel & LPG models only.)
WARNING!
•This machine shall be used only by properly trained and authorized persons.
•This machine is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
•While on ramps or inclines, avoid sudden stops. Avoid abrupt sharp turns. Use low speed down ramps.
•To avoid hydraulic oil injection or injury, always wear appropriate clothing and eye protection when working with or
near hydraulic system.
•Keep sparks, flame and smoking materials away from battery. Explosive gases are vented during normal operation.
•Charging the battery produces highly explosive hydrogen gas. Charge battery only in well-ventilated areas away
from open flame. Do not smoke while charging the battery.
•Remove all jewelry when working near electrical components.
•Turn the key switch off (O) and disconnect the batteries before servicing electrical components.
•Never work under a machine without safety blocks or stands to support the machine.
•Do not dispense flammable cleaning agents, operate the machine on or near these agents, or operate in areas where
flammable liquids exist.
•Do not pressure wash operator control panel, fuse panel, contactor panel or engine compartment area.
• Do not inhale exhaust gas fumes. Only use indoors when adequate ventilation is provided, and when a second person
has been instructed to look after you.
• Do not use the machine without a falling object protective structure (FOPS) in areas where it is likely that the operator
is hit by falling objects.
• Machines shall be parked safely.
• The machine shall be inspected by a qualified person regularly, in particular regarding the LPG container and their
connections, as required for safe operation by regional or national regulations.
• Observe the Gross Vehicle Weight, GVW, of the machine when loading, driving, lifting or supporting the machine.
revised 2/13

ENGLISH /A-5
FORM NO. 56041980 - CS7000 - A-5
CAUTION!
•This machine is not approved for use on public paths or roads.
•This machine is not suitable for picking up hazardous dust.
•Use care when using scarifier discs and grinding stones. Nilfisk will not be held responsible for any damage to floor
surfaces caused by scarifiers or grinding stones.
•When operating this machine, ensure that third parties, particularly children, are not endangered.
•Before performing any service function, carefully read all instructions pertaining to that function.
•Do not leave the machine unattended without first turning the key switch off (O), removing the key and applying the
parking brake.
•Turn the key switch off (O) before changing the brushes, and before opening any access panels.
•Take precautions to prevent hair, jewelry, or loose clothing from becoming caught in moving parts.
•Use caution when moving this machine in below freezing temperature conditions. Any water in the solution or recovery
tanks or in the hose lines could freeze.
•The battery must be removed from the machine before the machine is scrapped. The disposal of the battery should
be safely done in accordance with your local environmental regulations.
•Do not use on surfaces having a gradient exceeding that marked on the machine.
•Before use, all doors and hoods should be properly latched.
SAVE THESE INSTRUCTIONS
