Ninety One MERAKI ULTRA User manual

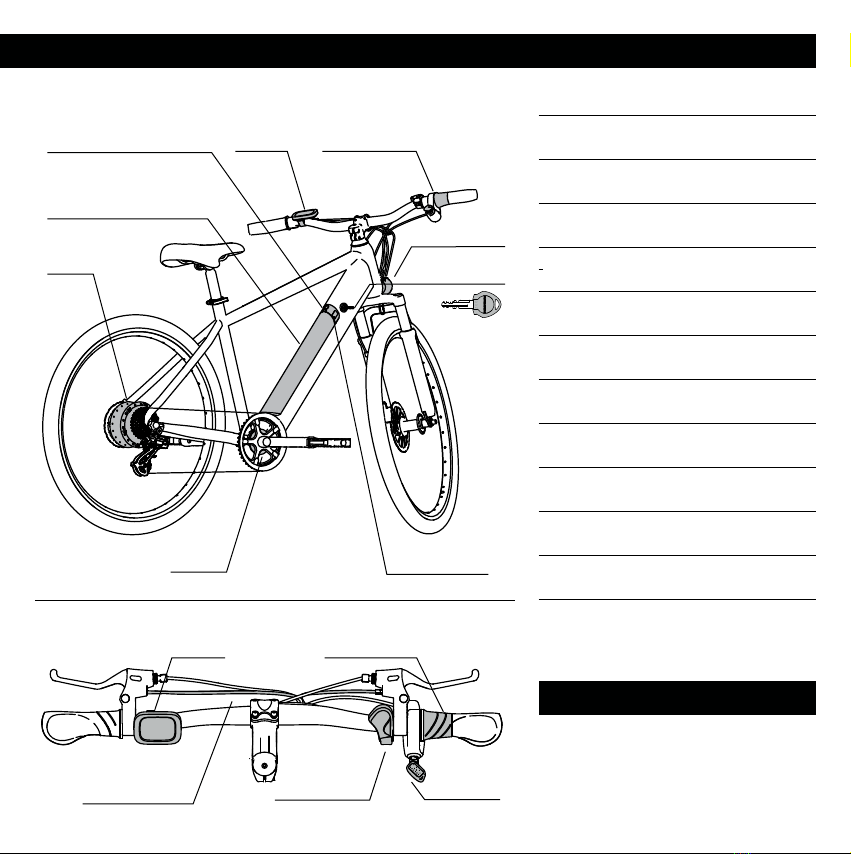

KNOW YOUR MERAKI ULTRA
Motor and Battery 2 yrs
Electronic components 1 yr
Non Electronic components 6 mos
Frame 5 yrs
No warranty on wear and tear
Maximum rider weight 110 Kg
Maximum total load 140 Kg
Maximum rated speed 25 Kph
Water resistance rating IP65
Battery Voltage 36 V
Battery Type Li-ion
Battery Capacity 9.6 Ah
Battery range 50 Km*
Charger Voltage 42V DC
Charging Socket 5A/220V
Charging Time 4.5-5Hr
Motor 250W BLDC
WARRANTY
torque
sensor
Auto-cut off
break cable
Display Half Throttle
Start Key
Gear Shifter
Display
Battery Indicator light
Removable battery
Motor
Half Throttle
Battery Key
Battery
charging slot
Headlight
START

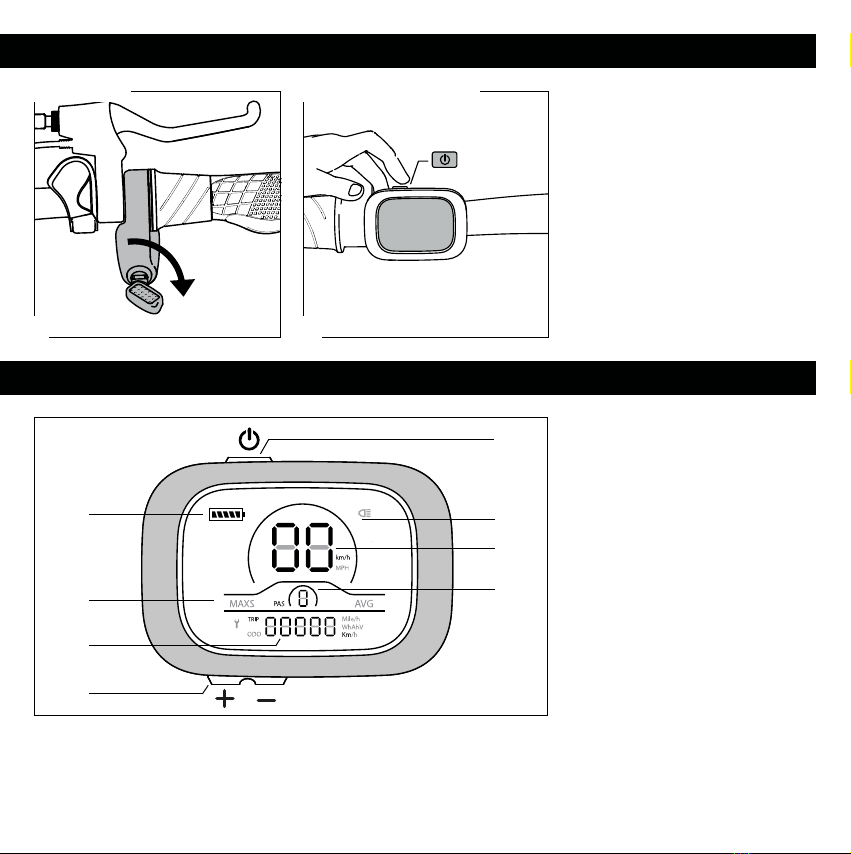

DISPLAY GUIDE
1. Turn the start key clockwise
till you hear a click
2.
button for two seconds to turn
on display.
counter-clockwise till you hear
a ‘click’.
* Press power button to switch between trip distance (km), ODO
(km),maximum speed (km/h) and average speed (km/h). After the
display is turned on, it will show the real-time speed (km/h) and the
trip distance (km) by default.
1. Battery Level
2. Maximum speed
Indicator
3. Trip distance *
4.
5.
6. Headlight Indicator
7. Real Time speed *
8.
1 2
1
2
3
4
5
6
7
8
CLICK!
ROTATE KEY HOLD POWER BUTTON
CHARGE

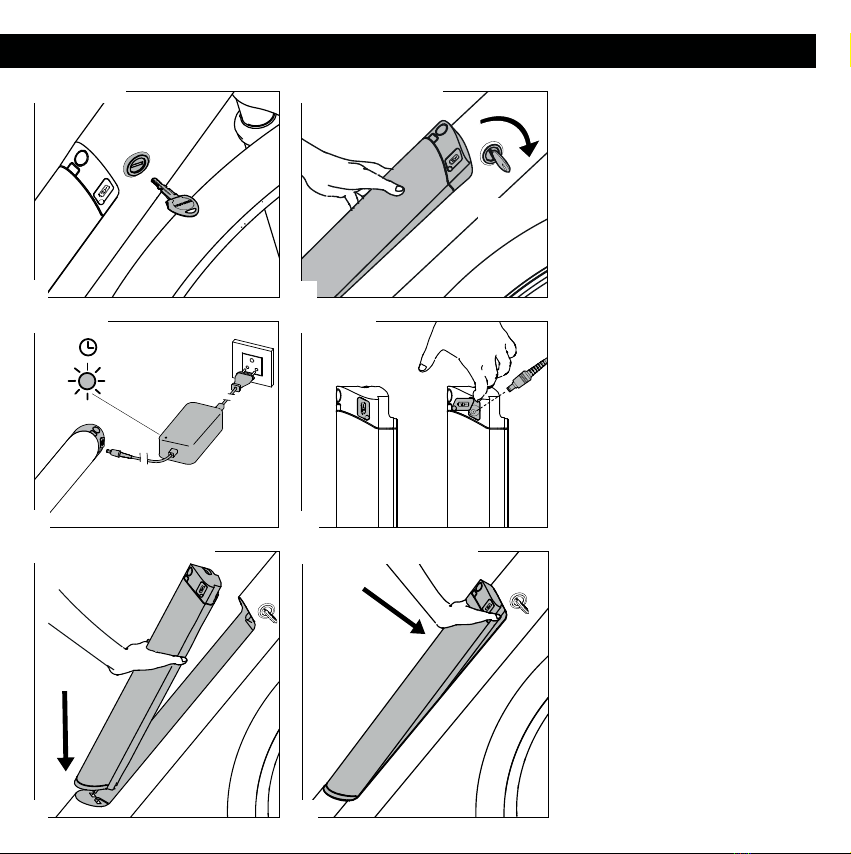

1.
frame keyhole
2. Rotate key counterclockwise
till it ‘clicks’. The battery will
pop out.
3. First plug the charger in
the socket. Then plug the
charging pin in the charging
hole in the top-right of the
battery. Charge till charger
light is green. Full charge will
4. Slide the dustcap off
the battery only during
charging.
other times.
5. After charging is
complete,
the battery at the bottom of
the battery slot.
6.
the battery till it ‘clicks’ to
secure the battery in place.
1 2
34
56
GREEN
~ 5 HR
CLICK!
CLICK!
PLACE BATTERY BACK PLACE BATTERY BACK
PLUG IN CAUTION
INSERT KEY REMOVE BATTERY

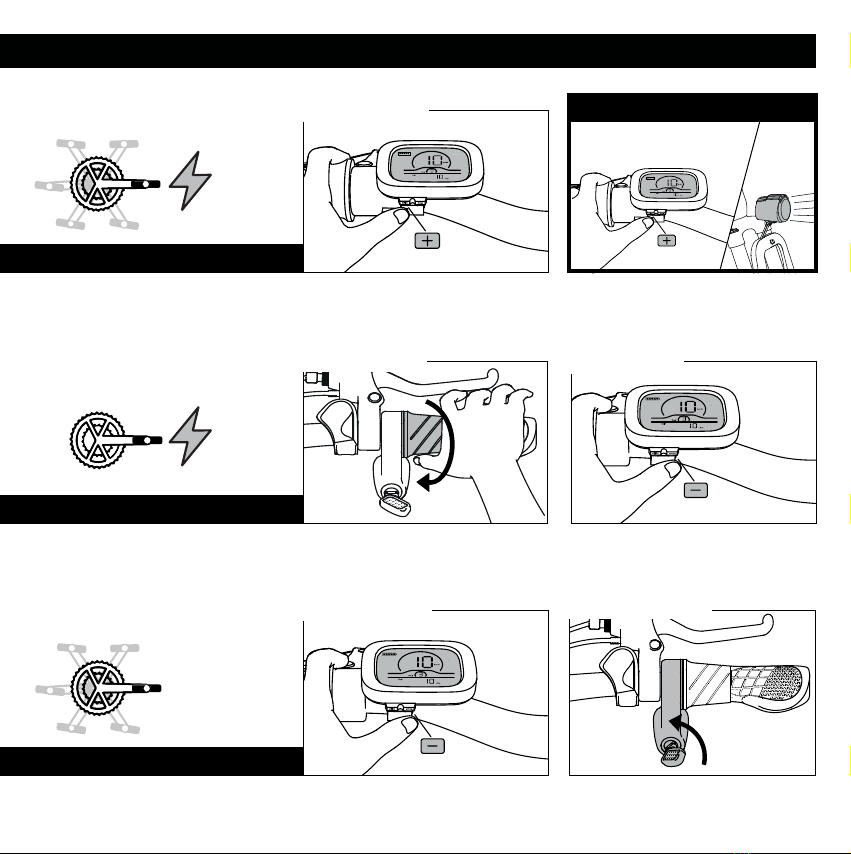

RIDE
Long press “+” button to turn
headlight on
decrease pedal assistance as
SWITCHING PAS
FAST/THROTTLE
PEDAL ASSIST- 0 TURN OFF POWER
SLOW/CRUISE
RIDE WITHOUT PEDALLING
PEDAL WITHOUT MOTOR ASSIST
ITS DARK- TURN HEADLIGHT ON
PEDAL WITH MOTOR ASSIST
cruise at a constant speed
Rotate the half throttle on the
right handlebar grip.
You can still use the display .
clockwise to turn off bike.
CLICK!
HOLD
USEFUL LINKS
REGISTER YOUR BIKE
RESOLVE TECHNICAL ISSUES: 91WIZ
ASSEMBLY VIDEO
WARRANTY DETAILS
Register your bike to activate
warranty
Register within 30 days of date of
purchase
Follow the step-by step assembly
video to assemble your E-bike on
your own at home
Find detailed warranty information
here
Call our technician at your doorstep
Email
1800 572 9191
cares@outdoors91.com
BOOK DOORSTEP ASSEMBLY: 91CARES
Virtually connect with our trained
technicians resolve any issue
Immediately
www.outdoors91.com/
register-my-bikew
https://www.youtube.com/
watch?v=A0sH1xvc4&t=24s
www.outdoors91.com/warranty-details
www.outdoors91.com/91wiz
Do not charge the battery when
°C
Do not tamper with electrical
components and wire connectors on
will be void.
Do not ride in heavy rain and
waterlogged conditions.
Do not use throttle when starting
E-bike from stationery position.
Do not leave the battery on charge
Do not use any other charger to charge
your Meraki Ultra.
Do not operate the motor when
battery is charging and attached to
Meraki Ultra.
Do not weld anything to the frame.
It is okay to ride your Meraki ultra in
light rain. Make sure Battery pin cap is
covering the pin.
make sure battery cavity is dry before
re-inserting battery.
Charge the battery immediately if
battery symbol outline is blinking.
before plugging it into the battery.
Charge the battery at least once in a
month if Meraki Ultra is not being used.
You can charge the battery without
it remains in a shaded and dry place.
FREQUENTLY ASKED QUESTIONS
Is Meraki Ultra similar to a motor bike?
pedalling. Using throttle frequently or for long
duration will drain out battery faster and reduce
range. Ride it in your most preferred pedal
assistance mode.
Does it get charged while pedalling?
charged through a power socket using the
given charger.
Does throttle have power levels?
motorbike.
How fast can I go on Meraki Ultra?
Are these tyres tubeless?
tyres especially designed for use with E-bikes.
How much each charge cost?
What is the true range of Meraki Ultra?
and frequency of throttle used.
Can I weld/attach a rear carrier to Meraki
Ultra to carry load?
You can bolt a carrier to the frame. Total weight
Welding is not recommended as it will affect
the functioning of electrical components inside
the frame. Welding anything to the frame will
render frame warranty void.
What is the charging time?
the charger to turn green before disconnecting
the charger.
My battery is overheating. What should i do?
Do not charge the battery with ambient
°C.
°C
during charging. The battery has temperature
cut off for safety.
How long will the battery last?
can be replaced at cost.
