Ningbo UTEC Electric 6324W-CAM User manual
MODEL/MODEL/MODEL #6324W-CAM
SAFETY
INFORM
A
TION
/
SAFETY INFORM
A
TION/SAFETY
INFORM
A
TION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
Please read and understand this entire manual before attemting to assemble, operate or install the product.
Please read and understand this entire manual before attemting to assemble, operate or install the product.
WARNING/WARNING/WARNING
• This light fixture is designed to fit standard junction boxes as defined by the National Electrical Code.
• Consult a qualified electrician if you are not certain about the installation process. Always install wiring connections in accordance with local code, ordinances
and the National Electric Code.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
• Apart from installation or to access the memory card, do not attempt to open the unit as this may Invalidate your warranty.
• Do not connect this light fixture to a dimmer switch or timer.
• Interference to other equipment or from other equipment may be caused by other such equipment not being regulated correctly in order to avoid receiving or
emitting interference.
• Do not install the unit near or above ventilation or heat extractors
• This fixture is designed for outdoor installation and can be mounted to a wall or eaves.
NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
SAFETY
INFORM
A
TION
/
SAFETY INFORM
A
TION/SAFETY
INFORM
A
TION
This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
MPE Requirements
To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons
during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
Region Selection
Limited by local law regulations, version for North America does not have region selection option.
PREPARATION/PREPARATION/PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 40 minutes Estimated Assembly Time: XX minutes
• The fixture must be installed in the Wi-Fi signal place, and make sure your Wi-Fi speed
is at least 2 MB/S.
• It is recommended to install this fixture at a height of 8 - 10 ft.

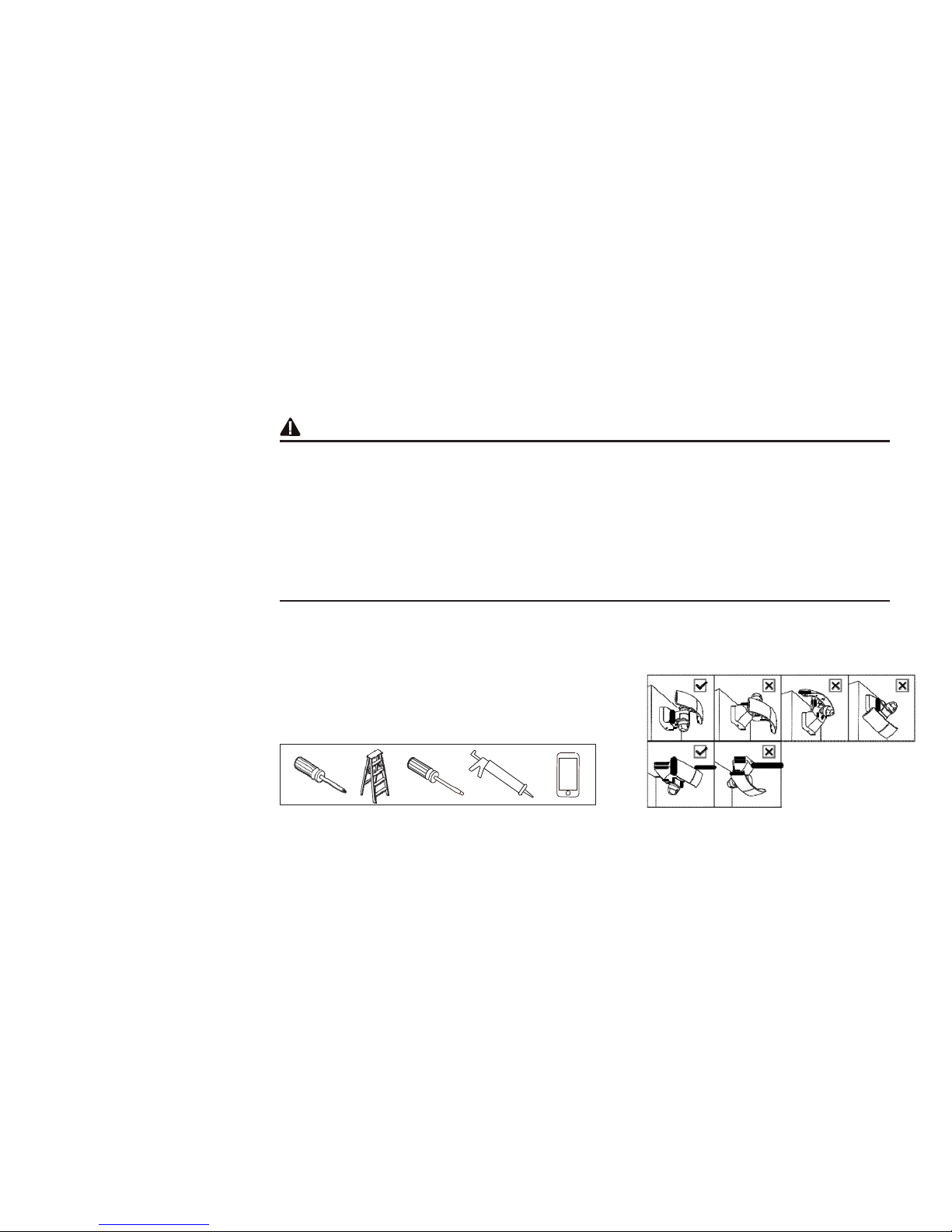

TOOLS REQUIRED (NOT INCLUDED)/TOOLS REQUIRED/TOOLS REQUIRED:
QUICK REFERENCE GUIDE
/
QUICK REFERENCE GUIDE/QUICK REFERENCE GUIDE
PACKAGE CONTENTS/PACKAGE CONTENTS/PACKAGE CONTENTS
A x 1
HARDWARE CONTENTS/HARDWARE CONTENTS/HARDWARE CONTENTS
Note: Hardware shown actual size./Note: Hardware shown actual size./Note: Hardware shown actual size.
AA BB CC
x 2 x 2 x 1

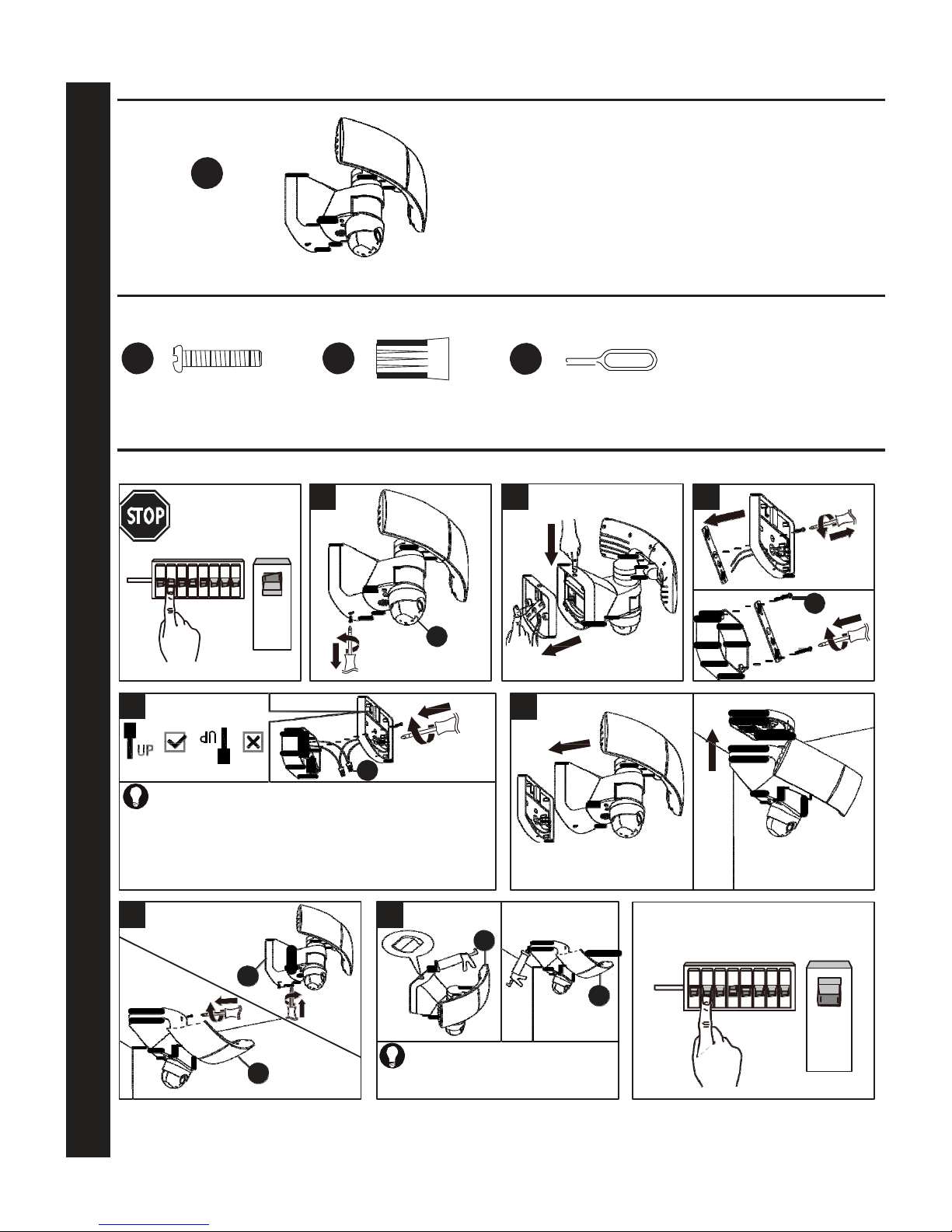

INSTALLATION
OVERVIEW/INSTALLATION OVERVIEW/INSTALLATION
OVERVIEW
Turn
off
power
source 1 2
3
Turn
off
power
source
Turn
off
power
source
OFF
A
AA
4
5
BB
Connect black wire from outlet box to black wire from fixture.
Connect white wire from outlet box to white wire from fixture. Secure
wires together with BB. Connect ground wire to bracket
6 7 Turn on power source
Turn on power source
A
Turn on power source
A
A
ON
Apply silicone caulk (sold separately)
completely around the base of the light
A fixture. The pin hole must be sealed to avoid
water damage.
QUICK REFERENCE GUIDE/QUICK REFERENCE GUIDE/QUICK REFERENCE GUIDE
OPERATING INSTRUCTIONS
45°
-90°
45° 0°
45°
0°
35°
+90°
1. Download the LUTEC app by searching the word “LUTEC” or scan the QR code as shown.
2. Ensure the power to the light is turned ON, allow 60 seconds for system boot-up. When the red
indicator light flashes, connect the mobile phone to the light:
• Open the LUTEC app > add the new camera > rapid configuration > enter the WIFI information >
confirm > wait until the connection is successful.
3. Press the reset button when the fixture dosen’t work. Press the reset
button untill you hear the voice “restore factory setting please don’t
turn off”. Then wait for about 1 minutes, when the red light flashes,
reset successful.
CC
5. Indicator light instruction: red light is on - the light is starting up
red light flashes - the light is waiting for WIFI
green light flashes quickly - connecting to the WIFI
green light flashes slowly - connection succeeded
4. Turn the SD cover clockwise to replace or remove the SD card.
(The SD card can only save 10 hours of video content. If the SD card
is full, it will automatically delete the video content ten hours ago.)
6. Using APP to find more information of operation and function by support button.
TROUBLESHOOTING/TROUBLESHOOTING/TROUBLESHOOTING
PROBLEM
PROBLEM
PROBLEM
POSSIBLE CAUSE
POSSIBLE CAUSE
POSSIBLE CAUSE
CORRECTIVE ACTION
CORRECTIVE ACTION
CORRECTIVE ACTION
Light will not come ON.
Insert problem text here.
Insert problem text here.
1. The wiring is incorrect (new installations).
2. The sensor is not covering the area adequately. 1.
Re-check
the wiring.
2.
Re-aim
the
sensor
to cover
desired
area.
The lights come on during the
daylight. 1. The light control may be installed in a relatively
dark location.
2. The light control is in mode.
1. Use the app to lower the
ambient
light
activation
level
2. Set the
control switch
to the position.
The phone can not be connected
to the fixture.
1. Wrong Wi-Fi password.
2. The Wi-Fi speed is not good enough.
3. Your router doesn’t support the fixture.
1.
Ensure
yourWi-Fi
password
is correct.
2.
Enhance
yourWi-Fisignal.
3.
Adjust
yourrouterfrom5Gto 2.4G,if not,
change
another
one.
CARE AND MAINTENANCE/CARE AND MAINTENANCE/CARE AND MAINTENANCE
• Turn OFF all power to circuit at main circuit breaker or fuse box. DO NOT rely on wall switch alone to turn off power.
• Clean surfaces with a mild, non-abrasive cleaner.
WARRANTY/WARRANTY/WARRANTY
If this product fails due to a defect in materials or workmanship within five (5) years from the date of purchase, return it along with proof of date of purchase
and it will be replaced with the same or comparable model free of charge.
This warranty is void if damage or defect has resulted from accident, abuse, misuse or faulty repair.
This warranty gives you specific legal rights and you may have other rights that vary from state to state.
IN NO EVENT WILL LIABILITY EXTEND TO ANY CONSEQUENTIAL, SPECIAL, INCIDENTAL OR INDIRECT DAMAGES OF ANY KIND ARISING OUT OF
THE USE OR MISUSE OF THIS PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGE SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
