Qvis APOPTZ-18IR User manual

APOPTZ-18IR
IR High Definition Speed Dome
User’s Manual
V1.0 07 / 2013

© Copyright Qvis® All documentation rights reserved.
i

© Copyright Qvis® All documentation rights reserved.
ii
Welcome

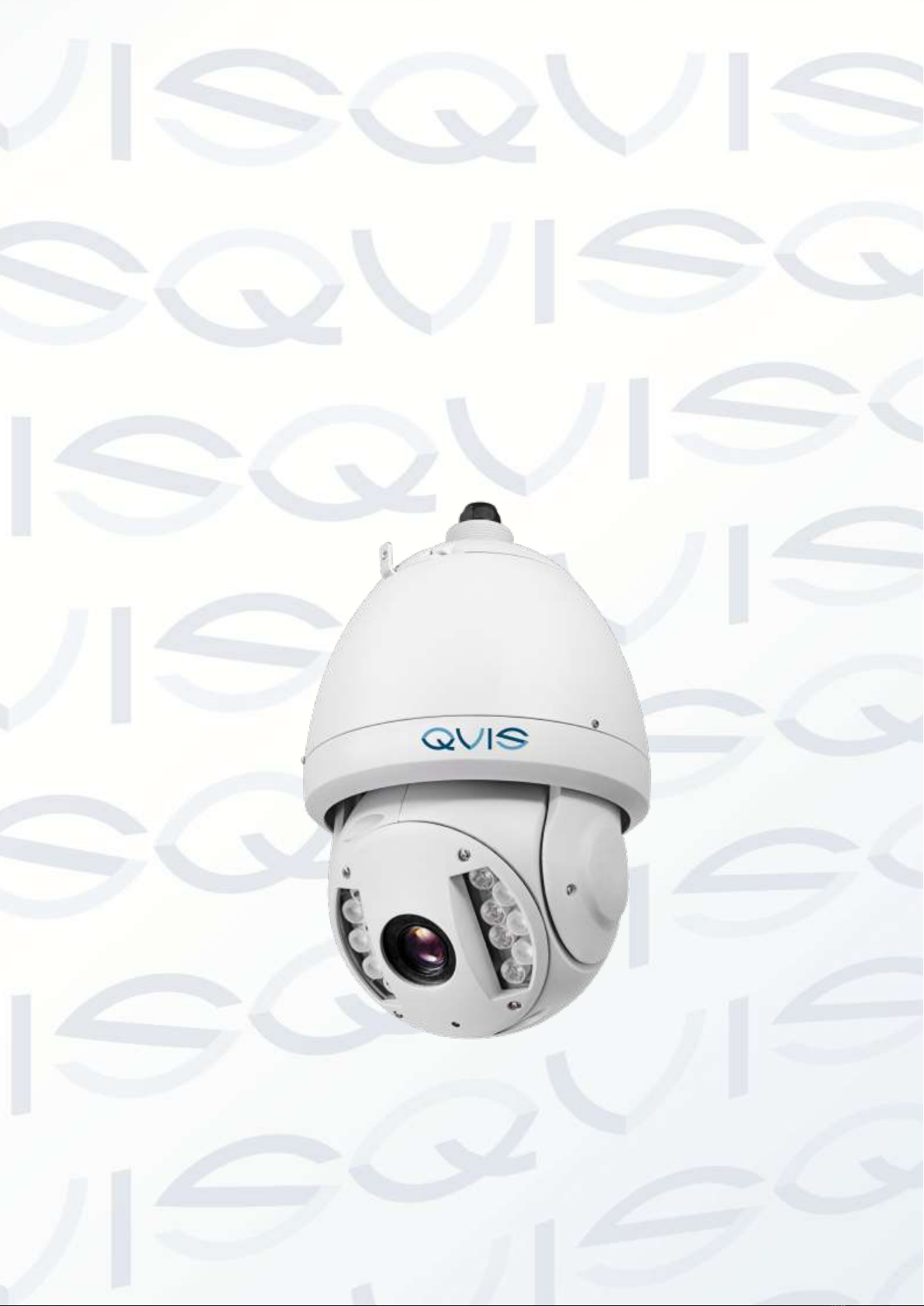

Thank you for purchasing the APOPTZ-18IR HD PTZ Speed Dome.
This user’s manual is designed to be a reference tool for the installation and
operation of your system.
Here you can find information about the corresponding IP camera’s features and
functions, as well as a detailed installation method.
Before installation and operation please read the following safeguards and
warnings carefully!

© Copyright Qvis® All documentation rights reserved.
iii
Table of Contents
1FEATURES AND FUNCTIONS ................................................................................................1
1.1 General Introduction .......................................................................................................................................................... 1
1.2 Features .............................................................................................................................................................................. 1
1.2.1 On-Screen Menu........................................................................................................................................................... 1
1.2.2 Support multiple protocols ........................................................................................................................................... 1
1.2.3 Proportional Pan and Tilt.............................................................................................................................................. 1
1.2.4 On-screen Tips.............................................................................................................................................................. 1
1.2.5 Preset Setup and Call................................................................................................................................................... 1
1.2.6 Auto Scan....................................................................................................................................................................... 2
1.2.7 Auto Touring .................................................................................................................................................................. 2
1.2.8 Auto Pattern................................................................................................................................................................... 2
1.2.9 Privacy Masking............................................................................................................................................................ 2
1.2.10 Action on Alarm ........................................................................................................................................................ 2
1.2.11 Auto Flip..................................................................................................................................................................... 2
1.2.12 Self-diagnosis............................................................................................................................................................ 2
1.2.13 Day/Night Mode (B/W & Color Mode) ................................................................................................................... 2
1.2.14 Auto Focus ................................................................................................................................................................ 2
1.2.15 Backlight Compensation.......................................................................................................................................... 3
1.2.16 Pan Tilt and Zoom.................................................................................................................................................... 3
1.2.17 3D Intelligent Location............................................................................................................................................. 3
1.2.18 Idle Status.................................................................................................................................................................. 3
1.2.19 Image Stabilizer/Flip ................................................................................................................................................ 3
1.3 Specifications ..................................................................................................................................................................... 4
1.3.1 Performance Specifications......................................................................................................................................... 4
1.3.2 Technical Specifications............................................................................................................................................... 5
2QUICK CONFIGURATION TOOL.............................................................................................6
2.1 Overview ............................................................................................................................................................................. 6
2.2 Operation............................................................................................................................................................................. 6
3WEB OPERATION ...................................................................................................................9

© Copyright Qvis® All documentation rights reserved.
iv
3.1 Network Connection .......................................................................................................................................................... 9
3.2 Login and Logout ............................................................................................................................................................... 9
4MENU .....................................................................................................................................12
4.1 Screen Menu Index........................................................................................................................................................ 12
4.2 Self-diagnosis System Information................................................................................................................................ 13
4.3 Main Menu ........................................................................................................................................................................ 13
4.4 Menu Operation.............................................................................................................................................................. 14
4.4.1 System Information........................................................................................................................................14
4.4.2 Display Setting...............................................................................................................................................16
4.4.3 Camera Setting..............................................................................................................................................16
4.4.4 Function Setting.............................................................................................................................................21
4.5 Dome Troubleshooting................................................................................................................................................. 30
4.5.1 Restore to Factory Default Setup ............................................................................................................................. 30
4.5.2 PTZ Movement is not smooth ................................................................................................................................... 30
5CABLE CONNECTION ...........................................................................................................31
5.1 System Layout................................................................................................................................................................ 33
5.1.1 System Connection..................................................................................................................................................... 33
5.1.2 Alarm Connection........................................................................................................................................................ 33
6 FAQ ...........................................................................................................................................34
1.1 Daily Maintenance ......................................................................................................................................................... 34
1.2 Problems and Solutions............................................................................................................................................... 34
7APPENDIX Ⅰ THUNDER PROOF AND SURGE PROTECTION.............................................35
8APPENDIX 2 TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS .................................36

© Copyright Qvis® All documentation rights reserved.
v

© Copyright Qvis® All documentation rights reserved.
vi
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or
installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation Security
No heavy stress, violent vibration or contact with water is allowed during transportation, storage and
installation.
Please use the original packing material (or the material of the same quality) when you ship it back to the
manufacturer.
3．Installation
Do not apply power to the product before completing installation.
Do not put object(s) on the product.
4．Environment
This product should be installed in a cool, dry place away from direct sunlight, inflammable, explosive
substances and etc.
Please keep it away from environments that contain electromagnetic radiation or objects that produce it.
Please keep sound ventilation around the device at all times.
Do not allow the water and other liquid to penetrate into the device if casing has been compromised. This
series product complies with the IP66 standard specified in the Degrees of Protection Provided by
Enclosure.
Please make sure the CCD (CMOS) component is away from the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
5. Daily Maintenance
Current series product has no power button. Please unplug all corresponding power cables before your
begin installation or daily maintenance work.
Please keep the dustproof cap back to protect the CCD or CMOS part if the device does not work for a long
time.
Do not touch CCD (CMOS) component. You can use the blower to clean the dust on the surface of the
device. You can use the dry cloth with some alcohol or mild detergent to clear if necessary.
Do not use volatility solvent such as the benzene or thinner, or detergent with strong abradability. It may
result in lens damage or it may adversely affect the device performance.

© Copyright Qvis® All documentation rights reserved.
vii
If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the
device. Finally use the dry cloth to clean the device.
6. About Accessories
Always use all the accessories recommended by manufacturer.
Before installation, please open the package and check that all the components are included in the package.
Contact your local retailer ASAP if something is missing in your package.

© Copyright Qvis® All documentation rights reserved.
1
1Features and Functions
1.1 General Introduction
The six-inch megapixel high speed smart network dome camera integrates the functions of network-based
remote surveillance and integrated high-speed smart dome, which makes it convenient to install and easy to use.
This product incorporates a megapixel level resolution, which meets the customers' needs for surveillance at HD
level. This product is also qualified with intelligent identification ability, privacy masking settings, alarm activation,
WDR and some other functions. In addition, one can transmit audio/video and control data via internet in a safe
way. Thus, the surveillance is free from the restriction caused by the changes of time and places to realize a
real-time surveillance. With the built-in high-speed PTZ, this product can operate as a quick and accurate, fixed-
positioning surveillance, which is also very convenient to use.
1.2 Features
This series speed dome has the following features:
1.2.1 On-Screen Menu
This series product menu supports multiple languages.
It is easy for you to view dome information and configure dome, camera parameters.
1.2.2 Support multiple protocols
You can use various devices (such as matrix, control keyboard and DVR) and protocols to operate
speed dome.
1.2.3 Proportional Pan and Tilt
This function keeps the image from moving too fast when there is a large amount of zoom.
The quick-installed high definition speed dome continually decreases or increases pan and tilt speeds in
proportion to depth of zoom. When zooms speed is increasing, the camera moving speed becomes slow.
When zooms speed is decreasing, the camera moving speed becomes fast.
1.2.4 On-screen Tips
Here you can view:
Dome title and system version (Software and hardware)
Dome system temperature. (Optional. You can disable this function)
Dome pan/tilt coordinates, preset ID.
1.2.5 Preset Setup and Call
Preset function is to save the address information (such as PTZ pan/tilt, focus, etc) to the memory so
that you can quickly adjust the dome and PTZ to the correct position. This series quick-installed high
definition speed dome supports 255 presets.

© Copyright Qvis® All documentation rights reserved.
2
1.2.6 Auto Scan
Camera scans back and forth regularly in a horizontal field. Here you need to set left and right limit and scan
speed. You can set 5 scanning paths.
1.2.7 Auto Touring
Add addresses into a routine and desired order and then set time and stop duration for each address. The dome
will begin an auto touring between these addresses. Each touring path can contain max 32 presets.
1.2.8 Auto Pattern
Memorise dome operation such as pan, tilt, and zoom to repeat. You can call it to repeat the previous operation.
1.2.9 Privacy Masking
Privacy masking is a user-defined, four-sided area that cannot be viewed by you. The masking area will move
with pan and tilt functions and automatically adjust in size as the lens zooms.
1.2.10 Action on Alarm
System can connect 7-channel NO/NC input and 2-channel NO alarm output via the socket connector. Alarms
can be individually programmed to initiated pattern, or go to an associated preset, scanning, touring when
received. Dome will return to a previously programmed state after alarm acknowledgement or to its previous
position before alarm.
1.2.11 Auto Flip
As long as you continue to hold the keyboard joystick in the down position, the dome rotates 180 degrees and
repositions itself for uninterrupted viewing of any subjects that passes directly beneath the dome.
1.2.12 Self-diagnosis
There is a self-diagnosis procedure when dome boots up.
Tilt and vertical engine check
Camera diagnostics
Display dome information and diagnosis information such as address, protocol, baud rate, type.
1.2.13 Day/Night Mode (B/W & Color Mode)
Auto/manual switches in low illumination.
Auto: camera will automatically adjust CCD light level.
Manual: use menu or function keys to select day/night mode.
This function needs the speed dome driver (camera) supported.
1.2.14 Auto Focus
Auto focus allows the lens to remain in focus during zoom-in, zoom-out and motion functions to get vivid image.
You can use FAR or NEAR button to adjust focus manually.

© Copyright Qvis® All documentation rights reserved.
3
1.2.15 Backlight Compensation
Balance the brightest and darkest sections of a scene to produce a more vivid picture.
1.2.16 Pan Tilt and Zoom
Supports zoom in and zoom out during tilt and pan movement.
In this period focus and iris are both in auto mode to get clear image.
1.2.17 3D Intelligent Location
Working with DVR, just click part of the current scene will be displayed in the central window and automatically
zooms. All of these allow you to trace precisely.
1.2.18 Idle Status
When there is no available order, you can use the menu to set dome idle status after specified duration. The idle
status includes turn to specified preset or go to scan, tour or pattern function.
1.2.19 Image Stabilizer/Flip
You can enable image stabilizer function and flip in the menu.
When there is vibration, this IS function can guarantee video stability and when flip, you can view the
video more clearly.
This function needs speed dome driver (camera) supported.

© Copyright Qvis® All documentation rights reserved.
4
1.3 Specifications
1.3.1Performance Specifications
Built-in
Decode
All digital design. All data are in the connection board. No data loss
when power off occurs.
Integrated design, high stability.
Quick-installed high definition speed dome max support 255
presets. Support 8 auto touring. Each touring max has 32 presets.
Low and medium speed dome max support 80 presets.
5 auto scan.
5 auto pattern. Each pattern can max support 400 commands and
the interval shall be less than 60s.
Built-in direction indicator.
Support max 24 privacy mask zones(Depends on the camera type)
7-channel alarm input, 2-channel alarm output.
Built-in PTZ
Fine stepper driver, stable performance, react quickly, precisely
positioning.
Integrated design, tight structure.
Elegant mechanical driver device. Support 360 degrees continuous
rotation, no monitor blind spot.
0.1°/s rotation speed while maintain stable image.
180 degrees tilt continuous monitor.
Built-in zoom
lens, high
sensitive,
high
resolution
integrated
digital
process
color
camera.
Auto focus
Auto BLC
Auto brightness control
Auto white balance
Auto day/night switch (Auto B/W & color switch)
OSD
Preset title display
View dome initial setup information
Modify camera parameter
Set preset
Set auto scan
Set auto patter
Set 2-channel alarm input and 1-channel alarm output.
Set auto day/night switch (Auto B/W & color switch)
Set privacy mask zones

© Copyright Qvis® All documentation rights reserved.
5
1.3.2Technical Specifications
Power
It depends on the product your purchase.
Camera Driver
Consumption
12W
Decoder
Built-in
Engine
Stepper motor
Preset
255(PELCO-D protocol).
80 (In industrial protocol)
Please note the value may vary due to different protocols.
Auto Tour
8
Auto Pattern
5
Auto Scan
5
Privacy Mask
8 zones in one-window.
The different series products support different amount. It
depends on the camera type.
Alarm Input/Output
7-channel alarm input and 2-channel alarm output. (Default
setup is 2-channel alarm input and 1-channel output.)
Information
Time, address, dome title, dome coordinates, temperature,
alarm and etc.
Lens
Adjust speed in accordance with lens
Auto Rotation
Tilt 92º auto rotates to pan 180 º
Auto Pan
0 º -360º continuously
Manual Pan Motion
Speed
0.1º—300º/S
Preset Maximum
Speed
400º
Manual Tilt Motion
0.1º—120º/S
Manual Tilt Scan
Section
0º—180º
PTZ Scan Accuracy
0.06 ± 0.015º
Signal Format
PAL/NTSC (Camera mode)
S/N Ratio
> 50dB
Humidity
＜90%
Environment
-40℃—60℃（outdoor）

© Copyright Qvis® All documentation rights reserved.
6
2Quick Configuration Tool
2.1 Overview
Quick configuration tool can search the current IP address or/and modify IP address. At the same time, you can
use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment.
2.2 Operation
Double click the ‘ConfigTools.exe’ icon; you can see an interface is shown as in Figure 2-1.
In the device list interface, you can view device IP address, port number, subnet mask, default gateway, MAC
address and etc.
Figure 2-1
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 2-2.
Figure 2-2

© Copyright Qvis® All documentation rights reserved.
7
Select the ‘Open Device Web’item; you can go to the corresponding web login interface. See Figure 2-3.
Figure 2-3
If you want to modify the device IP address without logging in the device web interface, you can go to the
configuration tool’s main interface to set.
In the configuration tool search interface (Figure 2-1), please select a device IP address and then double click it
to open the login interface. Or you can select an IP address and then click the Login button to go to the login
interface. See Figure 2-4.
In Figure 2-4, you can view device IP address, user name, password and port. Please modify the corresponding
information to login.
Please note: the port information here shall be identical with the port value you set in TCP port in Web Network
interface. Otherwise, you cannot login to the device. If you are using the device background upgrade port 3800
to login, other setups all become invalid.
Figure 2-4

© Copyright Qvis® All documentation rights reserved.
8
After you logged in, the configuration tool main interface is shown as below. See Figure 2-5.
Figure 2-5

© Copyright Qvis® All documentation rights reserved.
9
3Web Operation
This series product supports the Web access and management via PC.
Web includes several modules: live view, PTZ, set, alarm, logout and etc.
IP camera factory default setup:
IP address: 192.168.1.108.
User name: admin
Password: admin
3.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the IPC has connected to the network properly.
IPC IP address and PC IP address shall be in the same network segment. IPC default IP address is
192.168.1.108. If there is router, please set the corresponding gateway and subnet mask.
Use order ping ***.***.***.***(* IP camera address) to check connection is OK or not.
3.2 Login and Logout
Open IE and input IP camera address in the address bar. For example, if your camera IP is 192.168.1.108, then
please input http:// 192.168.1.108 in IE address bar. See Figure 3-1.
Figure 3-1
System pops up warning information to ask you whether install control webrec.cab or not. Please click OK
button, system can automatically install the control. When system is upgrading, it can overwrite the previous
Web too.
If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the control
download. Or you can lower the IE security level. See Figure 3-2.
Input your IP
address here

© Copyright Qvis® All documentation rights reserved.
10
Figure 3-2
After installation, the interface is shown as below. See Figure 3-3.
1. Please input your user name and password.
2. Default factory name is admin and password is admin.
3. Select the network connection type.
4. The login type includes: TCP/UDP/Multicast.
Note: For security reasons, please modify your password after you first login.
Figure 3-3

© Copyright Qvis® All documentation rights reserved.
11
After you logged in, you can see the main window. See Figure 3-4.
Figure 3-4

© Copyright Qvis® All documentation rights reserved.
12
4Menu
4.1 Screen Menu Index
Note:
ERR means current setup is invalid.
…means there is submenu.
The above diagram illustrates the overall structure of the speed dome setup menu.
Note:
ERR means current setup is invalid.
Please make sure all the cable connections are right.
INITIAL INFORMATION…
ADDR INFORMATION…
SYSTEM TIME SETTING…
SET NORTH
LANGUAGE ：ENGLISH
FACTORY DEFAULT
RESTART
BACK
EXIT
PRESET TITLE : ON (ON/OFF)
AZIMUTH DISP : ON (ON/OFF)
TIME DISP : OFF (ON/OFF)
POSITION : OFF (ON/OFF)
ZOOM DISP : OFF (ON/OFF)
INSIDE TEMP : ℃(℃/F/OFF)
TITILE DISPLAY :OFF
BACK
EXIT
DISPLAY SETTING
SYSTEM
INFORMATION
CAMERA SETTING
FUNCTION SETTING
EXIT
WB SETTING
EXPOSURE SETTING
DAY/NIGHT SETTING
PICTURE ADJUST
FOCUS SETUP
ZOOM SPEED : 08 (01-08)
APERTURE : 06 (01-16)
NEXT PAGE
BACK
EXIT
PRESET
AUTO PAN
AUTO SCAN
CRUISE
PATTERN
IDLE MOTION
AUTO RUN
NEXT PAGE
BACK
EXIT
