SWR/POWER METER USER MANUAL
Model : RS-101, RS-102, RS-402, RS-502
INTRODUCTION:
This SWR & POWER meter is a highly accurate RF meter for measuring Forward Power,
Reversed Power, & VSWR.
Main Features:
1. Large meter display for ease of reading.
2. Forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP],
for SSB and AM transmitters),
3. Reversed RF power readings.
4. VSWR rations.
5. Illuminated meter.
6. Convenient control layout for ease operation.
SPECIFICATIONS:
MODEL RS-101 RS-102 RS-402 RS-502
Frequency Range 1.6 - 60 MHz 1.8 - 200 MHz 125 - 525 MHz 1.8 - 525 MHz
Power Range 0 - 3 KW
Power Scale 30/300/3KW
Maximum Power 3 KW
Accuracy : LOW power
Accuracy : HIGH power
Minimum Power for SWR
Input/Output Impedance
Input/Output Connectors
Insertion Loss
Testing Function
Dimension (W/H/D) mm
Weight (Net) 780 g 790 g 800 g 950 g
Accessories

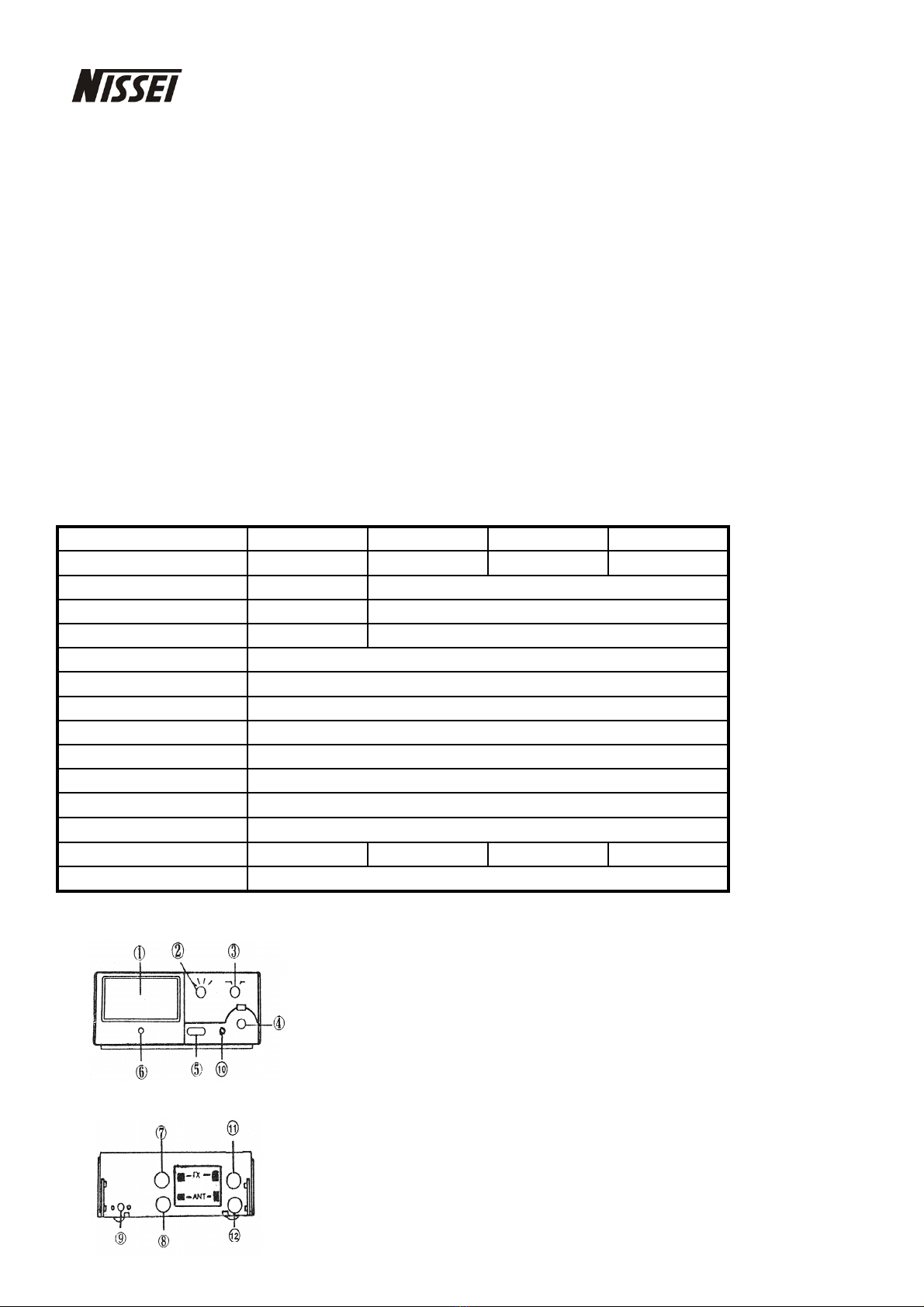

<FRONT PANEL> <FRONT & REAR PANEL>
1. Meter Display : Indicates FWD/REV power in watts and VSWR ratio
2. Function Switch : Select FWD/REV power, Calibration, and VSWR.
3. Range Switch : Selects RF power range of 5/20/200W, 30/300/3KW.
4. Calibration Knob : Sets full scale deflection when measuring VSWR
5. AVG/PEP MONI.(Push button) : Selects AVG or PEP RF power readings.
6. Meter Zero Adj.: Mechanical adjustment for meter needle.
<REAR PANEL> 7. TX Connector : Coax connector to transmitter 50 ohm RF output.
8. ANT Connector : Coax connector to 50 ohm antennna system.
9. 13.8V DC connection (via power supply) for meter LED illumination.
10. HF/VUHF band switch : available on RS-502 only.
11& 12. 2nd pair of TX/ANT connector : available on RS-502 only.
0 - 200 W
5/20/200W
200W
(AVG) +/- 10%, (PEP) +/- 15%
(AVG) +/- 5%, (PEP) +/- 10%
1 W
190 x 85 x 135 mm
Operation Manual, 13.8 DC Wire
50 OHM
"M" or/and "N" type
Less than 0.1 dB
Fwd/Rev Power, PEP, SWR

<INSTALLATION>
<FORWARD POWER MEASUREMENT>
Transmitter SWR Meter 1. Set the FUNCTION Switch to " FWD"
2. Set the radio transceiver to transmit mode and read the scale
corresponding to the Power RANGE selected.
3. When the AVG/PEP button is 'out', the meter reads average RF power.
When the button is 'pressed', the meter reads Peak Envelope Power
for use with SSB and AM transmissions. In this mode, there will be a
DC power supply slow rise and decay time.
<OPERATION>
Transmitter Forward <REVERSE POWER MEASUREMENT>
This measure the reverse power on the coaxial cable between transceiver
and antenna. The rest the settings are the same as that of
< FORWARD POWER MEASUREMENT>
SWR Meter
Transmitter Reversed <VSWR MEASUREMENT>
1. Set the radio transceiver to transmit mode and Function Switch to "CAL"
2. Slowly turn the CAL. Control knob clockwise until the meter pointer is at
meter full scale.
3. Now set the Function Switch to "SWR" position whilst still transmitting,
the meter will indicate VSWR ratio.
SWR Meter
[CAUTION]
1.Since the meter movement is very sensitive, avoid excessive vibration or
mechanical shock to the meter.
2. Watch the absolute maximum power could be applied to the meter by
different models you bought.
3.The meter must never be reverse connected. Always observe the correct
connections to transmitter and antenna as indicated on the rear sockets.
4.Do not expose the meter to excessive temperatures, high humidity, or
strong magnetic fields.
