Nissindo IC-A00IA User manual

Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
w w w . N i s s i n d o U S A . c o m
OPERATING INSTRUCTIONS
130W Beam 2R Moving Head Spot Light
IC-A001A
001
LC D DI SP L AY
DM X
ERR
DOWNUPMENU ENTER
MANUAL

2
CONTENTS
INTRODUCTION................................................................................ 3
SYSTEM FEATURES.............................................................................3
LED LIGHTING................................................................................... 4
• Controls And Functions......................................................................4
• Operation............................................................................................ 5
►Settings Function.................................................................5
►Manual Control Function...................................................6
►System Function...................................................................6
►Advanced Function.............................................................7
• Channel Mode.................................................................................... 8
►Color wheel: channel 1..................................................... 9
►Stop/stobe: channel 2........................................................9
►Dimmer: channel 3.............................................................9
►Static gobo change: channel 4......................................10
►Prism insertion: channel 5...............................................10
►Prism rotation: channel 6................................................ 10
►Frost: channel 8................................................................ 11
►Reset: channel 15............................................................. 11
►Lamp control: channel 16................................................11
►Timing: channels............................................................... 11
TECHNICAL SPECIFICATION.............................................................12
CONTACT INFORMATION...............................................................12
Spec
Features
Intro
LED Lights
Contact Us

3
INTRODUCTION
Nissindo USA is proud to introduce the new IC-A001A Beam Moving Head.
Equipped with a strong 130 Watt Phillips 2R lamp, the beam is sure to “wow”
any audience with its blinding performances. The IC-A001A Beam comes with
a total of 15 rotating gobo effects and displayed by 13 different colors
including white. The IC-A001A’s display coverage covers an outstanding 540°
horizontal scan and 280° vertical with a Pan of 450º and Tilt of 270º.
Optical lenses adjust up to 3.9° of zoom, allowing easy and clear transactions
to an obstacle 3 meters away or as far as 17 meters without losing focus,
making the IC-A001A a great beam performance light for any party.
SYSTEM FEATURES
1. Powerful beam moving head
2. Approved Lamp: Philips MSD Platinum 2R/130W
3. Voltage: AC 110~240V, 50/60Hz, 230W
4. Color: 13 colors + white
5. Gobo: 15 gobos + white
6. Channel: 16-CH / 20-CH
7. Movement Range: Pan 450° / Tilt 270°
Features
Intro

4
001
AdvancedSetting Manual System
中
180
DMX I N DMX O UT OFF
ON
POW ER IN POW ER OU T
LED LIGHTING

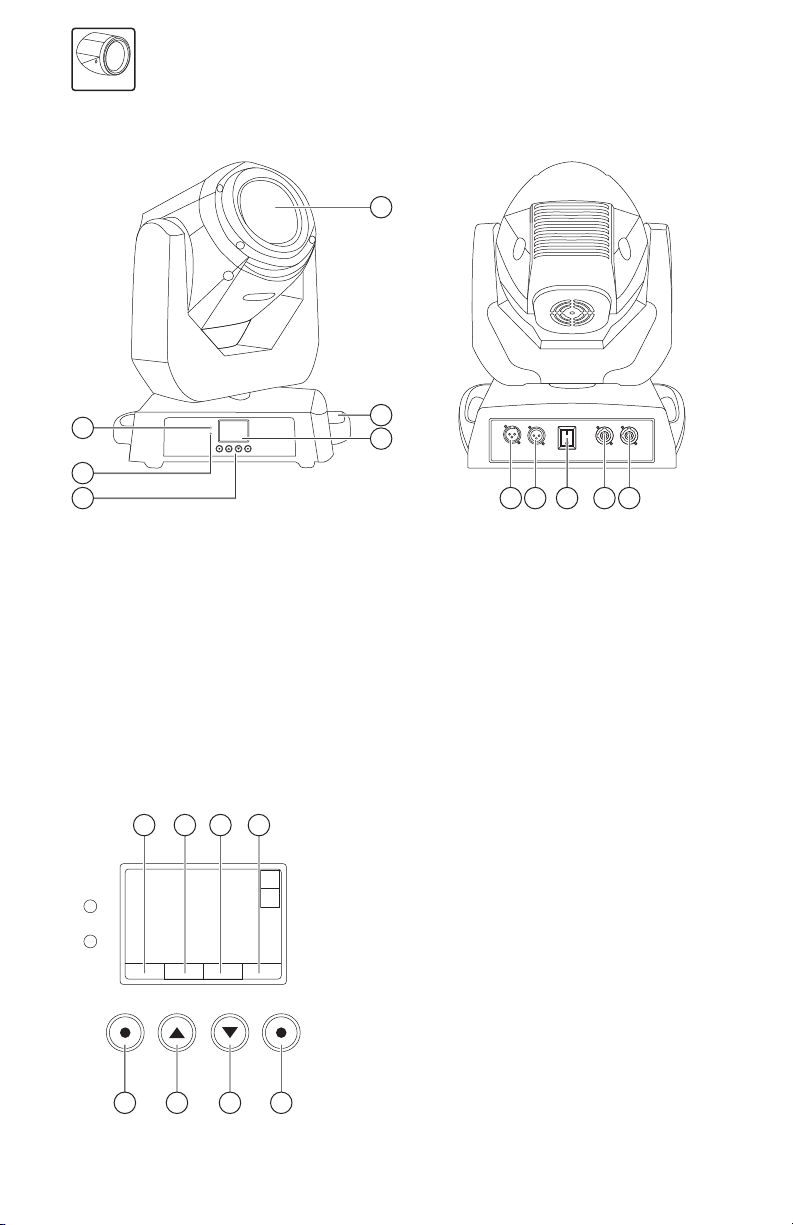

CONTROLS AND FUNCTIONS
FRONT VIEW REAR VIEW
FRONT PANEL:
1. Green DMX indicator
2. Red ERR (error) indicator
3. Menu selector
4. Moving head beam
5. Handle
6. LCD Display
MENU SELECTOR
LED Lights
REAR PANEL:
7. DMX input 3-pin XLR socket
8. DMX output 3-pin XLR socket
9. Power switch
10. Power Input
11. Power Output
87 9 10 11
001
LCD DISPL AY
DMX
ERR
DOWNUPMENU ENT ER
5
4
6
1
2
3
12. Setting function
13. Manual Control function
14. System function
15. Advanced function
16. MENU “●”: Go to previous page or go back
to home page
17. UP “▲”: Use UP button to move up
18. DOWN “▼”: Use DOWN button to move
down
19. ENTER “●”: Operate function, start/exit to edit
L CD D ISP L AY
DMX
ERR
DOWNUPMENU ENTER
16
12 13 14 15
17 18 19

5
OPERATION
SETTINGS FUNCTION:
OPTION SPECIFICATION
DMX Slave status: Receives DMX Signal from Control
& master
Auto1
Auto2
Auto3
Auto4
Forward 0
Picture up 8
Picture front
Vertical 8
Picture front
to sleep 8
Random
Running Mode
Sound-active
Master status: Operates automatically and send out
DMX signal to slaves
DMX Address
Channel Mode
1~512
1. Press MENU “●” button to select Setting.
2. Press ENTER “●” button to go to Setting Mode.
3. Press UP “▲” / DOWN “▼” button to select DMX.
4. Press ENTER “●” button to go to edit status.
5. Press UP “▲” / DOWN “▼” button to modify
numbers from 001~512.
6. Press ENTER “●” button to confirm it.
From 16-Channel to 20-Channel invalid16
From 17-Channel to 20-Channel control speed20
Invert Pan
(X Inverse)
Off
On
Load Default
Linear Colour On
Off
No DMX Signal Keep
Clear
Invert Tilt
(Y Inverse)
Off
On
Swap Pan-Tilt
(XY Inverse)
Off
On
Encoder Pan-Tilt
(XY Decoder)
On
Off
Keep running by original status
Motors reset
Display Power
Save
On
On
Off
Rectify location by optical couple
No rectification
Turing off after 30 seconds
Stays on indefinitely
Exchange function of X & Y (fine adjustment include)
Boot & Lamp on Lamp turns on when booted.
Off Lamp stays off when booted.
Color wheel linear change
Color wheel no linear change, Half-line change
Press ENTER “●” to confirm Dialog, press ENTER “●”
again to restore to default.

6
MANUAL CONTROL FUNCTION:
Press ENTER “●” to confirm Dialog, press ENTER “●”
again to restore to default. Press UP/DOWN to cancel.
OPTION SPECIFICATION
1. Color Wheel
2. Stop/Strobe
3. Dimmer
4. Gobo Change
5. Prism Insertion
6. Prism Rotation
7. Macro Fuction
8. Frost
9. Focus
10. Pan
11. Pan Fine
12. Tilt
13. Tilt Fine
14. Pan-Tilt Time
15. Reset
16. Lamp Control
1. Press MENU “●” button to select Manual.
2. Press ENTER “●” button to go to Manual Mode.
3. Press UP “▲” / DOWN “▼” button to select
options.
4. Press ENTER “●” button to go to edit status.
5. Press UP “▲” / DOWN “▼” button to modify
numbers from 000~255.
6. Press ENTER “●” button to confirm it.
17. XY Speed
18. Color Speed
Channel Mode “Expand CH-20” Display
Channel Mode “Expand CH-20” Display
19. Dinner - Prism -
Frost Speed
Channel Mode “Expand CH-20” Display
20. GOBO Speed Channel Mode “Expand CH-20” Display
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
0~255
Off
On
0~255
0~255
0~255
0~255
SYSTEM FUNCTION:
OPTION SPECIFICATION
DMX Monitor
Firmware AK-M10 A101
System Errors
Total Fixture Hours
Partial Fixture Hours
Total Lamp Hours
Partial Lamp Hours
No Error
00000:00 Time will start to calculate when beam is on.
00000:00
00000:00
00000:00
1. Colour Wheel 000 ( 0%)
2. Stop/Strobe 000 ( 0%)
3. Dimmer 000 ( 0%)
4. Gobo Change 000 ( 0%)
5. Prism Insertion 000 ( 0%)
6. Prism Rotation 000 ( 0%)
7. Macro Fuction 000 ( 0%)
8. Frost 000 ( 0%)
9. Focus 000 ( 0%)
10. Pan 000 ( 0%)
11. Pan Fine 000 ( 0%)
12. Tilt 000 ( 0%)
13. Tilt Fine 000 ( 0%)
14.Pan-Tilt Time 000 ( 0%)
15. Reset 000 ( 0%)
16. Lamp Control 000 ( 0%)

7
OPTION DESCRIPTION
Pan (X axis) Hall State
“0” means magnet shut; “1” means magnet open
“0” means magnet shut; “1” means magnet open
Tilt (Y axis) Hall State
Sensor
Monitor
Pan (X axis) Code
Wheel State
Two numbers; each number correspond one
photoelectricity switch
Two numbers; each number correspond one
photoelectricity switch
Tilt (Y axis) Code
Wheel State
Pan (X axis) Code
Wheel Step
Tilt (Y axis) Code
Wheel Step
Reset
Calibration
Pan (X axis) rectify X axis tiny adjust
X axis code wheel adjust
Y axis code wheel adjust
Tilt (Y axis) rectify Y axis tiny adjust
Color wheel rectify Color wheel tiny adjust
Gobo rectify Pattern plate tiny adjust
Focus rectify Focus tiny adjust
Dimmer rectify Strobe leaf tiny adjust
Zero Point
Correction ON
OFF
Shutting zero rectify function, will not
automatically rectify when color plate pattern
plate is out of step.
ADVANCED FUNCTION:
The default password is Up▲> Down▼> Up▲> Down▼
1. Press UP “▲”button (shows first “*”)
2. press DOWN “▼”button (shows second “*”)
3. Press UP “▲”button (shows third “*”)
4. Press DOWN “▼”button (shows fourth “*”)
5. Press “ENTER “●” button to confirm
Color wheel Hall State “0” means magnet shut; “1” means magnet open
Gobo Hall State “0” means magnet shut; “1” means magnet open
Focus Hall State “0” means magnet shut; “1” means magnet open
Effects Movement Hall State
“0” means magnet shut; “1” means magnet open
Lamp Life
Hours
10,000 hours
Lamp Hours
Clear
Adjust range
-128~+127, +0
means NO
Adjust;
OK Cancel
Down
Up
► Password
Please input password:
* * * *
OK Cancel
► Lamp Hours Clear
Sure to Lamp Hours Clear?
Press “ENTER “●” button to enter lamp hours
clear mode
After clearing LAMP WORKING time reset.

8
CHANNEL MODE
CHANNEL 16CH 20CH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
COLOUR WHEEL
STOP/STROBE
DIMMER
STATIC GOBO CHANGE
PRISM INSERTION
PRISM ROTATION
EFFECTS MOVEMENT
FROST
FOCUS
PAN
PAN FINE
TILT
TILT FINE
PAN/TILT SPEED
RESET
LAMP CONTROL
COLOUR WHEEL
STOP/STROBE
DIMMER
STATIC GOBO CHANGE
PRISM INSERTION
PRISM ROTATION
EFFECTS MOVEMENT
FROST
FOCUS
PAN
PAN FINE
TILT
TILT FINE
PAN/TILT MOVE BACK
RESET
LAMP CONTROL
PAN-TILT TIME
COLOUR TIME
DIMMER-PRISM-FROST TIME
GOBO TIME
1
2
3
4
5
678
9
10
11
12
13
14
CTO 3 Yellow
Pink
Cyan
CTO 2
CTO 1
CTBRed
Orange
Aquamarine
Green
Light Green
White Dark Blue
CHANNEL MODE

9
COLOR WHEEL: CHANNEL 1
BIT EFFECT
255 FAST ROTATION
…… ……
150 SLOW ROTATION
145 DARK BLUE + WHITE
140 DARK BLUE
135 CTB 8000 + DARK BLUE
130 CTB 8000
125 CTO 190 + CTB 8000
120 CTO 190
115 CTO 260 + CTO 190
110 CTO 190
105
100
CTO 260 + CTO 190
CTO 260
95 CYAN + CTO 260
90 CYAN
85 PINK + CYAN
80 PINK
BIT EFFECT
75 PINK + YELLOW
70 YELLOW
65 CTO 300 + PINK
60 CTO 300
55 LIGHT GREEN + LAVENDER
50 LIGHT GREEN
45 GREEN + LIGHT GREEN
40 GREEN
35 AQUAMARINE + GREEN
30 AQUAMARINE
25 ORANGE + AQUAMARINE
20 ORANGE
15 RED + ORANGE
10 RED
5 WHITE + RED
0 WHITE
STOP/STOBE: CHANNEL 2
BIT EFFECT
252~255 OPEN
239~251 RANDOM FAST STROBE
226~238 RANDOM MEDIUM STROBE
213~225 RANDOM SLOW STROBE
208~212 OPEN
207 FAST PULSATION
...... ......
108 SLOW PULSATION
104~107 OPEN
103 FAST STROBE
...... ......
4
0~3
SLOW STROBE
CLOSED
REMARKS
DIMMER: CHANNEL 3
BIT EFFECT
255 100%
...... ......
0 0%
REMARKS

10
STATIC GOBO CHANGE: CHANNEL 4
BIT EFFECT
255 GOBO 17 SHAKE, FAST
…… ……
251 GOBO 17 SHAKE, SLOW
250 GOBO 16 SHAKE, FAST
…… ……
246 GOBO 16 SHAKE, SLOW
BIT EFFECT
90 FAST ROTATION
85 GOBO 17
80 GOBO 16
75 GOBO 15
70 GOBO 14
65 GOBO 13
…… …… 60 GOBO 12
180 GOBO 2 SHAKE, FAST
…… ……
176 GOBO 2 SHAKE, SLOW
175 GOBO 1 SHAKE, FAST
…… ……
171
170
GOBO 1 SHAKE, SLOW
FAST ROTATION
…… ……
135 SLOW ROTATION
130~134 STOP
129 SLOW ROTATION
55 GOBO 11
50 GOBO 10
45 GOBO 9
40 GOBO 8
35 GOBO 7
30 GOBO 6
25 GOBO 5
20 GOBO 4
15 GOBO 3
10 GOBO 2
5 GOBO 1
0 WHITE
…… ……
PRISM ROTATION: CHANNEL 5
BIT EFFECT
128~255 PRISM INSERTED
0~127 PRISM EXCLUDED
REMARKS
PRISM ROTATION: CHANNEL 6
BIT EFFECT
255 FAST ROTATION
…… ……
193 SLOW ROTATION
191~192 STOP
190 SLOW ROTATION
…… ……
128 FAST ROTATION
0~127 POSITION
REMARKS

11
FROST: CHANNEL 8
BIT EFFECT
128~255 FROST INSERTED
0~127 FROST EXCLUDED
REMARKS
RESET: CHANNEL 15
BIT EFFECT
128~255 COMPLETE
77~127 PAN/TILT
26~76 EFFECTS
0~25 UNUSED
REMARKS
Reset is activated when it is
in unused range for 5
seconds.
TIMING: CHANNELS
17
18
19
20
TIMING CHANNEL
PAN-TILT TIME
COLOUR TIME
BEAM TIME
GOBO TIME
CHANNEL FUNCTION
PAN-TILT
COLOUR WHEEL
DIMMER-PRISM-FROST
STATIC GOBO
REMARKS
255 SLOW SPEED
...... ......
0 FAST SPEED
LAMP CONTROL: CHANNEL 16
BIT EFFECT
101~255 LAMP ON
10~100 LAMP OFF
0~9 UNUSED
REMARKS
Lamp switches on when it is
in unused range for 5
seconds.

12
TECHNICAL SPECIFICATION
1. Voltage: AC 110~240V, 50/60Hz
2. Power Consumption: 150W
3. Approved Lamp: Philips MSD Platinum 2R/130W (8000K color temperature,
2000 hours)
4. Ballast: Electronics ballast
5. Optics: 3-layer HQ optics glass lens
6. Electronic Focus: Optical focus
7. Channels: 16 CH/20CH
8. Movement Range: Pan 450° / Tilt 270°
9. Color Wheel: 13 colors + white
10. Rotating gobo wheel: 15 gobos + white
11. Display: LCD manual screen
12. Prism plate: Prism rotating
13. Strobe: Mechanical Strobe 1-12 F. P. S
14. Dimming: 0% to 100% linear dimming
15. Atomization: Frost Inserted
16. Beam Dimensions (WxHxD): 13.4 x 16.5 x 9.1 (inches) / 34 x 42 x 23 (cm)
17. Beam Net Weight: 24.8 lbs / 11.2 kg
18. Case Dimensions (WxHxD): 27.2 x 27 x 17.3 in / 69 x 68.5 x 44 cm
19. Package Shipping Weight: 99 lbs / 44.9 kg
Spec

13
CONTACT INFORMATION
MAILING ADDRESS
NISSINDO
29300 Kohoutek Way #150
Union City, CA 94587
U.S.A.
TELEPHONE NUMBERS
USA Region
USA Toll Free: 1-800-318-2218
Sales & Marketing: 510-477-9955
Customer Service: 510-477-9955
FAX NUMBERS
USA Region
Sales & Marketing: 510-477-9922
Customer Service: 510-477-9922
WORLD WIDE WEB
E-mail: [e-mail]
Website: www.NISSINDOUSA.com
Contact Us

14
MAINTENANCE
NOTE

15
MAINTENANCE
NOTE

Thank you for purchasing this unit. To make
full and effective use of this unit, please
read this Owner's Manual carefully before
operating it. Please retain this manual for
future reference.
Comments to
29300 Kohoutek Way #150
Union City, CA 94587 U.S.A.
E-mail: [e-mail]
Website: www.nissindousa.com
MFD Code: Y20140301
Printed on 100% Recycled Paper Design and Engineered in U.S.A Copyright © 2014 NISSINDO. All rights reserved. Legal trademark.
378140374000
