Nitta PP103 User manual

PM-NIT-14002E
 Follow this manual when using NittaBeltPoly Heat Press.
 Please pass this manual to NittaBeltPoly Heat Press users for a
safe andtrouble-free operation.
NittaBeltPoly H He ea at t P Pr re es ss s
P
PP P1 10 03 3
Operation Manual

- 1 -
Contents
1. Safety Precautions ・・・・・・・・・・・・・・・・ 2
2. Confirmation of Product ・・・・・・・・・・・・・・ 5
3. Specifications ・・・・・・・・・・・・・・・・・・ 6
4. Use Environment ・・・・・・・・・・・・・・・・・ 7
5. Storage Environment ・・・・・・・・・・・・・・・ 7
6. Name of Each Part ・・・・・・・・・・・・・・・・ 8
7. How to Operate NittaBeltPoly Heat Press ・・・・・ 9
8. How to Make Belts Endless ・・・・・・・・・・・・ 10
9. Troubleshooting ・・・・・・・・・・・・・・ 12
10. Inspection ・・・・・・・・・・・・・・・・・・・ 13
11. Warranty and after-sales service ・・・・・・・・・・ 14

- 2 -
1. Safety Precautions
Please go over these safety precautions carefully to secure a correct and
safe operation of the NIttaBeltPoly Heat Press PP103.
Disregarding instructions marked with this symbol
may lead to death or serious injury.
Disregarding instructions marked with this symbol
may lead to injury or property damage
WARNING
Do not use the Heat Press for any application other than the
intended purpose of making belts endless.
Use for any unintended purpose may cause an unexpected accident.
Failure to do this may cause fire, electric shock or injury.
This machine is not intended for the physical, sensory or
mental handicapped persons use.
They must have the supervision of a person responsible for
their safety, if they use this Heat Press.
Failure to do this may cause fire, electric shock or injury.
Do not allow the child to handle this Heat Press.
Keep this machine in the place where child's hand does not
reach.
Failure to do this may cause fire, electric shock or injury.
A person with experience and skills should always operate,
maintain and inspect the Heat Press.
Handling by an inexperienced person may cause fire, electric shock
or injury.
Do not dismantle or remodel the Heat Press in any event.
Dismantling or remodeling the Heat Press may cause fire,
electric shock or injury.
For repair or inspection, please contact your local distributor or agent
in your area.
In case of an emergency (such as smoke, fire, foul smell),
disconnect the main plug from the socket outlet and contact
Nitta or your local distributor or agent in your area for
inspection.
Failure to disconnect the main plug from the socket outlet may cause
fire or electric shock.
CAUTION
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING

- 3 -
Confirm that the power source used is within the designated
specifications of the Heat Press.
Use beyond the designated specifications may cause fire or electric
shock.
Specification Power Source Wattage Rating
For 100V 100V－110V 50/60Hz 248-300W
For 200V 200V－220V 50/60Hz 248-300W
To prevent fire or electric shock, do not use the Heat Press under
the following conditions:
・ Under flammable gas or combustible gas environment
・ Under a corrosive gas environment
・ Under an ambient temperature of 5℃ or below
・ Under an ambient temperature of 30℃ or above
・ Under a high humidity environment. (Humidity surpassing 85%)
・ In places exposing the Heat Press to steam or water drops
Connect the main plug correctly to the socket outlet.
The power cable of the press uses an earth connection plug.
Connect the main plug correctly into an earth connection outlet to
prevent electric shock.
Use a conversion plug when the plug shape does not match the
socket.
Failure to do this may cause electric shock.
The plug shape of the attached power cable is as follows. The
conversion plug is not attached. When a conversion plug is
necessary, users must provide their own.
Do not use the Heat Press on a flammable material.
Use of any other product may cause fire.
Impressed voltage is distributed in the power cable.
To prevent fire, electric shock or damage, please consider the
following.
・ Disconnect the main plug from the socket outlet with your hand.
・ Do not remodel or replace the main plug.
・ Do not place any object on the power cable.
・ Do not fold the power cable.
・ Do not pull or stretch the power cable.
Use a three-pin earth line as an extension cord.
When an extension cord is required, use an earth-connection type
extension cord to prevent electric shock.
Specification Plug type Plug illustration
For 100V A Type
For 200V NEMA6-15
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING

- 4 -
To prevent electric shock, do not operate the Heat Press with
moistened hands.
Do not pour water on the Heat Press and do not get it wet.
Use of a wet press may cause fire or electric shock.
Always use anti-heat gloves when handling the Heat Press to
prevent burns.
A label “Hot!” is on the top and bottom plates of the press to warn
against high temperature.
Disconnect the main plug from the socket outlet immediately after
use.
An operator should pay attention so that others do not touch the
press carelessly and get burned before the Heat Press has cooled
down.
It takes about one hours for a heated press (110°C) to cool down to
40°C in the room temperature of 25°C once it has been unplugged.
Use a dry cloth for cleaning the Heat Press.
To prevent fire, do not use alcohol, benzine, thinner or
any other inflammable solvent.
Caution
Do not use the Heat Press outdoors.
This product is not intended for the use outdoors.
When using the Heat Press on any equipment, use a safety
catcher for the press so it doesn’t fall or collapse. This will help
prevent fire, electric shock or injury.
This may cause fire or electric shock or injury.
Do not take place on the Heat Press the application of the
adhesive.
This may cause fire or burns.
Before using the Heat Press be sure to inspect the press in
accordance with the procedure described on page 13 to help
prevent fire or electric shock.
Do not use this machine for the endless splicing of belt of other
manufacturers.
Endless splicing may become imperfect if this machine is used for the
endless splicing of belt of other manufacturers.
This may spoil the full functioning and performance of the belt.
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
WARNING
WARNING
WARNING
WARNING
WARNING

- 5 -
2. Confirmation of Product
Thank you for choosing our Heat Press PP103
Check that the product is exactly what you have ordered.
Use of the wrong product may cause fire, electric shock or injury.
2-1）Confirmation of Product
Confirm the following items upon accepting delivery of your order. Contact your
local sales office or distributor in your area if you find any deficiency or defect in
your item.
① Are descriptions on the face plate the same as those of your order item?
Please confirm the model type and the power source specifications.
② Has the product been damaged during transportation?
③ Has a nut or screw slackened?

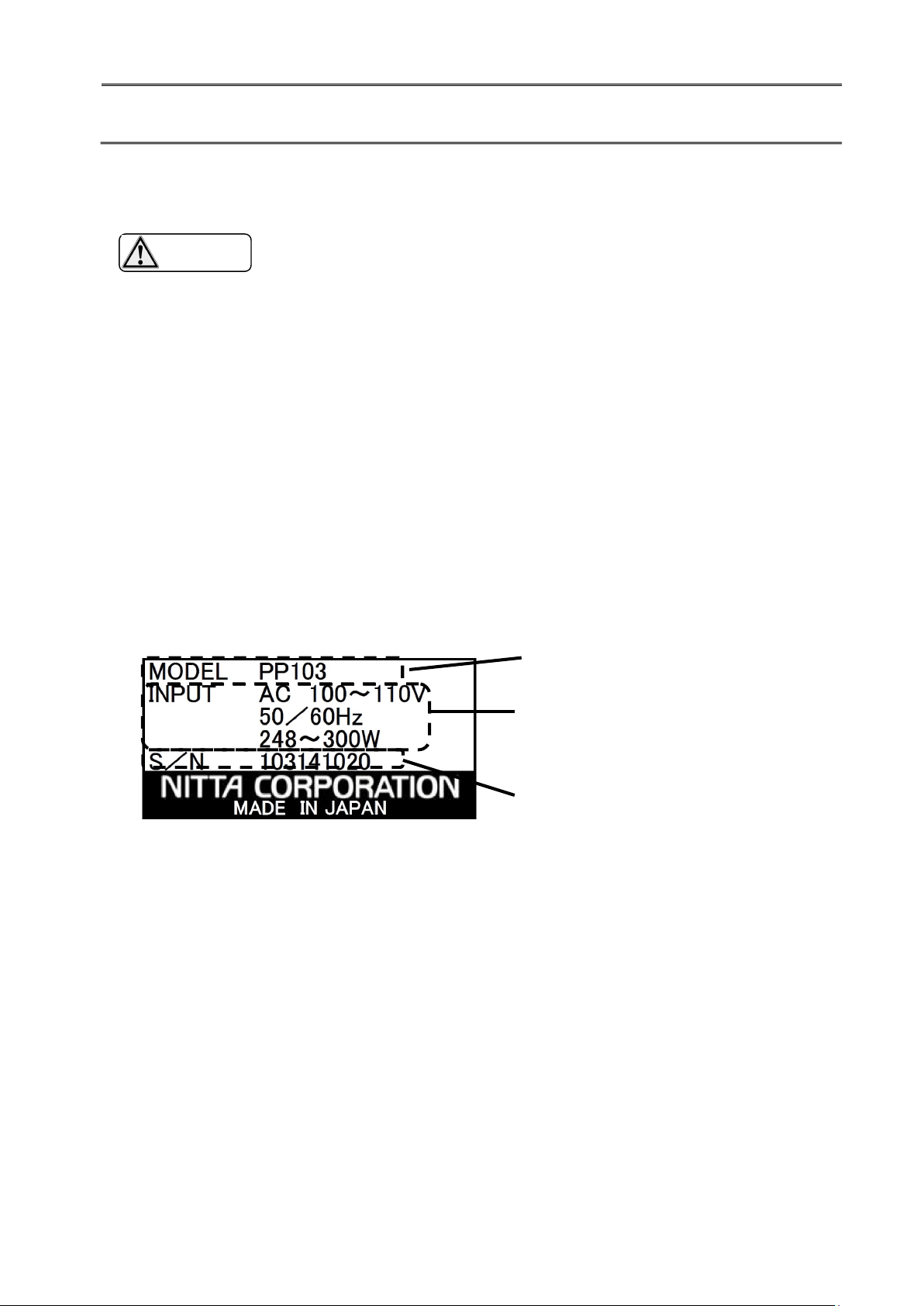

2-2）How to Read Face Plate
2-3）Accessories
Operation Manual, Cushion rubber, Release sheet, Thermometer
2-4) Notes for inquiry
When making inquiries, please contact us with both the press model and serial
number.
② Specifications of power source
③ Production serial number
① Model type
CAUTION

- 6 -
3. Specifications
3-1）Outline of Heat Press
① Heat Press is exclusively designed for making endless NittaBeltPoly belts
② Heat Press is compatible with the following endless specifications:
Joint specifications: skiver endless (Right angle)
Maximum belt width: up to 100mm
Maximum belt thickness: up to 5mm
③ Tools required for making skiver endless belts: NITTA Poly Skiver
3-2）Major Specifications of Heat Press
Check each time to the temperature of the press at the thermometer
supplied.
Type PP103
Specification of
power source 100V 200V
Input power supply
100V～110V 200V～220V
50/60Hz 50/60Hz
248 - 300W
Temperature 110℃
Outer Dimension 145mm wide ×332mm long ×148mm high
Weight 3.7kg
WARNING

- 7 -
4. Use Environment
Ambient Temperature 5-30 ℃(no condensation)
Ambient Humidity 15～85%RH
Place of Use Indoors (free from dust, water)
Environment No flammable, combustible or corrosive gas;
no steam
In order to prevent fire or electric shock, do not use the Heat
Press under the following conditions:
・ Under flammable gas or combustible gas environment
・ Under a corrosive gas environment
・ Under an ambient temperature of 5℃ or below
・ Under an ambient temperature of 30℃ or above
・ Under a high humidity environment (humidity surpassing 85%)
・ In places exposing the Heat Press to steam or water drops
5. Storage Environment
Ambient Temperature 0-40 ℃ (no condensation)
Ambient Humidity 15～85%RH
Place of Use Indoors (free from dust, water)
Environment No flammable, combustible or corrosive gas;
no steam
The Heat Press which is not in use should be stored subject to the
above conditions.
Wrong or poor storage may cause mechanical disorder to the
press and may cause fire or electric shock.
Before using the Heat Press, perform a prior-to-use inspection
and confirm that the press is working properly.
Any problem found in the prior-to-use inspection should
immediately be notified to your local sales office or distributor in
your area.
WARNING
WARNING
WARNING

- 8 -

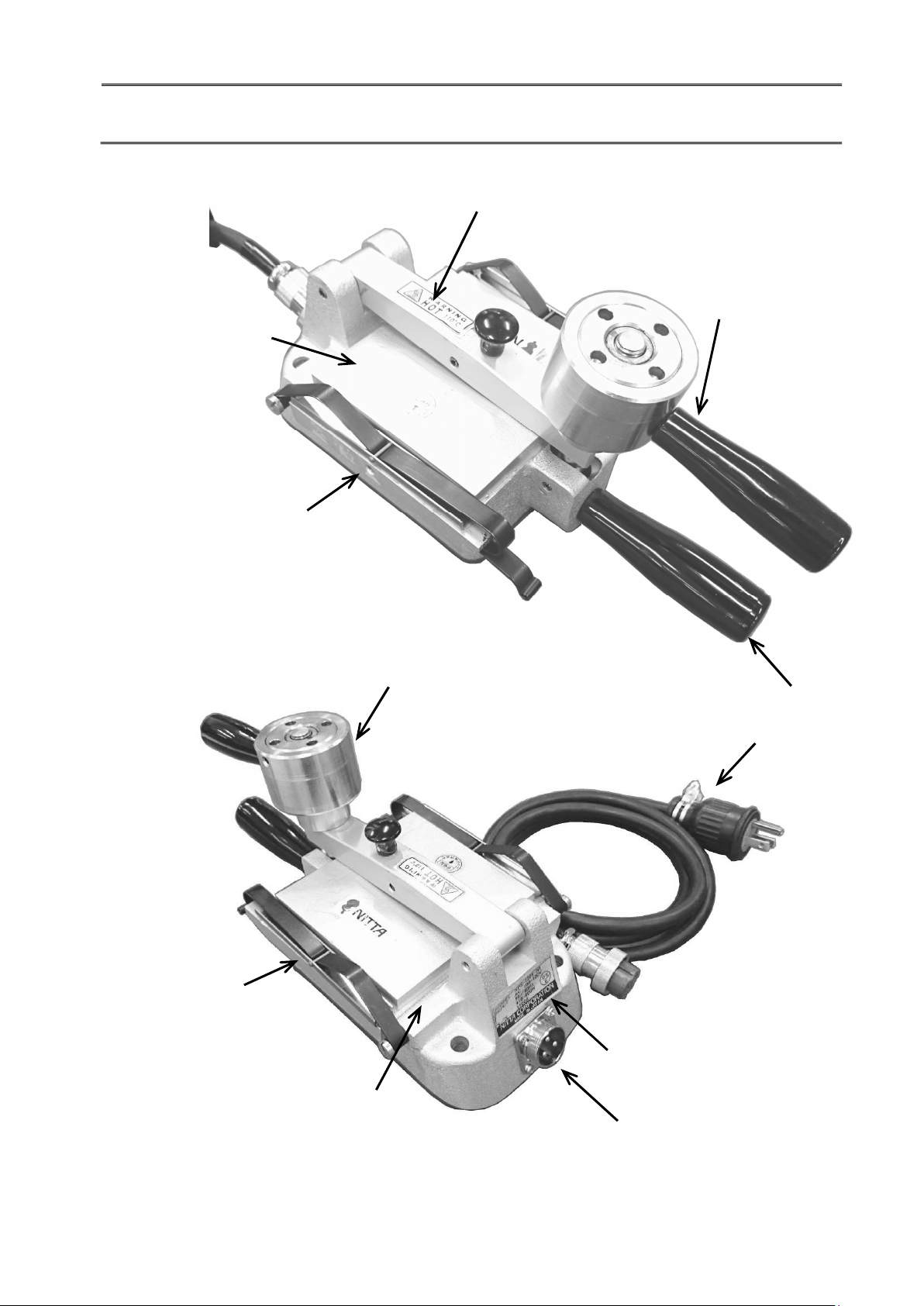

6. Name of Each Part
6-1）Main Press Body
Belt clamp
Heat plate(top)
Heat plate(bottom)
Pressing
handle
Pressing arm
Handle
Name plate
P
ower
ca
ble
Thermometer hole
Connecter
Torque Limiter

- 9 -

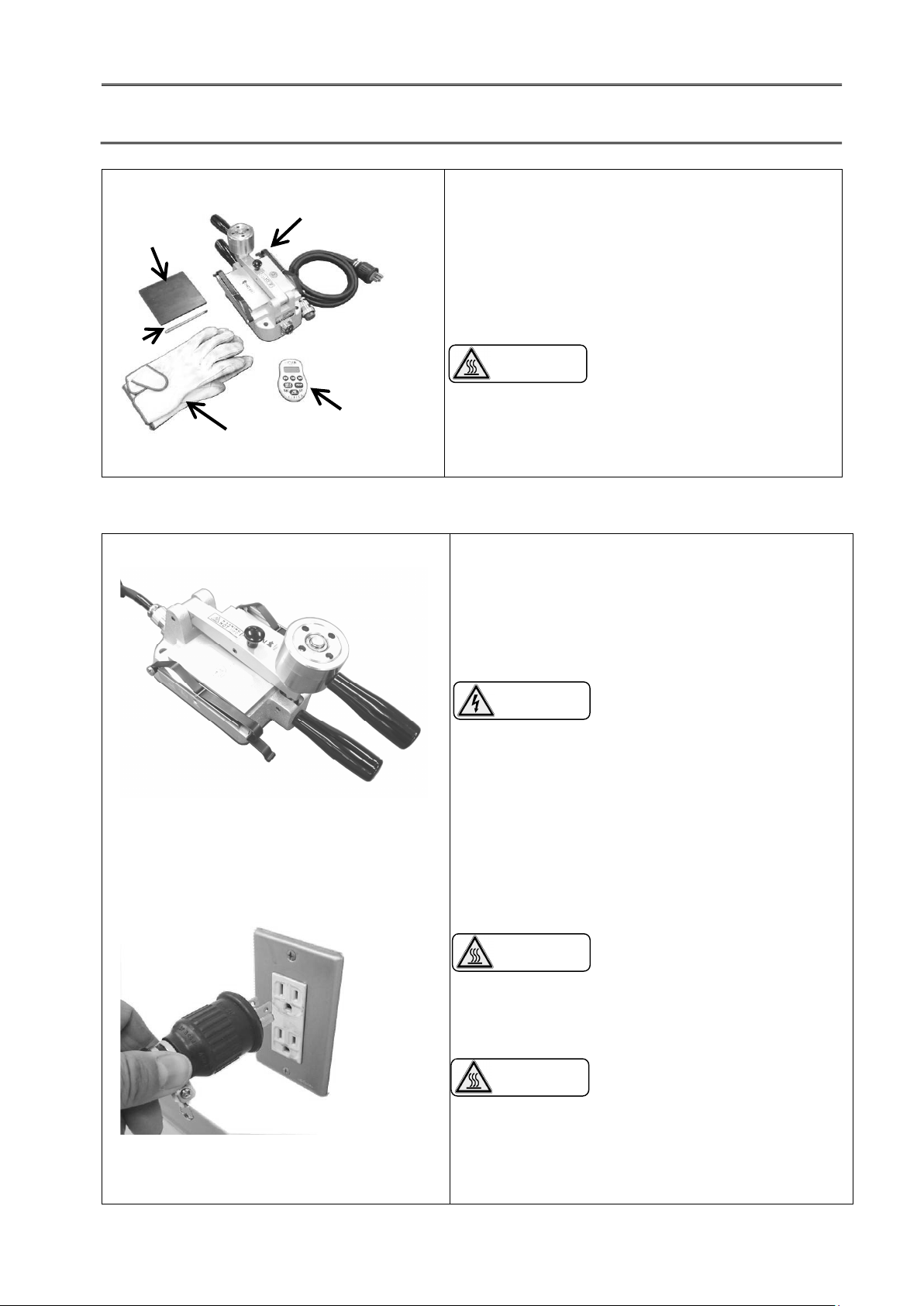

7. How to Operate NittaBeltPoly Heat Press
7-1) Required Tool
a. Heat Press（PP103）
b. Cushion rubber（PP103 contained）
c. Release sheet（PP103 contained）
d. Thermometer（PP103 contained）
e. Anti-heat Gloves (burn-preventive protection
kits)
The Heat Press body reaches
a high temperature. Always
use anti-heat gloves to
prevent burns.
f. Stopwatch or timer
7-2）Preheating
 The stacked sequentially cushion rubber,
the upper heating plate on the lower
heating plate.
 Connect the main plug correctly to an
electrical outlet, it is done preheating.
Be sure to connect an
earth line to prevent
electric shock.
 It is to a temperature suitable for endless
about 20 minutes.
 Do connect or disconnect the power plug
ON / OFF of the press.
Always use anti-heat
gloves when handling the
Heat Press to prevent
burns.
This may cause burns.
An operator should pay
attention so that others do
not touch the Heat Press
carelessly.
This may cause bums or
injury.
WARNING
ａ
ｂ ｃ
ｄ
ｅ
f
WARNING
WARNING
WARNING

- 10 -

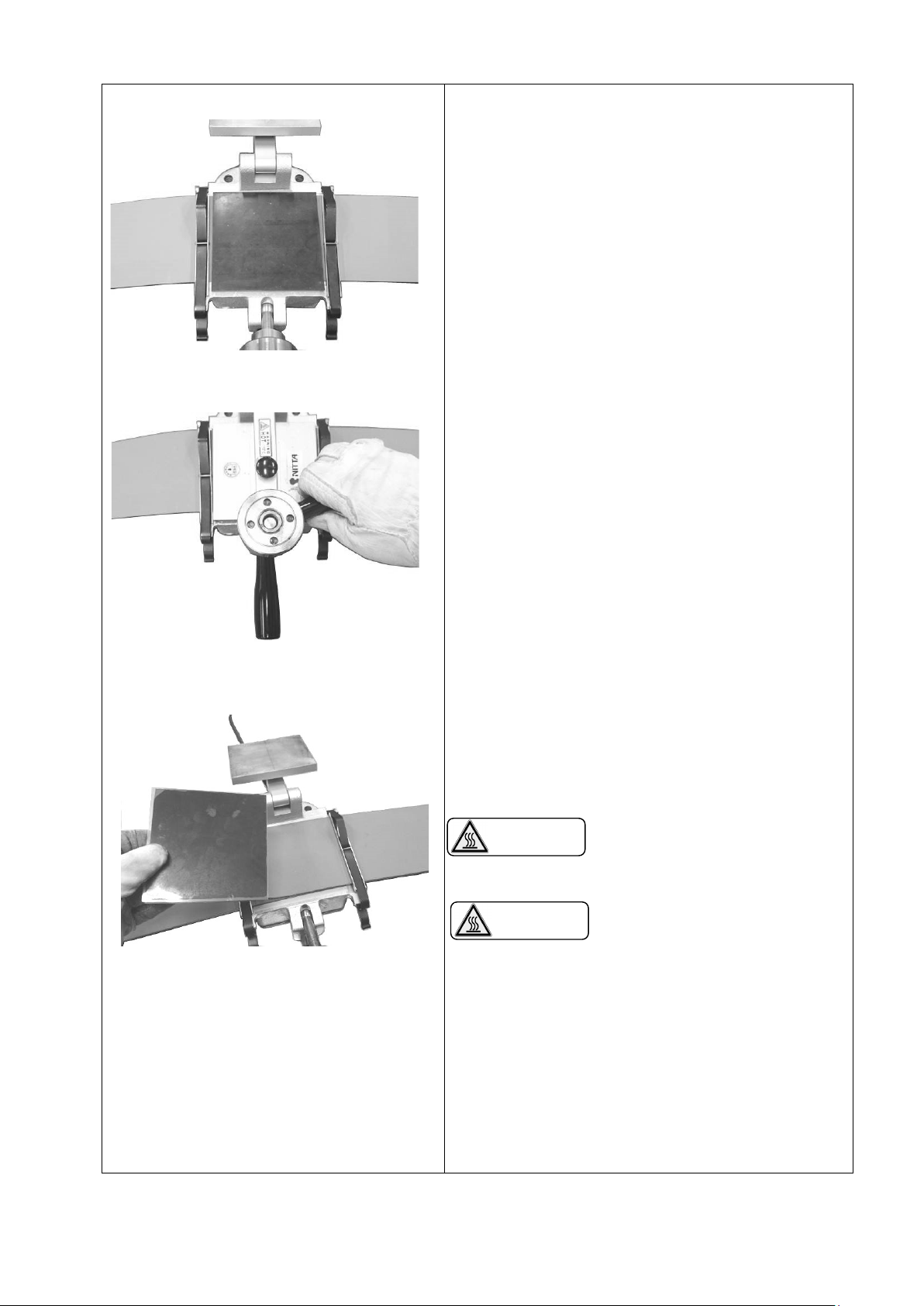

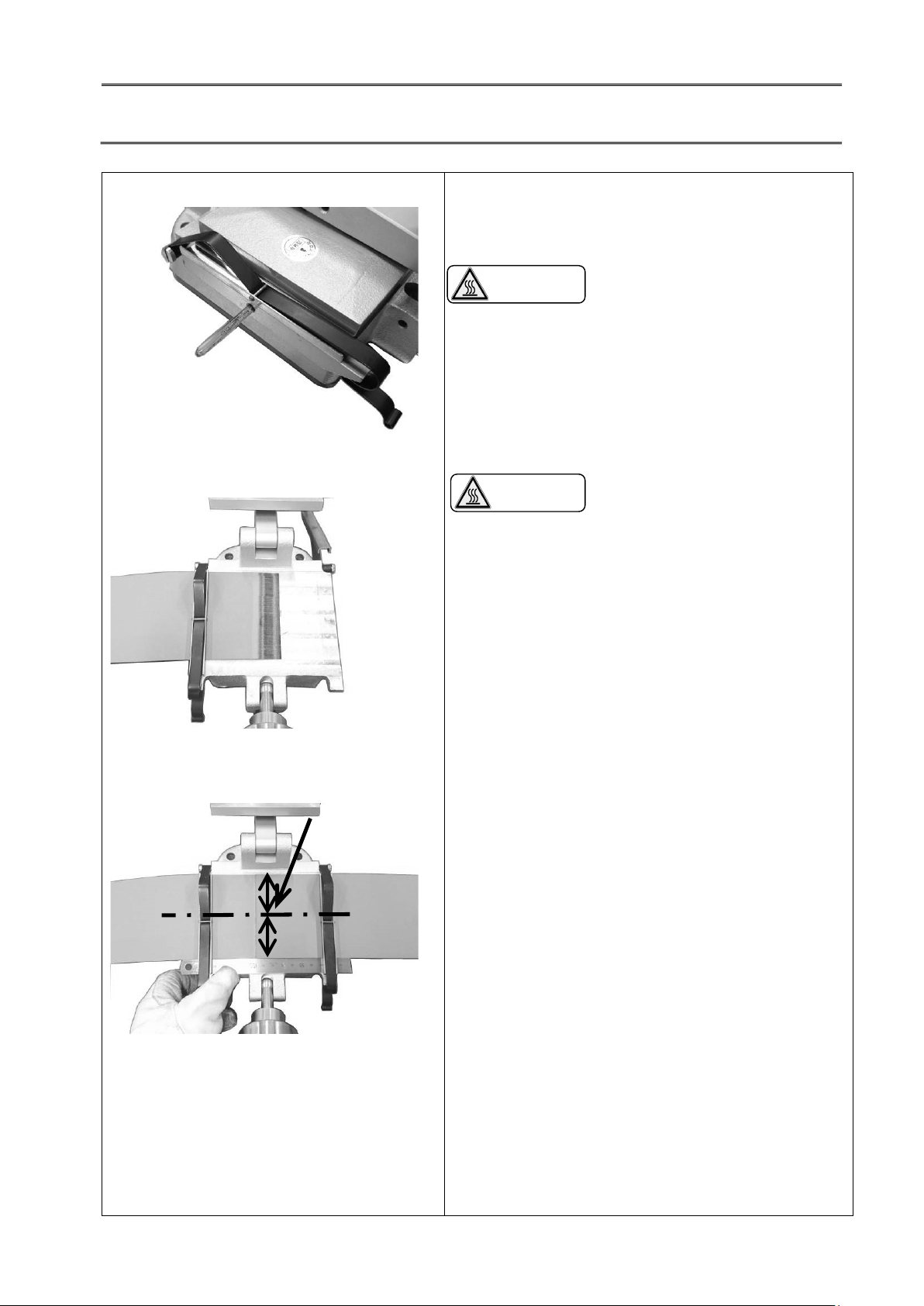

8. How to Make Belts Endless
8-1) Work Procedures
 Insert the thermometer in the thermometer hole.
 It is possible endless heat plate temperature is if it
has been about 110 ℃.
Always use anti-heat
gloves when handling the
Heat Press to prevent
burns.
 Apply the adhesive to the belt
※Check the splicing manual method of
applying adhesive.
Do not take place on the
Heat Press the application
of the adhesive.
 Is fixed to the center of the heat plate with
upward skive surface of the belt.
 Overlaid nylon core to match the belt the
other.
 Make sure the joints are not bent at scale, to
be fixed in the belt clamp the belt.
※Overlaid nylon core to match the belt
the other.
※Belt Centering the heat plate.
Pressure is not applied uniformly belt has
not been set in the center of the heat plate.
WARNING
CAUTION
Center

- 11 -
 Overlaid in the order of the release sheet,
cushion rubber.
 Close the top heat plate.
Pressurized horizontal to operate the
pressing knob.
 During the heating time, which is described in
splicing manual, hold the state in which the
heated and pressurized.
 Releasing the pressing knob and remove the
belt.
 The belt that was removed from the Heat
press, Use it after cooling for 1 hour or more.
The Heat Press and belt are
hot, It may cause burns.
The Heat Press after use,
Unplug the power plug
immediately and until cool
to a safe temperature,
please like other people not
to touch carelessly.
WARNING
WARNING

- 12 -
9. Troubleshooting
Problem Cause Solution
The Heat Press does
not heat.
The power plug has been
disconnected. Connect the power plug.
Disconnection of the power
cable.
Replacement of the power cable.
※ Please contact us.
Heat press does not heat up.
（Fusing of thermal fuse,
Circuit disconnection）
Replacement of the Heat Press.
※ Please contact us.
Temperature of the Heat
Press greatly exceeds
110 ℃.
（Bad thermostat）
Replacement of the Heat Press.
※ Please contact us.
Heating of the Heat
Press is malfunction
Temperature of the Heat
Press greatly exceeds
110 ℃.
Replacement of the Heat Press.
※ Please contact us.
Rotation of the
pressure nut is not a
smooth.
Oil out of the pressing nut.
Lubricate the pressure nut.
Replacement is required if you
are still unable to resolve the
problem.
※ Please contact us.

- 13 -
10. Inspection
Inspection items date/staff date/staff date/staff date/staff date/staff
The power cable is free of
damage or destruction.
Main plug is free of damage
or destruction.
The Heat Press is free of
damage or destruction.
All screws of the Heat Press
are tightened.
The heating plate is free of
foreign object.
That there is no malfunction
in the slip and rotation of the
pressing knob.
※Make a copy of this page and use it for a prior-to-use inspection

- 14 -
11. Warranty and after-sales service
1. Warranty period
The warranty period is for one full year after the delivery of the order at your
appointed place.
2. Warranty coverage
1） Should the product malfunction due to causes for which our company is
responsible during the abovementioned warranty period, our company will
provide a replacement product or repair the product free of charge. However,
even within the warranty period the following cases shall not be covered by the
warranty. Please note that even if our company provides a replacement product
or repairs the product, the warranty period will be calculated from the initial date
on which the product was delivered.
① Malfunction arising from any inappropriate conditions, environment, handling
and usage which are not described in the Operation Manual and the Endless
Splicing Procedure.
② Malfunction due to a cause arising from something other than the product,
such as your own device.
③ Malfunction arising from any remodeling or repairing by other than our own
company.
④ Malfunction arising from any reasons unpredictable due to our level of
chemistry and technology before shipment.
⑤ Malfunction arising from fire, earthquake, flood, other disasters, voltage error,
or other external factors for which our company bears no responsibility.
2） The warranty coverage is limited to what is stated in 1) above, and the warranty
does not cover secondary damages (equipment damage, opportunity loss, profit
loss) and any other damage incurred by the user as a result of a malfunction of
the product.
3） After the warranty period, if after examination the product is repairable, our
company will repair it upon request.

- 15 -
Oct,2020 Rev6 PP103-E
