Caution
1About this document
This document describes the installation of the Nokia MetroSiteTM EDGE Base
Station from delivery of the BTS package to the site to BTS commissioning. Read
carefully Nokia MetroSite EDGE Base Station: Warnings and Cautions and
Nokia MetroSite EDGE Base Station: Requirements for Installation and
Operation before starting the installation.
The following information can be found in this document:
• Working order for installation
• Preparations before installation
• Tools and parts required
• How to safely unpack the delivery
• Contents of the BTS delivery
• How to remove and reinstall units
• How to install the BTS on a wall or a pole
• How to cable the BTS
• Completing the installation after commissioning
Installation, commissioning and maintenance of the Nokia MetroSite EDGE Base
Station (BTS) may be performed only by trained and authorised personnel.
All manuals and user guides at all-guides.com
all-guides.com

Installation
12 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
All manuals and user guides at all-guides.com

Working order
DN991456 © Nokia Corporation 13 (72)
Issue 3 en Nokia Proprietary and Confidential
Note
2Working order
The Nokia MetroSite EDGE Base Station is installed upright on a pole or a wall.
Pole mounting requires a pole mounting kit, which is ordered separately when
required. The BTS can also be installed horizontally on its back.
Horizontal mounting of the Nokia MetroSite EDGE Base Station is only suitable
for certain site conditions and countries. Contact your Nokia dealer for advice.
Refer to Table 1for the working order and location of instructions for installing
the Nokia MetroSite EDGE Base Station. Removing the units before mounting is
optional, depending on the number of installation personnel on the site.
Table 1. Working order for installing the Nokia MetroSite EDGE Base
Station
Activity Instructions
Preparations for installation Chapter 3
Unpacking and checking the delivery Chapter 4
Removing units to reduce weight when
mounting the cabinet (optional)
Chapter 5
Mounting the BTS on a pole or wall Chapter 6
Reinstalling units Chapter 7
Cabling the BTS Chapter 8
Completing the installation Chapter 9
All manuals and user guides at all-guides.com

Installation
14 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
All manuals and user guides at all-guides.com

Preparations for installation
DN991456 © Nokia Corporation 15 (72)
Issue 3 en Nokia Proprietary and Confidential
Note
Caution

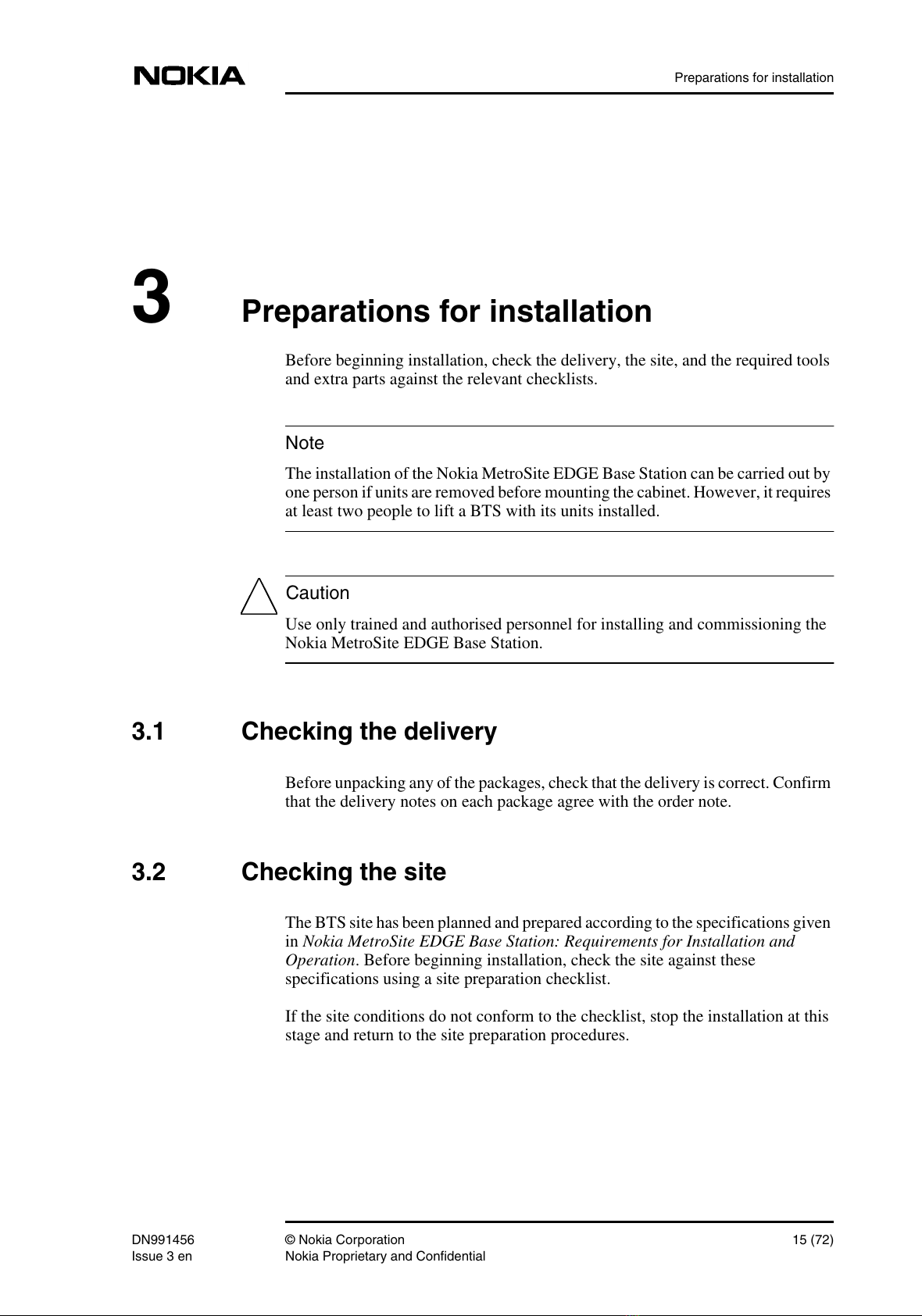

3Preparations for installation
Before beginning installation, check the delivery, the site, and the required tools
and extra parts against the relevant checklists.
The installation of the Nokia MetroSite EDGE Base Station can be carried out by
one person if units are removed before mounting the cabinet. However, it requires
at least two people to lift a BTS with its units installed.
Use only trained and authorised personnel for installing and commissioning the
Nokia MetroSite EDGE Base Station.
3.1 Checking the delivery
Before unpacking any of the packages, check that the delivery is correct. Confirm
that the delivery notes on each package agree with the order note.
3.2 Checking the site
The BTS site has been planned and prepared according to the specifications given
in Nokia MetroSite EDGE Base Station: Requirements for Installation and
Operation. Before beginning installation, check the site against these
specifications using a site preparation checklist.
If the site conditions do not conform to the checklist, stop the installation at this
stage and return to the site preparation procedures.
All manuals and user guides at all-guides.com

Installation
16 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
Note
3.2.1 BTS interfaces and cables
Depending on the site solution, check that the appropriate interface units and
cables are on the site if cabling is to be completed during one installation. Details
of the required connectors and cables are found in Nokia MetroSite EDGE Base
Station: Requirements for Installation and Operation.
Diversity cables are delivered with the BTS in the transportation package.
3.3 Installation equipment
Make sure that all the necessary installation equipment is available on the site
before beginning installation. Refer to Table 2 for tools and Table 3 for parts.
Detailed information on the installation equipment can be found in Nokia
MetroSite EDGE Base Station: Requirements for Installation and Operation.
Table 2. Installation equipment checklist
Tool Notes
Torque driver with 60 mm shaft and:
• T10 Torx bit
• 4 mm Allen bit
Required for:
• Unit retaining screws
• BTS fixing screws, cable entry block
screws, ground cable fixing
Torque socket spanner/wrench with 80
mm extension shaft and:
• 6 mm Allen bit
• 8 mm hexagon socket
• 10 mm hexagon socket
Required for:
• Bolts in pole brackets, L-beam
screws
• Locking device for pole brackets,
grounding cable nut
• Removing grounding bridges on
transmission units
Torque key For attaching diversity cables
Side cutting pliers For cutting cable ties and preparing
grounding cable for crimp terminal
Crimping tool For attaching crimp connector to cable in
grounding alternative 1
All manuals and user guides at all-guides.com
all-guides.com

Preparations for installation
DN991456 © Nokia Corporation 17 (72)
Issue 3 en Nokia Proprietary and Confidential

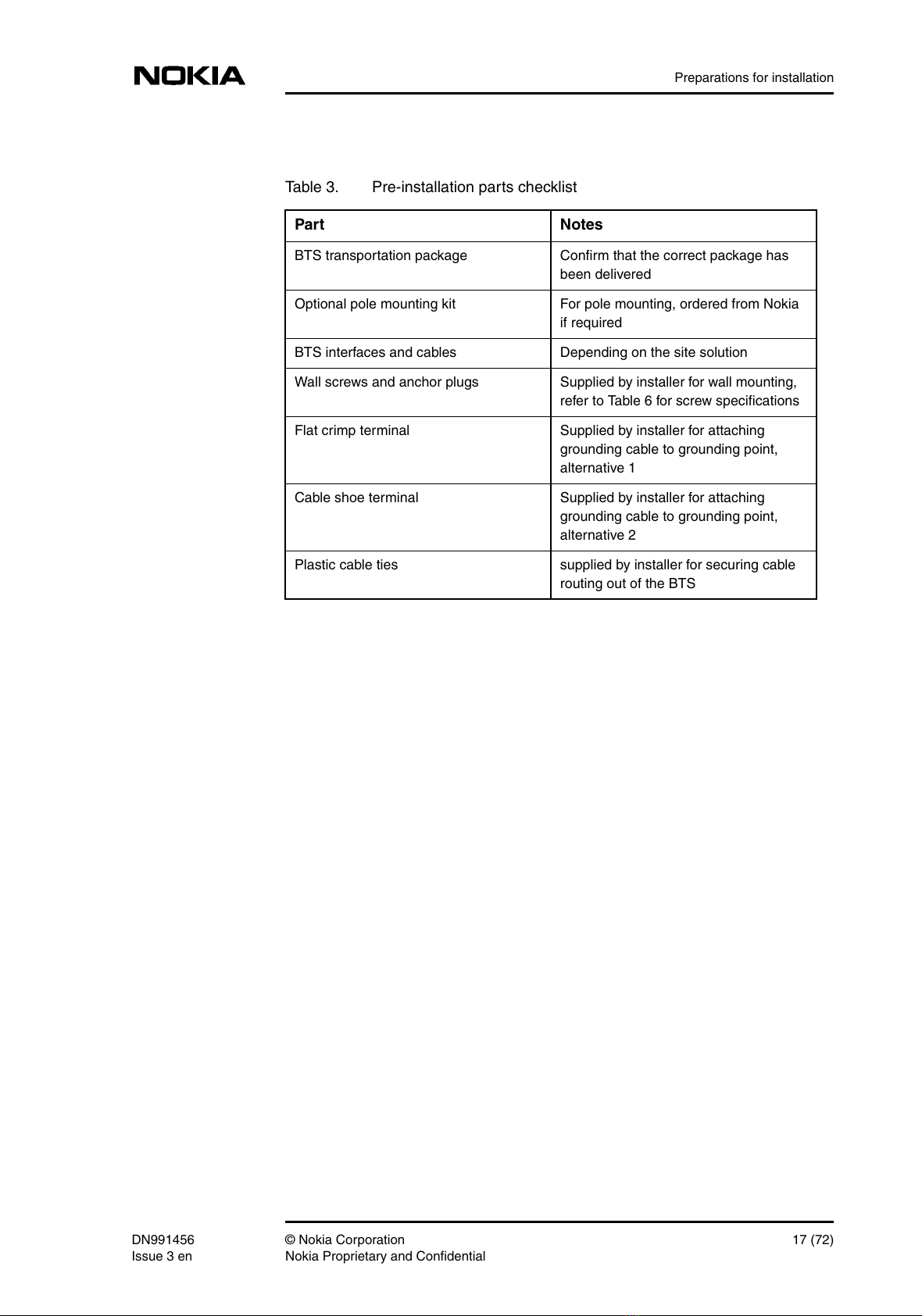

Table 3. Pre-installation parts checklist
Part Notes
BTS transportation package Confirm that the correct package has
been delivered
Optional pole mounting kit For pole mounting, ordered from Nokia
if required
BTS interfaces and cables Depending on the site solution
Wall screws and anchor plugs Supplied by installer for wall mounting,
refer to Table 6 for screw specifications
Flat crimp terminal Supplied by installer for attaching
grounding cable to grounding point,
alternative 1
Cable shoe terminal Supplied by installer for attaching
grounding cable to grounding point,
alternative 2
Plastic cable ties supplied by installer for securing cable
routing out of the BTS
All manuals and user guides at all-guides.com

Installation
18 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
All manuals and user guides at all-guides.com

Unpacking the delivery
DN991456 © Nokia Corporation 19 (72)
Issue 3 en Nokia Proprietary and Confidential
WARNING
4Unpacking the delivery
The Nokia MetroSite EDGE Base Station is delivered in a transportation package
with all the ordered units pre-installed in the chassis. . The transportation package
also includes equipment needed in the installation of the base station.
A pole mounting kit is required if the BTS will be mounted on a pole. This is
ordered and delivered separately if needed.
Lifting a BTS complete with units requires at least two people. The Nokia
MetroSite EDGE Base Station weighs 28 to 40 kg (62 to 88 lb), depending on
the number of TRXs installed.
4.1 Working order for unpacking
The procedures for unpacking include careful checking of the condition and
contents of the delivery. If any defects or missing parts are noticed, the
installation should be stopped and replacement parts ordered.
The following procedures should be followed in sequence.
Check the contents of the pole mounting kit
• If pole mounting is being used, check the completeness of the pole
mounting kit against the checklist in Table 5.
Remove the BTS from the packaging
1. Remove the plastic wrapping from the BTS transportation package.
All manuals and user guides at all-guides.com

Installation
20 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
Note
2. Lift the BTS out of the package and lay it horizontally. Do not stand the
BTS in a vertical position. Lay the BTS onto a clean or covered surface, not
directly onto the ground.
3. Save the packing cardboard from the package! The cardboard can be used
as a template for defining clearances around the BTS and for marking drill
hole locations for wall installation.
Check the contents of the BTS transportation package
1. Check the completeness of the delivery against the general contents
checklist in Table 4.
2. Visually inspect the cover of the BTS for any defects.
Remove the BTS cover
1. Inspect the cover visually for defects before removing it.
2. Open the lock on the bottom of the BTS using the key provided. The key
will remain in the lock whenever the lock is in the open position.
3. Loosen the cover by sliding it along the chassis to disengage the hooks
which hold it in place. Lift the cover off when the hooks are disengaged.
Check the BTS
1. Check the completeness of the delivery against the order specifications to
confirm that the delivery contains the correct unit types.
2. Visually inspect the interior of the BTS for any defects.
The unused connectors on the units are protected with rubber caps. Leave the cap
on the connector if the connector is not going to be used for cabling.
All manuals and user guides at all-guides.com
