Nokia 1616 User manual

Nokia 1616 User Guide
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
9217921
Issue 1.3

Contents
Safety 3
Get started 5
Insert the SIM card and
battery 5
Remove the SIM card 6
Charge the battery 7
Antenna 8
Switch on or off 8
Your phone 10
Keys and parts 10
Main features 10
Calls 11
Write text 12
Message 13
Contacts 14
Multi-phonebook 15
FM Radio 16
Flashlight shortcuts in
standby mode 17
Access codes 18
Product and safety
information 19
2 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Safety
We invite you to read the instructions on this guide before
using the device.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel,
chemicals, or blasting areas.
English 3
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
4English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Get started
Insert the SIM card and battery
This phone is intended for use with the BL-5CB battery.
Safe removal. Always switch the device off and disconnect
the charger before removing the battery.
Important: Do not use a mini-UICC SIM card, also
known as a micro-SIM card, a micro-SIM card with an
adapter, or a SIM card that has a mini-UICC cutout (see
figure) in this device. A micro-SIM card is smaller than the
standard SIM card. This device does not support the use of
micro-SIM cards and use of incompatible SIM cards may
damage the card or the device, and may corrupt data
stored on the card.
English 5
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

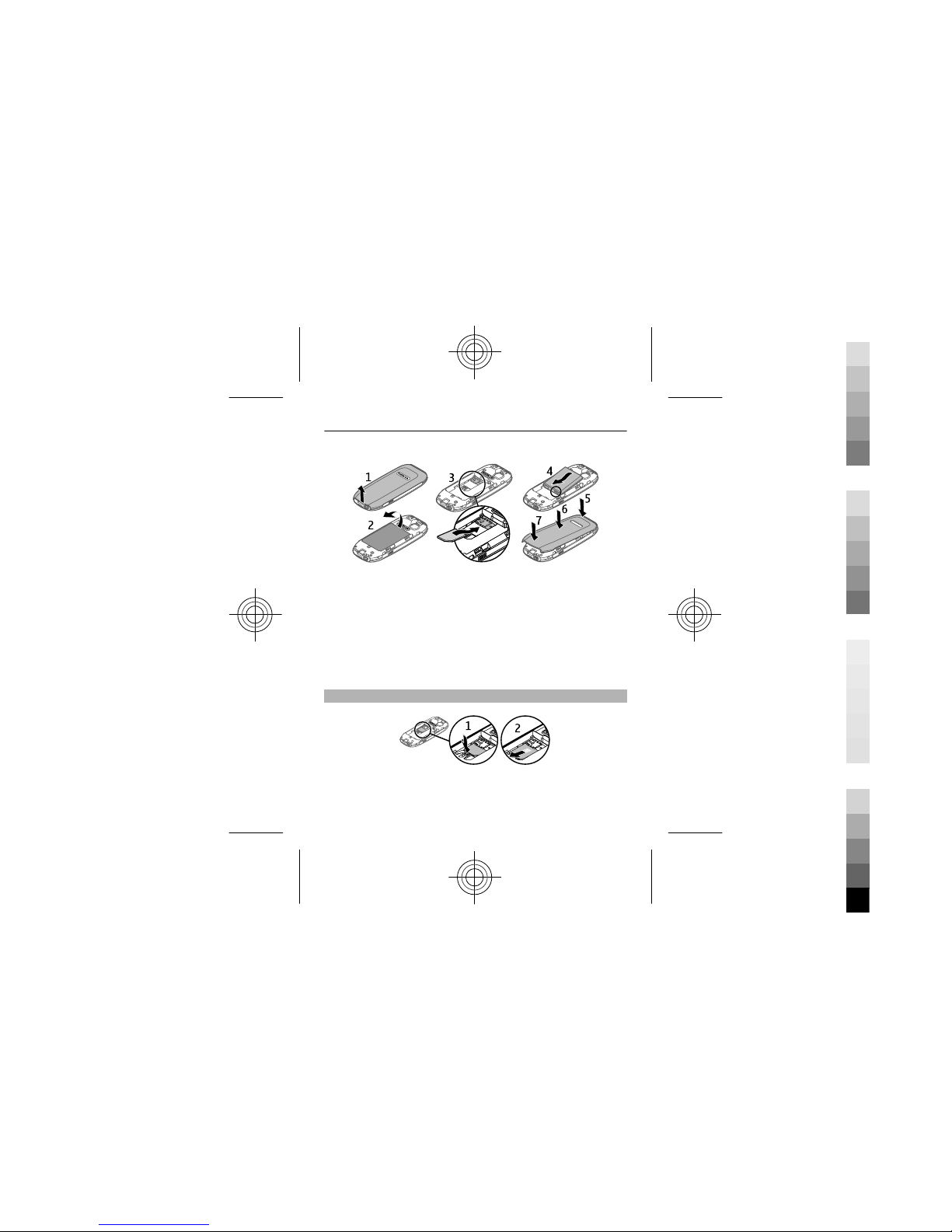

1 Place your finger in the recess at the bottom of the
device, and carefully lift and open the back cover (1).
2 Lift the battery, and remove it (2).
3 Insert the SIM card (3). Ensure the contact surface area
is facing down and the beveled corner of the SIM card
is facing the bottom of the device.
4 Replace the battery (4) and back cover (5, 6, 7).
Remove the SIM card
Press the release spring (1), and slide out the SIM card (2).
6English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Charge the battery
Your battery has been partially charged at the factory. If
the device indicates a low charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full charge, disconnect the
charger from the device, then from the wall outlet.
Tip: To save energy, unplug the charger when the battery
is fully charged.
You do not need to charge the battery for a specific length
of time, and you can use the device while it is charging. If
the battery is completely discharged, it may take several
minutes before the charging indicator appears on the
display or before any calls can be made.
English 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Antenna
The antenna area is marked in gray.
Your device may have internal and external antennas.
Avoid touching the antenna area unnecessarily while the
antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may
cause a higher power level during operation and may
reduce the battery life.
Switch on or off
Press and hold the end key.
8English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

English 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Your phone
Keys and parts
1Earpiece
2Display
3 Selection keys
4 Navi™ key (scroll key)
5 Call key
6 End/Power key
7Keypad
8Microphone
9 Flashlight
10 Headset connector
(3.5mm)
11 Wrist strap eyelet
12 Charger connector
Main features
Select Menu and from the following:
10 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Messages Create, send, and manage messages.
Contacts Save names and phone numbers.
Call log Access missed, received, and dialed calls.
Settings Set up various features of your device.
Clock Set the time for the alarm.
Radio Manage radio features.
Reminders Manage reminders.
Games Play or set up the games in your device.
Extras Access various applications.
SIM services Use supported SIM card services.
Calls
To make a call, enter the phone number, including the
country code and area code, if necessary, and press the call
key. To answer a call, press the call key. To end or reject a
call, press the end key.
To use a loudspeaker or earpiece during a call, select
Loudsp. or Hands.. To adjust the volume during a call,
scroll left or right.
English 11
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

When the volume is high, do not hold the device near your
ear.
Write text
To enter text, you can use traditional or predictive text
input. Not all languages are supported by predictive text
input.
Use traditional text input
Press a key repeatedly until the desired letter is displayed.
Activate predictive text input
Select Options > Predictive text and the desired
language.
Deactivate predictive text input
Select Options > Predictive text > Prediction off.
When using predictive text input, press each key once for
a single letter. If the desired word is displayed, press 0, and
start writing the next word. If ? is displayed after the word,
the word is not in the dictionary.
Change a word
Press *repeatedly until the desired word is displayed.
12 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Add a word
Select Spell, enter the word using traditional text input,
and select OK.
Add a space
Press 0.
Change text input method
Press #repeatedly, and check the indicator at the top of
the display.
Add a number
Press and hold the desired number key.
Add a special character
Press *when using traditional text input; press and hold *
when using predictive text input.
Undo clearing of a message
Select Options > Undo clear.
Message
The message services can only be used if they are
supported by your service provider.
Your device supports text messages beyond the limit for a
single message. Longer messages are sent as two or more
English 13
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

messages. Your service provider may charge accordingly.
Characters with accents, other marks, or some language
options take more space, and limit the number of
characters that can be sent in a single message.
Write and send a message
1 Select Menu > Messages > Create message.
2 Write the message. The message length indicator
shows how many characters you can enter in the
message.
3 Select Options > Send, enter the recipient's phone
number or select it from the contacts list, and select
OK.
Delete messages
Select Menu > Messages > Delete messages > All read
or the desired folder.
Contacts
You can save names and phone numbers in the phone and
SIM card memory. The contacts list can contain up to 500
contacts, stored in the phone memory.
Search for a contact
Scroll down in the standby mode, enter the first characters
or letters of the name, and scroll to the desired contact.
14 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Save contacts to the contacts list
Select Menu > Contacts > Add name.
Copy contacts between the phone and SIM card
memory
Select Menu > Contacts > Copy.
Multi-phonebook
Your phone supports up to five separate phonebooks for
multiple users. When the multi-phonebook is activated,
only the contacts in the active phonebook are visible.
A contact can belong to one or several phonebooks. The
contacts in Shared contacts are accessible from all
phonebooks.
Select Menu > Contacts > Settings > Multi-Phonebook
and the appropriate options.
Activate the multi-phonebook
Select Phonebook style > Multi-Phonebook.
Activate a phonebook
Select Current phonebook and the desired phonebook or
Shared contacts.
English 15
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Assign a contact to one or more phonebooks
Select Manage contacts and the desired contact.
Rename a phonebook
Select Rename phonebooks and the desired phonebook.
FM Radio
The FM radio depends on an antenna other than the
wireless device antenna. A compatible headset needs to be
attached to the device for the FM radio to function properly.
You may need to purchase a compatible headset
separately.
To open the radio, select Menu > Radio. To adjust the
volume of the radio, scroll left or right.
You need at least one saved channel for the clock radio to
function properly.
Warning:
Continuous exposure to high volume may damage your
hearing. Listen to music at a moderate level, and do not
hold the device near your ear when the loudspeaker is in
use.
16 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Flashlight shortcuts in standby mode
To switch on, scroll up twice. To switch off, scroll up once.
Do not shine the flashlight in anyone's eyes.
English 17
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Access codes
PIN or PIN2
code
(4-8 digits)
These protect your SIM card against
unauthorized use or are required to access
some features.
You can set your device to ask for the PIN
code when you switch it on.
If not supplied with your SIM card or you
forget the codes, contact your service
provider.
If you enter the code incorrectly three
times in a row, you need to unblock the
code with the PUK or PUK2 code.
PUK or PUK2
code
(8 digits)
These are required to unblock a PIN or
PIN2 code.
If not supplied with your SIM card, contact
your service provider.
IMEI number
(15 digits)
This is used to identify valid devices in the
network. The number can also be used to
block, for example, stolen devices.
To view your IMEI number, dial *#06#.
18 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Lock code
(security
code)
(min. 5 digits
or
characters)
This helps you protect your device against
unauthorized use.
You can set your device to ask for the lock
code that you define. The default lock code
is 12345.
Keep the code secret and in a safe place,
separate from your device.
If you forget the code and your device is
locked, your device will require service.
Additional charges may apply, and all the
personal data in your device may be
deleted.
For more information, contact a Nokia
Care Point or your device dealer.
Product and safety information
General information
About your device
The wireless device described in this guide is approved for use on the GSM 850 and
1900 MHz networks. Contact your service provider for more information about
networks.
English 19
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

Warning:
To use any features in this device, other than the alarm clock, the device must be
switched on. Do not switch the device on when wireless device use may cause
interference or danger.
When using this device, obey all laws and respect local customs, privacy and
legitimate rights of others, including copyrights. Copyright protection may prevent
some images, music, and other content from being copied, modified, or transferred.
Make backup copies or keep a written record of all important information stored in
your device.
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
The images in this guide may differ from your device display.
Network services
To use the device you must have service from a wireless service provider. Some
features are not available on all networks; other features may require that you make
specific arrangements with your service provider to use them. Network services
involve transmission of data. Check with your service provider for details about fees
in your home network and when roaming on other networks. Your service provider
can explain what charges will apply.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, these features will not appear on your device menu.
Your device may also have customized items such as menu names, menu order, and
icons.
Support
When you want to learn more about how to use your product or you are unsure how
your phone should function, go to www.nokia.com/support.
20 English
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
