Service Tools

2118 (RH-77)
Service Tools Nokia Customer Care
Page 2 ©2005 Nokia Corporation Company Confidential Issue 01 04/2005
Contents Page
Model 2118 Service Tools ............................................................................................................................ 3
AAS-10A RF Probe ......................................................................................................................................3
CA-22DS Flash Cable ..................................................................................................................................3
CA-25RS RF Test Cable ..............................................................................................................................3
DAU-9S FBUS/MBUS Cable ......................................................................................................................4
DAU-9T FBUS Cable ....................................................................................................................................4
DKU-5F Flash Cable ....................................................................................................................................4
FLS-4S Flashing Device ..............................................................................................................................5
FPS-8 Flash Prommer .................................................................................................................................5
JBV-1 Docking Station ...............................................................................................................................5
MJ-42 Module Test Jig ..............................................................................................................................6
MJF-17 Docking Station Adapter ...........................................................................................................6
PCS-1 Power Cable .....................................................................................................................................6
PKD-1 Software Security Dongle ............................................................................................................7
RJ-32 Rework Jig .........................................................................................................................................7
SA-54 RF Calibration Adapter .................................................................................................................7
SS-13 Tuning Docking Station ................................................................................................................8
XCS-4 MBUS/FBUS Cable ..........................................................................................................................8
Flashing, Testing, and Tuning...................................................................................................................... 9
Service Configuration 1: Point of Sales Flashing ...............................................................................9
Service Configuration 2: Flash Programming Using Docking Station ........................................10
Service Configuration 3: Covers-Off Troubleshooting Using Service Jig ..................................11
Service Configuration 4: Automated Tuning and Alignment ........................................................12

Nokia Customer Care Service Tools
2118 (RH-77)
Issue 01 04/2005 ©2005 Nokia Corporation Company Confidential Page 3
Model 2118 Service Tools

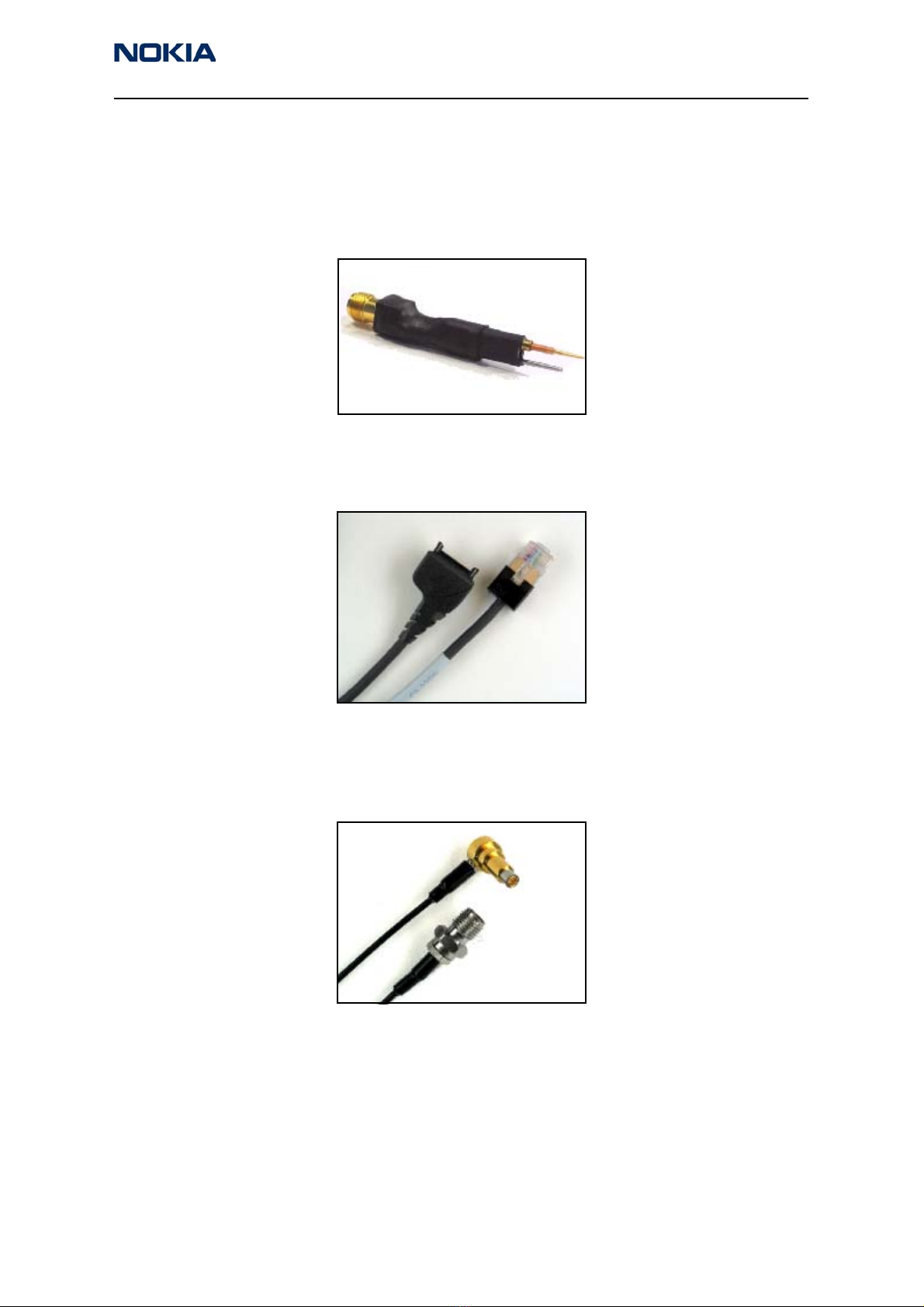

AAS-10A RF Probe
The AAS-10A allows you to troubleshoot the handset. You can use the probe with the
XRS-6 RF Cable.
CA-22DS Flash Cable
The CA-22DS allows bottom connector flashing using the FLS-4S Flash Adapter or the
FLC-20 Flash Device.
CA-25RS RF Test Cable
The CA-25RS test cable is used for RF engine testing and tuning. This cable snaps directly
on the mobile terminal’s RF connector and converts the output to an surface mounting
assembly connector. Removal of the A-cover is required.

2118 (RH-77)
Service Tools Nokia Customer Care
Page 4 ©2005 Nokia Corporation Company Confidential Issue 01 04/2005
DAU-9S FBUS/MBUS Cable
The DAU-9S is a general purpose cable that supports FBUS/MBUS communication
between a Mod-10 device and a PC.
DAU-9T FBUS Cable
The DAU-9T provides a connection from the serial port of the computer to the Pop-portTM
connector of the mobile terminal.
DKU-5F Flash Cable
The DKU-5F is a single-cable flashing solution for CDMA handsets that include
Pop-portTM connectors. This cable supports Diego, Phoenix, and UPST service tools.
Note: Customers using the UPST application also require a Spirent protection key
(dongle).
Note: The DKU-5F is not supported in the APAC and LTA markets.

Nokia Customer Care Service Tools
2118 (RH-77)
Issue 01 04/2005 ©2005 Nokia Corporation Company Confidential Page 5
FLS-4S Flashing Device
The FLS-4S allows Point of Sale (POS) locations to flash the handset and power the
FLA-44 Flash-loading Adapter. The FLS-4S works with the XCS-1 Service Cable (not
included).
FPS-8 Flash Prommer
The FPS-8 is used for mobile terminal flashing at authorized service centers.
JBV-1 Docking Station
The JBV-1 connects flash prommers. The docking station can be powered by the FPS-8
Flash Prommer or by an external power supply.

2118 (RH-77)
Service Tools Nokia Customer Care
Page 6 ©2005 Nokia Corporation Company Confidential Issue 01 04/2005

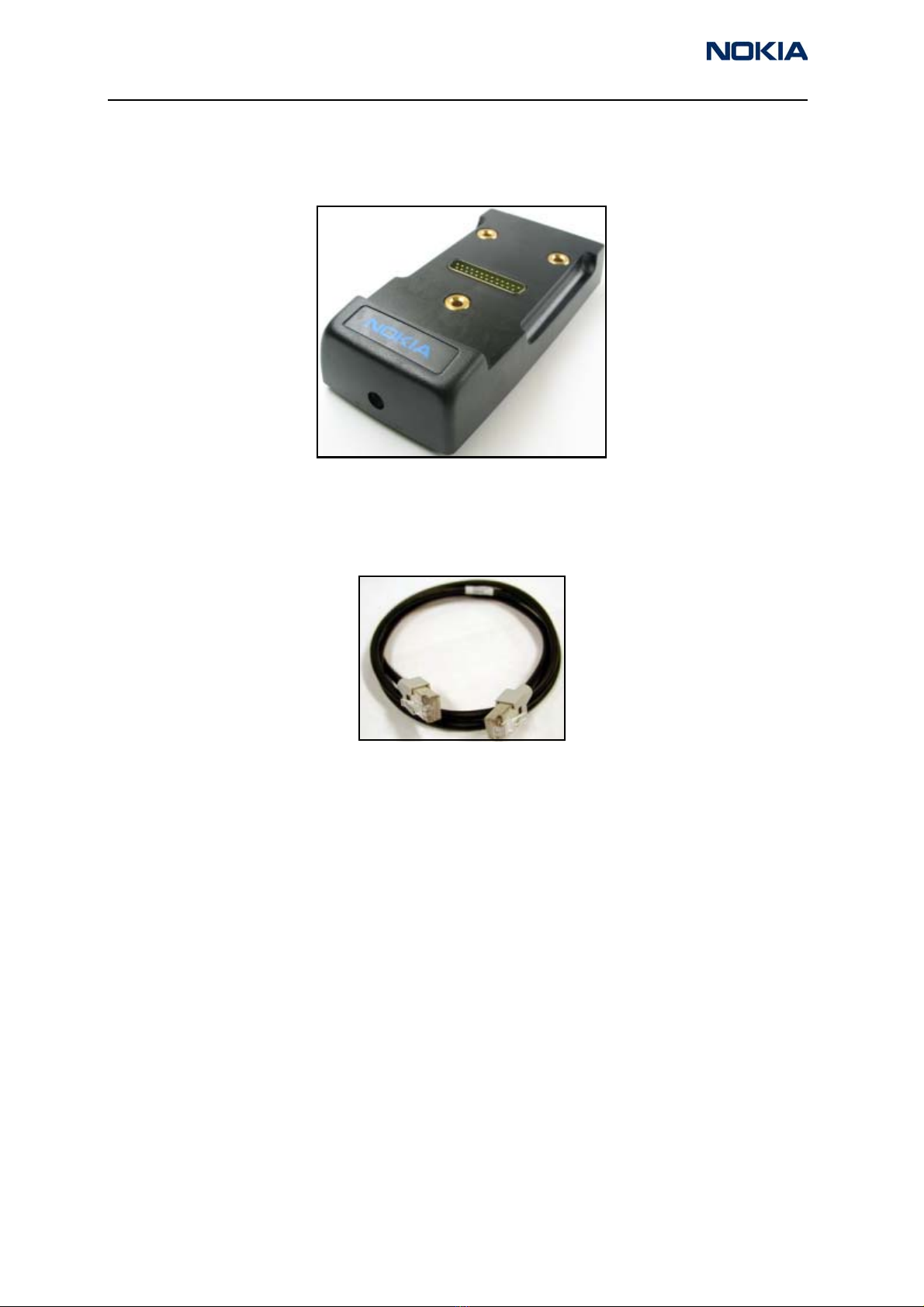

MJ-42 Module Test Jig
The MJ-42 allows PWB-level service and troubleshooting for authorized service centers.
It supports regulated and unregulated DC input voltages and includes Local and Normal
Mode operations, a headset jack for audio tests, a RUIM card reader, and a second DC
input for VCHAR used in EM tuning. The MJ-42 also supports simultaneous RF
connections to the CDMA engine. A completely functional UI module is provided on the
right side.
MJF-17 Docking Station Adapter
The MJF-17 works in conjunction with the JBV-1 Docking Station and the FPS-8 Flash
Prommer to enable tuning, testing, and flashing. The MJF-17 supports the LYNX battery
interface, which does not require BTEMP, and also has a built-in RUIM card reader.
PCS-1 Power Cable
The PCS-1 is used to connect the service tools (e.g., JBV-1 Docking Station, MJS-82
Service Jig) to an external power supply.

Nokia Customer Care Service Tools
2118 (RH-77)
Issue 01 04/2005 ©2005 Nokia Corporation Company Confidential Page 7
PKD-1 Software Security Dongle
The PKD-1 is a hardware dongle that, when connected to the parallel (LPT) port of the
PC, enables the use of the service software. It is not possible to use the service software
without the dongle. Printers or other peripheral devices can be connected to the PC
through the dongle, if needed.
Caution: Make sure that you have switched off the PC and the printer before making
connections.
Caution: Do not connect the PKD-1 to the serial port. You may damage your PKD-1
and/or your PC.
RJ-32 Rework Jig
The RJ-32 serves as a holder for PWB component de-soldering and soldering.
SA-54 RF Calibration Adapter
The SA-54 adapter is used to replicate the mobile terminal's RF when calculating cable
path losses.

2118 (RH-77)
Service Tools Nokia Customer Care
Page 8 ©2005 Nokia Corporation Company Confidential Issue 01 04/2005
SS-13 Tuning Docking Station
The SS-13 is used with the MJF-x/DA-x Docking Station Adapters (shown with MJF-17)
for CDMA RF autotuning.
XCS-4 MBUS/FBUS Cable
The XCS-4 is a general purpose cable for flashing and communicating with the mobile
terminal. It is used to connect the FPS-8 Flash Prommer to the docking station adapter or
the service jig.

Nokia Customer Care Service Tools
2118 (RH-77)
Issue 01 04/2005 ©2005 Nokia Corporation Company Confidential Page 9
Flashing, Testing, and Tuning
Use the following setups with either manual or automatic tuning with the Phoenix
Service Software.
Service Configuration 1: Point of Sales Flashing
Item Name Type Code
1 FLS-4S flash device (sales pack)
(ACF-8 power supply is included in
the FLS-4S sale pack)
FLS-4S 0080543
2 Service cable CA-22DS 0730311
Point-of-sale service software
Diego
Phoenix
8405139
8407840
NOTE Other POS flashing configurations
available:
USB single-flash cable (DCT4 only)
USB flash cable for DCT3/DCT4
handsets
DKU-5F
FLC-20
0080738
0081544
2
1

2118 (RH-77)
Service Tools Nokia Customer Care
Page 10 ©2005 Nokia Corporation Company Confidential Issue 01 04/2005

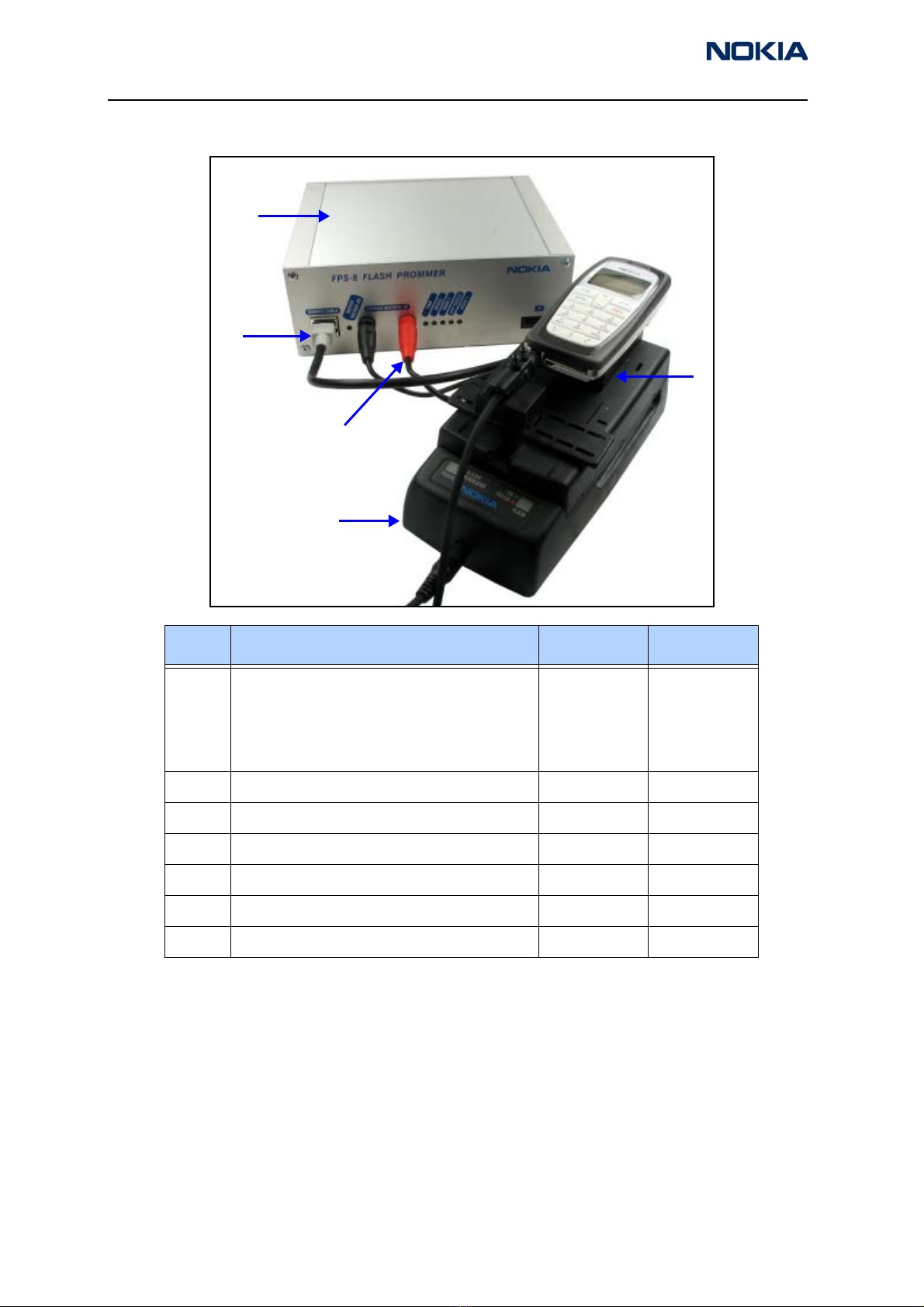

Service Configuration 2: Flash Programming Using Docking Station
Item Name Type Code
1 Flash prommer box (sales pack)
Included in FPS-8 sales pack:
Service cable
Serial cable
Power supply
FPS-8
CA-10DS
AXS-4
ACF-8
0080321
0730298
0730090
0680032
2 Docking station JBV-1 0770298
3 Docking adapter MJF-17 0774282
4 DC power cable PCS-1 0730012
5 Modular cable XCS-4 0730178
Software protection key (not shown) PKD-1 0750018
Service software CDMA Phoenix 8407840
1
2
3
4
5

Nokia Customer Care Service Tools
2118 (RH-77)
Issue 01 04/2005 ©2005 Nokia Corporation Company Confidential Page 11
Service Configuration 3: Covers-Off Troubleshooting Using Service Jig
Item Name Type Code
1 Module repair jig
(includes RF test cable)
MJ-42
CA-25RS
0780317
0730316
2 DC power cable PCS-1 0730012
3 RF test cable XRS-6 0730231
4 Service MBUS/FBUS cable DAU-9S 0730108
5 Software protection key PKD-1 0750018
Service software (not shown) Phoenix 8407840
5
2
1
4
3

2118 (RH-77)
Service Tools Nokia Customer Care
Page 12 ©2005 Nokia Corporation Company Confidential Issue 01 04/2005
Service Configuration 4: Automated Tuning and Alignment
This setup is used for tuning of the handset at Nokia Authorized Service Centers.
Item Name MFR Model # QTY Comment
1 Vector Signal
Analyzer
Agilent E4406A 1
2 Signal Generator Agilent E4420B 1 Digital signal generator with
high-stability oscillator and
high-spectral purity
3 RF Series GreenHill TVi9901 1
4 Power Supply Keithly K2306 2 Programmable with sense wire
5 Win2000 PC Dell with Pentium III or above,
network card, 256M RAM, 20GB
HD, CD-ROM, etc.
6 GPIB Interface NI GPIB-USB-A 2 USB to GPIB adapter
(184983G-01)
7 Docking Station Nokia SS-13 1 For DCT4 handset tuning. SS-13
is specifically designed for CDMA
RF tuning.
23
1
6
4
5
7
