Introduction
4
1. Introduction
The Nokia Wireless Headset (HS-36W) can be used with compatible
phones that support Bluetooth wireless technology. This allows you
freedom to make and receive calls while on the move or in the office.
Read this user guide carefully before using the headset. Read also the user
guide for your phone, which provides important safety and maintenance
information. Keep the headset out of reach of small children.
■Bluetooth wireless technology
Bluetooth wireless technology allows you to connect compatible
communication devices without cables. A Bluetooth connection does not
require that the phone and the headset be in line of sight, but both
devices should be within 10 meters (30 feet) of each other. Connections
may be subject to interference from obstructions, such as walls, or other
electronic devices.
The headset is compliant with the Bluetooth Specification 1.2 supporting
the following profiles: Headset Profile 1.1 and Hands-free Profile 1.0.
Check with the manufacturers of other devices to determine their
compatibility with this device.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
9239354_HS-36W_1_en.fm Page 4 Friday, August 19, 2005 6:09 PM

Get started
5
English
2. Get started

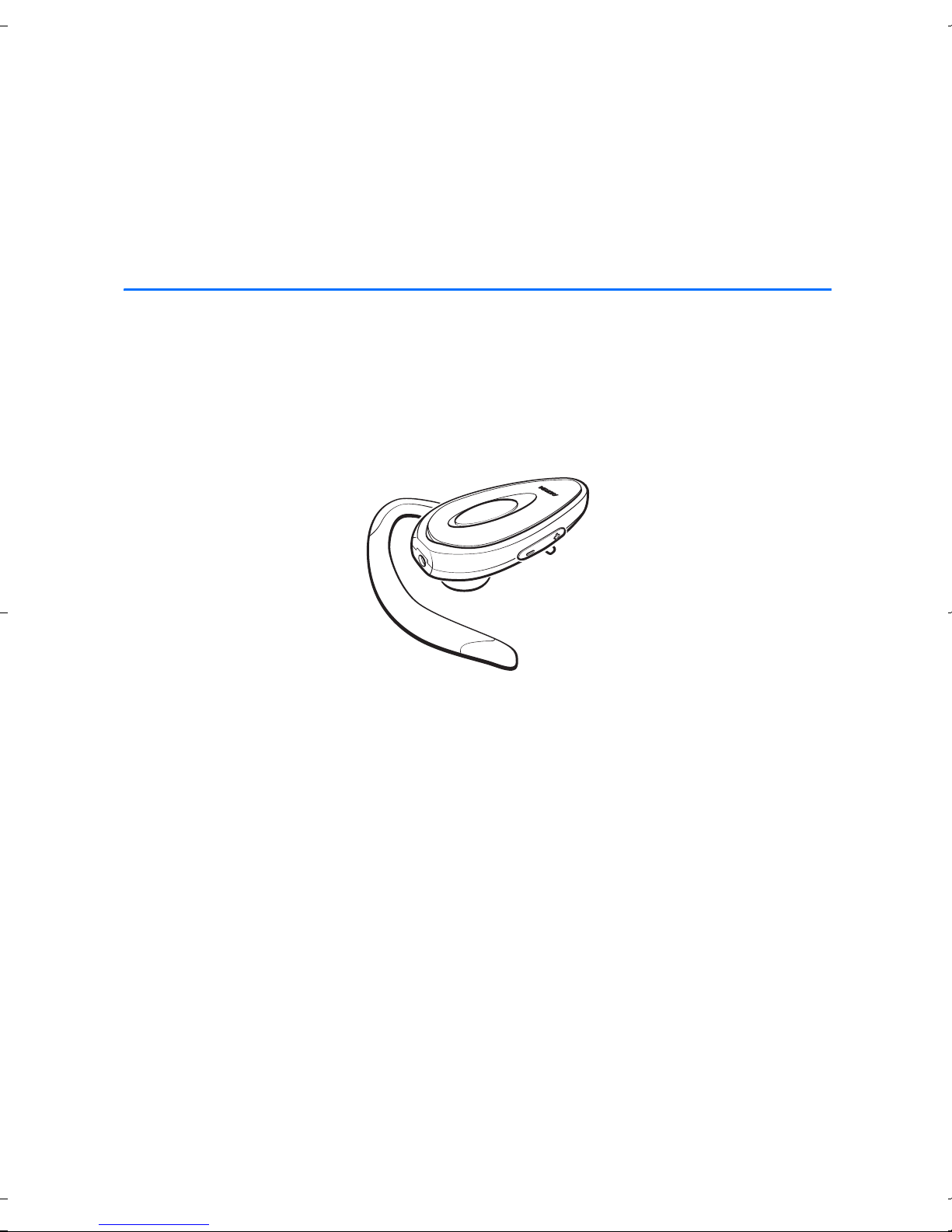

The headset contains the following parts:
• Indicator light (1)
• Volume keys (2)
• Charging socket (3)
•Answer/endkey(4)
• Earhook (5)
• Nokia Charger Adapter cable
(CA-71) (6)
Before you can start to use the headset, you
must charge the battery, and pair a compatible
phone with the headset.
Note: Parts of the headset are magnetic. Metallic materials may
be attracted to the headset, and persons with a hearing aid
should not hold the headset to the ear with the hearing aid. Do
not place credit cards or other magnetic storage media near the
headset, because information stored on them may be erased.
■Chargers and batteries
Check the model number of any charger before using it with this device.
The Nokia Wireless Headset (HS-36W) is intended for use with the
ACP-12 and LCH-12 chargers.
Warning: Use only batteries and chargers approved by Nokia for
use with this particular enhancement. The use of any other types
may invalidate any approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer.
When you disconnect the power cord of any enhancement, grasp and pull
the plug, not the cord.
9239354_HS-36W_1_en.fm Page 5 Friday, August 19, 2005 6:09 PM

Get started
6
■Charge the battery
The headset has an internal, nonremovable, rechargeable battery. Do not
attempt to remove the battery from the device, as you may damage the
device.
1. Ensure that the Nokia Charger Adapter cable (CA-71) is connected to
the charger that is supplied with the headset. If this is not the case,
connect the one end of the adapter cable to the charger cable.

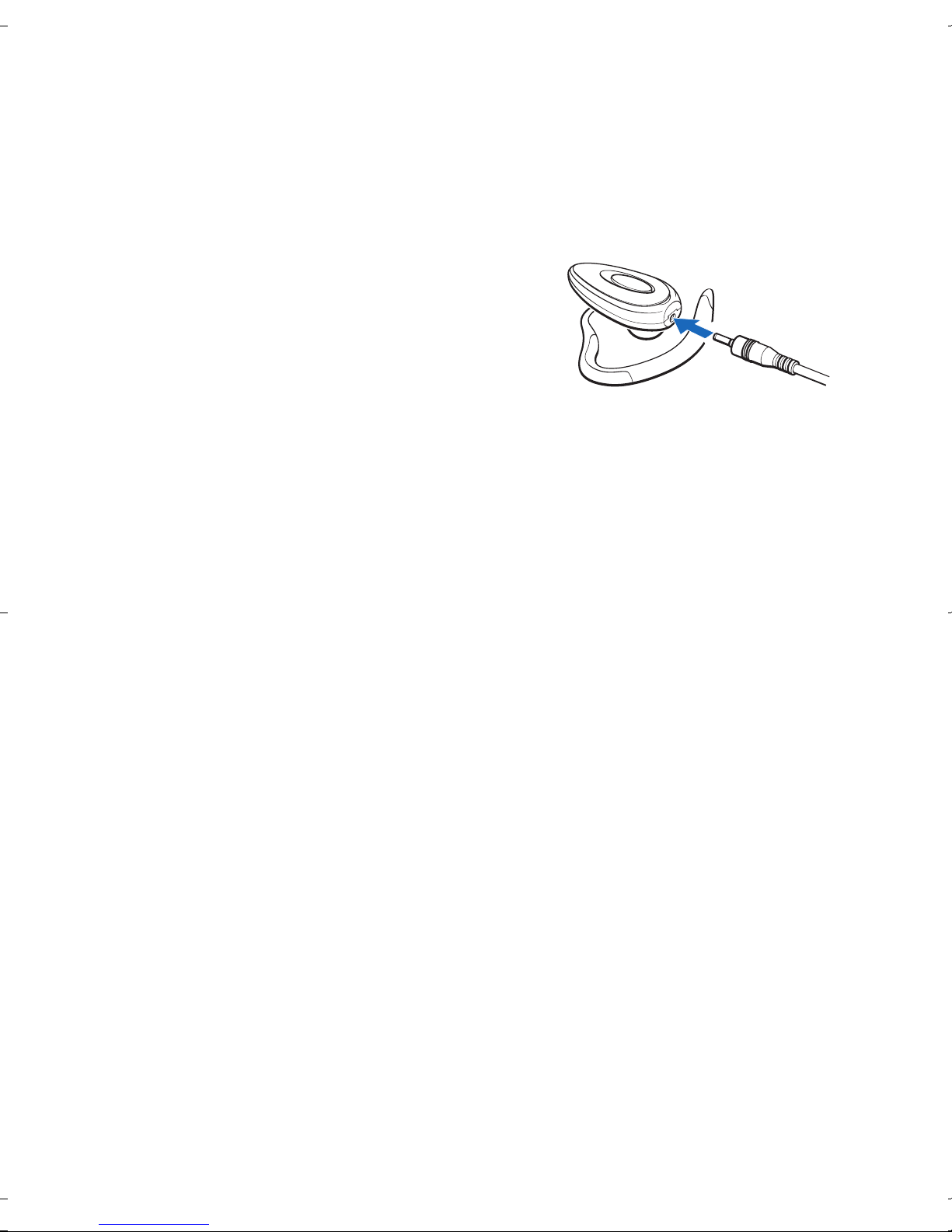

2. Connect the adapter cable to the
headset.
3. Connect the ACP-12 charger to a wall
outlet or the LCH-12 charger to the
accessory power outlet of your car.
The blue indicator light is continuously
displayed during charging.
The headset is switched off and cannot be used during charging.
4. When the battery is fully charged, the blue indicator light switches off.
Disconnect the charger from the wall outlet or the accessory power
outlet and the headset. When you disconnect the power cord of the
charger, grasp and pull the plug, not the cord.
The fully charged battery has power for up to 4h to 8h of talk-time or up
to 90h to 130h of standby time. (In the standby mode, the headset is
switched on but no call is in progress.)
However, talk and standby times may vary when used with different
handsets, other Bluetooth enabled-products, battery condition, usage
settings, usage style and environments.
When the battery is running out of power, the red indicator light lights
up. Charge the battery.
■Switch the headset on or off
To switch on, press the answer/end key for about 1 second. To switch off,
press and hold the answer/end key for about 5 seconds.
9239354_HS-36W_1_en.fm Page 6 Friday, August 19, 2005 6:09 PM

Get started
7
English
■Pair the headset with a compatible phone
Make sure that the headset is on, and put it in pairing mode by pressing
the answer/end key and the volume up (+) key at the same time over 5
seconds until the blue indicator light lights up. The indicator light remains
on for 5 minutes, during which you can pair the headset with a
compatible mobile phone.
1. Set the phone to search for Bluetooth devices. See the user guide of
your phone for instructions.
2. When your phone finds the headset, confirm the pairing from your
phone.
3. When prompted for the Bluetooth passcode of the headset, enter
0000.
If the pairing was unsuccessful, try to pair the devices again.
You only need to pair the headset with your phone once.
If the pairing was successful, the blue indicator light starts to flash. The
headset is now in the standby mode and ready for use.
9239354_HS-36W_1_en.fm Page 7 Friday, August 19, 2005 6:09 PM

Basic use
8
3. Basic use
■Wear the headset on either ear
The headset is ready to wear on the right ear. If you want to use it on the
left ear, gently flip (1) and rotate the earhook (2).
■Call handling
To answer a call, press the answer key on your mobile phone, or press the
answer/end key on the headset briefly. If you do not want to answer a call,
press and hold the answer/end key on the headset for about 3 second.
To make a call, dial the number with your mobile phone, and press the
answer key on your phone. The call is automatically transferred to the
headset.
To redial the last called number, press and hold the answer/end key on
your headset for about 3 second when no call is in progress.
If your phone supports voice dialing and there is no call in progress, press
the answer/end key on the headset briefly, and proceed with voice dialing
as described in the user guide of your phone. For the best result, record
the voice tag through your headset.
To increase or decrease the volume of the headset, press either volume
key until the satisfactory volume level is reached.
To end a call, press the end key on your mobile phone, or press the answer/
end key on your headset briefly.
9239354_HS-36W_1_en.fm Page 8 Friday, August 19, 2005 6:09 PM

Basic use
9
English
■Store the headset properly
Always store the headset with the power off and safely protected.
Avoid storage in high temperatures (above 60°C/134°F), such as in a hot
vehicle or in direct sunlight. Storage in high temperatures can degrade
performance and reduce the battery life. Low temperatures (down to -
10°C/14°F) shorten the battery life and may affect operation.
■Troubleshooting
The audio quality is poor.
For optimal performance, wear the headset and your mobile phone on the
same side of your body or in line of sight.
I have pairing problems even though my phone indicates otherwise.
You may have deleted the headset pairing in your mobile phone. Pair the
devices again.
There is no audio in the headset. Do the following:
• Increase the volume on the headset by pressing the volume up (+) key.
• Ensure that the headset is paired with the phone.
• Make sure that the phone is connected to the headset. If not, try to
pair the devices again.
9239354_HS-36W_1_en.fm Page 9 Friday, August 19, 2005 6:09 PM

Battery information
10
4. Battery information
Your device is powered by a rechargeable battery. The full performance of
a new battery is achieved only after two or three complete charge and
discharge cycles. The battery can be charged and discharged hundreds of
times, but it will eventually wear out. Recharge your battery only with
Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in
use. Do not leave a fully charged battery connected to a charger, since
overcharging may shorten its lifetime. If left unused, a fully charged
battery will lose its charge over time.
Use the battery only for its intended purpose. Never use any charger or
battery that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer
or winter conditions, will reduce the capacity and lifetime of the battery.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A
device with a hot or cold battery may not work temporarily, even when
the battery is fully charged. Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may
also explode if damaged. Dispose of batteries according to local
regulations. Please recycle when possible. Do not dispose as household
waste.
9239354_HS-36W_1_en.fm Page 10 Friday, August 19, 2005 6:09 PM

Care and maintenance
11
English
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity and all types of liquids or moisture
can contain minerals that will corrode electronic circuits. If your device does
get wet, remove the battery and allow the device to dry completely before
replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
9239354_HS-36W_1_en.fm Page 11 Friday, August 19, 2005 6:09 PM

12
9239354_HS-36W_1_en.fm Page 12 Friday, August 19, 2005 6:09 PM

诺基亚无线耳机 HS-36W
用户手册
第2 版
9239354_HS-36W_2_zh.fm Page 1 Tuesday, August 23, 2005 2:30 PM

2
声明
我们诺基亚公司郑重声明产品 HS-36W 符合以下指令：1999/5/EC。
此声明的全文可经由 http://www.nokia.com/phones/declaration_of_conformity/
找到。
版权所有 © 2005 诺基亚。保留所有权利。
在未经诺基亚事先书面许可的情况下，严禁以任何形式复制、传递、分发和
存储本文档中的任何内容。
诺基亚、Nokia 和Nokia Connecting People 是诺基亚公司的注册商标。在本文
档中提及的其他产品或公司的名称可能是其各自所有者的商标或商名。
Bluetooth 是Bluetooth SIG, Inc. 的注册商标。
诺基亚遵循持续发展的策略。因此，诺基亚保留在不预先通知的情况下，对
本文档中描述的任何产品进行修改和改进的权利。
在任何情况下，诺基亚均不对任何数据或收入方面的损失，或任何特殊、偶
然、附带或间接损失承担责任，无论该损失由何种原因引起。
本文档的内容按“现状”提供。除非适用的法律另有规定，否则不对本文档
的准确性、可靠性和内容做出任何类型的、明确或默许的保证，其中包括但
不限于对适销性和对具体用途的适用性的保证。诺基亚保留在不预先通知的
情况下随时修订或收回本文档的权利。
产品的供货情况可能因地区而异。请向邻近的诺基亚指定经销商查询。
任何未经授权而对本无线耳机进行的修改或改装可能导致用户丧失使用耳机
的权利。
出口控制
本耳机可能包含受美国和其他国家或地区的出口法律和法规控制的商品、技
术或软件。严禁任何违反法律的转移行为。
第2 版
9239354_HS-36W_2_zh.fm Page 2 Friday, August 19, 2005 5:54 PM

3
简体中文
目录
1. 简介 .................................... 4
蓝牙无线技术.................................... 4
2. 使用入门............................. 5
充电器和电池.................................... 5
为电池充电........................................ 6
启动或关闭无线耳机........................ 6
在无线耳机和兼容手机间配对........ 6
3. 基本使用方法 ..................... 8
将耳机佩带在耳朵上........................ 8
通话管理............................................ 8
正确存放耳机.................................... 9
疑难解答............................................ 9
4. 电池信息 .......................... 10
维护和保养........................... 11
9239354_HS-36W_2_zh.fm Page 3 Friday, August 19, 2005 5:54 PM

简介
4
1. 简介
诺基亚无线耳机 HS-36W 可与支持蓝牙无线技术的兼容手机配合使
用。这样，无论您外出旅行还是在办公室内，都可以随意拨打和接
听电话。
使用耳机前，请仔细阅读本《用户手册》。您还应阅读手机的《用
户手册》，以了解重要的安全和维护信息。请将耳机放在小孩接触
不到的地方。
■蓝牙无线技术
借助蓝牙无线技术，您可与兼容的通信设备建立无线连接。蓝牙连
接不要求保持手机和耳机相互正对，但二者之间的最大距离不应超
过10 米(约30 英尺)。蓝牙连接可能因墙壁等障碍物或其他电子设备
而受到干扰。
无线耳机符合第 1.2 版蓝牙规范且支持以下蓝牙模式：第 1.1 版耳机
模式和第 1.0 版免提模式。请向其他设备的制造商咨询以确定该设备
是否与此款耳机兼容。
在某些地区，使用蓝牙无线技术可能受到一些限制。请向当地主管
部门或服务供应商咨询。
9239354_HS-36W_2_zh.fm Page 4 Friday, August 19, 2005 5:54 PM

使用入门
5
简体中文
2. 使用入门
无线耳机由以下部分组成：
•指示灯 (1)
•音量键 (2)
•充电器插孔 (3)
•接听/挂断键 (4)
•耳挂 (5)
•诺基亚充电器适配器线缆
CA-71 (6)
您必须先为电池充电并在兼容手机和耳机间配
对，然后才可以开始使用耳机。
注意：耳机的某些部件具有磁性。金
属物体可能被吸附在耳机上，因此使用助听器的人士请不要
使耳机靠近戴有助听器的耳朵。请勿使信用卡或其他磁性存
储介质靠近耳机，以免因消磁而丢失其所储存的信息。
■充电器和电池
使用任何充电器为本耳机充电前，请先检查充电器的型号。诺基亚
无线耳机 HS-36W 需由充电器 ACP-12 和LCH-12 供电才可使用。
警告：仅可使用经诺基亚认可，适用于此特定型号配件的电
池和充电器。使用其他类型的电池和充电器会违反对耳机的
认可或保修条款，并可能导致危险。
有关认可配件的供货情况，请向您的经销商查询。切断任何配件的
电源时，应握住并拔出插头，而不是拉扯电源线。
9239354_HS-36W_2_zh.fm Page 5 Friday, August 19, 2005 5:54 PM

使用入门
6
■为电池充电
本无线耳机使用内置式不可拆卸充电电池。请勿尝试从耳机中取出
电池，以免损坏耳机。
1. 确保已将诺基亚充电器适配器线缆 CA-71 连接至随耳机提供的充
电器。若尚未连接，请将适配器线缆的一端连接至充电器线缆。
2. 将适配器线缆连接至耳机。
3. 将充电器 ACP-12 插到交流电源插座
上，或将充电器 LCH-12 连接至汽车
的配件电源插孔。充电时，蓝色指示
灯会持续亮起。
充电时，耳机会关闭且不能使用。
4. 电池完全充电后，蓝色指示灯会熄灭。断开充电器与电源插座/配
件电源插孔和耳机的连接。断开充电器与电源的连接时，应握住
并拔出插头，而不是拉扯电源线。
完全充电的电池可提供上限约为 4 小时至 8 小时的通话时间或上限约
为90 小时至 130 小时的待机时间。(待机状态是指耳机已启动，但未
进行通话的状态)。
但是，当与不同的手机或其他支持蓝牙无线技术的产品一起使用
时，通话时间和待机时间可能会不同。此外，通话时间和待机时间
也可能因电池状况、使用设置、使用方式和环境而有所不同。
当电池电量不足时，红色指示灯会亮起。此时，请为电池充电。
■启动或关闭无线耳机
要启动无线耳机，请按接听/挂断键大约 1 秒钟。要关闭无线耳机，
请按住接听/挂断键大约 5 秒钟。
■在无线耳机和兼容手机间配对
确保耳机已启动，同时按住接听/挂断键和音量提高键 (+) 至少 5 秒钟
直至蓝色指示灯亮起，使耳机进入配对状态。指示灯会保持 5 分钟，
且您可以在这段时间内为耳机和兼容手机配对。
1. 设置手机以搜索蓝牙设备。有关说明，请参见手机的《用户手
册》。
9239354_HS-36W_2_zh.fm Page 6 Friday, August 19, 2005 5:54 PM

使用入门
7
简体中文
2. 当手机找到耳机时，使用手机确认配对。
3. 当看到要求输入耳机的蓝牙密码的提示时，输入 0000。
如果配对失败，请再次尝试配对两台设备。
您只需要为耳机和手机配对一次。
如果配对成功，则蓝色指示灯会开始闪烁。这表示耳机已进入待机
状态且可以使用。
9239354_HS-36W_2_zh.fm Page 7 Friday, August 19, 2005 5:54 PM

基本使用方法
8
3. 基本使用方法
■将耳机佩带在耳朵上
耳机无需任何改动即可佩带在右耳上。若要将其佩带在左耳上，请
轻轻提起 (1) 并旋转耳挂 (2)。
■通话管理
要接听来电，请按手机的通话键，或可快速按耳机的接听/挂断键。
如果不想接听来电，请按住耳机的接听/挂断键大约 3 秒钟。
要拨打电话，请使用手机输入电话号码，然后按手机的通话键。通
话会被自动转移至耳机。
要重拨最后拨打的号码，请在未进行任何通话时按住耳机的接听/挂
断键大约 3 秒钟。
如果您的手机支持声控拨号功能且未进行任何通话，则可快速按耳
机的接听/挂断键，然后按手机《用户手册》中的说明进行声控拨
号。要取得最佳效果，请使用耳机录制声控标签。
要提高或降低耳机的音量，请按任一音量键直接达到满意的音量级
别。
要结束通话，请按手机的结束键，或可快速按耳机的接听/挂断键。
9239354_HS-36W_2_zh.fm Page 8 Friday, August 19, 2005 5:54 PM
