1. Introduction
With the Nokia Bluetooth Stereo Headset BH-503, you can listen to music
from your compatible music player and make and receive hands-free calls
using your mobile phone. The music player can be the music player
feature of your mobile phone or a separate music device.
You can use the headset with compatible devices that support Bluetooth
wireless technology.
Read this user guide carefully before using the headset. Also read the user
guide for your mobile phone, which provides important safety and
maintenance information, and the user guide for your music device. Keep
the headset and its accessories out of reach of small children.
■Bluetooth wireless technology
Bluetooth wireless technology allows
you to connect compatible devices
without cables. A Bluetooth connection
does not require that the headset and
the other device be in line of sight, but
the maximum distance between the
devices is 10 meters (33 feet). The closer
the devices are to each other, the better
is the performance. The optimal
operating range is shown in dark grey in
the picture. The connection is subject to
interference from distance and obstructions (shown in light grey) or other
electronic devices.
The headset is compliant with Bluetooth Specification 2.0 + EDR
supporting the following profiles: Headset Profile 1.1, Hands-Free Profile
1.5, Advanced Audio Distribution Profile (A2DP) 1.0, and Audio Video
Remote Control Profile 1.0. Check with the manufacturers of other
devices to determine their compatibility with this device.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
<10m
© 2007 Nokia. All rights reserved.

Get started
5
English
2. Get started
■Overview

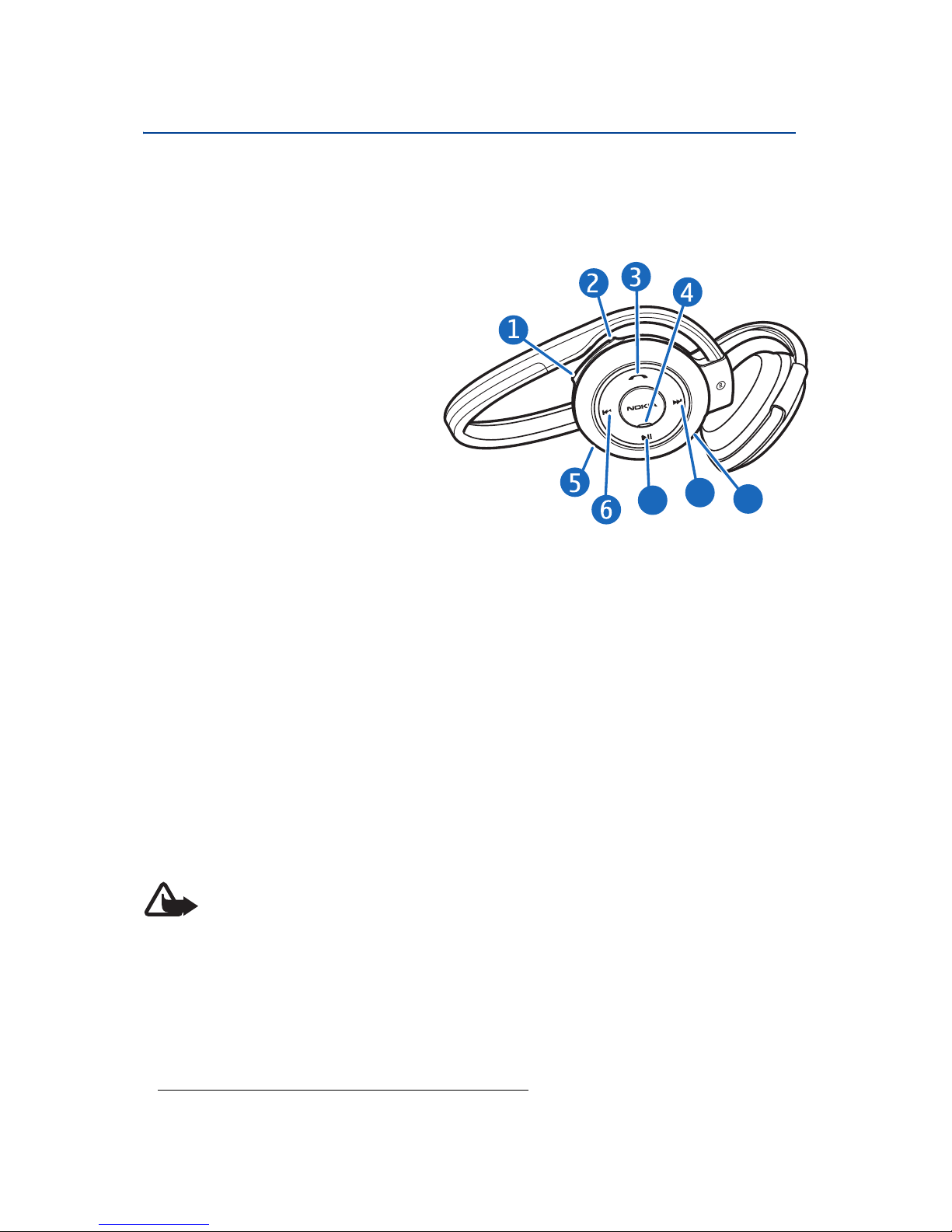

The headset contains the following parts:
• Volume down key (1)
• Volume up key (2)
• Multifunction key (3)
• Indicator light (4)
• Charger connector (5)
• Rewind key (6)
• Play/pause key (7)
• Fast forward key (8)
• Microphone (9)
Before you can start using the headset, you must charge the battery and
pair the headset with a compatible mobile phone.
Parts of the headset are magnetic. Metallic materials may be attracted to
the headset. Do not place credit cards or other magnetic storage media
near the headset, because information stored on them may be erased.
■Chargers
Check the model number of any charger before using it with this headset.
The headset is intended for use with the AC-4, AC-5, and DC-4 chargers.
Warning: Use chargers approved by Nokia for use with this particular
enhancement. The use of any other types may invalidate any approval or
warranty, and may be dangerous.
When you disconnect the power cord of any enhancement, grasp and pull
the plug, not the cord.
789
© 2007 Nokia. All rights reserved.

Get started
6
■Charge the battery
The headset has an internal, nonremovable, rechargeable battery. Do not
attempt to remove the battery from the headset, as you may damage the
headset.
1. Connect the charger to a wall outlet.
2. Connect the charger cable to the charger connector. The indicator
light is red while charging. It may take a while before charging starts.
If charging does not start, disconnect the charger, plug it in again, and
retry.
Charging the battery fully may take up to 1 hour and 15 minutes.
3. When the battery is fully charged, the indicator light turns green.
Disconnect the charger from the headset and the wall outlet.
The fully charged battery has power for up to 13 hours of talk time, up to
10 days of standby time, or up to 13 hours of music playing time (or 75
minutes of music playing time with 20 minutes charging). However, the
times may vary with different compatible Bluetooth devices, usage
settings, usage styles, and environments.
When battery power is low, the headset beeps at regular intervals, and the
indicator light slowly flashes red. Recharge the battery.
■Switch the headset on or off
Switch on
To switch on, press and hold the multifunction key for about 2 seconds.
The headset beeps, and the green indicator light is briefly displayed.
When the headset tries to connect to the paired mobile phone or music
player that you have last used with it, the indicator light slowly flashes
green. When the headset is connected to a paired device and is ready for
use, the indicator light slowly flashes blue. If the headset has not been
paired with a device, it automatically enters the pairing mode (see “Pair
and connect the headset,” p. 7).
If you connect the headset to a device but do not use it for a while, switch
off the headset to save power.
© 2007 Nokia. All rights reserved.

Get started
7
English
Switch off
To switch off, press and hold the multifunction key for about 5 seconds.
The headset beeps, and the red indicator light is briefly displayed.
■Pair and connect the headset
Pair and connect the headset with a mobile phone that
has a music player feature
If your phone supports the A2DP Bluetooth profile and has a music player
feature, you can use the phone to make and receive calls and to play
music with the headset.
1. Ensure that your phone is switched on.
2. If the headset has not been previously paired with a device, switch on
the headset. The headset enters the pairing mode, and the indicator
light starts to flash blue quickly.
If the headset has been previously paired with another device, switch
off the headset, and press and hold the multifunction key until the
indicator light starts to flash blue quickly.
3. Activate the Bluetooth feature on the phone, and set it to search for
Bluetooth devices. See the user guide of your phone for instructions.
4. Select the headset from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your
phone. In some phones, you may need to make the connection
separately after pairing. You only need to pair the headset with your
phone once.
If pairing is successful, the headset appears in the menu of the mobile
phone where you can view the currently paired Bluetooth devices.
When the headset is connected with your mobile phone and ready for use,
the indicator light of the headset slowly flashes blue.
© 2007 Nokia. All rights reserved.

Get started
8
Pair and connect the headset with a music player
If your phone does not support the A2DP Bluetooth profile, you can
separately pair the headset with the phone and a music player that
supports this Bluetooth profile.
If you have paired and connected the headset with your phone,
disconnect the headset from it before pairing the headset with a music
player.
To pair the headset with a music player, follow the instructions in “Pair
and connect the headset with a mobile phone that has a music player
feature,” p. 7. If your music player does not have a keypad, it may use the
Bluetooth passcode 0000 by default. If this is not the case, see the user
guide of your music player to change the default Bluetooth passcode to
0000.
If pairing is successful and the headset is connected with your music
player, the indicator light of the headset slowly flashes blue.
Disconnect the headset
To disconnect the headset from your device, switch off the headset, or
disconnect it in the Bluetooth menu of your device.
You do not need to delete pairing with the headset to disconnect it.
Reconnect the headset
To connect the headset to the phone or music player that you have last
used with it, switch on the headset, or make the connection in the
Bluetooth menu of your device.
In your device, you may be able to allow the headset to connect to it
automatically when the headset is switched on. To do this in Nokia
devices, change your paired device settings in the Bluetooth menu.
© 2007 Nokia. All rights reserved.

Basic use
9
English
3. Basic use
■Place the headset over the ears
Lower the neckband behind your head. Place the
headset over your ears so that the speaker pads rest
comfortably on your ears.
Place the pad indicated with L on the left ear and
the pad with R on the right ear.
Warning: When using the headset your ability
to hear outside sounds may be affected. Do not use the headset where it
can endanger your safety.
■Adjust the volume
To adjust the headset volume, press the volume up key to increase or the
volume down key to decrease the volume during a call or while listening
to music.
■Call handling
To make a call, use your mobile phone in the normal way when the
headset is connected to it.
If your phone supports redialing with the headset, press the multifunction
key twice quickly when no call is in progress.
If your phone supports voice dialing with the headset, press and hold the
multifunction key for about 2 seconds until the phone starts voice dialing,
and proceed as instructed in the user guide of the phone. Voice dialing
cannot be used during a call.
To answer a call, press the multifunction key, or use the keys of the phone.
To reject the call, press the multifunction key twice quickly.
To end a call, press the multifunction key, or use the keys of the phone.
To mute or unmute the microphone during a call, press the play/pause
key.
© 2007 Nokia. All rights reserved.

Basic use
10
To switch the call from the headset to a connected phone, press and hold
the play/pause key for about 2 seconds. To switch the call back to the
headset, press the multifunction key once.
■Listen to music
To listen to music, connect the headset to a compatible music player such
as a mobile phone with a music player feature or other music device. The
music player must support the A2DP Bluetooth profile.
When the headset is connected to a phone but not to a separate music
device, the headset can only be used to make and receive calls if the
phone does not have a music player feature.
The available music functions depend on your music player.
If you receive or make a call while listening to music, the music is paused
until you end the call.
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing.
To play a track, select it in the music player, and press the play/pause key.
To pause or resume playing, press the play/pause key. To stop playing,
press and hold the play/pause key for about 2 seconds.
To select the next track, press the fast forward key. To select the previous
track, press the rewind key. To scroll through the current track quickly
during playback, press and hold either key.
■Clear the settings or reset the headset
To clear the pairing and volume settings, switch off the headset, and press
and hold the multifunction key and press the volume up key until the
indicator light alternates red, green, and blue three times.
To reset the headset if it stops functioning, although it is charged, plug
the charger into the headset, and press and hold the multifunction key
and press the volume up key. The reset does not clear the headset settings.
© 2007 Nokia. All rights reserved.

Battery information
11
English
4. Battery information
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. Recharge your
battery only with Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do not
leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Never use any charger that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep
the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold
battery may not work temporarily, even when the battery is fully charged. Battery
performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged.
© 2007 Nokia. All rights reserved.

Care and maintenance
12
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture
can contain minerals that will corrode electronic circuits. If your device does
get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
© 2007 Nokia. All rights reserved.

诺基亚蓝牙立体声耳机 BH-503
用户手册
第1 版

2 © 2007 诺基亚。保留所有权利 。
声明
我们诺基亚公司郑重声明产品 HS-95W 符合指令 1999/5/EC 中的基本要求及其他相
关条款。
此声明的全文可经由 http://www.nokia.com/phones/declaration_of_conformity/ 找到。
© 2007 诺基亚。保留所有权利。
在未经诺基亚事先书面许可的情况下，严禁以任何形式复制、传递、分发和存储本
文档中的任何内容。
诺基亚、 Nokia 和Nokia Connecting People 是诺基亚公司的注册商标。在本文档中提
及的其他产品或公司的名称可能是其各自所有者的商标或商名。
Bluetooth 是Bluetooth SIG, Inc. 的注册商标。
诺基亚遵循持续发展的策略。因此，诺基亚保留在不预先通知的情况下，对本文档
中描述的任何产品进行修改和改进的权利。
在任何情况下，诺基亚均不对任何数据或收入方面的损失，或任何特殊、偶然、附
带或间接损失承担责任，无论该损失由何种原因引起。
本文档的内容按 “现状”提供。除非适用的法律另有规定，否则不对本文档的准确
性、可靠性和内容做出任何类型的、明确或默许的保证，其中包括但不限于对适销
性和对具体用途的适用性的保证。诺基亚保留在不预先通知的情况下随时修订或收
回本文档的权利。有关最新的产品更新文档，请参见 http://www.nokia.com.cn。
产品的供货情况可能因地区而异。请向邻近的诺基亚指定经销商查询。
未经授权而对本设备进行的更改或改装可能导致用户丧失使用设备的权利。
出口控制
本设备可能包含受美国和其他国家或地区的出口法律和法规控制的商品、技术或软
件。严禁任何违反法律的转移行为。
第1 版

目录
© 2007 诺基亚。保留所有权利 。3
简体中文
目录
1. 简介................................. 4
蓝牙无线技术 ............................... 4
2. 使用入门.......................... 5
概述 ............................................... 5
充电器 ........................................... 5
为电池充电 ................................... 6
启动或关闭耳机 ........................... 6
启动 ............................................ 6
关闭 ............................................ 6
配对并连接耳机 ........................... 7
将耳机与带有音乐播放器
功能的手机配对并建立连接 .... 7
将耳机与音乐播放器配对
并建立连接 ................................ 7
断开耳机的连接 ........................ 8
重新连接耳机 ............................ 8
3. 基本使用方法................... 9
将耳机佩戴在耳部 ....................... 9
调节音量 ....................................... 9
通话管理 ....................................... 9
欣赏音乐 ..................................... 10
清除设置或恢复耳机的
出厂设置 ..................................... 10
4. 电池信息........................ 11
维护和保养........................ 12

简介
4 © 2007 诺基亚。保留所有权利 。
1. 简介
使用诺基亚蓝牙立体声耳机 BH-503，您可以欣赏兼容的音乐播
放器播放的音乐，并可以使用手机拨打和接听免提通话。音乐播
放器可以是手机的音乐播放器功能或单独的音乐设备。
您可以将耳机与支持蓝牙无线技术的兼容设备配合使用。
使用耳机前，请仔细阅读本 《用户手册》。另请阅读手机的 《用
户手册》，其中包括了重要的安全和维护信息。此外还应阅读音
乐设备的 《用户手册》。请将耳机及其配件放置在小孩接触不到
的地方。
■蓝牙无线技术
采用蓝牙无线技术，可以在兼容设
备之间建立无线连接。蓝牙连接不
要求保持耳机和其他设备相互正
对，但二者之间的最大距离不应超
过10 米(约33 英尺)。两台设备之
间的距离越近，性能越好。图中的
深灰色部分表示最佳工作范围。蓝
牙连接可能因为距离、障碍物 (图
中浅灰色部分) 或其他电子设备而
受到干扰。
此耳机符合第 2.0 版蓝牙规范及
EDR (Enhanced Data Rate，增强型数据速率) 标准且支持以下蓝牙
模式：第1.1 版耳机模式、第 1.5 版免提模式、第 1.0 版高级音频
传输模式 (A2DP) 和第 1.0 版音频视频远程控制模式。请向其他设
备的制造商咨询该设备是否与本耳机兼容。
在某些场所，使用蓝牙无线技术可能受到限制。请向当地的主管
部门或服务供应商咨询。
<10m

使用入门
© 2007 诺基亚。保留所有权利 。5
简体中文
2. 使用入门
■概述
耳机由以下部分组成：
• 音量降低键 (1)
• 音量提高键 (2)
• 多功能键 (3)
• 指示灯 (4)
• 充电器插孔 (5)
• 快退键 (6)
• 播放/暂停键 (7)
• 快进键 (8)
• 麦克风 (9)
您必须先为电池充电并在兼容手机和耳机间配对，然后才可以开
始使用耳机。
耳机的某些部件具有磁性。金属物体可能被吸附在耳机上。请勿
使信用卡或其他磁性存储介质靠近耳机，以免因消磁而丢失其所
储存的信息。
■充电器
使用任何充电器为本耳机充电前，请先检查充电器的型号1。本耳
机需由 AC-4、AC-5 和DC-4 充电器供电方可使用。
警告：仅可使用经诺基亚认可，适用于此特定型号耳机的充电
器。使用其他类型的充电器会违反对耳机的认可或保修条款，
并可能导致危险。
切断任何配件的电源时，应握住并拔出插头，而不是拉扯电源
线。
1. 充电器的具体型号因插头类型的不同而不同。在中国大陆地区销售的充电器
类型为 AC-6C。
789

使用入门
6 © 2007 诺基亚。保留所有权利 。
■为电池充电
本耳机配有内置式不可拆卸充电电池。请勿尝试从耳机中取出电
池，以免损坏耳机。
1. 将充电器插到交流电源插座上。
2. 将充电器连接线插头插入充电器插孔。充电时，指示灯为红
色。在充电开始前，可能需要稍候片刻。如果未开始充电，请
断开充电器的连接，重新插入充电器插头，然后再试。
为电池完全充电可能需要 1 小时 15 分钟。
3. 当电池完全充电后，指示灯会变为绿色。先断开充电器与耳机
的连接，然后从交流电源插座上拔出充电器。
完全充电的电池可提供上限约为 13 小时的通话时间，上限约为
10 天的待机时间或上限约为 13 小时的音乐播放时间 (或充电 20
分钟可提供 75 分钟的音乐播放时间)。但是，实际的时间可能因
与不同的兼容蓝牙设备一起使用，以及不同的使用设置、使用方
式和环境而有所不同。
当电池电量不足时，耳机会以固定间隔蜂鸣，且指示灯会以红色
缓慢闪烁。此时，请尽快为电池充电。
■启动或关闭耳机
启动
要启动耳机，请按住多功能键约 2 秒钟。耳机会蜂鸣，且绿色指
示灯会短暂亮起。
当耳机尝试连接最近一起使用过的配对手机或音乐播放器时，指
示灯会以绿色缓慢闪烁。当耳机连接至配对设备且准备就绪时，
指示灯会以蓝色缓慢闪烁。如果耳机未与设备配对，则会自动进
入配对模式 (请参见第 7页的 “配对并连接耳机” )。
如果已将耳机连接至设备但在一段时间内不会使用，请关闭耳机
以节省电量。
关闭
要关闭耳机，请按住多功能键约 5 秒钟。耳机会蜂鸣，且红色指
示灯会短暂亮起。

使用入门
© 2007 诺基亚。保留所有权利 。7
简体中文
■配对并连接耳机
将耳机与带有音乐播放器功能的手机配对并建立连接
如果手机支持 A2DP 蓝牙模式且支持音乐播放器功能，则可以使
用手机来拨打和接听电话并使用耳机来播放音乐。
1. 确保手机已开机。
2. 如果耳机以前未与任何设备进行过配对，请启动耳机。耳机会
进入配对模式，且指示灯会开始以蓝色快速闪烁。
如果耳机以前曾与其他设备进行过配对，请关闭耳机，然后按
住多功能键直至指示灯开始以蓝色快速闪烁。
3. 启动手机的蓝牙功能，并设定手机开始搜索蓝牙设备。有关使
用说明，请参见手机的 《用户手册》。
4. 从已找到设备的列表中选择耳机。
5. 输入密码 0000 以配对耳机和手机并在二者之间建立连接。对
于部分手机，您可能需要先进行配对，然后再将耳机连接至手
机。您只需要为耳机和手机配对一次。
如果配对成功，耳机会显示在手机的功能表中，且您可以在该功
能表中查看当前配对的蓝牙设备。
当耳机连接至手机且准备就绪时，耳机的指示灯会以蓝色缓慢
闪烁。
将耳机与音乐播放器配对并建立连接
如果手机不支持 A2DP 蓝牙模式，则可以分别将耳机与手机和支
持该蓝牙模式的音乐播放器配对。
如果已将耳机与手机配对并建立连接，请在将耳机与音乐播放器
配对前断开耳机与手机的连接。
要将耳机与音乐播放器配对，请按第 7页的 “将耳机与带有音乐
播放器功能的手机配对并建立连接”中的说明操作。如果音乐播
放器没有键盘，则可能使用默认蓝牙密码 0000。如果密码不正
确，请参见音乐播放器的 《用户手册》以将默认蓝牙密码更改为
0000。

使用入门
8 © 2007 诺基亚。保留所有权利 。
如果配对成功且耳机已与音乐播放器建立连接，则耳机的指示灯
会以蓝色缓慢闪烁。
断开耳机的连接
要断开耳机与设备的连接，请关闭耳机或使用设备的蓝牙功能表
断开连接。
您不需要为了断开连接而删除与耳机的配对。
重新连接耳机
要将耳机重新连接至最近一起使用的手机或音乐播放器，请启动
耳机，或使用设备的蓝牙功能表建立连接。
在设备中，也许可以允许耳机在启动时自动与设备建立连接。
要在诺基亚设备中实现此目的，请在蓝牙功能表中更改配对设
备设置。
