EMBARK ON YOUR JOURNEY WITH CAUTION: YOUR SAFETY MATTERS
Prioritize safety as you venture forth into this remarkable expedition – a fusion of Nomadic’s
pioneering essence and your intrepid spirit, where your welfare remains the North Star guiding
every step of the way. To ensure you set forth fully equipped, we strongly advocate engaging in
the training courses offered by Nomadic Cooling. These courses are designed to empower you
with the skills needed to properly install and maintain the NC-X3 rooftop AC unit. Navigate
this path with assurance, relying on the comprehensive instalation and operation instructions
as your navigational aids. These valuable directives contain essential warnings and notes, pro-
viding a safeguard for your instalation.
Improper operation or maintenance of the NC-X3 rooftop air conditioner may cause adverse
consequences, including damage to vehicle components. Read and comply with warnings and
notes in these instalation and operation instructions of this product. Only Nomadic’s original
accessories are allowed.
To guarantee the best cooling performance, cool down cabin via the vehicle’s original AC sys-
tem before engaging the NC-X3 for stationary use.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS..... 2
ITEMIZED PARTS LIST .....................3
CONTROL PANEL LEGEND ............... 4
REMOTE CONTROL DESCRIPTION ........5
COMMON FAULT CODES .................6
MAINTENANCE AND DISCLAIMERS .......7
DIMENSIONS............................. 8
CONTACT INFORMATION ................ 8
Keep a record of the following information:
Model No.
Serial No.
Date Purchased
Installed By
NC-X3

Nomadic Cooling Co 3 NC-X3Operation Manual

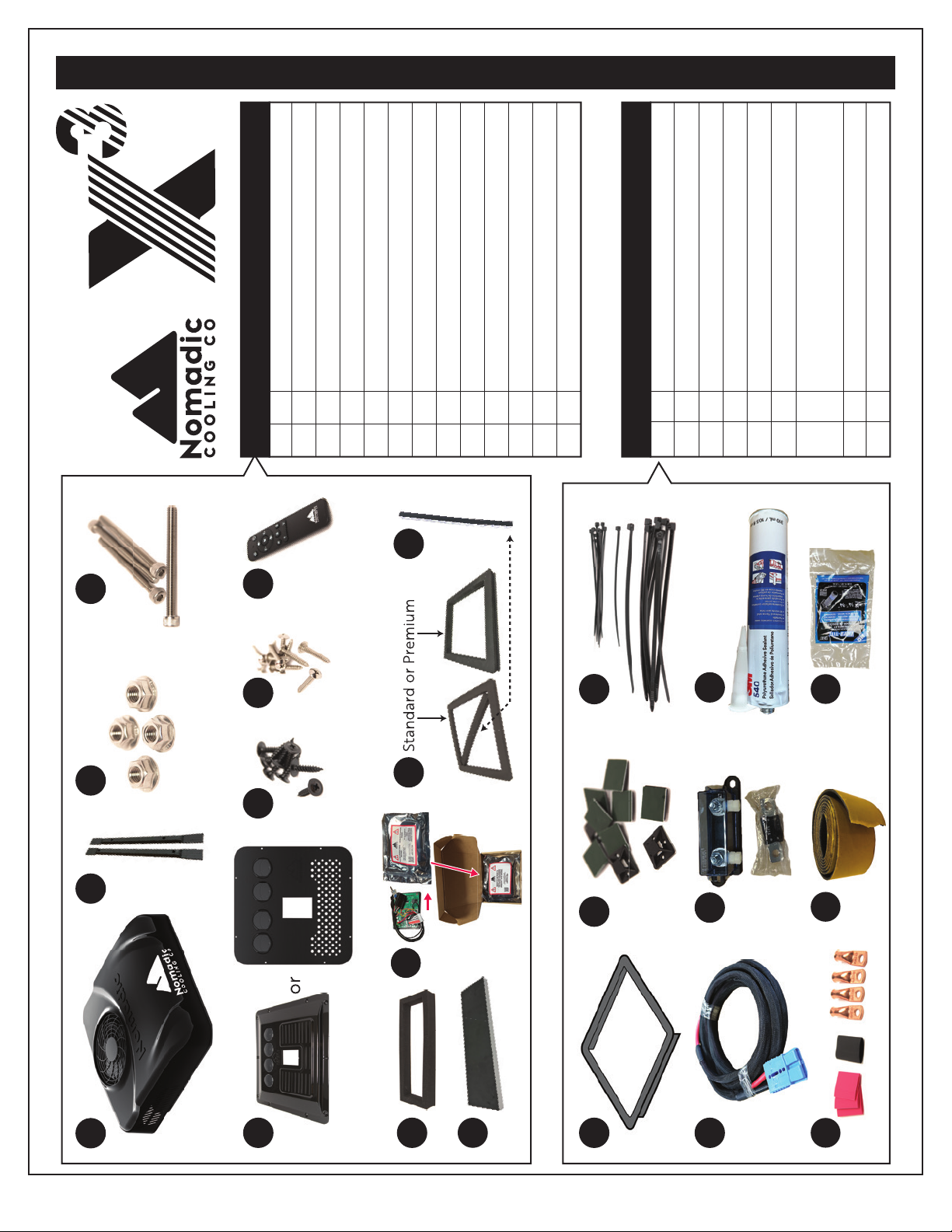

ITEMIZED PARTS LIST
A
T
U V
M
L
J
I
H
G
F
E
OP
N
QRS
A
CB
BOX 1: NC-X3Pro Only AC Unit Kit A 1 NC-X3 Air Conditioner B 2 Crossbars
C 4 Stainless steel mounting nuts D 4 Stainless steel mounting bolts E 1 ABS or flush powder coated facepate F 9 Back vent pate self-drilling screws G 9 Silver (alternative) vent pate screws
H 1 Remote control
I 11 Open cell foam filter air separator J 1 Closed cell foam air separator K 1 Boxed pre-wired control panel in bag
L 1 Standard or Premium gasket
M 1 Leveling strip
BOX 2: NC-X3DIY Kit N 1 Trim ring
O 10 Sticky pates for zip ties P 20 Zip ties (10 arge + 10 small) Q 1 Wire harness (15 ft) + R 1 Bagged fuse holder and 125A fuse
S 1 Tube of Adhesive Seaant with pastic tip
T1
Bagged 2 AWG 5/16” lugs, 3 red and
1 back heat shrink 3/4“
U 1 Wide thermo tape (5.5 ft)
V 1 Tube of threadlocker
D
OPTIONAL:
K

NC-X3Operation Manual 4 Nomadic Cooling Co

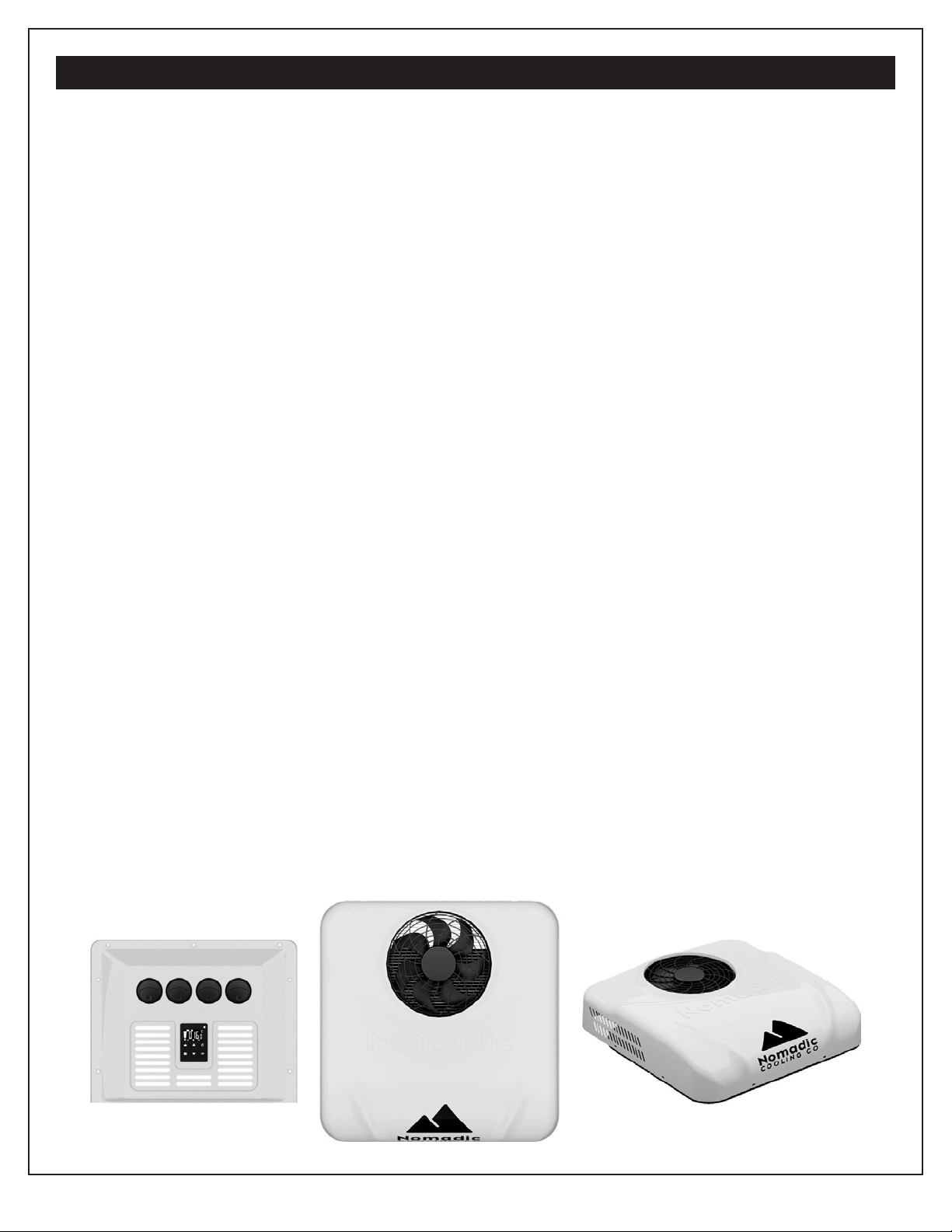

CONTROL PANEL LEGEND
1. ON-OFF: Press to switch the device
ON or OFF.
2. Mode: Press and release the mode but-
ton to switch between Auto, ECO, and
Power modes.
Hold the mode button to cycle through
the following settings:
A. Low Voltage Cutoff
B. High Voltage Cuttoff
C. Maximum Voltage
D. Temp In
E. Temp Out
F. Error Codes
3. Airflow: Each push on this button
corresponds to a cycle through 5
different airflow levels.
4. Auto 78ºF: Pressing this button enables
automatic management towards 78ºF .
5. Temperature “+”: Each push of this
button corresponds to the increase of
1ºF of temperature.
6. Temperature “-”: Each push of this but-
ton corresponds to the decrease of 1ºF
of temperature.
7. Dispay Window: Dispay temperature,
airflow, voltage, error codes and
ambient temperature.
8. Infrared Signal: Acceptance of infrared
signal from remote controller by users.
Low-Voltage Protection Function
Settings: Press and hold on “78ºF” button until
screen starts blinking to adjust low-voltage
cutoff value via Temp “+” or “-” button. The
default value is 11.4V, and can range between
9-11.5V. Long press on “78 ºF” button again for 5
seconds to set.
In order to ensure the usage time, it is recom-
mended to use the battery after it is fully charged.

Nomadic Cooling Co 5 NC-X3Operation Manual
REMOTE CONTROL DESCRIPTION
1. ON-OFF: Turns unit on and off
2. Power Mode is used for fast cooling.
3. Eco Mode is used when resting or
reading is preferred.
In Power Mode, the default airflow is the
biggest with the manual adjustment.
In Eco Mode, compressor is running in
low frequency, airflow is defaulted as
smallest with manual adjustment.
Note: Strong recommendation for Power
Mode less than 20 minutes. Long time
operation will significantly shorten the
duration of use.
When cabin temperature is below 30ºC,
Auto Mode is preferred.
In different modes, users can adjust the
air volume according to their needs.
4. Timer: Use Temp “+” or “-” to set the
timer using half hour increments, for up
to 10 hours. Press the timer key again to
cancel the timer.
5. Temp Query: Cycle switching between
ambient temperature and evaporator
surface temperature.
6. Voltage Query: Dispays voltage reading
7. Temp “+”: Temperature Increase
8. Temp “-”: Temperature Decrease
9. Airflow “+”: Increased Air Speed
10. Airflow “-”: Decreased Air Speed
11. Auto Mode: Automatically sets thermo-
stat to 78º
12. Mode: Normal, ECO, Powerful
(The current product status is in the select-
ed heating and ventiation mode, only the
indoor blower works.)
Error Codes and Trouble Shooting
Failure analysis of no cooling or poor effect:
(1) The power cord connected is too long and
too thin. Poor connection at connector.
(2) No refrigerant or insufficient refrigerant.
(3) Eco mode is used when the temperature
is too high.
(4) Compressor or condensing fan does
not work.
(5) The evaporator or condenser is dirty
or blocked.
S
E
A

NC-X3Operation Manual 6 Nomadic Cooling Co
1. The battery power is insufficient and
under voltage E2.
A. Check the battery for aging and
repace it.
B. If the battery is not fully charged,
it needs to be charged.
C. Connect the negative pole of the
power line to the metal or the genera-
tor, reconnect the wirings or harness.
2. Pressure Fault (System leakage) E4.
• Refrigerant leakage or poor
heat dissipation.
3. Sensor Fault E0 or E1.
A. Check whether the plug-in is loose
and re-insert it tightly.
B. Sensor quality problem, repace
the sensor.
4. High current protection F6, or
electronic fan fault F7.
A. Check the condenser heat dissipation,
whether the surface is dirty/blocked.
B. Check whether the terminal or plug-
in of the power line is loose.
C. Check if the plug-in of the fan is loose,
and plug it in again.
D. Condenser fan failure, repace the fan.
If any of the below codes appear, turn off power to the AC unit. After 5 minutes, turn the AC
unit power back on. If the fault is not solved, please refer to the maintenance manual or contact
the local dealer.
Code Description Troubleshooting
E0 Inlet temp sensor fault Check sensor connector
E1 Outlet temp sensor fault Check sensor connector
E2 Low Voltage Check battery or harness
E3 High Voltage Check battery or power
E4 Pressure (system leakage) Check R134a leakage
F0 Disconnected/Blocked compresso Check cooling fan working / R134a over charge
F1 Compressor driver overheat Check cooling fan working / Ambient >55ºC
F2 Compressor driver wire low-voltage Check harness false connection or not
F3 Compressor driver over voltage Check wire false connection
F4 Compressor driver phase absence Check wire false connection
F5 Driver output overload Check wire false connection
F6 Driver output over current Check cooling fan working / Ambient >55ºC
F7 Cooling fan fault Check cooling fan working
NC-X3FAULT CODES AND PROCESSING METHODS

Nomadic Cooling Co 7 NC-X3Operation Manual
Maintenance
In order to ensure the normal operation of
the air conditioner, please pay attention to
the routine maintenance:
(1) When idle for a long time, please remove
the positive and negative power lines
at the battery end. Inspect the sealing
and avoid negative connection direct
to ground, so as to avoid battery dam-
age caused by long-term electrification.
The power line must be connected to
the battery, and it is strictly forbidden
to connect negative direct to ground or
connect to the generator.
(2) Maintainance routine every three months
includes cleaning evaporator and con-
denser, and checking internal and ex-
ternal circuits. The maintenance cycle
should be shortened in special working
conditions, such as dusty and extreme
temperature environments.
(3) It is recommended to power the AC unit
with a battery bank. The use of gen-
erators, soar panels or other external
charging equipment should be used only
for auxilary power.
Discaimers
(1) Nomadic Cooling provides instalation
videos and instalation instructions, but
users must install in accordance with the
videos and instructions. If a user fails to
install in accordance with the instalation
video and instructions provided, errors or
damage and other accidents may occur,
and the user shall bear the responsibil-
ity. The maintenance and material costs
caused by the user shall be paid sepa-
rately, and Nomadic Cooling will not bear
any responsibility.
(2) The user must pay attention to safety
issues during the instalation process.
If personal safety issues occur, the user
must bear the responsibility.
(3) If the user changes the air conditioning
unit in any way, or repaces parts and
components that are not the original, the
user shall bear the responsibility of any
damage to the air equipment and per-
sonal safety. Nomadic Cooling will not
bear any responsibility.
NC-X3MAINTENANCE AND DISCLAIMERS

NC-X3Operation Manual 8 Nomadic Cooling Co

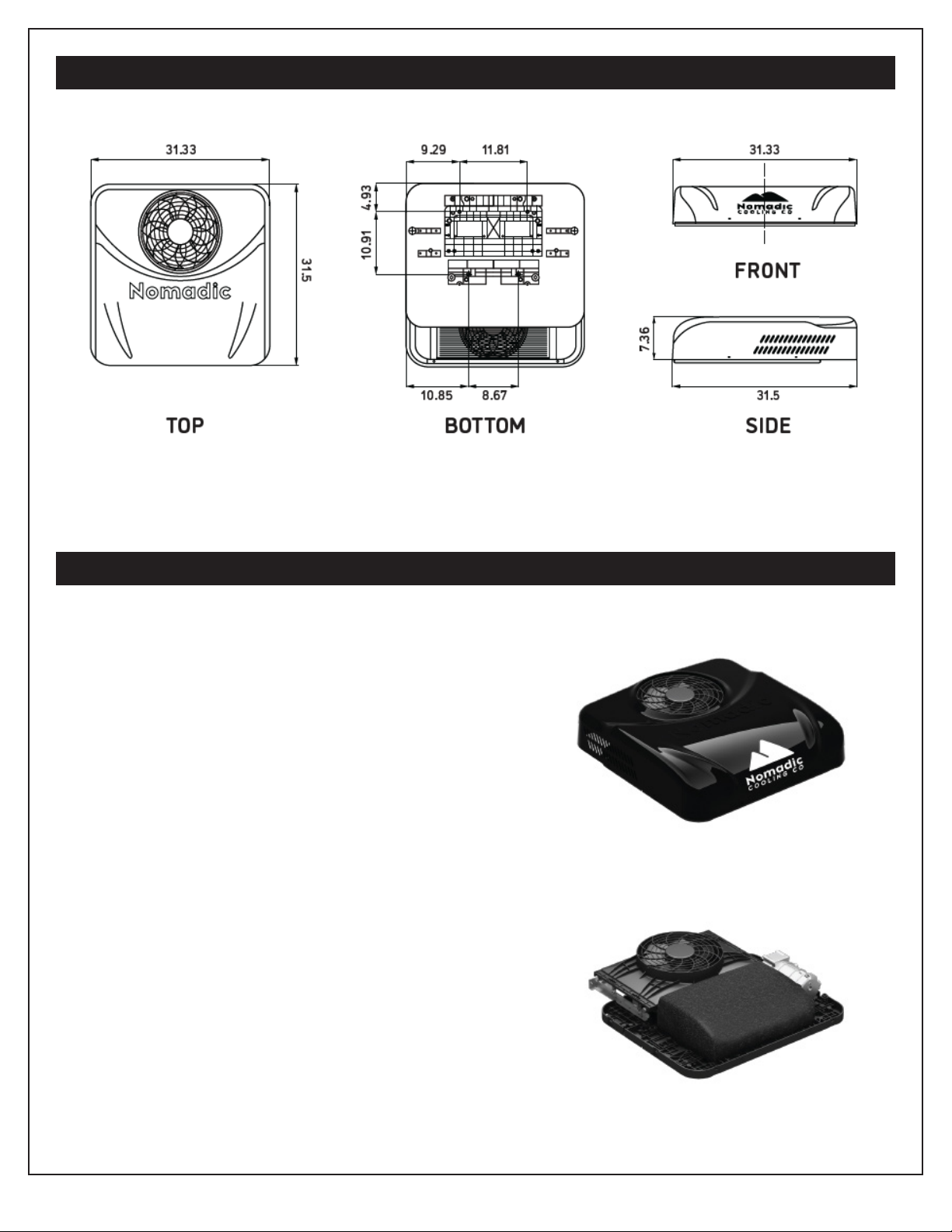

NC-X3DIMENSIONS
NOMADIC COOLING CO CONTACT INFORMATION
NOMADIC COOLING CO
Address: 16680 N 51st Ave
Units 4 & 5
Glendale, AZ 85306
Hours: Monday 9am-5pm
Tuesday 9am-5pm
Wednesday 9am-5pm
Thursday 9am-5pm
Friday 9am-5pm
Saturday Closed
Sunday Closed
Phone: [phone]
Email: [email protected]
Website: NomadicCooling.com
YouTube: NomadicCooling
Instagram: @NomadicCooling
