Nomadic NC-X3 Manual

NC-X3Install Manual
16680 N 51st Ave Units 4 & 5
Glendale, AZ 85306
[phone]
www.NomadicCooling.com/Support
Version 23122648V | 24V | 12V

NC-X3Instalation Manual 231226 2 Nomadic Cooling Co
Keep a record of the following information:
Model
Serial No.
Date Purchased
Installed By
TABLE OF CONTENTS
INTRODUCTION ..........................2
RETURNS..................................2
ITEMIZED PARTS LIST (48V)................3
ITEMIZED PARTS LIST (12/24V).............4
NC-X3 EXPLODED COMPONENT VIEW ....5
IMPORTANT SAFETY INSTRUCTIONS......6
NC-X3SPECIFICATIONS ...................7
INSTALLATION STEPS .....................8

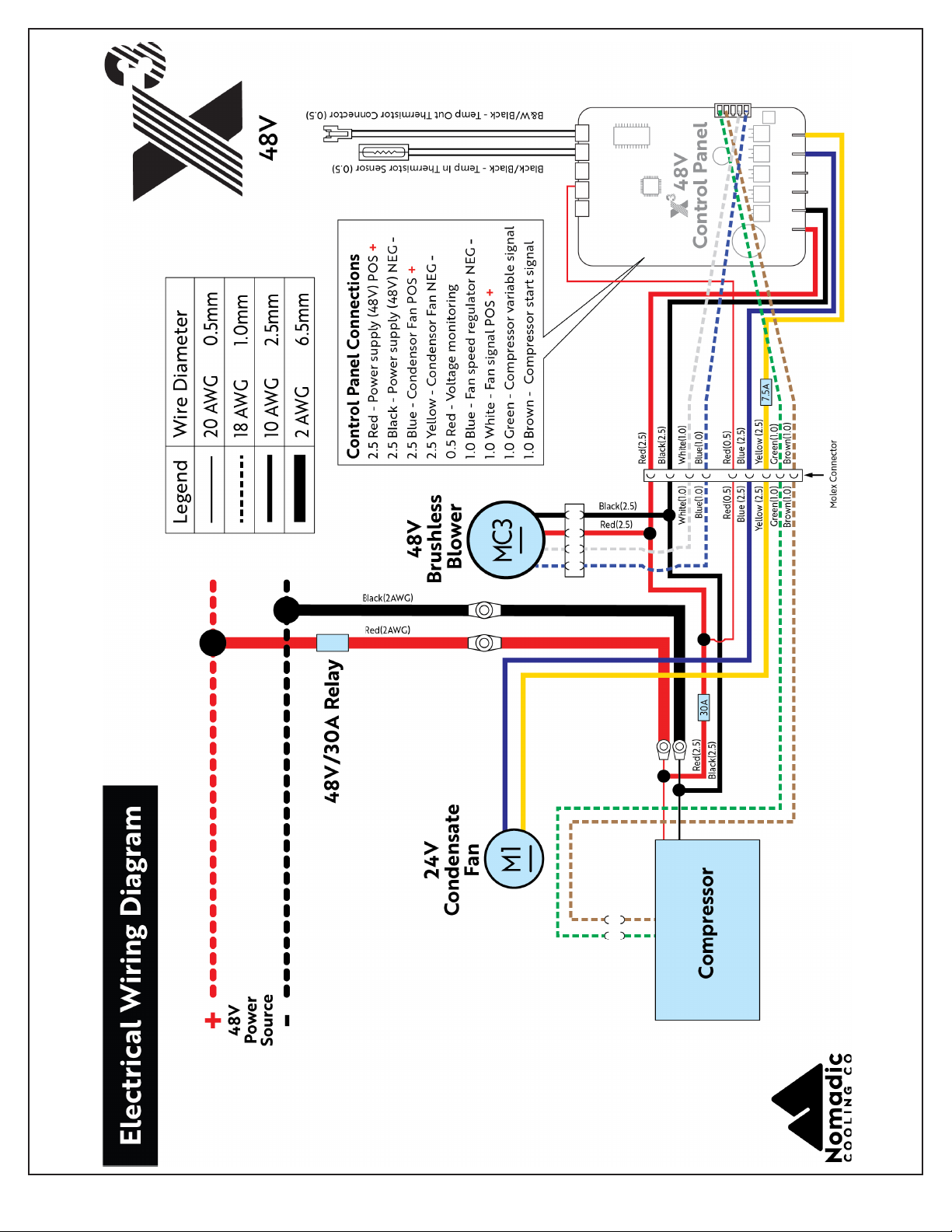

ELECTRICAL WIRING DIAGRAM 48V......13

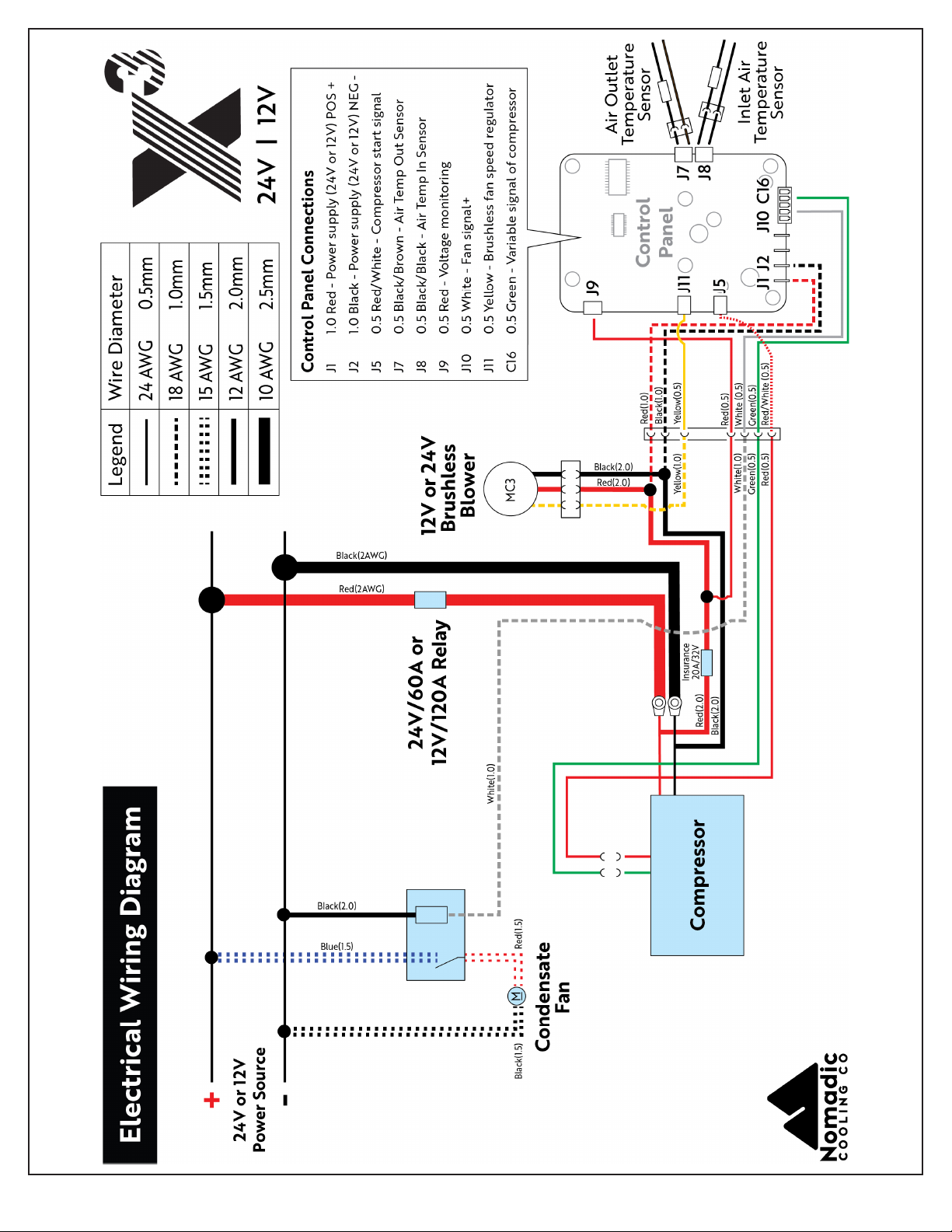

ELECTRICAL WIRING DIAGRAM 12/24V...15
WARRANTY POLICY......................17
RETURNS, CANCELLATIONS, and
MISSING PARTS .........................18
INTRODUCTION
The NC-X3Air Conditioner (“AC unit”) is de-
signed and intended for instalation on the
roof of a recreational vehicle during or after
the vehicle is manufactured.
The NC-X3can be installed by one person with
brief help from one additional person. Reading
this instalation manual in its entirety first will
ensure the proper instalation and function of
the NC-X3.
RETURNS
Nomadic Cooling will gadly accept returns
within 30 days of receiving the order. Only
items in their original condition with all
packaging, accessories, instruction manuals,
warranty cards, and UPC codes will be ac-
cepted. Any returns after 30 days are subject
to approval.
Nomadic Cooling reserves the right to modify
appearance and specifications without notice.
Always bench test AC unit
before installing.
Check to ensure all required
parts are included (see page 3).
16680 N 51st Ave Units 4 & 5
Glendale, AZ 85306
[phone]
www.NomadicCooling.com/Support
NC-X3Rooftop AC Unit |
48V
24V
12V

Nomadic Cooling Co 3 NC-X3Instalation Manual Version 231226
ITEMIZED PARTS LIST

NC-X3Instalation Manual 231226 4 Nomadic Cooling Co
ITEMIZED PARTS LIST

Nomadic Cooling Co 5 NC-X3Instalation Manual Version 231226
AC Base Plate
AC
Unit and Shroud
Foam Gasket
Vehicle Roof
Optional X3
Trim Ring (DIY Kit)
Crossbars
16680 N 51st Ave Units 4 & 5
Glendale, AZ 85306
[phone]
www.NomadicCooling.com/Support

NC-X3Instalation Manual 231226 6 Nomadic Cooling Co
This manual contains safety guidelines and
instructions that can aid in reducing or elim-
inating the risk of accidents and injuries.
A. Recognizing Safety Information
The safety alert symbol is utilized to notify
potential physical injury hazards. To avoid
possible injury or death, follow all safety
messages that come after this symbol.
B. Understanding Signal Words
Signal words identify safety and property
damage messages and indicate the degree
of hazard seriousness.
WARNING is used for hazardous situ-
ations that could result injury (includ-
ing death, severe, moderate or minor
injury if not avoided.
NOTICE is used for situations that
could result in AC unit or vehicle
damage or unnecessary complications
in the instalation process.
HELPFUL TIP is used for useful
information or best practices.
C. Supplemental Directives
To avoid potential injury and even death,
read and follow all of the safety information
and instructions.
Read and comprehend these instructions
before installing, using, servicing, or maintain-
ing this AC unit. Poor instalation, operation,
servicing, or maintenance of this AC unit can
result in severe injury. Follow all instructions.
The instalation must comply with all appli-
cable local and national codes, including the
atest edition of the following standards:
USA
• ANSI/NFPA70, National Electrical
Code (NEC)
• ANSI/NFPA1192, Recreational
Vehicle Code
CANADA
• CSA C22 1. Parts I & II,
Canadian Electrical Code
• CSA Z240 RV Series,
Recreational Vehicles
D. General Safety Messages
WARNING - Failure to follow the subsequent
warnings could lead to death or serious injury.
• A qualified service technician MUST
install or service this product.
• Do NOT modify this product in any
way. Modifications can be extremely
dangerous and void any warranties.
• Do NOT add any devices or accessories
to the AC unit unless specifically
authorized in writing by Nomadic
Cooling Co.
IMPORTANT SAFETY INSTRUCTIONS

Nomadic Cooling Co 7 NC-X3Instalation Manual Version 231226
NC-X3SPECIFICATIONS

NC-X3Instalation Manual 231226 8 Nomadic Cooling Co
INSTALLATION STEPS
1. Mark your 14”x 14” rooftop opening. DIY
Kit includes a cardboard tempate. Cut
from the exterior of your vehicle.
Never cover AC unit top fan.
When determining AC unit location,
be sure to allow for the shroud (cover)
when positioned on the roof.
Make sure there is no electrical or
other encumbrances in the way.
Do not cut into structural beams.
2. Make sure the panned opening is
centered from all four sides. This gives
the best chance for easy instalation.
Use painter’s tape and a permanent
marker to draw your 14”x 14” cutline.
Make multiple passes with the marker.
If you make a mistake repace the
tape and try again. Measure repeat-
edly to make sure your lines create a
perfect 14”x 14” square.
3. Drill each corner of your markings
through the roof. This will make it easier
to detect the location of your 14”x 14”
opening from the underside of your roof.
Use a 1/8” drill bit for corner holes.
4. Cut on your lines using a jig saw, nibbler
or cutting wheel.
Use a sander or file to smooth out the
rough edges after cutting.
14”
14”
14”14”
Exterior Roof
Vehicle Front
Exterior Roof
14”
14”
14”14”
Exterior Roof

Nomadic Cooling Co 9 NC-X3Instalation Manual Version 231226
5. Paint around the edges of the cut roof
opening to prevent rust. You can use any
color rust-preventative paint.
6. Remove tape and clean exterior surface.
7. Remove 14”x 14” waterproof gasket
from box.
Make sure area/paint is clean, dry and
clear of all debris.
Use alcohol wipes or PrepSol to
remove oil or wax from vehicle roof.
If pacing gasket over a high or uneven
roof surface, remove small amounts of the
14”x 14” gasket to match roof contours.
Use bade to cut away gasket
if needed.
Remove gasket adhesive only after
making any necessary cuts. Pace the
gasket sticky side down.
8. Apply window weld/adhesive around
14”x 14” gasket, after sticking it down on
vehicle roof. DIY kit includes a tube of
polyurethane adhesive seaant.
9. Pace AC unit on roof over 14”x 14” gasket
gently. Measure side-to-side until unit is
centered on all four sides.
Be careful not to puncture, rip
or tear the gasket with the AC
unit’s mounting bolts.
Do not put adhesive on top of gasket.
Do not damage electrical components
when pacing AC unit.
10. Adhere optional leveling strip behind the
14”x14” gasket. If you do, remove the two
rubber feet at the back of the AC unit.
Exterior Roof
Exterior Roof
URETHANE ADHESIVE
CUTAWAYS FOR ROOF RIDGES
Leveling strip
14” x 14” gasket
Adhesive side

NC-X3Instalation Manual 231226 10 Nomadic Cooling Co
11. From inside the vehicle add the crossbars
with mounting bolts to securely attach
AC unit to the roof.
A trim ring (included with DIY kit) should be
paced between the vehicle roof and the AC
unit before crossbars are added.
Do not use electric drill on crossbars.
Put the washer/lock washer on each M8 bolt
and hand tighten (+1/4 turn) bolt into the AC
base pate until the crossbars are secure.
Tighten all four of the nuts to the crossbar to
3.7 lbs. of torque (~5 nm).
AC unit will help to create pressure.
When securing AC unit to the vehicle,
increased compression of the gasket
will level the unit against the roof. No
light should be visible.
Do not over-tighten mounting bolts.
Bolts will rotate if over torqued, and
may break from AC base pate.
Over-tightening will void warranty.
Our gaskets are used for vibration
absorption. It is very high density and
can’t be compressed more than 10%.
Use gasket tension to control AC unit’s
distance from roof surface.
AC unit should be resting on foam gasket
and not on the vehicle’s roof.
Over-compression of the AC unit to
the roof may cause the internal fan to
rub against the fan housing.
Be sure the fan bades rotate freely
prior to starting the AC unit.
Interior Roof
Trim Ring
Crossbars
Interior Roof

1. Hand tighten bolt un-
til flush with crossbar.
2. Then tighten nut to
3.69 lbs. (5 nm.) of
torque.
Fat side up

Nomadic Cooling Co 11 NC-X3Instalation Manual Version 231226
12. Install and connect LCD control panel
before connecting to power to avoid
blowing internal fuse.
An appropriately-sized fuse must be
paced between your power source
and the AC unit:
48V = 30A fuse
24V = 60A fuse
12V = 125A fuse
An appropriate fuse and fuse holder is
included in the Host or DIY box.
13. Connect DC power wires to unit. “Quick
Connection to DC Wiring Harness” included
.
Make sure wiring is appropriately
sized and is no smaller than:
2AWG for 12V/24V, or
4AWG for 48V AC units.
14. Attach LCD control panel and AC
wiring harnesses.
15. Attach thermostat wires to control panel
wiring harness.
For details of control panel connections,
refer to electrical wiring diagram on page 12.
Condenser is always to the left of the
back wire. Be careful not to break
these wires.
16. Use the foam separator to properly sepa-
rate hot air from cold air as it enters and
exits the AC unit.
17. Use heat resistant tape to secure the air
separator in pace. Use your best judg-
ment on how much tape to use and
where to adhere it, as every instalation is
different. The tape helps the air separator
keep the warm and cool air separated.
AC unit centered
on foam gasket
Foam separator
AIR IN AIR OUT
To AIR-OUT sensor
To Control Panel

NC-X3Instalation Manual 231226 12 Nomadic Cooling Co
18. Test all connections between the
power source and the unit for excessive
heat during normal operations.
19. Install facepate. Line up the facepate
vents with the air-out fan openings in the
AC base pate. Use the 8 screws to secure
the facepate to the ceiling of your ve-
hicle. The DIY kit screws do not require
pre-drilling into the ceiling, regardless of
finish or material (wood or metal).
The facepate does not screw into the
base of the AC unit. It attaches (flush)
to the vehicle’s ceiling directly.
Congratulations!
Your Nomadic Cooling X3AC unit rooftop
instalation is complete. Now...
Exploded NC-X3Components
Vehicle Ceiling

Nomadic Cooling Co 13 NC-X3Instalation Manual Version 231226

NC-X3Instalation Manual 231226 14 Nomadic Cooling Co
Shown below is a properly wired LED Control Panel for X3 48V model.
Red
Red Blue
Back Yellow
Brown &
Green
Back & Back
to internal
thermistor
sensor
White &
Blue
48V B&W & Back
to external
thermistor
connector

Nomadic Cooling Co 15 NC-X3Instalation Manual Version 231226

NC-X3Instalation Manual 231226 16 Nomadic Cooling Co
Shown below is a properly wired LED Control Panel for X3 12V and 24V models.
Red
Yellow
Red and
White
Red WhiteBack Green
24V | 12V
Back & Brown
to ambient
thermistor
connector
Back & Back
to interior
thermistor
sensor

Nomadic Cooling Co 17 NC-X3Instalation Manual Version 231226
Nomadic Cooling is dedicated to delivering top-quality
products coupled with outstanding customer service. We
provide an industry-leading warranty for our products to
ensure your satisfaction and peace of mind. Technical
support is avaiable for the lifetime of any X Series AC
unit. Please review the following warranty policy.
1. Warranty Period
All X Series AC units are covered by a one year war-
ranty period which begins on date of purchase. An
optional one-year extended warranty is avaiable if
purchased prior to initial warranty period expiration.
Note: X3AC units purchased prior to December 1, 2023
are covered by an initial two-year warranty.
2. Warranty Coverage
During the warranty period, the Nomadic Cooling Co
Warranty will cover all X Series AC units that experi-
ence any defects due to manufacturing or workman-
ship issues. The customer shall be responsible for all
shipping costs to get the X Series AC unit to and from
Nomadic Cooling for inspection, repair, repacement
or upgrade.
3. Optional Extended Warranty (X2 and X3)
You may purchase a one-year extended warranty for
any X Series AC unit which provides the same cover-
age as described above (#2).
4.Optional Refundable Core Charge
If you wish to have a repacement X Series AC unit
shipped prior to Nomadic Cooling receiving the warran-
tied unit, a core charge of up to 50% of the Manufactur-
er’s Suggested Retail Price (MSRP) may apply. This core
charge is intended to ensure the return of the warran-
tied unit to Nomadic Cooling. The core charge will be
added to the purchase price of the repacement unit
and is refunded upon Nomadic Cooling’s receipt and
evaluation of the returned unit. If the warranty depart-
ment determines that a defect was due to Nomadic
Cooling’s fault, the core charge will be refunded in full.
5. Exclusions and Limitations
The following are not covered by the warranty:
• Damage caused by misuse, negligence, accidents,
or unauthorized modifications.
• Damage resulting from improper instalation, main-
tenance, or storage.
• Damage caused by natural disasters, fire, water, or
any other external factors beyond our control.
• Normal wear and tear, cosmetic damages, or minor
imperfections that do not affect the functionality
of the product.
• Warranty, including an optional extended warranty,
is non-transferable.
6. Labor Exclusion
Nomadic Cooling’s warranty policy does not cover any
abor costs associated with the inspection, repair, or
repacement of an X Series AC unit. Any additional ex-
penses reated to abor, including but not limited to
instalation, removal, or troubleshooting, shall be the
sole responsibility of the customer.
7. Warranty Caims
To initiate a warranty caim, please e-mail or call us.
Our representatives will guide you through the neces-
sary steps and provide instructions on how to proceed
with the warranty caim.
Please note that this warranty policy is subject to the
terms and conditions stated herein and may be sub-
ject to change without prior notice. Nomadic Cooling
reserves the right to determine the validity of all war-
ranty caims and to make the final decision regarding
repairs, repacements, or refunds.
For warranty caims, additional information
or any questions, please contact us at:
[e-mail]
or call us at [phone].
SERIES
DC-Powered Rooftop AC Units
WARRANTY POLICY
For X Series DC-Powered Rooftop AC Units
231130

NC-X3Instalation Manual 231226 18 Nomadic Cooling Co
RETURNS, CANCELLATIONS AND MISSING ITEMS
Returns
Nomadic Cooling will gadly accept returns
within 30 days of acceptance of order. Please
e-mail [e-mail] or call
[phone]. Any returns after 30 days are
subject to prior approval.
Only items in their original condition with all
packaging, accessories, instruction manuals,
warranty cards, and UPC codes will be accept-
ed for return.
A 15% restocking fee will be assessed for all
return orders. Customers are responsible for
the cost of shipping of any product returned
to Nomadic Cooling. We are happy to arrange
for return shipping using our provider rates,
or shipping can be arranged independently.
Returns must include a tracking number.
If a returned product arrives at Nomadic
Cooling with damage due to mishandling,
poor packaging, or in otherwise unusable con-
dition for resale, then an additional fee may
be assessed.
Products should be returned to:
Nomadic Cooling Co
16680 N 51st Ave Unit 4-5
Glendale, AZ 85306
Due to some products being shipped direct-
ly from the manufacturer, please check with a
Nomadic Cooling employee where to send all
other returns.
Returned products will be assessed for dam-
age upon receiving at Nomadic Cooling.
Refunds will not be processed until the
product is received, inspected, and/or tested
by Nomadic Cooling.
All refunds will be processed back to the
original payment method and/or store credit.
Order Cancelations
If you wish to cancel your order for any rea-
son, please let us know as soon as possible.
Please e-mail [e-mail] or
call [phone].
If you are canceling before the order has
been shipped, then we will process a refund
back to the original payment method. If you
are canceling after the order has been ful-
filled, then the cancelation will be processed
as a return and is subject the restocking fee
and shipping costs. If applicable, you will be
responsible for any “stop and return” fees.
Missing Items
Upon receiving your order from Nomadic
Cooling, please immediately open the pack-
age and inspect the contents to ensure all
items from the order have been included. If
you suspect that an item is missing or the in-
correct item was sent, please notify a Nomad-
ic Cooling employee ASAP so we can assess
the order. If you fail to notify Nomadic Cool-
ing within 14 days of accepting an order with
missing or incorrect items, then you will be
responsible for shipping costs for the missing
or incorrect item(s).
To better prevent orders with missing or
duplicate items, and for ease of tracking,
Nomadic Cooling will only be shipping orders
once all items in the order are ready for ship-
ping. Nomadic Cooling will not send partial
shipments. Exceptions may occur when spe-
cifically requested by the customer and/or
item(s) in the order are on backorder. Prod-
ucts are shipped the same day they are pack-
aged and ready, unless requested otherwise.
