Norcross HawkEye H22FX User manual

w w w . h a w k e y e e l e c t r o n i c s . c o m
Thank you for purchasing a HawkEye®
product, and welcome to the innovations of
NorCross Marine Products, Inc. To ensure
safety and many years of trouble-free operation of your product, please read this
manual carefully before using this product.
SAFETY INFORMATION:
Read this instruction manual carefully before attempting to install or operate
this device.
Periodically wipe the case with a dry cloth. Do not use abrasives or solvents
on this device.
Only qualified personnel should perform repairs or servicing not covered in
this manual.
The LCD used in the product is made of glass. Therefore, it can break when
the product is dropped or impacted.
Keep this product away from heat sources such as radiators, heaters, stoves
and other heat generating sources.
Do not store in extreme temperatures above 150° F (65° C).
Shade the LCD during storage. Do not expose LCD to direct sunlight for
extended periods of time.
NOTES, NOTICES, AND CAUTIONS
WARNING: Indicates a potential for property damage, personal injury or
death.
IMPORTANT: Indicates potential damage to the device and tells you how
to avoid it.
NOTICE: Indicates important information that helps you make better use
of the device and tells you how to correct a performance problem.
INFORMATION: Indicates resources to obtain the proper information to
help you make the most of your device.
WARNING:
This depth finder should not be used as a navigational aid to
prevent grounding, boat damage, or personal injury. Always
operate the boat at slow speeds in unfamiliar water, or if you
suspect shallow water or submerged objects.
USER’S GUIDE
H22FX –HawkEye® Handheld Sonar System with Integrated LED Flashlight

w w w . h a w k e y e e l e c t r o n i c s . c o m
INFORMATION:
Read this manual completely before attempting to use or
install your device. Visit our Customer Service Center on our
website for advanced troubleshooting and technical support.
WARNING:
Unlike the HawkEye® H22PX Handheld Sonar System, the
H22FX Handheld Sonar System with Integrated LED
Flashlight can NOT be used for Diving. It is waterproof to 3
feet (1 meter). It can be used as an underwater light for night
fishing, as long as it is not submerged deeper than 3 ft (1 m).
Permanent damage will occur if it is submerged deeper than 3 ft (1 m).

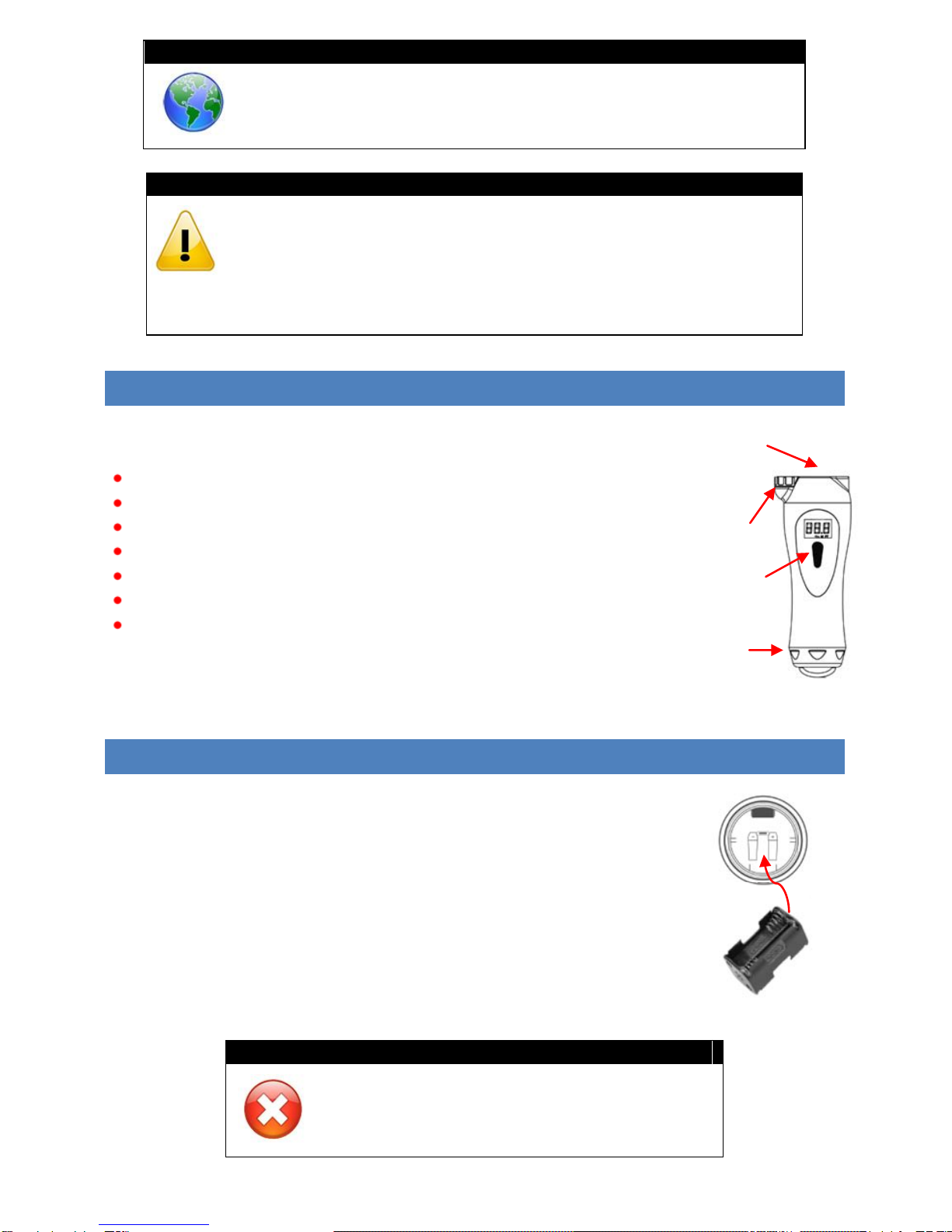

PARTS SUPPLIED IN PACKAGING:
The Following Parts should be included in your H22FX
Packaging:
H22FX Handheld Sonar System with LED Flashlight
Battery Cap
Battery Holder (inside the battery compartment)
Lanyard (attached to the Battery Cap)
FreedomClub Card
User’s Guide
4 Flashlight Lense Caps (clear, green, blue & red)
If any items are missing or damaged, please contact our
customer service department.
INSTALLING THE BATTERIES:
1. Open the battery cap by unscrewing the battery cap
counter-clockwise.
2. Remove the battery holder and install four ‘AA’
batteries. Be certain to align the batteries as per the
diagram inside the battery compartment.
3. Align the channels on the battery holder with the
grooves inside the electronics housing.
4. Insert the battery holder into the electronics housing,
terminal side down, and turn the cap clockwise until
snug (do not over-tighten).
IMPORTANT:
To ensure the device remains water tight,
coat the Battery Cover O-Ring with silicon
grease (available at any dive shop) each
time you replace the batteries.
XXXX
Sonar
Sensor
LED
Flashlight
Battery
Cap
Activation
Switch

w w w . h a w k e y e e l e c t r o n i c s . c o m
WARNING:
Never mix different brands of batteries. Never mix new and used
batteries (alkaline, lithium, argon zinc, & rechargeable). Never
use damaged batteries. REMOVE BATTERIES DURING
STORAGE. REMOVE DEAD BATTERIES IMMEDIATELY.
NOTICE:
If you are going to be using the H22FX in temperatures below
20º F (-7 ºC) you must use Lithium ‘AA’ batteries. Cold
temperatures significantly reduce the power output of Alkaline
batteries, which will inhibit the performance of the device.

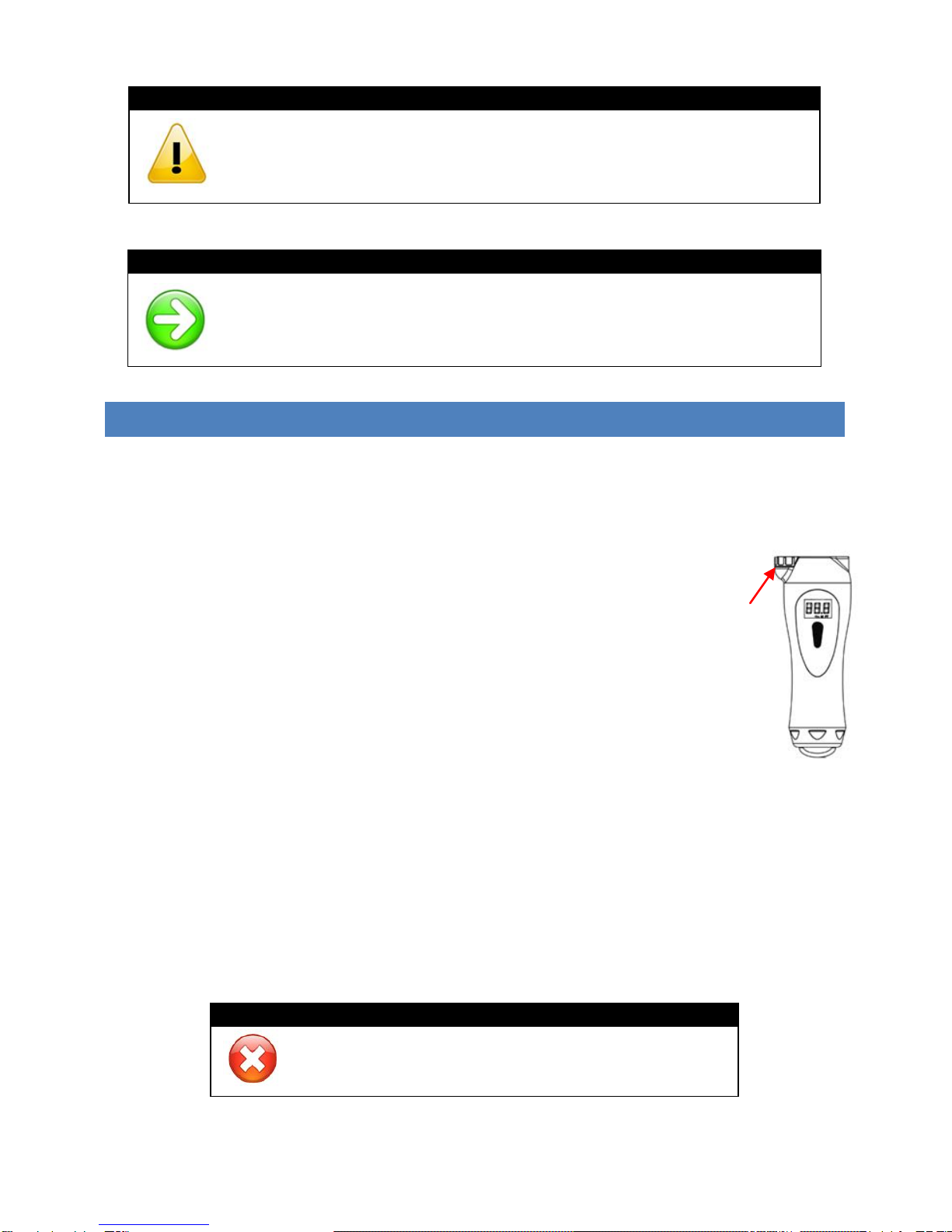

CHANGING THE LED LENS COLOR
The H22FX is supplied with 4 interchangeable lenses that allow you to choose
between white, red, blue, & green flashlight colors. To use it as a fish attractor,
simply hang it off the side of your vessel while night fishing.
White: The best all around light color. It’s high
intensity makes it great for general use or as a fish
attractor.
Red: Use to help preserve night vision when map
reading or for general lighting at night.
Blue: Great for attracting fish in deep blue ocean
water or for slightly murky water.
Green: Great for attracting fish in fresh, brackish or murky water.
To Change Lens Color:
1. Unscrew the flashlight “Lens Cover” counter clockwise and remove it
from the housing.
2. Lubricate the “Lens Cover” O-Ring with silicon grease.
3. Install the colored “Lens Cover” by tightening it in the clockwise direction
until snug. DO NOT over-tighten.
IMPORTANT:
To ensure the H22FX remains watertight, make
sure the lens cover o-ring is coated with silicon
grease (available at any dive shop).
Flashlight
Lens

w w w . h a w k e y e e l e c t r o n i c s . c o m
BASIC OPERATION:
Switching the Readings from English to Metric
1. Remove the battery holder as per the instructions in the
“Installing the Batteries” section.
2. While looking into the battery compartment, use a small
screwdriver, or other slender object, to reach into the
battery compartment and move the switch to the LEFT
for Metric readings, or to the RIGHT for English
readings.
3. Replace the batteries as per the instructions in the
“Installing the Batteries” section.
Obtaining Depth Readings (Depth Reading Mode)
1. Place the sonar sensor side of the device into the
water. Make sure to hold the device perpendicular
to the water surface.
2. Flip the activation switch to the RIGHT.
3. The current water depth will be indicated on the
display:
The depth will continue to update 4 times
per second while the device is left in water
that is between 2.5 and 200 ft deep (.8 and
61 m).
If the device is unable to obtain an accurate
depth reading or if it is removed from the
water “- - -” will be displayed.
4. To turn OFF, return the switch back to the center position.
Obtaining Fish Readings (Fish Finder Mode)
1. If a fish is detected while in the Depth Reading Mode, a
fish icon will illuminate on the display.
2. A blinking fish icon may represent the presence of a
school of fish moving though the sonar beam.
NOTICE:
The device will not obtain readings through air. You CANNOT stand
on the deck of your vessel and obtain readings unless the device is
in direct contact with the water or you use one of the techniques
described within this manual.
NOTICE:
This device will not obtain accurate readings if used in a bucket,
barrel, swimming pool, etc. Closed environments like these create a
sonar bounce effect that the internal software is not designed to
decipher.
Switch
Water Surface
1 X
Fish Icon

w w w . h a w k e y e e l e c t r o n i c s . c o m
Obtaining Temperature Readings (Thermometer Mode)
The H22FX has an integrated temperature sensor built into the sonar sensor
housing.
To Obtain Temperature Readings:
1. Activate the Depth Reading Mode.
2. Once on, flip the activation switch to the CENTER, and then back to the
RIGHT within 1 second.
3. The display will show the current temperature.
To obtain air temperature readings, hold the device in your hand and
activate the Thermometer Mode as per the above instructions.
To obtain water temperature readings, place the Temperature
Sensor into the water and activate the Thermometer Mode.
INFORMATION:
This device has a temperature accuracy rating of plus or minus 5%.
The temperature probe may take up to 90 seconds to adjust to
extreme changes in temperature. If you desire to have instant
temperature readings you may want to consider purchasing the
NorCross® Infrared Marine Thermometer (IR101SP).

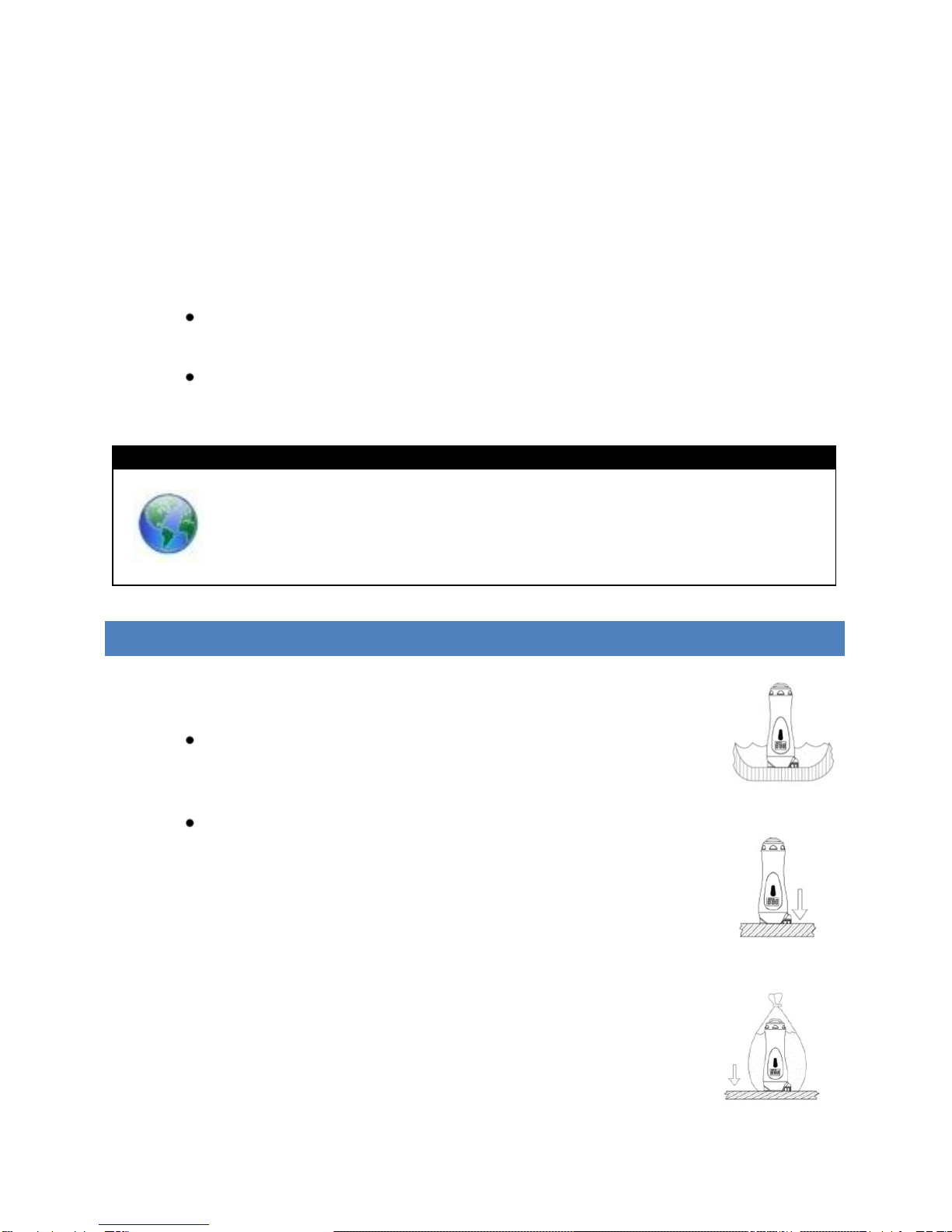

OBTAINING DEPTH READINGS THROUGH A BOAT HULL
The H22FX advanced sonar capabilities allow it to “Shoot-Thru”
the bottom of a boat, canoe, kayak, etc.
The hull must be made out of solid fiberglass, or a
maximum of 1/8” (3.1 mm) aluminum, and be in
direct contact with the water, with no air pockets.
The device will not work through wood, plastic, or
any composite material.
To “Shoot-Thru” the Hull of a Boat, Do One of the Following:
1. Place the transducer in .5 inches (13 mm) of water
against the hull bottom.
2. Coat the face of the transducer with petroleum jelly and
press it against the hull bottom with a twisting motion.
3. Place the transducer in a plastic bag that is full of water
and place against the hull bottom.
4. Refer to our website for more advanced instructions.
2
1.
3

w w w . h a w k e y e e l e c t r o n i c s . c o m
NOTICE:
Some boats have a hollow space between the floor and the
hull bottom called a bilge. The H22FX will not “Shoot-Thru” in
this type of boat unless it is placed directly against the hull
surface that is in direct contact with the water.
“SHOOTING THROUGH”ICE
IMPORTANT:
This unit may be used for ice fishing, but special attention must
be paid to not allow the unit to freeze to the ice, as removal
may cause damage to the LED light housing.
This device has advanced sonar capabilities also allow it to obtain depth and fish reading
through solid ice. You MUST use special techniques to obtain readings through ice:
NOTICE:
The ice must be smooth and free from excessive air.
Air will show up as white imperfections inside the ice.
The ice must be black in color.
To Shoot Thru Ice:
1. Clear away snow to expose the ice surface.
2. Place a small amount of liquid water on the ice and set
the transducer side of the device on the water.
3. If there are any air pockets between the device and
ice, or the water below the ice, the device will not work
properly and will require you to try another spot, or cut
a hole in the ice to use.
INFORMATION:
You can also use the “Plastic Bag” and “Petroleum Jelly” instructions in
the “Shooting Thru a Boat Hull” section for shooting through ice. Visit
our website for additional suggestions.
SCANNING FOR DEPTH CHANGES OR FISH (SIDE-SCAN)
The device has the ability to be used as a sideways scanning sonar depth
finder/fish finder to search for drop-offs and hiding fish under docks, weeds, or
vegetation.

w w w . h a w k e y e e l e c t r o n i c s . c o m

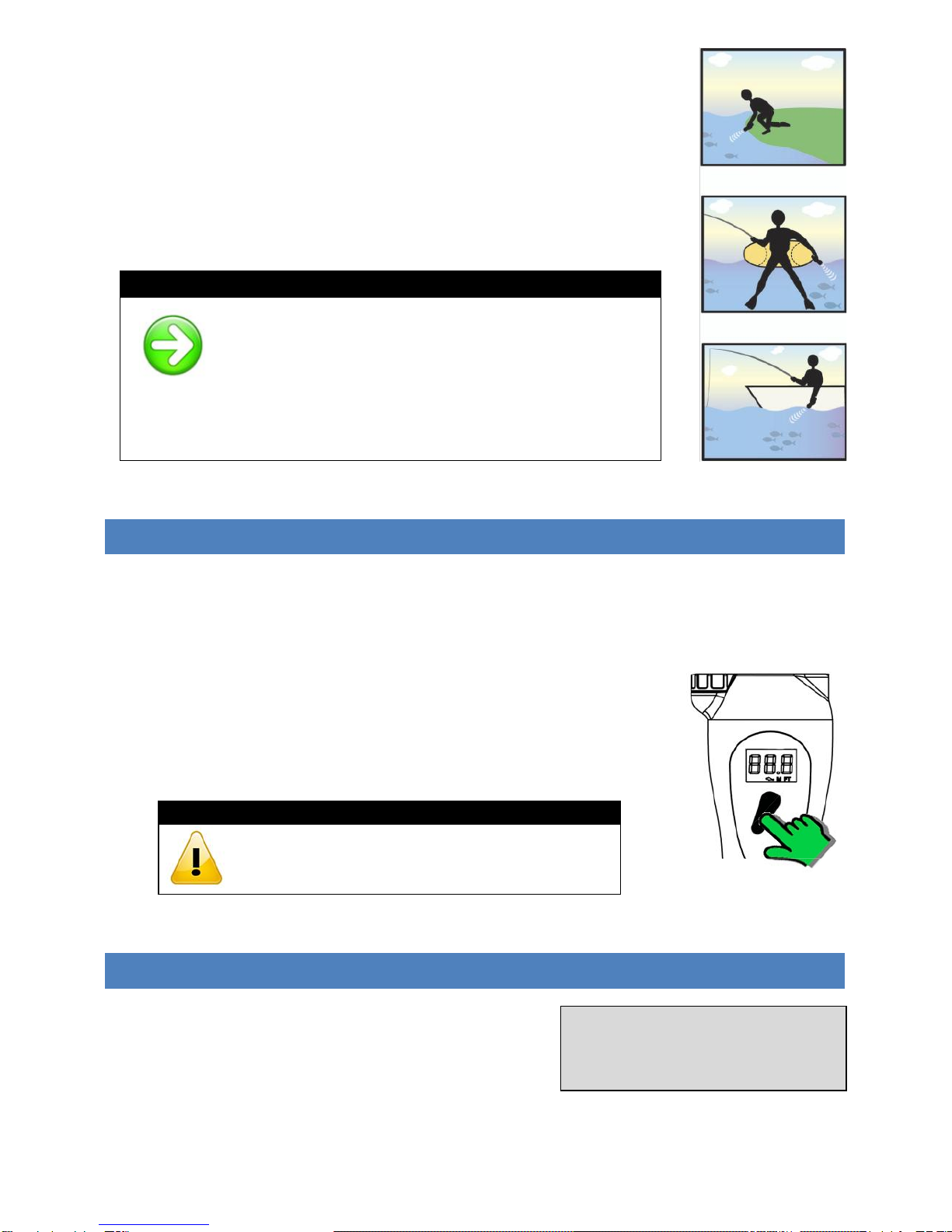

To Side-Scan:
1. Activate the Depth Reading feature.
2. Place the device perpendicular to the water surface to
obtain a correct depth reading.
3. Once a correct reading is obtained, move the H22FX
around in a scanning motion (similar to using a
flashlight).
NOTICE:
To obtain depth readings during side
scanning the sonar signals must be directed
at a solid surface that is within 200 ft (61 m) to
function properly. You must be certain to aim
the device at an object or the bottom within
this range.
USING THE LED FLASHLIGHT
Unlike conventional flashlights that have a yellowish beam, the H22FX
uses a hi-intensity LED lamp that produces a powerful, bright beam.
To Turn the Flashlight ON or OFF:
1. Flip the activation switch to the LEFT; the flashlight
will turn ON.
2. The flashlight will remain ON until turned OFF.
3. To turn OFF, return the switch to the CENTER
position.
WARNING:
High output flashlight radiation. Avoid
direct eye exposure. Do stare into lens
or point directly into the eye.
ACTIVATING THE S.O.S FEATURE
The H22FX incorporates emergency
programming that will flash the international
light code for S.O.S. This light code is
represented by 3 short flashes, 3 long flashes,
3 short flashes. The device with repeat this sequence until you exit the SOS
mode.
·· · ─ ─ ─ · · ·
S O S
1 X

w w w . h a w k e y e e l e c t r o n i c s . c o m
To Activate the SOS Feature:
1. Activate the flashlight as per the instructions above.
2. Once ON, flip the activation switch to the CENTER,
and then back to the LEFT within 1 second.
3. The light will flash the SOS code until turned OFF.
4. To turn OFF, return the activation switch to the
CENTER position.
CARE AND MAINTENANCE
IMPORTANT:
To ensure the device remains water tight, make sure
the lens and battery cover o-rings are coated with
silicon grease (available at any dive shop).
Care for Your H22FX
1. Clean the device with fresh water and dry off before storing.
2. Remove the batteries from the device to prevent battery leakage and
corrosion.
3. Store the depth finder in a cool, dry place. Never leave it in
temperatures over 158º F (70 ºC) as the extreme temperatures can
damage the electronic components.
REPLACEMENT PARTS
Individual components are not available for sale on our website. If you need
replacement parts, please email our customer service department.
The following Parts Are User Replaceable:
Battery Cover
Battery Holder
Lanyard
Flashlight Lenses & Cover
Bulb Reflector
O-Ring Kit
TROUBLESHOOTING AND FREQUENTLY ASKED QUESTIONS
24-Hour Technical Support is available online at www.hawkeyeelectronics.com.
Search our online Knowledgebase for the latest troubleshooting and FAQ’s, or
post your own question for our support staff. For one-on-one support please
email [e-mail].
2 X

w w w . h a w k e y e e l e c t r o n i c s . c o m
INFORMATION:
If you have questions about this
device please visit our Customer
Service Center on our website or
call us toll free at 888-766-7276.
Warranty Details • Warranty Registration
Troubleshooting • Product Knowledgebase
Product Specifications • Parts & Accessories
www.hawkeyeelectronics.com
Nothing Happens When I Turn the Power On
Make sure that you have installed a good set of batteries and aligned them as
per the diagram within the battery compartment. You may also need to test the
batteries in another device to ensure they are charged. If in doubt, replace the
batteries with a set from a newly opened package.
I See Fish Under the Sonar Sensor, but Nothing Appears on the Display
As with the depth reading, the fish finder will not detect any objects that are
closer than 1.5 ft from the sonar sensor. If you’re fishing in water that is less than
3 feet deep, it is recommended to discontinue use of the fish finder.
The Depth Reading is Incorrect
Make sure that you are pointing the sonar sensor perpendicular to the water
when trying to obtain depth readings.
Extremely heavy vegetation may confuse the sonar of the fish finder causing it to
misinterpret the depth. If you are certain that the readings are incorrect under
these conditions, discontinue use.
I’m Not Getting A Reading While Trying to Shoot Through My Boat Hull or
Ice
Shooting through the hull of a boat/canoe or ice can be difficult, as hidden air
pockets will prevent you from obtaining a reading. Make certain that the hull or
ice is solid from the surface to the water with no air bubbles and/or gaps.
Shooting through composite hulls (plastic) or cloudy ice is not possible as tiny air
bubbles are usually present in these situations.
I’m Getting False Fish Indications
The most common cause of false fish indications is extremely tall weed growth.
If weeds grow taller than 50% of the total water depth in a particular area, the

w w w . h a w k e y e e l e c t r o n i c s . c o m
sonar will mistake it for fish. Trash & debris may also give false readings.
Adjusting the sensitivity setting to the lowest level may reduce these false
readings, but if they do not go away, it is suggested that you discontinue use of
the fish finder under these conditions.
Where Can I Find More FAQ’s?
Visit our Online Support Center at support.norcorssmarine.com.
WARRANTY
This device is covered by a 2 Year Limited Warranty. To be eligible for warranty
coverage, you must register your product within 15 days of purchase. Visit our
website for warranty details and to register.
To Activate Your Warranty:
Read and print out a copy of the warranty details for your records.
Complete the registration form on our website.
Make a copy of your original purchase receipt and staple it to this manual.
You will need to present it in the rare occurrence that you need to send
your product in for service.
Complete the information below and store this manual in a safe place.
You can print additional copies of this manual from our website.
INFORMATION:
To aid in maintenance and service, record the following:
Date of Purchase: ___________________
Place of Purchase: _____________________________________
Date of Online Warranty Registration: _____________________
Production Date Code : ________ (4 digit code located on the inside of the
device’s housing)

w w w . h a w k e y e e l e c t r o n i c s . c o m
LEGAL
INFORMATION:
Made in China. Tested to comply with FCC, CE & ROHS
standards if applicable. Visit our website for compliance and
warranty information. All Specifications and Prices Subject to
Change Without Notice.
NorCross Marine Products, Inc
(P) 888-7NorCross (888-766-7276)
(F) 407-370-6880
(E) [e-mail]
(I) www.norcrossmarine.com
WARNING:
© 2013 NorCross Marine Products Inc., All Rights Reserved. ALL
unauthorized copying of the content of this document without the
expressed written consent of NorCross Marine Products, Inc is
strictly forbidden.

w w w . h a w k e y e e l e c t r o n i c s . c o m
NOTES
