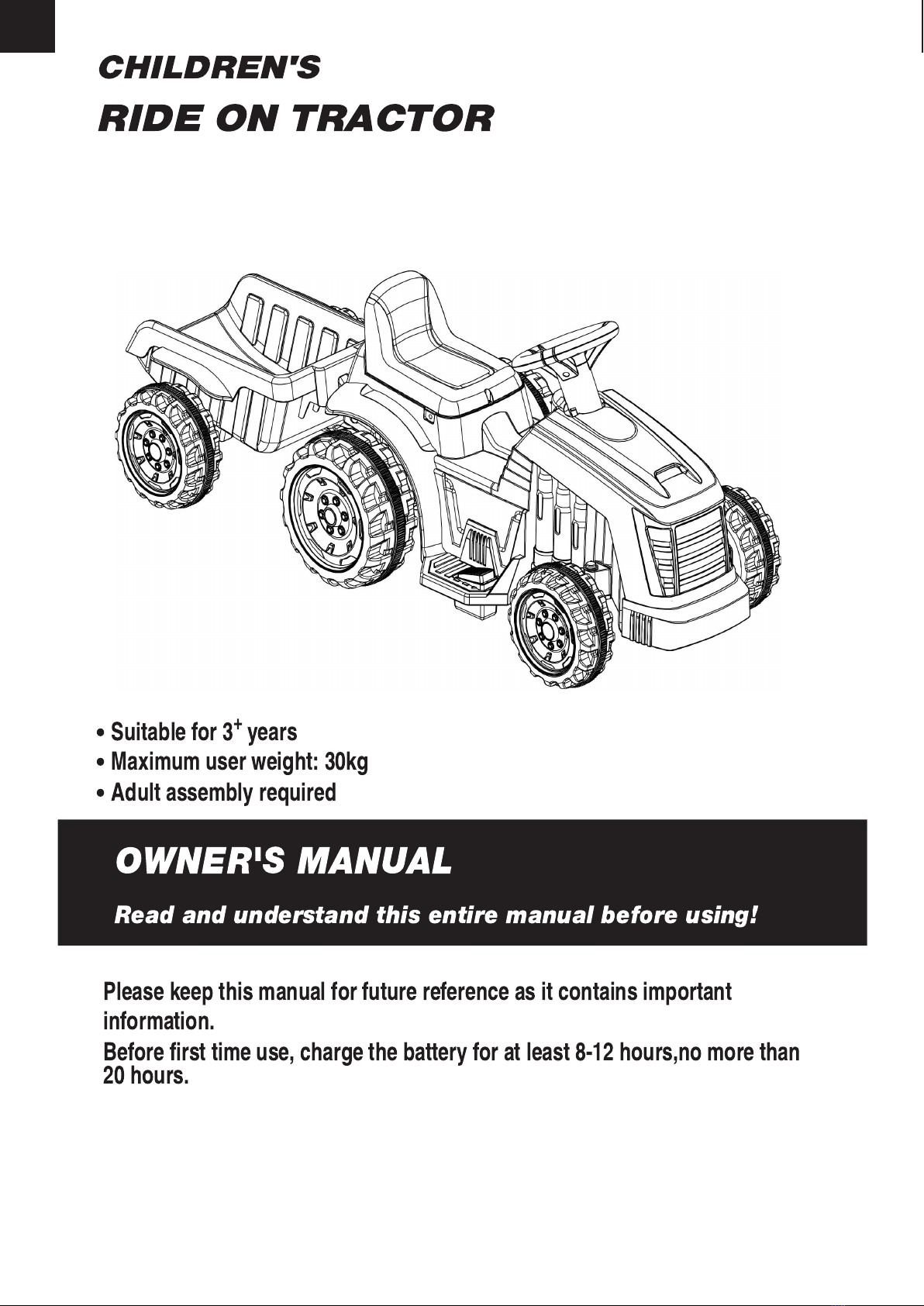

NORDIC PLAY 805-762 User manual

Art. no. 805-762
EAN 5705858711140
Size 109 x 40,5 x 43 cm Imported by / Importeret af
NSH NORDIC A/S
Virkefeltet 4
DK-8740 Braedstrup
Made in China / produceret i Kina

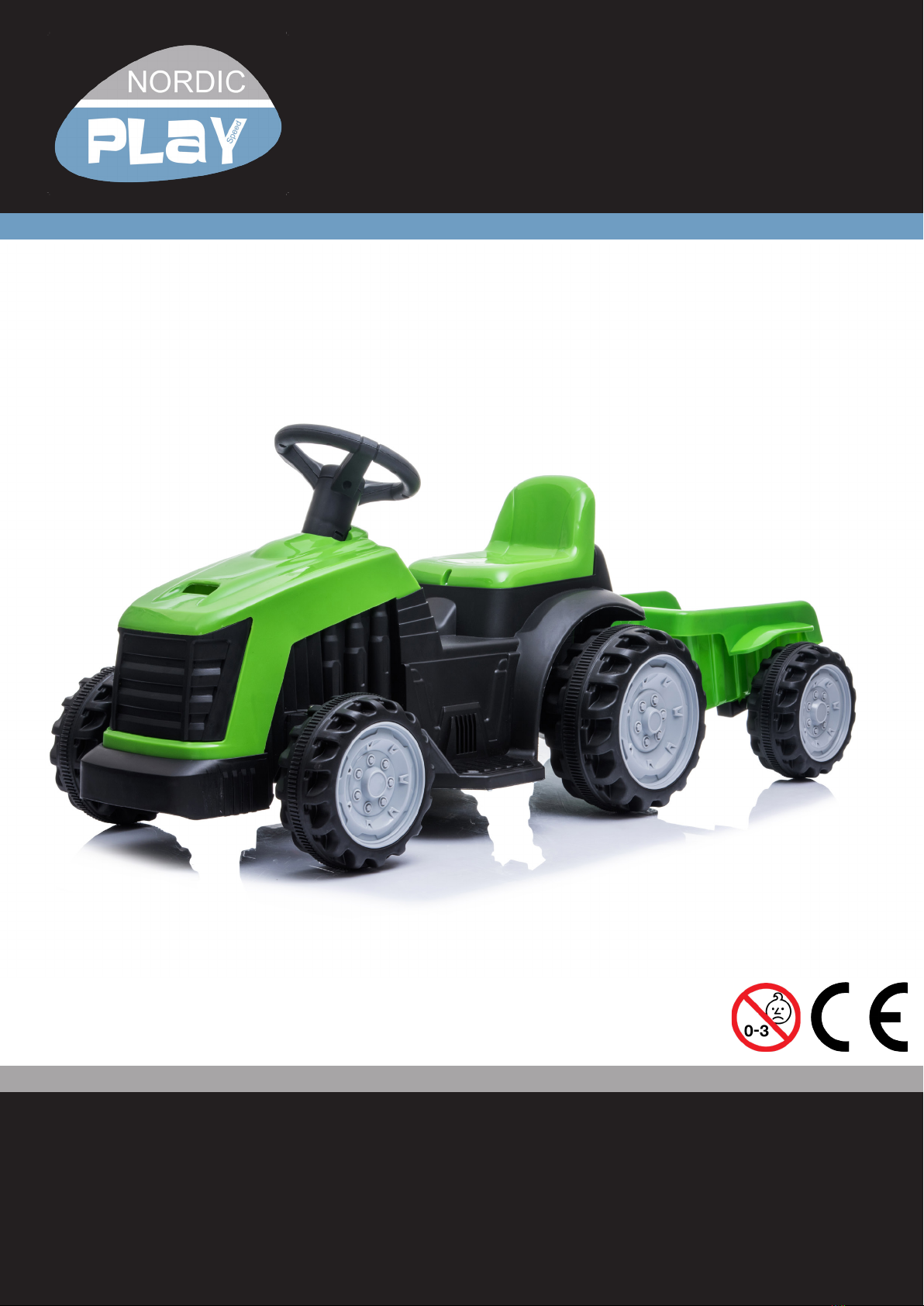

Electric Tractor
El Traktor
El Traktor
Sähköauto
Manual | Brugsanvisning | Instruktionsbok | Ohjeet

General safety rules for NORDIC PLAY products
Warning:
• The vehicle may not be used on roads, sidewalks, in hills or sand.
•Thevehicleshouldonlybeusedonflatsurfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum
totalweightis25 - 35kg.Pleasecheckforyourspecificmodel.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle’s circuit.
•Donotdriveinwaterorotherfluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive
somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery’s
lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use.
Charge the battery every three months to extend the battery’s lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If
damagesarediscovered,thevehiclemaynotbeuseduntilthesearefixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If
therearedamages,thechargermaynotbeuseduntilthedamageisfixed.
• Vehicle with a battery may not be used by children under 3 years of age.
•Push/foot-to-floorvehicleswithoutabatterycanbeusedfrom1yearofage.
• The vehicle may only be used with the recommended charger.
• The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
•Declarationofconformity:ThisproductisinaccordancewithEUdirective2014/53/EU.
Warning:
For your child’s safety, pay attention to the following:
• Only adults may assemble the product.
• Smallpartsandplasticpartsshouldbekeptawayfromthechildtoavoidriskofsu󰀨ocation.
• Children may not touch or open the battery holder.
• Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-oorvehicleswithoutbatterycanbeusedfrom1yearofage.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that
can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially
for the braking system.
• Maynotbeusedintra󰀩c.Onlyusethevehicleonprivateproperty.
• Onlydriveonatsurfacesawayfromothervehiclesandobstacles.
GB

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wetweathercanreducethetraction,brakee󰀨ectandvisibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use
the vehicle at once.
• Do not use the vehicle if it has damages.
• Change damaged parts immediately.
GB19865/EN62115
Protective equipment should be worn. Not to be used in traffic.
This toy has no brake.
General safety rules for NORDIC PLAY products
GB

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire
to the red terminal of the battery and nally then connect black wire to black battery terminal. Never connect wires
into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and
tighten the screw.
Battery replacement and fuse
The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The
vehicle must then be switched o󰀨 for at least 5 minutes, after which the fuse will restore itself. If the product does not
work, the fuse may therefore be the problem. To avoid this, read the following points:
• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.
As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere
from 1 - 3 years. If the battery needs a replacement, follow these steps:
1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety
equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the
battery.
8. Slide the seat into place. Tighten the screw.
GB
IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped,
otherwise it will damage the gear box and motor.
Forward: 1. Press the ”Forward/backward switch” to the ”Forward” position.
2. Press the ”Foot pedal”, the vehicle drives forward.
Stop: 1. The vehicle will brake automatically, when foot is lifted from the ”foot-pedal”.
Back Up: 1. Press the ”Forward/backward switch” to the ”Backward” position.
2. Press the ”Foot pedal”, the vehicle will back up.
1. Insert 220V/12V charger cable’s connector to the vehicle.
2. Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
3. Detach after 8-12 hours

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.
Thermal fuse has tripped Let the vehicle cool down for 5 minutes.
Do not overload the vehicle.
Battery connector or wires are
loose
Check that the battery connectors and
wires are rmly connected.
Battery is dead Battery lasts 1-3 years. Replace battery
and recycle the old battery responsibly.
Electrical system is damaged Contact your distributor please.
Motor is damaged Contact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are
rmly plugged into each other when
recharging. Recharge battery again.
Battery is old Battery lasts 1-3 years. Replace battery
and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are
rmly plugged into each other when
recharging. Recharge battery again.
Battery is old Battery lasts 1-3 years. Replace battery
and recycle the old battery responsibly.
Vehicle is overload Reduce weight on vehicle.
Maximum user weight is 25 kgs.
Vehicle is being used in unsuit-
able conditions Use the vehicle on at, even surfaces.
Vehicle needs a push to go
forward Poor contact of wires or connectors Check that the battery connectors are
rmly plugged into each other when
recharging. Recharge battery again.
“Dead Spot” on motor A dead spot means the electric power
is not being delivered to the terminal
con nection and the vehicle needs re-
pair.Contact your distributor please.
Di󰀩cult shifting from forward to
reverse or vice-versa Attempting to shift while the
vehicle is motion Always completely stop the vehicle before shifting.
Loud grinding or clicking noises
coming from motor or gear box Motor or gears are damaged Contact your distributor please.
Battery will not recharge Battery connector or adapter
connector is loose Check that the battery connectors are
rmly plugged into each other when
recharging. Recharge battery again.
Charger not plugged in Check that the battery charger is
plugged into a working wall outlet.
Charger is not working Contact your distributor please.
Charger feels warm when
recharging This is normal and not a cause for concern
Completely read through this manual and the troubleshooting guide table before calling. If you still need help
resolving the problem Contact your distributor please.
GB
Maintenance
• Check all screws periodically and tighten as needed.
• Check the vehicle’s plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.
• Do not drive in rain, snow, sand and gravel as this may damage the product.
If the product is not to be used for an extended period, recharge the battery and then disconnect all cables
