NordicTrack C2si NTEX048080 User manual

www.nordictrack.com
Model No. NTEX04808.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number
Decal (under frame)
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-825-2588
Mon.-Fri., 6 a.m.-6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
US
_,®
'S AUAL

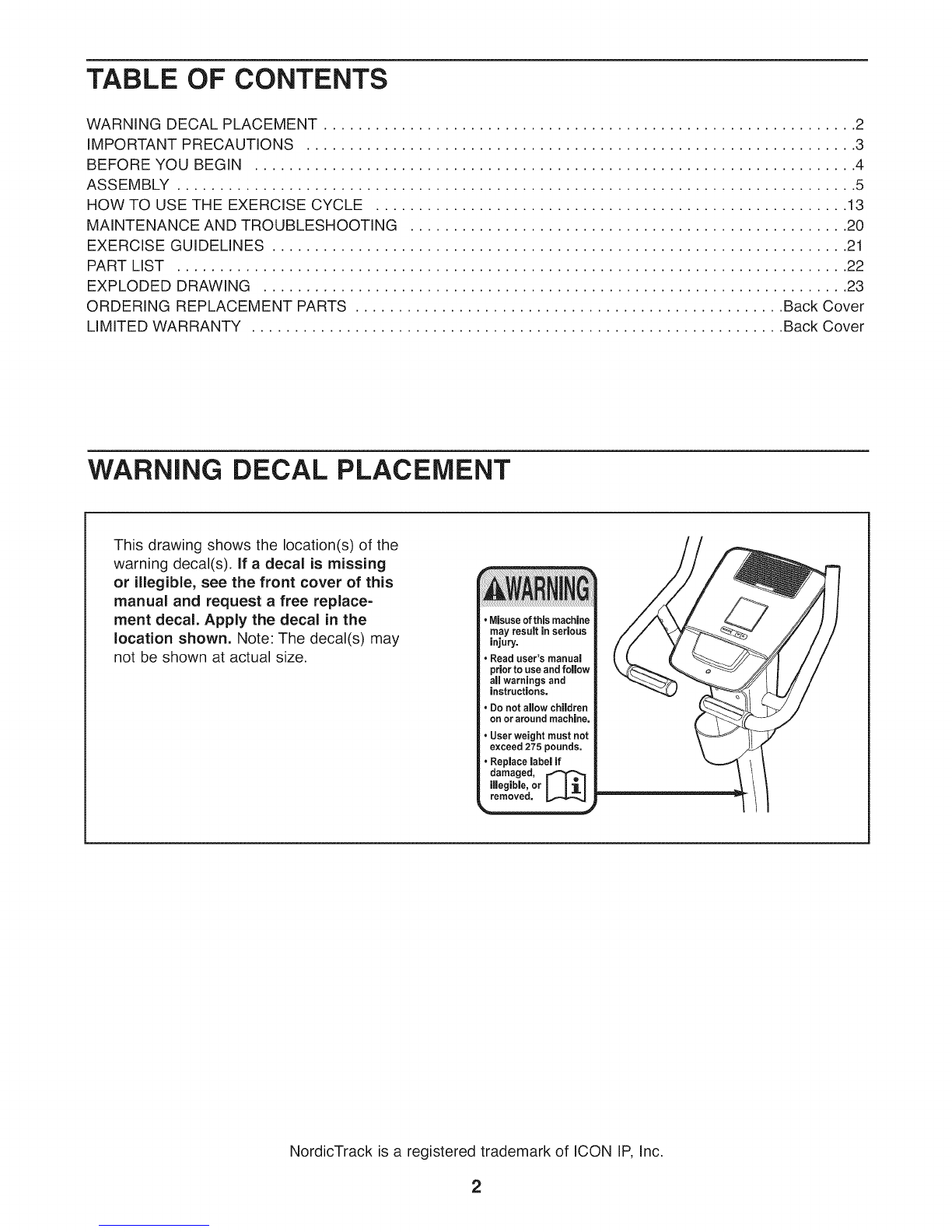

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE EXERCISE CYCLE ....................................................... 13
MAINTENANCE AND TROUBLESHOOTING ................................................... 20
EXERCISE GUIDELINES ................................................................... 21
PART LIST .............................................................................. 22
EXPLODED DRAWING .................................................................... 23
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replace-
ment decal. Apply the decal in the
location shown. Note: The decal(s) may
not be shown at actual size.
• Misuseof this machine
may result in serious
injury.
• Road user's manual
prior to use and follow
all warnings and
instructions.
•Donot allow chUdren
on oraround machine,
User weight must not
exceed 275 pounds,
• Replace label if
damaged, [_
iUegible, or
removed.
NordicTrack is a registered trademark of ICON IP, Inc.
2

iMPORTANT PRECAUTIONS
WARNING: Toreducetheris.ofse.ousinjury, readallimportant precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle, iCON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
.
.
Before beginning any exercise program, con- 7.
suit your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems. 8.
Use the exercise cycle only as described in
this manual.
Keep children under the age of 12 and pets
away from the exercise cycle at all times.
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
3. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
9. The exercise cycle should not be used by
persons weighing more than 275 Ibs.
(125 kg).
.
.
.
The exercise cycle is intended for home use
only. Do not use the exercise cycle in acom-
mercial, rental, or institutional setting.
Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around your exercise cycle.
inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
10.
11.
12.
The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
Always keep your back straight while using
the exercise cycle; do not arch your back.
if you feel pain or dizziness while exercising,
stop immediately and cool down.
3

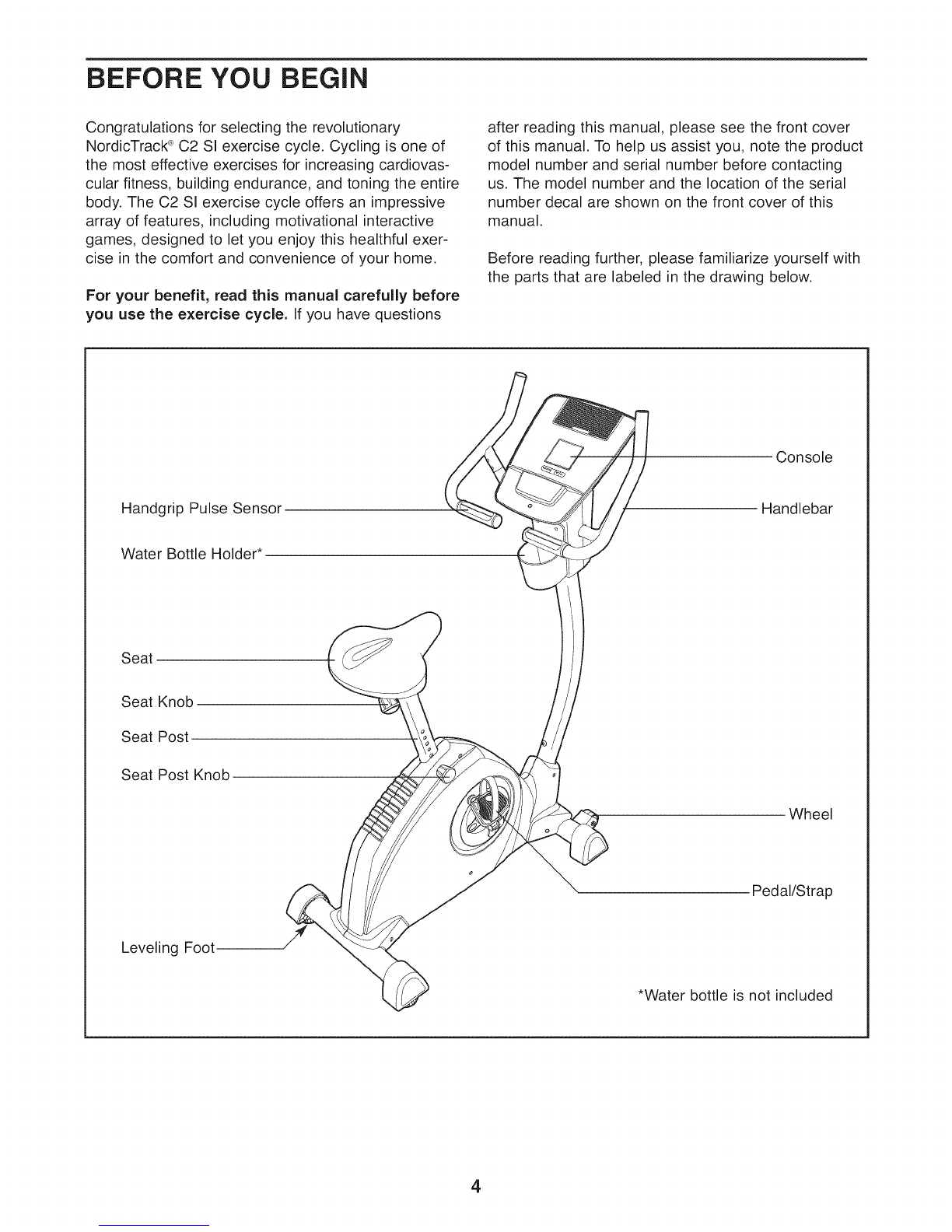

BEFORE YOU BEGIN
Congratulations for selecting the revolutionary
NordicTrack ®C2 Sl exercise cycle. Cycling is one of
the most effective exercises for increasing cardiovas-
cular fitness, building endurance, and toning the entire
body. The C2 Sl exercise cycle offers an impressive
array of features, including motivational interactive
games, designed to let you enjoy this healthful exer-
cise in the comfort and convenience of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Water Bottle Holder*
Console
Handlebar
Seat
Seat Knob
Seat Post
Seat Post Knob
Leveling Foot
Wheel
Pedal/Strap
*Water bottle is not included
4

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
in addition to the included tool(s), assembly requires aPhillips screwdriver (_c)=====_, an adjustable
wrench _::_:_, and a rubber mallet c:z::zzz::z_r_
LJ N
As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LiST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 Locknut M10 Split
(57)-6 Washer (63)-3
M6 x 10mm M8 x 35mm Button
Button Screw Bolt (64)-4
(60)-2
M10 x 50mm Patch
Screw (46)-3
M10 Curved
Washer (10)-4
M4 x 16mm
Screw (58)-11
M8 x 56mm Button
Screw (61)-2
M10 x 85mm Patch
Screw (56)-4
5

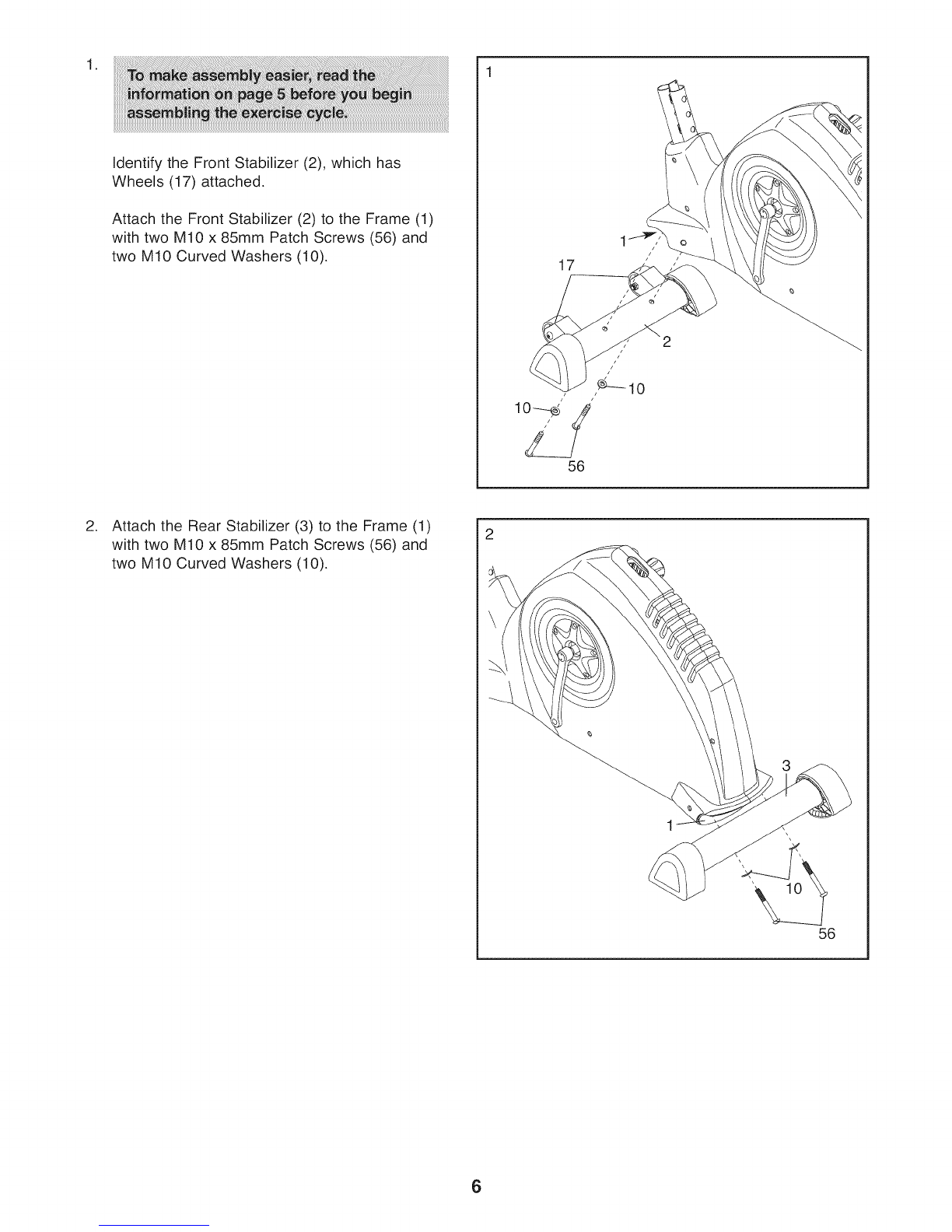

Identify the Front Stabilizer (2), which has
Wheels (17) attached.
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 85mm Patch Screws (56) and
two M10 Curved Washers (10). 1
17
/
,_10
56
,Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 85mm Patch Screws (56) and
two M10 Curved Washers (10).
\\
56
6

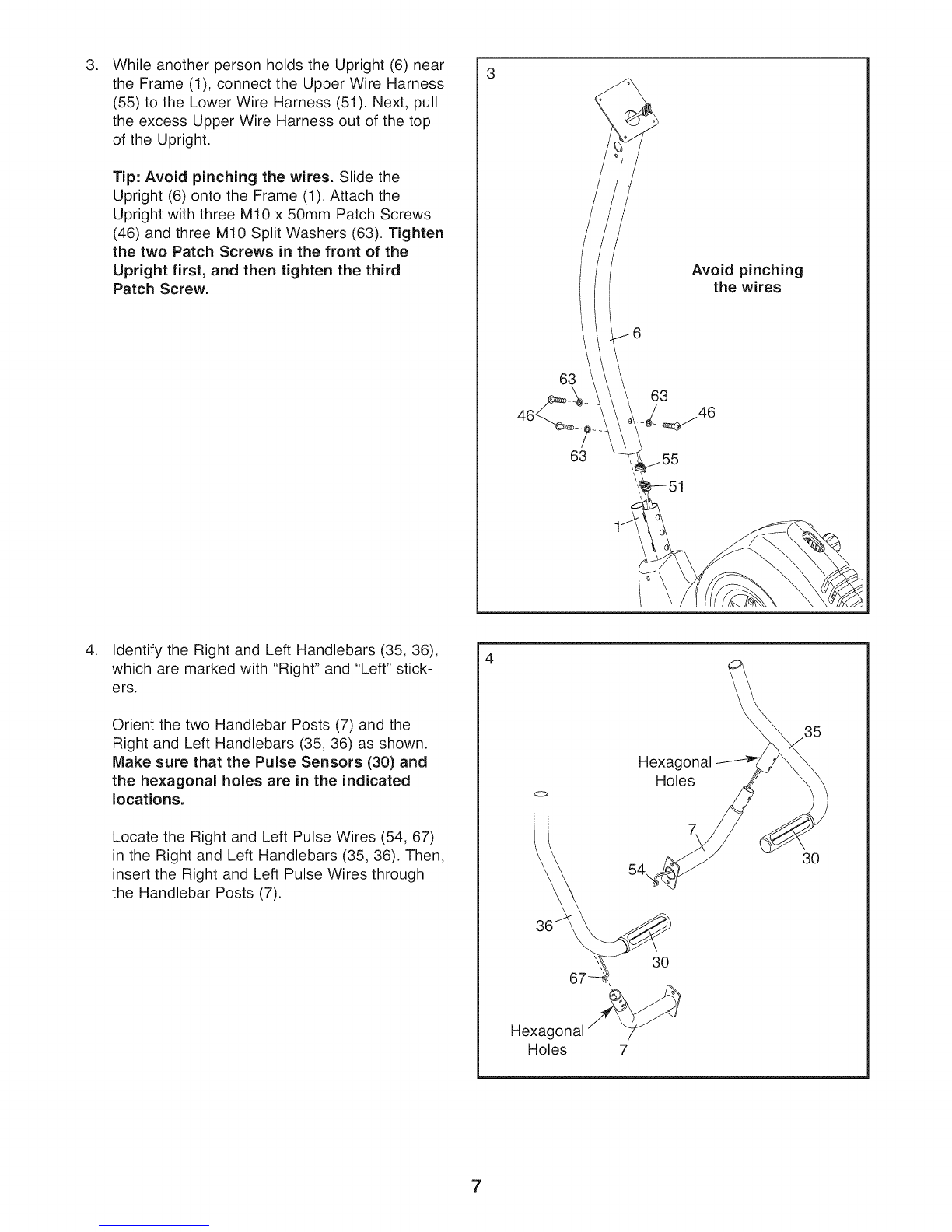

3. 3
While another person holds the Upright (6) near
the Frame (1), connect the Upper Wire Harness
(55) to the Lower Wire Harness (51). Next, pull
the excess Upper Wire Harness out of the top
of the Upright.
Tip: Avoid pinching the wires. Slide the
Upright (6) onto the Frame (1). Attach the
Upright with three M10 x 50mm Patch Screws
(46) and three M10 Split Washers (63). Tighten
the two Patch Screws in the front of the
Upright first, and then tighten the third
Patch Screw. Avoid pinching
the wires
.Identify the Right and Left Handlebars (35, 36),
which are marked with "Right" and "Left" stick-
ers.
Orient the two Handlebar Posts (7) and the
Right and Left Handlebars (35, 36) as shown.
Make sure that the Pulse Sensors (30) and
the hexagonal holes are in the indicated
locations.
Locate the Right and Left Pulse Wires (54, 67)
in the Right and Left Handlebars (35, 36). Then,
insert the Right and Left Pulse Wires through
the Handlebar Posts (7).
Hexagonal
Holes
54
36
Hexag,
Holes 7
35
30
7

5. 5

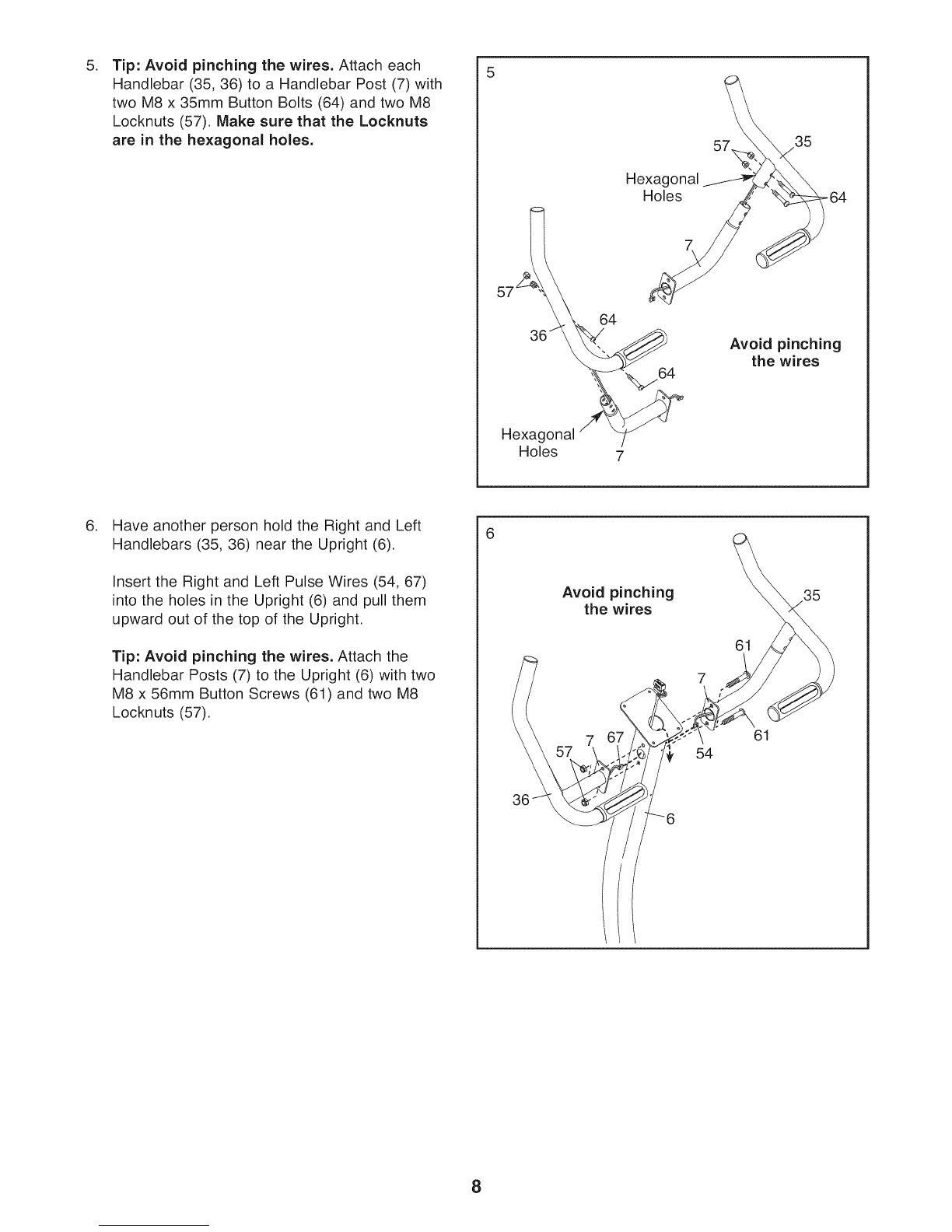

Tip: Avoid pinching the wires. Attach each
Handlebar (35, 36) to a Handlebar Post (7) with
two M8 x 35mm Button Bolts (64) and two M8
Locknuts (57), Make sure that the Locknuts
are in the hexagonal holes.
Hexagonal
Holes
7-1\
HexagonaF "-_
Holes 7
35
-64
Avoid pinching
the wires
.Have another person hold the Right and Left
Handlebars (35, 36) near the Upright (6).
Insert the Right and Left Pulse Wires (54, 67)
into the holes in the Upright (6) and pull them
upward out of the top of the Upright.
Tip: Avoid pinching the wires. Attach the
Handlebar Posts (7) to the Upright (6) with two
M8 x 56mm Button Screws (61) and two M8
Locknuts (57).
6
36
Avoid pinching
the wires
54
61
61
35
8

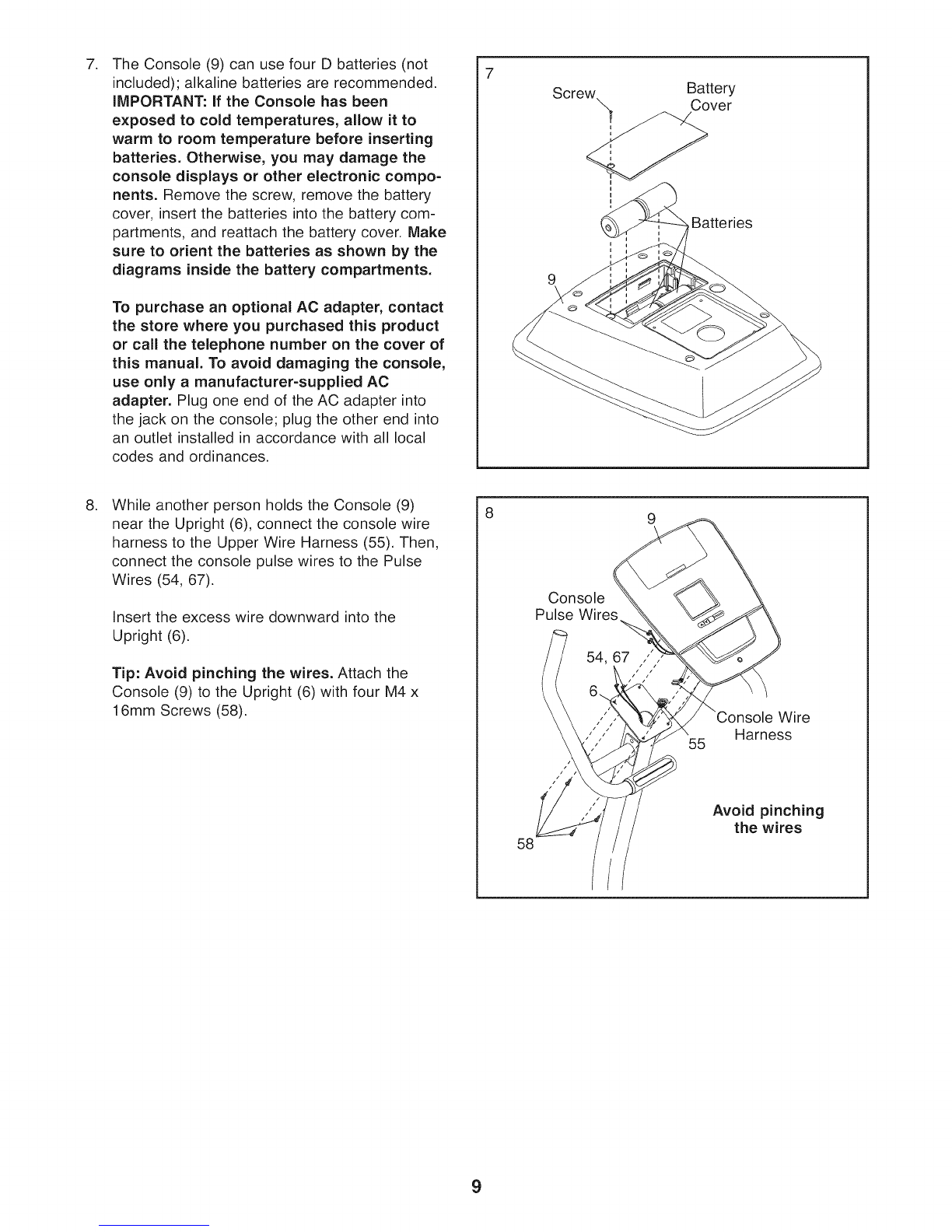

.The Console (9) can use four D batteries (not
included); alkaline batteries are recommended.
iMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, insert the batteries into the battery com-
partments, and reattach the battery cover, Make
sure to orient the batteries as shown by the
diagrams inside the battery compartments.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
Scre_teerY
Batteries
.While another person holds the Console (9)
near the Upright (6), connect the console wire
harness to the Upper Wire Harness (55). Then,
connect the console pulse wires to the Pulse
Wires (54, 67).
Insert the excess wire downward into the
Upright (6).
Tip: Avoid pinching the wires. Attach the
Console (9) to the Upright (6) with four M4 x
16mm Screws (58).
58
Console
Pulse Wires
9
Wire
Harness
55
Avoid pinching
the wires
9

.Orient the Front Upright Cover (41) and the
Rear Upright Cover (48) as shown.
Attach the Front Upright Cover (41) and the
Rear Upright Cover (48) to the Upright (6) with
five M4 x 16mm Screws (58).
9
58_'
41
48 58
10. Attach the Water Bottle Holder (18) to the
Upright (6) with two M4 x 16mm Screws (58). 10
18
10

11. Loosen the Seat Post Knob (20). Next, pull the
Seat Post Knob outward, and insert the Seat
Post (11) into the Frame (1).
Slide the Seat Post (11) upward or downward to
the desired position, and release the Seat Post
Knob (20). Move the Seat Post upward or
downward slightly to make sure that the
Seat Post Knob is engaged in one of the
adjustment holes in the Seat Post. Then,
tighten the Seat Post Knob.
11
20
12. Attach an M6 x 10mm Button Screw (60) to the
front of the Seat Post (11). Next, slide the Seat
Carriage (19) onto the Seat Post.
Then, adjust the Seat Carriage (19) all the way
forward and tighten the Seat Knob (31)into the
Seat Carriage.
12
19 31
13. Attach an M6 x 10mm Button Screw (60) to the
rear of the Seat Post (11). 13
11

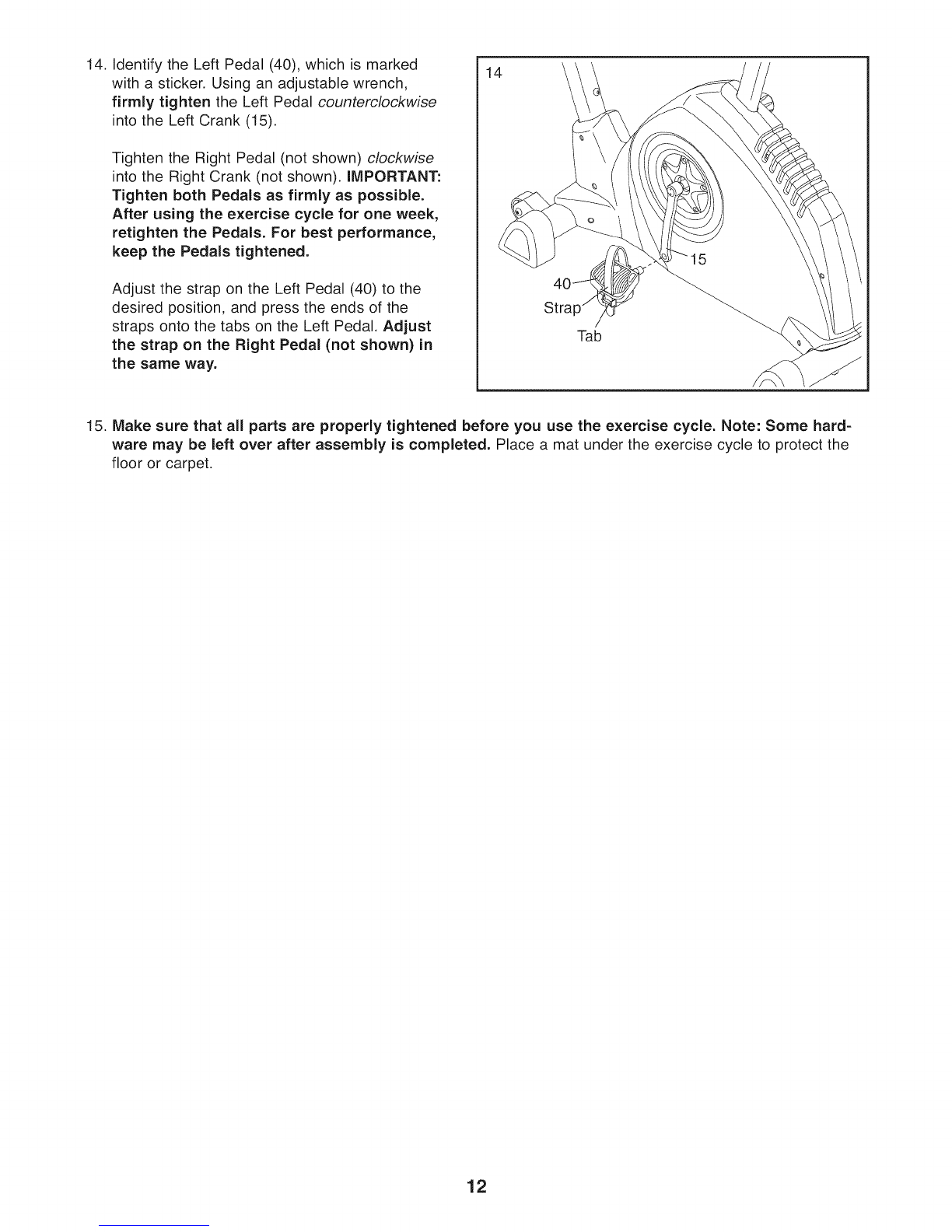

14. Identify the Left Pedal (40), which is marked
with a sticker. Using an adjustable wrench,
firmly tighten the Left Pedal counterclockwise
into the Left Crank (15).
Tighten the Right Pedal (not shown) clockwise
into the Right Crank (not shown). IMPORTANT:
Tighten both Pedals as firmly as possible.
After using the exercise cycle for one week,
retighten the Pedals. For best performance,
keep the Pedals tightened.
Adjust the strap on the Left Pedal (40) to the
desired position, and press the ends of the
straps onto the tabs on the Left Pedal, Adjust
the strap on the Right Pedal (not shown) in
the same way.
14
Stra
Tab
15. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hard=
ware may be left over after assembly is completed. Place a mat under the exercise cycle to protect the
floor or carpet.
12

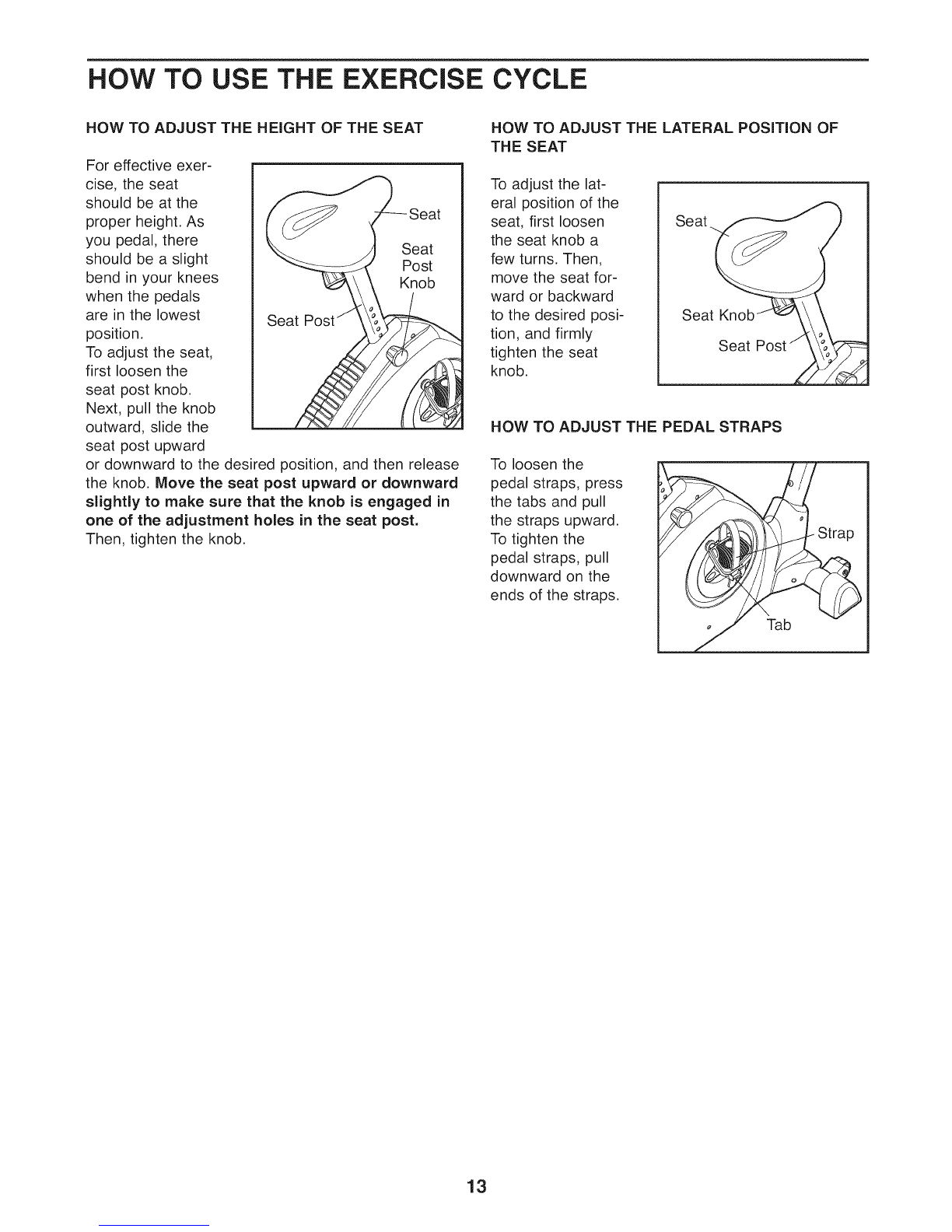

HOW TO USE THE EXERCISE CYCLE
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exer-
cise, the seat
should be at the
proper height. As Seat
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position.
To adjust the seat,
first loosen the
seat post knob.
Next, pull the knob
outward, slide the
seat post upward
or downward to the desired position, and then release
the knob. Move the seat post upward or downward
slightly to make sure that the knob is engaged in
one of the adjustment holes in the seat post.
Then, tighten the knob.
HOW TO ADJUST THE LATERAL POSITION OF
THE SEAT
To adjust the lat-
eral position of the
seat, first loosen
the seat knob a
few turns. Then,
move the seat for-
ward or backward
to the desired posi-
tion, and firmly
tighten the seat
knob.
Seat
Seat Knob-J'_--/_\_
HOW TO ADJUST THE PEDAL STRAPS
To loosen the
pedal straps, press
the tabs and pull
the straps upward.
To tighten the
pedal straps, pull
downward on the
ends of the straps. Strap
13

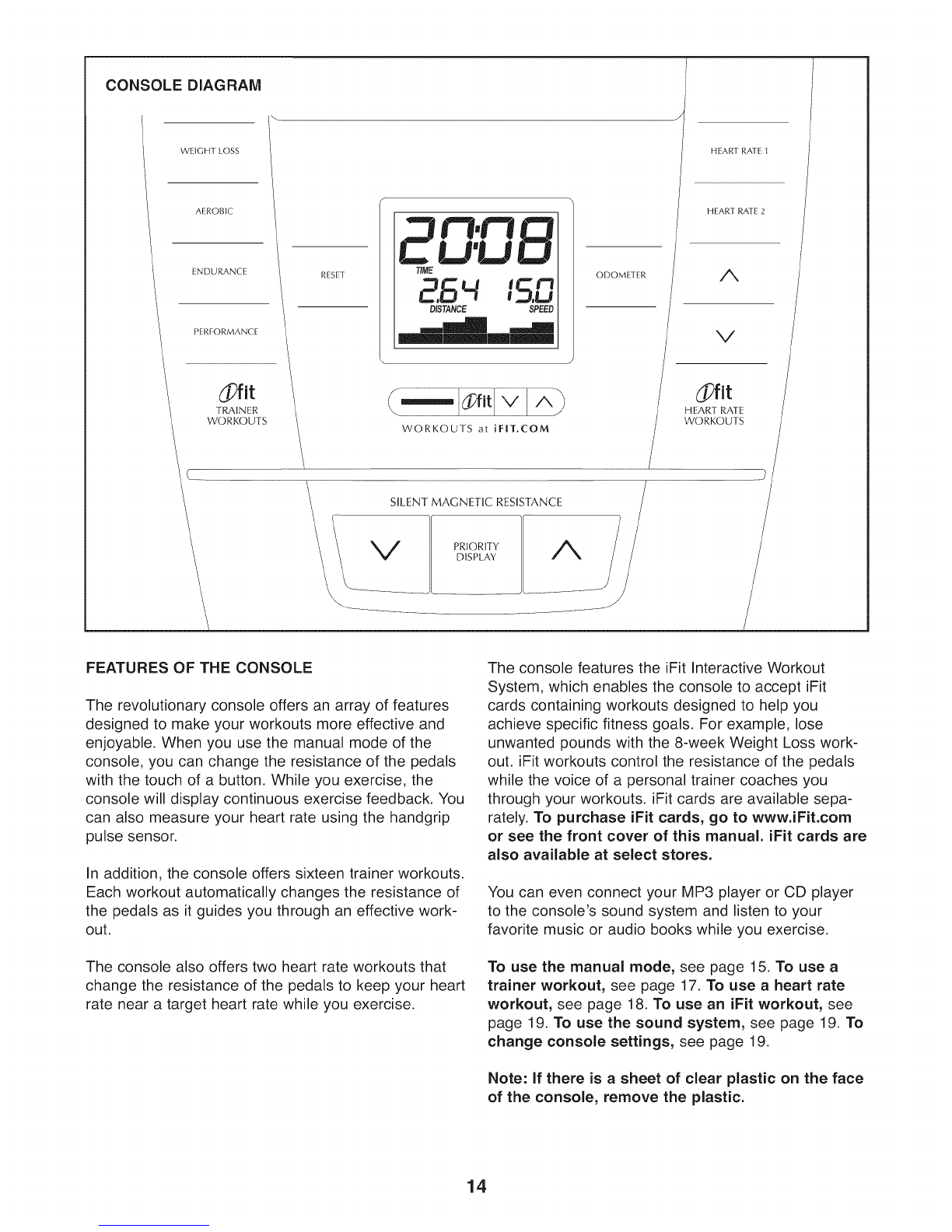

CONSOLE DIAGRAM
\
/i
WEIGHT LOSS /
AEROBIC
ENDURANCE
PERFORMANCE
fit
TRAINER
WORKOUTS
RESET
E F!,F'!
U'U B
TIME
2.64 ,Su
DISTANCE SPEED
ODOMETER
\
WORKOUTS at iFiT.COM
SILENT MAGNETIC RESISTANCE
\\
VPRIORITY A
DISPLAY
J
HEART RATE 1
HEART RATE 2
/k
V
/
, fit
HEART RATE
WORKOUTS
FEATURES OF THE CONSOLE
The revolutionary console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. While you exercise, the
console will display continuous exercise feedback. You
can also measure your heart rate using the handgrip
pulse sensor.
In addition, the console offers sixteen trainer workouts.
Each workout automatically changes the resistance of
the pedals as it guides you through an effective work-
out.
The console also offers two heart rate workouts that
change the resistance of the pedals to keep your heart
rate near a target heart rate while you exercise.
The console features the iFit Interactive Workout
System, which enables the console to accept iFit
cards containing workouts designed to help you
achieve specific fitness goals. For example, lose
unwanted pounds with the 8-week Weight Loss work-
out. iFit workouts control the resistance of the pedals
while the voice of a personal trainer coaches you
through your workouts, iFit cards are available sepa-
rately. To purchase iFit cards, go to www.iFit.com
or see the front cover of this manual, iFit cards are
also available at select stores.
You can even connect your MP3 player or CD player
to the console's sound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode, see page 15. To use a
trainer workout, see page 17. To use a heart rate
workout, see page 18. To use an iFit workout, see
page 19. To use the sound system, see page 19. To
change console settings, see page 19.
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic.
14

HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, a tone will sound, and the display will light.
2. Select the manual mode.
Each time you turn
on the console, the
manual mode will
be selected. If you
have selected a
workout, reselect
the manual mode
by pressing any of
the Workouts but-
tons repeatedly
£3 F'I,F1 F'I
UU'UU
TIME
t-JF"_F't F1F1
U,U U U.U
DISTANCE SPEED
until zeros appear in the display.
3. Change the resistance of the pedals as
desired.
As you pedal, II
change the resis-
tance of the pedals
by pressing the
Silent Magnetic
Resistance 5/
increase and decrease buttons. Note: After you
press the buttons, it will take a moment for the
pedals to reach the selected resistance level.
I
4. Follow your progress with the display.
The lower left dis- U,,OOll
exercise, the lower 2.20 B"7,.5
left display can DIST,_C_C,OR,ES
show the elapsed m_m
time, the distance
(in miles or kilometers) that you have pedaled.
Note: When a workout is selected, the display will
show the time remaining in the workout instead of
the elapsed time.
The lower right
display--The lower
right display can
show your pedaling
speed (in miles or
kilometers per hour)
II _" I
,, !'dU
and the approximate number of calories that you
have burned. The display also shows your heart
rate when you use the handgrip pulse sensor (see
step 5 on page 16).
'heuPPerI ¸
display--The upper
display can show _ _,_ _'_
the elapsed time, _ _, _,j,,
the distance that TI --,
yOUhave pedaled,
your pedaling speed, and the approximate number
of calories you have burned. Press the Priority
Display button repeatedly until the upper display
shows the information that you are most interested
in viewing. Note: While information is shown in the
upper display, the same information will not be
shown in the lower left or lower right display.
The lower
display--The lower
display will show a
track representing
1/4 mile. As you
exercise, indicators I
220 124
DISTANCE SPEED
will appear in succession around the track until the
entire track appears. The track will then disappear
and the indicators will again begin to appear in suc-
cession
To view the trip dis-
tance, press the
Odometer button
once. To reset the
trip distance to zero,
press the Reset but-
ton. 225B I
DISTANCE
brl P
To view the total distance pedaled since the exer-
cise cycle was purchased, press the Odometer
button a second time. To exit the odometer infor-
mation, press the Odometer button a third time.
Note: The console can show pedaling pace and
distance in either miles or kilometers. To view or
change the unit of measurement, see HOW TO
CHANGE CONSOLE SETTINGS on page 19.
15

5. Measure your heart rate if desired.
if there are sheets
of clear plastic on
the metal con-
tacts on the
handgrip pulse
sensor, remove
the plastic. To
measure your
heart rate, hold the
handgrip pulse
sensor with your
=
Contacts
palms resting against the metal contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is R
detected, a flashing I _ _=
heart symbol will _
appear in the dis- 2,2D_,s_ANc_,,r::_ll_:U
play, and then your
heart rate will "='"
appear. For the
most accurate heart rate reading, hold the con-
tacts for at least 15 seconds. Note: If you continue
to hold the handgrip pulse sensor, the display will
show your heart rate for up to 30 seconds.
.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
16

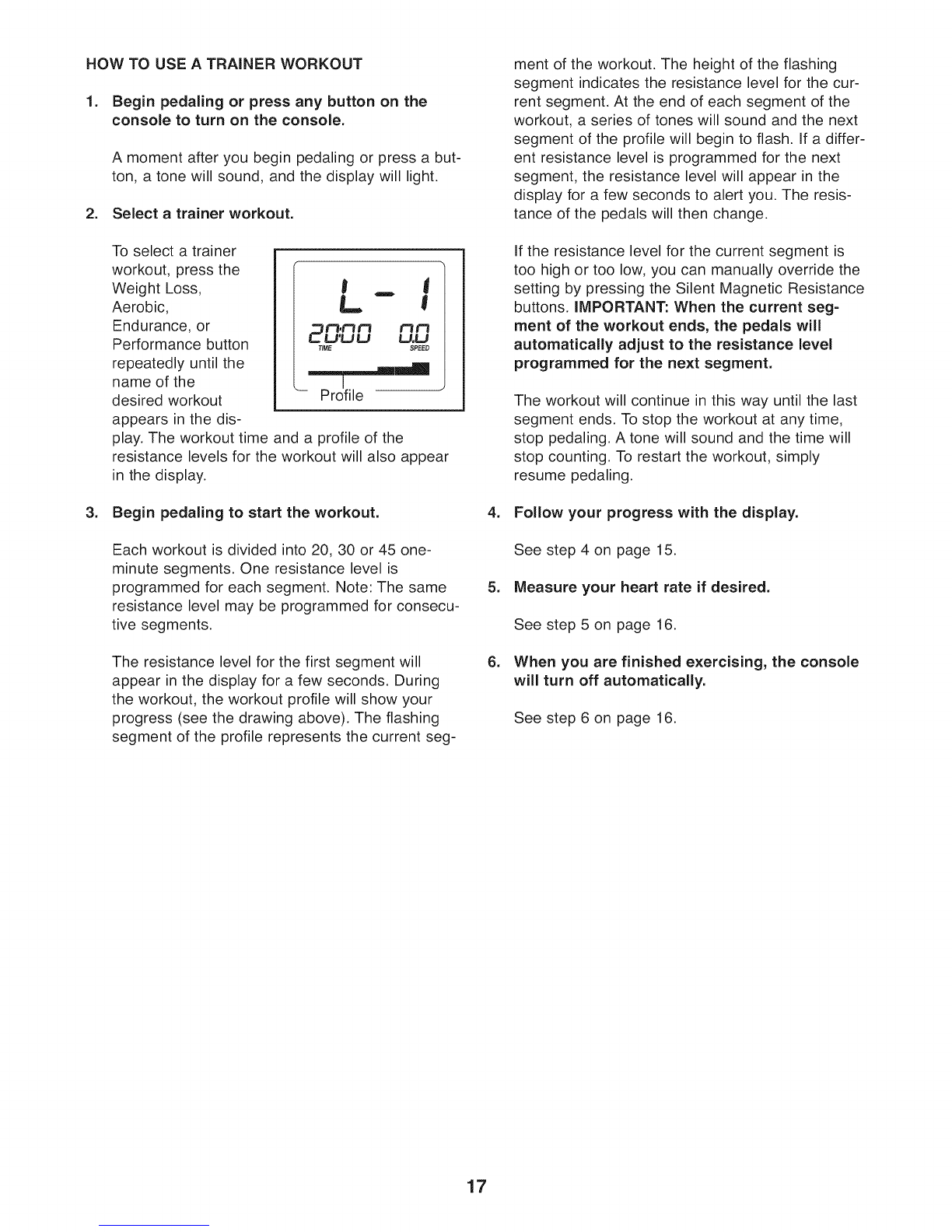

HOW TO USE A TRAINER WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, a tone will sound, and the display will light.
2. Select a trainer workout.
To select a trainer
workout, press the
Weight Loss,
Aerobic,
Endurance, or
Performance button
repeatedly until the
name of the
desired workout
appears in the dis-
U'UU U,U
TIME SPEED
_d I
- Profile
play. The workout time and a profile of the
resistance levels for the workout will also appear
in the display.
3. Begin pedaling to start the workout.
Each workout is divided into 20, 30 or 45 one-
minute segments. One resistance level is
programmed for each segment. Note: The same
resistance level may be programmed for consecu-
tive segments.
The resistance level for the first segment will
appear in the display for a few seconds. During
the workout, the workout profile will show your
progress (see the drawing above). The flashing
segment of the profile represents the current seg-
ment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Silent Magnetic Resistance
buttons. IMPORTANT: When the current seg-
ment of the workout ends, the pedals will
automatically adjust to the resistance level
programmed for the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
stop counting. To restart the workout, simply
resume pedaling.
4. Follow your progress with the display.
See step 4 on page 15.
5. Measure your heart rate if desired.
.
See step 5 on page 16.
When you are finished exercising, the console
will turn off automatically.
See step 6 on page 16.
17

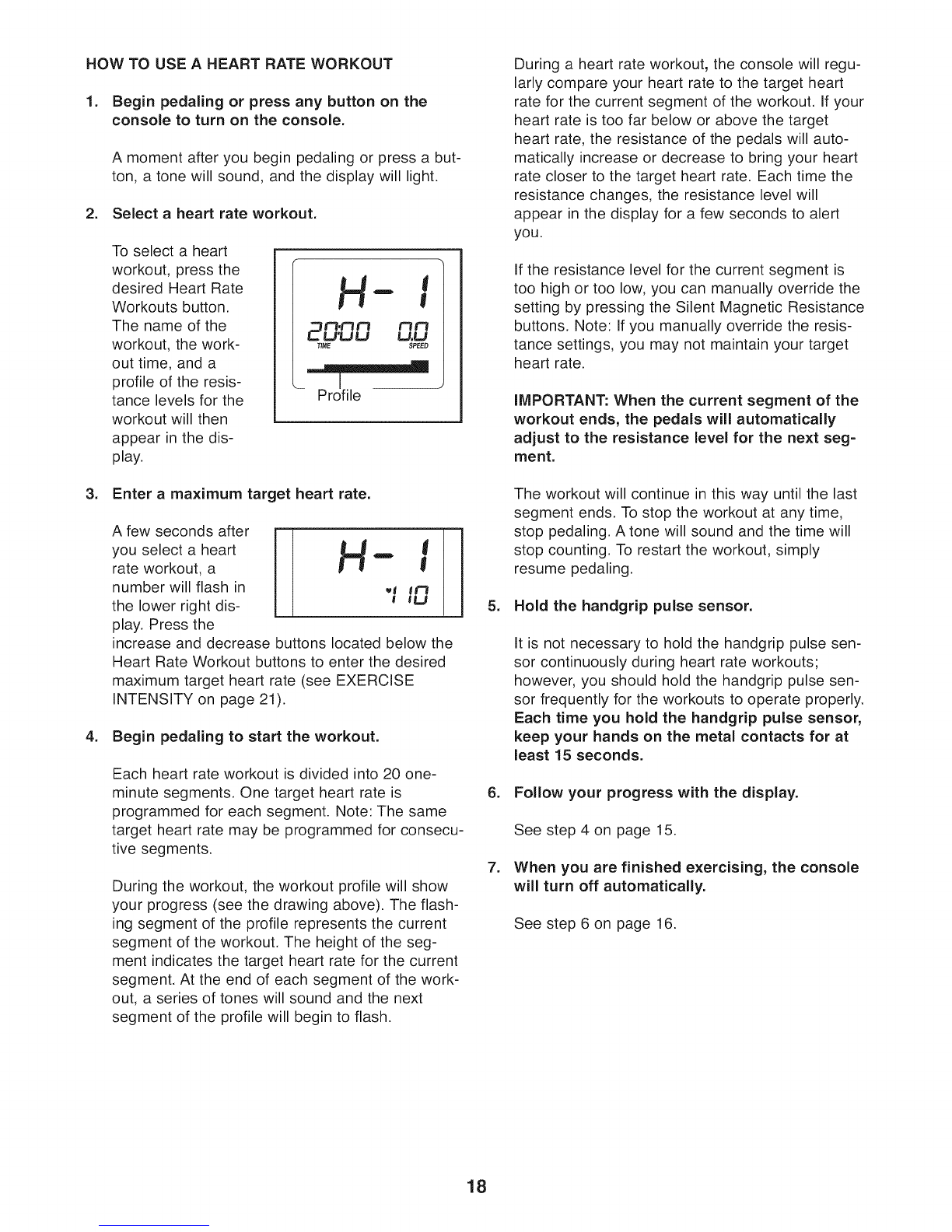

HOW TO USE A HEART RATE WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, a tone will sound, and the display will light.
2. Select a heart rate workout.
To select a heart
workout, press the
desired Heart Rate
Workouts button.
The name of the
workout, the work-
out time, and a
profile of the resis-
tance levels for the
workout will then
appear in the dis-
play.
u'uu u,u
TIME SPEED
_I
Profile
3. Enter a maximum target heart rate.
Afewsec°ndsafterl" :1
you select a heart
rate workout, a
number will flash in ,,_ lm
the lower right dis- _ _u
play. Press the
increase and decrease buttons located below the
Heart Rate Workout buttons to enter the desired
maximum target heart rate (see EXERCISE
INTENSITY on page 21).
4. Begin pedaling to start the workout.
Each heart rate workout is divided into 20 one-
minute segments. One target heart rate is
programmed for each segment. Note: The same
target heart rate may be programmed for consecu-
tive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the seg-
ment indicates the target heart rate for the current
segment. At the end of each segment of the work-
out, a series of tones will sound and the next
segment of the profile will begin to flash.
During a heart rate workout, the console will regu-
larly compare your heart rate to the target heart
rate for the current segment of the workout. If your
heart rate is too far below or above the target
heart rate, the resistance of the pedals will auto-
matically increase or decrease to bring your heart
rate closer to the target heart rate. Each time the
resistance changes, the resistance level will
appear in the display for a few seconds to alert
you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Silent Magnetic Resistance
buttons. Note: If you manually override the resis-
tance settings, you may not maintain your target
heart rate.
iMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level for the next seg-
ment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
stop counting. To restart the workout, simply
resume pedaling.
5. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sen-
sor continuously during heart rate workouts;
however, you should hold the handgrip pulse sen-
sor frequently for the workouts to operate properly.
Each time you hold the handgrip pulse sensor,
keep your hands on the metal contacts for at
least 15 seconds.
6. Follow your progress with the display.
.
See step 4 on page 15.
When you are finished exercising, the console
will turn off automatically.
See step 6 on page 16.
18

HOW TO USE AN IFIT WORKOUT HOW TO CHANGE CONSOLE SETTINGS
iFit cards are available separately. To purchase iFit The console features a user mode that allows you to
cards, go to www.iFit.com or see the front cover of this select a unit of measurement and a backlight option
manual, iFit cards are also available at select stores, for the console and to view console usage information.
1. Begin pedaling or press any button on the 1. Select the user mode.
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, a tone will sound, and the display will light.
To select the user mode, press and hold down the
Priority Display button for a few seconds until the
user mode information appears in the display.
2. insert an iFit card and select a workout. 2Select a backlight option if desired.
.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted,
the indicator next to the slot will light and words
will appear in the display.
iFit Slo _iFit Card
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout, iFit workouts function in the same
way as trainer workouts. To use the workout, see
steps 3 to 6 on page 17.
When you are finished exercising, remove the
iFit card.
The console has
three backlight
options. The ON LJ_'_f'_
option keeps the
backlight on while
the console is on. 2 E
To conserve the
batteries, the AUTO
option keeps the
backlight on only
while you are pedaling. The OFF option turns the
backlight off.
The upper display will show the currently selected
backlight option. Press the Silent Magnetic
Resistance increase button repeatedly to select
the desired backlight option.
3. Select a unit of measurement if desired.
The console can show pedaling pace and distance
in either miles or kilometers.
The lower right display will show the selected unit
of measurement. An E for English miles or an M
for metric kilometers will appear in the lower right
display. To change the unit of measurement, press
the Silent Magnetic Resistance decrease button
repeatedly.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place. Note: When you replace the batteries, it may be necessary to reselect the unit of measurement.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console's
sound system while you exercise, plug an audio cable
(not included) into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player.
4. View console usage information if desired.
The lower left display will show the total number of
hours that the console has been in use since the
exercise cycle was purchased.
5. Exit the user mode.
Press the Priority Display button to save the con-
sole settings and exit the user mode.
19

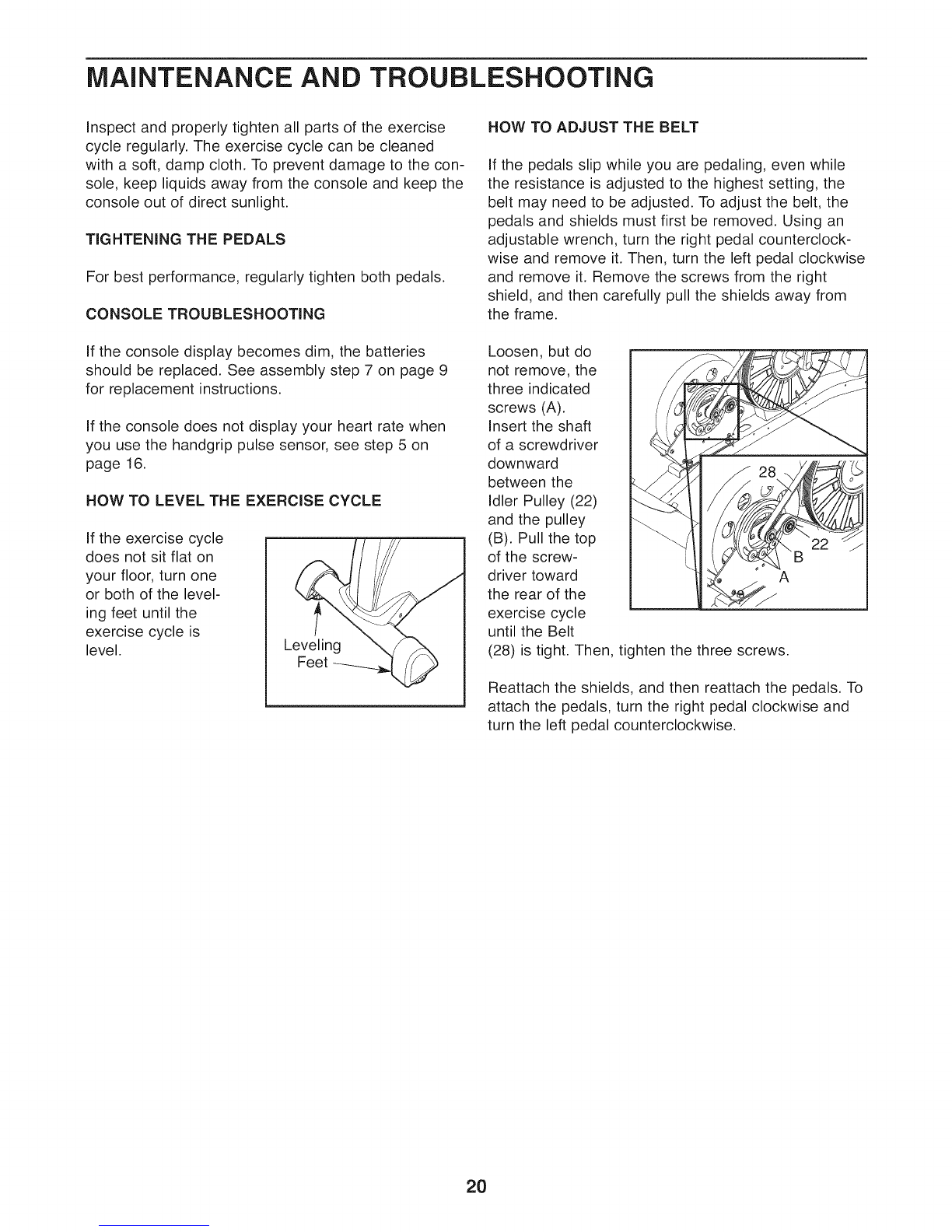

MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
cycle regularly. The exercise cycle can be cleaned
with a soft, damp cloth. To prevent damage to the con-
sole, keep liquids away from the console and keep the
console out of direct sunlight.
TIGHTENING THE PEDALS
For best performance, regularly tighten both pedals.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, the batteries
should be replaced. See assembly step 7 on page 9
for replacement instructions.
If the console does not display your heart rate when
you use the handgrip pulse sensor, see step 5 on
page 16.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle
does not sit flat on
your floor, turn one
or both of the level-
ing feet until the
exercise cycle is
level. Leveling
Feet
HOW TO ADJUST THE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest setting, the
belt may need to be adjusted. To adjust the belt, the
pedals and shields must first be removed. Using an
adjustable wrench, turn the right pedal counterclock-
wise and remove it. Then, turn the left pedal clockwise
and remove it. Remove the screws from the right
shield, and then carefully pull the shields away from
the frame.
Loosen, but do
not remove, the
three indicated
screws (A).
Insert the shaft
of a screwdriver
downward
between the
Idler Pulley (22)
and the pulley
(B). Pull the top
of the screw-
driver toward
the rear of the
exercise cycle
until the Belt
(28) is tight. Then, tighten the three screws.
Reattach the shields, and then reattach the pedals. To
attach the pedals, turn the right pedal clockwise and
turn the left pedal counterclockwise.
2O
