NordicTrack Elite 9500 Treadmill User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal
Model No. NTL01909.0
Serial No.
Write the serial number in the space
above for reference.
Part No. 287665 R1009A Printed in USA © 2009 CON P, nc.
QUESTIONS?
f you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
www.nordictrack.com
CON Health & Fitness, nc. ( CON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame and drive motor are warranted for a life-
time. Parts are warranted for two (2) years from the date of purchase. Labor is warranted for one (1)
year from the date of purchase.
This warranty extends only to the original purchaser. CONʼs obligation under this warranty is limited to
repairing or replacing, at CONʼs option, the product through one of its authorized service centers. All re-
pairs for which warranty claims are made must be preauthorized by CON. f the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an CON authorized service cen-
ter; to products used for commercial or rental purposes or as store display models; or to products trans-
ported or purchased outside the US. No other warranty beyond that specifically set forth above is autho-
rized by CON.
CON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.nordictrackservice.com/registration.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART L ST and the EXPLODED
DRAW NG near the end of this manual)

43
TABLE OF CONTENTS
WARNNGDECALPLACEMENT ..............................................................2
MPORTANTPRECAUTONS .................................................................3
BEFOREYOUBEGN .......................................................................6
ASSEMBLY ...............................................................................7
HOWTOUSETHECHESTPULSESENSOR ...................................................13
OPERATONANDADJUSTMENT ............................................................14
HOWTOFOLDANDMOVETHETREADMLL ..................................................29
TROUBLESHOOTNG ......................................................................31
EXERCSEGUDELNES ...................................................................35
PARTLST ...............................................................................37
EXPLODEDDRAWNG .....................................................................39
ORDERNGREPLACEMENTPARTS ..................................................BackCover
LMTEDWARRANTY...............................................................BackCover
This drawing shows the locations of the warning decals. If a decal is missing
or illegible, call the telephone number on the front cover of this manual
and request a free replacement decal. Apply the decal in the location
shown. Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
NordicTrack is a registered trademark of CON P, nc.
2
EXPLODED DRAWING E—Model No. NTL01909.0 R1009A
89
70
465
67
63
4
4
4
120
121
66
71
123
13
124
126
4
4
125
78
78
13
13
13
13
5
128
129
53
25
4
4

42
1. Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over age 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 350 lbs. (159 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
11. When connecting the power cord (see page 14),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 14. To purchase a surge suppressor, see
your local NordicTrack dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING on page 31 if the tread-
mill is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 16).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug the
power cord, and switch the reset/off circuit
breaker to the “off” position when the tread-
mill is not in use. (See the drawing on page 6
for the location of the reset/off circuit breaker.)
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
3
EXPLODED DRAWING D—Model No. NTL01909.0 R1009A
99
94
94
114
114
116
116
23
50
104 23
78
80
13 4
44
110
13
80
4
78
78
78
4
4
122
127
4
4131
131

21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 7, and HOW TO FOLD
AND MOVE THE TREADMILL on page 29.) You
must be able to safely lift 45 lbs. (20 kg) to
raise, lower, or move the treadmill.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
23. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. Never insert or drop any object into any
opening on the treadmill.
26. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
27. The treadmill is intended for in-home use
only. Do not use the treadmill in any commer-
cial, rental, or institutional setting.
28. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
29. Do not store the television in temperatures
below -40° F (-40° C) or above 140° F (60° C).
Do not operate the television in temperatures
below 23° F (-5° C) or above 90° F (35° C).
30. To protect the treadmill and television during
lightning storms, unplug the power cord from
the wall outlet and disconnect the cable sys-
tem. This will prevent damage due to light-
ning and power line surges.
31. If an outside antenna or cable system is con-
nected, be sure that the antenna or cable sys-
tem is grounded to provide some protection
against voltage surges and built-up static
charges. Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1984, pro-
vides information with respect to proper
grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an an-
tenna discharge unit, size of grounding con-
ductors, location of antenna discharge unit,
connection to grounding electrodes, and re-
quirements for the grounding electrode.
32. An outside antenna system should not be lo-
cated in the vicinity of overhead power lines
or other electric light or power circuits, or
where it can fall into such power lines or cir-
cuits. When installing an outside antenna sys-
tem, extreme care should be taken to keep
from touching such power lines or circuits, as
contact with them might be fatal.
33. To reduce the risk of electric shock, do not re-
move the cover or the back of the television.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
4 41
EXPLODED DRAWING C—Model No. NTL01909.0 R1009A
73
74
83
38
86
85
87
87
86
85
38
64
87
38
38
82
81
82
81
82
81
95
96
90
64
90
90
75
64
90
4
4
82
81
44
4
4
4
4
49
76
77
29
90
72
90
72
90
41
111
112
102
97
97 49
109
64
26
26 26
26
75
46
69
69
29
29
29
29
92
91
93
115

40 5
SAVE THESE INSTRUCTIONS
Power Lines
Ground
Clamps
Ground
Clamps
Ground
Clamp
Bonding
Jumper
Standoff
nsulators
Antenna
Lead-in Wire
Ground Wire
Ground
Wire Antenna
Discharge Unit
To External 75 Ohm
Terminal of Treadmill
Mast
Service
Entrance
Equipment
Power Service Grounding
Electrode System (e.g.
nterior Metal Water Pipe)
Service
Entrance
Conductors
Optional Antenna Grounding Electrode Driven 8
Feet (2.44 m) nto The Earth ( f Required By Local
Codes). See NEC Section 810–21 (f).
34. Upon completion of any service or repairs to
the treadmill or the television, ask the service
technician to perform safety checks to con-
firm that the unit is in proper operating condi-
tion.
• Use No. 10 AWG (5.3 mm2) copper, No. 8
AWG (8.4 mm2)aluminum, No. 17 AWG (1.0
mm2) copper-clad steel or bronze wire, or
larger as a ground wire.
• Secure an antenna lead-in and ground
wires to the house with stand-off insulators
spaced from 4 to 6 feet (1.22 to 1.83 m)
apart.
• Mount an antenna discharge unit as close
as possible to where the lead-in enters the
house.
• Use a jumper wire not smaller than No. 6
AWG (13.3 mm2) copper, or the equivalent
when a separate antenna-grounding elec-
trode is used. See NEC Section 810-21 (j).
Note to CATV system installer: This reminder is
provided to call the CATV system installerʼs at-
tention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particu-
lar, specifies that the cable ground shall be con-
nected to the grounding system of the building,
as close to the point of cable entry as practical.
118
2
1
1
2
117
38
100
113
38 119
28
31
106
37
38
24
38
107
108
39
40
4
21
3
3
3
3
4
44
4
4
4
45
45
79
3
21
42
4
3
3
3
42
132
EXPLODED DRAWING B—Model No. NTL01909.0 R1009A

6 39
Thank you for selecting the revolutionary NordicTrack®
EL TE 9500 PRO treadmill. The EL TE 9500 PRO
treadmill offers an impressive selection of features de-
signed to make your workouts at home more enjoyable
and effective. And when youʼre not exercising, the
unique treadmill can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. f you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Fan
Personal Television/Console Book Holder
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Foot Rail Power Cord
dler Roller
Adjustment Bolts
Accessory Tray
Pulse Sensor
Platform Cushion
58
57
54
29
59
68
38
52
29
14
9
10
62
60
105
56
4
6
47
62
10
7
8
7
12
32
4
4
4
8
61
61
105
56
48
55
33
33
69
69
33
36
9
30
19
16
15
17
15
16
19
30
17
29
51
38
68
52
18
4
4
35
18
29
11
34
4
4
4
13
46
29
4
101
20
55
55
103
43
13
98
88
22
27
84 69
130
133
EXPLODED DRAWING A—Model No. NTL01909.0 R1009A

738
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. f there is lubri-
cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART L ST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included.
3/8" Star Washer
(90)–10
3/8" x 3 3/4" Bolt (72)–4
3/8" Nut (38)–2
#8 x 3/4"
Tek Screw (29)–4
3/8" x 1 1/4"
Bolt (64)–6
3/8" x 2" Bolt (113)–1
3/8" x 1 3/4" Bolt (117)–1
1. Make sure that the power cord is unplugged.
With the help of a second person, raise the front
of the treadmill and insert the crossbar on the
Base (83) into the cutout in the cardboard stand
as shown. Serious injury may occur if the
treadmill moves forward or backward and
falls off the cardboard stand. A second per-
son must hold the treadmill until assembly
step 2 is completed to prevent the treadmill
from moving, tipping, or falling.
83
Cardboard
Stand
1
WARNING: Serious injury
may occur if the treadmill moves for-
ward or backward and falls off the card-
board stand. A second person must
hold the treadmill until assembly step 2
is completed to prevent the treadmill
from moving, tipping, or falling.
Key No. Qty. Description Key No. Qty. Description
101 1 Latch Warning Decal
102 1 AV Wire Nut
103 1 5/32" Hex Key
104 1 Chest Pulse Strap
105 2 Split Washer
106 1 ncline/Controller Wire
107 1 ncline Stop Bracket
108 1 Stop Bracket Spacer
109 1 Static Decal
110 1 Console Plate
111 2 TV Cable Nut
112 1 TV Cable Star Washer
113 1 3/8" x 2" Bolt
114 4 Handrail Cover Fastener
115 1 Audio/Video Wire Harness
116 2 Console Clamp
117 1 3/8" x 1 3/4" Bolt
118 1 Latch Knob
119 1 Latch Cap
120 1 Left Grip
121 1 Right Grip
122 2 4" Ground Wire
123 1 Console TV Cable
124 1 Speaker Cover
125 1 Speaker
126 4 #6 x 1/2" Screw
127 2 #8 x 1/2" Ground Screw
128 1 Chest Pulse Receiver
129 1 Console Warning Decal
130 1 Filter Wire
131 2 Handrail Cap
132 1 Motor Sensor Wire
133 2 Motor Bushing
*–4" White Wire, M/F
*–Userʼs Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.

37
PART LIST—Model No. NTL01909.0 R1009A
To locate the parts listed below, see the EXPLODED DRAW NG near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
12Foot Rail Cover
22 Foot Rail
3 16 #8 x 3/4" Track Screw
4 56 #8 x 3/4" Screw
51Book Rack
61Walking Platform
72Belt Guide
84#8 Belt Guide Screw
92 solator
10 2 1/4" x 1 1/2" Bolt
11 1 Drive Roller/Pulley
12 1 Magnet
13 17 #8 x 1/2" Screw
14 1 Reed Switch Clamp
15 2 ncline Rod Bushing
16 2 Lift Arm
17 2 3/8" x 3/4" Bolt
18 2 Hood Mount
19 2 Lift Arm Spacer
20 1 Reed Switch
21 2 Cushion Track
22 1 Power Cord Grommet
23 4 #8 x 1" Screw
24 1 3/8" x 1 3/4" Hex Bolt
25 1 Audio Wire
26 4 Base Foot Spacer
27 1 Reset/Off Circuit Breaker
28 1 Drive Belt
29 13 #8 x 3/4" Tek Screw
30 2 3/8" x 1 3/4" Patch Bolt
31 1 Drive Motor
32 2 Drive Motor Bolt
33 4 1/4" Nut
34 1 Electronics Bracket
35 1 Front Cap
36 1 Controller
37 1 ncline Rod
38 10 3/8" Nut
39 1 Lift Motor
40 1 3/8" x 2" Bolt
41 1 AV Cover
42 2 Platform Cushion
43 1 Power Cord Bracket
44 1 Motor Hood
45 4 Hood Clip
46 2 Grommet
47 1 Walking Belt
48 1 Frame
49 1 TV Cable
50 1 Chest Pulse Sensor
51 1 Right Rear Foot
52 4 Rear Wheel
53 1 TV Remote
54 1 Right Rear Cap
55 4 1/4" Star Washer
56 2 1/4" x 2 1/2" Bolt
57 1 Hex Key
58 1 Left Rear Foot
59 1 Left Rear Cap
60 1 dler Roller
61 2 5/16" Flange Nut
62 2 5/16" x 1 1/4" Bolt
63 1 Fan
64 6 3/8" x 1 1/4" Bolt
65 1 Console Base
66 1 Console
67 1 TV Console
68 2 3/8" x 3 3/4" Wheel Bolt
69 7 #8 x 1/2" Electronics Screw
70 1 Access Door
71 1 Console Wire Harness
72 4 3/8" x 3 3/4" Bolt
73 1 Left Upright
74 1 Right Upright
75 1 Upright Wire Harness
76 1 Left Base Cover
77 1 Right Base Cover
78 8 #8 x 3/4" Tek Screw
79 1 Hood Accent
80 4 #8 Star Washer
81 4 Base Foot
82 4 #8 x 1" Tek Screw
83 1 Base
84 1 Motor Spacer
85 2 3/8" x 2 3/8" Bolt
86 2 Wheel
87 3 Caution Decal
88 1 Power Cord
89 1 Key/Clip
90 10 3/8" Star Washer
91 4 Releasable Tie
92 2 Tie Clamp
93 10 Plastic Tie
94 2 Handrail Cover
95 1 Left Upright Sleeve
96 1 Right Upright Sleeve
97 1 AV Wire
98 1 #8 Nut
99 1 Handrail
100 1 Storage Latch
8
2. dentify the Right Upright (74), which is marked
with a “Right” sticker. Hold the Right Upright
near the Right Base Cover (77). See the inset
drawing. Locate the wire tie in the rectangular
hole in the lower end of the Right Upright. Tie
the wire tie securely around the end of the
Upright Wire Harness (75). Then, pull the other
end of the wire tie up through the Right Upright
until the Upright Wire Harness is routed com-
pletely through the Right Upright.
Gently pull up on the Upright Wire Harness (75)
as you set the Right Upright (74) on the Base
(83) inside the Right Base Cover (77). Be care-
ful not to pinch the Upright Wire Harness.
Attach the Right Upright (74) to the Base (83)
with two 3/8" x 3 3/4" Bolts (72) and two 3/8"
Star Washers (90). Do not tighten the Bolts
yet. Note: t may be necessary to tip the tops of
the Uprights forward slightly as you thread the
Bolts into the Uprights.
Hold the Left Upright (73) near the Left Base
Cover (76). Pull the TV Cable (49) and the AV
Wire (97) into the rectangular hole in the lower
end of the Left Upright and out of the top of the
Left Upright. Set the Left Upright on the Base
(83) inside the Left Base Cover. Attach the Left
Upright to the Base with two 3/8" x 3 3/4" Bolts
and two 3/8" Star Washers (not shown). Do not
tighten the Bolts yet.
With the help of a second person, lower the
treadmill off the cardboard stand. Save the card-
board stand for step 9.
83
76
75
Wire
Tie
77
2
74
73
49
97
90
72
3. dentify the Right Upright Sleeve (96) and the
Left Upright Sleeve (95); the Upright Sleeves
are marked. Slide the Right Upright Sleeve onto
the Right Upright (74), and slide the Left Upright
Sleeve onto the Left Upright (73).
95
“Right”
“Left”
96
3
74
73
75
74
Wire
Tie

9
4. With the help of a second person, hold the con-
sole assembly near the Uprights (73, 74).
Connect the Upright Wire Harness (75) to the
Console Wire Harness (71). See the inset draw-
ing. The connectors should slide together
easily and snap into place. f they do not, turn
one connector and try again. IF THE CONNEC-
TORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON. Remove the wire
tie from the Upright Wire Harness. 71
Console
Assembly
4
75
Wire
Tie 74
5. Connect the TV Cable (49) and the AV Wire
(97) to the cables extending from the console
assembly. Then, insert the connectors down into
the Uprights (73, 74).
Next, insert the brackets on the Handrail (99) into
the Uprights (73, 74). Make sure that no wires
are pinched. 49
73
97
5
74
99
6. Partially tighten three 3/8" x 1 1/4" Bolts (64)
with three 3/8" Star Washers (90) into the Right
Upright (74). Next, partially tighten three 3/8" x
1 1/4" Bolts with three 3/8" Star Washers (not
shown) into the Left Upright (73). Then, firmly
tighten the six Bolts.
73
74
64
64
90
90
75
6
73
99
71
Console
Assembly
36
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot to-
ward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
1
2
3
4
5

3510
7. Slide the Right Upright Sleeve (96) up against
the console assembly. Attach the Right Upright
Sleeve with two #8 x 3/4" Tek Screws (29).
Attach the Left Upright Sleeve (not shown) to
the console assembly in the same way.
29
96
29
7
Console
Assembly
8. Orient the Storage Latch (100) so that the large
barrel and the Latch Knob (118) are in the posi-
tions shown.
Remove the tie from the upper end of the
Storage Latch (100). Attach the upper end of the
Storage Latch to the bracket on the Frame (48)
with a 3/8" x 1 3/4" Bolt (117) and a 3/8" Nut
(38).
Remove the tie from the lower end of the
Storage Latch (100). Keep the holes in the
Latch Cap (119) aligned with the holes in the
Storage Latch. Make sure to keep the Latch
Cap inside the Storage Latch. Attach the
Storage Latch to the bracket on the Base (83)
with a 3/8" x 2" Bolt (113) and a 3/8" Nut (38).
Note: t may be necessary to move the Frame
back and forth to align the Storage Latch with
the bracket.
Lower the Frame (48) (see HOW TO LOWER
THE TREADM LL FOR USE on page 30). 38
38
Large
Barrel
83
119 113
48
117
118
100
8
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. f your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise— f your goal is to strengthen your
cardiovascular system, you must perform aerobic exer-
cise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic ex-
ercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning any
exercise program, consult your physician.
This is especially important for persons over
age 35 or persons with pre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is in-
tended only as an exercise aid in determining
heart rate trends in general.

34 11
9. With the help of a second person, raise the
front of the treadmill and insert the crossbar on
the Base (83) into the cutout in the cardboard
stand as shown. Have the second person
hold the treadmill to prevent it from moving
forward or backward.
Firmly tighten the four 3/8" x 3 3/4" Bolts (72).
With the help of a second person, lower the
treadmill off the cardboard stand.
Cardboard
Stand
72
83
72
9
10. Note the location of the 75 ohm terminal and the
audio/video input jack on the treadmill. For the
television to operate, the Audio/Video Wire
Harness (115) must be connected to the
audio/video input jack on the treadmill or a CATV
cable or an antenna must be connected to the 75
ohm terminal (see page 12).
10
11. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key
in a secure place; the hex key is used to adjust the walking belt (see page 32). To protect the floor or car-
pet from damage, place a mat under the treadmill.
75 Ohm
Terminal
Audio/
Video
nput
115
PROBLEM: The remote control does not function correctly
SOLUTION: a. Make sure you are standing on the treadmill, holding the remote control near the television and
pointing the remote control directly at the console.
b. f your remote control is still not functioning correctly,
the batteries should be replaced; most re-
mote control problems are the result of low batteries. See page 25 to replace the batteries.
PROBLEM: The television is not receiving a signal
SOLUTION: a. Make sure the correct TV or AV source is selected. See step 3 on page 24 to select a television
source.
b. Make sure that the CATV cable, audio/video wire harness, or antenna is connected securely to
the treadmill. See page 12.
c. Scan for broadcast or cable signals. See page 27 to scan for signals.
d. Due to an FCC requirement, analog signals will no longer be broadcast over the air after June 12,
2009. f you wish to view television signals through an antenna after this date, you must have an
antenna capable of receiving digital signals. Cable television will not be affected.
PROBLEM: The
volume is too loud or the television audio makes a crackling sound
SOLUTION: a. f the television audio makes a crackling sound when the volume is turned up, the volume is too
loud. Press the Volume increase or decrease button on the remote control until the volume level is
80 percent. Once the volume reaches 80 percent, adjust the volume by pressing the Volume but-
tons on the console only.
PROBLEM: The volume cannot be turned up
SOLUTION: a. f the volume cannot be turned up, the volume may have been adjusted with the remote control.
Press the Volume increase or decrease button on the remote control until the volume level is 80
percent. Once the volume reaches 80 percent, adjust the volume by pressing the Volume buttons
on the console only.
b. f there is no sound coming from the television, make sure the television audio is not muted.
c. f there is no sound coming from the television, make sure the audio wire is not plugged into the
audio jack on the console.
PROBLEM: The television needs to be cleaned
SOLUTION: a. UNPLUG THE POWER CORD. To clean the television, wipe the television and screen using a
soft cloth with a small amount of soft detergent. Do not use a polishing cloth, solvent, or any
type of propellant or chemical detergent such as alcohol or benzene.

12 33
HOW TO CONNECT AN ANTENNA
Place an indoor an-
tenna or an outdoor
combination
VHF/UHF antenna
in the desired loca-
tion. Outdoor anten-
nas are subject to
weathering that can
reduce signal qual-
ity. nspect your
outdoor antenna
and the lead-in
wiring before con-
necting the an-
tenna.
75 Ohm CATV Cable
1. Connect the 75 ohm
CATV cable from the
antenna to the 75
ohm terminal on the
treadmill frame near
the power cord.
300 Ohm Flat Wire
1. Connect the 300
ohm flat wire from
the antenna to a 300
ohm to 75 ohm
adapter.
2. Push the 300 ohm to
75 ohm adapter onto
the 75 ohm terminal
on the treadmill
frame near the power
cord.
Note: Due to an FCC requirement, analog signals will
no longer be broadcast over the air after June 12,
2009. f you wish to view television signals through an
antenna after that date, you must have an antenna ca-
pable of receiving digital signals. Cable television will
not be affected.
HOW TO CONNECT AN EXTERNAL SOURCE
USING A CATV CABLE
Use a CATV cable to connect to an external source
such as a cable box, satellite TV box, VCR, or analog
cable.
1. Connect one end of a 75 ohm CATV cable to the
75 ohm output jack on your external source.
2. Plug in the power cord of your external source.
See your external source userʼs manual for proper
grounding instructions.
3. Connect the 75 ohm CATV cable to the 75 ohm
terminal on the treadmill frame near the power
cord. See the drawing at the left.
HOW TO CONNECT AN EXTERNAL SOURCE
USING THE AUDIO/VIDEO WIRE HARNESS
Use the audio/video wire harness to connect to an ex-
ternal source such as a VCR or DVD player.
1. Connect the three-
pronged end of the
Audio/Video Wire
Harness (115) to your
external source.
2. Plug in the power cord of your external source.
See your external source userʼs manual for proper
grounding instructions.
3. Connect the audio/video wire harness to the
audio/video input jack on the treadmill frame near
the power cord.
300 to 75
Ohm Adapter
Screwdriver
300
Ohm Flat
Wire
75 Ohm Terminal
75 Ohm CATV Cable
Outdoor
Combination
VHF/UHF
Antenna
ndoor
Antenna
Before operating the television, you must connect an antenna or a 75 ohm CATV cable to the 75 ohm ter-
minal or the audio/video wire harness to the audio/video input jacks. No CATV cable, antenna, or adapter is
included.
75 Ohm
Terminal
300 to 75 Ohm Adapter
115
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the ncline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. f the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. f the displays are still lit, see THE
NFORMAT ON MODE on page 28 to turn off the demo mode.
PROBLEM: The chest pulse sensor does not function properly
SOLUTION: a. f the chest pulse sensor does not function properly, see CHEST PULSE SENSOR TROU-
BLESHOOT NG on page 13.
PROBLEM: Television reception is poor
SOLUTION: a. Make sure that the television settings are set correctly. See HOW TO ADJUST THE TELEV S ON
SETT NGS on page 26.
b. For the digital television to operate properly, good reception is necessary. f you are using an an-
tenna, make sure that it is properly connected and adjusted for optimal reception. (See HOW TO
CONNECT AN ANTENNA on page 12.)
c. Check for the problems listed below and follow the applicable instructions.
• gnition (black spots or horizontal streaks that appear or a picture that flutters or drifts)—
Usually this is caused by interference from automobile ignition systems, neon lamps, electric
drifts, or other electric appliances. Try changing the position of the treadmill or other electric
appliances to correct the problem.
• Ghosts—Ghosts are caused by the television signal following two paths—one is the direct path
and the other is reflected from tall buildings, hills, or other objects. Change the direction or po-
sition of the antenna to improve reception.
• Blue Screen— f the treadmill is located in the fringe area of a television station where the sig-
nal is weak, the picture may be of poor quality or a blue screen may appear. f the signal is
weak, it may be necessary to install an external antenna to improve the picture.
• Fading— f blocks of the picture are missing, the picture moves around the screen, or the pic-
ture disappears, the signal may be weak. Change the direction or position of the antenna to im-
prove reception. Make sure the television settings are set correctly (see HOW TO ADJUST
THE TELEV S ON SETT NGS on page 26). Do not use a splitter.
Note: f one of these problems appears when the cable from a CATV company is connected, the
problem may be caused by the cable company broadcast.

32 13
Next, locate the Reed Switch (20) and the Magnet
(12) on the left side of the Pulley (11). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). f neces-
sary, loosen the indicated #8 x 3/4" Tek Screw (29),
move the Reed Switch slightly, and then retighten the
Tek Screw. Reattach the Hood (not shown) with the
six #8 x 3/4" Screws (not shown). Run the treadmill for
a few minutes to check for a correct speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 14.
b. f the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the hex key, turn both idler
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 3 to 4 in. (8 to 10
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the treadmill for a few min-
utes. Repeat until the walking belt is properly tight-
ened.
c. f the walking belt still slows when walked on, please see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. f the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the hex key to turn the
left idler roller bolt clockwise 1/2 of a turn; if the walk-
ing belt has shifted to the right, turn the left idler
roller bolt counterclockwise 1/2 of a turn. Be careful
not to overtighten the walking belt. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. f the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the hex key, turn both idler roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each edge of the walking
belt 3 to 4 in. (8 to 10 cm) off the walking platform. Be
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
3–4 in.
b
a
Top
View
dler Roller Bolts
29
20
1/8 in.
11
12
b
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor consists of two components:
the chest strap and the sensor unit. nsert the tab on
one end of the chest strap into the hole in one end of
the sensor unit, as shown in the inset drawing. Press
the end of the sensor unit under the buckle on the chest
strap. The tab should be flush with the front of the sen-
sor unit.
Next, wrap the chest
pulse sensor around
your chest and attach
the other end of the
chest strap to the
sensor unit. Adjust
the length of the
chest strap, if neces-
sary. The chest pulse
sensor should be under your clothes, tight against your
skin, and as high under the pectoral muscles or
breasts as is comfortable. Make sure that the logo on
the sensor unit is facing forward and is right-side-up.
Pull the sensor unit away from your body a few inches
and locate the two electrode areas on the inner side
(the electrode areas are covered by shallow ridges).
Using saline solution such as saliva or contact lens so-
lution, wet both electrode areas. Return the sensor unit
to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the
electrode areas are wetted and the chest pulse sen-
sor is put on; the chest pulse sensor shuts off when
it is removed and the electrode areas are dried. f
the chest pulse sensor is not dried after each use, it
may remain activated longer than necessary, drain-
ing the battery prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct
sunlight for extended periods of time; do not expose
it to temperatures above 122° F (50° C) or below 14°
F (-10° C).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest
strap may be hand washed and air dried.
TROUBLESHOOTING
The instructions on the following pages explain
how the chest pulse sensor is used with the con-
sole. If the chest pulse sensor does not function
properly, try the steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. Note: f the chest pulse
sensor does not function when positioned as de-
scribed, move it slightly lower or higher on your chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the
sensor unit. f heart rate readings do not appear until
you begin perspiring, rewet the electrode areas.
• As you walk or run on the treadmill, position your-
self near the center of the walking belt. For the
console to display heart rate readings, the user
must be within armʼs length of the console.
• The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical
conditions such as premature ventricular contrac-
tions (pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. f it is suspected that
this is a problem, try relocating the treadmill.
Chest Strap
Tabs
Sensor Unit
Tab
Sensor
Unit Buckle
HOW TO USE THE CHEST PULSE SENSOR

14 31
OPERATION AND AD USTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local NordicTrack dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
This product must be grounded. f it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 14). Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 14. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. f the switch pro-
trudes as shown, the circuit breaker has tripped. To
reset the circuit breaker, wait for five minutes and
then press the switch to the reset position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). f the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. f the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. f the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Place the treadmill in the storage po-
sition (see HOW TO FOLD THE TREADM LL FOR
STORAGE on page 29).
Next, remove the two indicated #8 x 3/4" Screws (4).
Lower the treadmill (see HOW TO LOWER THE
TREADM LL FOR USE on page 30). Remove the four
indicated #8 x 3/4" Screws (4), and remove the Motor
Hood (44).
Tripped Reset
c
a
4
4
44 4
4
Grounding Plug

1530
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. When the manual mode of the con-
sole is selected, the speed and incline of the treadmill
can be changed with the touch of a button. As you ex-
ercise, the console will display continuous exercise
feedback. You can even measure your heart rate using
the handgrip pulse sensor or the chest pulse sensor.
The console also offers four event training workouts.
Each workout counts down the distance as you com-
plete a 5-kilometer, 10-kilometer, half marathon, or full
marathon run.
n addition, the console features twenty-four preset
workouts—eight Aerobic Fitness workouts, eight
Performance workouts, and eight Weight Loss work-
outs. Each workout automatically controls the speed
and incline of the treadmill as it guides you through an
effective exercise session. You can even create your
own custom workouts and save them for future use.
The console also features the new iFit interactive
workout system. The iFit system enables the console
to accept iFit interactive workout cards containing
workouts designed to help you achieve specific fitness
goals. For example, lose unwanted pounds with the 8-
week Weight Loss workout, or train for a long-distance
run with the Marathon workout. iFit workouts automati-
cally control the treadmill while the voice of a personal
trainer coaches you and motivates you through every
step of your workout. iFit cards are available sepa-
rately. To purchase iFit cards at any time, see the
front cover of this manual or go to www.iFit.com.
iFit cards are also available at select stores.
The console also offers four heart rate workouts that
control the speed and incline of the treadmill to help
you keep your heart rate near target heart rate settings.
Whether you select the manual mode or a workout,
you can enjoy the shows of your choice on the per-
sonal television while you get in shape. You can also
listen to your favorite workout music or audio books
with the consoleʼs premium stereo sound system.
To turn on the power, see page 16. To use the man-
ual mode, see page 16. To use an event training
workout, see page 18. To use a preset workout, see
page 19. To create and use a custom workout, see
pages 20 and 21. To use an iFit card, see page 22.
To use a heart rate workout, see page 23. To oper-
ate the personal television, see page 24. To use the
remote control, see page 25. To replace the batter-
ies in the remote control, see page 25. To adjust
television settings, see page 26. To use the infor-
mation mode, see page 28. To use the stereo
sound system, see page 28.
CONSOLE DIAGRAM
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand.
Pull the latch knob to the left and hold it. Pivot the frame
downward and release the latch knob. Note: To release
the latch knob, it may be necessary to push the frame for-
ward as you pull the latch knob to the left.
2. Hold the metal frame firmly with both hands, and lower
it to the floor. CAUTION: To decrease the possibility of
injury, do not lower the frame by gripping only the
plastic foot rails. Do not drop the frame to the floor.
Make sure to bend your legs and keep your back
straight.
Frame
Latch Knob
Frame

2916
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
page 14). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
power cord. Make sure that
the circuit breaker is in the
reset position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
displays remain lit, see THE INFORMATION MODE
on page 28 to turn off the demo mode.
Next, stand on the
foot rails of the
treadmill. Locate
the clip attached to
the key (see the
drawing at the
right), and slide
the clip securely
onto the waistband
of your clothes. Then, insert the key into the console.
After a moment, the displays will light. IMPORTANT:
In an emergency situation, the key can be pulled
from the console, causing the walking belt to slow
to a stop. Test the clip by carefully taking a few
steps backward; if the key is not pulled from the
console, adjust the position of the clip.
IMPORTANT: If there is a sheet of clear plastic on
the face of the console, remove the plastic. To pre-
vent damage to the walking platform, wear clean
athletic shoes while using the treadmill. The first
time the treadmill is used, observe the alignment
of the walking belt, and center the walking belt if
necessary (see page 32).
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of mea-
surement, see THE NFORMAT ON MODE on page
28. For simplicity, all instructions in this section refer to
miles.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Each time the key is in-
serted, the manual mode
will be selected. f you
have selected a workout,
press any of the workout
buttons repeatedly until a
track appears in the ma-
trix.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the speed but-
tons numbered 1 to 12.
f you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons. Each time you press
one of the buttons, the speed setting will change
by 0.1 mph; if you hold down the button, the speed
setting will change in increments of 0.5 mph. f you
press one of the numbered speed buttons, the
walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
speed buttons.
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
ncline increase and decrease buttons or one of
the incline buttons numbered 0 to 15.
Each time you press the ncline increase or de-
crease button, the incline will change by 0.5 per-
cent. f you press one of the numbered incline but-
tons, the incline will gradually change until it
reaches the selected incline setting. Note: After
you press the buttons, it may take a moment for
the treadmill to reach the selected incline setting.
Reset
Clip
Key
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If you do not do this, you may damage the
treadmill when you fold it. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45
lbs. (20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by
the arrow at the right. CAUTION: To decrease the pos-
sibility of injury, do not lift the frame by the plastic foot
rails. To raise the frame, bend your legs, keep your
back straight, and lift with your legs. Raise the frame
about halfway to the vertical position.
2. Raise the frame until the latch knob locks into the storage
position. Make sure that the latch knob is locked in
the storage position.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of di-
rect sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° F (30° C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
latch knob is locked in the storage position.
1. Hold the handrails and place one foot against one of the
wheels.
2. Tip the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot against one of the wheels, and carefully
lower the treadmill until it is resting in the storage position.
Wheel
Handrails
Frame
Latch Knob
Frame

28 17

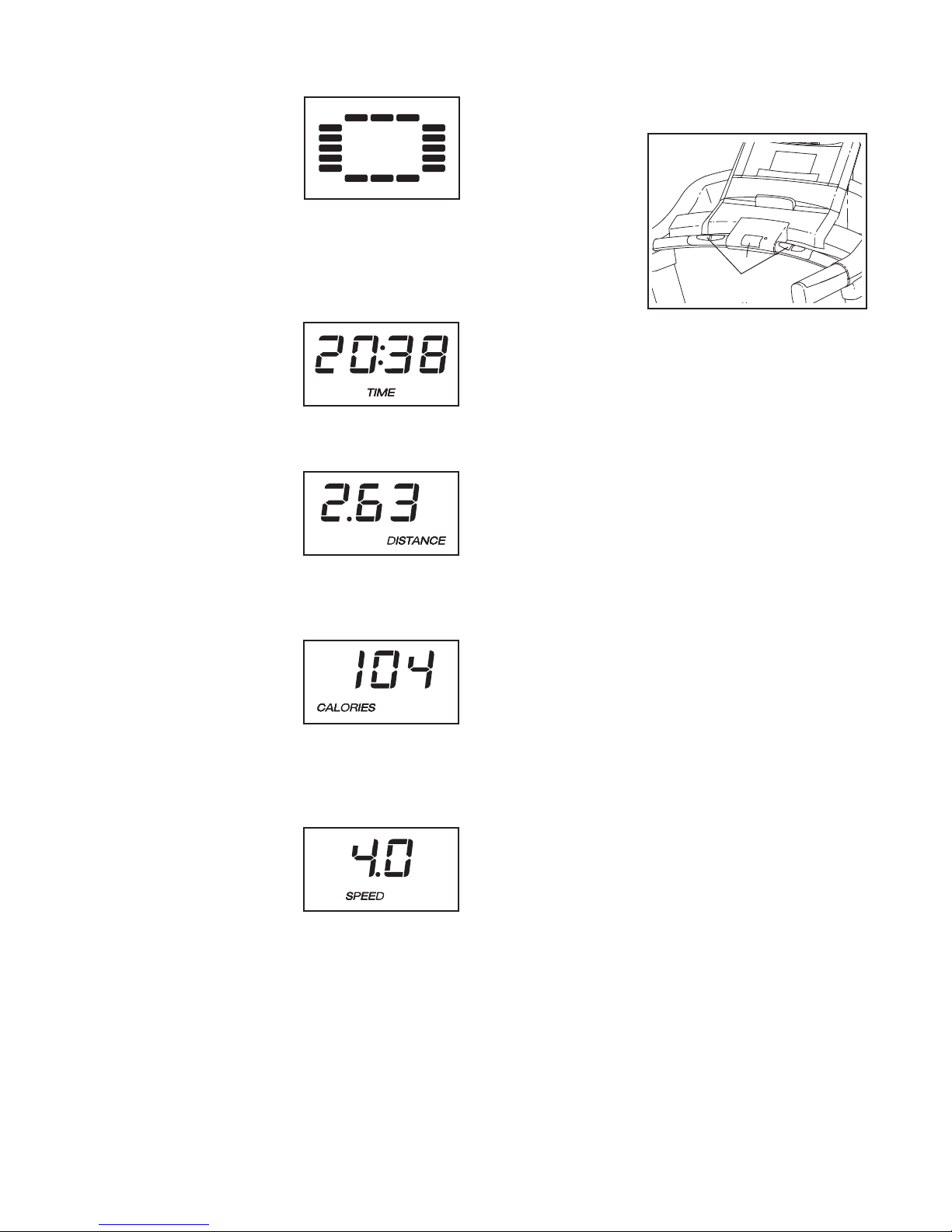

5. Follow your progress with the displays.
The matrix—When you
select the manual
mode, the matrix will
display a track that rep-
resents 1/4 mile (400
meters). As you exer-
cise, the indicators
around the track will appear in succession until the
entire track appears. The track will then disappear
and the indicators will again begin to appear in
succession.
The Time display—
The Time display will
show the elapsed time.
Note: When a workout
is selected, the display
will show the time re-
maining in the workout instead of the elapsed time.
The Distance/Incline
display—The
Distance/ ncline display
can show the distance
that you have walked or
run. The display will
also show the incline of the treadmill for several
seconds each time the incline changes.
The Calorie/Pulse dis-
play—The
Calorie/Pulse display
can show the approxi-
mate number of calories
you have burned. The
display will also show your heart rate when you
use the handgrip pulse sensor or the chest pulse
sensor.
The Speed display—
The Speed display will
show the speed of the
walking belt.
To reset the console, press the Stop button, re-
move the key, and then reinsert the key.
6. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the chest pulse sensor at the same time, the
console will not display your heart rate accu-
rately. See page 13 for information about the chest
pulse sensor.
Before using
the handgrip
pulse sensor,
remove the
sheets of clear
plastic from the
metal contacts.
n addition,
make sure that
your hands are
clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrail
for approximately ten seconds—avoid moving
your hands. When your pulse is detected, several
dashes will appear in the display and then your
heart rate will be shown. For the most accurate
heart rate reading, continue to hold the con-
tacts for about 15 seconds.
7. Turn on the fan if desired.
The fan features high and low speed settings.
Press the Fan button repeatedly to select a fan
speed or to turn off the fan. Note: f the fan is on
when the walking belt is stopped, the fan will turn
off automatically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest set-
ting when you fold the treadmill to the storage
position, or you may damage the treadmill.
Next, remove the key from the console and put it in
a secure place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmillʼs electrical compo-
nents may wear prematurely.
Contacts
THE INFORMATION MODE
The console features an information mode that keeps
track of the total distance that the walking belt has
moved and the total number of hours that the treadmill
has been used. The information mode also allows you
to select miles or kilometers to measure distance, and
to turn on and turn off the display demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:
The Time display will show
the total number of hours the
treadmill has been used.
The Distance/ ncline display
will show the total number of
miles or kilometers that the
walking belt has moved.
An “E” for English miles or an
“M” for metric kilometers will
appear in the Calorie/Pulse
display. Press the Speed in-
crease button to change the
unit of measurement if de-
sired.
The console features a dis-
play demo mode, designed
to be used if the treadmill is
displayed in a store. While
the demo mode is turned on,
the console will function nor-
mally when you plug in the power cord, switch the
reset/off circuit breaker to the reset position, and insert
the key into the console. However, when you remove
the key, the displays will remain lit, although the but-
tons will not function. f the demo mode is turned on, a
“d” will appear in the Speed display while the informa-
tion mode is selected. To turn on or turn off the demo
mode, press the Speed decrease button.
To exit the information mode, remove the key from the
console.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the consoleʼs
stereo sound system, you must connect your MP3
player, CD player, or other personal audio player to the
console through the audio jack below the television.
To use the audio jack, plug the audio wire into a jack
on your MP3 player, CD player, or other personal
audio player. Make sure that the audio wire is fully
plugged in. While the audio wire is plugged in, the
television audio will not function.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Adjust the vol-
ume on your personal audio player or press the
Volume increase and decrease buttons on the con-
sole. To use headphones, plug the headphones into
the headphone jack near the Stop button.
f you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat sur-
face and not on the console.
HOW TO AD UST THE CUSHIONING SYSTEM
The treadmill features a cushioning system that re-
duces the impact as you walk or run on the treadmill.
To increase the firmness of the walking platform, step
off the treadmill and slide the platform cushions toward
the front of the treadmill. To decrease the firmness,
step off the treadmill and slide the platform cushions
toward the back of the treadmill. Note: Make sure that
both cushions are set at the same firmness level.
The faster you run on the treadmill, or the more
you weigh, the firmer the walking platform should
be.
Platform
Cushion
Walking Platform
ncrease
Decrease Platform
Cushion

2718
HOW TO USE AN EVENT TRAINING WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select an event training workout.
To select an event training workout, press the
Event Training button repeatedly; the distance of
the workout (5 kilometer, 10 kilometer, half
marathon, or full marathon), the workout number,
and a track will appear in the display.
3. Start the walking belt.
Press the Start button to start the workout. A mo-
ment after you press the button, the walking belt
will begin to move at 4 mph. Hold the handrails and
begin walking.
After several minutes, the speed setting will flash in
the display and a series of tones will sound. The
speed of the walking belt will then increase to 5
mph.
After another minute, the speed setting will flash in
the display and a series of tones will sound. The
speed of the walking belt will then increase to 6.5
mph.
Note: To change the speed of the walking belt or
the incline of the treadmill at any time during the
workout, press the speed or incline buttons.
During an event training workout, the display will
show the number of miles or kilometers still to be
walked or run.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 1 mph.
Adjust the speed of the walking belt as desired by
pressing the Speed increase or decrease button or
one of the numbered speed buttons.
Note: When you have completed an event, your
total time will appear in the display. f the speed of
the walking belt was greater than 5 mph when you
completed the event, the walking belt will then slow
to 5 mph for one minute. After one minute, the
walking belt will slow to 4 mph for 2 minutes. The
walking belt will then slow to 3 mph for 2 minutes.
The walking belt will then slow to a stop.
4. Follow your progress with the displays.
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. Turn on the fan if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
6. Scan and save channels.
Select CATV or A R. Select CATV to receive chan-
nels through the 75 ohm terminal on the treadmill.
Select A R to receive channels through an antenna.
To scan for available channels, highlight AUTO
SCAN or AUTO SCAN ADD CH. To scan all chan-
nels, select the Auto scan option. To scan all chan-
nels and add an extra channel, select the Auto
Scan Add Ch option. The scan channel submenu
will appear.
f you are receiving
channels through a
CATV cable, high-
light CABLE SYS-
TEM and select the
auto, STD, RC, or
HRC setting. Try all
four cable settings, if
necessary, to find
the optimal setting.
Highlight START TO SCAN and press the Volume
increase button to start the auto scan. The televi-
sion will begin scanning all of the channels avail-
able in your area. When no signal is detected on a
channel, the channel will be skipped. When a sig-
nal is detected, the channel will be saved into
memory and the next channel will be selected. This
process will continue until the highest channel is
reached. The television will renumber the channels
in the order in which it locates them. Do not re-
move the key while the television is scanning
channels. Note: f a television channel disappears,
scan for channels again.
After all valid chan-
nels available in your
area have been
saved into the televi-
sionʼs memory, you
can manually skip
unwanted channels.
To skip a channel,
highlight CHANNEL
SK P and press the Volume increase button on
your remote control. n the channel skip submenu,
press the Channel increase and decrease buttons
to highlight the desired channel and the Volume in-
crease and decrease buttons to turn on or turn off
the skip option. Continue this process until you
have skipped all unwanted channels.
To change the dis-
play name of a chan-
nel, highlight CHAN-
NEL NO. and select
a channel. Then,
highlight CHANNEL
LABEL and press the
Volume increase but-
ton to enter the
channel label submenu. Press the Volume in-
crease and decrease buttons to select a number or
letter box. Then press the Channel increase and
decrease buttons to select the desired number or
letter.
7. Exit the Menu.
When you have finished adjusting the settings,
press the Exit button.
No.
"MENU": EXIT
"ENTER": SELECT
Program Name Skip
4-1 FD 3803 Off
9-2 KQUED-SD Off
EDIT SELECT "MENU": EXIT
FD 38 30
456
Cable System
UP/DOWN ADJUST "MENU": EXIT
Start to Scan
AUTO

1926
HOW TO USE A PRESET WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a preset workout.
To select a preset workout, press the Aerobic
Fitness button, the Performance button, or the
Weight Loss button.
When a preset workout
is selected, the displays
will show the duration of
the workout, the maxi-
mum incline setting, the
workout number, and
the maximum speed setting of the workout. n addi-
tion, a profile of the speed settings of the workout
will scroll across the matrix.
3. Enter your weight.
For the most accurate calorie count, enter your
weight by pressing the Rate/Wt. increase and de-
crease buttons repeatedly. Note: Once you have
entered your weight, it will be saved in memory.
4. Start the walking belt.
Press the Start button to start the workout. A mo-
ment after you press the button, the treadmill will
automatically adjust to the first speed and incline
settings of the workout. Hold the handrails and
begin walking.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are pro-
grammed for each segment. Note: The same
speed and/or incline setting may be programmed
for consecutive segments.
During the workout, the
profile will show your
progress. The flashing
segment of the profile
represents the current segment of the workout.
The height of the flashing segment indicates the
speed setting for the current segment. At the end
of each segment, a series of tones will sound and
the next segment of the profile will begin to flash. f
anew speed or incline setting is programmed for
the next segment, the new speed or incline setting
will appear in the displays for a few seconds.
f the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or in-
cline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next seg-
ment of the workout begins, the treadmill will auto-
matically adjust to the speed and incline settings
for the next segment.
The workout will continue in this way until the last
segment of the workout ends. The walking belt will
then slow to a stop.
5. Follow your progress with the displays.
See step 5 on page 17.
6. Measure your heart rate if desired.
See step 6 on page 17.
7. Turn on the fan if desired.
See step 7 on page 17.
8. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
Current Segment
HOW TO AD UST THE TELEVISION SETTINGS
You must use your remote control to adjust television
settings. Press the Menu button to enter the main
menu or to return to a previous menu. Press the Exit
button to exit a menu. Press the Channel (CH) in-
crease and decrease buttons to navigate up and down
in a menu and the Volume (VOL) increase and de-
crease buttons on your remote control to navigate right
and left.
1. Press the Menu button to enter the main menu.
To select one of the
icons across the top
of the screen, press
the Volume increase
and decrease but-
tons on your remote
control until the de-
sired icon appears
larger than the oth-
ers. Select the monitor to adjust the image set-
tings. Select the speaker to adjust the audio set-
tings. Select the clock to adjust the time settings.
Select the gear to adjust the television settings.
Select the antenna to locate and save channels.
To return to the main menu, press the Menu button
repeatedly.
2. Adjust the image settings.
Select the personal, standard, dynamic, or soft pic-
ture mode. The contrast, brightness, color, sharp-
ness, and tint will automatically adjust. You can
also manually adjust the contrast, brightness,
color, sharpness, or tint.
3. Adjust the audio settings.
Select the personal, standard, movie, or music
sound mode. The bass, treble, and balance will au-
tomatically adjust. You can also manually adjust
the bass, treble, balance, or audio language.
Select an audio language to hear programs in the
selected language. Note: The audio language set-
ting will function only if another audio signal is
available.
4. Adjust the time settings.
Adjust the OSD (on-screen display) duration, sleep
timer, time zone, or daylight savings time settings.
The clock will display the current date and time and
is reset every time the power is turned on. The
OSD duration is the length of time indicators (like
channel number or the electronic program guide)
will remain on the screen after they appear. f you
set the sleep timer, the television will turn off after
the indicated number of minutes. A countdown will
warn you when the television is about to turn off.
Note: The time zone setting, daylight savings time
setting, and clock are only available when viewing
digital television.
5. Adjust the television settings.
Adjust the language used in the menus, the trans-
parency of the menu, the color mode, or the closed
caption settings. You can also restore the original
television settings.
To enter the closed
caption submenu,
highlight CLOSED
CAPT ON and press
the Volume increase
button on your re-
mote control. n the
closed caption sub-
menu, adjust the
closed caption mode, the basic selection, and the
advanced selection.
When you highlight
RESTORE SETT NG
and press the
Volume increase but-
ton, a confirmation
request will appear in
the display. Use the
Volume increase or
decrease button to
select YES or NO and press the Channel increase
or decrease button to confirm your selection.
Select YES to restore the original television set-
tings or NO to keep the current settings.
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
Personal
50
50
50
50
0
UP/DOWN ADJUST "MENU": EXIT
4 1
CC Mode Off
UP/DOWN ADJUST "MENU": EXIT
Basic Selection
Advance Selection
CC1
Service 1
444
SELECT
Are you sure?
NO
CONFIRM
YES
445

2520
HOW TO CREATE A CUSTOM WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a custom workout.
To select a custom
workout, press the
Custom button repeat-
edly. When a custom
workout is selected, the
displays will show the
duration of the workout, the maximum incline set-
ting, the workout number, and the maximum speed
setting of the workout. n addition, three columns of
indicators will scroll in the displays.
Note: If more than three columns of indicators
scroll across the matrix, see HOW TO USE A
CUSTOM WORKOUT on page 21.
3. Start the walking belt and program the desired
speed and incline settings.
Press the Start button to start the workout. A mo-
ment after you press the button, the walking belt
will begin to move. Hold the handrails and begin
walking.
Each custom workout is divided into several one-
minute segments. One speed setting and one in-
cline setting can be programmed for each seg-
ment. To program speed and incline settings for
the first segment, simply adjust the speed and in-
cline of the treadmill as desired by pressing the
speed and incline buttons.
When the first segment of the workout ends, a se-
ries of tones will sound and the current speed and
incline settings will be saved in memory. Program
a speed setting and an incline setting for the sec-
ond segment in the same way.
Continue programming speed and incline settings
for as many segments as desired; custom work-
outs can have up to forty segments. When you are
finished with your workout, press the Stop button
twice. The speed and incline settings that you have
programmed and the workout time will then be
saved in memory.
4. Follow your progress with the displays.
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. Turn on the fan if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
HOW TO USE THE REMOTE CONTROL
The first time you use the re-
mote control, insert batteries
(see HOW TO REPLACE THE
BATTER ES N THE REMOTE
CONTROL at the right).
Next, stand on the treadmill and
hold the remote control near the
television. Point the remote con-
trol directly at the television.
Press the Power button ( ). After a few moments, the
television will turn on or turn off.
Press the Volume (VOL) increase or decrease button
to navigate left or right in a menu. For best results,
change the volume by pressing the Volume buttons on
the console only.
Press the Mute button to turn on or turn off the sound.
Press the numbered channel buttons or the Channel
(CH) increase or decrease button to select a channel.
The Channel increase and decrease buttons on the re-
mote also function as the up and down navigation but-
tons in a menu.
Press the Return button ( ) to view the previous
channel.
To select a subchannel, select a channel, press the
Subchannel button ( ), and then press the numbered
channel buttons.
Press the Menu button to view the main menu or to
view a previous menu. See pages 26 and 27 for infor-
mation on the menu.
Press the Exit button to exit any menu.
Press the PRL ST button to view a list of channels. f
you have labeled any channels, the menu will also
show the channel label. See page 27 for information
on labeling channels. Note: You can also view this list
by pressing the PR List button on the console.
Press the EPG button to view the electronic program
guide. Note: The electronic program guide is only
available when viewing ATSC digital television.
Press the nfo button to view information about the cur-
rent program and the broadcast or cable signal.
Press the CC button repeatedly to turn on or turn off
closed captioning. See step 5 on page 26 to adjust
closed captioning settings.
Press the TV/AV button repeatedly to select the input
source. To view television channels through an an-
tenna or a CATV cable, select the TV source. To use
the audio/video wire harness, select the AV source.
Press the MTS button repeatedly to select mono,
stereo, or SAP (secondary audio programming) as the
audio setting.
Press the Format button repeatedly to select auto, 4:3,
or wide image as the display format. Note: The auto
display format is only available when viewing ATSC
digital television.
Press the Pict button repeatedly to select standard, dy-
namic, soft, or personal as the image mode.
Press the Audio button repeatedly to select standard,
music, movie, or personal as the audio mode.
HOW TO REPLACE THE BATTERIES IN THE
REMOTE CONTROL
To replace the batteries,
first locate the battery
cover on the back of the
remote control. Push
down lightly on the bat-
tery cover with your
thumb and slide off the
battery cover.
f necessary, remove the old batteries from the remote
control. nsert two new “AAA” batteries. Make sure to
insert the batteries as shown in the drawing. Then,
slide the battery cover onto the remote control.
