USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
satisfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-877-993-7999
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. NTC07941
Serial No.
Patent Pending
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
1. Read all instructions in this manual before
using the exercise cycle. Use the exercise
cycle only as described.
2. It is the responsibility of the owner to
ensure that all users of the exercise cycle
are adequately informed of all precautions.
3. Use the exercise cycle indoors on a level
surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor or carpet.
4. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. The exercise cycle should not be used by
persons weighing more than 250 pounds.
7. Wear suitable clothing when using the
exercise cycle; do not wear loose clothing
that could become caught on the exercise
cycle. Always wear athletic shoes.
8. Always keep your back straight when using
the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.
10. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4
Congratulations for selecting the new NordicTrack®
SL 710 exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fit-
ness, building endurance, and toning the entire body.
The NordicTrack®SL 710 offers an impressive array
of features designed to let you enjoy this healthful
exercise in the comfort and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, call our Customer Service
Department toll-free at 1-877-993-7999, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, mention
the product model number and serial number when
calling. The model number is NTC07941. The serial
number can be found on a decal attached to the exer-
cise cycle (see the front cover of this manual for the
location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Seat Handle
Fan
Water Bottle Holder*
*No water bottle is included
FRONT
REAR
Backrest
Seat
Wheel
Pedal/Strap
Console
Bookrack
Seat Knob
Leveling Foot
RIGHT SIDE
BEFORE YOU BEGIN

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench .
Use the drawings below to identify the small parts used during assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LIST on page 25. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
M10 Nylon
Locknut (63)–2
M8 Split
Washer (55)–12 M10 Split
Washer (88)–2
M6 Washer
(60)–5
M10 x 118mm Button Screw (78)–2
M10 x 52mm Button Bolt (82)–2
M8 x 40mm Button
Screw (54)–8
M8 x 25mm Button
Screw (79)–4
M4 x 16mm
Screw (57)–5 M6 x 45mm Button
Screw (80)–1
M8 Nylon
Locknut (89)–4
M8 x 40mm Button
Bolt (81)–4
M6 x 20mm Button
Screw (20)–6
1. Identify the Front Stabilizer (15). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with four M8 x 40mm Button
Screws (54) and four M8 Split Washers (55).
15
1
55
55 54
54
1

6
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (16) to the Frame with four
M8 x 40mm Button Screws (54) and four M8 Split
Washers (55).
3
2
1
78
43
88
97
99
99
3. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (97) to
the Lower Wire Harness (43). Gently pull the upper
end of the Upper Wire Harness to remove any slack
from the Wire Harnesses.
Insert the Upright (2) into the Frame (1). Be careful to
avoid pinching the Wire Harnesses (43, 97). Attach
the Upright with two M10 x 118mm Button Screws
(78), two M10 Split Washers (88), and two Upright
Spacers (99). Make sure the concave end of each
Upright Spacer is turned toward the Upright.
4. Identify the Left Handlebar (70), which is marked with
an “L” sticker. While another person holds the Left
Handlebar near the Upright (2), connect the left Pulse
Sensor Wire (6) to the Pulse Wire (3). Next, slide the
Left Handlebar onto the indicated tube on the Upright.
Be careful to avoid pinching the Wires. Carefully
insert two M8 x 40mm Button Bolts (81) through the
Left Handlebar and the tube on the Upright. Be care-
ful not to damage the Wires with the Button Bolts.
Finger tighten two M8 Nylon Locknuts (89) onto the
Button Bolts. Next, slide the Handlebar Collar (100)
onto the upper end of the Left Handlebar.
Attach the Right Handlebar (72) as described above.
Note: As you slide the Right Handlebar onto the right
tube on the Upright (2), insert the upper end of the
Right Handlebar into the Left Handlebar (70).
Connect the Handlebars (70, 72) with the Handlebar
Collar (100) and an M4 x 16mm Screw (57). Tighten
the four M8 x 40mm Button Bolts (81). Make sure the
M8 Nylon Locknuts (89) are seated in the hexago-
nal holes in the Handlebars.
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
16
1
55
55 54
54
2
4
Tube
89
57
3
2
6
70
72
100
Make sure the wires
do not get damaged
during this step.
81

7
7. Attach the Seat Frame (7) to the Seat Carriage (11)
with two M10 x 52mm Button Bolts (82) and two M10
Nylon Locknuts (63). 63
7
11
6. Attach the Seat (9) to the Seat Frame (7) with four M6
x 20mm Button Screws (20) and four M6 Washers
(60).
7
20
60
60
9
6
7
82
5. Have another person hold the Console (4) near the
Upright (2).
Connect the Upper Wire Harness (97) to the wire har-
ness on the Console (4). Connect the Pulse Wire (3)
to the pulse wire on the Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (4) to the Upright with four M4
x 16mm Screws (57). Be careful to avoid pinching
the wires. Next, press the bookrack onto the Console
in the indicated location.
4
2
57
97
3
5
Make sure the wires
do not get damaged
during this step.
Bookrack

8
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(24). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the exer-
cise cycle for one week, retighten the Pedals. For
best performance, the Pedals must be kept tight-
ened.
Identify the Left Pedal Strap (25), which is marked
with an “L.” Attach the Left Pedal Strap to the Left
Pedal (22), and adjust it to the desired position. Attach
and adjust the Right Pedal Strap (not shown) in the
same way.
9
22 24
25
10. The Console (4) requires four “D” batteries (not
included); alkaline batteries are recommended. Slide
the battery cover off the Console. Insert four batteries
into the battery compartment. Make sure that the
batteries are oriented as shown by the diagram
inside the battery compartment. Slide the battery
cover back onto the Console. Note: When the batter-
ies are installed correctly, the fan will turn on for a
moment.
10
4
Batteries
Battery
Cover
8. Attach the Backrest (62) and the Seat Back (98) to
the Backrest Frame (42) with two M6 x 20mm Button
Screws (20), an M6 x 45mm Button Screw (80), and
an M6 Washer (60).
Slide the Backrest Frame (42) onto the Seat Frame
(7). Attach the Backrest Frame with four M8 x 25mm
Button Screws (79) and four M8 Split Washers (55).
62
7
20
80
60
79
55
55
79
42
98
8

9
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (see page 21), follow the steps below to install the receiver
included with the chest pulse sensor.
Remove the access door from the underside of the
Console (4). You may need to use a small standard
screwdriver to remove the access door.
Slide the receiver onto the indicated plastic pin on the
Console (4); make sure that the receiver is oriented
exactly as shown. Locate the two small screws included
with the chest pulse sensor. Attach the receiver to the
Console with the two screws as shown.
Connect the wire on the receiver to the indicated wire on
the Console (4).
Reattach the access door. Make sure that no wires are
pinched. Note: The other wires included with the chest
pulse sensor may be discarded.
Pin
Access
Door
Wire
Screws
4
Receiver

10

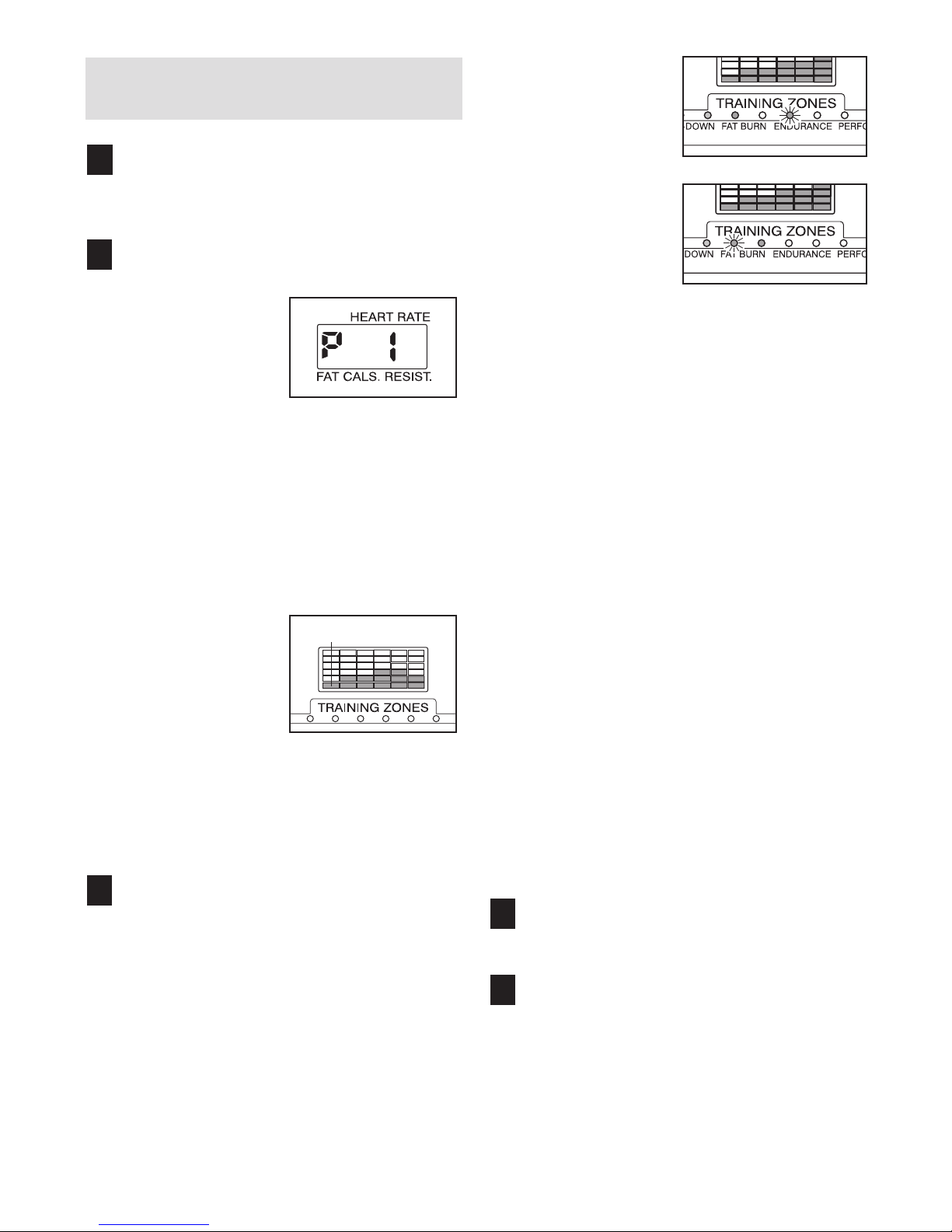

HOW TO OPERATE THE EXERCISE CYCLE
HOW TO MOVE AND LEVEL THE EXERCISE
CYCLE
Stand in back of the exercise cycle, and lift the exer-
cise cycle until it can be moved on the front wheels.
Move the exercise cycle to the desired location and
carefully lower it. Due to the weight of the exercise
cycle, use extreme caution while moving it.
If the exercise cycle
rocks slightly during
use, turn the level-
ing feet under the
rear stabilizer until
the rocking motion
is eliminated.
HOW TO ADJUST THE SEAT
The seat can be
adjusted to the posi-
tion that is the most
comfortable for you.
To adjust the seat,
pull the seat knob,
slide the seat for-
ward or backward,
and then release
the seat knob. Move
the seat forward or
backward slightly
until the pin on the
seat knob snaps into one of the holes in the seat rail.
HOW TO ADJUST THE PEDAL STRAPS
The pedal straps
can be adjusted to
the position that is
the most comfort-
able for you. Press
the tabs on the ped-
als, adjust the
straps to the
desired position,
and then release
the tabs.
Leveling
Foot
Wheel
Seat Seat
Knob
Pedal
Strap
Tab
