NordicTrack NTL99010.2 User manual

Serial Number
Decal
Model No. NTL99010.2
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
QUESTIONS?
f you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT T E STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON T E WEB:
www.nordictrackservice.com
USERʼS MANUAL
www.nordictrack.com
TABLE OF CONTENTS
WARNNGDECALPLACEMENT..............................................................2
MPORTANTPRECAUTONS ................................................................3
BEFOREYOUBEGN ......................................................................5
PART DENTFCATONCHART ..............................................................6
ASSEMBLY...............................................................................7
OPERATONANDADJUSTMENT ............................................................15
HOWTOFOLDANDMOVETHETREADMLL ..................................................24
TROUBLESHOOTNG .....................................................................25
EXERCSEGUDELNES ...................................................................28
PARTLST ..............................................................................30
EXPLODEDDRAWNG ....................................................................32
ORDERNGREPLACEMENTPARTS ..................................................BackCover
LMTEDWARRANTY ..............................................................BackCover
This drawing shows the locations of the
warning decals. If a decal is missing or il-
legible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal
in the location shown. Note: The decals
may not be shown at actual size.
WARNING DECAL PLACEMENT
2
NORD CTRACK is a registered trademark of CON P, nc.
3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 350 lbs. (159 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
15), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 15. To purchase a surge suppressor, see
your local NORDICTRACK dealer or call the
telephone number on the front cover of this
manual and order part number 146148, or see
your local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLES OOTING on page 25 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
OW TO TURN ON T E POWER on page 17).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The heart rate monitor is not a medical de-
vice. Various factors, including the user's
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is in-
tended only as an exercise aid in determining
heart rate trends in general.
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
4
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the lo-
cation of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 7, and OW TO FOLD
AND MOVE T E TREADMILL on page 24.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for home use only.
Do not use this treadmill in a commercial,
rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE T ESE INSTRUCTIONS
5
Thank you for selecting the revolutionary
NORD CTRACK®C900 treadmill. The C 900 treadmill
offers an impressive selection of features designed to
make your workouts at home more enjoyable and ef-
fective. And when youʼre not exercising, the unique
treadmill can be folded up, requiring less than half the
floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. f you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Tray
Key/Clip
Power Switch
Walking Belt
Platform Cushion
Foot Rail
Power Cord
dler Roller
Adjustment Screws
Console
Heart Rate Monitor
6
#8 x 3/4" Screw
(2)–6
3/8" Star
Washer (13)–4 3/8" Nut (12)–2
5/16" Star
Washer (11)–4
#10 x 3/4" Screw
(9)–4
3/8" x 2 3/4" Screw (7)–4
3/8" x 1 3/4" Bolt (6)–1
3/8" x 2" Bolt (3)–1
#8 x 1/2" Ground
Screw (10)–1
#8 x 1/2"
Screw (1)–6
5/16" x 1 1/2"
Bolt (4)–4
3/8" x 1 1/4"
Screw (8)–4
#8 x 1" Screw
(25)–4
PART IDENTIFICATION C ART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART L ST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-
tached. Extra hardware may be included.
7
1. Make sure that the power cord is unplugged.
Place a piece of cardboard below the rear of the
Frame (56) to protect the floor or carpet.
Attach the Left Wheel Cap (96) to the Base (94)
with two #8 x 3/4" Screws (2).
Attach the Right Wheel Cap (not shown) to
the Base (94) in the same way.
1
96
94
2
56
Cardboard
2. Pull the Upright Wire (81) and the Base Ground
Wire (28) through the indicated hole in the Base
(94).
Attach the Base Ground Wire (28) to the Base
(94) with a #8 x 1/2" Ground Screw (10).
Press the Grommet (77) into the square hole in
the Base (94).
81
2
Hole
Square
Hole
10
28
94
77
ASSEMBLY
•Assembly requires two persons.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish assembly.
• The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. f there
is lubricant on top of the walking belt, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.
•To identify small parts, see page 6.
•Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools
for assembly.
8
4. dentify the Left Upright (89), which is marked
“Left.” Have a second person hold the Left
Upright near the Base (94).
See the inset drawing. Tie the wire tie in the
Left Upright (89) securely around the end of the
Upright Wire (81). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Left Upright.
81
4
81
89
Wire
Tie
Wire
Tie
89
94
81
3. Remove the four 5/16" x 1" Screws (5), the four
5/16" Star Washers (11), and the two 5/16" x
1 1/2" Bolts (4) from the Left and Right
Handrails (88, 87). Save the Screws, Bolts,
and Star Washers; they will be used in an-
other assembly step.
Lift the Left and Right Handrails (88, 87) off the
Left and Right Uprights (89, 90). The andrails
will be reattached in other assembly steps.
89
90
3
5
4
4
5
11
88 87
11
9
6. dentify the Left Base Cover (82) and the Right
Base Cover (83). Slide the Left Base Cover onto
the Left Upright (89). Slide the Right Base Cover
onto the Right Upright (90). Do not press the
Base Covers into place yet.
Remove the wire tie from the Upright Wire (81).
89
82
90
83
6
Wire
Tie
81
5. Hold the Left Upright (89) against the Base
(94). Be careful not to pinch any wires. nsert
two 3/8" x 2 3/4" Screws (7) and two 3/8" x 1
1/4" Screws (8) with two 3/8" Star Washers (13)
into the Left Upright.
Partially tighten the 3/8" x 2 3/4" Screws (7) and
the 3/8" x 1 1/4" Screws (8) until the heads of
the Screws touch the Left Upright (89); do not
fully tighten the Screws yet.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the
right side.
89
94
5
8
7
13
13
10
8. Attach the Left Handrail (88) to the Left Upright
(89) with the two 5/16" x 1" Screws (5), two
5/16" Star Washers (11), and the 5/16" x 1 1/2"
Bolt (4) that you removed in step 3. Do not fully
tighten the Screws and the Bolt yet.
Attach the Right andrail (87) in the same
way.
Slide the Upright Wire (81) to the right side of
the indicated bracket. Be careful not to pinch
the Upright Wire between the Left Outside
andrail Cover (80) and the bracket.
8
89
88
87
4
4
5
5
80
11
11
81
Bracket
7. dentify the Left Handrail (88), and hold it near
the Left Upright (89).
Tie the wire tie in the Left Handrail (88) securely
around the end of the Upright Wire (81). Then,
pull the other end of the wire tie until the Upright
Wire is routed through the Left Handrail. Make
sure that the Upright Wire is on the left side
of the indicated bracket.
88
7
89
81
Wire
Tie
Bracket
11
10. IMPORTANT: To avoid damaging the
Crossbar (93), do not use power tools and
do not overtighten the #10 x 3/4" Screws (9).
Orient the Crossbar (93) as shown. Tighten all
four #10 x 3/4" Screws (9) about halfway into
the Handrails (87, 88). Then, slide the Crossbar
as far forward as possible, and tighten the four
Screws.
93
88
9
10 9
87
9. Set the console assembly face down on a soft
surface to avoid scratching the console
assembly.
Remove the four indicated Screws (A). Next, lift
off the Crossbar (93) and the Console Frame
(104). Discard the four Screws.
93
Console
Assembly
A
9A
A
104
12
12. With the help of a second person, hold the con-
sole assembly near the Left Handrail (88).
Connect the Upright Wire (81) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. f they do not, turn one connector and try
again. IF YOU DO NOT CONNECT T E CON-
NECTORS PROPERLY, T E CONSOLE MAY
BECOME DAMAGED W EN YOU TURN ON
T E POWER. Then, remove the wire tie from
the Upright Wire.
Connect the ground wire from the console as-
sembly to the Console Ground Wire (105) and
insert the wires into the hole in the console
assembly.
Console
Assembly
Console
Wire
Wire
Tie
88
81
81
Console
Wire
12
Ground
Wire
105
Hole
11. Attach the Console Frame (104) to the
Handrails (87, 88) with four 5/16" x 1 1/2" Bolts
(4) and four 5/16" Star Washers (11). Start all
four Bolts, and then tighten them.
11
104
87
88
4
11
4
11
13
14. Firmly tighten the four 3/8" x 2 3/4" Screws (7),
Then, tighten the four 3/8" x 1 1/4" Screws (8)
(only one side is shown).
Press the Left Base Cover (82) and the Right
Base Cover (83) onto the Base (94) until they
snap into place.
14
83
8
82
94
7
13. Set the console assembly on the Left Handrail
(88) and the Right Handrail (87). Be careful not
to pinch any wires. nsert the excess Upright
Wire (not shown) into the Left Handrail.
Attach the console assembly with six #8 x 1/2"
Screws (1) and two #8 x 3/4" Screws (2) (only
one side is shown). Start all eight Screws, and
then tighten them.
Attach two Console Clamps (106) to the console
assembly with four #8 x 1" Screws (25).
See step 8. Fully tighten the four 5/16" x 1"
Screws (5) and the two 5/16" x 1 1/2" Bolts (4).
88
1
13
Console
Assembly
1
87
2
25
1
1
25
106
106
14
17. Make sure that all parts are properly tightened before you use the treadmill. f there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 26 and 27).
16. Attach the upper end of the Storage Latch (53)
to the Frame (56) with a 3/8" x 1 3/4" Bolt (6)
and a 3/8" Nut (12).
Lower the Frame (56) (see HOW TO LOWER
THE TREADM LL FOR USE on page 24).
16
53
12
56
6
15. Raise the Frame (56) to the position shown.
ave a second person hold the Frame until
step 16 is completed.
Orient the Storage Latch (53) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (53) to
the Base (94) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
15
53
Large
Barrel
56
Latch
Knob
12
3
94
15
OPERATION AND ADJUSTMENT
OW TO PLUG IN T E POWER CORD
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could dam-
age the control system of the treadmill (see precau-
tion 13 on page 3).
This product must be grounded. f it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This productʼs power cord has an equip-
ment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
that is properly installed and grounded in accor-
dance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets and may not be compatible
with AFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see draw-
ing 2).
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be in-
stalled by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to deter-
mine if the outlet box cover is grounded before
using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor in-
creases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet in-
stalled by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
Grounding Plug
16
FEATURES OF T E CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. When you use the manual mode,
you can change the speed and incline of the treadmill
with the touch of a button. As you exercise, the con-
sole will display instant exercise feedback. You can
even measure your heart rate using the handgrip heart
rate monitor.
n addition, the console features twenty onboard work-
outs—five calorie workouts, five intensity workouts,
five speed workouts, and five incline workouts. Each
workout automatically controls the speed and incline of
the treadmill as it guides you through an effective exer-
cise session.
The console also features an iFit Live mode that en-
ables the treadmill to communicate with your wireless
network through an optional iFit Live module. With the
iFit Live mode, you can download personalized work-
outs, create your own workouts, track your workout re-
sults, race against other runners, and access many
other features. To purchase an iFit Live module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual.
You can even listen to your favorite workout music or
audio books with the consoleʼs stereo sound system
while you exercise.
To turn on the power, see page 17. To use the man-
ual mode, see page 17. To use an onboard work-
out, see page 20. To use an iFit Live workout, see
page 21. To use the stereo sound system, see page
22. To use the information mode, see page 23.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of mea-
surement is selected, see THE NFORMAT ON MODE
on page 23. For simplicity, all instructions in this sec-
tion refer to miles.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage to
the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use the
treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 27).
CONSOLE DIAGRAM
17
OW TO TURN ON T E POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 15). Next, locate the
power switch on the tread-
mill frame near the power
cord. Press the power
switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see T E INFORMATION MODE on page
23 to turn off the demo mode.
Next, stand on the foot rails
of the treadmill. Find the
clip attached to the key and
slide the clip onto the waist-
band of your clothes. Then,
insert the key into the con-
sole. After a moment, the
displays will light.
IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking a
few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
OW TO USE T E MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
f the manual mode is not selected, press the
Manual button on the console.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the 1 Step Speed
buttons numbered 1 through 12.
f you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons. Each time you press
one of the buttons, the speed setting will change by
0.1 mph; if you hold down the button, the speed
setting will change in increments of 0.5 mph. Note:
After you press the button, it may take a moment
for the walking belt to reach the selected speed
setting.
f you press one of the numbered 1 Step Speed
buttons, the walking belt will gradually change
speed until it reaches the selected speed setting.
To select a speed setting that includes a decimal—
such as 3.5 mph—press two numbered buttons in
succession. For example, to select a speed setting
of 3.5 mph, press the 3 button and then immedi-
ately press the 5 button.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To restart
the walking belt, press the Start button or the
Speed increase button.
Reset
Key
Clip
18
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
ncline increase or decrease button or one of the
numbered 1 Step ncline buttons. Each time you
press one of the buttons, the treadmill will gradu-
ally adjust to the selected incline setting.
5. Follow your progress with the displays.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time
• The distance that you have walked or run
• The workout intensity bar
• The approximate number of calories you have
burned
• The incline level of the treadmill
• The number of vertical feet you have climbed
• The speed of the walking belt
• Your heart rate (see step 6 on page 19)
• The matrix
The matrix offers several display tabs. Press the
increase and decrease button next to the Enter
button until the desired tab is shown.
The ncline tab will show a profile of the incline set-
tings of the workout. A new segment will appear at
the end of each minute. The Speed tab will show a
profile of the speed settings of the workout.
The My Trail tab will show a track that represents
1/4 mile (400 m). As you exercise, the white rec-
tangle will show your progress. The My Trail tab
will also show the number of laps you complete.
The Calorie tab will show the approximate amount
of calories you have burned. The height of each
segment represents the amount of calories burned
during that segment. When the Calorie tab is se-
lected, the calorie display will show the approxi-
mate number of calories burned per hour.
As you exercise, the workout intensity level bar will
indicate the approximate intensity level of your
exercise.
Press the Home button to return to the default
menu (see THE NFORMAT ON MODE on page
23 to set the default menu). f necessary, press the
Home button again.
When an iFit Live module is
connected, the wireless sym-
bol at the top of the display
will show the strength of your
wireless signal. Four arcs in-
dicate full signal strength.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
19
6. Measure your heart rate if desired.
Before using the
handgrip heart
rate monitor, re-
move the sheets
of plastic from
the metal con-
tacts on the
pulse bar. n ad-
dition, make sure
that your hands
are clean.
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on the
metal contacts; avoid moving your hands. When
your pulse is detected, a heart symbol in the calo-
rie display will flash each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
7. Turn on the fan if desired.
The fan features multiple
speed settings. Press
the fan increase or de-
crease button to select a
fan speed or to turn off
the fan. Note: f the fan
is on when the walking
belt is stopped, the fan
will turn off automatically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest set-
ting or you may damage the treadmill when you
fold it to the storage position. Next, remove the
key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
Contacts
Fan Decrease
Fan ncrease
20
OW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 17.
2. Select an onboard workout.
To select an onboard workout, press the Calorie
button, the ntensity button, the Speed button, or
the ncline button repeatedly until the desired work-
out appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. n addition, a profile of the speed
settings of the workout will appear in the matrix. f
you select a calorie workout, the approximate num-
ber of calories you will burn will appear in the name
of the workout.
3. Start the workout.
Press the Start button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
first speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting
and/or incline setting may be programmed for con-
secutive segments.
During the
workout, the
profiles on
the speed
and incline
tabs will
show your
progress. The flashing segment of the profile repre-
sents the current segment of the workout. The
height of the flashing segment indicates the speed
or incline setting for the current segment. At the
end of each segment, a series of tones will sound
and the next segment of the profile will begin to
flash. f a different speed and/or incline setting is
programmed for the next segment, the speed
and/or incline setting will flash in the display to alert
you and the treadmill will automatically adjust to the
new speed and/or incline setting.
The workout will continue in this way until the last
segment of the profile flashes in the display and the
last segment ends. The walking belt will then slow
to a stop.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that you
burn will depend on your weight. In addition, if
you manually change the speed or incline of
the treadmill during the workout, the number of
calories you burn will be affected.
f the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the Speed or
ncline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
Current Segment

Other manuals for NTL99010.2

1

This manual suits for next models

1

Other NordicTrack Treadmill manuals

NordicTrack NTL11806.2 User manual

NordicTrack

NordicTrack NTL11806.2 User manual

NordicTrack T 13.0 Treadmill Instruction Manual

NordicTrack

NordicTrack T 13.0 Treadmill Instruction Manual

NordicTrack NTL22940 User manual

NordicTrack

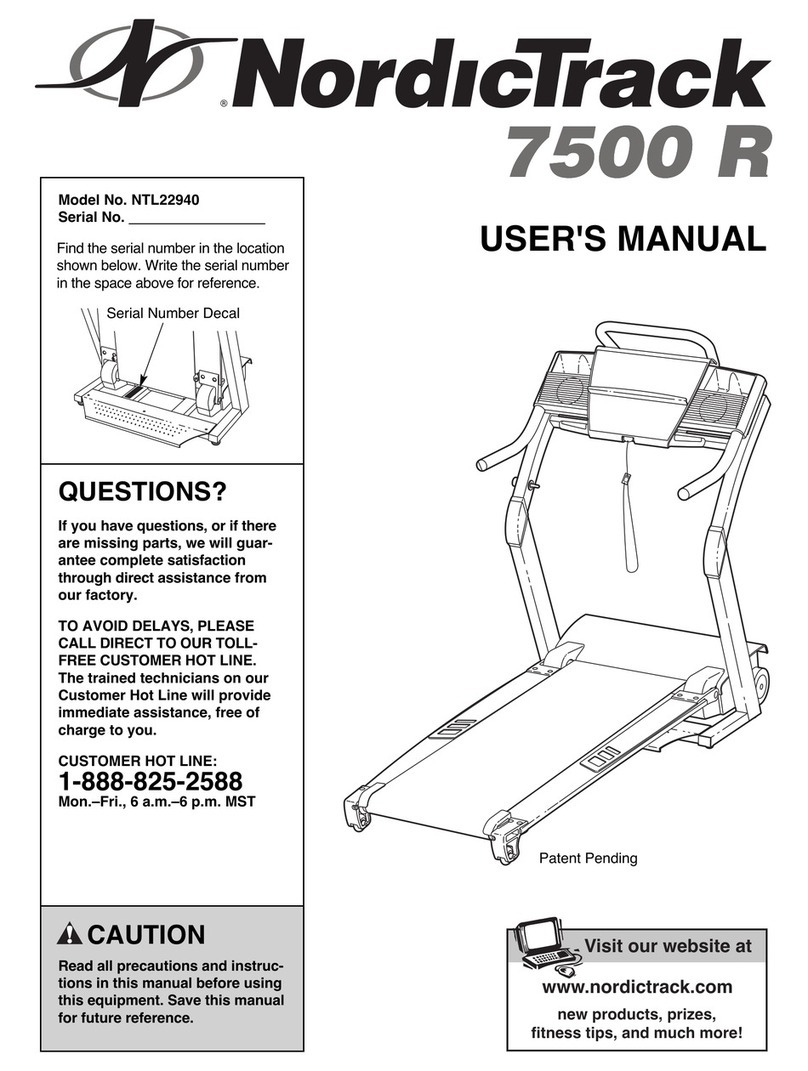

NordicTrack NTL22940 User manual

NordicTrack EXP5i User manual

NordicTrack

NordicTrack EXP5i User manual

NordicTrack C1900 831294072 User manual

NordicTrack

NordicTrack C1900 831294072 User manual

NordicTrack C2300 NTL12944 User manual

NordicTrack

NordicTrack C2300 NTL12944 User manual

NordicTrack C 320i User manual

NordicTrack

NordicTrack C 320i User manual

NordicTrack 831.24990.0 User manual

NordicTrack

NordicTrack 831.24990.0 User manual

NordicTrack T9ci NTL09908.0 User manual

NordicTrack

NordicTrack T9ci NTL09908.0 User manual

NordicTrack 3100 R NTL15921 User manual

NordicTrack

NordicTrack 3100 R NTL15921 User manual

NordicTrack NTL19921 User manual

NordicTrack

NordicTrack NTL19921 User manual

NordicTrack NTTL25902 User manual

NordicTrack

NordicTrack NTTL25902 User manual

NordicTrack NTTL25905 User manual

NordicTrack

NordicTrack NTTL25905 User manual

NordicTrack 29450.0 User manual

NordicTrack

NordicTrack 29450.0 User manual

NordicTrack NTTL11991 User manual

NordicTrack

NordicTrack NTTL11991 User manual

NordicTrack T10.0 User manual

NordicTrack

NordicTrack T10.0 User manual

NordicTrack 19.0 Treadmill Setup guide

NordicTrack

NordicTrack 19.0 Treadmill Setup guide

NordicTrack NTTL11512 User manual

NordicTrack

NordicTrack NTTL11512 User manual

NordicTrack C3000 Treadmill User manual

NordicTrack

NordicTrack C3000 Treadmill User manual

NordicTrack NTL14951 User manual

NordicTrack

NordicTrack NTL14951 User manual

NordicTrack T5.7 NTL61011.1 User manual

NordicTrack

NordicTrack T5.7 NTL61011.1 User manual

NordicTrack T 7.2 Treadmill User manual

NordicTrack

NordicTrack T 7.2 Treadmill User manual

NordicTrack EXP 1000i NTTL09901 User manual

NordicTrack

NordicTrack EXP 1000i NTTL09901 User manual

NordicTrack NETL14917.0 User manual

NordicTrack

NordicTrack NETL14917.0 User manual

Popular Treadmill manuals by other brands

Weslo Cadence 925 user manual

Weslo

Weslo Cadence 925 user manual

LIFESTYLER 831.297420 owner's manual

LIFESTYLER

LIFESTYLER 831.297420 owner's manual

Garlando Toorx TRX 8500 EVO instructions

Garlando

Garlando Toorx TRX 8500 EVO instructions

Insportline inCondiT50i user manual

Insportline

Insportline inCondiT50i user manual

Image IMTL15905.0 user manual


Image IMTL15905.0 user manual

Hebb Trimline 1600.1 owner's manual

Hebb

Hebb Trimline 1600.1 owner's manual

Keys Fitness HT75t owner's manual

Keys Fitness

Keys Fitness HT75t owner's manual

LA Fitness MI100A user manual

LA Fitness

LA Fitness MI100A user manual

HMS BE4600-i Manual instruction

HMS

HMS BE4600-i Manual instruction

Weslo Cadence 200 user manual

Weslo

Weslo Cadence 200 user manual

Domyos TC7 Assembly manual

Domyos

Domyos TC7 Assembly manual

HMS BE5833 manual

HMS

HMS BE5833 manual

Weslo 925925 user manual

Weslo

Weslo 925925 user manual

Horizon Fitness T202 owner's manual

Horizon Fitness

Horizon Fitness T202 owner's manual

Life Span VULCAN owner's manual

Life Span

Life Span VULCAN owner's manual

Cosco SX4444 user manual

Cosco

Cosco SX4444 user manual

h/p/cosmos venus 200/75 Original instructions for use

h/p/cosmos

h/p/cosmos venus 200/75 Original instructions for use

Everfit TFK 430 Instruction

Everfit

Everfit TFK 430 Instruction

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
