Nordmende TDV70WH User manual

CAUTION: HOT SURFACE!
CAUTION: RISK OF FIRE!
TUMBLE DRYER
USER MANUAL
TDV70WH
Read these instructions carefully before using your dryer
and keep it carefully.
If you follow the instructions, your appliance will provide
you with many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

1 2
•The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not
play with the appliance. In EN standard countries, this
appliance can be used by children from 8 years and above
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards
involved.
•Children are not to play with the appliance, leaning and
user maintenance shall not be made by children without
supervision.
•The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
•The lint trap has to be cleaned frequently.
•Lint must not to be allowed to accumulate around the
tumble dryer.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substance such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers etc should be washed
in hot water with a extra amount of detergent before being
dried in the tumble dryer.
•Items such as foam rubber (latex), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted
with foam rubber pads should not be dried in the tumble
dryer.
CONTENTSSAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation .............................................................
OPERATIONS

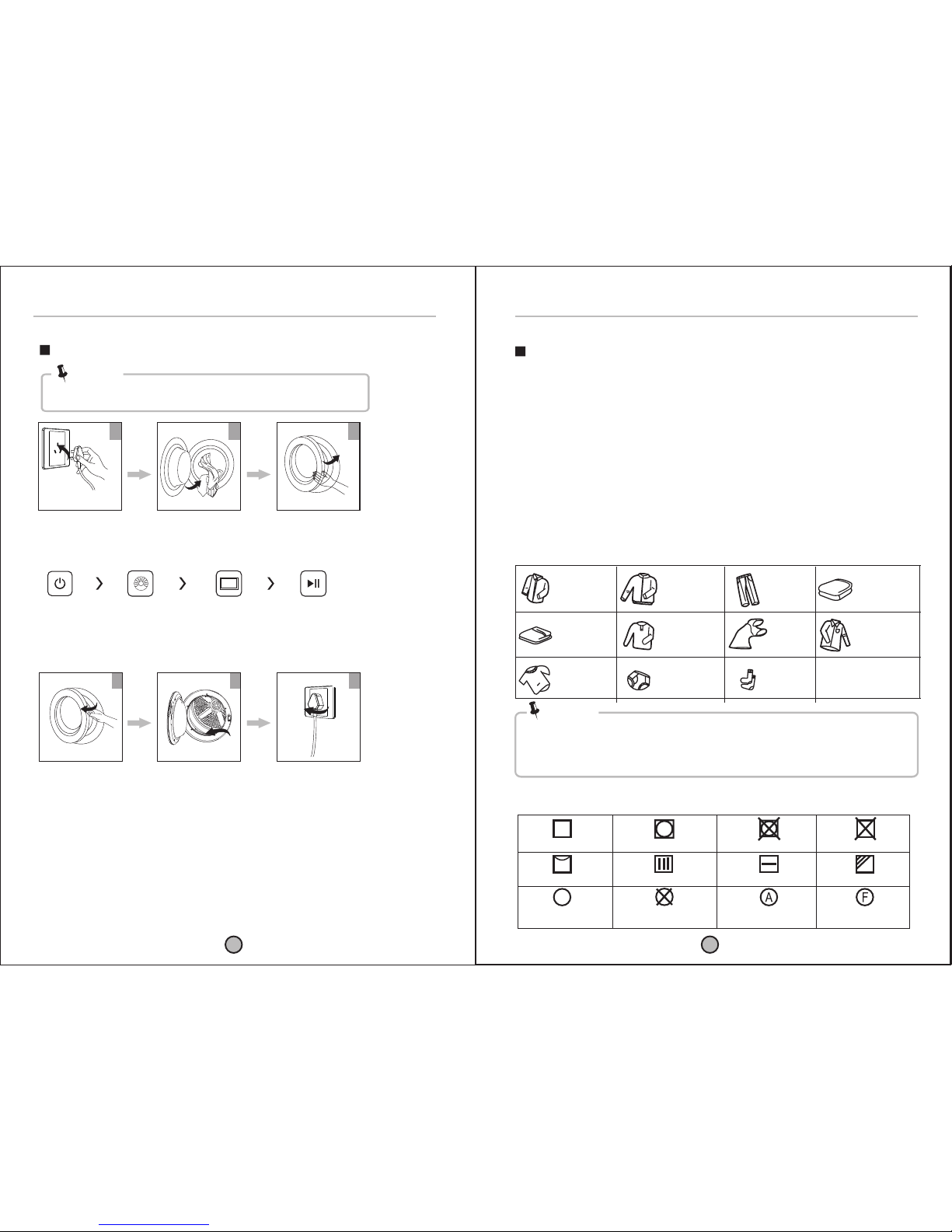

Quick Start .............................................................
Before Each Drying .................................................
Control Panel .........................................................
Drying Programmes Table .......................................
MAINTENANCE
Cleaning and Care .................................................
Trouble Shooting ....................................................
Technical Specifications ..........................................
Product Fiche..........................................................
2
7
7
9
10
11
13
15
16
17
18

•Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
•The final part of a tumble dryer cycle occurs without heat (cool
down cycle) to ensure that the items are left at a temperature
the ensures that the items will not be damaged.
•The exhaust air must not be discharged into a flue which is used
for exhausting fumes from other appliances burning gas or other
fuels.
•The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side, to that
of the tumble dryer, or in such a way that a full opening of the
tumble dryer door is restricted.
•Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The items
become warm, causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items can become
hot enough to catch fire. Piling, stacking or storing oil-affected
items can prevent heat from escaping and so create a fire hazard.
•The appliance should not be overturned during normal use or
maintenance.
•Remove all objects from clothing pockets such as lighters and
matches or sharp objects.
Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
•For appliances with ventilation openings in the base, please
ensure that openings are not obstructed by carpet or anything
else.
•If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid hazards.
•Children of less than 3 years should be kept away unless
continuously supervised.
•Plug must be accessible after installation.
3 4
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Warning!
！

Power supply and grounding
•
The socket and the grounding wire must be
installed by an electrician to prevent incorrect
installation or use of the socket and to
guarantee the safety of use of electricity. If
there is no connection of the grounding wire
and the neutral wire, the cabinet will be
charged, which is likely to cause the danger of
electric shock.
• Precautions
Install or store where it will not be
exposed to temperatures below
freezing or exposed to water or
weather, which could cause
permanent damage and invalidate the
warranty.
Keep the area around the exhaust
opening and adjacent surrounding
areas free from the accumulation of
lint, dust and dirt. An obstructed port
might reduce the airflow.
Thoroughly spin the laundry in
washing machine. High spin speed
can reduce the drying
time and save energy
consumption.
Make sure combustible sprays are not
close to dryer when it is working. If
there is a gas leak, do not touch the
plug or press
start/pause on the
control panel.
Do not wash or dry articles that have
been cleaned in, washed in, soaked in or
spotted with combustible or explosive
substances (such as wax, oil, paint,
gasoline, degreasers, dry-cleaning
solvents, kerosene, etc).
Never attempt to operate this appliance
if it is damaged, malfunctioning,
partially disassembled or has missing or
broken parts, including a damaged
cord or plug.
Do not allow children on or in the
appliance. Close supervision of children
is necessary when the appliance is used
near children.
Do not opperate the appliance with
wet hands.
Do not store plastic, paper or clothing
that may burn or melt on top of the
dryer during operation.
The exhaust air must not be discharged
into a flue which is used for exhausting
fumes from appliances that burning
gas or other fuels.
Do not dry articles containing rubber,
plastic or similar materials such as
padded bras, tennis shoes, galoshes,
bath mats, rugs, bibs, baby pants,
raincoats, plastic bags or pillows that
may melt or burn. Some rubber
materials, when heated,
can under certain
circumstances produce
fire by spontaneous
combustion.
The door can be opened only after the
cool down programme has completed.
Do not open the door before this
programme has finished to avoid being
scalded by hot steam.
5 6
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Warning!
！
GREEN/YELLOW
Earth
BLUE
Neutral
Cord Clamp
BROWN
Live
FUSE
The dryer employs alternating current with the rated voltage and frequency. When the
voltage fluctuates between 6% of rated voltage, the dryer can work normally. A special
power socket with a capacity 10A for the dryer is advised to be used on the dryer for
convenience and safety. The method of connection of the socket is as the image below.
To be safe, please make improvements as soon as possible according to the rules and
suggestions mentioned above.
≥

Top board
Control panel
Door
Front panel
Side panel
Filter
Flexible duct
Power socket
Switch
Drum
7 8
•The dryer should be placed in a ventilated area
and not less than 10cm distance away from the
wall. It is suggested that there are no obstacles
within 1.5m in front of dryer and for it to be kept
ventilated.
>10cm
If the dryer cannot be placed flat (the lean angle may be no more
than 2°, the dryer may work when unbalanced or but can also stop
working sometimes.
Notice when installing:
•Do not install the dryer in the open air or a place
that can be easily damaged by rain;
•Do not place the back of dryer near a curtain or any fabric;
•Do not place the dryer near gas or flammable materials.
•Flexible tube fixing:
Connect one end of the flexible tube to the back vent and fix
it securely.
•Connect the opposite end of the flexible tube to the external
wall for the hot air to escape outdoors.
•Please refer to the below pictures for the correct assembly.
Note!
INSTALLATION INSTALLATION
Product Description
Installation
•Level Adjusting
Once in its' permanent operating position, check
that the dryer is absolutely level with the aid of a
spirit level. If it is not, adjust the feet with a tool.
