Nordmende RUI111NMWHA+ User manual

TM
TABLE-TOP REFRIGERATOR
AND LARDER
Instruction booklet
TISCHKÜHLSCHRANK
Bedienungsanleitung
RUI111NMWHA+

EN - 1 -
Index
BEFORE USING THE APPLIANCE .................................................................... 2
General warnings .............................................................................................................. 2
Old and out-of-order fridges ............................................................................................. 4
Safety warnings .................................................................................................................. 4
Installing and operating your fridge ................................................................................. 5
Before Using your Fridge .................................................................................................. 6
THE VARIOUS FUNCTION AND POSSIBILITIES ............................................... 6
Thermostat Setting ............................................................................................................ 6
Accessories ........................................................................................................................ 7
“Door Open” Indicator; ................................................................................................................. 7
Making Ice cubes; ........................................................................................................................ 7
CLEANING AND MAINTENANCE ....................................................................... 8
Defrosting ........................................................................................................................... 9
Replacing The Light Bulb ............................................................................................... 10
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ..............10
Repositioning the door ................................................................................................... 10
BEFORE CALLING YOUR AFTER SALES SERVICE ......................................... 11

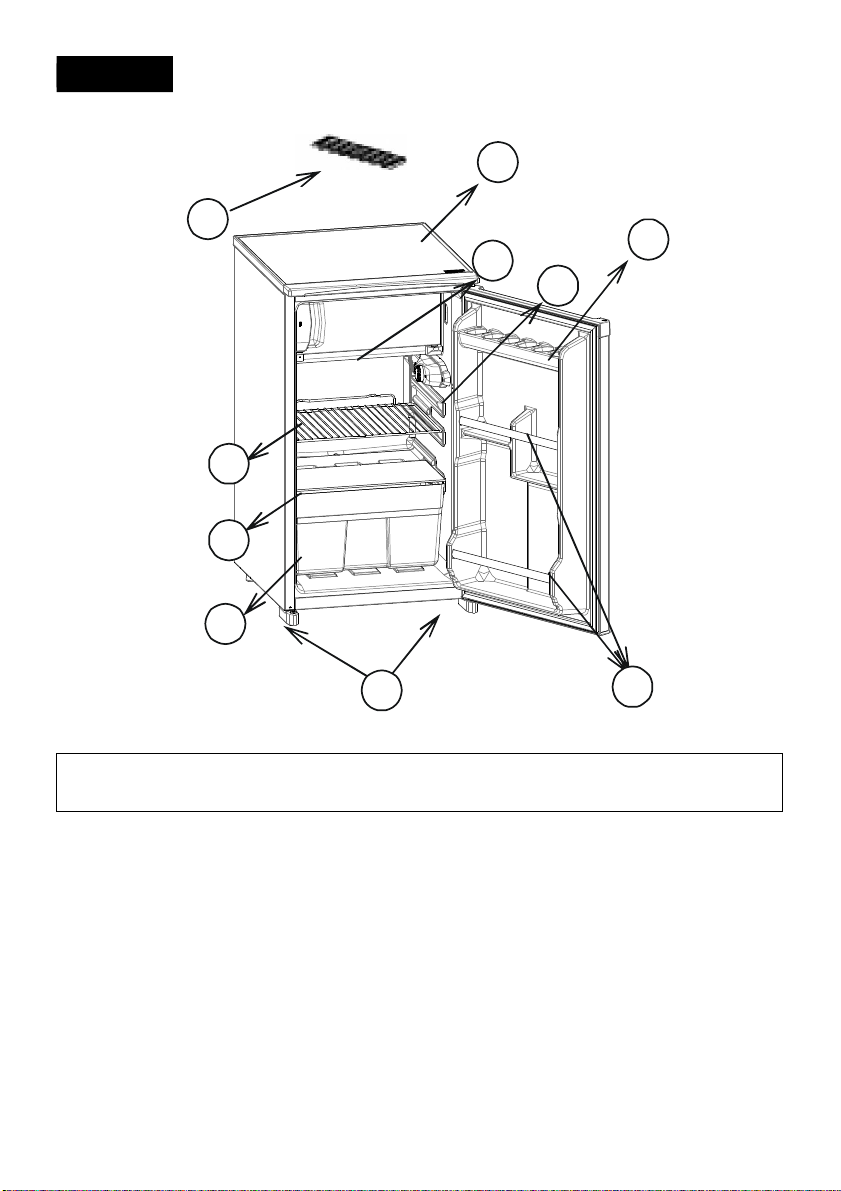

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .......................13

EN - 2 -
PART- 1. BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage
compartments of the
appliance, unless they are of the type recommended by the
manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be fixed in accordance with the instructions.
• If your appliance uses R600 as a refrigerant – you can learn
this information from the label on the cooler- you should be careful
during shipment and montage to prevent your appliance’s cooler
elements from being damaged. Although R600a is a
environmental friendly and natural gas, as it is explosive, in case
of a leakage to be occurred due to a damage in the cooler
elements move your fridge from open flame or heat sources and
ventilate the room where the appliance is located for a few
minutes.
• While carrying and positioning the fridge, do not give damage
to the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;

EN - 3 -
- staff kitchen areas in shops, offices and other working
environments
- farm houses and by clients in hotels, motels and other residential
type environments
- bed and breakfast type environments;
- catering and similar non-retail applications

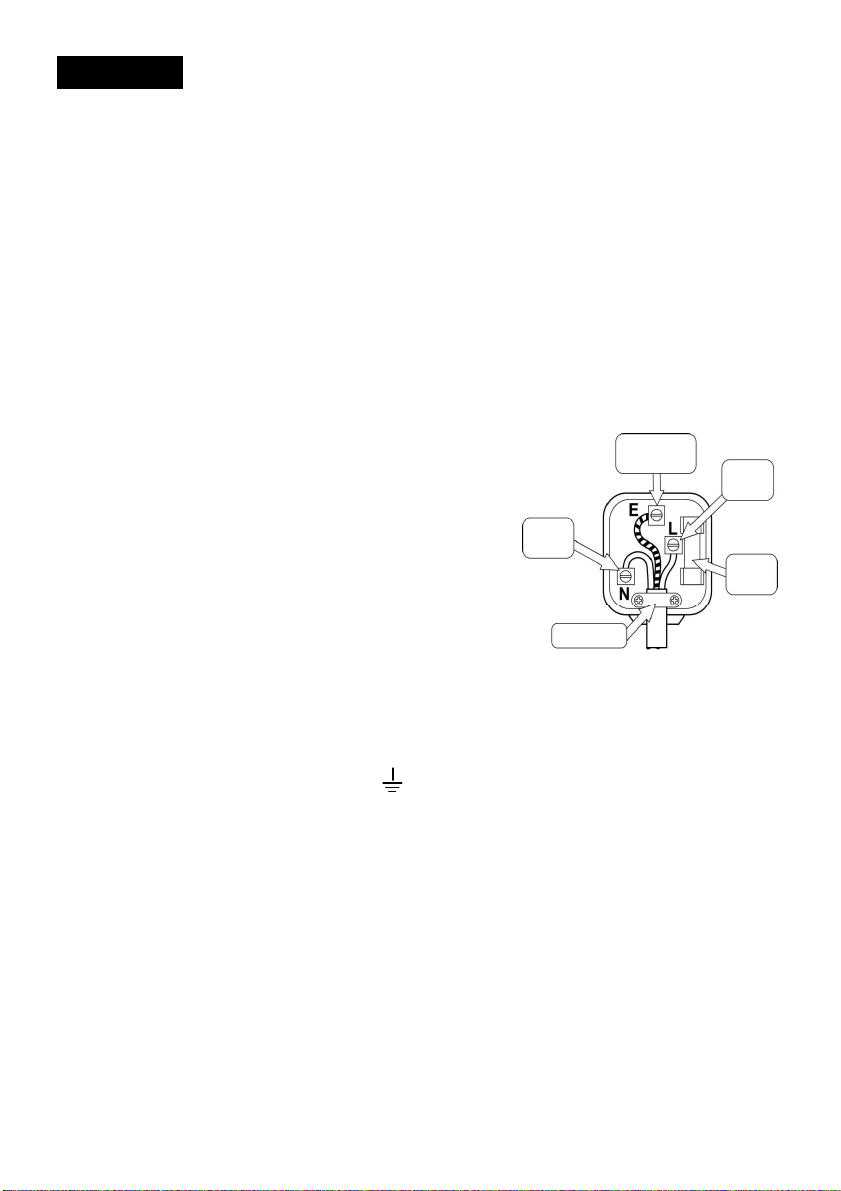

• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its service agent or similar qualified
persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes. If there is no such
socket in your house, please have it installed by an authorized
electrician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazard involved.
Children shall not play with the appliance. Cleaning and user
maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualified persons in
order to avoid a hazard.

EN - 4 -

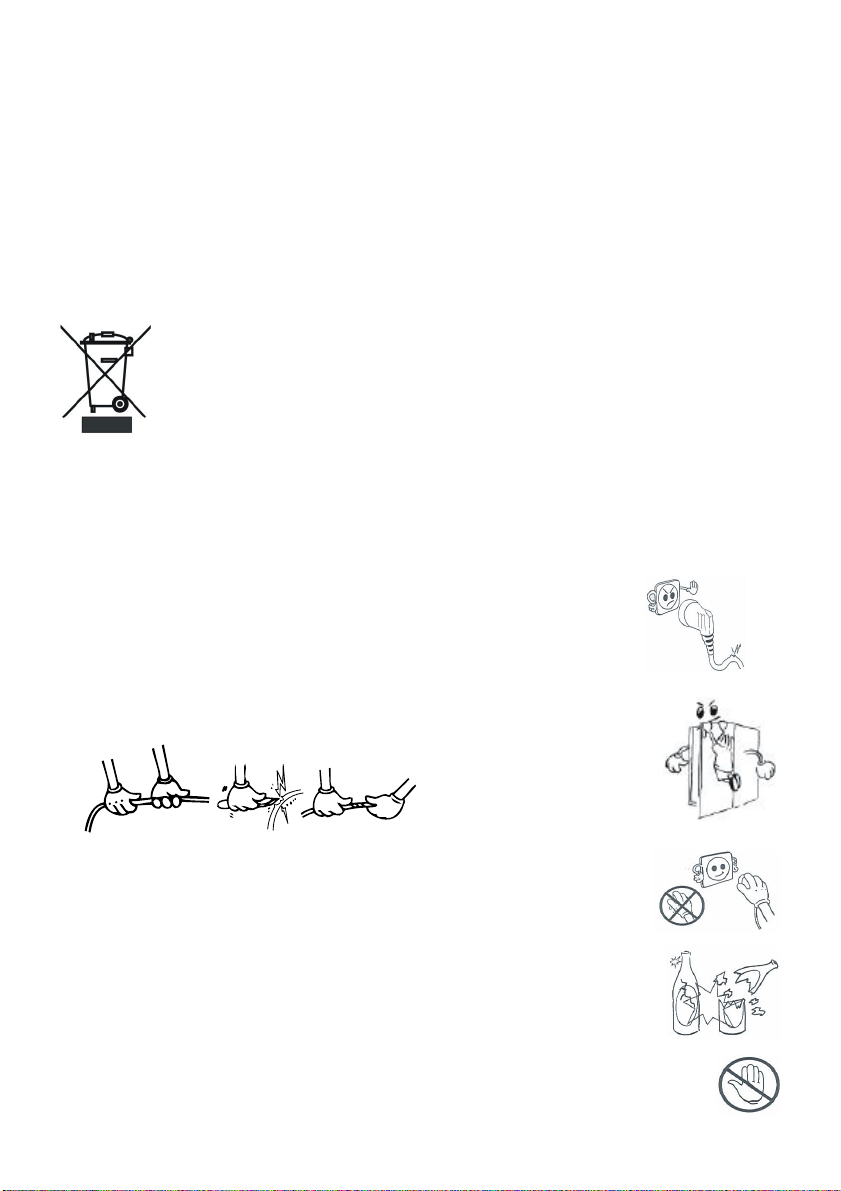

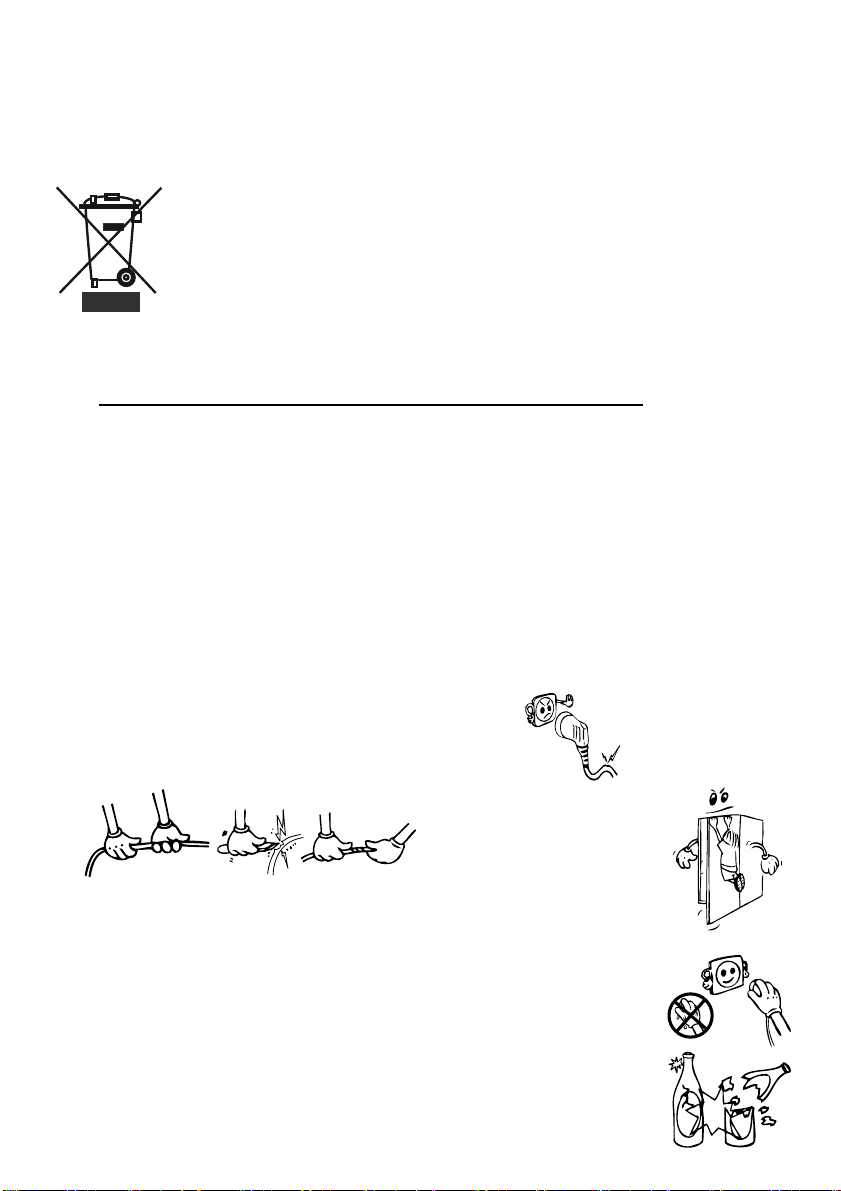

Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them to hang over the
door.
• Do not plug-in or out the plug from the receptacle with wet hands
to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer
department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for
your safety. Place drinks with higher alcohol amount vertically
and by closing their necks tightly in the fridge department.
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Please ask your municipal authority about the disposal of the WEEE for the
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this
manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house
and for the specified purposes. It is not suitable for commercial or common use.
Such use will cause the guarantee of the appliance to be cancelled and our company
will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling /
storing foods. It is not suitable for commercial or common use and/or for storing
substances except for food. Our company is not responsible for the losses to be
occurred in the contrary case.

EN - 5 -
• When taking ice made in the freezer department, do not touch it, ice
may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and
ice cubes immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause health issues
like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your
fridge.
• Fix the accessories in the fridge during transportation to prevent damage to
accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• Mains cord of your fridge has a grounded plug. This plug should be used with a
grounded receptacle that has a 16 ampere fuse minimum. If you don’t have a
receptacle confirming with this, please have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to ungrounded
usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, Gas
ovens and heater cores, and should be at least 5 cm away from
electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at
least 2 cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a
suitable place so that at least 15 cm is available on the upper side.
• The adjustable front legs should stabilized in an appropriate height to allow your
fridge operate in a stable and proper way. You can adjust the legs by turning them
clockwise (or in the opposite direction). This should be done before placing food in
the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful of
sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
• Install the distance adjustment plastic (the part with black vanes
at the rear) by turning it 90° as shown in the figure to prevent the
condenser from touching the wall.

EN - 6 -
PART- 2. THE VARIOUS FUNCTION AND POSSIBILITIES
Thermostat Setting
Thermostat automatically regulates the inside temperature of the refrigerator compartment
and freezer compartment.By rotating the knob from position 1. to 5., colder temperatures
can be obtained.
Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.
• For short-term storage of food in the freezer compartment, you can set the knob
between minimum and medium position.(1-3)
• For long-term storage of food in the freezer compartment, you can set knop medium
position.(3-4)
Note that; the ambient temperature, temperature of the freshly stored food and how
often the door is opened, affects the temperature in the refrigerator compartment. If
required,change the temperature setting.
• When you first switch on the appliance, for starting a suitable cooling, the appliance
should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before
restarting or re-plugged the unit in order not to damage the compressor.
• The freezer of the refrigerator can cool up to -12°C .
Before Using your Fridge
• When it is operated for the first time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to
allow efficient operation. Otherwise, you may damage the
compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade
away when your fridge starts to cool.

EN - 7 -
“Door Open” Indicator;
• The « Door Open » indicator on the handle shows whether the door
has closed properly or whether it is still open.
• If the indicator is red, the door is still open.
• If the indicator is white, the door is properly closed.
• Observe that the freezer’s door should always be kept closed. This
will prevent food products from defrosting; it will avoid heavy ice and
frost build-up inside the freezer and an unnecessary increase in
energy consumption.

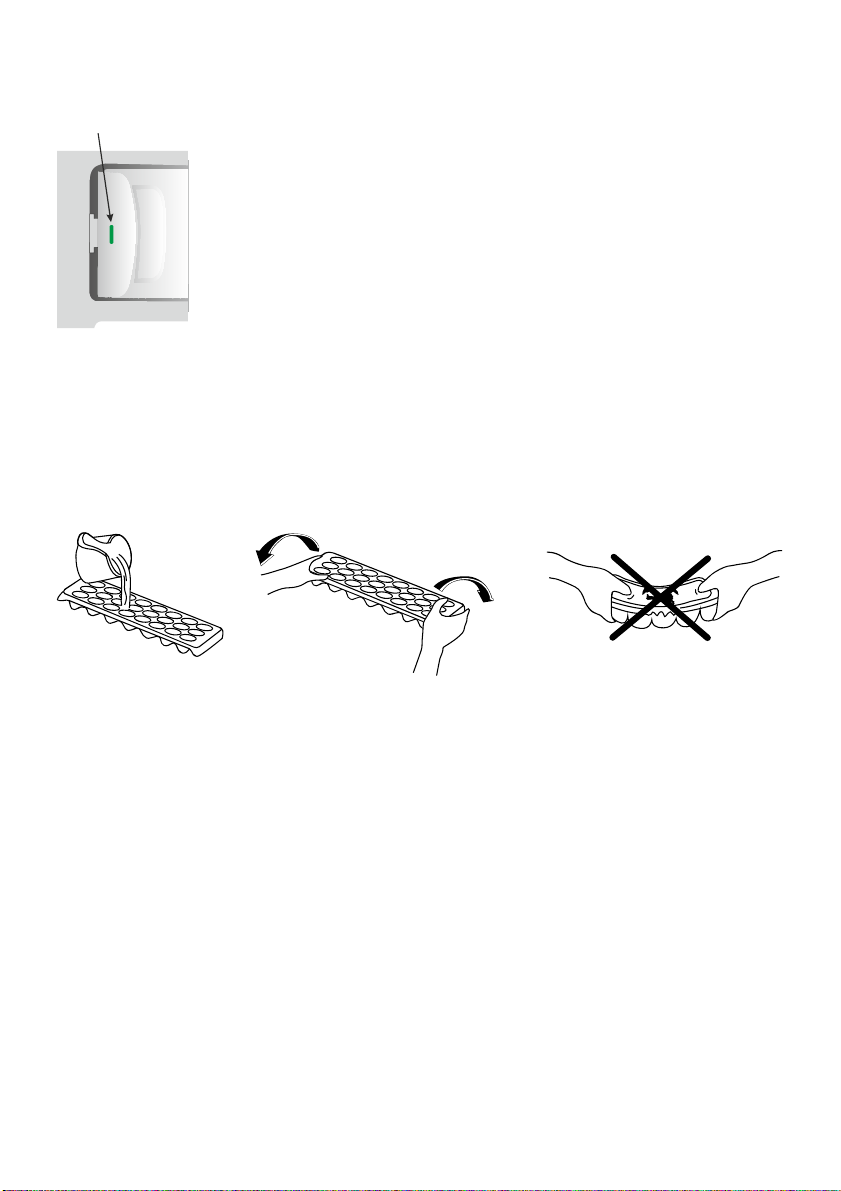

Making Ice cubes;
Ice tray ;
• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.
Accessories

EN - 8 -
CLEANING AND MAINTENANCE PART- 3.

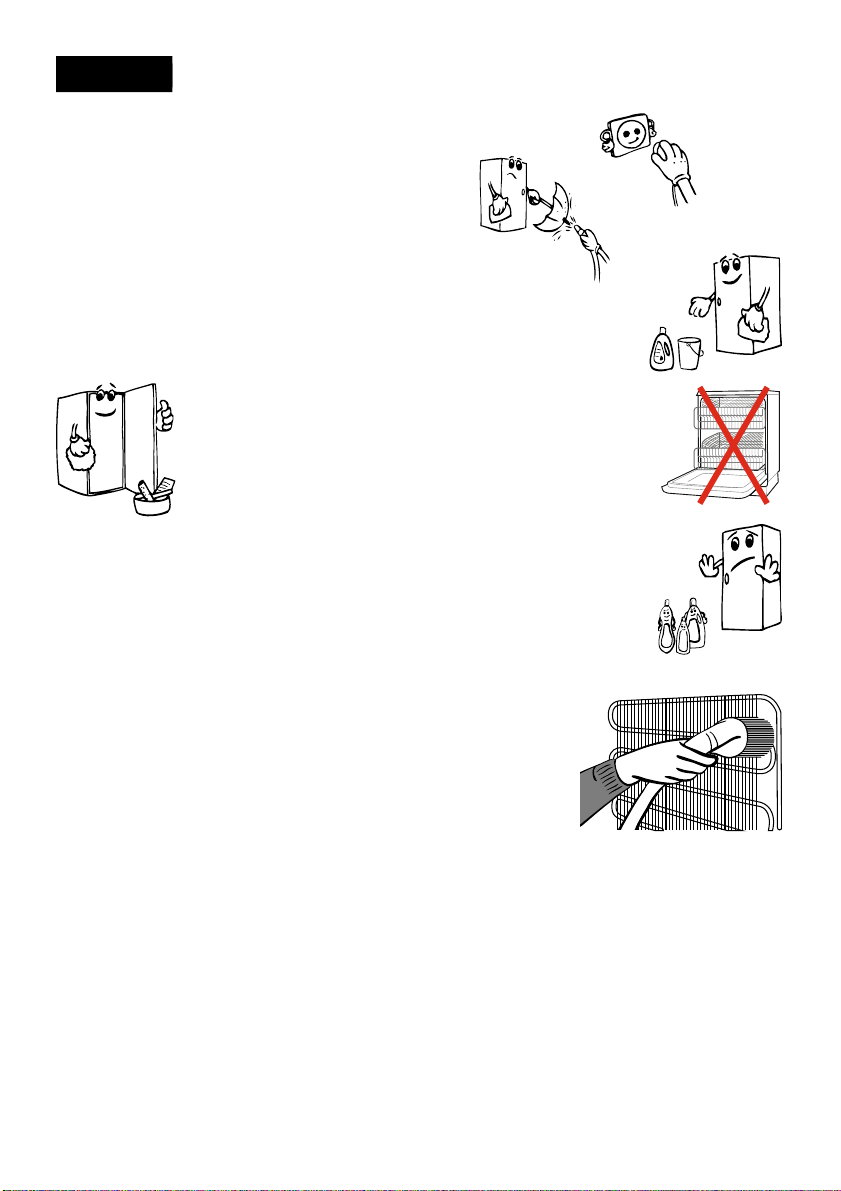

• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator compartment should be cleaned periodically
using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and
water Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps.After washing,
rinse with clean water and dry carefully. When the cleaning
operations have been completed reconnect the plug of the unit
with dry hands.
• You should clean the condenser with broom at least twice
a year in order to provide energy saving and increase the
productivity.

EN - 9 -
Defrosting

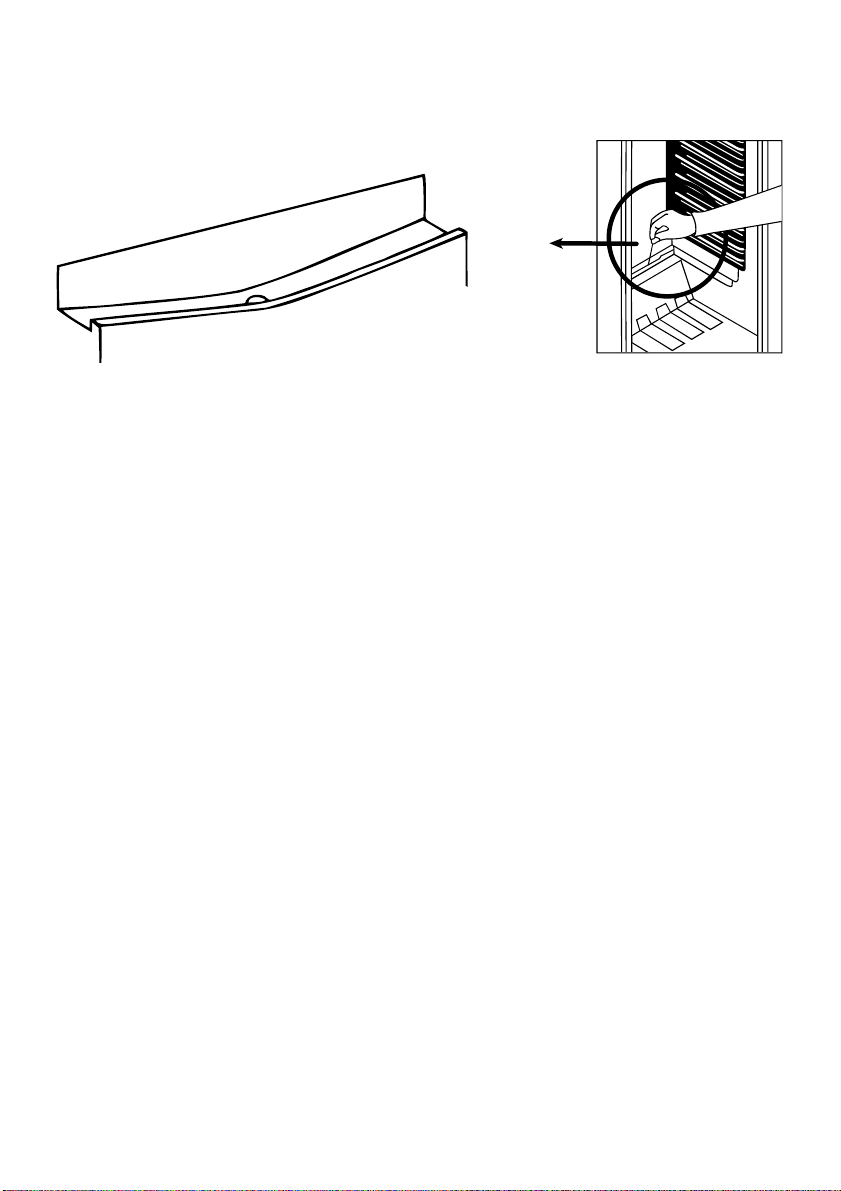

For cooler compartment ;
• Defrosting occurs automatically in refrigerator compartment during operation ; the
defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically
with defrost drain plug to prevent the water from collecting on the bottom of the
refrigerator instead of flowing out.
• You can also pour ½ glass of the water to drain hole to clean inside.
For freezer compartment;
The frost, accumulated in the freezer compartment, should be removed periodically. The
freezer compartment should be cleaned in the way as the refrigerator compartment, with
the defrost operations of the compartment at least twice a year.
For this;
• The day before you defrost, set the thermostat dial to 5. position to freeze the foods
completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and
kept in a cool place. The inevitable rise in temperature will shorten their storage life.
Remember to use these foods within a relatively short period of time.
• Switch the refrigerator off at the socket outlet and pull the main plug
• Leave the door open and to accelerate the defrosting process one or more basins of
warm water can be placed in the freezer compartment.
• Dry the inside of the unit and water tray, refit the tray plug and set the thermostat knob
to 5 position.

EN - 10 -
PART- 4. TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Transportation and Changing of Installation Position
• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The
rules written on the corrugated box must be applied while transporting.
• Before transporting or changing old
installation position, all the moving
objects (ie,shelves,crisper…) should be
taken out or fixed with bands in order to
prevent the shake.

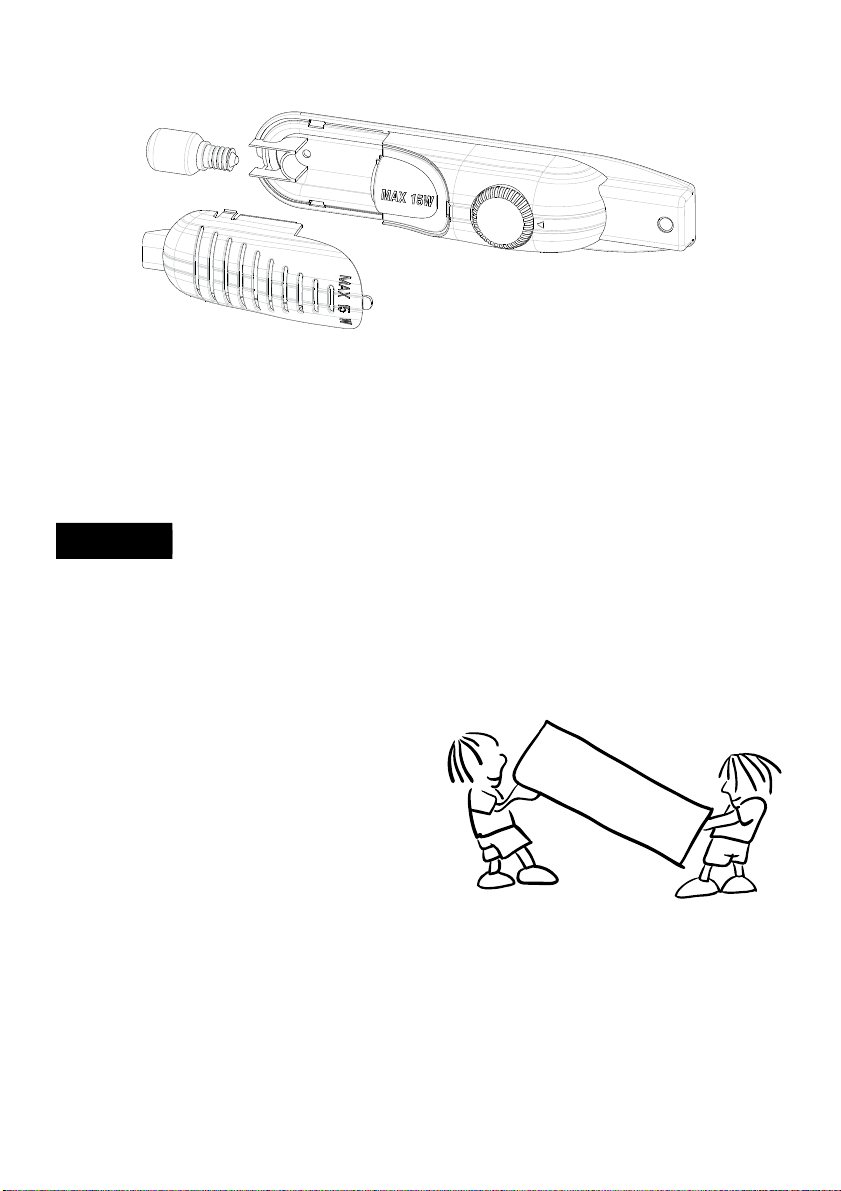

Replacing The Light Bulb
When replacing the light of the refrigerator compartment;
1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.
Repositioning the door
• It is not possible to change the opening direction of your refrigerator door, if the door
handle on your refrigerator is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any
handles.
• If the door opening direction of your refrigerator may be changed, you should contact
the nearest Authorised Service to have the opening direction changed.

EN - 11 -
PART- 5. BEFORE CALLING YOUR AFTER SALES SERVICE
If your refrigerator is not working properly,it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your refrigerator does not operate ;
Check that ;
• There is no power,
• The general switch in your home is not disconnected ,
• The thermostat setting is on “•” position,
• The socket is not sufficient. To check this, plug in another appliance that you know
which is working into the same socket.
What to do if your refrigerator performs poorly ;
Check that ;
• You have not overloaded the appliance ,
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
If there is noise ;
The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If
these sounds are different check that ;
• The appliance is well levelled ,
• Nothing is touching the rear ,
• The stuffs on the appliance are vibrating.
If there is water in the lower part of the refrigerator ;
Check that ;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain
hole)
If your fridge is not cooling enough;
Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. W e do not
recommend operating your fridge out of stated temperatures value limits in terms of
cooling effectiveness.
Climate Class Ambient Temperature (°C)
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)

EN - 12 -
Recommendations
• In order to increase space and improve the appearance,the « cooling section » of
refrigerators is positioned inside the back wall of the refrigerator compartment. When
the appliance is running, this wall is covered with frost or water drops,according to
weather the compressor is running or not. Do not worry. This is quite normal. The
appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays)set
te thermostat knob to “•” position. Defrost and clean the refrigerator leaving the door
open to prevent the formation of mildew and smell.
Conformity Information
• Tropical Class is defined for the environment temperatures between 16°C and 43°C
in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 /
IEC60335-2-24, 2004/108/EC standards.

EN - 13 -
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
1
2
3
4
5
6
7
8
9
10
PART- 6. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1) REFRIGERATOR SHELF
2) CRISPER COVER (SAFETY GLASS -In some models- )
3) CRISPER
4) LEVELING FEET
5) THERMOSTAT BOX
6) FREEZER COMPARTMENT
7) TOP TABLE
8) ICE TRAY
9) EGG SHELF
10) BOTTLE SHELF

EN - 14 -
For your safety please read the following information
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in
the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fi tted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
If the mains plug which is fi tted is unsuitable for the socket outlet in your home or is removed
for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin
plug..
How to wire a 13 amp plug.
Important
The wires in the mains lead on this appliance are
coloured in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked
with the letter E or with the earth symbol or coloured green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is fi rmly secured under the cord clamp.
GREEN/YELLOW
Earth
BLUE
Neutral
Cord Clamp
BROWN
Live
FUSE
13 Amps
PART - 7. ELECTRICAL CONNECTION (UK ONLY)

DE - 15 -
Inhalt
AUFSTELLUNG ................................................................................................ 16
Allgemeine Warnungen ..................................................................................................16
Sicherheits Information ...................................................................................................18
Hinweise ........................................................................................................................... 18
Installation und Anschluss des Gerätes ....................................................................... 19
Vor Inbetriebnahme ......................................................................................................... 19
FUNKTIONEN ................................................................................................... 20
Temperaturregelung ........................................................................................................ 20
Zubehör ............................................................................................................................ 21
“Tür geöffnet” Anzeige; ............................................................................................................. 21
Eiswürfel bereiten ...................................................................................................................... 21
Eisschale..................................................................................................................................... 21
REINIGUNG UND PFLEGE................................................................................ 22
Abtauen ............................................................................................................................. 22
Kühlschrank ................................................................................................................................ 22
Gefrierfach; ................................................................................................................................ 23
Wechsel der Glühlampe .................................................................................................23
TRANSPORT UND STANDORTÄNDERUNG .....................................................24
Wechsel des Türanschlages .........................................................................................24
BEVOR SIE DEN KUNDENDIENST RUFEN ....................................................... 25
BAUTEILE UND VORRATSFÄCHER ................................................................. 27

DE - 16 -
TEIL -1. AUFSTELLUNG
Allgemeine Warnungen
WARNUNG: Belüftungsöffnungen in der Geräteverkleidung oder in
der integrierten Struktur, frei von Hindernissen halten.
WARNUNG: Verwenden Sie keine mechanischen Werkzeuge oder
andere Mittel als vom Hersteller vorgeschlagen, um den Abtauvorgang
zu beschleunigen.
WARNUNG: Verwenden Sie keine elektrischen Geräte innerhalb
der Kühlfächer des
Gerätes, sofern sie nicht vom Hersteller empfohlenen sind.
WARNUNG: Achten Sie darauf, die Kältemittelkreise des Kühlgeräts
nicht zu beschädigen.
WARNUNG: Um eine Gefahr aufgrund der Instabilität des Gerätes
zu vermeiden, muss es in Übereinstimmung mit den Anweisungen
fixiert werden.
• Die Geräte mit dem Kühlgas R600a, sind sehr umweltfreundlich,
aber auch leicht entzündlich. Während des Transportes und der
Installation ist mit größter Sorgfalt darauf zu achten, daß der
Kühlkreislauf nicht beschädigt wird. Falls es doch zu einer
Beschädigung kommt, müssen offene Flammen vermieden
werden. Den Raum, in dem das Gerät steht, für einige Minuten
gut lüften.
• Benutzen Sie keine mechanischen Vorrichtungen oder
künstlichen Mittel, um den Gefrierprozess zu beschleunigen.
• Lagern Sie in diesem Gerät keine explosiven Stoffe wie
Spraydosen mit brennbarem Treibmittel.
• Das Gerät soll im Haushalt und in ähnliche Anwendungen wie
folgt verwendet werden;
- Personal Küchenbereich in Läden, Büros und anderen
Arbeitsumgebungen

DE - 17 -
- Bauernhäusern und von Kunden in Hotels, Motels und anderen
Unterkünften
- Bett and Frühstück-Typ-Umgebungen;
- Gastronomie und ähnliche Non-Retail-Anwendungen
• Wenn die Steckdose nicht mit dem Kühlschrank Stecker
zusammenpasst, muss es, um Gefahren zu vermeiden durch
den Hersteller, dessen Kundendienst oder einer ähnlich
qualifizierten Personen ersetzt werden.
• Dieses Gerät ist nicht zur Verwendung durch Personen
(einschließlich Kinder) mit eingeschränkten physischen,
sensorischen oder geistigen Fähigkeiten oder mangelnder
Erfahrung und Wissen bestimmt, es sei denn sie stehen unter
Aufsicht oder ausführlicher Anleitung zur Benutzung des Gerätes
durch eine verantwortliche Person, für ihre Sicherheit. Kinder
sollten daran gehindert werden, mit dem Gerät zu spielen.
• Das Netzkabel des Kühlschranks ist mit einem geerdeten
Netzstecker ausgestattet. Dieser Netzstecker muss in eine
geerdete, mit mindestens 16 Ampere gesicherte Steckdose
gesteckt werden. Wenn Sie keine geeignete Steckdose haben,
lassen Sie eine solche von einem qualifizierten Elektriker
installieren.
• Dieses Gerät kann von Kindern ab 8 Jahren und älter und
Personen mit eingeschränkten physischen, sensorischen oder
geistigen Fähigkeiten oder mangelnder Erfahrung und Wissen
verwendet werden, wenn sie unter Aufsicht oder ausführlicher
Anleitung zur Benutzung des Gerätes durch eine verantwortliche
Person stehen und den Gefahren bewusst sind. Kinder dürfen
mit dem Gerät nicht spielen. Reinigung und Wartung darf nicht
von Kindern ohne Aufsicht durchgeführt werden.
• Wenn das Netzkabel beschädigt ist, muss es, um Gefahren zu
vermeiden durch den Hersteller, seinen Kundendienst oder einer
ähnlich qualifizierten Person ersetzt werden.

DE - 18 -
Sicherheits Information
• In dem Kühlschrank dürfen keine elektrischen Geräte benutzt werden.
• Falls das Gerät einen alten Kühlschrank ersetzen soll, empfehlen wir als
Sicherheitsvorkehrung, das Türschloß des alten Gerätes zu zerstören oder zu
entfernen. Diese Maßnahme verhindert, daß spielende Kinder sich selbst darin
einsperren.
• Ältere Geräte enthalten Kühl- und Isolierungsgas, diese müssen ordnungsgemäß
entsorgt werden. Zur Entsorgung eines Altgerätes sollten Sie sich einer fachkundigen
Müllbeseitungsstelle anvertrauen.Für weitere Fragen kontaktieren Sie Ihre lokale
Behörde oder einen Fachhändler. Bitte stellen Sie sicher, daß die Rohrleitungen bis
zur ordnungsgemäßen Entsorgung nicht beschädigt werden.
Fragen Sie bitte Ihre Stadtverwaltung über die Entsorgung von WEEE für
Wiederverwendung, Recycling und Recovery-Zwecke.
WICHTIGER HINWEIS :
Um Betriebsstörungen zu vermeiden und mehr Freude an Ihrem Gerät zu haben, bitten
wir Sie, vor Inbetriebnahme des Gerätes die Bedienungsanleitung aufmerksam
durchzulesen. Der Hersteller übernimmt keine Garantie bei unsachgemäßer Installation
und Bedienung des Gerätes.
Hinweise
• Zur Verhinderung von Brandgefahr oder Überhitzung dürfen keine
Adapter oder Vielfachstecker benutzt werden.
• Schließen Sie keine alten, verbogenen Verlängerungskabel an
das Gerät.
• Die Kabel nicht wickeln oder knicken.
• Wenn die Anschlußleitung dieses Gerätes beschädigt wird, muß
sie durch den Hersteller oder seinen Kundendienst oder eine
ähnlich qualifizierte Person ersetzt werden, um Gefährdungen
zu vermeinden
• Verbieten Sie Kindern mit dem Gerät zu spielen. Niemals auf
dem Gerät sitzen oder sich an die schwingende Tür hängen.
• Den Kühlschrank nicht mit nassen Händen an das Stromnetz
anschließen.
• Hochprozentige Alkoholika müssen gut verschlossen, senkrecht
im Kühlteil aufbewahrt werden.
