Nordval HC101 User manual

ROBOT MOP
NORDVÄL HC101
English

Nordväl® is the registered trademark of TJM Zwerink Holding B.V.

Thank you for purchasing the Nordväl HC101 Robot Mop. Let’s get started!
HELLO,
Installing the water tank
Cleaning modes
Water tank & mop maintenance
Charging status & LED indicators
Declaration of Conformity
What’s in the box?
Handheld cleaning & remote control
Troubleshooting
Indications & product maintenance
Product specifications
How to enable darkfloor mode
1
2
3
5
6
7
8
9
10
11
12
12

Product information
For the following
Product: Radio equipment
Type: HC101 Robot Mop
Declaration and applicable standards
Hereby, TJM Supplies B.V. declares that the type of radio equipment HC101 robot conforms to:
Directive EMC 2014/53/EU and the RoHS directive (2011/65/EU) and its amendment directives 2015/863/EU on the restriction
of the use of certain hazardous substances in electronic equipment.
The full text of the EU declaration of conformity can be found at the following internet address:
www.nordval.eu/declaration-of-conformity
Importer
Company: TJM Supplies B.V.
Address: Zompstraat 8
8102 HX Raalte
The Netherlands
Email: [email protected]
Phone number: [phone]
Business license number: 72016981
VAT number: NL858946439B01
Nordväl® is the registered trademark of TJM Zwerink Holding B.V.
Specifications are subject to change without notice. Copyright©2020 TJM Supplies B.V. All rights reserved.
Manufactured in Korea by Everybot Inc.
DECLARATION OF CONFORMITY
2

WHAT’S IN THE BOX?
HC101 Robot Mop
Remote Control
(Battery included)
Power Adaptor Silicone Brush
Water Tank Yarn Mop
(Grey Color)
Microfiber Mop
(Green Color)
Yarn mop (Grey color)
Included with yarn which is 100
times thicker than microfiber which
makes it suitable for cleaning up
dust in cracks.
Microfiber yarn (Green color)
Included with microfiber
yarns for superior wiping
performance.
Note
3

HC101 Front
HC101 HC101Bottom Rear
Water Tank Top Water Tank Bottom
Mop guide kit set screwMop guide kit Power jack
Illumination sensor/Remote control receiver
Obstacle detection
sensor
Cliff detection sensor
Operation button/
LED lamp
Handle
Water inlet
Rubber cap
Mop Velcro
Water supply device
4

CHARGING STATUS & LED INDICATORS
Connect the power adaptor to the charging port on the back of main unit.
Do not use unauthorized adaptors. It may cause serious damage for
the product.
Cautions
When Charging
Yellow
Yellow
Blinking
Not enough
battery
Blue
Blue
Blinking
Enough battery
More than 80%
OFF
LED
Off
Fully
charged
When Using
Blue
Blue
Blinking
Change mops, and fill water in the water
supply mop kit and start the cleaning again.
Yellow
Yellow
On
Recharge the battery.
*If the battery is low while cleaning a dark place, the unit
moves out to a bright place and stops its operating
Yellow
Yellow
Blinking
Check whether the unit is stopped by obstacles.
Check whether there are unwanted substances in the mop
guide kit or water supply mop kit.
Operate the unit in a wide place again after turning on
and off the power switch.
Red
Red
Blinking
Check whether the authorized adapter was
used for charging.
Switch off and turn on again the unit and start
the cleaning again.
If the same symptom is repeated, turn off
the system power and contact the customer center.
OFF LED Off The robot mop is off.
When there is an error, the main unit will stop and sound the alarm for
5 minutes with LED blink.
After 10 times of alarm and LED blink, the main unit will be powered off.
·
·
·
·
·
·
·
·
·
·
·
Note
5

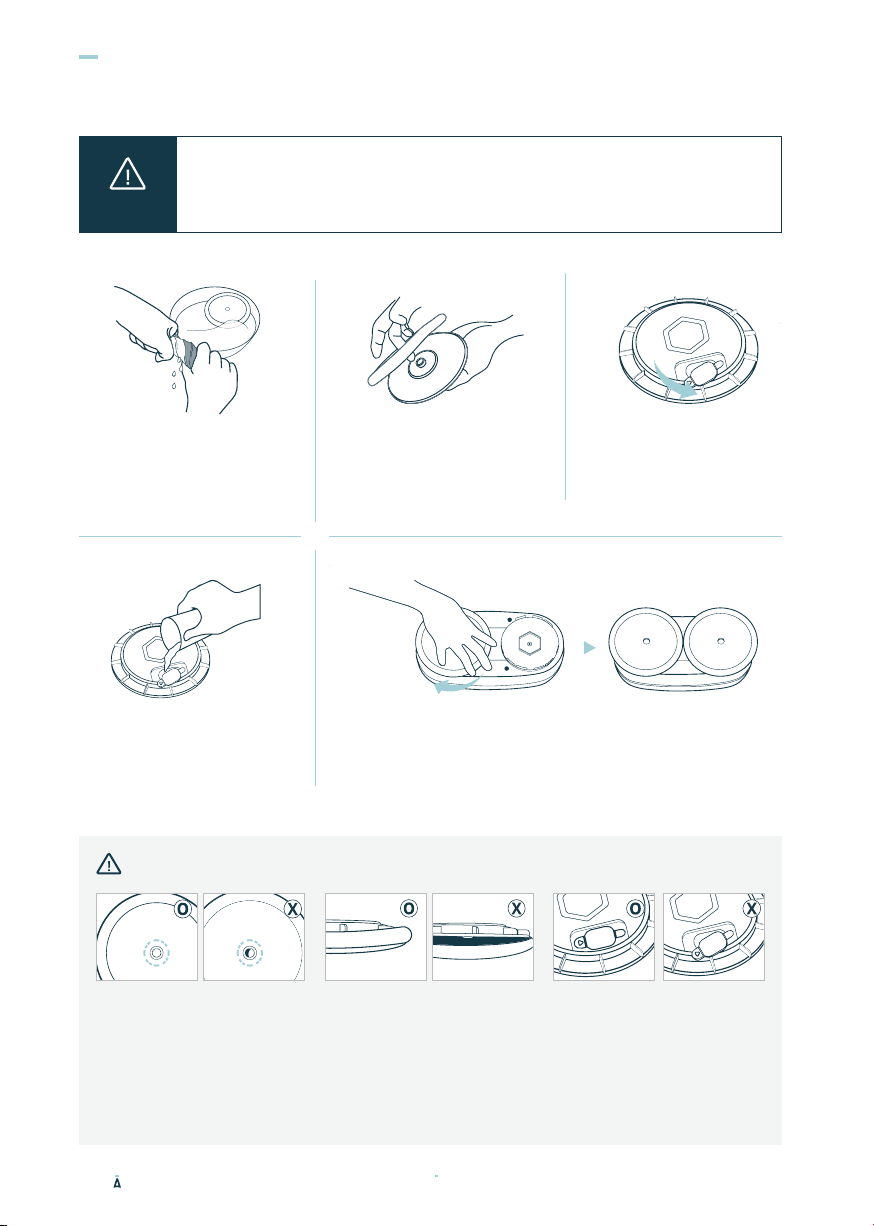

INSTALLING THE WATER TANK
·Please turn off the main power when you install or detach the water supply mop kits.
Please tightly squeeze out water from the yarn mops before attaching,
otherwise the cleaning speed may be affected.
·
Cautions
When attaching the water supply
mop kit to the main unit, refer to the
"correct" pictures. If the mop does
not attach correctly, the mop can
cover cliff detection sensors and the
robot cleaner can be stopped.
Correct Wrong Correct Wrong Correct Wrong
After filling water in the water supply
mop kit, fully close the rubber cap.
Cautions
Make sure the mop pads are attached
tightly.
1
Clean wet mops throughly in
water and apply them in the
main unit after wringing them out.
2 3 Open the rubber cap of
the water supply mop kit.
5
Close the rubber cap of the water supply mop kit and attach
the water supply mop kit in the bottom of the Nordväl HC101.
(Pressing it while turning side to side will install it with a click sound)
4Fill water into the water tank.
Attach the mop pads to fit the
joint parts to the hole of water
supply mop kit.(See the Figure below)
6

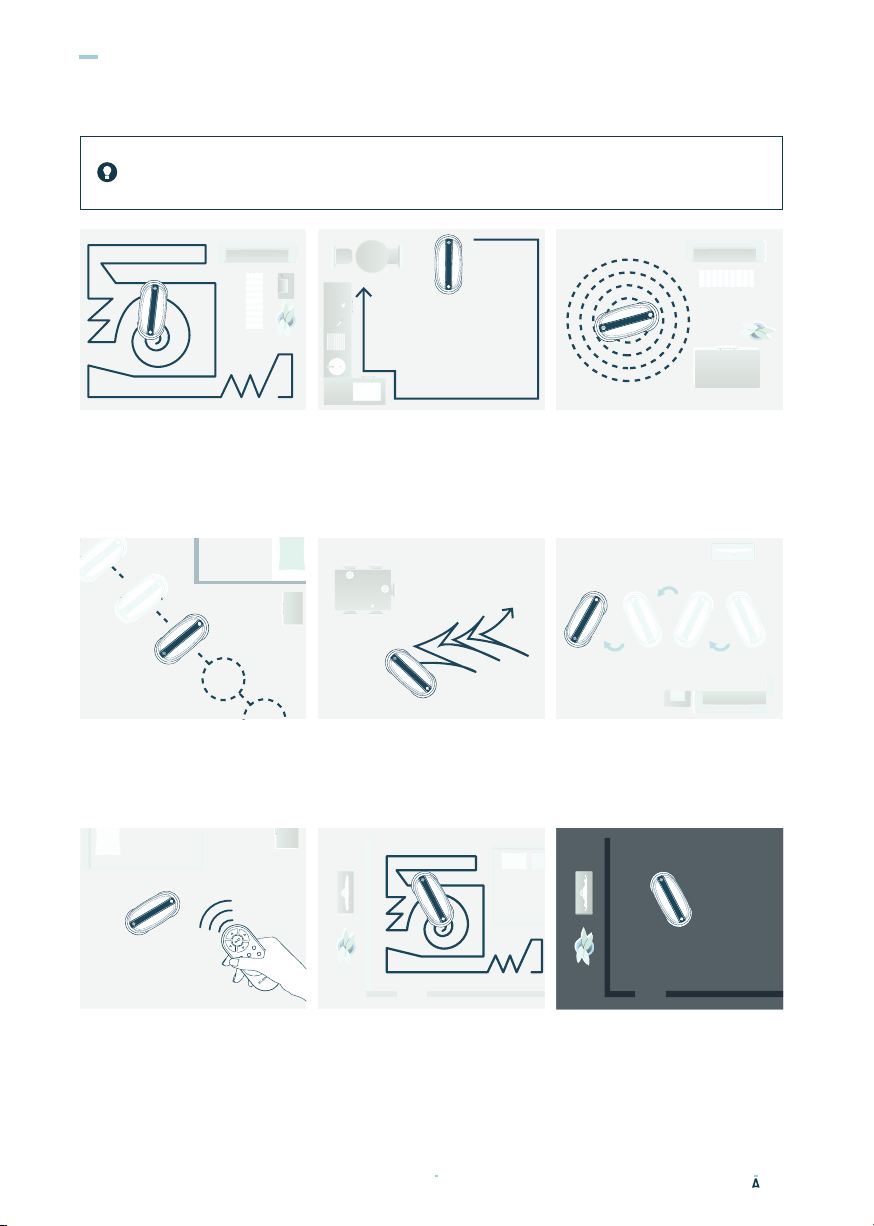

CLEANING MODES
Select a cleaning mode you want by using the remote control.
Sprinkle the floor with water before use for better results.
Automatic Cleaning
Standard & efficient cleaning
mode for most rooms
Edge Cleaning
Focuses to clean corners and
edges of floor
Focus Cleaning
Intensively cleans the surrounding
area relative to the main unit
location
Intensive Cleaning
Intensively cleans with straight
and turn around moving patterns
Y Pattern Mode Cleaning
‘Y ’curve pattern as if wiping floor
by hands
Step Cleaning
Cleans left and right with step
movements
Remote Control Cleaning
Cleans with direction button keys
of remote control
*Only moves when the direction button
is pressed
50min. Cleaning
Random cleaning only for 50min.
good for small room or isolated
area
Darkfloor mode
Use this special mode (if needed)
to clean dark floors and surfaces
*See how to enable darkfloor mode
in page 12
Note
7

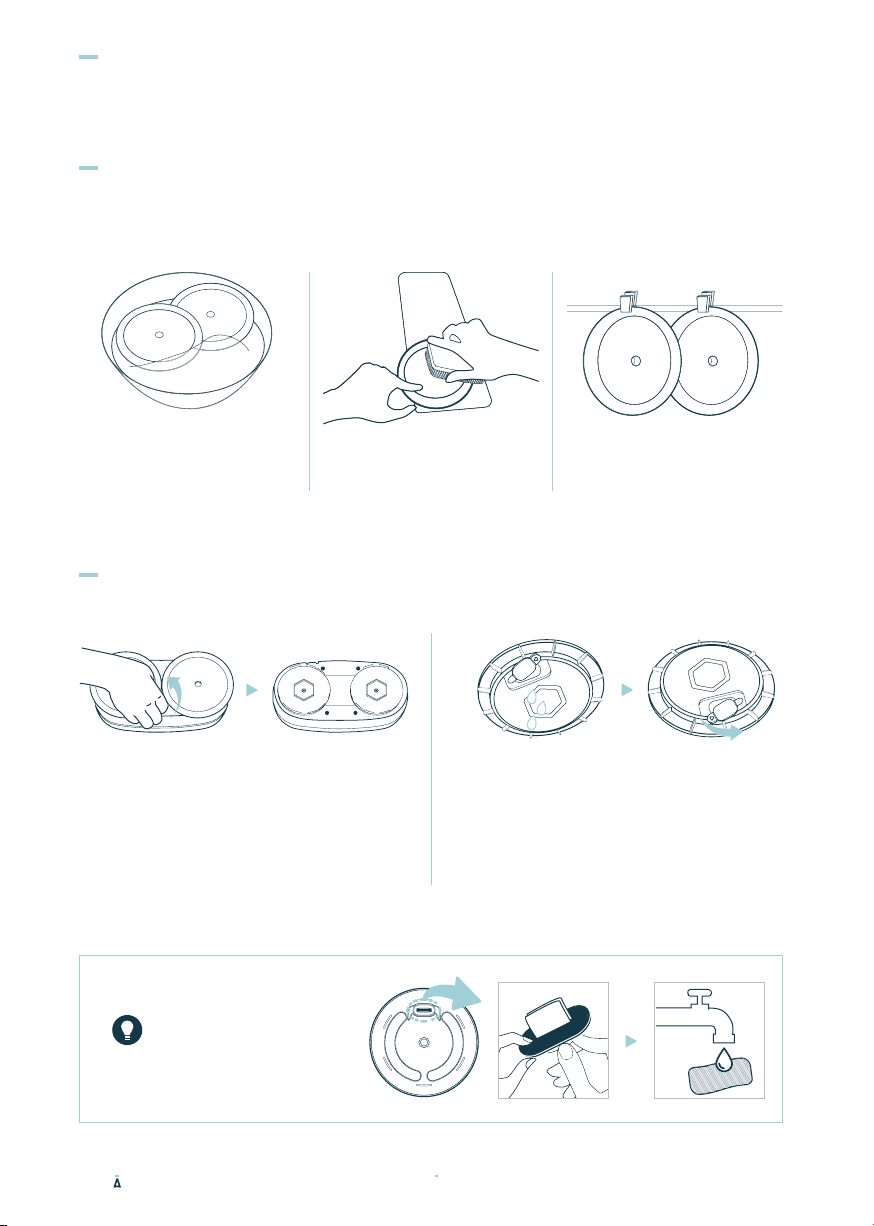

WATER TANK & MOP MAINTENANCE
WASHING THE MOPS
You can use included silicone brush for easier mop washing.
1Put the mops in water 2Use a natural detergent
for washing mops if
desired
3Squeeze out water and dry
the mops
MAINTAINING THE WATER TANK
1 Separate the mop from the water tank
mop kit after finished operating.
· Please just pull out the water tank
mop kit by hands.
If it is hard to pull out, please twist it
a little bit.
·
2 Open the rubber cap to dry out inside of
water tank after pour remained water.
If water supplying is not
sufficient, please wash
the water supply cloth
or change the water
supply device as
instructed:
Note
8

HANDHELD CLEANING & REMOTE CONTROL
Lift up the machine and press on/off
button twice shortly.
Handheld cleaning mode starts with
continues turning mops.
Note
You can clean manually by holding the handle of the main unit.
The handheld mode is perfect to clean desks, tables, glass floors,
and glass windows.
In the handheld cleaning mode, do not place the main unit on the floor
because the sensors are inactive.
If you press the stop/start button on the robot or remote control, the
cleaning mode will stop.
Cautions
·
·
·
·
*The range of remote control is max.5m
Start/Stop
Start the auto cleaning or
stop the cleaning mode
Automatic cleaning
Standard & efficient cleaning
mode for most rooms
Intensive Cleaning
Intensively cleans with
straight and turn around
moving patterns
Y pattern mode cleaning
‘Y ’curve pattern as if
wiping floor by hands
Direction buttons
When the main unit stops, the unit can
be controlled with direction buttons
Edge Cleaning
Focuses to clean corners and
edges of floor
Focus Cleaning
Intensively cleans the surrounding
area relative to the main unit location
Step Cleaning
Cleans left and right with
step movements
50min. Cleaning
Random cleaning only for 50min.
good for small room or isolated area
9

TROUBLESHOOTING
The device does not turn on
Check if the battery is discharged.
Recharge the battery fully and start the robot again.
The robot mop is not working normally
during cleaning
Please clean up the sensor windows. (see pag. 11)
Please check if the mops are properly attached on the mop kits.
Remote control does not work
Check if the robot is charged and switched on.
Replace the batteries of the remote control with new ones.
The remote control does not operate while recharging.
Check if the remote control is not located 5m or further away from the robot.
The operational noise is louder than normal
Check if any unwanted substances are caught in the rotating plate of
the device.
Loose screw of the rotating plate may cause noise.
The device does not charge
Check if the power adaptor complies with the specifications.
Check if the power adaptor is correctly connected.
Movement or cleaning force is weak
Check if the water supply mop kit or the mops are installed correctly. (see pag. 6p)
If the mops or the bottom of the main unit is too moist, remove moisture and restart.
Check if unwanted substances like a long string are caught in the water supply mop kit or mop
guide kit.
Firmly tighten the screw of the mop guide kit on the bottom of the main unit. (see pag. 8).
The main unit is made to be operated in home (floor) environments.
The robot mop does not work
Please check if the robot is turned on after charging.
Please press the operation button for 2sec. And check if it does turn on.
Check battery level or errors through the LED lamp.
The operating time is short
Charge the battery fully.
If the battery is completely discharged, operating time of the robot
can be affected.
Check if the LED lamp blinks in red while charging.
The LED lamp blinking in red may be a sign indicating that battery is abnormal,
so turn off the power and contact the customer support.
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
10

If there is dust or the foreign substance in the obstacle detection sensors, gently wipe
them by a cotton swab or dry cloth.
If sensors are contaminnated severly, wipe them by wet cotton swab.
Please make sure to keep the sensor areas clean in order to function properly.
Do not use petrol or alcohol to clean sensors.
CLEANING SENSORS
Obstacle detection
sensor
Cliff detection sensor
·
·
·
■ LED lamp is off ■Sound alarm while operating
LED Off
If the machine does not work for 5min.
It automatically power off together with
LED lamp.
LED On
If you press a operation button for 2sec.
LED lamp will be turned on with power on status.
Blue blinking
After 50 min. cleaning, the main unit sounds
the alarm to change mops and fill water
in the water supply mop kit.
For the better cleaning, replace with
new mops and fill water after charging.
·
·
INDICATORS & PRODUCT MAINTENANCE
11

PRODUCT SPECIFICATIONS
Remote Control
Product Name Nordväl HC101 Everybot Edge (Floor Mopping Robot Cleaner)
SKU HC101 Power Consumption 27 Wh
Size W327 x D165 x H136 mm Weight 1.6 kg
Power AC100-240V, 50/60Hz Battery Li-ion 11.1VDC, 2150mA
Operating Noise 46.6 dB Operating Time 100 min
Driving Speed 20 cm/sec
Product Name IR Remote Control Model Name IRCEdge
Size W150 x D50 x H21mm Weight 45g
Signal Transmission
Distance Max.5m Battery 2 x AAA batteries
Nordväl HC101
165mm
327mm
136mm
HOW TO ENABLE DARKFLOOR MODE
Connect the device to the power adaptor first.
1
Press the direction keys of the remote control in the following sequence;
Up, Left, Right, Up — Now you will hear a signal sound.
2
Then, you can operate the Mop Robot on dark floors, but it cannot sense cliffs for fall protection.
3
Once you turn off and on the Robot Mop, it will be reset to the original settings.
4
12

Your smart technology friends.

Copyright©2020 TJM Supplies B.V. All rights reserved.
