NORSE SK135 User manual

SK135
Electric Pressure Washer
OPERATION MANUAL
Read this manual carefully before use and keep it for future reference. Failure to do so
may result in injury, property damage and may void the warranty.
Products covered by this manual may vary in appearance, assembly, inclusions,
specications, description or packaging.
V 3.1

SK135
© NØRSE
2© NØRSE
English
2 Contents
3 Quick Start Guide
5 Parts guide
7 Nozzle / Patio brush
8 Detergent
10 Drawing from a barrel
10 General cleaning
11 Post operation / storage
12 Maintenance
13 Safety Symbols
13 Safety and Warning Information
15 Troubleshooting
15 Technical Data
16 Disposal Regulations
17 CE Certication
Contents

SK135
© NØRSE 3 © NØRSE
English
Quick Start Guide
The following steps describe the quickest method to get your pressure washer up and
running. However, it is essential you fully read this manual to ensure you are familiar with
the general safety features, precautions and functions necessary to operate the product.
Failure to do so may result in injury and damage to your washer or personal items.
1
23
Slide the handle (01) on the reel frame and x
it with two screws (23). Tighten the screws (23)
using a suitable screwdriver.
Push the hose reel crank (02) into the opening of
the reel (10), ensure it clicks in place. Screw the
water hose connector (04) to the water inlet (05)
Push the latch (17e) on the spray gun (17) to open
the connecting port and insert the connector of the
high pressure hose (9). Release the latch (17e) to
lock the hose (09) in place. Check the connection
by pulling on the hose. It should not pull out.
Insert the extension lance (18) into the end of the
spray gun (17) by pushing together and turning
clockwise at the same time.
Insert the variable nozzle (19) into the end of the
extension lance by pressing the blue button on the
end of the extension lance, then press the xed
spray nozzle into the extension lance and turn
clockwise until it “clicks into place.
02
01
23
10
05
04
17e
09
18
17
17f
17
19

SK135
© NØRSE
4© NØRSE
English
Before starting up the appliance check that the water supply hose is connected properly;
use of the appliance without water will damage it; do not cover the ventilation grilles when
the appliance is in use.
Screw the quick hose connector (20) on to your
garden hose and slide onto the quick connector
lter (04), it will “click” into place.
1. Make sure the on/off switch (6) is on ‘’O’’ (off)
2. Insert the plug into a socket.
3. Turn the on/off switch (6) to “I” (on).
4. Deactivate the trigger lock by pressing the
deactivate button (17b).
5. Press the trigger (17d), a water jet sprays out of
the nozzle.
6. Release the trigger (17d) to stop the water
outlet.
7. After use, activate the trigger lock pressing the
activate button (17c) to lock the trigger in its
off-position.
8. Turn the on/off switch (6) to “O’’.
20
04
06
17d
17c
17b

SK135
© NØRSE 5 © NØRSE
English
Parts guide
01
09a
10
09
08
06
05
04 20
17
28
18
16
15
14
13
08
11
12
07b
17f
17e
17d
17a
18a
07a
07c
17c
17b
02
03
25
24
19

SK135
© NØRSE
6© NØRSE
English
1. Handle
2. Hose reel crank
3. Wheel
4. Quick connector lter
5. Water inlet
6. On/off switch
7. Detergent tank
a. Regulator
b. Cap
c. Container
8. Storage compartment (lances)
9. High pressure hose
a. O-ring
10. Hose reel
11. Air vents
12. Cleaning needle
13. Lubricant tube (certain models)
14. Storage compartment (variable nozzle)
15. Storage compartment (plug)
16. Power cord with plug
17. Spray gun
a. Grip
b. Trigger lock (deactivate button)
c. Trigger lock (activate button)
d. Trigger
e. Latch
f. Connection port
18. Lance extension
a. Lock button
19. Detergent nozzle
20. Quick hose connector
21. Triangle brush
a. Adaptor
22. Patio brush
a. Angle connector
b. Regulator
c. Rotating nozzle
23. Screw ST4.8*16mm (x2)
24. Filtered hose
25. Fiber extension hose
26. Rotary brush
27. 90 turbo nozzle
28. 20 xed nozzle
22c
21a21
22a
22b
22 23
27
26

SK135
© NØRSE 7 © NØRSE
English
WARNING! Never use the variable nozzle and patio brush without the lance extension –
danger of injury!
19 - The detergent nozzle creates the correct pressure for detergent to draw and mix, applying an even
mix.
27 - The 90 turbo nozzle angles a powerful rotating jet for hard to reach areas.
28 - The 20 fixed nozzle is used for general cleaning purposes with a focused and powerful spray.
Nozzle / Patio brush
The triangle brush is specially designed to clean
rims and the wheel of vehicles.
Screw the adaptor (21a) on the triangle brush (21).
Then align the tongues of the adaptor (21a) with
the grooves of the spray gun (17) and insert it.
Securely t the accessory by turning it clockwise
and let it lock into place.
Align the angle connector to the top of the patio
brush (22) and the rotating nozzle (22c) to the
bottom side. Screw the rotating nozzle (22c) on
the thread of the angle connector. Tighten it well.
Attach the angle connector (22a) to the lance
extension. (18)
17
21a
21
22b
22c
22
19 27 28

SK135
© NØRSE
8© NØRSE
English
Detergent
Use the detergent setting to apply detergent. Some cleaning tasks can be completed with water alone,
but for most tasks the removal of dirt becomes more effective if a detergent is used.
NOTE: Only use mild, environmentally friendly detergents. Never use aggressive chemicals, abrasive
detergents or similar to avoid damage to your health, the product and the environment.

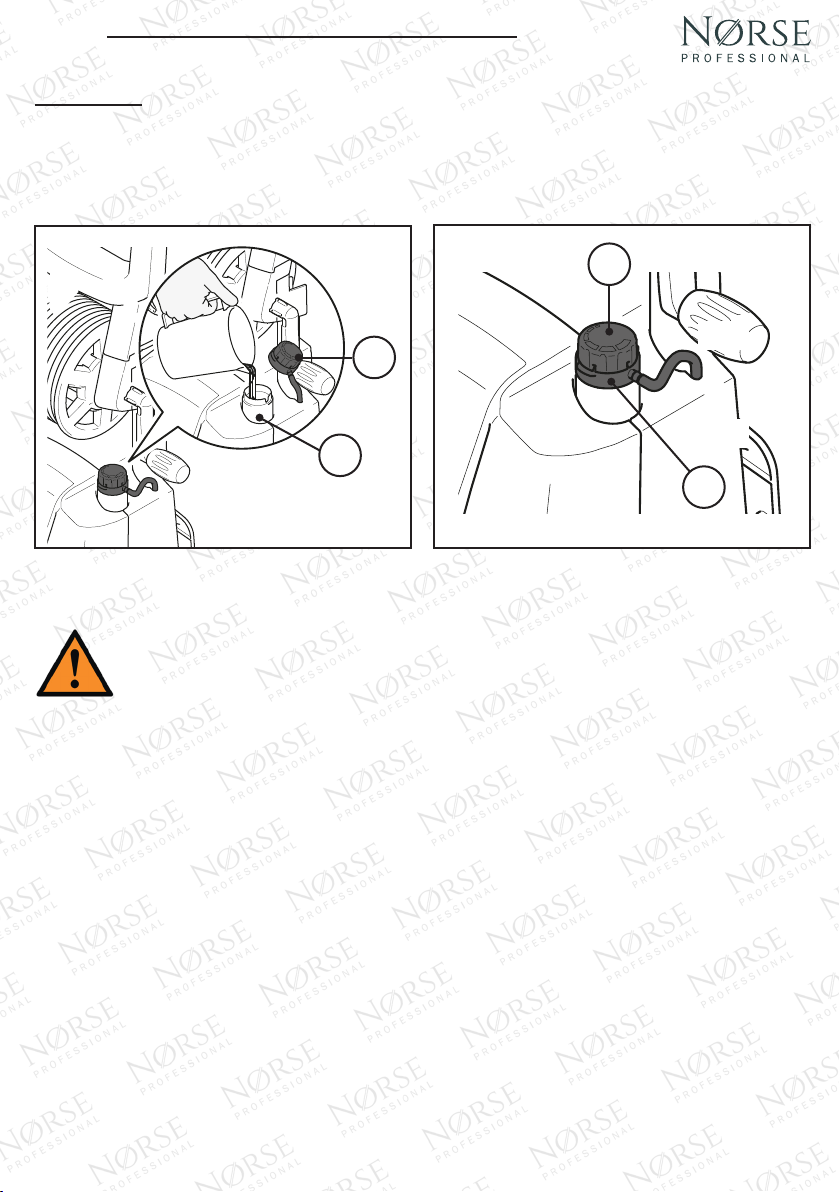

Unscrew the cap (7b) to open the tank (7c) and ll
with suitable detergent
Screw the cap back onto the tank.
Adjust the detergent ow with the regulator (7a) on
the cap (7b)
WARNING! Avoid skin contact with detergents, in particular contact with eyes! If detergent
gets in your eyes ush your eyes with clean water and seek immediate medical attention!
07b
07c
07a
07b
The following cleaning procedure will ensure that you achieve the most benecial results in the shortest
amount of time.
• Surface preparation
Clear the working area and make sure that all windows and doors are closed tightly. Make sure that all
plants and trees adjacent to the cleaning area are protected by a drop cloth.
• Initial high pressure rinse
The next step is to spray the cleaning surface with water to clear off any dirt or grime that may have
collected on the surface. If you use detergent, this will allow your detergent to attack the dirt that has
worked its way into the cleaning surface. Before triggering the gun, adjust the variable nozzle to a wide
spray pattern and slowly adjust to the desired spray pattern. This will help you avoid applying too much
pressure to the surface that could cause damage.
• Detergent application
Only use detergents formulated for pressure washers. Test the detergent in an inconspicuous area before
use. Follow the manufacturer’s label directions for mixing the correct concentrations of detergent to
water.

SK135
© NØRSE 9 © NØRSE
English
1. Unscrew the top of detergent applicator and ll with detergent.
2. Put the top of detergent applicator back on.
3. Attach the detergent nozzle to the spray gun.
4. Apply the detergent so it thoroughly covers the cleaning surface. Apply from bottom to top to prevent
the detergent from sliding down and streaking.
5. Allow the detergent to remain on the surface for a few minutes. This is a good time to use a brush to
lightly scrub heavily soiled areas. Never allow detergent to dry on the cleaning surface.
6. Remove detergent applicator from gun and replace with the lance.
7. Rinse detergent from surface.
8. Rinse the detergent applicator with clean water following each use.
9. Final rinse. Make sure you thoroughly rinse the surface and that all detergent has been removed.
• Shut down
1. Make sure all detergent is ushed from the system.
2. Turn off the motor.
3. Turn off the water supply.
4. Trigger the gun to de-pressurise the system.
5. After each use, wipe all surfaces of the pressure washer with a clean, damp cloth.
17
19

SK135
© NØRSE
10 © NØRSE
English
Distance from Cleaning Surface
Another factor that determines the impact force of the water is the distance from the spray nozzle to the
cleaning surface
Angle to the Cleaning Surface
When spraying water against a surface, maximum impact is generated when the water strikes the
surface head on. However, this type of impact tends to cause dirt particles to embed in the surface,
thereby preventing the desired cleaning action.
The optimum angle for spraying water against a surface is 45 degrees.
Avoid Damaging Surfaces
Damage to surfaces occurs because the impact force of the water exceeds the durability of the surface.
Never use a narrow high impact stream or a turbo / rotary nozzle on a surface that is susceptible to
damage.
The surest way to avoid damaging surfaces:
1. Adjust the variable nozzle to a wide spray pattern.
2. Place the variable nozzle approximately 4-5 feet from and 45 degrees to the cleaning surface.
3. Vary the spray pattern, spray angle and the distance to the cleaning surface until optimum cleaning
efciency is achieved without damaging the surface.
General cleaning

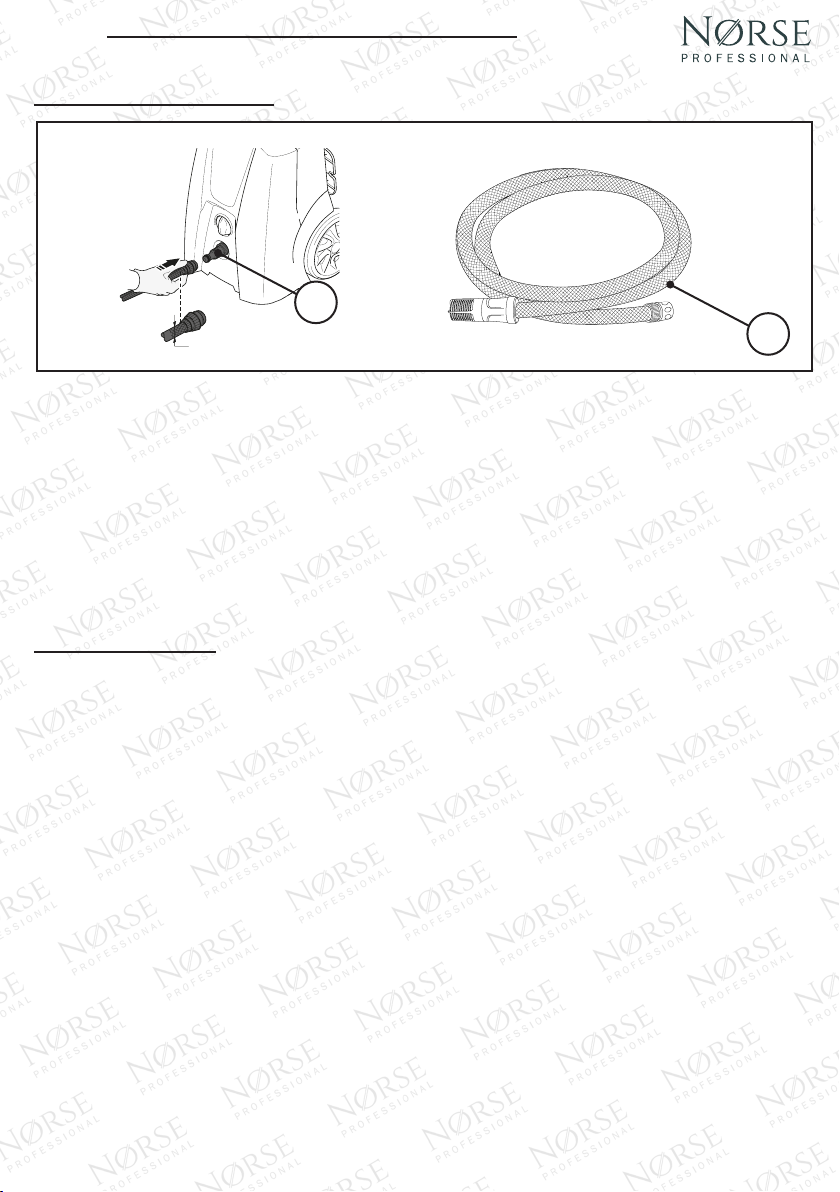

Drawing from a barrel
First ensure the machine is switched off before connecting / disconnecting any hoses or attachments.
Instead of attaching the hose from pump to tap, use the supplied hose and lter set placing the lter end
in the water supply.
It is advised that the water supply is on the same level as the washer. If you struggle to get initial suction,
remove the outlet hose from the pump and try drawing again - this reduces the pressure on the pump
making it easier to draw. Once owing, turn engine off and reconnect outlet hose before re-starting.
04
24

SK135
© NØRSE 11 © NØRSE
English
Post operation / storage
• Do not store the pressure washer outdoors or in a location where it may freeze. Any water left in the
machine, gun or any other components will expand if allowed to freeze, causing damage.
• Always turn the motor off before turning the water supply off.
• Never disconnect the hose from machine while the system is pressurized. To de-pressurize, turn the
motor off, then turn the water supply off and squeeze gun trigger 2-3 times.
Looking After your Product
1. This pressure washer is not meant to pump hot water. Never connect to a hot water supply.
2. Never operate the unit for more than one minute without spraying water. This will cause a heat build-
up that can damage the pump.
3. Only use the nozzles supplied with the machine.
4. Never store the pressure washer outdoors or where it could freeze. The pump will be seriously
damaged. Any components with water left inside will also be damaged, e.g. the pressure gun.
5. Release the trigger when changing the spray pattern. Failure to do so could result in damage.
6. Do not operate the pressure washer with the inlet water screen removed. Be sure to keep the screen
clear of debris and sediment.
7. Make sure you clean the machine every three months and inspect the lter and the nozzle prior to
every use, ensuring there is no debris that may impair use.
Press the accessory towards the spray gun (17) and turn it clockwise to remove it.
17f
18
17
#1
#2
#3

SK135
© NØRSE
12 © NØRSE
English

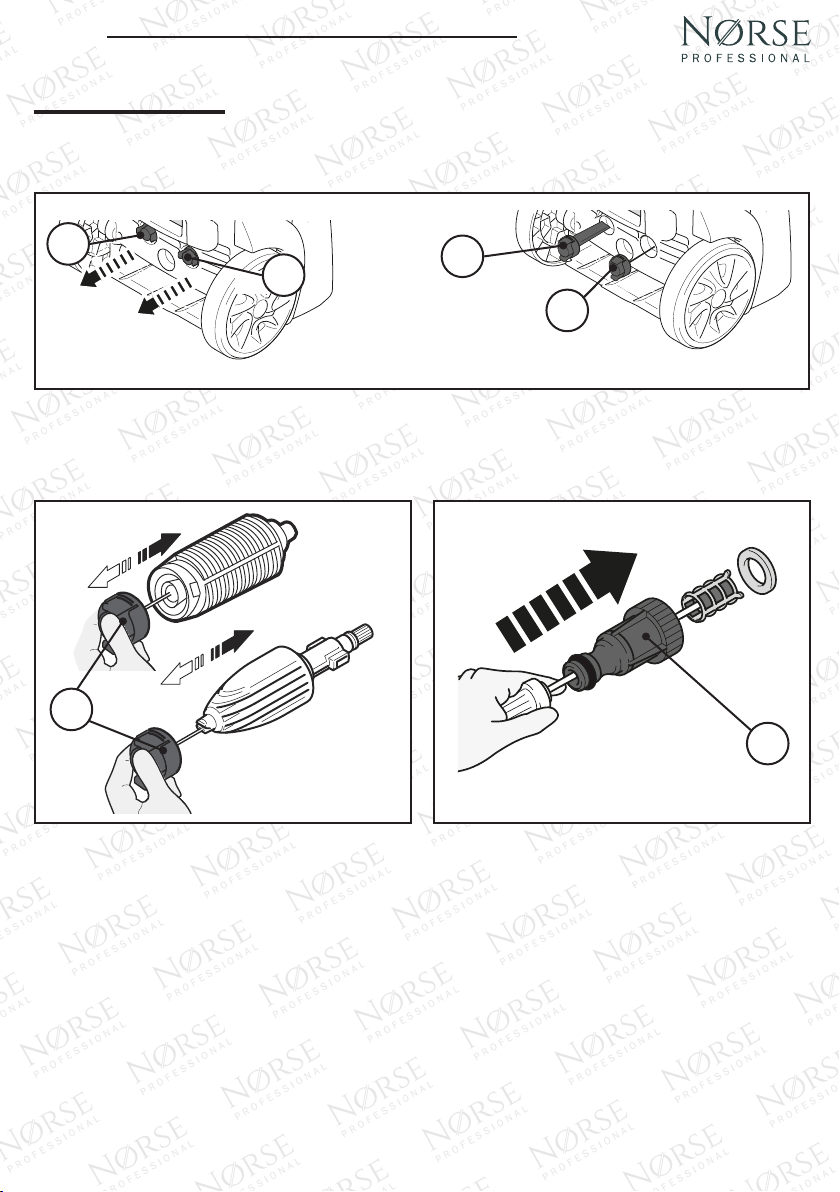

Maintenance
A cleaning needle (12) and lubricant tube (13) are supplied with this product and stored in the back. Fill
the lubricant tube with suitable lubricant, e.g. silicone grease.
Press the latches together and remove the
cleaning needle (12) and lubricant tube (13) from
the product
Push the cleaning needle (12) and lubricant tube
(13) back into the opening after each use.
Remove any dirt deposits from the nozzle hole
using the cleaning needle (12)
Remove the quick connector lter (4) from the
water inlet (5). Use a damp tool to disassemble
the quick connector lter (4). Rinse the parts with
clean water.
13
12 13
12
12
04

SK135
© NØRSE 13 © NØRSE
English
Safety Symbols
Safety and Warning Information
CAUTION: Indicates a
potentially hazardous
situation which, if not
avoided, may result in
minor or moderate injury.
WARNING: Indicates a
potentially hazardous
situation which, if not
avoided, could result in
death or serious injury.
WARNING: The electrical supply connection must be made by a qualied person and comply
with IEC 60364-1. The electric supply to this machine should include either a residual-
current device / circuit breaker that will interrupt the supply if the current to earth exceeds
30 mA for 30 ms.
Risk of
electrocution
WARNING: When the machine is used, the following precautions should always be
considered:
• To reduce the risk of injury, close supervision is necessary when the machine is used near children.
• Follow all safety codes as well as the Occupational Safety and Health Act (OSHA).
• Ensure safety devices are operating properly before using the machine. Do not remove or modify any
part of the gun or main unit of the machine.
• Stay alert at all times when using the machine and always hold the gun rmly when operating the
machine.
• Do not operate the machine when fatigued, suffering from reduced physical, sensory or mental
capabilities or whilst under the inuence of alcohol or drugs.
• Keep the operation area clear of all electrical equipment, persons, animals and pets. Do not leave the
machine unattended when setup for use. Always engage the trigger safety latch after use.
• Do not point the pressure gun at anyone whilst the unit is connected to a water supply.
• Do not overreach or stand on an unstable support. Keep good footing and balance at all times.
• Use a cleaning agent supplied or recommend by the manufacturer. Always protect your eyes, skin,
and respiratory system from detergent use.
• If your eyes (or any other sensitive part of your body) comes into contact with detergent, rinse with
plenty of clean water.
• In the event of an accident, switch off the machine, pull the plug from the socket outlet and
disconnect the water supply.
• Always wear safety goggles, ear protection and protective clothing even when performing
maintenance.
• Never put hands or ngers over the spray tip while operating the unit.
• Never try to stop or deect leaks with any body part.

SK135
© NØRSE
14 © NØRSE
English
WARNING: This is a double-insulated machine so two systems of insulation are provided
instead of grounding. No grounding means are provided for a double-insulated machine, nor
should grounding means be added to the machine. Servicing a double-insulated machine
requires extreme care and knowledge of the system. It should be done only by qualied
service personnel. Replacement parts for a double-insulated machine must be identical to
the original parts.
WARNING: To reduce the risk of electrocution, keep all connections dry and off the
ground. Do not touch the plug with wet hands.
WARNING: Do not use the machine if the supply cord or any important parts of the
machine are damaged (e.g. safety devices, high pressure hoses, etc).
WARNING: Do not use an inlet pressure that exceeds the operating pressure of any of the parts (hoses,
ttings, etc). Ensure all equipment and accessories are rated to withstand the maximum working
pressure of the unit.
WARNING: Never spray ammable liquids or use the pressure washer in areas containing combustible
dust, liquids or vapours.
WARNING: Do not spray electrical apparatus and wiring.
WARNING: To ensure machine safety, please only use original spare parts (including nozzles) from the
manufacturer or approved by the manufacturer.
WARNING: Make sure the inlet water is maintained between 0.01MPa and 0.4MPa.
WARNING: If the mains cable is damaged it must be replaced by the manufacturer, or its service agent
or similarly qualied person to avoid a hazard or injury.
WARNING: Use only extension cords intended for outdoor use and that have an electrical rating equal to
or more than the rating of the machine. Examine the cord before using and replace it if damaged. Keep
the cord away from heat and sharp edges. It is recommended that you use a cord reel that keeps the
socket at least 60mm above the ground.
CAUTION: Keep the hose away from sharp objects. Bursting hoses may cause injury. Examine the hose
regularly and replace it if damaged. Do not attempt to repair a damaged hose.
• Never disconnect the high pressure outlet hose from the machine while the system is pressurised. To
depressurise machine, turn power and water supply off, then press gun trigger 2-3 times.
• Never operate the machine without all of the components properly connected to the machine (handle,
gun / lance assembly, nozzle, etc).
• Never operate the pressure washer with broken or missing parts. Check equipment regularly and
repair or replace worn or damaged parts immediately.

SK135
© NØRSE 15 © NØRSE
English
Troubleshooting
Technical Data
Symptom Possible Cause(s) Corrective Actions
No detergent
suction 1. Detergent tank is clogged 1. Clean detergent tank with warm water
Pressure washer
does not start up
1. Unit is pressurised
2. Plug is not connected correctly or
electrical supply is damaged / faulty
3. Thermal safety switch has tripped
1. Clean water inlet
2. Check that connections are properly
tightened
3. Switch off unit and allow to cool down
Pump does not
reach necessary
pressure
1. Water inlet is clogged
2. Pump sucking air from hose
connections
3. Variable spray nozzle is worn or not
correct size
4. Unloader / valves are clogged/ worn
1. Clean quick connector lter
2. Check that connections are properly
tightened
3. Call the dealer
4. Call the dealer
Fluctuating
pressure
1. Pump is sucking air
2. Clogged nozzle
3. Valves dirty, worn or clogged
4. Water seals worn
1. Check that hoses and connections are tight
2. Clean with tip cleaner
3. Call the dealer
4. Call the dealer
Motor stops
suddenly
1. Thermal safety switch has tripped due
to overheating
1. Check mains supply voltage corresponds to
specications
Item SK135
Working pressure 13.5 MPa / 135 BAR / 2000 PSI
Allowable pressure 20.5 MPa / 205 BAR / 3000 PSI
Maximum ow rate 500 Litres / hour
Motor capacity 2400 Watt
Power supply voltage 240V ~ 50HZ
Intake water pressure Min 0.1MPa / Max 1MPa
Max input temperature 50 °
Dimensions 380 x 355 x 735mm
Weight 16.7 Kg

SK135
© NØRSE
16 © NØRSE
English
Disposal Regulations
Do not dispose of electrical machines as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available. If electrical
machines are disposed of in landlls or dumps, hazardous substances can leak into the groundwater and
get into the food chain, damaging your health and well-being.
For transportation safety, the machine should comply with ISTA.

SK135
© NØRSE 17 © NØRSE
English
CE Certication
