GARAGE DOOR OPENER
REMOTE COMMAND
CONTROLLER
with TILT SENSOR
or dial
Installation Instructions
GD00Z-8-ADT
®

Regulatory Information
• Z-Wave®is a registered trademark of Sigma Designs Inc. and/or its subsidiaries.
• Changes or modications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
• Les changements ou modications non approuvés expressément par la partie responsable de la
conformité pourrait annuler l’autorité de l’utilisateur à faire fonctionner l’équipement.
• This device complies with FCC Part 15 and Canada Rules and Regulations. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired operation.
• Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire
de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Regulatory Information
NOTICE TO USERS IN CALIFORNIA - CR COIN CELL LITHIUM BATTERY INFORMATION:
THIS PRODUCT CONTAINS A CR COIN CELL LITHIUM BATTERY WHICH CONTAINS
PERCHLORATE MATERIAL - SPECIAL HANDLING MAY APPLY - SEE
www.dtsc.ca.gov/hazardouswaste/perchlorate
KEEP AWAY FROM SMALL CHILDREN. IF BATTERY IS SWALLOWED, PROMPTLY SEE A DOCTOR.
DO NOT TRY TO RECHARGE THIS BATTERY. DISPOSAL OF USED BATTERIES MUST BE MADE IN
ACCORDANCE WITH THE WASTE RECOVERY AND RECYCLING REGULATIONS IN YOUR AREA.
WARNING
This operator system is equipped with an unattended
operation feature. This door could move unexpectedly. NO
ONE SHOULD CROSS THE PATH OF A MOVING DOOR!
WARNING
This system can be installed on sectional type (roll up) doors only
per (UL-325). DO NOT INSTALL ON ONE-PIECE DOORS!
WARNING
The Remote Command Transceiver must be mounted in the
garage, in sight of the garage door, where the visual and
audible movement warning indicators can be clearly seen
and heard.
WARNING
Do not install the Remote Command Transceiver on garage
door operators manufactured prior to 1993 (models without
an operational safety beam entrapment detection system).

1
Table of Contents
Product Description .........................................................2
Overview .................................................................2
Summary of Operation .......................................................2
Package Contents...........................................................3
The Garage Controller System .................................................3
Tilt Sensor Installation .......................................................4
Mounting the Tilt Sensor......................................................4
Enrolling with the System ....................................................5
Enrolling the Garage Door Controller .............................................5
To add a Garage Door Controller: ...............................................5
Resetting or Excluding the Garage Door Controller ...................................8
To reset a Garage Door Controller:...............................................8
To remove a Garage Door Controller:.............................................8
Controller Mounting .........................................................9
Mounting the Controller in the Garage ............................................9
Controller Connections......................................................10
Wiring the Controller to the Opener .............................................10
Connecting the Power Supply .................................................10
System Operation ..........................................................11
Opening and Closing the Garage Door...........................................11
Operation Notes ...........................................................12
Indications and Operation Notes ...............................................12
Tilt Sensor Battery Replacement ..............................................12
When The Tilt Sensor Battery Gets Low ..........................................12
Troubleshooting ...........................................................13
If Something is not Working ..................................................13

2

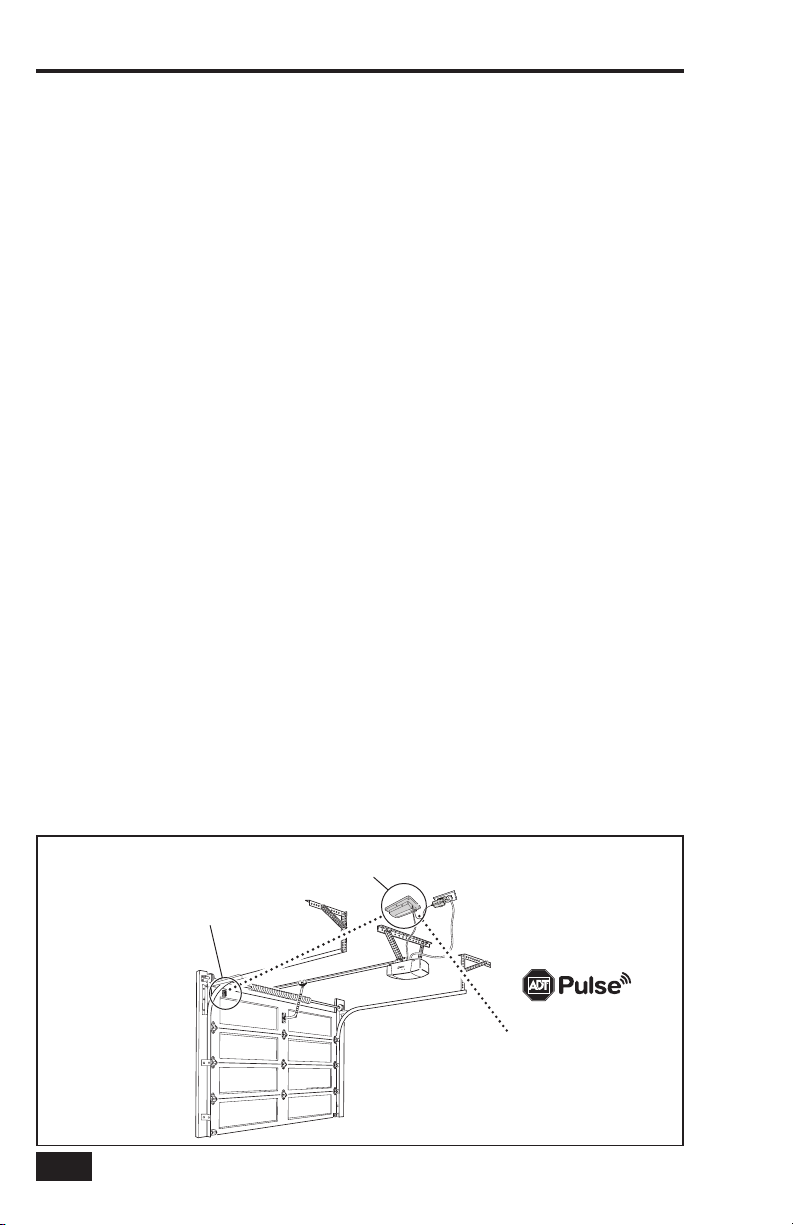

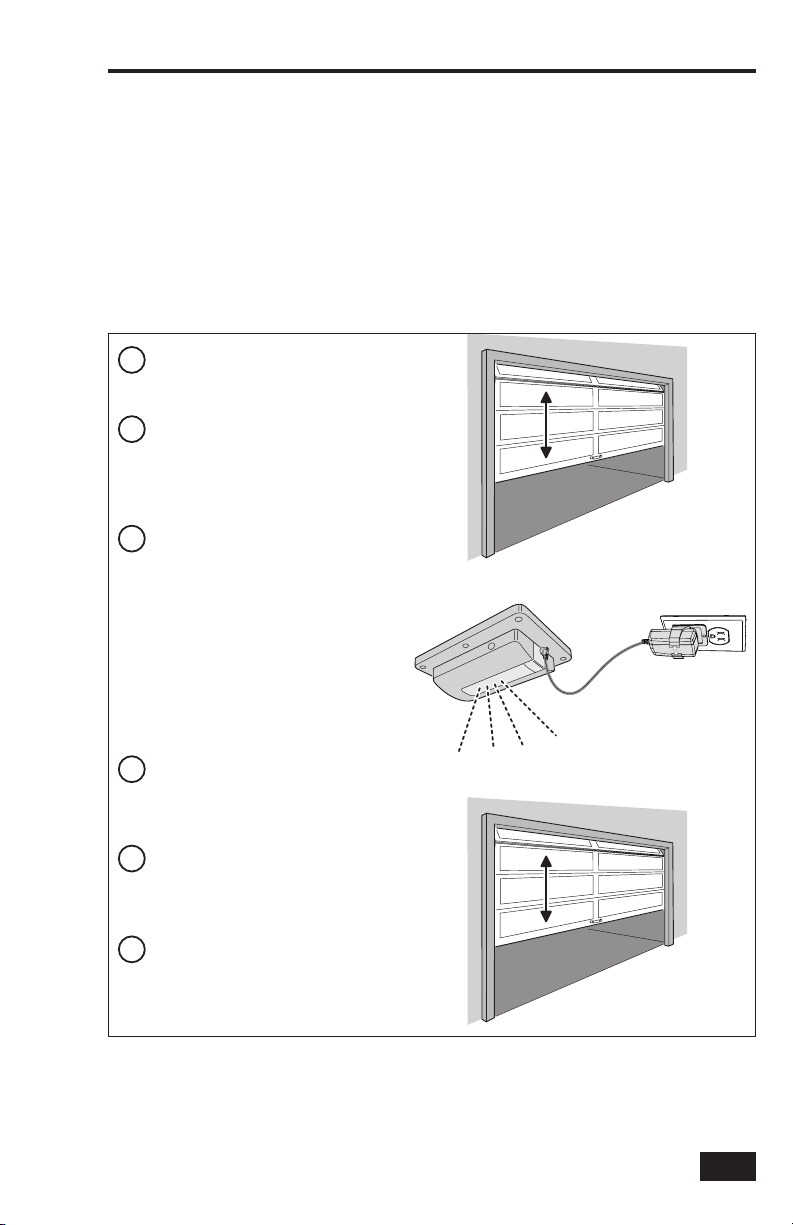

Figure 1. System Overview
The tilt sensor sends door
open or closed status to the
garage door controller.
The garage door controller
sends the door status to the
adt pulse system.
The ADT pulse system
displays the door status.
The ADT pulse system
commands the garage door
controller to open or close
the door.
Overview
◊ This is a Security enabled Z-Wave product and must be used with a Security enabled
Z-Wave controller in order to fully utilize this product. As such, this device will not respond
to Basic CC commands.
◊ The GD00Z-8-ADT is a garage door opener remote command transceiver with built-in
Z-Wave® technology.
◊ Allows remote operation of a garage door opener using the ADT Pulse touch screen, web
portal, or mobile app.
◊ Z-Wave is an Interoperable two-way RF mesh networking technology designed for use
with a Z-Wave gateway/controller and other Z-Wave enabled devices from different
manufacturers.
◊ Acts as a Z-Wave repeater to improve communications within the Z-Wave mesh network.
◊ ASSOCIATION: The GD00Z-8-ADT supports 1 Group with 1 Node. Group 1 must be
assigned the Node ID of the controller to which unsolicited notications from the Controller
will be sent. The ADT Pulse should set this association automatically after inclusion.
◊ NOTIFICATION: The GD00Z-8-ADT supports the following notication types and events:
Access Control (Type 0x06) with events 0x44 (HW failure), 0x45 (UL Lockout), 0x46
(Obstruction), 0x49 (Loss of Tilt Sensor) and 0x4A (Sensor Low Battery). And additional
type, Home Security (0x07) is also supported with event 0x03 (Tilt Sensor Tampered).
◊ Security 2 DSK label can be found on the bottom side of the product.
Summary of Operation
◊ Controller connects to the garage door opener’s pushbutton wall console terminals.
◊ A wireless tilt sensor mounts on the garage door and reports the door’s position to the
Controller.
◊ GD00Z-8-ADT responds to Z-Wave commands from ADT Pulse to open or close the garage
door.
◊ A warning indicator light ashes and a beeper sounds for 5 seconds before the door
begins to move.
◊ If the door does not completely open or close, a second open or close command can be
sent after 30 seconds.
◊ If the door does not completely open or close after the second attempt, the Controller
operation is suspended until a local garage door pushbutton is activated.
Product Description
®

3
The Garage Controller System
The GD00Z-8-ADT System consists of three major components:
• The Controller — The Controller wires to the garage door opener’s pushbutton terminals,
receives door status from the tilt sensor, and communicates with the ADT Pulse system.
• The Tilt Sensor — The battery powered Tilt Sensor monitors the position of the garage door and
sends the status to the Controller.
• The Power Supply — The Power Supply provides low voltage power to the Controller.
Package Contents

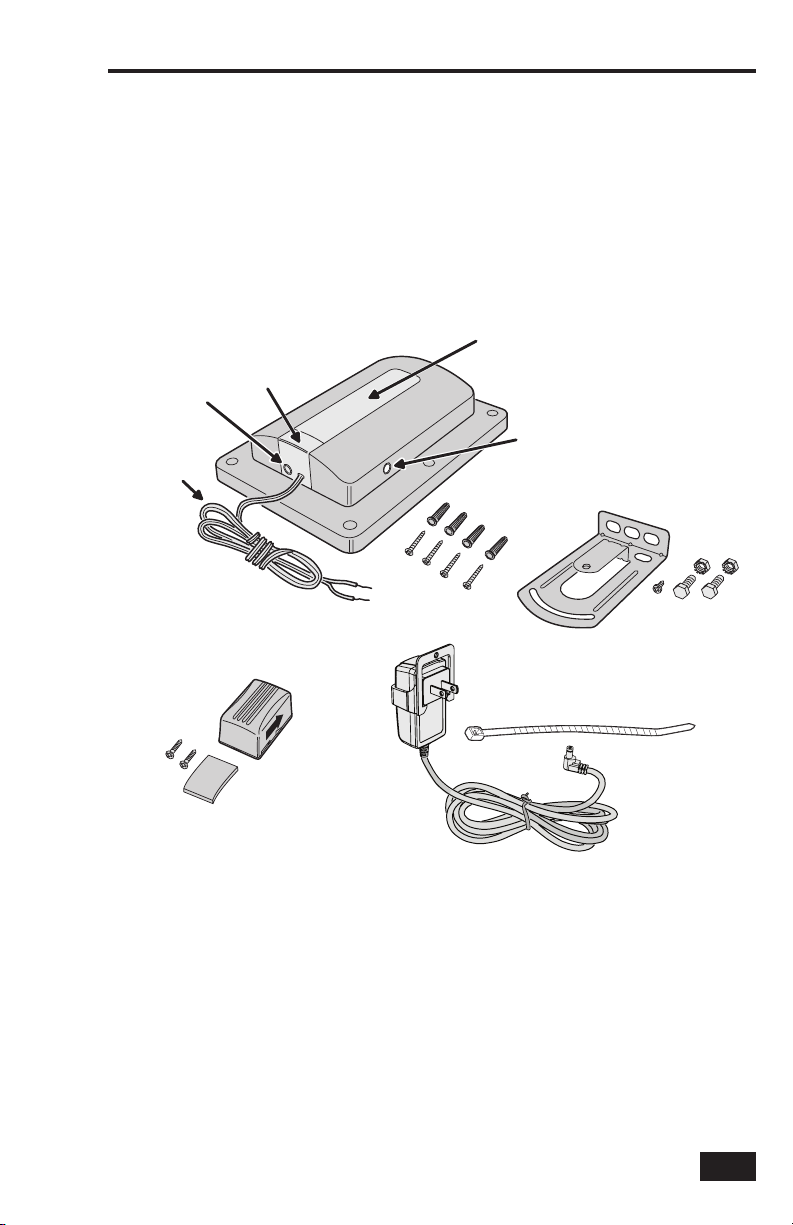

Figure 2. Package Contents
GD00Z-8-ADT
GARAGE DOOR
CONTROLLER
POWER
INPUT
JACK
WARNING
LIGHT
INCLUDE
BUTTON
CONNECTION
WIRES
MOUNTING SCREWS
AND ANCHORS
FOR GD00Z-8-ADT
TILT
SENSOR
STATUS
INDICATOR
OPTIONAL
ADJUSTABLE
GD00Z-8-ADT
MOUNTING
BRACKET
SCREWS AND
MOUNTING TAPE
FOR TILT SENSOR
SCREW AND
MOUNTING HARDWARE
FOR ADJUSTABLE
BRACKET
POWER SUPPLY, ZIP TIE
AND BRACKET

4
Mounting the Tilt Sensor
The battery powered Tilt Sensor attaches to the top panel of the garage door.
1. Before installation, activate the Tilt Sensor by pulling and removing the battery protection strip.
2. If using screws to mount the Tilt Sensor, open the sensor case with a small screwdriver.
3. Use the double-sided tape or screws supplied to attach the Tilt Sensor to the top panel of the
garage door.
✓NOTE: Drill two 1/16” pilot holes if using the screws to attach the mounting plate.
4. If the plate was removed for screw mounting, snap the Tilt Sensor on to the mounting plate.
✓NOTE: Be sure the arrow on the side of the Tilt Sensor points UP.
Tilt Sensor Installation
Use double sided tape or the two mounting
screws supplied.
(DRILL 1/16" PILOT HOLES IF REQUIRED)
POST ON
BOTTOM
"UP"
ARROW
Snap the tilt sensor onto the
mounting plate.
To activate the tilt sensor, remove the
battery protection pull strip.
2
ARROW
ON PLATE
POINTS UP
1
4
Attach mounting plate
to TOP PANEL of the door.
To open the case, for screw
mounting, twist a small
screwdriver in the case slot.
ARROW
ON SENSOR
POINTS UP
SLOT
3
Figure 3. Tilt Sensor Installation

5
Enrolling the Garage Door Controller
Before the system can be used, the ADT Pulse system needs to enroll the Garage Door Controller. Bring
the Controller near your ADT Pulse Gateway and apply power to the Garage Door Controller.
✓NOTE: Before enrolling device to any Z-Wave network, or after removing it from any Z-Wave
network, it is recommended that the Controller be factory reset. Reset the Controller by pressing the
Include button 5 times.(Location of Include button is shown in Figure 2 on Page 3). A quick beep
followed by a longer beep will indicate proper reset of the GD00Z-8-ADT.
To add a Garage Door Controller:

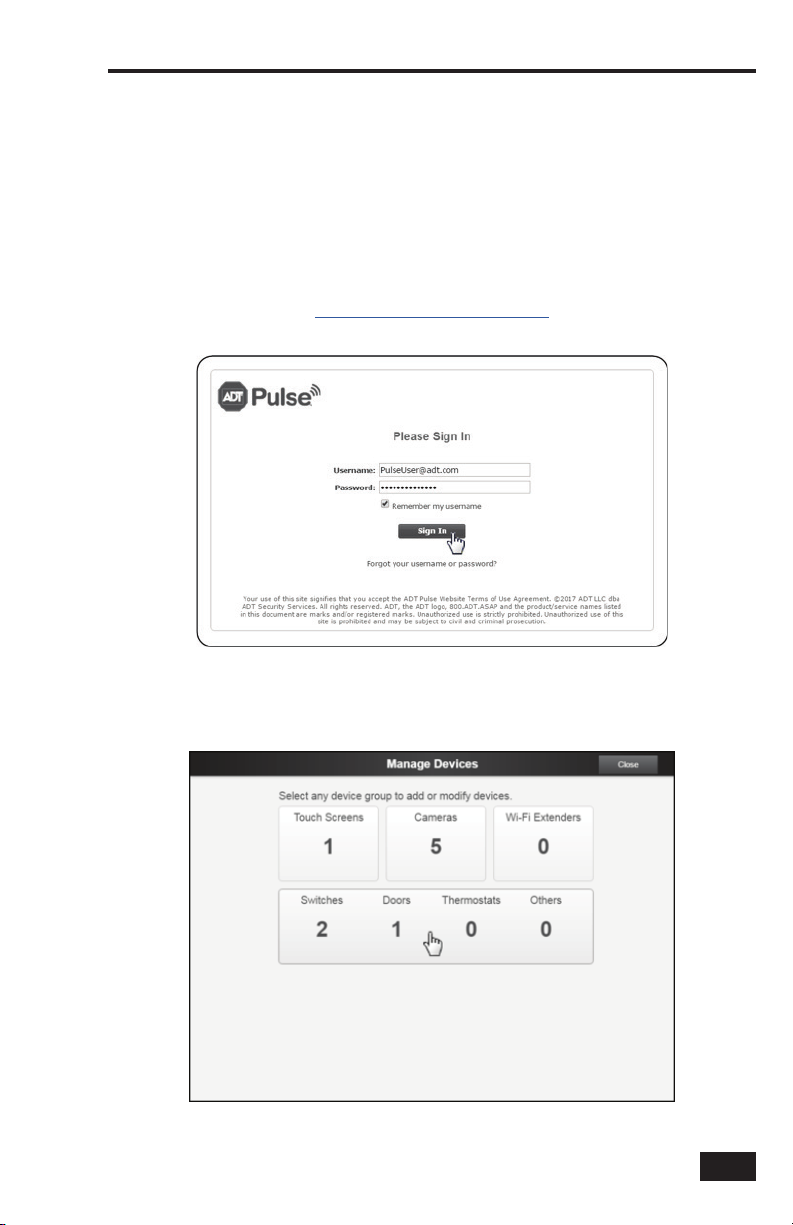

1. Open your Web browser and in the address bar enter:
https://portal.adtpulse.com
2. Enter your Username and Password, then click the Sign In button.
3. In the Pulse portal, select the System tab, then click the Manage Devices button. The Manage
Devices window opens.
4. In the Manage Devices window, click Switches/Doors/Thermostats/Others. The Z-Wave
Devices screen is displayed.
Enrolling with the System

6
5. At the bottom left of the Z-Wave Devices screen, click Add. The Add Z-Wave Devices screen is
displayed.
6. On the Add Z-Wave Devices screen, click Continue.
7. Press and hold the Garage Door Controller’s include button for 1 second (See page 3, Figure 2 for
the location of the include button).
8. Wait while the system nds the GD00Z-8-ADT Device.
✓NOTE: Adding the Garage Door Controller can take one to three minutes. A successful inclusion is
also indicated by three short audible beeps.
Enrolling with the System (Cont.)

7
9. When the device is successfully recognized, the Z-Wave Device Details screen opens. Enter a
name for the device, and then click Save at the upper right.
10. Click Go Back, and then Close the exit Manage Devices.
11. Click Close again to conrm.
Enrolling with the System (Cont.)

8
Resetting or Excluding the Garage Door Controller
If you have trouble adding the Garage Door Controller you can reset the device. Resetting the device
removes it from a site (Not the same as factory resetting the device). You can then try to add the
device again.
To reset a Garage Door Controller:
1. In the web portal, click the System tab.
2. Click Manage Devices.
♦The Manage Devices window opens..
3. Click Switches/Doors/Thermostats /Others.
♦The Z-Wave Devices screen is displayed..
4. At the bottom of the screen, click Reset.
5. Press and release the Garage Door Controller’s include button for (1) one second.
♦The Z-Wave device resets and a two second long audible beep can be heard.
♦Click Go Back,and then Close to exit Manage Devices.
6. Click Close again to conrm.
To remove a Garage Door Controller:
1. In the web portal, click the System tab.
2. Click Manage Devices.
♦The Manage Devices window opens.
3. Click Switches/Doors/Thermostats/Others.
♦The Z-Wave Devices screen is displayed.
4. Click the name of the device you want to delete.
♦The Z-Wave device Details screen displays information about the selected device.
5. Click Remove at the bottom left of the screen.
♦A pop-up window prompts you to conrm.
6. Click Remove to complete the deletion.
✓NOTE: If you attempt to delete a device that is referenced in an automation, alert, or schedule, or
replace the device in all automations, alerts, and schedules in which it is referenced before you can
delete the device. Click OK to exit without deleting the device.
Enrolling with the System (Cont.)

9
Controller Mounting
Mounting the Controller in the Garage

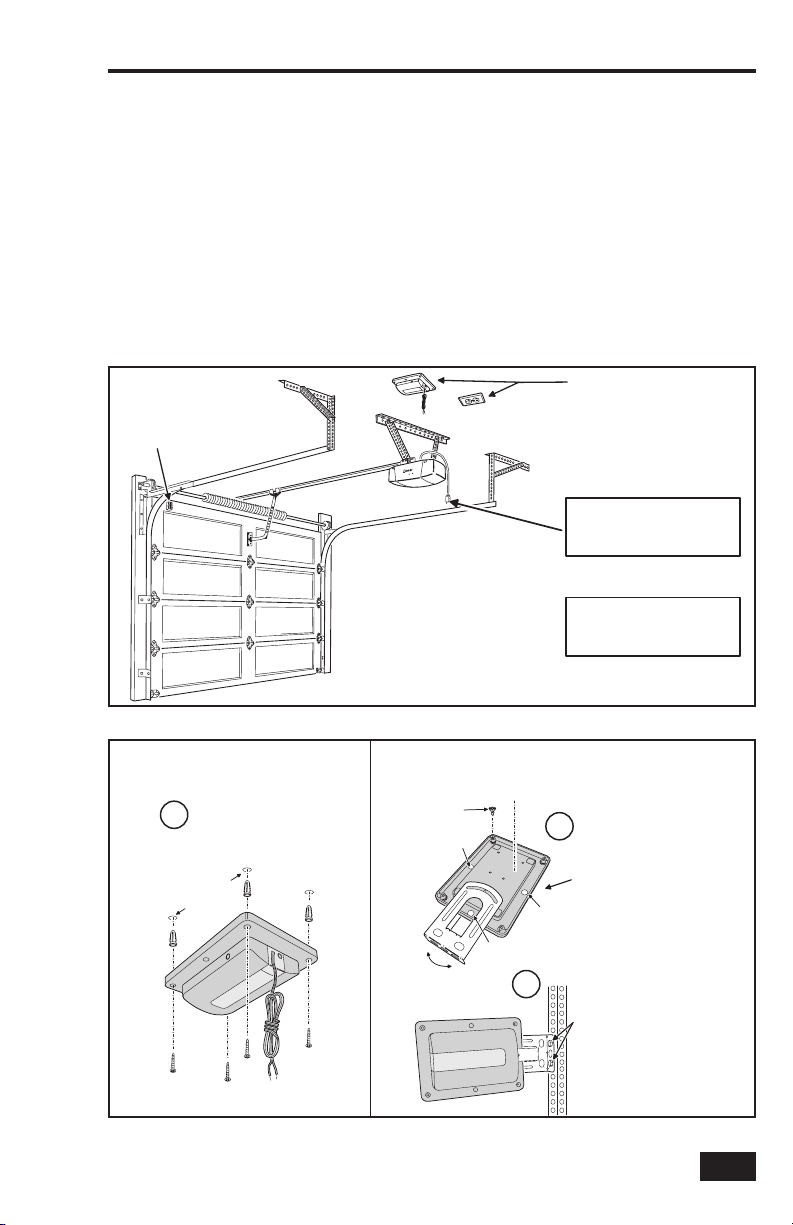

The Garage Door Controller mounts in the garage near the garage door opener. It will need to be near
a power outlet and where its warning lamp can be seen, regardless of the door position. Un-plug the
garage door opener before continuing.
The Garage Door Controller can be screw mounted directly, or by using the supplied adjustable
mounting bracket.
1. Use the four anchors and screws to directly mount the Controller (use a 3/16” drill for the screw
anchors, if the anchors are used).
- OR -
1. Snap the adjustable mounting bracket onto the Controller and secure it with the short screw.
2. Use the bolts and nuts supplied to attach the mounting bracket to available hardware.
Figure 4. Controller Components
The GD00Z-8-ADT can also be attached to the opener's
hardware using the adjustable mounting bracket.
The optional adjustable
mounting bracket fits
3 ways on the controller.
The bracket snaps onto
indents on either side or
on the end of the controller.
SECURE BRACKET
WITH SCREW
INDENT
INDENT
Use the bolts and nuts
supplied to attach the
bracket to a secure
structure.
Be sure the controller is clear
of all of the garage door’s
moving parts, and the warning
lamp is not obstructed.
INDENT
1A
2A
3/16" HOLES
FOR ANCHORS
Use the four screws
and anchors to mount
the GD00Z-8-ADT above
the opener.
1
TYPICAL MOUNTING METHOD ALTERNATE MOUNTING METHOD
The GD00Z-8-ADT typically
mounts on the ceiling near
the opener and the power
outlet.
TILT SENSOR
MOUNTED ON
THE TOP PANEL
OF THE DOOR
THE GD00Z-8-ADT WARNING
LAMP MUST BE VISIBLE IN
ALL DOOR POSITIONS
REMOVE POWER FROM THE
GARAGE DOOR OPENER
BEFORE CONTINUING
! WARNING !
Figure 5. Controller Mounting

10
Wiring the Controller to the Opener
The Garage Door Controller wires to the garage door opener with a two wire connection.
1. Connect the GD00Z-8-ADT connection wires to the two pushbutton terminals on the garage door
opener. The terminals on various models may have different names. Either wire can connect to
either terminal.
✓IMPORTANT! Be sure the wires clear all moving parts of the door and opener.
Connecting the Power Supply
2. Plug the Power Supply’s cord into the jack on the Garage Door Controller.
3. Join the Power Supply with the Adapter.
4. Remove the outlet faceplate screw. Plug the Power Supply and bracket into a 115 VAC outlet.
Align the bracket hole to the outlet hole and secure. Be sure the outlet is powered at all times
and not controlled by a switch.Secure the bracket with the provided zip tie strap.
✓IMPORTANT! Do not disconnect any wires currently connected to the Garage Door Opener.
Controller Connections
Figure 6. Controller Mounting
PUSHBUTTON
PUSHBUTTON
GARAGE
DOOR
OPENER
Connect the GD00Z-8-ADT connection
wires to the push-button wall console
terminals on the garage door opener.
The terminals may be named "PWC", "WC",
"PB", "PUSHBUTTON", or "RED and WHITE".
Terminal names and locations vary by model.
DO NOT DISCONNECT ANY WIRES CURRENTLY
CONNECTED TO THE GARAGE DOOR OPENER.
Remove the screw from 120 VAC
outlet faceplate. Plug in the adapter.
Secure the power adapter to the faceplate
with the provided screw.
Feed the zip tie through the two holes in the
bracket and secure.
USE WIRE TIES TO SECURE
EXCESS WIRING CLEAR
OF ALL MOVING PARTS
OF THE GARAGE
DOOR AND OPENER
Either wire can
connect to either
terminal
Plug the power cord
Carefully join the
power suppy with
the bracket.
into the power input
jack on the GD00Z-8-ADT
2
1
4
3

11
Opening and Closing the Garage Door
After the installation is complete, the garage door opener can be activated by the ADT Pulse system and
the door’s status can be viewed through the system.
1. Restore power to the garage door opener.
2. Cycle the door open and closed using the wall pushbutton to synchronize the system.
3. Command the ADT Pulse system to activate the garage door.
4. Verify that the Garage Door Controller ashes for ve seconds before the door moves.
5. The door should open or close.
6. Verify that the ADT Pulse system indicates the open or closed status of the garage door.
System Operation
Figure 7. Controller Mounting
FLASH
FLASH
FLASH
BEEP
BEEP
BEEP
Use the ADT pulse touch-screen
or mobile app to control
your garage door, view
status, and add your
garage door control to
automations and modes.
(For example, you can
schedule your garage door
to close nightly at sunset.)
The GD00Z-8-ADT will activate
the door opener and open
or close the door.
STAY CLEAR
OF THE DOOR!!!
3
The GD00Z-8-ADT will beep and
flash for five seconds before
the door moves.
4
5
6
The touchscreen or mobile
app will show the new status
of the door after the door
completes its cycle.
Restore power to your
Garage door opener.
1
To synchronize the system,
use the garage door opener's
push-button to manually open
and close the door.
2
STAY CLEAR
OF THE DOOR!!!

12
Operation Notes
Indications and Operation Notes
◊ The warning light will ash and the warning beeper will sound for ve seconds before
the door opener is activated. STAY CLEAR OF THE DOOR, AND DOOR OPENER. THEY ARE
ABOUT TO MOVE!
◊ If the door does not completely open or close after remote activation, the Controller
will allow user to try to operate the door one more time. If the second attempt fails, the
Controller will go into lock-out mode. See next paragraph.
◊ If the GD00Z-8-ADT is in lock-out mode and will not accept remote commands, activate
the door from the pushbutton wall console.
◊ Once the Controller has initiated the movement of the garage door, another command
cannot be sent for 30 seconds. This eliminates the chance of “bouncing” the garage door
and possibly damaging the garage door opener.
Tilt Sensor Battery Replacement
When The Tilt Sensor Battery Gets Low
The system will notify you when the Tilt Sensor battery gets low and needs replacing.
1. Use a small screwdriver to open the Tilt Sensor case.
2. Remove the low battery and insert a fresh Type CR2032 coin cell battery. BE SURE THE PLUS
SIDE IS UP.
✓IMPORTANT! Disposal of used batteries must be made in accordance with the waste recovery and
recycling regulations in your area.
3. Return the Tilt Sensor to the garage door top panel and snap it onto the mounting plate. BE SURE
THE ARROW ON THE SIDE OF THE TILT SENSOR IS POINTING UP.
CR2032 PLUS SIDE UP !!!
SLOT
1
2
3"UP"
arrow
Snap the sensor onto
the mounting plate
The system will notify you
when the battery is low.
Replace the battery with
a type CR2032 coin cell.
To open the case, twist
a small screwdriver in
the case slot.
Insert the fresh
battery into the
transmitter.
Snap the tilt sensor onto
the mounting plate, being
certain that the arrow on the
side is pointing up.
Figure 8. Replacing the Tilt Sensor Battery

13
If Something is not Working
Refer to the following table for information regarding possible problems and solutions if the Garage
Door Controller is not operating as expected.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The Controller does not ash or
beep when activated.
No power to the
Controller.
1.Make sure the power supply
is plugged in securely to a live
outlet.
2.Make sure the power cord
is plugged in securely to the
Controller
The Controller ashes and beeps
when activated but the door
does not move.
Obstruction blocking
the door or incorrect
wiring.
1.Make sure that there are no
obstacles preventing the door
from moving.
2.Make sure that the GD00Z-8-ADT
connection wires are connected
to the proper terminals on the
garage door opener. Trace the
wires from the garage door
opener’s pushbutton wall console
to the door opener. This is where
the GD00Z-8-ADT connection
wires should be connected to.
Garage door opens or closes,
but the status does not change
on the touch screen or mobile
app.
The Tilt Sensor
signal is not being
received by the
Controller.
1.Make sure the Tilt Sensor is
mounted correctly on the garage
door, with the arrow pointing up.
2.Make sure the battery pull tab
has been removed from the Tilt
Sensor.
3.Replace the battery in the Tilt
Sensor.
Unable to include in Z-Wave
network.
GD00Z-8-ADT
was not properly
excluded from a
previous Z-Wave
network.
1.Reset the GD00Z-8-ADT by
pressing the INCLUDE button 5
times.
A quick beep followed by a
longer beep will indicate the
reset.
Reset should only be used in the
case of a missing or inoperative
primary controller.
Troubleshooting

Copyright © 2020 Nortek Security & Control 10025370 Rev-B
®
