Nortel Passport 241-5101-200 User manual

Passport
Installation
Guide
241-5101-200

Passport 8250
Installation
Guide
Publication: 241-5101-200
Document status: Standard
Document version: R2.2
Document date: October 1999
Copyright © 1999 Nortel Networks.
All Rights Reserved.
Printed in Canada
NORTEL, NORTEL NETWORKS, the globemark design, the NORTEL NETWORKS corporate
logo, and PASSPORT are trademarks of Nortel Networks.

5
Passport 8250 Installation Guide R2.2
Publication history
October 1999
R2.2 Standard
Commercial availability.

6Publication history
241-5101-200 R2.2

7
Passport 8250 Installation Guide R2.2
Contents
About this document 11
Who should read this guide 11
What you need to know 11
How this guide is organized 11
Conventions 12
Documentation conventions 12
Symbol conventions 13
Related documents 13
Passport documents 13
NMS documents 14
Nortel support services 14
Chapter 1
Passport 8250 15
Passport 8250 functions 15
Passport 8250 hardware 16
Board modules 17
Communication ports 18
Dual power supply modules 18
Fan module 18
Passport 8250 software 19
Software compatibility 19
Related documents 19
Passport documents 19
NMS documents 19

8Contents
241-5101-200 R2.2
Chapter 2
Preparing for the hardware installation 21
Selecting an installation site 21
Unpacking the Passport 8250 shipment 22
Taking inventory of the Passport 8250 shipment 22
Getting the tools to mount the chassis in a rack 24
Chapter 3
Installing the Passport 8250 device 25
Mounting the chassis in a rack 25
Safety precautions 25
Mounting the Passport 8250 device on a 19” rack 26
Mounting the Passport 8250 device on a NEBS or ETSI rack 28
Connecting cables to the ports 29
Connecting the DS-1/E1 ports 29
Connecting the ethernet port 31
Connecting the serial port 32
Connecting the ATM uplink port 33
Connecting the dual power supply 33
Securing the cables to the rack 35
Chapter 4
Configuring the Passport 8250 for operations 37
Logging into the CLI 37
Starting the Passport 8250 device and logging into the CLI 37
Configuring the Passport 8250 device for remote access 38
Viewing the boot parameters 39
Setting the boot parameters 39
Configuring the clocking scheme 40
Setting the clocking scheme to External Primary 42
Setting the clocking scheme to ExternalSecondary 43
Setting the clocking scheme to External Primary Automatic
Switching 43
Setting the reference clock to internal 44

Contents 9
Passport 8250 Installation Guide R2.2
Appendix A
Replacing hardware 45
Replacing a power supply module 46
Replacing a board module 47
Passport 8250 board guidelines 49
Replacing the fan module 49
Appendix B
LEDs 51
Appendix C
Standards 55
Product safety standards 55
Electromagnetic compatibility standards 55
Telecom standards 56
Thermal, mechanical, and power standards 56
Regulatory information standards 56
Federal Communications Commission (FCC) 57
Industry Canada Notice - Equipment attachment limitation 57
Index 59

10 Contents
241-5101-200 R2.2

11
Passport 8250 Installation Guide R2.2
About this document
This document explains how to install the Passport 8250 device.
This document uses the terms DS-1/E1 and STM-1/OC-3. The term DS-1/E1
is for information that applies to both DS-1 and E1 interfaces. The term
STM-1/OC-3 is for information that applies to both STM-1 and OC-3 ports.
Wheninformationisforaspecificinterfaceorport,theindividualdesignation
is given.
Who should read this guide
You should read this document if you are responsible for performing the
following tasks:
• Installing the Passport 8250 device.
• Replacing hardware components.
What you need to know
You need to know the following information:
• ATM networking principles.
• Electrical and physical safety procedures and standards.
How this guide is organized
This guide is divided into the following sections:
• “Passport 8250” (page 15).
• “Preparing for the hardware installation” (page 21).
• “Installing the Passport 8250 device” (page 25).
• “Configuring the Passport 8250 for operations” (page 37).

12 About this document
241-5101-200 R2.2
• “Replacing hardware” (page 45).
• “LEDs” (page 51).
• “Standards” (page 55).
ConventionsThere are documentation and symbol conventions used in this document.
Documentation conventions
There are a number of documentation conventions you should know about.
•nonproportional spaced plain type
Nonproportional spaced plain type represents system generated text or
text that appears on your screen.
•nonproportional spaced bold type
Nonproportional spaced bold type represents words that you should type
or that you should select on the screen.
•[optional_parameter]
Words in square brackets represent optional parameters. The command
can be entered with or without the words in the square brackets.
•<general_term>
Wordsinanglebracketsrepresentvariables which are to be replaced with
specific values.
• UPPERCASE, lowercase
Uppercase and lowercase letters in commands and parameters must be
matched exactly.
•|
This symbol separates items from which you may select one; for
example, ON|OFF indicates that you may specify ON or OFF.

About this document 13
Passport 8250 Installation Guide R2.2
• ...
Three dots in a command indicate that the parameter may be repeated
more than once in succession.
Symbol conventions
The following are samples of caution and warning conventions used in
this document:
Related documents
Documents related to the Passport 8250 are available from Passport and NMS
documentation suites.
Passport documents
See NTP 241-5101-201, Passport 8250 Command Line Interface Guide for
information on how to monitor and configure the Passport 8250 device using
the Passport 8250 command line interface (CLI).
WARNING
This warning informs you of risk of personal injury.
CAUTION
This caution informs you of risk of service interruption
or equipment damage.
CAUTION
This caution alerts you to the need to wear a grounded
antistatic wrist strap or equivalent protection to avoid
damaging electronic parts.

14 About this document
241-5101-200 R2.2
NMS documents
See the following NMS documents for information on how to monitor and
configure the Passport 8250 device using the NMS Passport 8250 tools,
integrating the Passport 8250 device into the NMS environment, and using
backup and restore:
• NTP 241-6001-028, NMS Passport 8250 Tools Guide.
• NTP 241-6001-110, NMS Passport 8250 Integration Guide.
• NTP 241-6001-807, NMS Backup and Restore User Guide.
Nortel support services
Forinformationontraining, problem reporting,andtechnicalsupport, contact
your Nortel Networks customer representative.

15
Passport 8250 Installation Guide R2.2
Chapter 1
Passport 8250
This section describes the Passport 8250 device. You can view the following
topics in this section:
• “Passport 8250 functions” (page 15)
• “Passport 8250 hardware” (page 16)
• “Passport 8250 software” (page 19)
• “Related documents” (page 19)
Passport 8250 functions
The Passport 8250 is an Integrated Access MUX, a rugged, high-density unit
that provides a seamless bridge between traditional voice networks and ATM
networks. The Passport 8250 multiplexes TDM traffic - voice, video, IP,
frame relay, X.25, and SNA - on DS-1/E1 trunks to OC-3c/STM-1 fiber
trunks (ATM over SONET/SDH). Using ATM Forum AAL1 circuit
emulationstandards,traditional voicenetwork traffic(dial-up Internet access,
modem data traffic, telephony, and more) is seamlessly transported over the
efficient, high-bandwidth ATM network. Deployed at either the service
provider setting or customer premises (campus, apartment building, or office
center, for example), the high-density unit supports up to 48 DS-1/E1 ports,
up to 336 DS-1s/E1s in a single frame.
See “Passport 8250 device” (page 16) for an illustration of the Passport 8250.

16 Chapter 1 Passport 8250
241-5101-200 R2.2

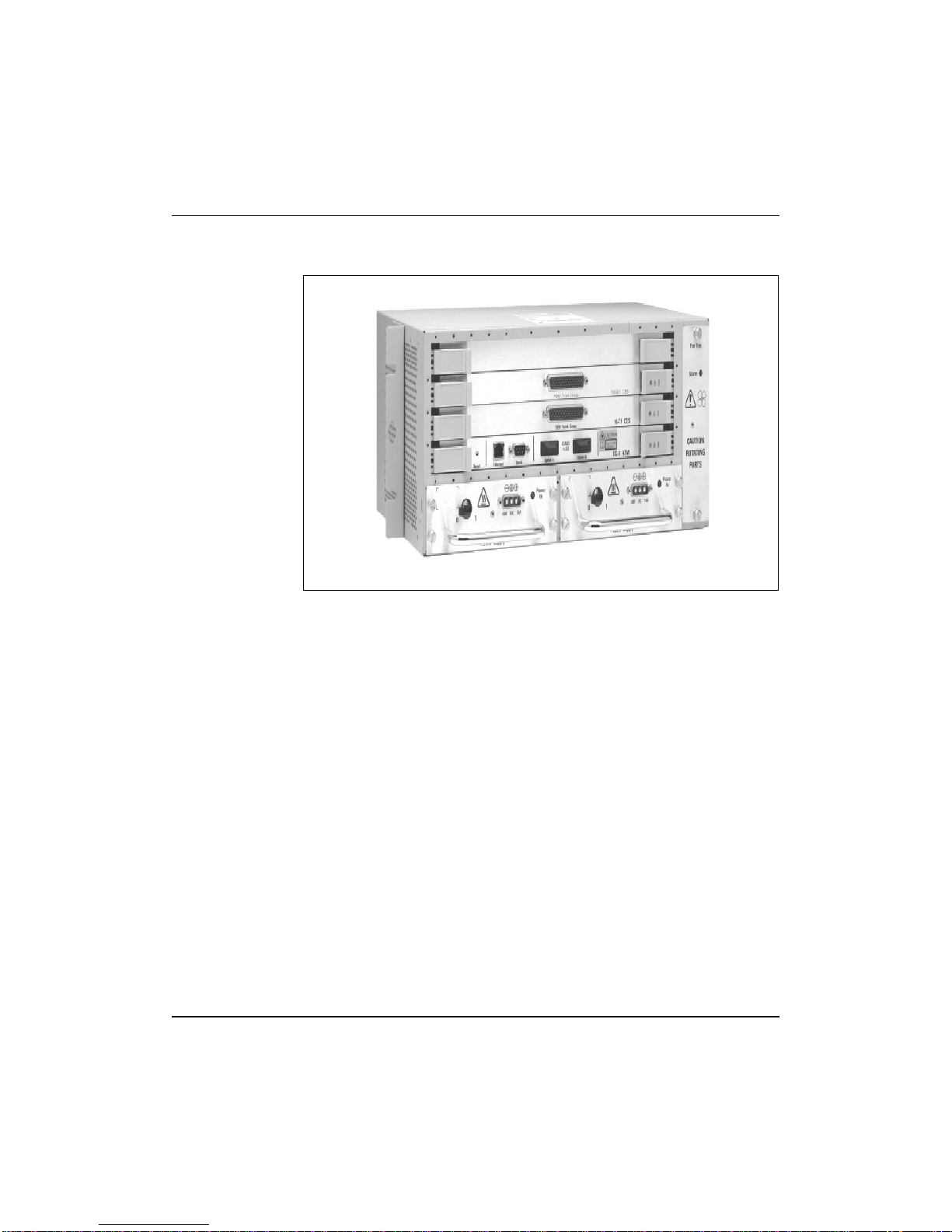

Figure 1
Passport 8250 device
The Passport 8250 can be used for the following applications:
• Providing medium to high density DS-1 or E1 ingress to an ATM carrier
network.
• Providing medium to high density DS-1 or E1 ingress to an ATM
wireless network.
• Acting as a traffic bridge between ATM network and TDM Trunks.
Passport 8250 hardware
The Passport 8250 device contains the following hardware components:
• Base chassis
• “Board modules” (page 17)
• “Communication ports” (page 18)
• “Dual power supply modules” (page 18)
• “Fan module” (page 18)

Chapter 1 Passport 8250 17
Passport 8250 Installation Guide R2.2
See “Passport 8250 front panel” (page 17) for an illustration of the hardware
components.
Figure 2
Passport 8250 front panel
Board modules
The Passport 8250 device has a field-replaceable network board and up to
three field-replaceable DS-1/E1 service boards.
Network board
The network board is a single-mode or multi-mode integrated dual trunk. The
network board controls the Passport 8250 device and contains the
communication ports.
DS-1 and E1 service boards
The Passport 8250 device can hold one, two, or three DS-1 or E1 service
boards.Service boards send and receiveDS-1/E1signalsandconvertbetween
ATM cells and DS-1/E1 traffic. Each service board has 16 physical DS-1/E1
ports.
Ethernet
port
Serial
port
DS-1/E1 ports
Fan
module
Network board
Service board 3
Service board 2
Service board 1
ATM uplink port
Dual power supply modules

18 Chapter 1 Passport 8250
241-5101-200 R2.2
Communication ports
The communication ports, which are located on the network board, include a
serial port, ethernet port, and redundant ATM uplink port.
Serial port
The serial port connects the Passport 8250 device to a local host using a
RS-232 cable. Using a standard terminal emulation software application
running on the local host, you can directly access the command line interface
(CLI).
Use the serial port to configure the Passport 8250 device for operations before
the Passport 8250 device is connected to your network.
Ethernet port
The ethernet port connects the Passport 8250 device to a local area network
(LAN) using a RJ-45 cable.You can use a Telnet session on a remote host to
remotely access the CLI, provided the Passport 8250 device already has an
Internet protocol (IP) address.
Use the ethernet port to configure the Passport 8250 device while the Passport
8250 device is connected to your network and to communicate with other
devices within your network.
Redundant ATM uplink port
The ATM uplink port connects the Passport 8250 device to the ATM network
using a STM-1/OC-3 single-mode or multi-mode fiber optic cable. The ATM
uplink port has two physical connectors and one connector is configured as
the primary port that listens for incoming signals from the ATM network.
Dual power supply modules
The Passport 8250 device uses two field-replaceable 10 amps, -10 V DC
power supply modules. Each power supply module has a 3w3-D connector
and independent power feed.
If a power supply module fails, the Passport 8250 device can operate
temporarilyusingonepowersupply module and one powersupply filler pack.
Fan module
A field-replaceable fan module cools the internal components of the Passport
8250 device.

Chapter 1 Passport 8250 19
Passport 8250 Installation Guide R2.2
Passport 8250 software
You do not have to order software for the Passport 8250. The Passport 8250
comes preloaded with the operating system and the applications it needs.
Base trunking software is included with the integrated trunk/control card
(network board), and the CES software with the access modules (service
boards), so no service support is required.
You can use the Network Management System (NMS) software to manage
the Passport 8250 devices. For information on installing and configuring the
NMS software, see NTP 241-6001-110, NMS Passport 8250 Integration
Guide
.
Software compatibility
Passport 8250 release 2.2 can be used with the following software:
• Passport software that is release 5.0 or higher.
• NMS software that is release 11.1 or higher.
Related documents
Documents related to the Passport 8250 are available from Passport and NMS
documentation suites.
Passport documents
See NTP 241-5101-201, Passport 8250 Command Line Interface Guide for
information on how to monitor and configure the Passport 8250 device using
the Passport 8250 command line interface (CLI).
NMS documents
See the following NMS documents for information on how to monitor and
configure the Passport 8250 device using the NMS Passport 8250 tools,
integrating the Passport 8250 device into the NMS environment, and using
backup and restore:
• NTP 241-6001-028, NMS Passport 8250 Tools Guide.
• NTP 241-6001-110, NMS Passport 8250 Integration Guide.
• NTP 241-6001-807, NMS Backup and Restore User Guide.

20 Chapter 1 Passport 8250
241-5101-200 R2.2
