North Star 47500 User manual

1
M47500A
Owner’s Manual
Electric Stationary Air Compressor
(230V, single phase/60 gallon, 3 HP and 5 HP)
Instructions for Installation/Set-up, Operation, Maintenance, & Storage
This NorthStar® belt-driven compressor has a single-stage 2-cylinder pump (Model 47500) or single-stage 3-cylinder
pump (Model 47501), made with heavy-duty cast iron cylinders for long life, and a compact design rated for 150
maximum PSI. Its continuous-duty rating ensures long-lasting performance, and its cast iron pump head ensures
superior heat dissipation.
Read and understand this Owner’s Manual completely before using. Keep this manual for future review. Failure to
properly set up, operate and maintain the compressor in accordance with this manual could result in serious injury or
death to operator or bystanders.
WARNING: SPECIAL HAZARDS
Injection Injury: High-pressure air stream can pierce skin and underlying tissues, leading to serious injury and possible
amputation. Such an injection injury can result in blood poisoning and/or severe tissue damage.
Flying Debris: High-pressure air stream can cause flying debris and possible surface damage.
Not For Breathing Air: NorthStar compressors are NOT designed, intended, or approved for supplying breathing air. No
compressed air should be used for breathing unless air is treated in accordance with applicable standards.
Fire/Explosion: Sparks from air powered tool heads or attachments can ignite fuel or other flammable liquids or vapors in
the vicinity. Exceeding the maximum pressure for air tools or attachments could cause them to explode.
Burns: Compressor pump, motor and discharge tubing are hot surfaces that can cause burn injuries.
Electric Shock: Operating equipment in wet conditions or where not properly grounded can cause electric shock.
Detailed safety information about these hazards appears throughout this manual.
Equipment Protection Quick Facts
Inspect Upon Delivery: FIRST! Inspect for missing or damaged components. See “Initial Set-Up”section for where
to report missing or damaged parts.
Check Pump Oil: Pump is shipped with oil. Check the pump oil level before starting. See “Preparing for Operation”
section of this Owner’s Manual for capacity and viscosity.
Use Mechanical Lifting Equipment: Compressor is shipped on a pallet and is too heavy to handle manually. Use
proper lifting equipment for unloading and moving to installation site.
Install Using a Qualified Electrician: All wiring, grounding, and electrical connections must be made by a qualified
electrician. Install according to local and national codes.
Install a Regulator: We recommend installing a regulator on the compressor at each distribution point to maintain
constant pressure in the outlet hose line and provide reduced pressure appropriate for air tool being used.
Run Pump Unloaded for Break-in Period: Before initial use, open ball valve and run compressor for 30 minutes to
break in pump parts.
Follow Maintenance Schedule: Pump, air filter, and tank require periodic inspection and servicing to provide
efficient function and long life. See “Maintenance Schedule”for frequency of servicing.
ITEM NUMBER: 47500 & 47501
SERIAL NUMBER: _____________

2
Table of Contents
Equipment Protection Quick Facts ........................................................................................................................................ 1
Table of Contents ........................................................................................................................................................2
About Your Air Compressor.......................................................................................................................................4
Specifications ..............................................................................................................................................................5
Component Identification ...........................................................................................................................................6
Safety Signal Words....................................................................................................................................................7
Hazard Signal Word Definitions ............................................................................................................................................ 7
Safety Labeling............................................................................................................................................................8
Safety Decal Locations ......................................................................................................................................................... 8
Safety Decals........................................................................................................................................................................ 9
Initial Set-Up ..............................................................................................................................................................10
Step 1. Inspect & Unpack...................................................................................................................................................... 10
Step 2. Assembly................................................................................................................................................................... 10

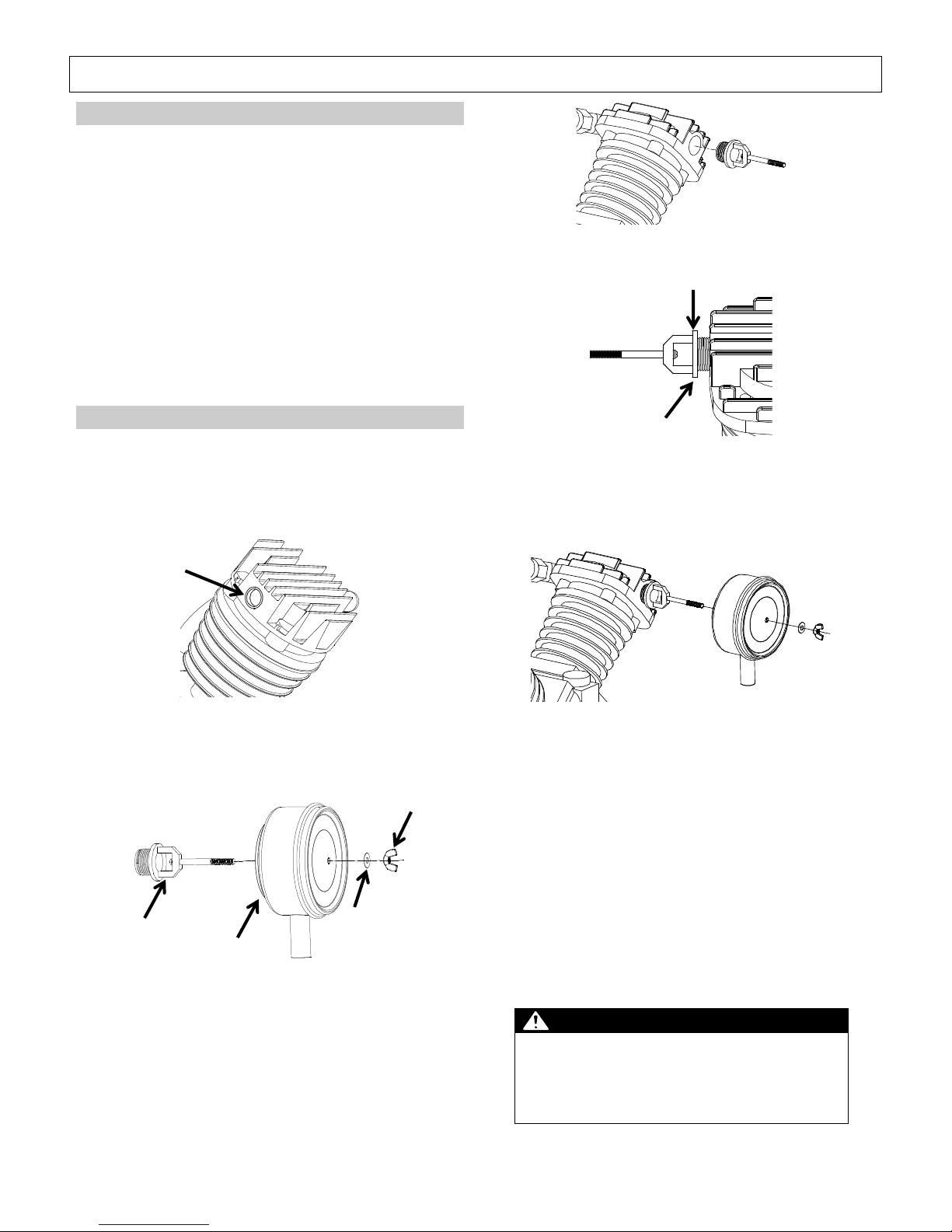

Attach Air Filter.................................................................................................................................................................... 10
Attach Regulator (Recommended)...................................................................................................................................... 10
Step 3. Select Suitable Location........................................................................................................................................... 11
Step 4. Permanent Mounting ................................................................................................................................................ 11

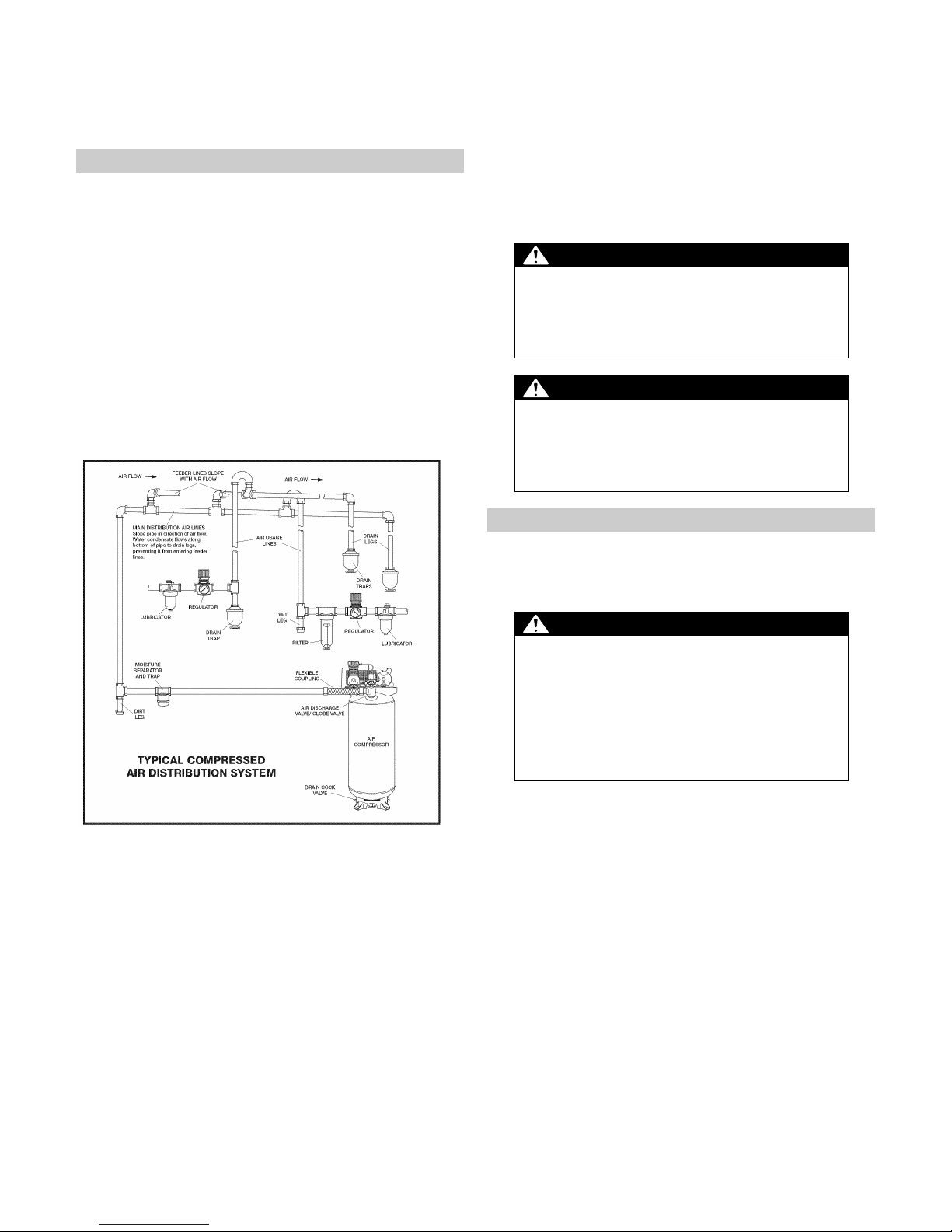

Step 5. Installing Distribution Piping ................................................................................................................................... 12

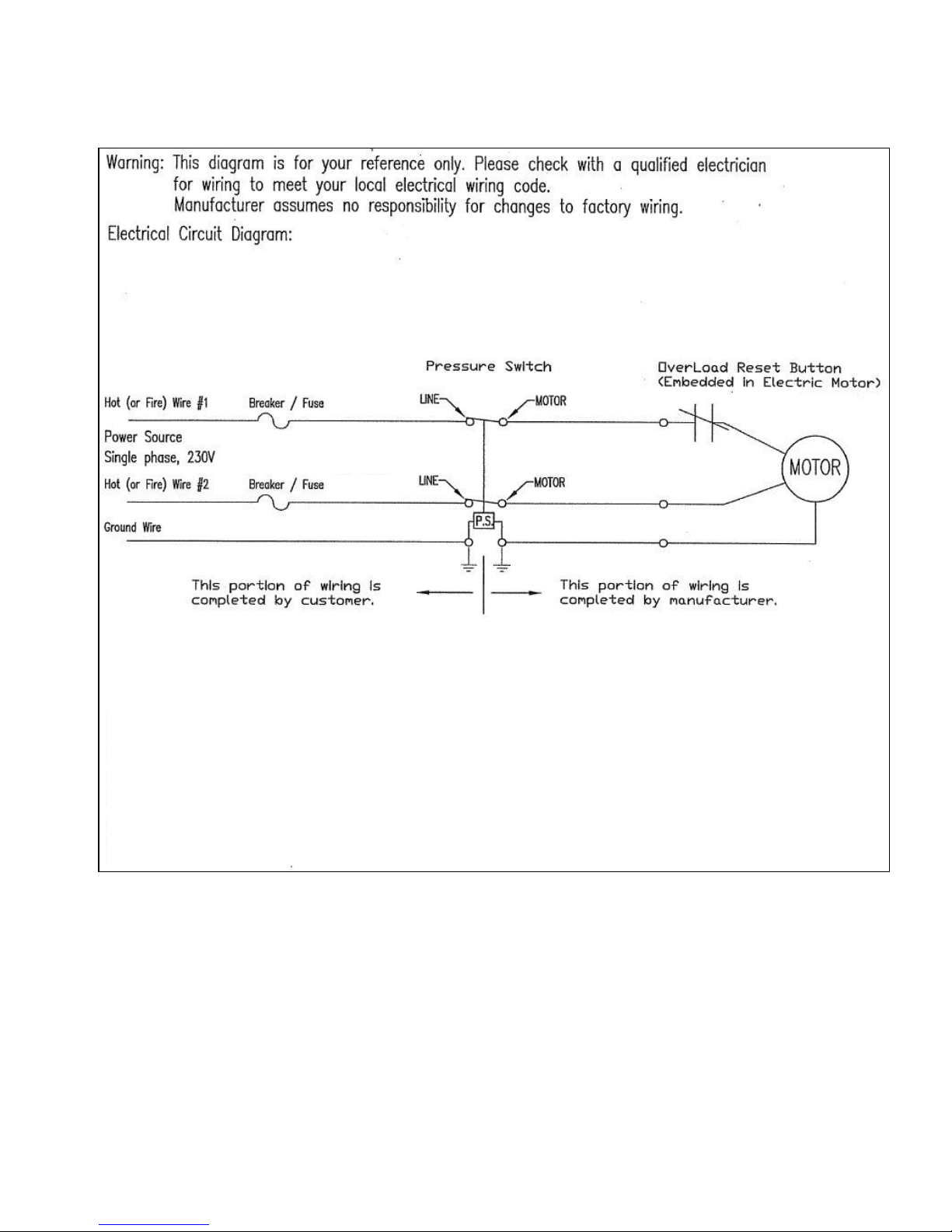

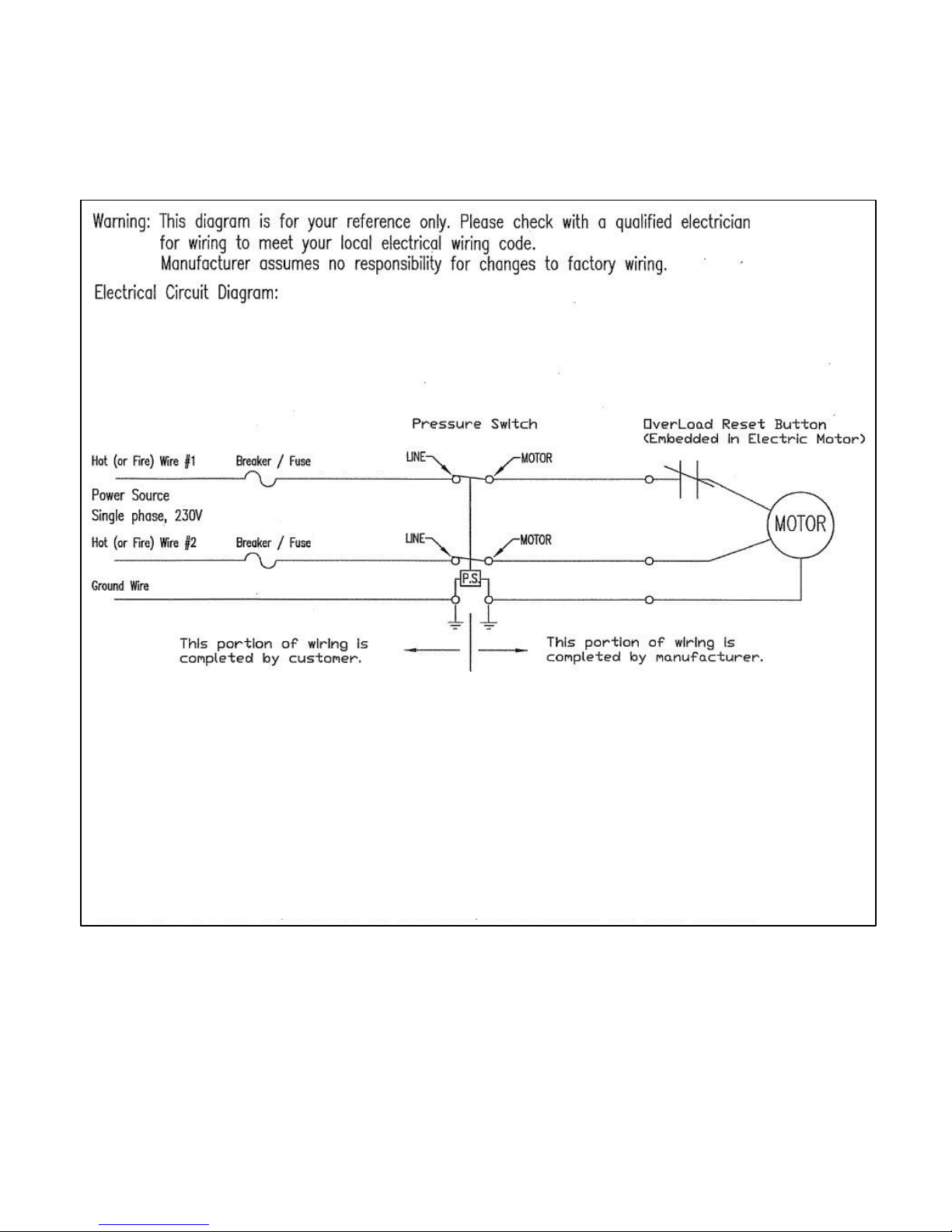

Step 6. Wiring Installation..................................................................................................................................................... 12
Electric Compatibility........................................................................................................................................................... 12
Wire Size............................................................................................................................................................................. 12
Circuit Breaker .................................................................................................................................................................... 13
Grounding ........................................................................................................................................................................... 13
Model #47500 and #47501 (230 Volt; 3 / 5 HP).................................................................................................................. 14
Operation ...................................................................................................................................................................16
Follow Operation Safety Rules............................................................................................................................................. 16
Prepare for Operation............................................................................................................................................................ 16
Check/Add Oil to the Pump................................................................................................................................................. 16
Proper Air Hose and Tool Use.............................................................................................................................................. 17
Pressure Control Related Devices...................................................................................................................................... 17
Compressor - Tool Requirements ....................................................................................................................................... 17
Attaching/Disconnecting Air Hose and Tools ...................................................................................................................... 17
Using Compressor for Spraying........................................................................................................................................... 18
Flammable Materials........................................................................................................................................................... 18
Moisture in Compressed Air................................................................................................................................................ 18
Shutdown ............................................................................................................................................................................... 18
Procedure ........................................................................................................................................................................... 18
For Malfunction During Operation....................................................................................................................................... 18
Maintenance & Repair...............................................................................................................................................19
Maintenance Schedule Summary.............................................................................................................................19
Detailed Instructions –Maintenance & Repair........................................................................................................19
Inspect Safety/Relief Valve ................................................................................................................................................. 19
Inspect Air Filter .................................................................................................................................................................. 19
Keep Compressor Clean..................................................................................................................................................... 19
Inspect Compressor for Air Leaks....................................................................................................................................... 20
Change Pump Oil................................................................................................................................................................ 20

3
Drain Receiver Tank and Inspect Tank............................................................................................................................... 20
Check Drive Belt for Tension and Alignment....................................................................................................................... 20
Keep Compressor Clean..................................................................................................................................................... 21
Troubleshooting ........................................................................................................................................................22
Parts List –Model 47500 Rev A................................................................................................................................23
Parts List –Model 47500 Rev A................................................................................................................................24
792363 Pump Exploded View ...................................................................................................................................25
792363 Pump Parts List ............................................................................................................................................26
792363 Pump Kit List ................................................................................................................................................27
Parts List –Model 47501 Rev A................................................................................................................................28
Parts List –Model 47501 Rev A................................................................................................................................29
792373 Pump Parts List ............................................................................................................................................30
792373 Pump Parts List ............................................................................................................................................31
792373 Pump Parts List ............................................................................................................................................32
Appendix A: Lubricants and Compatibility .............................................................................................................33
Alternate Lubricants ............................................................................................................................................................ 33
Limited Warranty .......................................................................................................................................................34

4
About Your Air Compressor
Thank you for purchasing a NorthStar air compressor! It
is designed for long life, dependability, and top
performance.
Intended Use. Provides compressed air used primarily
for operating air tools and pressurizing other objects
that require high air pressure, such as tires.Do not
use for low-pressure objects such as balloons, air
mattresses, and sport balls, which can explode
quickly and easily. Special precautions are
necessary when used for cleaning to prevent flying
debris hazards. It is not to be used to supply
breathing air.
Supplies Required. Normal operation will require you
to supply:
Pressure regulator (recommended)
Pump oil
Personal protection equipment
See “Specifications”section for more detail.
Site Location. Install in enclosed building only. See
“Select Suitable Location” on page 11 for more
information.
Personal Protection. Wear safety apparel during
operation, including safety glasses with side and top
protection.
Adult Control Only. Only trained adults should set up
and operate the air compressor. Do not let children
operate.
Under The Influence. Never operate, or let anyone else
operate, the air compressor while fatigued or under
the influence of alcohol, drugs, or medication.
Keep this manual for reference and review.
ATTENTION: Rental Companies and Private
Owners who loan this equipment to others!
All persons to whom you rent/loan this air compressor
must have access to and read this Owner’s Manual.
Keep this manual with the air compressor at all times
and advise all persons who will operate the machine to
read it. You must also provide personal instruction on
how to safely set-up and operate the air compressor
and remain available to answer any questions a
renter/borrower might have. Owner’s Manuals are
available from NorthStar at 1-800-270-0810.
For any questions, comments, problems or part orders,
call NorthStar at 1-800-270-0810.

5
Specifications
MODEL
Model #
47500
47501
FLOW OUTPUT
Max. Pressure Rating
150 PSI
150 PSI
Volume Rating @ 90PSI
11.3 CFM
15.5 CFM
Receiver Capacity
60 gal.
60 gal.
Power Requirements
Dedicated NEMA
Receptacles
6-30R
6-30R
Volts
230V
230V
Amps
20A
30A
Motor
Horsepower
3 HP
5 HP
DIMENSIONS / COMPONENTS
Length
24.25”
24.25”
Width
23”
23”
Height
71”
63”
Weight
251 lbs.
340 lbs.
Mounting Hole Diameter
.56”
.56”
Suggested Mount Bolt
Diameter
7/16”
7/16”
SUPPLIES REQUIRED (not included)
Pump Oil
(shipped with oil, but refills
required)
SAE 30 non-detergent pump oil
(#4043)
SAE 30 non-detergent pump oil
(#4043)
Pump Oil Capacity
15.6 oz.
23.7 oz.

6

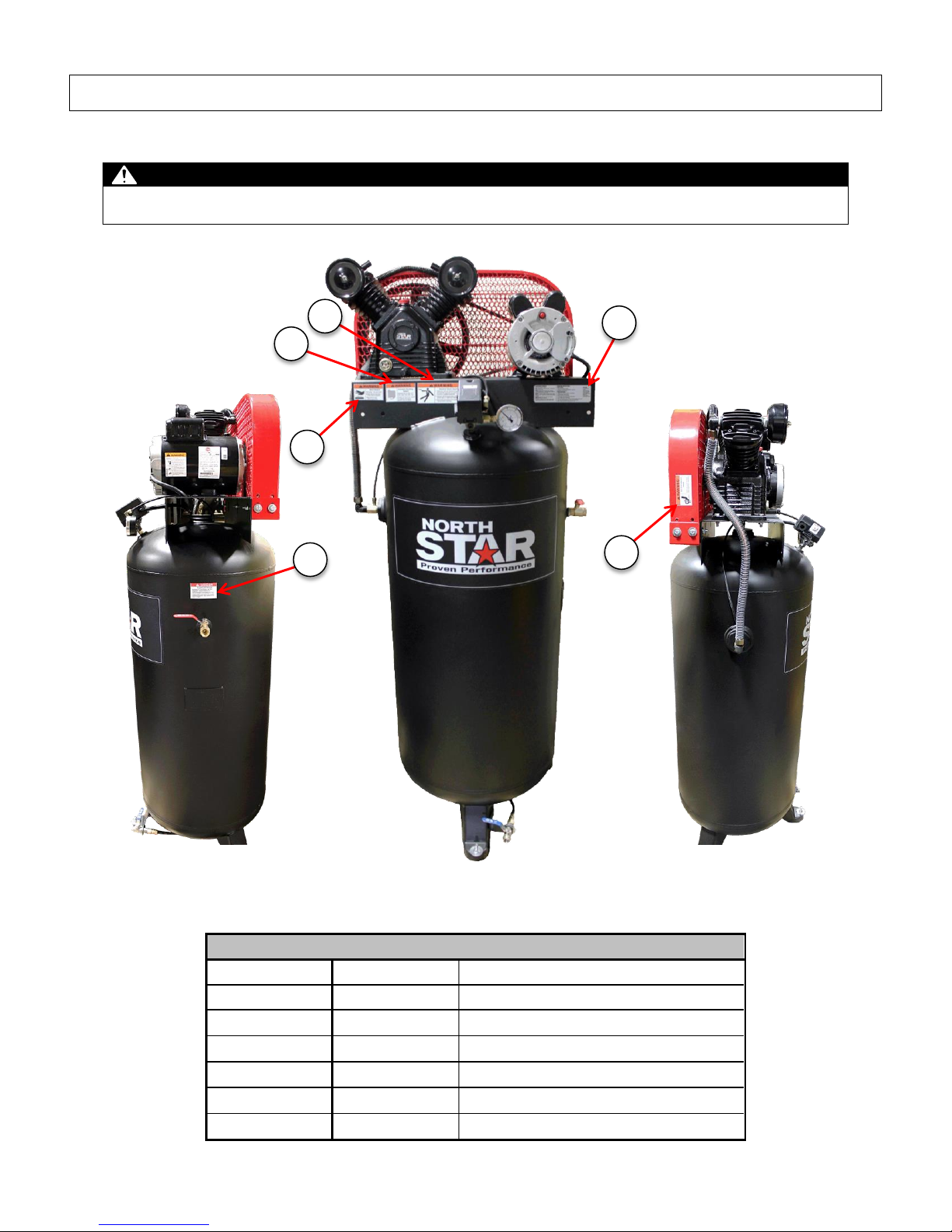

Component Identification
1. Lifting Eyes: May also be used as tie down locations.
2. Pressure Gauge: Air filled gauge. Shows pressure in
receiver tank.
3. Ball Valve: On/Off control for pressurized air supply from
receiver tank (not the output pressure). A regulator and/or
quick connect fittings can attach to its ½” NPT outlet. A
regulator should be installed for pressure regulation
purposes.
4. Air Receiver / Storage Tank: 80 gallon ASME certified
tank.
5. Tank Drain Valve: Used to remove moisture from air after
compressor is shut off and air emptied from tank. Drain
moisture daily after each use.
6. ASME Safety/Check Valve: Automatically releases air if
tank exceeds preset pressure max. of 200 PSI. A check
valve is a pressure release port. Pull valve pin to relieve
pressure from receiver tank.
7. Pressure Switch-Auto/Off switch: In AUTO
position, compressor shuts off automatically when
tank pressure reaches maximum preset pressure
(approximately 150 PSI). In OFF position, compressor
will not operate. Switch should be in OFF position
when connecting or disconnecting power cord from
electrical outlet. NEVER attempt to adjust this
pressure switch.
8. Discharge Tube: Carries compressed air from pump to
safety/check valve, and then to the storage tank. It
becomes very hot during use and can cause severe burns.
Never touch.
9. Unloader: Vents discharge air to atmosphere in start/stop
operation.
10. Magnetic Oil Drain Plug: Removal allows for drainage of
oil from pump. Attracts metal particles that could damage
pump.
11. Air Compressor Pump: Shipped with oil.
12. Compressor Air Filter: Keep clean and particle free. See
“Pump Explosion and Pump Parts List” for replacement
part number.
13. Belt Guard: Covers belt, engine pulley and flywheel.
NEVER operate compressor without belt guard in place.
3
1
2
4
8
9
5
6
7
11
13
10
12

7
Safety Signal Words
Hazard Signal Word Definitions
DANGER
WARNING
CAUTION
CAUTION
NOTICE
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
DANGER (red) indicates a hazardous situation, which if
not avoided, will result in death or serious injury.
WARNING (orange) indicates a hazardous situation,
which if not avoided, could result in death or serious
injury.
CAUTION (yellow), used with the safety alert symbol,
indicates a hazardous situation, which if not avoided,
could result in minor or moderate injury.
CAUTION (yellow), without the safety alert symbol, is
used to address practices not related to personal injury.
NOTICE is used to address practices not related to
personal injury.

8
Safety Labeling
Safety Decal Locations
WARNING:
ALWAYS make sure safety labels are in place and in good condition. If a safety label is missing or not legible, order new labels
from NorthStar Product Support at 1-800-270-0810.
On-Product Warning Labels
Location
Part numbers
Description
1
792161
Air Compressor Instructions
2
792174
Breathing Hazard
3
792175
Belt Hazard
4
792176
Burn Hazard
5
792177
Corrosion Hazard
6
789060
Electrical Shock Hazard
1
2
3
6
5
4

9
Safety Decals
To order replacement safety labels, call NorthStar Product Support
at 1-800-270-0810.
1
2
6
3
4
5

10
Initial Set-Up
Step 1. Inspect & Unpack
Upon receipt, inspect air compressor for missing or
damaged parts. Verify that it is the compressor you
ordered.
See “Component Identification” section of this manual
for a diagram of the compressor and its components.
For missing or damaged components, please
contact NorthStar Product Support at 1-800-270-
0810.
If complete, fill out product serial number
information. See “Limited Warranty” section of
this manual.
Step 2. Assembly
Attach Air Filter
1. Remove air filter from manual bag.
2. Remove plastic plug from air compressor inlet.
(Figure 1)
Figure 1
3. Unscrew wing nut, remove washer and air filter
housing from base. (Figure 2)
Figure 2
4. Screw base into air compressor inlet as shown.
Tighten with appropriate tool on specified
location. (Figure 3 & Figure 4)
Figure 3
Figure 4
5. Replace air filter housing and washer. Secure
with wing nut, hand tighten only. (Figure 5)
Figure 5
Attach Regulator (Recommended)
We recommend using a regulator with this compressor
since the pre-set tank pressure ranges between 105 and
135 PSI and is usually greater than what is needed by
tools.
Without the addition of a regulator, the pressure switch
will maintain a tank pressure within the pre-set range
that has a max of 150 PSI. This is considered an overly
high pressure for many tools. A user-installed regulator
can maintain a lower constant pressure in the outlet
hose line and prevent over pressurization of tools.
WARNING: Bursting hazard
Too much air pressure causes a hazardous risk of
bursting. Check the manufacturer’s maximum pressure
rating for air tools and accessories. Regulators must
never be set to exceed the maximum pressure rating of
tank or tools.
Plastic plug
Base
Air Filter
Housing
Washer
Wing Nut
Grip here
to tighten
