1
M459382B.6
Owner’s Manual
Gasoline Stationary Air Compressor
(For Outdoor Use only)
Instructions for Installation/Set-up, Operation, Maintenance, & Storage
This NorthStar® belt-driven compressor has a 2-stage 2-cylinder pump, an engine with cast iron cylinders for long
life, and a compact design rated for 175 maximum PSI. Its continuous-duty rating ensures long-lasting performance,
and its cast iron pump head ensures superior heat dissipation. Lift eyes are provided for lifting or tying down.
Read and understand this Owner’s Manual completely before using and keep this manual for review. Failure to
properly set up, operate, and maintain this compressor in accordance to this manual could result in injury or death to
operator or bystanders.
WARNING: SPECIAL HAZARDS
CO Poisoning: Exhaust from engine contains carbon monoxide, a poisonous gas that can cause carbon monoxide
poisoning and possible death if inhaled.
Injection Injury: High-pressure air stream can pierce skin and underlying tissues, leading to serious injury and possible
amputation. Such an injection injury can result in blood poisoning and/or severe tissue damage.
Flying Debris: High-pressure air stream can cause flying debris and possible surface damage.
Electric shock: Operating equipment in wet conditions or near water can cause electric shock.
Not For Breathing Air: NorthStar compressors are NOT designed, intended, or approved for supplying breathing air. No
compressed air should be used for breathing unless air is treated in accordance with applicable standards.
Fire/Explosion: Sparks from air powered tool heads or attachments can ignite fuel or other flammable liquids or vapors in
the vicinity. Exceeding the maximum pressure for air tools or attachments could cause them to explode.
Burns: Compressor pump, engine and discharge tubing are hot surfaces that can cause burn injuries.
Detailed safety information about these hazards appears throughout this manual.
Equipment Protection Quick Facts
Inspect Upon Delivery: FIRST! Inspect for missing or damaged components. See “Initial Set-Up” section for where
to report missing or damaged parts.
Add Engine Oil: Engine is shipped without oil. See engine manual for instructions on capacity and viscosity
recommendations.
Check Pump Oil: Pump is shipped with oil. Check the pump oil level before starting. See “Preparing for Operation”
section of this Owner’s Manual for capacity and viscosity.
Use Mechanical Lifting Equipment: Compressor is shipped on a pallet and is too heavy to handle manually. Use
proper lifting equipment for unloading and moving to installation site. Lifting eyes are provided.
Run Pump Unloaded for Break-in Period: Before initial use, open ball valve and run compressor for 20 minutes to
break in pump parts.
Follow Maintenance Schedule: Engine, pump, air filter, and tank require periodic inspection and servicing to keep
compressor functioning efficiently. See “Maintenance Schedule Summary”for frequency of servicing.
ITEM NUMBER: 459382
SERIAL NUMBER: _____________

2
Table of Contents
Equipment Protection Quick Facts ........................................................................................................................................ 1
TABLE OF CONTENTS................................................................................................................................................2
ABOUT YOUR AIR COMPRESSOR ............................................................................................................................4
SPECIFICATIONS ........................................................................................................................................................5
COMPONENT IDENTIFICATION..................................................................................................................................6
SAFETY ........................................................................................................................................................................7
Hazard Signal Word Definitions ............................................................................................................................................ 7
SAFETY LABELING.....................................................................................................................................................8

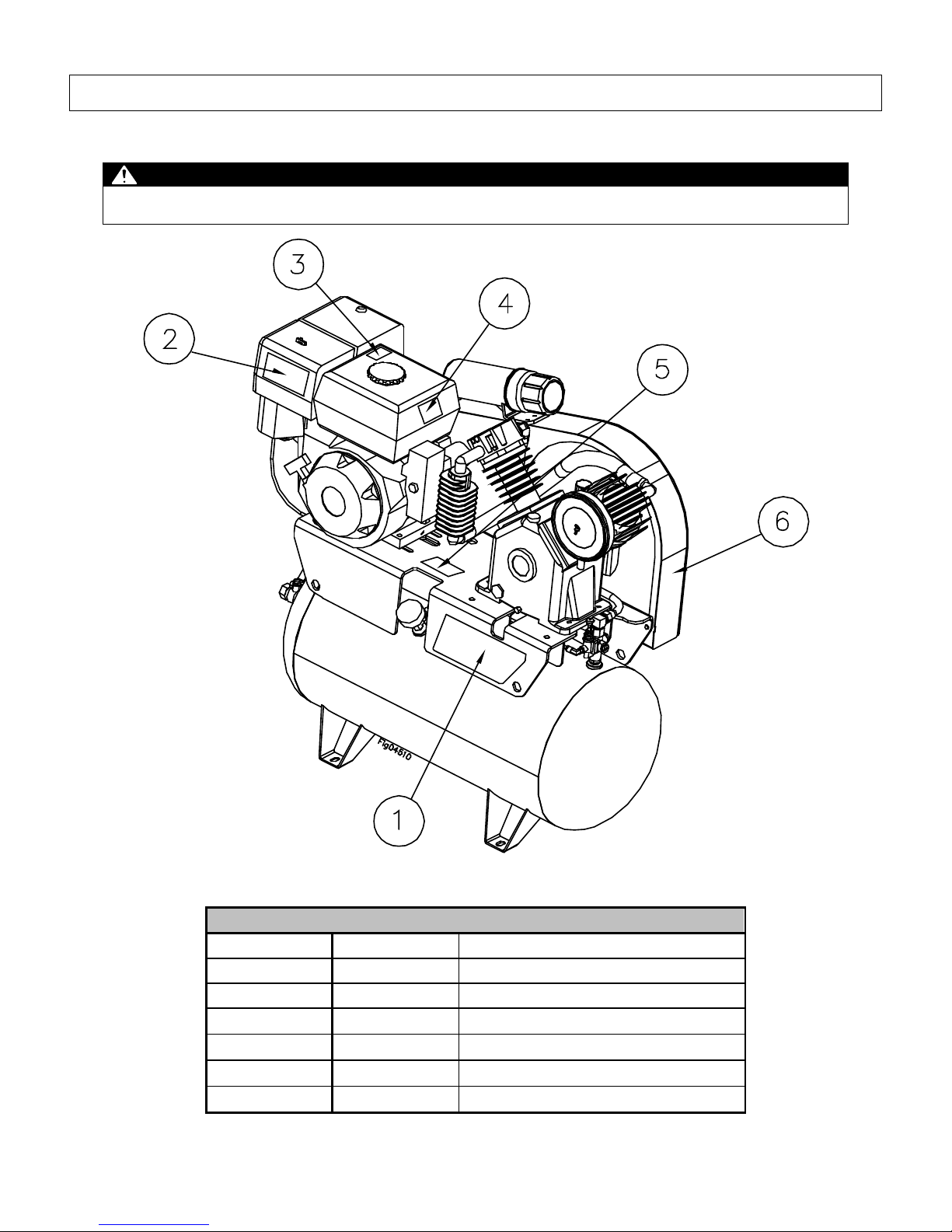

Safety Decal Locations ......................................................................................................................................................... 8
Safety Decals........................................................................................................................................................................ 9
INITIAL SET-UP..........................................................................................................................................................10
Step 1. Inspect & Unpack...................................................................................................................................................... 10
Step 2. Select Suitable Location........................................................................................................................................... 10
Outdoor Use Only ............................................................................................................................................................... 10
Step 3. Permanent Mounting ................................................................................................................................................ 11
Mounting on Service Vehicle............................................................................................................................................... 11
Installing Discharge Piping.................................................................................................................................................. 11
Step 4. Electrical Starting: Battery Procedure .................................................................................................................... 11
Battery Connection.............................................................................................................................................................. 12
Battery Disconnection ......................................................................................................................................................... 12
Install Spark Arrestor (if Required)...................................................................................................................................... 12
OPERATION ...............................................................................................................................................................13
Follow Safety Rules for Operation ....................................................................................................................................... 13
Preparing for Operation ........................................................................................................................................................ 13
Check/Add Oil to the Engine and Pump.............................................................................................................................. 13
Check and Fill Gasoline Tank ............................................................................................................................................. 14
Inspect Fuel System/Check for Leaks................................................................................................................................. 14
Start-Up Procedures.............................................................................................................................................................. 14
Air Hose and Tool Use........................................................................................................................................................... 15
Attaching Air Hose and Tools.............................................................................................................................................. 15
Using Compressor for Spraying........................................................................................................................................... 16
Moisture in Compressed Air................................................................................................................................................ 16
Shutdown Procedures........................................................................................................................................................... 16
STORAGE...................................................................................................................................................................17
Between-Use Storage............................................................................................................................................................ 17
Drain air receiver tank......................................................................................................................................................... 17
Choose a storage location .................................................................................................................................................. 17
Long term storage preparation............................................................................................................................................. 17
MAINTENANCE & REPAIR........................................................................................................................................18
MAINTENANCE SCHEDULE SUMMARY..................................................................................................................18
DETAILED INSTRUCTIONS –MAINTENANCE & REPAIR ......................................................................................18
Inspect Safety/Relief Valve ................................................................................................................................................. 18
Inspect Air Filter .................................................................................................................................................................. 18
Inspect Compressor for Air Leaks....................................................................................................................................... 18
Engine Maintenance ........................................................................................................................................................... 19

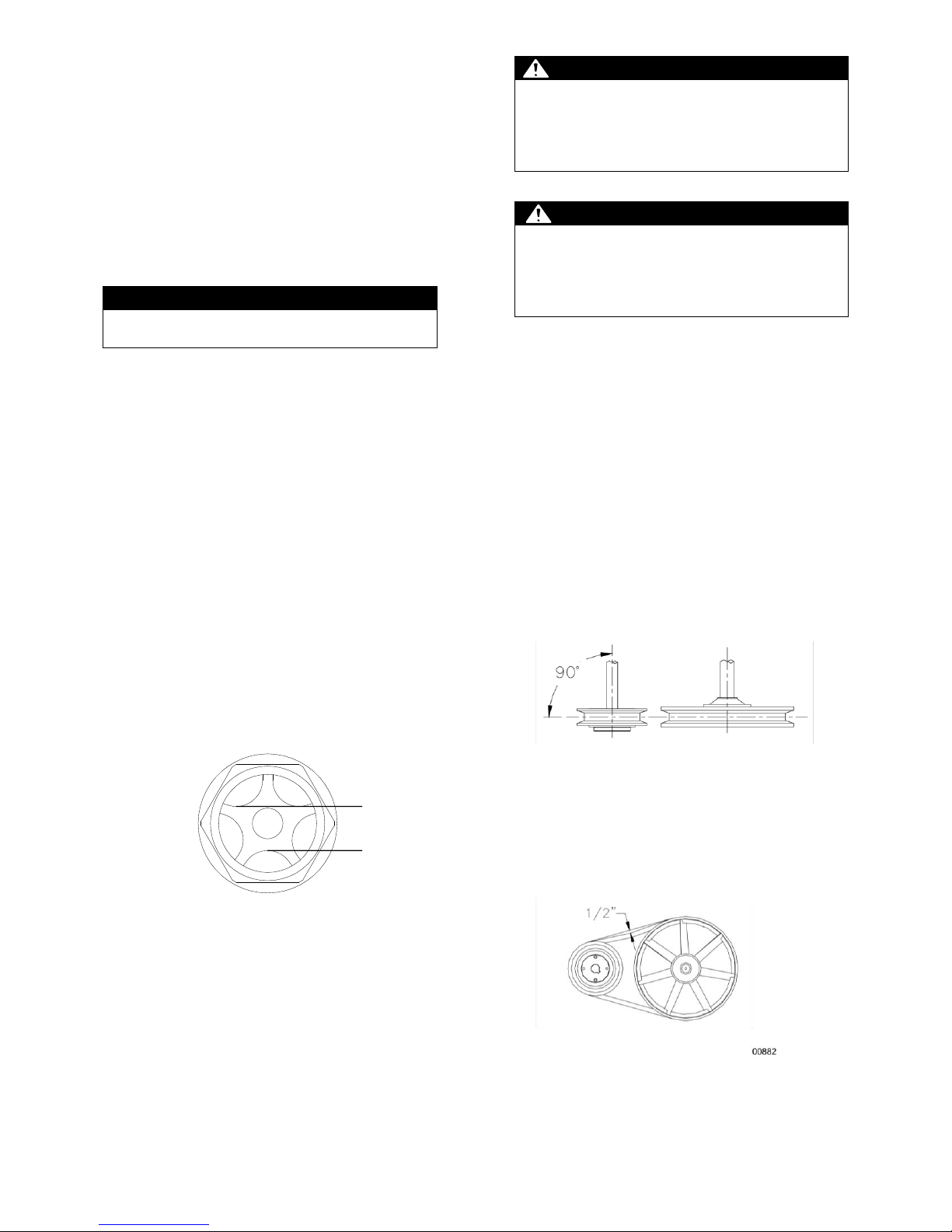

Change Pump Oil................................................................................................................................................................ 19

3
Drain Receiver Tank and Inspect Tank............................................................................................................................... 19
Check Drive Belt for Tension and Alignment....................................................................................................................... 19
Inspect & Clean Spark Arrestor (if Equipped) ..................................................................................................................... 20
Keep Compressor Clean..................................................................................................................................................... 20
TROUBLESHOOTING................................................................................................................................................21
PARTS EXPLOSION- MODEL #459382- REV B.6 ....................................................................................................22
PARTS LIST –MODEL # 459382- REV B.6...............................................................................................................23
PUMP EXPLOSION-REV B.6 .....................................................................................................................................24
PUMP PARTS LIST- REV B.6 ....................................................................................................................................25
PUMP KITS-REV B.6..................................................................................................................................................26
PNEUMATIC SCHEMATIC.........................................................................................................................................27
APPENDIX A: LUBRICANTS AND COMPATIBILITY................................................................................................28
Alternate Lubricants. ........................................................................................................................................................... 28
LIMITED WARRANTY ................................................................................................................................................29

4
About Your Air Compressor
Thank you for purchasing a NorthStar air compressor! It
is designed for long life, dependability, and top
performance.
Intended Use. It provides compressed air primarily
used for operating air tools and pressurizing other non-
tool objects such as tires.Special precautions are
necessary when used for cleaning. It is not to be used to
supply breathing air.
Note: Do not use for other purposes, as unforeseen
hazards or equipment damage may result.
Power Source. The air compressor is powered by a
gasoline engine.
Supplies Required. Normal operation will require you
to supply:
Compressor pump oil
Gasoline
Engine oil
Personal Protection Equipment
See “Specifications”section of this manual for more
detail.
Site Location. Intended for outdoor use only.
Personal Protection. Wear safety apparel during
operation, including safety glasses with side and top
protection. Ear protection is also recommended if
working near any operating engine.
Adult control only. Only trained adults should set up
and operate the air compressor. Do not let children
operate.
Under The Influence. Never operate, or let anyone else
operate, the air compressor while fatigued or under the
influence of alcohol, drugs, or medication.
Keep this manual for reference and review.
ATTENTION: Rental Companies and Private
Owners who loan this equipment to others!
All persons to whom you rent/loan this air compressor
must have access to and read this manual. Keep this
owner’s manual with the air compressor at all times and
advise all persons who will operate the machine to read
it. You must also provide personal instruction on how to
safely set-up and operate the air compressor and
remain available to answer any questions a
renter/borrower might have. Owner’s Manuals are
available from NorthStar at 1-800-270-0810.

5
Specifications
MODEL
Model #
459382
FLOW OUTPUT
Max. Pressure Rating
175 PSI
Volume Rating @ 90 PSI
24.4 CFM
Receiver Capacity
30 gal.
ENGINE
Engine
Honda GX390
Engine Displacement (cc)
389 cc
DIMENSIONS / COMPONENTS
Length
41”
Width
18”
Height
40”
Weight
420 lbs.
Mounting Hole Diameter
0.5”
Suggested Mounting Bolt
Diameter
7/16”
SUPPLIES REQUIRED (not included)
Engine Oil
Refer to engine owner’s manual
Pump Oil
(shipped with oil, but refills
required)
SAE 30 non-detergent pump oil (#4043)
Pump Oil Capacity
33.8 oz.
