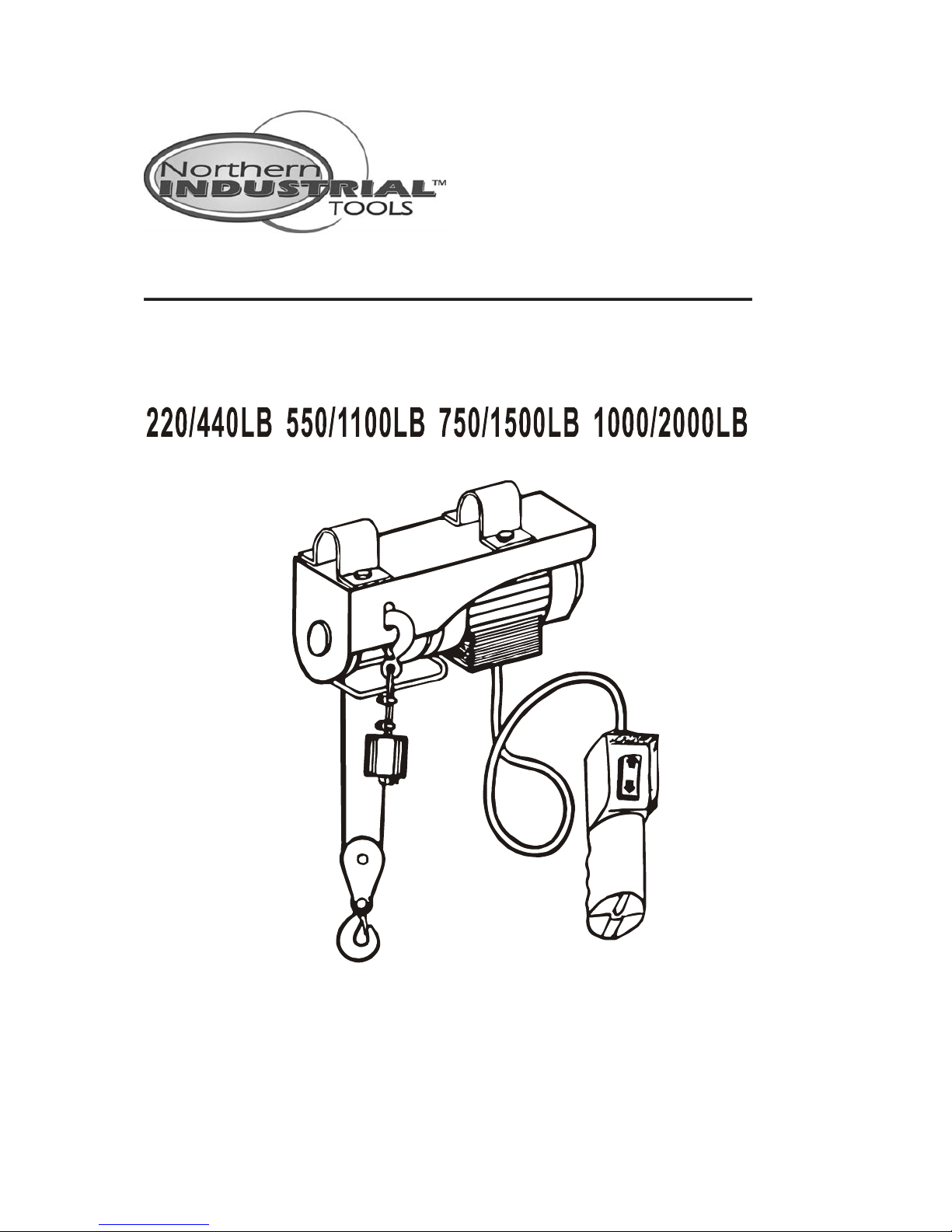

Northern Industrial 14226 User manual

2800 Southcross Drive West,
PO Box 1219
Burnsville, MN 55337, USA
ELECTRIC HOIST
Item# 14226 Item# 14230 Item# 142260 Item# 142262
ASSEMBLY AND OPERATING INSTRUCTIONS
Read carefully and understand all ASSEMBLYAND OPERATION INSTRUCTIONS before
operating. Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.

PRODUCT SPECIFICATIONS
Model
Load capacity
Lifting height
Lifting speed
Cablelength
Cablediameter
Resistercable
Duty circle
Voltage
Motorperformance
HGS220/440LB HGS550/1100LB HGS750/1500LB HGS1000/2000LB
Standard
version
With pulley
Hook
220lb
36ft
33ft/min
39ft
≥ 1540lb
S320%-10min
110V/60Hz
3/4HP
440lb
18ft
16.5ft/min
550lb
36ft
33ft/min
39ft
≥ 2200lb
S320%-10min
110V/60Hz
1-3/4 HP
1100lb
18ft
16.5ft/min
750lb
36ft
33ft/min
39ft
≥ 3000lb
S320%-10min
110V/60Hz
2 HP
1500lb
18ft
16.5ft/min
1000lb
36ft
33ft/min
39ft
≥ 4000lb
S320%-10min
110V/60Hz
2-1/4 HP
2000lb
18ft
16.5ft/min
Standard
version
With pulley
Hook
Standard
version
With pulley
Hook
Standard
version
With pulley
Hook
1/8 anti-twist 5/32 anti-twist 5/32 anti-twist 7/32 anti-twist
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and as-
sembly diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep this manual and invoice in a safe and dry
place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
Electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
PAGE 2

ELECTRICAL SAFETY

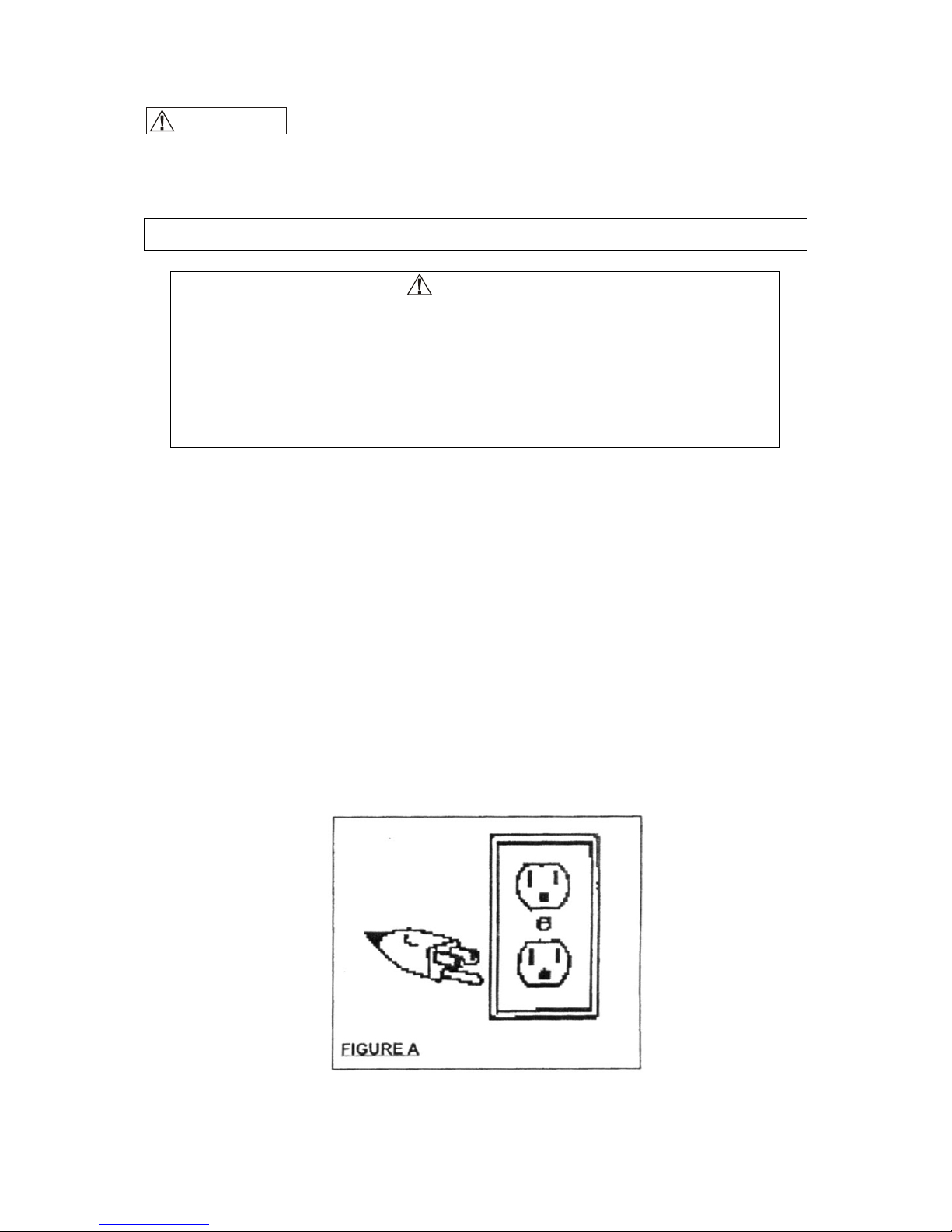

4. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.

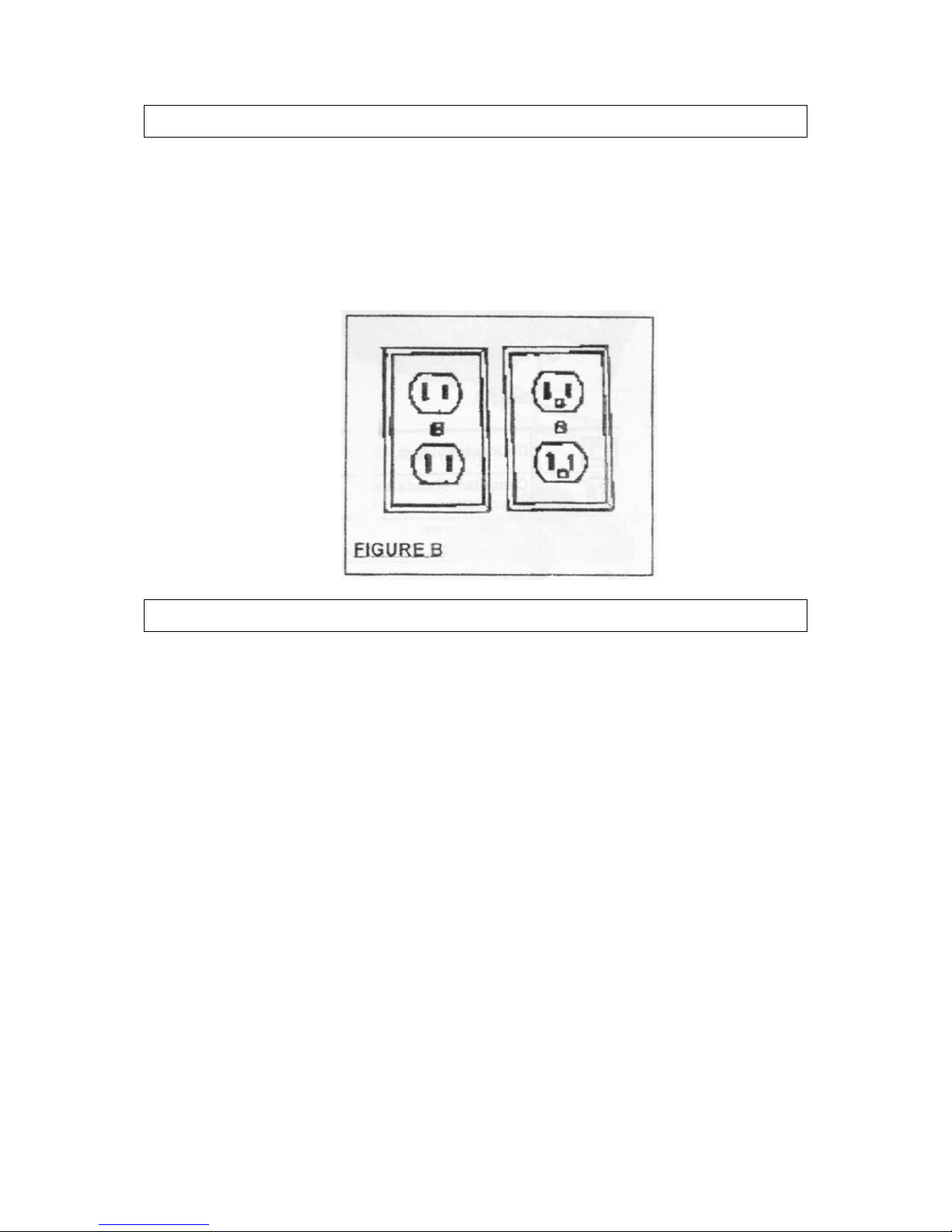

5. Double insulated tools are equipped with a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the plug in any way. Double insulation eliminates the need for the three wire
grounded power cord and grounded power supply system.
6. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immediately.
Damaged Power Cords increase the risk of electric shock.
9. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when
operating a power tool. Do not use a power tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
PAGE 3

12. Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Carrying power tools with your finger on the Power Switch, or plugging in
power tools with the Power Switch on, invites accidents.
13. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
15. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
PERSONAL SAFETY
16. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
17. Do not use the power tool if the Power Switch does not turn it on or off.
Any tool that cannot be controlled with the Power Switch is dangerous and must
be replaced.
18. Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools with a sharp cutting edge are less likely to bind and are easier
to control. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
21. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly
maintained tools.
PAGE 4

22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of
injury.
24. When servicing a tool, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
1. Maintain labels and nameplates on the Hoist. These carry important
information. If unreadable or missing, contact the distributor, Northern Tool +
Equipment for a replacement.
2. Always wear safety impact eye goggles and heavy work gloves when using
the Hoist. Using personal safety devices reduce the risk for injury. Safety impact
eye goggles and heavy work gloves are available from Northern Tool +
Equipment.
3. Maintain a safe working environment. Keep the work area well lit. Make sure
there is adequate surrounding workspace. Always keep the work area free of
obstructions, grease, oil, trash, and other debris. Do not use a power tool in
areas near flammable chemicals, dusts, and vapors. Do not use this product in a
damp or wet location.
4. Always maintain a firm grip on the tool.
5. Always keep the extension cord away from moving parts on the tool.
6. Avoid unintentional starting. Make sure you are prepared to begin work before
turning on the Hoist.
7. Do not force the Hoist. This tool will do the work better and safer at the speed
and capacity for which it was designed.
8. Never use the Hoist to lift people or animals.
9. Always leave a minimum of 4 wraps of cable on the drum. The cable
fastener on this wire rope Hoist is not rated for the maximum capacity of the
Hoist. PAGE 5
