NorthStar 230 CDS User manual

230 CDS / ENGLISH

INDEX
I
1. DECLARATION OF CONFORMITY OF RECREATIONAL CRAFT
WITH THE DESIGN, CONSTRUCTION AND NOISE EMISSION
REQUIREMENTS OF DIRECTIVE 94/25/EC AS AMENDED BY
DIRECTIVE 2003/44/EC ..................................................................................... 1
2. HOMOLOGATION, CERTIFICATION, DESIGN CATEGORY AND
IDENTIFICATION .............................................................................................. 4
2.1. EXPLANATION OF MANUFACTURER’S PLATE: ................................ 4
2.2. TECHNICAL DATA ................................................................................... 5
2.3. CE CERTIFICATE ...................................................................................... 6
2.4. LOCATION OF FITTINGS AND ELECTRICAL EQUIPMENT.............. 7
2.5. LOCATION OF SEACOCKS AND THROUGH-HULL FITTINGS.......... 8
2.6. BLACKWATER SYSTEM.......................................................................... 8
3. SYSTEMS AND CIRCUITS............................................................................ 9
3.1. FIRE EXTINGUISHER SYSTEM............................................................... 9
3.2. ELECTRICAL SYSTEM............................................................................. 9

NORTHSTAR MANUAL
1
1. Declaration of Conformity of Recreational Craft with the Design,
Construction and Noise Emission requirements of Directive 94/25/EC
as amended by Directive 2003/44/EC
Name of craft manufacturer: NORTHSTAR TEKNE ÜRETİMİA.Ş.
Address : MOLLAFENARİYOLU PELİTLİKÖYÜ MEVKİİ
Town: GEBZE / KOCAELİPost Code: TR - 41400 Country: TURKEY
Name of Authorised Representative (if applicable): 
Address: 
Town:  Post Code:  Country: 
Name of Notified Body for design and construction assessment (if applicable): IMCI
Address: Rue Abblé Cuypers 3
Town: BRUXELLES Post Code: B-1040 Country: BELGIUM ID Number:0609
ECtype-examination Certificate number:BMTSVT013 Date: (yr/month/day) 2006 / 01 / 06
Name of Notified Body for noise emission assessment (if applicable): 
Address: 
Town:  Post Code:  Country:  ID Number:
Module used for construction assessment:
A Aa B+C B+D B+E B+F G H
Module used for noise emission assessment :
A Aa G H
Other Community Directives applied:

DESCRIPTION OF CRAFT
Craft Identification Number
Brand name of the craft: NORTHSTAR 230 CDS Type or number: POWER IB
Type of craft:
sailboat motorboat
inflatable
other (specify): 
Type of hull:
monohull multihull
other (specify): 
Construction material:
aluminium, aluminium alloys plastic, fiber reinforced plastic
steel, steel alloys wood
other (specify): 
Maximum Design Category: A B C D
Engine power: Max. Recommended: 172 kW,
Installed: kW (if applicable)
T R M A R 

NORTHSTAR MANUAL
2
Length of hull Lh: 7,39m Beam of hull Bh: 2,49 m Draught T: 0,49 m
Type of main Propulsion:
sails petrol engine
diesel engine electric motor
oars
other (specify): 
Type of engine:
outboard inboard
z or sterndrive without integral exhaust
z or sterndrive with integral exhaust
other (specify): 
Deck
fully decked partly decked
open
other (specify):
This declaration of conformity is issued under the sole responsibility of the manufacturer. I
declare on behalf of the craft manufacturer that the craft mentioned above complies with all
applicable essential requirements in the way specified (and is in conformity with the type for
which above mentioned EC type examination certificate has been issued) – delete text
between brackets if no EC type examination certificate has been issued
Name and function:Cengiz ARSAY Signature and title:President
(identification of the person empowered to
sign on behalf of the manufacturer or his
authorised representative)
(or an equivalent marking)
Date and place of issue: (yr/month/day)  /  / 

NORTHSTAR MANUAL
3
(*) Only to be completed for boats with inboard engines or sterndrive
engines without integral exhaust
Essential requirements
(reference to relevant articles in
A
nnex IA & IC of the Directive)
Standards
Other
normative
document/
methods
Technical
file
Please specify in more detail
(*1: Mandatory Standards)
General requirements (2) EN ISO 8666:2002 *
Craft Identification Number – CIN (2.1) EN ISO 10087:2006 *
Builder’s Plate (2.2) 14945
Protection from falling overboard and means o
f
reboarding (2.3) 15085
Visibility from the main steering position (2.4) 11591
Owner’s manual (2.5) 10240
Integrity and structural requirements (3)
Structure (3.1) 12215 – 1, 12215-4
Stability and freeboard (3.2) 12217 – 1
Buoyancy and floatation (3.3) 12217 – 1
Openings in hull, deck and superstructure (3.4) 9093 , 9094 - 1 , 12216
Flooding (3.5) 11812
Manufacturer’s maximum recommended load
(3.6) 14946
Liferaft stowage (3.7) 9650
Escape (3.8) 12216
Anchoring, mooring and towing (3.9) 15084
Handling characteristics (4) 11592
Engines and engine spaces (5.1)
Inboard engine (5.1.1) 9094
Ventilation (5.1.2) 11105
Exposed parts (5.1.3)
Outboard engine starting (5.1.4)
Fuel system (5.2)
General – fuel system (5.2.1) 7840
Fuel tanks (5.2.2) 10088
Electrical systems (5.3) 10133
Steering systems (5.4)
General – steering system (5.4.1) 8848, 10592
Emergency arrangements (5.4.2)
Gas systems (5.5) 10239
Fire protection (5.6)
General – fire protection (5.6.1) 9094 - 1
Fire-fighting equipment (5.6.2) 9094 - 1
Navigation lights (5.7) COLREG / CEVNI
Discharge prevention (5.8) 8099
Annex I.B – Exhaust Emissions see the Declaration of Conformity of the engine
manufacturer
A
nnex I.C – Noise Emissions2
Noise emission levels (I.C.1)
Owner’s manual (I.C.2)

NORTHSTAR MANUAL
4
2. HOMOLOGATION, CERTIFICATION, DESIGN CATEGORY AND
IDENTIFICATION
Please write your boat’s HIN above.
Built by:
NORTHSTAR TEKNE URETIMI A.S.
PK 39 Gebze - Kocaeli - 41400 Turkey
for
NorthStar AS
Via Santa Franca 41,29100 Piacenza (PC) - ITALY
Category of design B (offshore) inspected by International Marine
Certification Institute (IMCI)
Your boat has been certified to be in compliance with the relevant parts of
the Recreational Craft Directive 94/25/EC as amended by Directive
2003/44/EC of the European Parliament. The CE mark on your boat
means that your boat meets or exceeds applicable ISO (International
Standards Organization) standards available at the time of manufacture.
Your rigid boat has been tested in regard to stability, freeboard, buoyancy
and flotation according to EN ISO 12217-1 and your inflatable boat
according to EN ISO 6185-3 so that, the requirements for the number of
persons allowed and the additional loading could be determined.
2.1. EXPLANATION OF MANUFACTURER’S PLATE:
The manufacturer’s plate, which is fixed at the console, looks like the
following:
Design Category B
The boat was built for the category of design B (Offshore)
Category B: Designed for offshore voyages where conditions up to,
and including, wind force 8 and significant wave heights up to, and
including 4 meters may be experienced.
The significant wave height is the mean height of the highest one-third of
the waves, which approximately corresponds to the wave height estimated
by an experienced observer. Some waves will be double this height.
For craft with outboard engines, mass of the craft in the light craft
(unladen) condition (kg) includes the mass of the heaviest recommended
outboard engine, but in some cases (a small rowing or outboard tender for
example) the craft may be used with or without the outboard. In these
HIN : TR-MAR

NORTHSTAR MANUAL
5
cases, it would be useful to also know the weight without the outboard
motor (perhaps to see if it is light enough to carry on a car roof).
Max. = Maximum number of persons recommended
Max. + + = Maximum loading weight
Maximum recommended load includes the weight of all persons onboard,
all provisions and personal effects, any equipment not included in the light
craft mass, cargo (if any) and all consumable liquids (water, fuel, etc.)
Do not exceed the maximum number of persons. Regardless of the
number of persons on board, the total weight of persons and equipment
must never exceed the maximum recommended load. Always use the
seats/seating spaces provided.
When loading the craft, never exceed the maximum recommended load.
Always load the craft carefully and distribute loads appropriately to
maintain design trim (approximately level). Avoid placing heavy weights
high up.
0609 CE-marking with EC-identification number of the notified
body, International Marine Certification Institute, as a proof that the boat
was built according to the requirements of the Directive for Recreational
Crafts 94/25/EC as amended by Directive 2003/44/EC.
2.2. TECHNICAL DATA
Length Overall : 7,39 m.
Length Waterline : 6,19 m.
Beam : 2,49 m.
Draught : 0,49 m.
Freeboard : 1,03 m.
Weight without Engine : 1750 kg.
Max. Loading Weight (*) : 600 kg.
Max. Number Of Person (*) : 6
Max. Power (Petrol) : 172 kW (230 HP)
Design Category : B
Battery : 12V - See your engine’s manual for
recommendation
Fuel Tank Capacity : 280 lt.
Water Tank Capacity : 45 lt.
Holding Tank Capacity : 45 lt.
Strong points : 3 U bolts provided – one at the bow
and two at the stern
Electric Bilge Pump Capacity : 2 x 31.5 l/min.
Manual Bilge Pump Capacity : 49 l/min.
(*) Recommended values

NORTHSTAR MANUAL
6
2.3. CE CERTIFICATE

NORTHSTAR MANUAL
7

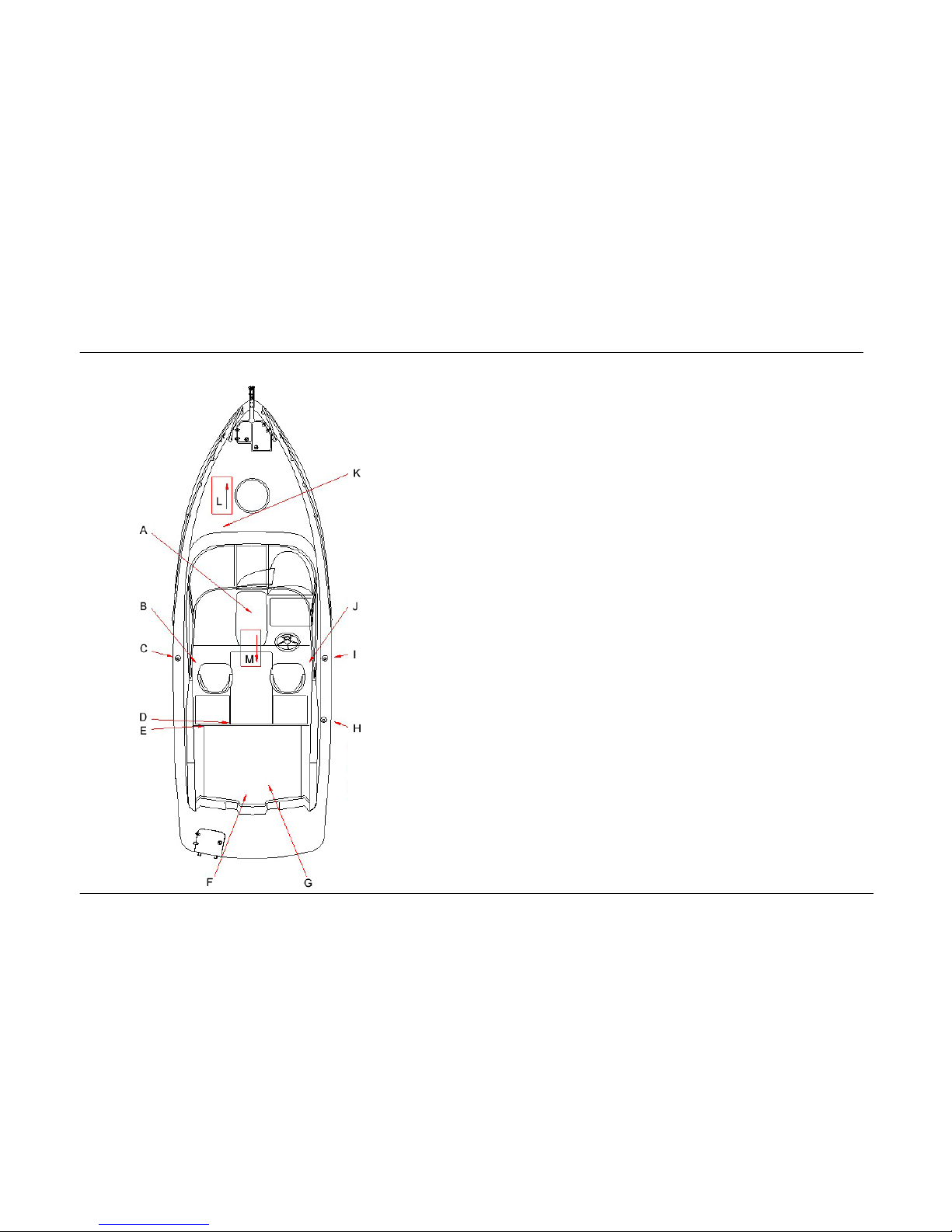

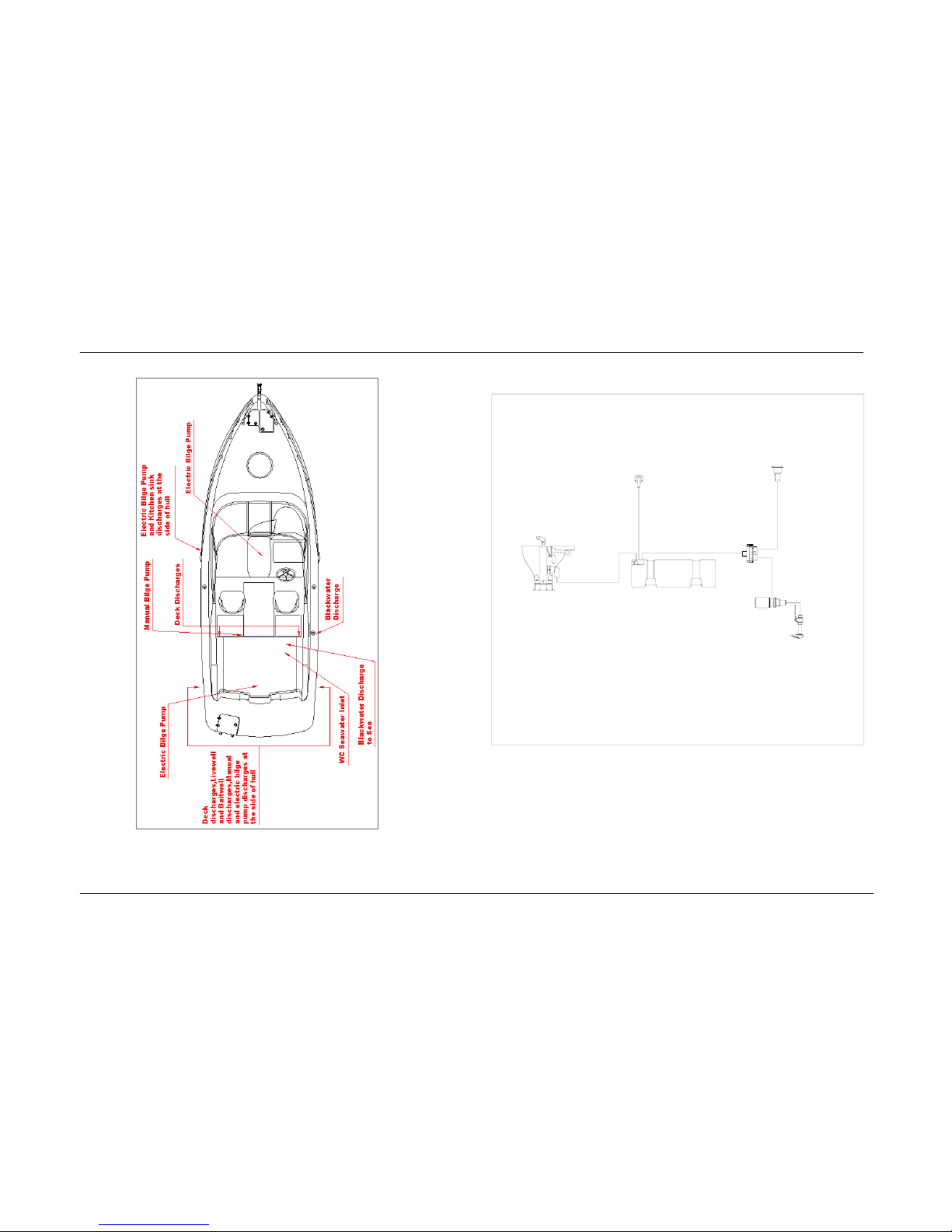

2.4. LOCATION OF FITTINGS AND ELECTRICAL EQUIPMENT
A : ELECTRIC BILGE PUMP
B : GAS CONTAINER
C : WATER FILL
D : MANUAL BILGE PUMP
E : MAIN BATTERY SWITCH
F : ELECTRIC BILGE PUMP
G : AUTOMATIC FIRE EXTINGUISHER
H : BLACKWATER DISCHARGE
I : FUEL FILL
J : FIRE EXTINGUISHER
K : LIFERAFT AREA
L : EXIT
M : EXIT
(*) Not available in all models

NORTHSTAR MANUAL
8
1
3
2
4
5
67
Deck
Sea
1- Toilet
2- Holding Tank
3- Vent
4- Y-valve
5- Pump-out deck fitting
6- Macerator pump
7- Seacock and valve
Blackwater System
2.5. LOCATION OF SEACOCKS AND THROUGH-HULL FITTINGS
(*) Not available in all models
2.6. BLACKWATER SYSTEM

NORTHSTAR MANUAL
9
3. SYSTEMS AND CIRCUITS
3.1. FIRE EXTINGUISHER SYSTEM
Please check the location of fire extinguisher holder.Make sure that you fix
an approved fire extinguisher on the holder before using your boat.
Your boat also has fixed fire-extinguisher system located in the
engineroom.Please read the instruction manual of fixed fire extinguisher
system.
Before discharging, shut down engines and blowers.
Please check the Skipper’s Manual for general information.
3.2. ELECTRICAL SYSTEM
A main cut off switch is provided inside the aft storage by the battery box.
This cut-off switch disconnects the battery from the electrical system of
your boat.

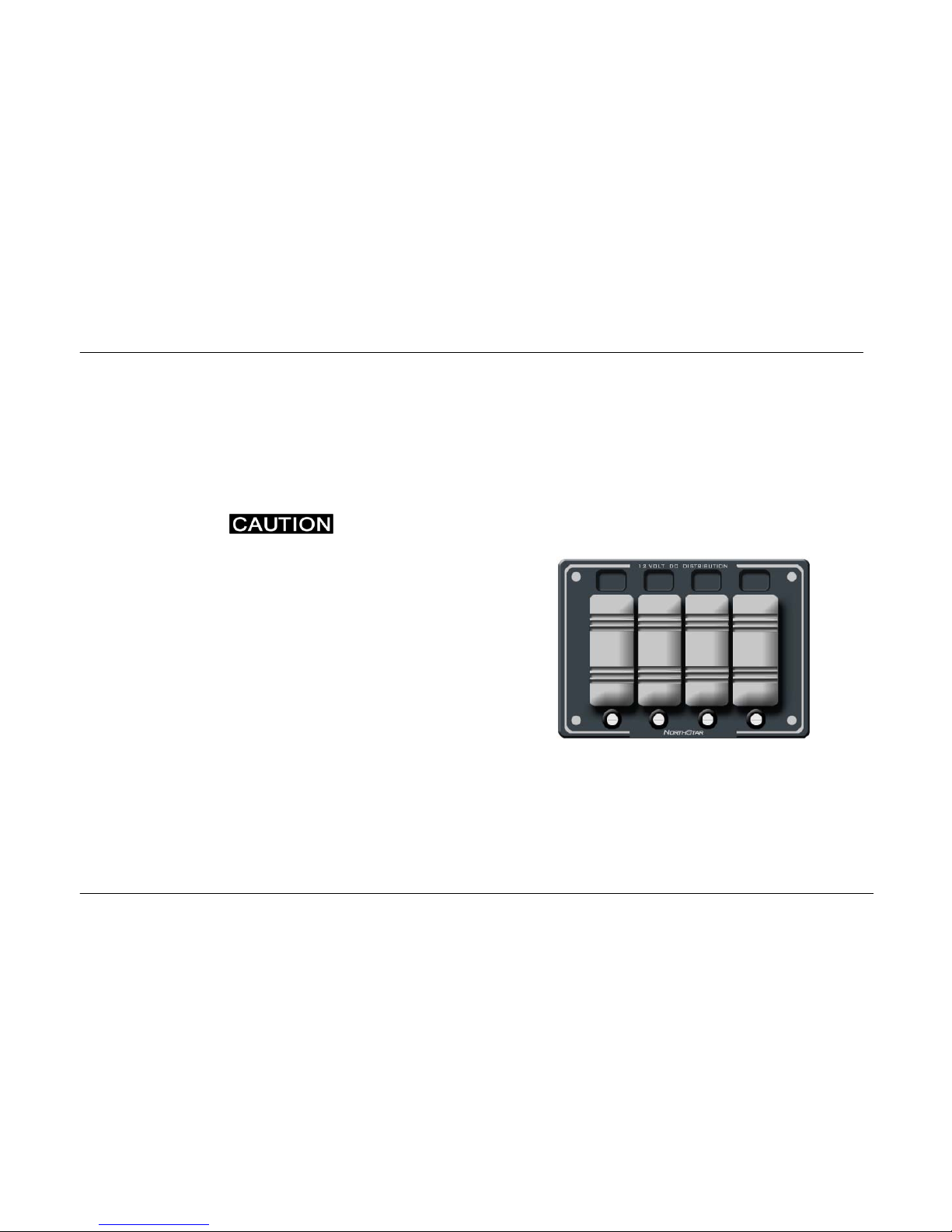

Two switch panels with fuses are provided on the console for electrical
equipment. You can control the navigation lights, pole light, livewell pump
(if fitted), shower pump, cabin lighting and the bilge pumps. Since your
boat is equipped with two automatic bilge pumps, separate 3 position
switches on the console are provided for their operation. When your boat
remains in the water, leave bilge pump switches at Auto position for
automatic operation.
Above is how your electrical switch panels look like. Fuses are found in the
fuse holders below the switches. To replace, open the fuse holder with a
screwdriver and close after installing a new fuse. Periodically check your
fuses and carry spares.

NORTHSTAR MANUAL
10
If a fuse consistently blows, please have your electrical circuitry checked
by a professional.
NorthStar 230 CDS is equipped with a removable 360° Pole light that
satisfies the 1 meter rule of the COLREGS which requires a minimum of 1
meter height difference between the navigation lights and the pole light.
You are not required to keep this light installed during daytime when there
is good visibility. At night or when the visibility condition dictates the use of
the pole light, simply remove it from its location under the aft center locker
and install it in the plug provided on the aft starboard side of the boat. To
retain it, tighten the locking collar. When not in use, simply remove it by
loosening its collar and stow it under its storage location.
A switch will operate the port/starboard navigation light and must be used
in the dark or when the visibility condition dictates while underway. Fuse
15A
A lighter type socket is provided to run extra accessories such as a
spotlight or to charge the mobile phone.
Battery acid is corrosive, so you have to protect eyes and skin if you have
to work on it. You must rinse splashes of acid with fresh water and consult
a doctor immediately. You can neutralize splashes of acid on the skin or on
clothes with acid transformer or soapsuds.
If one has drunk acid, please contact your doctor immediately.
Check and top up acid level periodically. Check from time to time if the
battery terminals have a tight sit and if there are corrosion patches.

NORTHSTAR MANUAL
11
Electric System of Northstar 230 CDS Standard
Bilge Pump 2
Battery
Main
switch
Negative
Bus
Running Lights
Horn
Bilge Pump 1
Anchor Lights
Cabin Lights
Macerator
Water Pump
Charge Plug
Bilge Pump
12 V
Switch Panel
12 V
Fuel Gauge
Fuel Tank
Sender
SSteel railing
SSteel Fuel Fill
SSteel Fuel
Tank
Blower
Automatic Fire
Extinguisher
Engine Gauges
Engine
Ignition
Key
Alarm
Bilge Pump
12 V
Switch Panel
12 V

NORTHSTAR MANUAL
12
Water Pump
Charge Plug
Anchor Lights
Running Lights
Bilge Pump 2
Bilge Pump 1
Horn
Negative Bus
Main
switch
Battery
Electric System of Northstar 230 CDS Full
Cabin Lights
Refrigerator
Macerator
Windlass
Windlass
Bilge Pump
12 V
Switch Panel
12 V
Compass Light
SSteel
railing
SSteel Fuel
Tank SSteel Fuel
Fill
Fuel Gauge
Fuel Tank
Sender
Engine
Gauges
Engine
Ignition Key
Blower
Automatic Fire
Extinguisher
Alarm
Bilge Pump
12 V
Switch Panel
12 V

NORTHSTAR MANUAL
13
MAINTENANCE LOG
DATE HOURS MAINTENANCE PERFORMED BY WHO

NORTHSTAR MANUAL
14

englısh
