NorthStar RM - User manual

RM SERIES / ENGLISH

INDEX
I
1. DECLARATION OF CONFORMITY OF RECREATIONAL CRAFT
WITH THE DESIGN, CONSTRUCTION AND NOISE EMISSION
REQUIREMENTS OF DIRECTIVE 94/25/EC AS AMENDED BY
DIRECTIVE 2003/44/EC ..................................................................................... 1
1.1. 155 RM......................................................................................................... 1
1.2. 175 RM......................................................................................................... 4
1.3. 195 RM......................................................................................................... 7
1.4. 225 RM....................................................................................................... 10

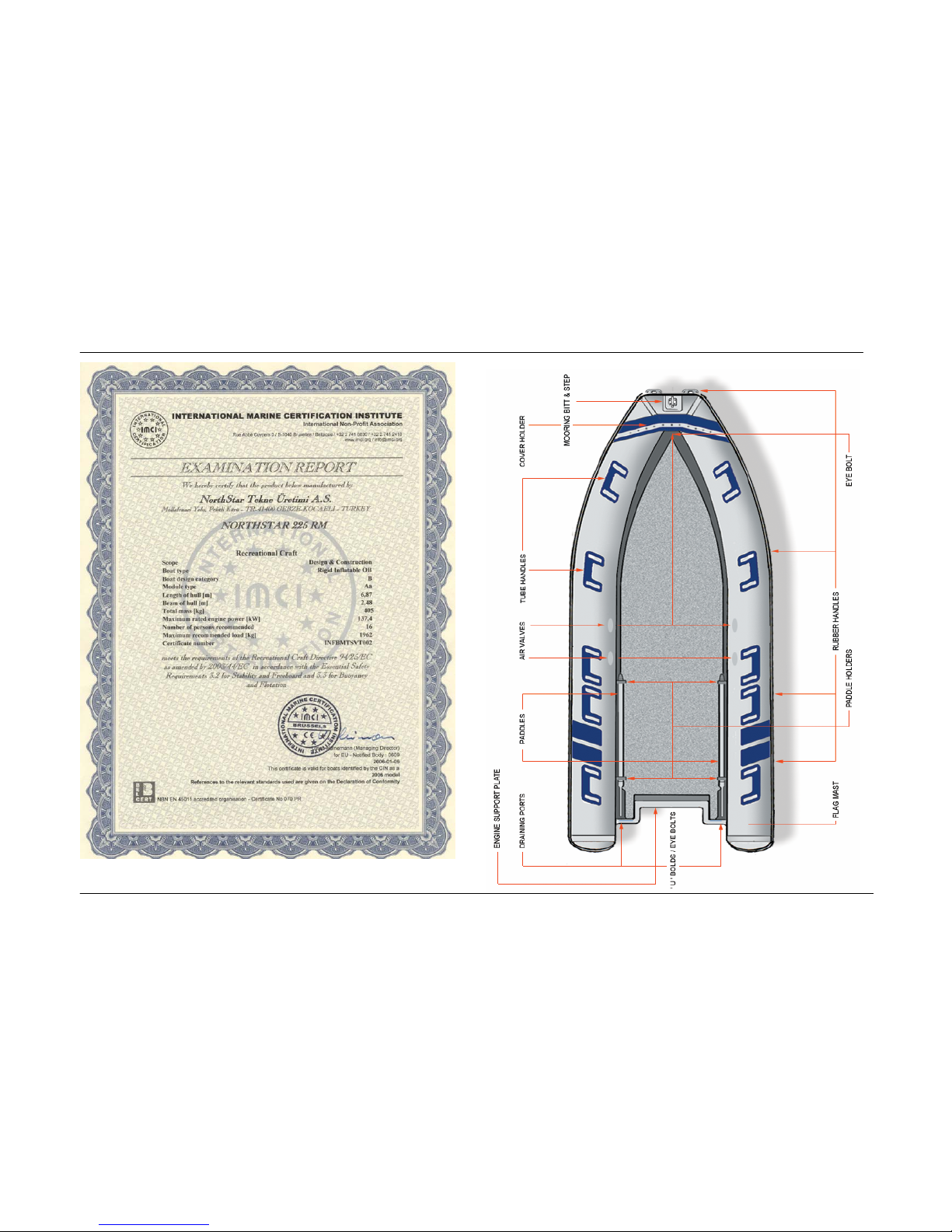

2. HOMOLOGATION, CERTIFICATION, DESIGN CATEGORY AND
IDENTIFICATION ............................................................................................ 13
2.1. EXPLANATION OF MANUFACTURER’S PLATE: .............................. 13
2.2. TECHNICAL DATA OF “NORTHSTAR RM” ........................................ 15
2.3. CE CERTIFICATE .................................................................................... 15
2.4. LOCATION OF FITTINGS AND ELECTRICAL EQUIPMENT............ 17
2.5. LOCATION OF SEACOCKS AND THROUGH-HULL FITTINGS .......... 18
3. WITH OPTIONAL CONSOLES ONLY..................................................... 18
4. SYSTEMS AND CIRCUITS.......................................................................... 19
4.1. ELECTRICAL SYSTEM........................................................................... 19

NORTHSTAR MANUAL
1
1. Declaration of Conformity of Recreational Craft with the Design,
Construction and Noise Emission requirements of Directive 94/25/EC
as amended by Directive 2003/44/EC
1.1. 155 RM
Name of craft manufacturer: NORTHSTAR TEKNE ÜRETİMİA.Ş.
Address : MOLLAFENARİYOLU PELİTLİKÖYÜ MEVKİİ
Town: GEBZE / KOCAELİPost Code: TR - 41400 Country: TURKEY
Name of Authorised Representative (if applicable): 
Address: 
Town:  Post Code:  Country: 
Name of Notified Body for design and construction assessment (if applicable): ____
Address:
Town: Post Code: Country: ID Number:
ECtype-examination Certificate number: Date: (yr/month/day) / /
Name of Notified Body for noise emission assessment (if applicable): 
Address: 
Town:  Post Code:  Country:  ID Number:
Module used for construction assessment:
A Aa B+C B+D B+E B+F G H
Module used for noise emission assessment :
A Aa G H
Other Community Directives applied:

DESCRIPTION OF CRAFT
Craft Identification Number
Brand name of the craft: NORTHSTAR 155 RM Type or number: RIGID INFLATABLE OB
Type of craft:
sailboat motorboat
inflatable
other (specify): 
Type of hull:
monohull multihull
other (specify): 
Construction material:
aluminium, aluminium alloys plastic, fiber reinforced plastic
steel, steel alloys wood
other (specify): 
Maximum Design Category: A B C D
Engine power: Max. Recommended: 64 kW,
Installed: kW (if applicable)
T R M A R 

NORTHSTAR MANUAL
2
Length of hull Lh: 4,81 Beam of hull Bh: 2,02 m Draught T: m
Type of main Propulsion:
sails petrol engine
diesel engine electric motor
oars
other (specify): 
Type of engine:
outboard inboard
z or sterndrive without integral exhaust
z or sterndrive with integral exhaust
other (specify): 
Deck
fully decked partly decked
open
other (specify):
This declaration of conformity is issued under the sole responsibility of the manufacturer. I
declare on behalf of the craft manufacturer that the craft mentioned above complies with all
applicable essential requirements in the way specified (and is in conformity with the type for
which above mentioned EC type examination certificate has been issued) – delete text
between brackets if no EC type examination certificate has been issued
Name and function:Cengiz ARSAY Signature and title:President
(identification of the person empowered to
sign on behalf of the manufacturer or his
authorised representative)
(or an equivalent marking)
Date and place of issue: (yr/month/day)  /  / 

NORTHSTAR MANUAL
3
(*) Only to be completed for boats with inboard engines or sterndrive
engines without integral exhaust
Essential requirements
(reference to relevant articles in
A
nnex IA & IC of the Directive)
Standards
Other
normative
document/
methods
Technical
file
Please specify in more detail
(*1: Mandatory Standards)
General requirements (2) EN ISO 8666:2002 *
Craft Identification Number – CIN (2.1) EN ISO 10087:2006 *
Builder’s Plate (2.2) 14945
Protection from falling overboard and means o
f
reboarding (2.3) 15085
Visibility from the main steering position (2.4) 11591
Owner’s manual (2.5) 10240
Integrity and structural requirements (3)
Structure (3.1) 12215 – 1, 12215-4
Stability and freeboard (3.2) 6185 – 3
Buoyancy and floatation (3.3) 6185 – 3
Openings in hull, deck and superstructure (3.4) 9093 , 9094 - 1 , 12216
Flooding (3.5) 6185 – 3
Manufacturer’s maximum recommended load
(3.6) 6185 – 3
Liferaft stowage (3.7)
Escape (3.8)
Anchoring, mooring and towing (3.9) 6185 – 3
Handling characteristics (4) 6185 - 3
Engines and engine spaces (5.1)
Inboard engine (5.1.1)
Ventilation (5.1.2)
Exposed parts (5.1.3)
Outboard engine starting (5.1.4)
Fuel system (5.2)
General – fuel system (5.2.1)
Fuel tanks (5.2.2)
Electrical systems (5.3)
Steering systems (5.4)
General – steering system (5.4.1)
Emergency arrangements (5.4.2)
Gas systems (5.5)
Fire protection (5.6)
General – fire protection (5.6.1)
Fire-fighting equipment (5.6.2)
Navigation lights (5.7)
Discharge prevention (5.8)
Annex I.B – Exhaust Emissions see the Declaration of Conformity of the engine
manufacturer
A
nnex I.C – Noise Emissions2
Noise emission levels (I.C.1)
Owner’s manual (I.C.2)

NORTHSTAR MANUAL
4
1.2. 175 RM
Name of craft manufacturer: NORTHSTAR TEKNE ÜRETİMİA.Ş.
Address : MOLLAFENARİYOLU PELİTLİKÖYÜ MEVKİİ
Town: GEBZE / KOCAELİPost Code: TR - 41400 Country: TURKEY
Name of Authorised Representative (if applicable): 
Address: 
Town:  Post Code:  Country: 
Name of Notified Body for design and construction assessment (if applicable): ____
Address:
Town: Post Code: Country: ID Number:
ECtype-examination Certificate number: Date: (yr/month/day) / /
Name of Notified Body for noise emission assessment (if applicable): 
Address: 
Town:  Post Code:  Country:  ID Number:
Module used for construction assessment:
A Aa B+C B+D B+E B+F G H
Module used for noise emission assessment :
A Aa G H
Other Community Directives applied:

DESCRIPTION OF CRAFT
Craft Identification Number
Brand name of the craft: NORTHSTAR 175 RM Type or number: RIGID INFLATABLE OB
Type of craft:
sailboat motorboat
inflatable
other (specify): 
Type of hull:
monohull multihull
other (specify): 
Construction material:
aluminium, aluminium alloys plastic, fiber reinforced plastic
steel, steel alloys wood
other (specify): 
Maximum Design Category: A B C D
Engine power: Max. Recommended: 86,9 kW,
T R M A R 

NORTHSTAR MANUAL
5
Installed: kW (if applicable)
Length of hull Lh: 5,40 Beam of hull Bh: 2,22 m Draught T: m
Type of main Propulsion:
sails petrol engine
diesel engine electric motor
oars
other (specify): 
Type of engine:
outboard inboard
z or sterndrive without integral exhaust
z or sterndrive with integral exhaust
other (specify): 
Deck
fully decked partly decked
open
other (specify):
This declaration of conformity is issued under the sole responsibility of the manufacturer. I
declare on behalf of the craft manufacturer that the craft mentioned above complies with all
applicable essential requirements in the way specified (and is in conformity with the type for
which above mentioned EC type examination certificate has been issued) – delete text
between brackets if no EC type examination certificate has been issued
Name and function:Cengiz ARSAY Signature and title:President
(identification of the person empowered to
sign on behalf of the manufacturer or his
authorised representative)
(or an equivalent marking)
Date and place of issue: (yr/month/day)  /  / 

NORTHSTAR MANUAL
6
(*) Only to be completed for boats with inboard engines or sterndrive
engines without integral exhaust
Essential requirements
(reference to relevant articles in
A
nnex IA & IC of the Directive)
Standards
Other
normative
document/
methods
Technical
file
Please specify in more detail
(*3: Mandatory Standards)
General requirements (2) EN ISO 8666:2002 *
Craft Identification Number – CIN (2.1) EN ISO 10087:2006 *
Builder’s Plate (2.2) 14945
Protection from falling overboard and means o
f
reboarding (2.3) 15085
Visibility from the main steering position (2.4) 11591
Owner’s manual (2.5) 10240
Integrity and structural requirements (3)
Structure (3.1) 12215 – 1, 12215-4
Stability and freeboard (3.2) 6185 – 3
Buoyancy and floatation (3.3) 6185 – 3
Openings in hull, deck and superstructure (3.4) 9093 , 9094 - 1 , 12216
Flooding (3.5) 6185 – 3
Manufacturer’s maximum recommended load
(3.6) 6185 – 3
Liferaft stowage (3.7)
Escape (3.8)
Anchoring, mooring and towing (3.9) 6185 – 3
Handling characteristics (4) 6185 - 3
Engines and engine spaces (5.1)
Inboard engine (5.1.1)
Ventilation (5.1.2)
Exposed parts (5.1.3)
Outboard engine starting (5.1.4)
Fuel system (5.2)
General – fuel system (5.2.1)
Fuel tanks (5.2.2)
Electrical systems (5.3)
Steering systems (5.4)
General – steering system (5.4.1)
Emergency arrangements (5.4.2)
Gas systems (5.5)
Fire protection (5.6)
General – fire protection (5.6.1)
Fire-fighting equipment (5.6.2)
Navigation lights (5.7)
Discharge prevention (5.8)
Annex I.B – Exhaust Emissions see the Declaration of Conformity of the engine
manufacturer
A
nnex I.C – Noise Emissions4
Noise emission levels (I.C.1)
Owner’s manual (I.C.2)

NORTHSTAR MANUAL
7
1.3. 195 RM
Name of craft manufacturer: NORTHSTAR TEKNE ÜRETİMİA.Ş.
Address : MOLLAFENARİYOLU PELİTLİKÖYÜ MEVKİİ
Town: GEBZE / KOCAELİPost Code: TR - 41400 Country: TURKEY
Name of Authorised Representative (if applicable): 
Address: 
Town:  Post Code:  Country: 
Name of Notified Body for design and construction assessment (if applicable): _____
Address:
Town: Post Code: Country: ID Number:
ECtype-examination Certificate number: Date: (yr/month/day) / /
Name of Notified Body for noise emission assessment (if applicable): 
Address: 
Town:  Post Code:  Country:  ID Number:
Module used for construction assessment:
A Aa B+C B+D B+E B+F G H
Module used for noise emission assessment :
A Aa G H
Other Community Directives applied:

DESCRIPTION OF CRAFT
Craft Identification Number
Brand name of the craft: NORTHSTAR 195 RM Type or number: RIGID INFLATABLE OB
Type of craft:
sailboat motorboat
inflatable
other (specify): 
Type of hull:
monohull multihull
other (specify): 
Construction material:
aluminium, aluminium alloys plastic, fiber reinforced plastic
steel, steel alloys wood
other (specify): 
Maximum Design Category: A B C D
Engine power: Max. Recommended: 115 kW,
T R M A R 

NORTHSTAR MANUAL
8
Installed: kW (if applicable)
Length of hull Lh: 5,92 Beam of hull Bh: 2,41 m Draught T: m
Type of main Propulsion:
sails petrol engine
diesel engine electric motor
oars
other (specify): 
Type of engine:
outboard inboard
z or sterndrive without integral exhaust
z or sterndrive with integral exhaust
other (specify): 
Deck
fully decked partly decked
open
other (specify):
This declaration of conformity is issued under the sole responsibility of the manufacturer. I
declare on behalf of the craft manufacturer that the craft mentioned above complies with all
applicable essential requirements in the way specified (and is in conformity with the type for
which above mentioned EC type examination certificate has been issued) – delete text
between brackets if no EC type examination certificate has been issued
Name and function:Cengiz ARSAY Signature and title:President
(identification of the person empowered to
sign on behalf of the manufacturer or his
authorised representative)
(or an equivalent marking)
Date and place of issue: (yr/month/day)  /  / 

NORTHSTAR MANUAL
9
(*) Only to be completed for boats with inboard engines or sterndrive
engines without integral exhaust
Essential requirements
(reference to relevant articles in
A
nnex IA & IC of the Directive)
Standards
Other
normative
document/
methods
Technical
file
Please specify in more detail
(*5: Mandatory Standards)
General requirements (2) EN ISO 8666:2002 *
Craft Identification Number – CIN (2.1) EN ISO 10087:2006 *
Builder’s Plate (2.2) 14945
Protection from falling overboard and means o
f
reboarding (2.3) 15085
Visibility from the main steering position (2.4) 11591
Owner’s manual (2.5) 10240
Integrity and structural requirements (3)
Structure (3.1) 12215 - 1, 12215-4
Stability and freeboard (3.2) 6185 – 3
Buoyancy and floatation (3.3) 6185 – 3
Openings in hull, deck and superstructure (3.4) 9093 , 9094 - 1 , 12216
Flooding (3.5) 6185 – 3
Manufacturer’s maximum recommended load
(3.6) 6185 – 3
Liferaft stowage (3.7)
Escape (3.8)
Anchoring, mooring and towing (3.9) 6185 – 3
Handling characteristics (4) 6185 - 3
Engines and engine spaces (5.1)
Inboard engine (5.1.1)
Ventilation (5.1.2)
Exposed parts (5.1.3)
Outboard engine starting (5.1.4)
Fuel system (5.2)
General – fuel system (5.2.1)
Fuel tanks (5.2.2)
Electrical systems (5.3)
Steering systems (5.4)
General – steering system (5.4.1)
Emergency arrangements (5.4.2)
Gas systems (5.5)
Fire protection (5.6)
General – fire protection (5.6.1)
Fire-fighting equipment (5.6.2)
Navigation lights (5.7)
Discharge prevention (5.8)
Annex I.B – Exhaust Emissions see the Declaration of Conformity of the engine
manufacturer
A
nnex I.C – Noise Emissions6
Noise emission levels (I.C.1)
Owner’s manual (I.C.2)

NORTHSTAR MANUAL
10
1.4. 225 RM
Name of craft manufacturer: NORTHSTAR TEKNE ÜRETİMİA.Ş.
Address : MOLLAFENARİYOLU PELİTLİKÖYÜ MEVKİİ
Town: GEBZE / KOCAELİPost Code: TR - 41400 Country: TURKEY
Name of Authorised Representative (if applicable): 
Address: 
Town:  Post Code:  Country: 
Name of Notified Body for design and construction assessment (if applicable): IMCI
Address: Rue Abblé Cuypers 3
Town: BRUXELLES Post Code: B-1040 Country: BELGIUM ID Number: 0609
ECtype-examination Certificate number:INFBMTSVT002 Date: (yr/month/day) 2006/ 01/ 06
Name of Notified Body for noise emission assessment (if applicable): 
Address: 
Town:  Post Code:  Country:  ID Number:
Module used for construction assessment:
A Aa B+C B+D B+E B+F G H
Module used for noise emission assessment :
A Aa G H
Other Community Directives applied:

DESCRIPTION OF CRAFT
Craft Identification Number
Brand name of the craft: NORTHSTAR 225 RM Type or number: RIGID INFLATABLE OB
Type of craft:
sailboat motorboat
inflatable
other (specify): 
Type of hull:
monohull multihull
other (specify): 
Construction material:
aluminium, aluminium alloys plastic, fiber reinforced plastic
steel, steel alloys wood
other (specify): 
Maximum Design Category: A B C D
Engine power: Max. Recommended: 137,4 kW,
T R M A R 

NORTHSTAR MANUAL
11
Installed: kW (if applicable)
Length of hull Lh: 6,87 m Beam of hull Bh: 2,48 m Draught T: m
Type of main Propulsion:
sails petrol engine
diesel engine electric motor
oars
other (specify): 
Type of engine:
outboard inboard
z or sterndrive without integral exhaust
z or sterndrive with integral exhaust
other (specify): 
Deck
fully decked partly decked
open
other (specify):
This declaration of conformity is issued under the sole responsibility of the manufacturer. I
declare on behalf of the craft manufacturer that the craft mentioned above complies with all
applicable essential requirements in the way specified (and is in conformity with the type for
which above mentioned EC type examination certificate has been issued) – delete text
between brackets if no EC type examination certificate has been issued
Name and function:Cengiz ARSAY Signature and title:President
(identification of the person empowered to
sign on behalf of the manufacturer or his
authorised representative)
(or an equivalent marking)
Date and place of issue: (yr/month/day)  /  / 

NORTHSTAR MANUAL
12
(*) Only to be completed for boats with inboard engines or sterndrive
engines without integral exhaust
Essential requirements
(reference to relevant articles in
A
nnex IA & IC of the Directive)
Standards
Other
normative
document/
methods
Technical
file
Please specify in more detail
(*7: Mandatory Standards)
General requirements (2) EN ISO 8666:2002 *
Craft Identification Number – CIN (2.1) EN ISO 10087:2006 *
Builder’s Plate (2.2) 14945
Protection from falling overboard and means o
f
reboarding (2.3) 15085
Visibility from the main steering position (2.4) 11591
Owner’s manual (2.5) 10240
Integrity and structural requirements (3)
Structure (3.1) 12215 - 1, 12215-4
Stability and freeboard (3.2) 6185 – 3
Buoyancy and floatation (3.3) 6185 – 3
Openings in hull, deck and superstructure (3.4) 9093 , 9094 - 1 , 12216
Flooding (3.5) 6185 – 3
Manufacturer’s maximum recommended load
(3.6) 6185 – 3
Liferaft stowage (3.7)
Escape (3.8)
Anchoring, mooring and towing (3.9) 6185 – 3
Handling characteristics (4) 6185 - 3
Engines and engine spaces (5.1)
Inboard engine (5.1.1)
Ventilation (5.1.2)
Exposed parts (5.1.3)
Outboard engine starting (5.1.4)
Fuel system (5.2)
General – fuel system (5.2.1)
Fuel tanks (5.2.2)
Electrical systems (5.3)
Steering systems (5.4)
General – steering system (5.4.1)
Emergency arrangements (5.4.2)
Gas systems (5.5)
Fire protection (5.6)
General – fire protection (5.6.1)
Fire-fighting equipment (5.6.2)
Navigation lights (5.7)
Discharge prevention (5.8)
Annex I.B – Exhaust Emissions see the Declaration of Conformity of the engine
manufacturer
A
nnex I.C – Noise Emissions8
Noise emission levels (I.C.1)
Owner’s manual (I.C.2)

NORTHSTAR MANUAL
13
2. HOMOLOGATION, CERTIFICATION, DESIGN CATEGORY AND
IDENTIFICATION
Please write your boat’s HIN above.
Built by:
NORTHSTAR TEKNE URETIMI A.S.
PK 39 Gebze - Kocaeli - 41400 Turkey
for
NorthStar AS
Via Santa Franca 41,29100 Piacenza (PC) - ITALY
Your boat has been certified to be in compliance with the relevant parts of
the Recreational Craft Directive 94/25/EC as amended by Directive
2003/44/EC of the European Parliament. The CE mark on your boat
means that your boat meets or exceeds applicable ISO (International
Standards Organization) standards available at the time of manufacture.
Your rigid boat has been tested in regard to stability, freeboard, buoyancy
and flotation according to EN ISO 12217-1 and your inflatable boat
according to EN ISO 6185-3 so that, the requirements for the number of
persons allowed and the additional loading could be determined.
2.1. EXPLANATION OF MANUFACTURER’S PLATE:
The manufacturer’s plate, which is fixed at the console, looks like the
following:
Design Category B (225 RM)
The boat was built for the category of design B (Offshore)
Category of design B (offshore) inspected by International Marine
Certification Institute (IMCI)
Category B: Designed for offshore voyages where conditions up to,
and including, wind force 8 and significant wave heights up to, and
including 4 meters may be experienced.
Design Category C (155/175/195RM)
The boat was built for the category of design C (Inshore)
Category C: Designed for voyages in coastal waters, large bays,
estuaries, lakes and rivers where conditions up to, and including,
wind force until 6 and significant wave heights up to, and including 2
meters may be experienced.
HIN : TR-MAR

NORTHSTAR MANUAL
14
The significant wave height is the mean height of the highest one-third of
the waves, which approximately corresponds to the wave height estimated
by an experienced observer. Some waves will be double this height.
For craft with outboard engines, mass of the craft in the light craft
(unladen) condition (kg) includes the mass of the heaviest recommended
outboard engine, but in some cases (a small rowing or outboard tender for
example) the craft may be used with or without the outboard. In these
cases, it would be useful to also know the weight without the outboard
motor (perhaps to see if it is light enough to carry on a car roof).
Max. = Maximum number of persons recommended
Max. + + = Maximum loading weight
Maximum load: Including passengers, personal equipment, provisions and
other loads (without fuel tank capacity).
Max. Pressure: 240 mbar Max. mbar = 240 mbar
Maximum recommended load includes the weight of all persons onboard,
all provisions and personal effects, any equipment not included in the light
craft mass, cargo (if any) and all consumable liquids (water, fuel, etc. )
Do not exceed the maximum number of persons. Regardless of the
number of persons on board, the total weight of persons and equipment
must never exceed the maximum recommended load. Always use the
seats/seating spaces provided.
When loading the craft, never exceed the maximum recommended load.
Always load the craft carefully and distribute loads appropriately to
maintain design trim (approximately level). Avoid placing heavy weights
high up.
0609 CE-marking with EC-identification number of the notified
body, International Marine Certification Institute, as a proof that the boat
was built according to the requirements of the Directive for Recreational
Crafts 94/25/EC as amended by Directive 2003/44/EC.

NORTHSTAR MANUAL
15
2.2. TECHNICAL DATA OF “NORTHSTAR RM”
225 RM 195 RM 175 RM 155 RM
Length Overall 6.87 m 5.92 m 5.40 m 4.80 m
Beam 2.48 m 2.41 m 2.22 m 2.02 m
Tube Diameter 0.52 m 0.52 m 0.52 m 0.50 m
Weight without Engine 440 kg 350 kg 310 kg 160 kg
Max. Power 137.4 kW
(187 HP)
115 kW
(156 HP)
86.9 kW
(117.6 HP)
64 kW
(87 HP)
Max. Load 1440 kg 1260 kg 900 kg 720 kg
Max. No of people 16 14 10 8
Battery 12V - See your engine’s manual for
recommendation
Fuel tank capacity Optional
Water tank capacity N/A
Holding Tank Capacity N/A
Strong points 3 U bolts provided – one at the bow and two at
the stern
2.3. CE CERTIFICATE

NORTHSTAR MANUAL
16

NORTHSTAR MANUAL
17
2.4. LOCATION OF FITTINGS AND ELECTRICAL EQUIPMENT
