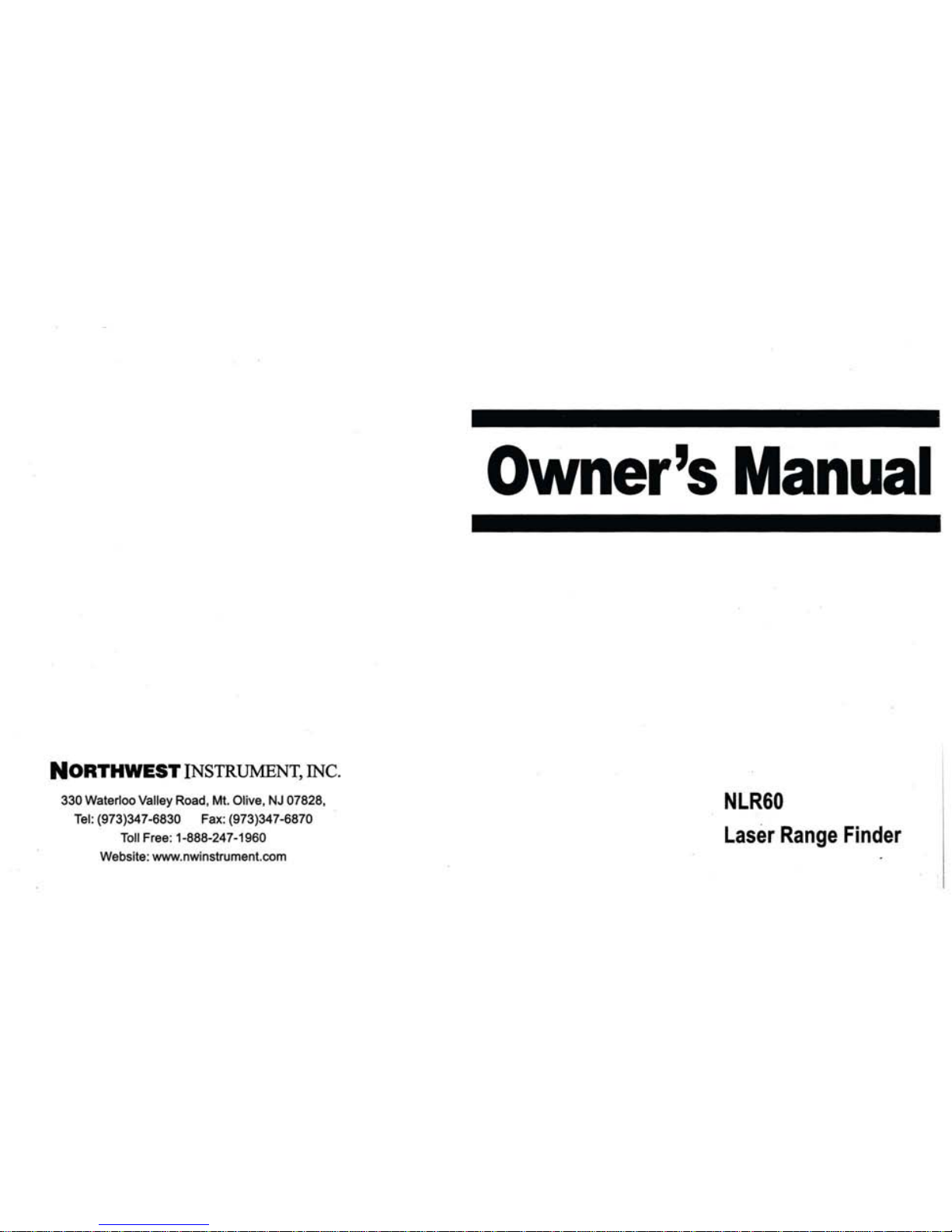

NORTHWEST INSTRUMENT, INC.
330 Waterloo Valley Road, Mt. Olive, NJ 07828,
Tel: [phone] Fax: [phone]
Toll Free: 1-888-247-1960
Website: www.nwinstrument.com
Owner's Manual
NLR60
Laser Range Finder

Buy online at AppraisersLaser.com
Content
1. Safety Instructions ....... ............... ......... ................ 3
2.Start-Up...... ..
.......... ............................... ........ ....5
3.Initial Operation and Settings
............ ...... ............... 7
4.Measuring
....... ........ .. ...... ........... ........... .......... ..9
5.Functions·.. ..................... ................. .. ............... 10
6. Technical Data....·...... ··.. .. · ········ ....···· ··············· .. 14
7. Troubleshooting-Causes and Corrective Measures··· .16
8.Measuring Conditions......·.. ·· ··....··....... ·· ······.······17
9.Labelling
......... ,............... ................ ..... .. . ......... 18
10.Standard Warranty Terms
.. .... ...... .... .... .. .............. .. .....
19
The compact and handy base model was specifically designed for indoor applications.
Shortcut and Soft grip keys for addition, subtraction, area and volume calculation make
measuring fast and very reliable.

Buy online at AppraisersLaser.com
___________________________ ... 'tt4i;8/,1.14mMtti4idb'iM_

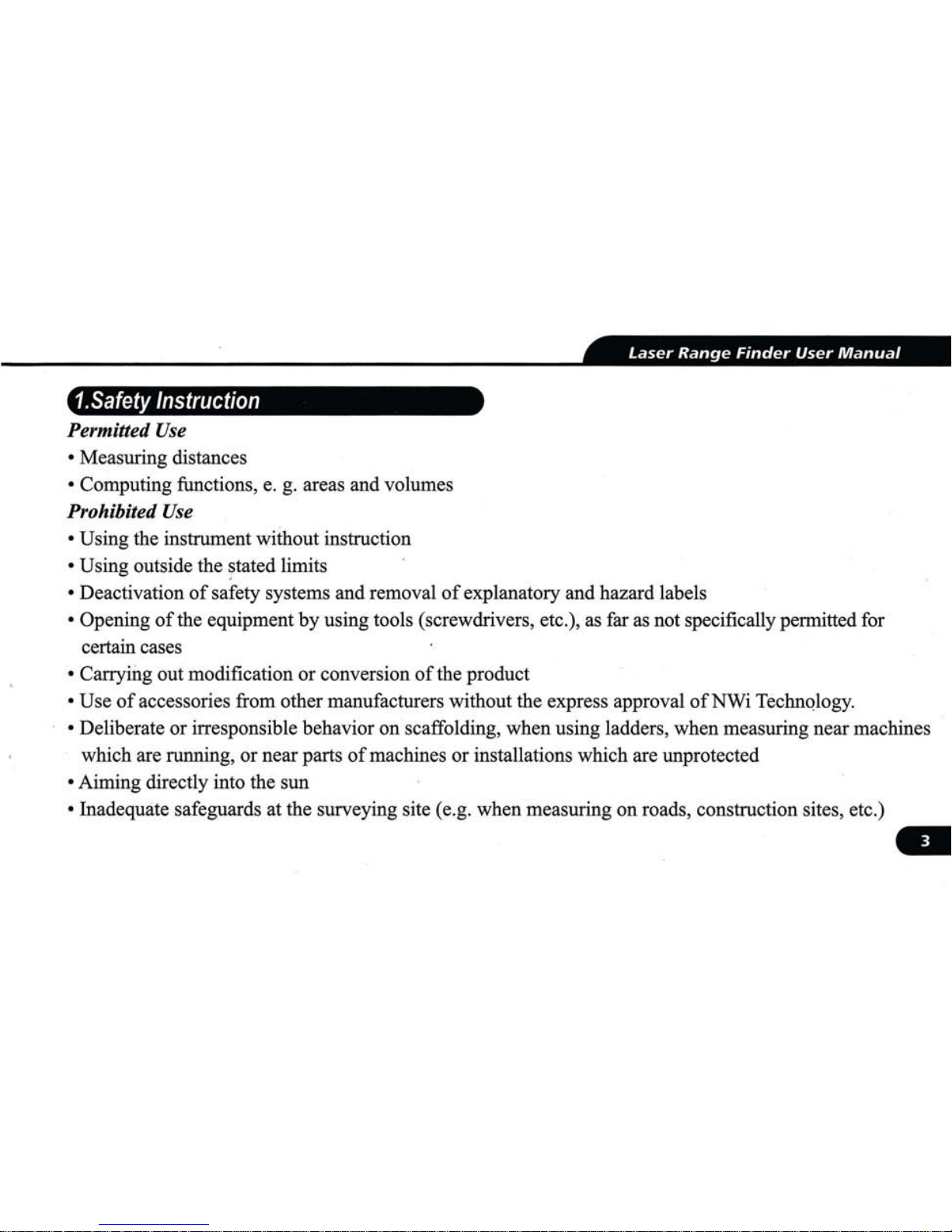

1.Safety Instruction
Permitted Use
• Measuring distances
• Computing functions,
e. g. areas and volumes
Prohibited Use
• Using the instrument without instruction
• Using outside the stated limits
• Deactivation
of safety systems and removal of explanatory and hazard labels
• Opening
of the equipment by using tools (screwdrivers, etc.), as far as not specifically permitted for
certain cases
• Carrying out modification or conversion
of the product
• Use
of accessories from other manufacturers without the express approval ofNWi Technology.
• Deliberate or irresponsible behavior on scaffolding, when using ladders, when measuring near machines
which are running, or near parts
of machines or installations which are unprotected
• Aiming directly into the sun
• Inadequate safeguards at the surveying site (e.g. when measuring on roads, construction sites, etc.)
..

Buy online at AppraisersLaser.com

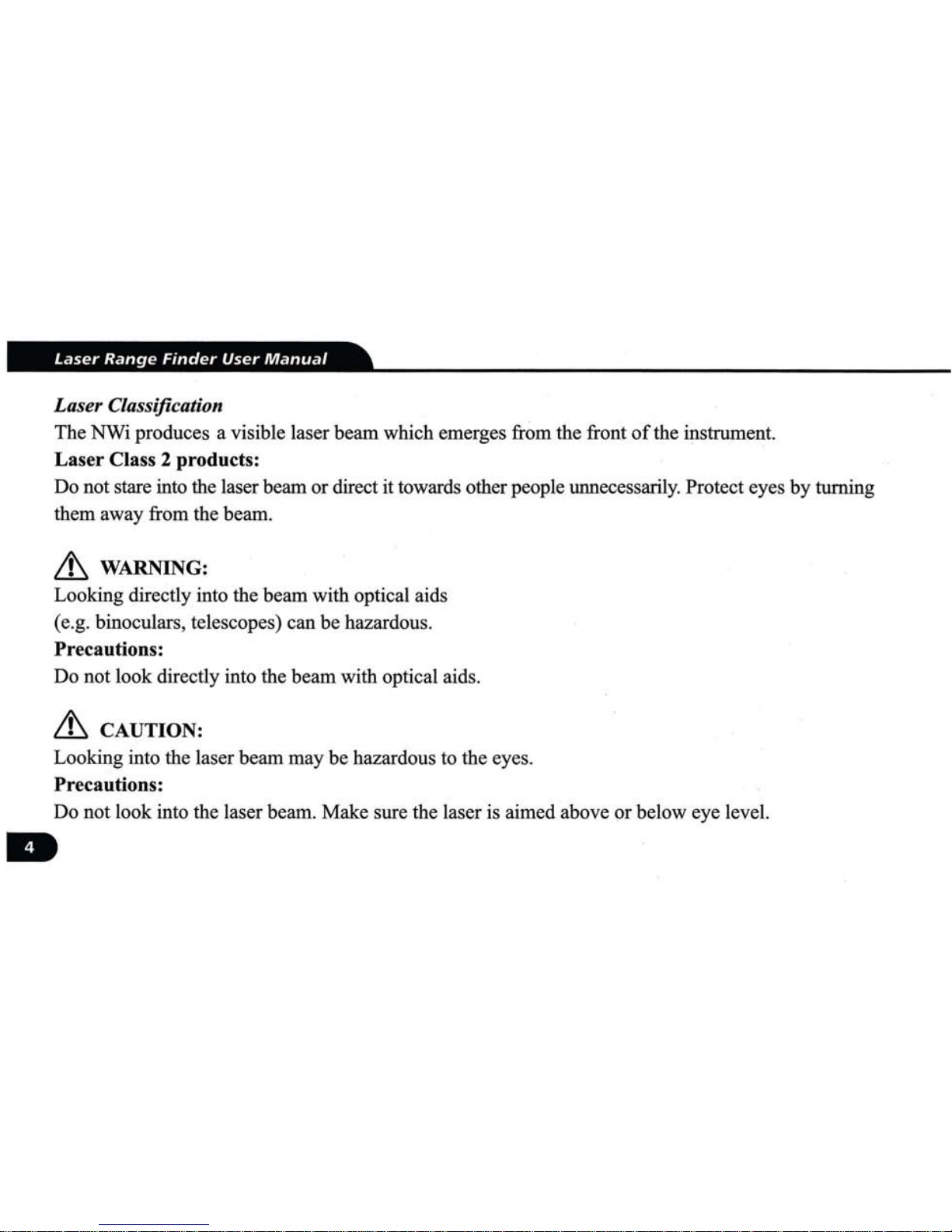

Laser Classification
The NWi produces a visible laser beam which emerges from the front
of the instrument.
Laser Class 2 products:
Do not stare into the laser beam or direct it towards other people unnecessarily. Protect eyes by turning
them away from the beam.
Lh WARNING:
Looking directly into the beam with optical aids
(e.g. binoculars, telescopes) can be hazardous.
Precautions:
Do not look directly into the beam with optical aids.
Lh CAUTION:
Looking into the laser beam may be hazardous to the eyes.
Precautions:
Do not look into the laser beam. Make sure the laser is aimed above or below eye level.
D

Buy online at AppraisersLaser.com
2. Start-Up
InsertinglReplacing Batteries (See "Figure A")
1) Remove battery compartment lid.
2) Insert batteries, observing correct polarity.
3) Close the battery compartment again.
• R~place the batteries when the symbol "~" flashes permanently
in the display.
• Use alkaline batteries only.
• Remove the batteries before any long period
of non-use to avoid
the danger
of corrosion
Keypad (See "Figure B")
1- ONIMEAS button 8- Reference button
2-
AreaNolume button 9- IDuminating!UNITS button
3-
Indirect Measurement button 10- Clear/Offbutton
4- Single/Continuous Distance
Measurement button
5- Plus ( +) button
6- Minus
(-) button
7- Storage button
Figure A
3 I
6 I
l:.x.Ba

Buy online at AppraisersLaser.com
LCD Display (See "figure C")
1. Laser active
2· Referencelevel (front)
3· Reference level (rear)
4· Variable measuring functions
o Area measurement
B Volume measurement
..:::::::J
Indirect measurement
<E8
Indirect (second) measurement
5· Single distance measurement
6· Battery status
7· Historical memory
8· Instrument error warning
9· Continuous measurement & Max and Min measurement
10· First value display line
11· Second value display line
12· Summary line for last measure or calculation result
-
10
11
12
Figure C

Buy online at AppraisersLaser.com
Laser Range Finder User Manual
3.lnitial Operation and Setting
Switching On and Off
• Switches on the instrument and laser.
.. Press this button longer to switch off the instrument.
The instrument switches offautomatically after three minutes
of inactivity.
Clear Button
.. The last action is cancelled or the data display is cleared. If in the mode of History storage, press
Storage button and Clear button simultaneously will clear all storage data in the
,...".,...""",,
Reference LevelSetting (See "Figure D")
The default reference setting is from the rear of the instrument.
Press this button A to take the measurement from the front
lJ V
edge i , A special beep sounds whenever the reference setting is
changed.After a re-startup the reference returns automatically to
the default setting (rear reference). Figure D

Buy online at AppraisersLaser.com
Display Illumination
e Quickly pushing and releasing the IlluminationlUnit button will tum the LCD Backlight on or off.
Distance Unit Setting For Instrument
e Pressing and holding the illuminationlUnitkey for a longer period of time will change the measurement
values from the displayed measurement unit to in, ft, ft and in
or m.
Clicking the Unit button after taking a measurement will automatically convert the last measured value
to the other available measurement units

Buy online at AppraisersLaser.com
4. Measuring
2i1 Press to activate the laser.
.. Distance Measurement
Press again to trigger the distance measurement. The measured value is displayed immediately.
ContinuousMeasurement (Tracking) & Max and Min Measurement (See "Figure E")
The continuous measurement function (tracking) is used for the
transferring
of measurements, e.g ., from construction plans. In
continuous measurement mode, the measuring tool can be moved
MIN
to the target, whereby the measured value is updated approx. every
0.5 seconds in the third line. The corresponding minimum and
maximum values are displayed dynamically in the first and second
line.As an example, the user can move from a wall to the required
distance, while the actual distance can be read continuously. For
continuous measurement, push button • until the indicator for
continuous measurement appears in the display. And press MEAS
or Clear button again to stop the function. The function
is terminated
automatically after continuous 100 times measurement. Figure E
..

Buy online at AppraisersLaser.com
5.Functions
Addition/ Subtraction
Distance measuring.
• The next measurement is added
to the previous one.
• The next measurement
is subtracted from the previous one.
• The last step
is cancelled.
• Retiun to the single distance measurement
Area Measurement
• Press the AreaIVolume button. The =::7 symbol appears in the display.
Press. button to take the first length measurement (e.g. length).
Press. again to take the second length measurement (e.g. width).
The result
of the area measurement is displayed in the third line, the individually measured values are
displayed in lines 1 and
2.

Buy online at AppraisersLaser.com
Volume Measurement
For volume measurements, pushAreaIVolume button, twice until the a indicator for volume measurement
appears in the display. Afterwards,
_press to take first distance measurement (e.g. length)
_press to take second distance measurement(e.g. width)
The result of the area measurement from the values already measured is displayed in the summary line.
_Press to take the third distance measurement(e.g. height). The value is displayed in the second line.
The result of the area measurement is displayed in the third line, the two previously measured values in
lines I and
2.
-

Buy online at AppraisersLaser.com

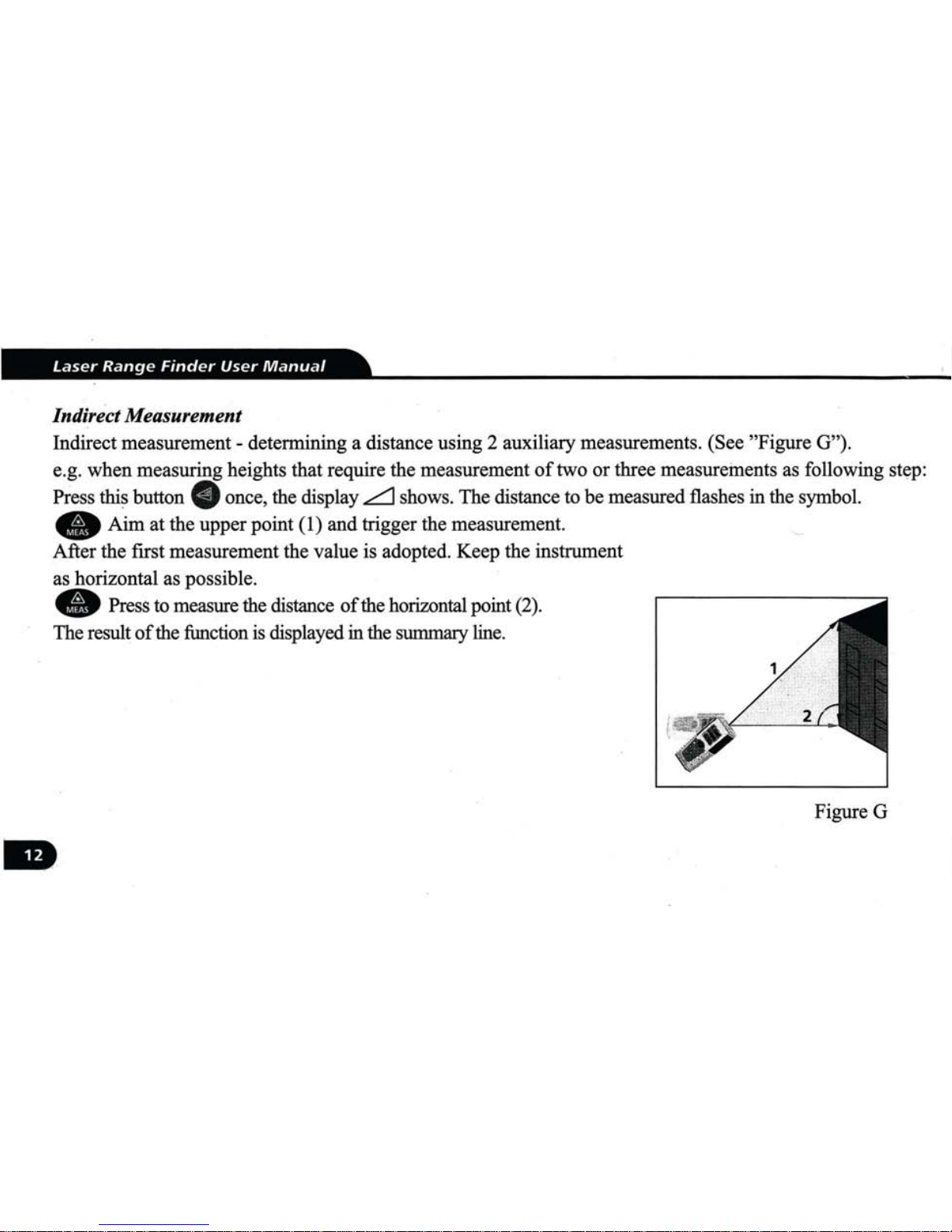

Indirect Afeasurennent
Indirect measurement -determining a distance using 2 auxiliary measurements. (See "Figure G").
e.g. when measuring heights that require the measurement
of two or three measurements as following step:
Press this
button. once, the display ..::::::::J shows. The distance to be measured flashes in the symbol.
• Aim at the upper point (1) and trigger the measurement.
After the fIrst measurement the value is adopted. Keep the instrument
as horizontal as possible.
• Press to measure the distance
of the horizontal point (2).
The result
of the function is displayed in the summary line.
Figure G

Buy online at AppraisersLaser.com

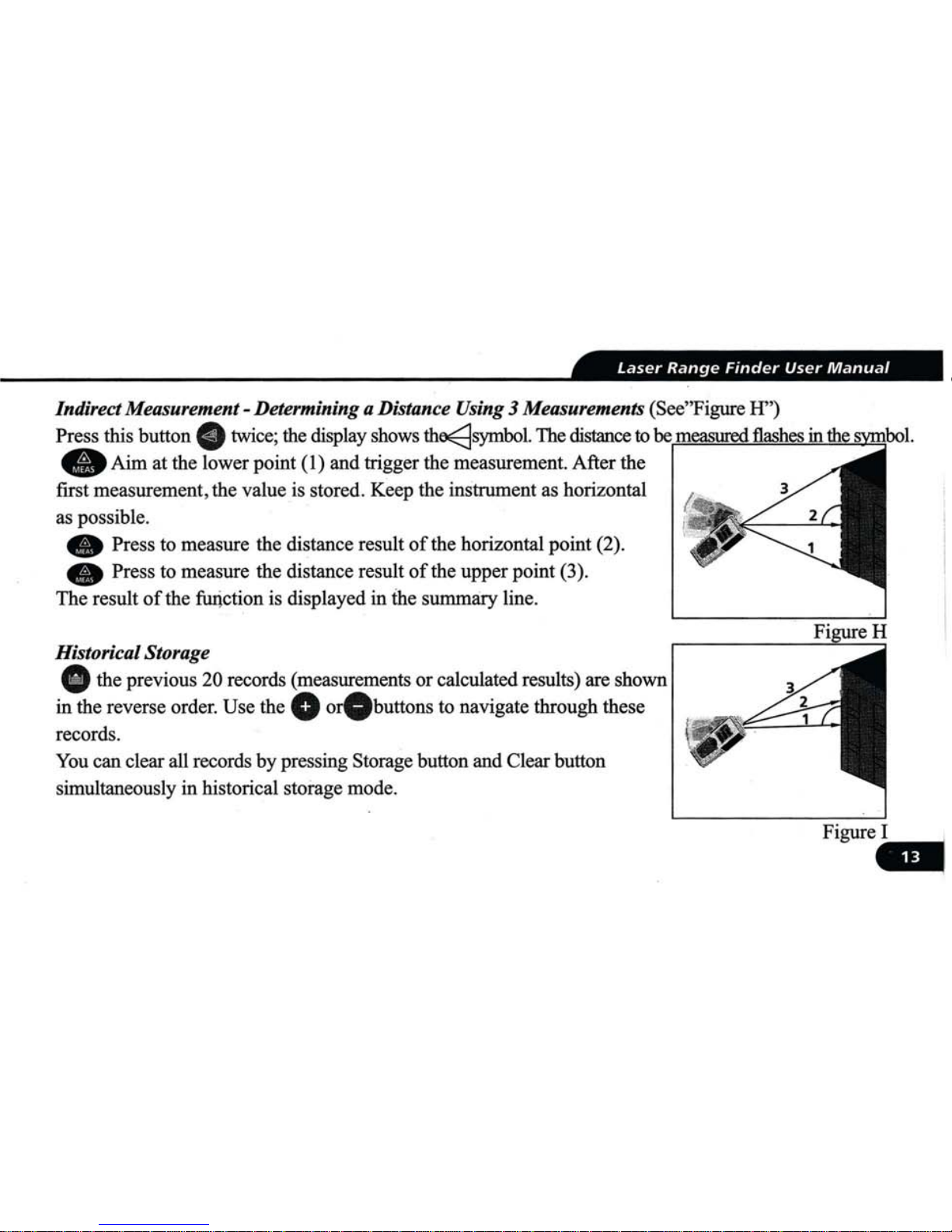

IndirectMeasurement -Determining a Distance Using 3 Measurements (See''Figure H")
Press this button. twice; the display shows th~symbol. The distance to be~~~rm!!ill~!..ID.!lli;..§YlJ4b<)l.
• Aim at the lower point (1) and trigger the measurement. After the
first measurement,the value is stored. Keep the instrument as horizontal
as possible.
• Press to measure the distance result of the horizontal point (2).
• Press to measure the distance result of the upper point (3).
The result of the ftulction is displayed in the summary line.
HistoricalStorage
• the previous 20 records (measurements or calculated results) are shown
in the reverse order. Use the 0
or.buttons to navigate through these
records.
You can clear all records by pressing Storage button and Clear button
simultaneously in historical storage mode.

Buy online at AppraisersLaser.com
6. Technical Data
Technical Specifications
Range
Measuring accuracy up to 10m
(20", standard deviation)
Measuringunits
Laser Class
Laser Type
Area, Volume Calculations
Indirect measurement using Pythagoras
Addition/Subtraction
Continuous Measurement
Min!Max Distance Tracking
Display illumination and multi-line display
Beep indication
Model: NLR60
0.05 to 50 m*(O.l6 ft to 164 ft*)
Typically: ±1.5 mm**
(± 0.06 in**)
m,in,ft
Class II
635 nm, <
lmW
Dust Protect/Splash proof IP 54
History measurement records 20

Buy online at AppraisersLaser.com

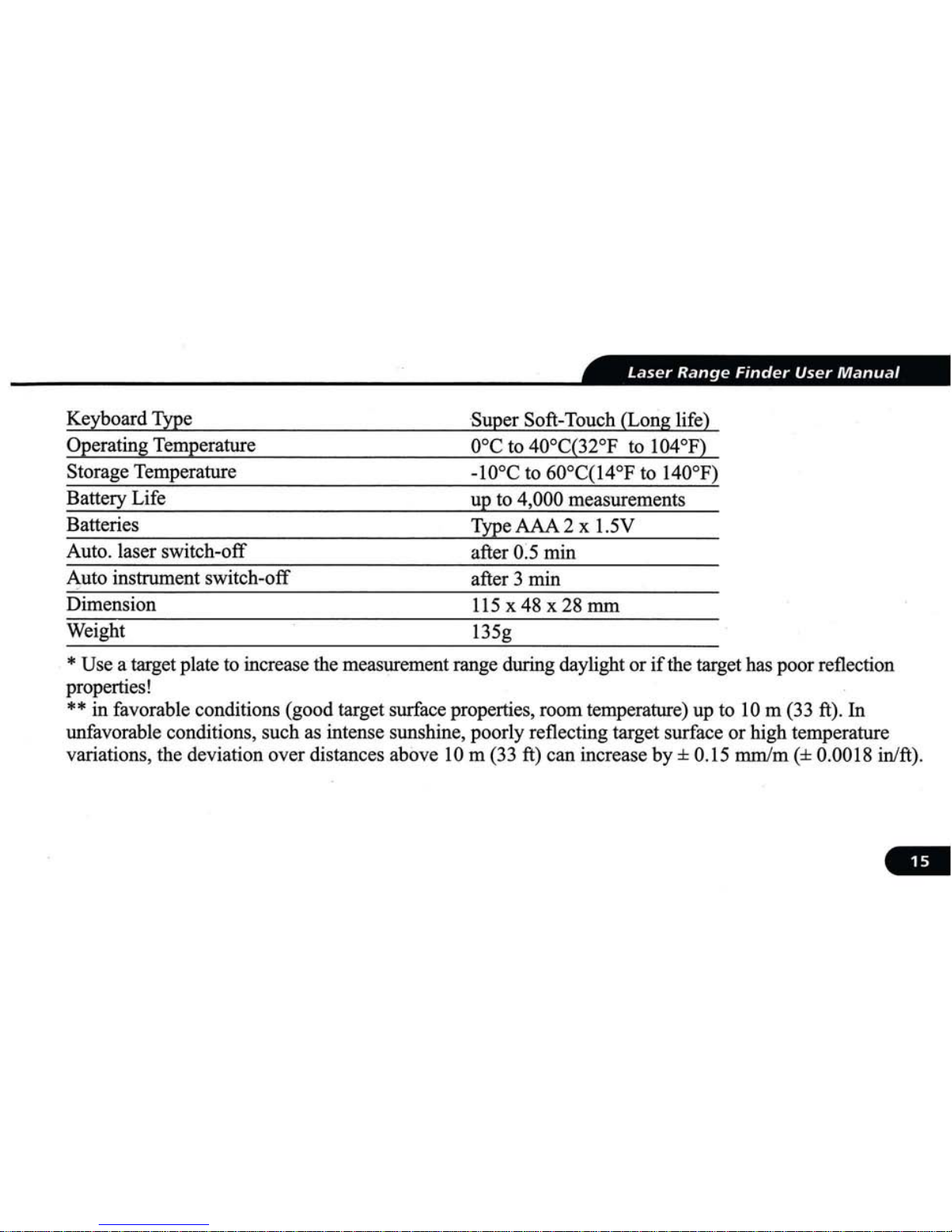

Keyboard Type
Super Soft-Touch (Long life)
Operating Temperature
Storage Temperature
Battery Life up to 4,000 measurements
Batteries Type
AAA 2 x 1.5V
Auto. laser switch-off after 0:5 min
Auto instrument switch-off after 3 min
Dimension 115 x 48 x 28
mm
Weight 135g
*Use a target plate to increase the measurement range during daylight or if the target has poor reflection
properties!
** in favorable conditions (good target surface properties, room temperature) up to 10 m (33 ft). In
unfavorable conditions, such as intense sunshine, poorly reflecting target surface
or high temperature
variations, the deviation over distances above 10 m (33 ft) can increase
by ± 0.15 mmlm (± 0.0018 inlft).
_lOW

Buy online at AppraisersLaser.com
.¥ti§i¥U!.lS¥54i§i@h!i" ___________________________
-

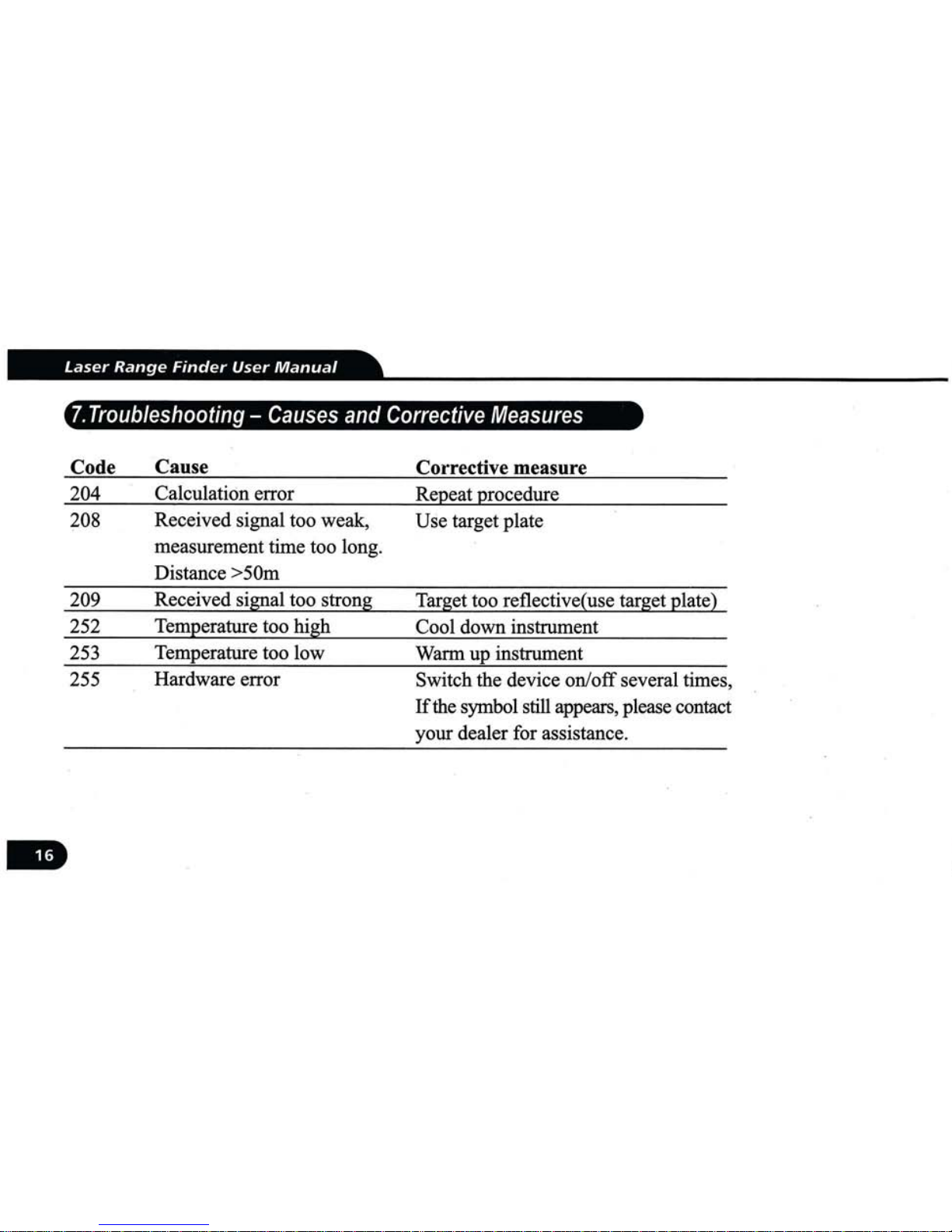

7. Troubleshooting - Causes and Corrective Measures
Code
204
208
209
252
253
255
Cause
Calculation error
Received signal too weak,
measurement time too long.
Distance >50m
Received signal too strong
Temperature too high
Temperature too low
Hardware error
Corrective measure
Repeat procedure
Use target plate
Target too reflective(use target plate)
Cool down instrument
Warm up instrument
Switch the device on/offseveral times,
If the symbol still appears, please contact
your dealer for assistance.

Buy online at AppraisersLaser.com

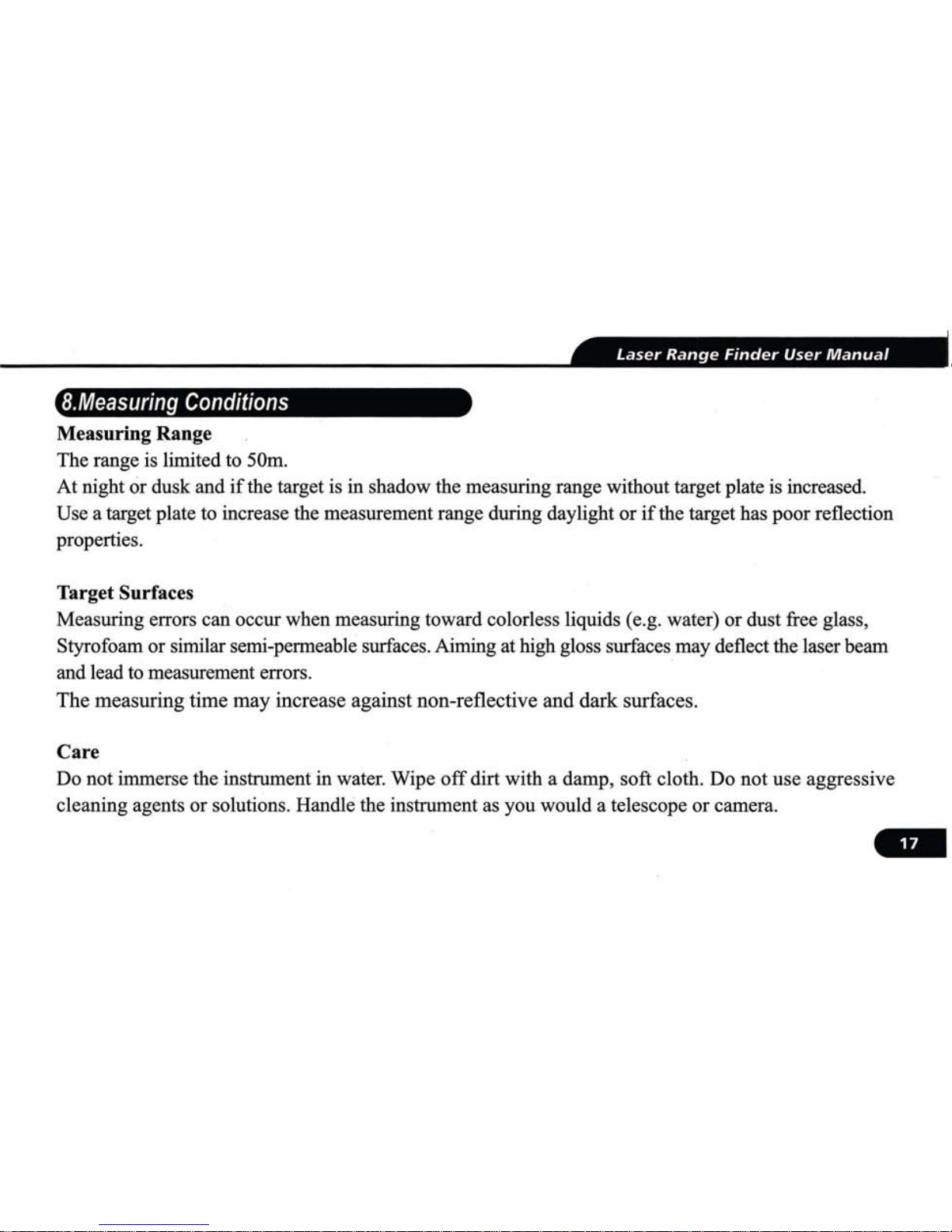

B.Measuring Conditions
Measuring Range
The range is limited to 50m.
At night or dusk and
if the target is in shadow the measuring range without target plate is increased.
Use a target plate to increase the measurement range during daylight or
if the target has poor reflection
properties.
Target Surfaces
Measuring errors can occur when measuring toward colorless liquids (e.g. water) or dust free glass,
Styrofoam or similar semi-permeable surfaces.Aiming at high gloss surfaces may deflect the laser beam
and lead to measurement errors.
The measuring time may increase against non-reflective and dark surfaces.
Care
Do not immerse the instrument in water. Wipe
off dirt with a damp, soft cloth. Do not use aggressive
cleaning agents or solutions. Handle the instrument as you would a telescope or camera.

Buy online at AppraisersLaser.com
9. Labelling
10.Standard Warranty Terms
The warranty period for the NLR60 Laser Range Finder is 12 months from the date of purchase.
Northwest Instrument,Inc. (Seller) warrants this instrument made by Northwest Instrument to be free
from manufacturing defects in materials and workmanship. For claims to be made under this warranty
the instrument must be inspected
by Northwest and the defect must be proven to Seller's satisfaction.
At the time that it is proven to the Seller's satisfaction that the instrument is defective, it shall be repaired
or replaced, at the Seller's option and returned to the original purchaser at no cost to them, including
-

Buy online at AppraisersLaser.com
Laser Range Finder User Manual
transportation charges. Seller's sole obligation and the Buyer's sole remedy are limited strictly to repair
or replacement with these provisions below:
A. The instrument is returned to Northwest, properly packaged with the transportation charges prepaid
and insured and accompanied
by proof of ownership. Receipt and previous registration is required.
B. Except for ordinary
wear and tear resulting from normal usage, the instrument, upon inspection by
the Seller is determined to be defective in material and/or workmanship.
Under no circumstances shall the Seller be liable for any consequential, incidental orcontingent damages
whatsoever.
Limitations and Exclusions
A. This warranty does not apply to instruments subject to negligence, abuse, accident, improper operation,
instruments damaged in transit or damage due to unauthorized service repairs
made by someone other
than Northwest or any otherNorthwest authorized service personnel. Circumstances beyond Northwest
Instrument's control cannot be warranted.
B.This warranty does not apply to regular required maintenance such as cleaning, adjusting, lubricating or
calibrating unless required as a result of a defect in workmanship or materials.lf, upon examination of
The instrument, the Seller determines that additional repair services are required and not covered
under this warranty, the Seller shall notify the Buyer of such repair charges and proceed only after
authorization has
been received.
C. This warranty does
not apply to instruments damaged in transit to or from Northwest Instrument or
any authorized repair center. Other remedies mayor may not be available for transportation dama.

Buy online at AppraisersLaser.com
NORTHWEST INSTRuMENT, INC.
330 Waterloo Valley Road, Mt. Olive, NJ 07828,
Tel :[phone] Fax: [phone]
Toll Free: 1-888-247-1960
Website: www.nwinstrument.com
Rev. 101019
