Norton TD466 User manual

Assembly Instructions - Please keep for future reference
Width - 66.8cm
2 Door 1 Drawer Sideboard
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Dimensions
Depth - 38.8cm
Height - 73.5cm
Rev C - 20/03/17
041 xx 5521
MADE IN
GREAT BRITAIN

Important - Please read these instructions fully before starting assembly
Safety and Care Advice
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and seperate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Care and maintenance
Always lift furniture when
moving it (do not drag)
otherwise the joints may be
damaged.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Dust surfaces with a soft, dry,
lint free cloth.
More stubborn marks can be
removed using a damp
(not wet) cloth. Wipe the
surface dry immediately
using a soft lint free cloth.
Do not use detergents, abrasive
cleaning products or cleaning
products that contain ammonia,
solvents or silicone as these
may damage the surface finish.
To protect the furniture,
position the furniture out of
direct sunlight and away from
direct heat sources such as
radiators and fires.
Do not place the furniture in
excessively dry and humid
conditions.
Do not place hot or cold
objects on the surface, always
use protective mats to avoid
marking the furniture.
Clean spills up immediately
Dispose of all packaging
carefully and responsibly
when assembly complete.
Do Not dispose of packaging
until assembly complete.

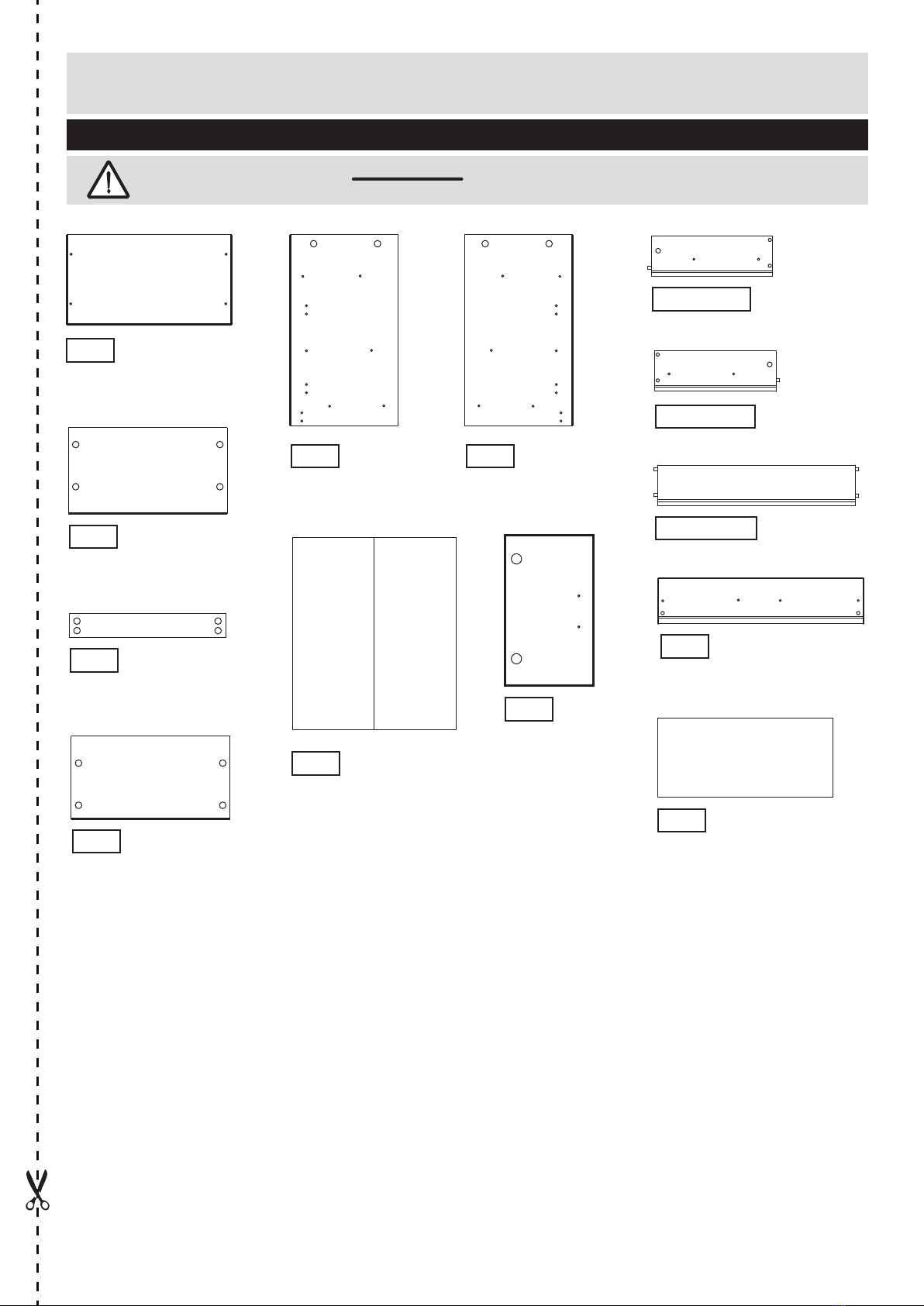

Please check you have all the panels listed below
Components -Panels
2
Important - Thick lines indicate finished edges
Left End Panel
(72.0x38.6cm)
9173
Bottom Panel
(63.4x36.9cm)
9172
Door Panel x 2
(47.6x31.3cm)
0707
Back Panel
(65.2x66.0cm)
(Folded)5684
Top Panel
(66.8x38.8cm)
9171
Shelf Panel
(63.4x36.9cm)
9175
Plinth Panel
(63.4x7.6cm)
8553
Right End Panel
(72.0x38.6cm)
9174
Draw Front Panel
(63.0x15.7cm)
0708
Drawer Bottom
(61.2x29.8cm)
5671
Left drawer side (30x10cm)
Drawer back (60.1x10cm)
Right drawer side (30x10cm)
622xx7002
624xx7010
623xx7002
If you have damaged or missing panels, call the
Customer Helpline: 01709 534123 Please turn to back page
for important information when contacting Customer Helpline.

3
70 80 90 100 110 120
010 20 30 40 50 60
mm
130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws

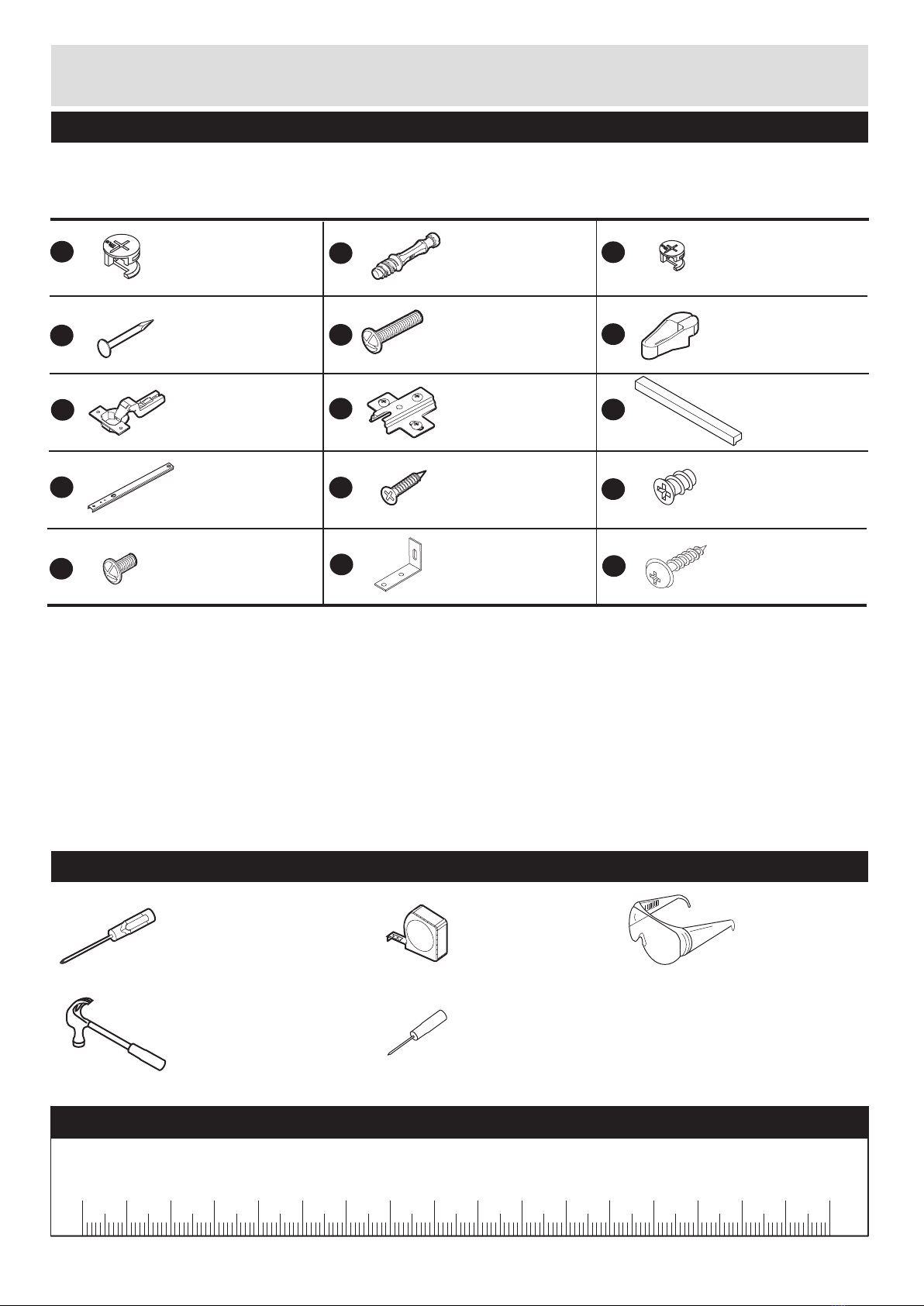

Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly, In some case more
fittings may be supplied than are required.
Tools required
If you have damaged or missing components, call the
Customer Helpline: 01709 534123 Please turn to back page
for important information when contacting Customer Helpline.
Cross headed screwdriver
(medium & large )
Small Hammer
Tape Measure
Eye protection
(when using a
hammer)
Large cam x 16
Code 760001103
Metal dowel x 18
Code 760003004
ABC
E
DF
I
Panel pin x 30
Code 760001012
Panel pin guide x 1
Code 684004501
GH
JKL
M
Fully cranked 26mm
hinge x 4
Code 652001120
Hingeplate x 4
Code 653006000
Screw x 8
Code 690001008
Small cam x 2
Code 760003005
Runner x 2
Code 760001040
8mm screw x 4
Code 700003510
9mm bolt x 2
Code 690001078
Bradawl
Handle x 3
Code 643005527
20mm bolt x 6
Code 700002006
NO
Screw x 1
Code 760001901
12mm screw x 2
Code 690001078

5671
622xx7002
623xx7002
624xx7010
Exploded View
4
9171
9172
8553
9173
9174
5684
0707
0707
9175
0708

Step 1
Assembly Instructions
5
A
x4
A
Fitting cams to the
shelf panels.
Insert 4 metal cams
into the shelf panel
.
Note: Ensure cam arrow
points towards the edge
with the hole.
9175
A
A
x4
A
x4
Step 2
Fitting cams to the
bottom panel.
Insert 4 metal cams
into the bottom panel
.
9172
A
Step 3
Fitting cams to the
plinth panel.
Insert 4 metal cams
to the plinth panel .
8553
A
A
A
A
A
9175
A
A
A
8553
A
A
A
A
A
9172
B
B
B
B
Step 4x4
B
Fitting dowels to the
top panel.
B
B
Insert 4 metal dowels
into the top panel
Note: Insert metal
dowels as far as
shown by arrows. Do not
over tighten.
9171
B
9171

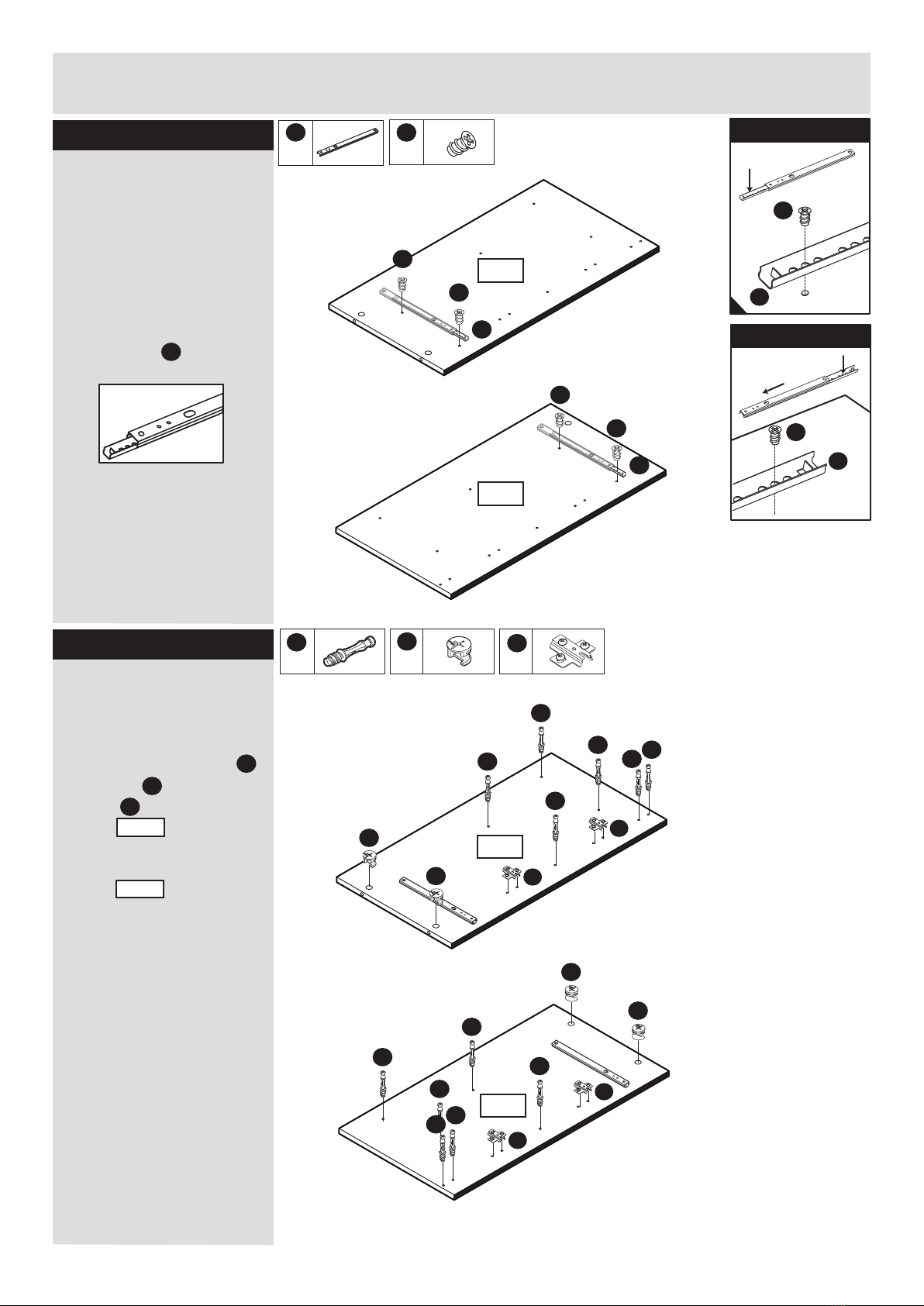

Insert 6 metal dowels ,
2 hinges and 2
cams into the left end
panel .
Repeat on the right end
panel .
Assembly Instructions
6
Step 5
x12
BA
x4 x4
Step 6
Attach dowels, cams
and hinges to both of
the end panels.
B
A
H
9173
9174
9173
9174
9173
9174
H
B
B
B
B
B
B
B
B
B
B
B
H
H
H
H
A
A
J
L
Front of Runner
Back of Runner
J
L
J
J
x2
L
L
L
J
L
L
x4
Attaching runners to
the end panels.
Position the runner so
that the second hole
from the front of the
runner lines up with the
pre-drilled hole nearest
to the edge of the panel.
Use screws to secure
the runner.
Slide the runner forward
revealing the back of the
runner. The second hole
to the back of the runner
will now line up with the
second pre-drilled hole.
L
Front of runner
B
A
A

Assembly Instructions
7
Step 7
Attach hinges and
handles to the doors
a: Insert hinges
into holes, ensure
the hinge is straight
(90 degree angle).
b: Before securing the
hinges , we recommend
you pre - mark the doors
using a bradawl.
G
Bradawl
c: Secure hinges to
doors using screws .
G
K
d: Secure handle to
doors using bolts
Repeat on the second
door.
E
I
G
G
x4
K
x8
E
x4
I
x2
0707
0707
0707
0707
I
A
B
C
D
90
Correct
98
Incorrect
G
G
K
K
K
K
E
E

Assembly Instructions
8
x2
B: Insert wooden dowels
in drawer back
into holes in
left
right hand
drawer sides.
A: Insert small cams
into left
and right
drawer sides.
Note: Ensure cam arrow
points towards the edge
with hole.
Left hand side
Right hand side
Left hand side
Right hand side
Drawer Back
622xx7002
624xx7010
623xx7002
622xx7002
623xx7002
622xx7002
623xx7002
623xx7002
624xx7010
622xx7002
A
B
C
C
C
C: Slide drawer bottom
into grooves in the left
and right drawer sides
and the drawer back.
Drawer images
reduced in size
for illustration
purposes.
SLIDE!
5671
622xx7002
623xx7002
624xx7010
C
Plain chipboard surface
to underside.
Step 8 x2
B
x1
I
x2
E

Assembly Instructions
9
B
0708
B
I
B
D:Insert 2 metal dowels
into the the drawer
fronts .
0708
E:Locate the metal
dowels (already inserted)
in the drawer front into the
small cams in the left and
right hand drawer sides.
Ensure drawer sides are
pressed against drawer
front.
Turn cams 180 degrees to
lock.
E
D
F
F: Secure handle to
drawer front
using bolts .
I
E
0708
0708
E
E
623xx7002
624xx7002
0708

Assembly Instructions
10

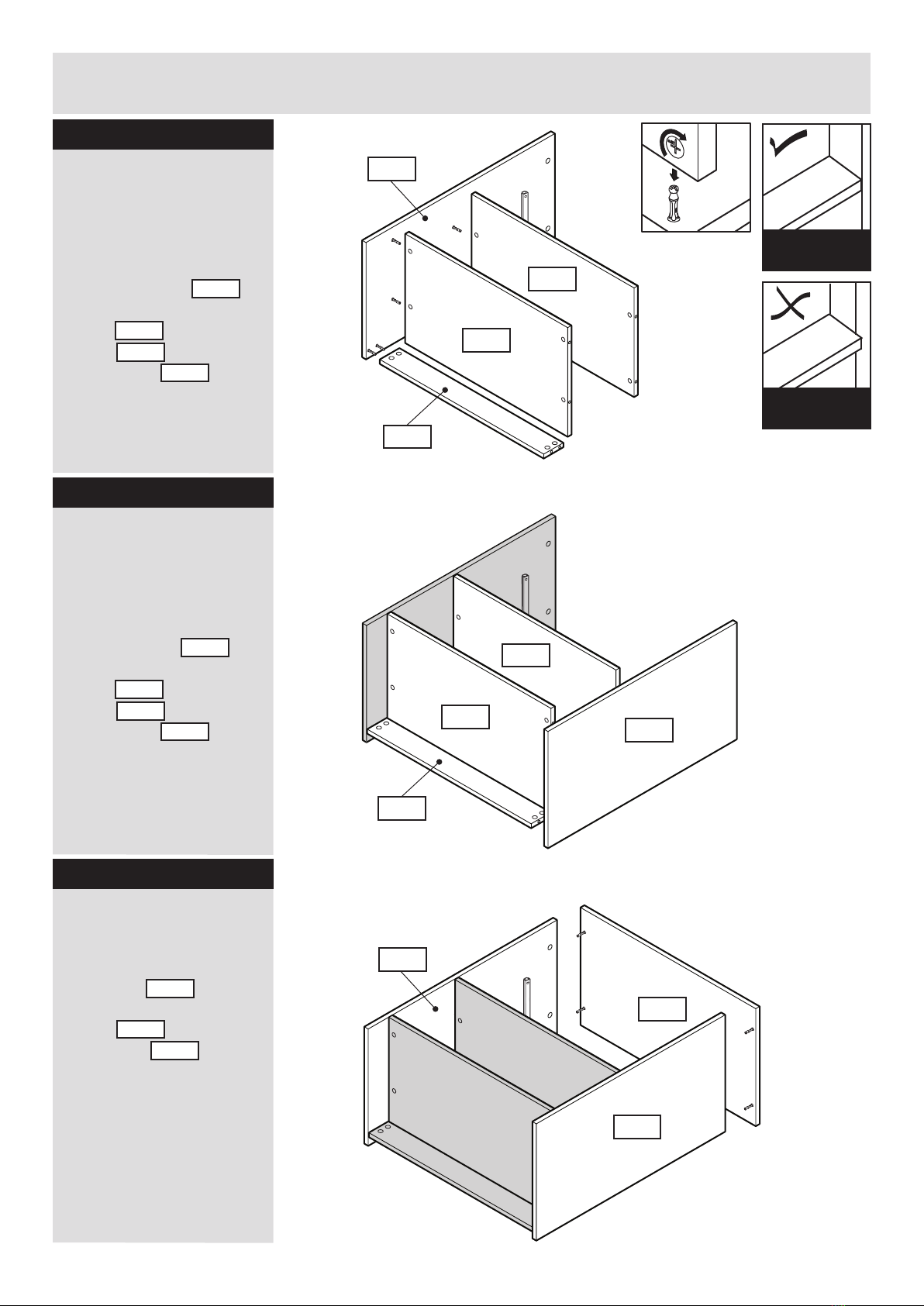

Step 9
Connect the right end
panel to the shelf,
bottom and plinth
panel.
Connect the dowels in the
right end panel to
the cams in the shelf
panel , the bottom
panel and the
plinth panel .
Step 10
Step 11
Connect the top panel
to the end panels.
Connect the dowels in the
top panel to the
dowels in the right end
panel and the left
end panel .
9174
9173
9173
9171
9175
9172
9175
9172
9174
8553
8553
9174
9174
9171
9175
9172
8553
Connect the left end
panel to the shelf,
bottom and plinth
panel.
Connect the dowels in the
left end panel to
the cams in the shelf
panel , the bottom
panel and the
plinth panel .
9173
9173
9175
9172
8553
Ensure plinth is
not overhanging.
Ensure plinth sits
flush.
FINISHED EDGES TO
THE FLOOR!
Turn cams 180 degrees to
lock.
Turn cams 180 degrees to
lock.
Turn cams 180 degrees to
lock.

Assembly Instructions
11
Step 12
Squaring up the unit.
IMPORTANT!
Before securing the back
it is necessary to square
up the unit.
You can do this by
measuring between
XX - XX and YY - YY
ensuring these are the
same (DIAG 1).
If they are not (DIAG 2)
Apply slight pressure as
indicated (DIAG 3) until
they are the same.
Ensure a tape
measure is used
to square unit up.
DIAG 3
DIAG 1
XX
XX
YY
YY
XX
XX
YY
YY
DIAG 2
XX
XX
XX
XX
YY
YY
YY YY
Step 13
Attach the back panel
to the unit.
Use the panel pin guide
when locating the panel
pins. This will hold the
panel pins vertical and
ensure the correct
distance from the edge.
Stand the unit upright
once this step is
complete.
D
x30
F
x1
D
F

Assembly Instructions
12
Step 14
a: With help, slot door
hinges onto hinge plates.
Ensure screw on hinge
slides into the slot on
hingeplate.
See Diagrams 1, 2 and 3.
Hanging doors
b: Tighten screw shown
to lock hinges in
position.
See ‘Hinge adjustment’
page if the doors
need adjusting.
The doors can be fitted
to either side depending
on your preference.
Repeat the process on
the remaining door.
B
B
B
Ensure the underside of screw
B slides into slot on hingeplate.
Hinge correctly attached to
hingeplate.
Hinge incorrectly attached to
hingeplate.
Diagram 1
Diagram 2
Diagram 3
AB
0707

Assembly Instructions
13

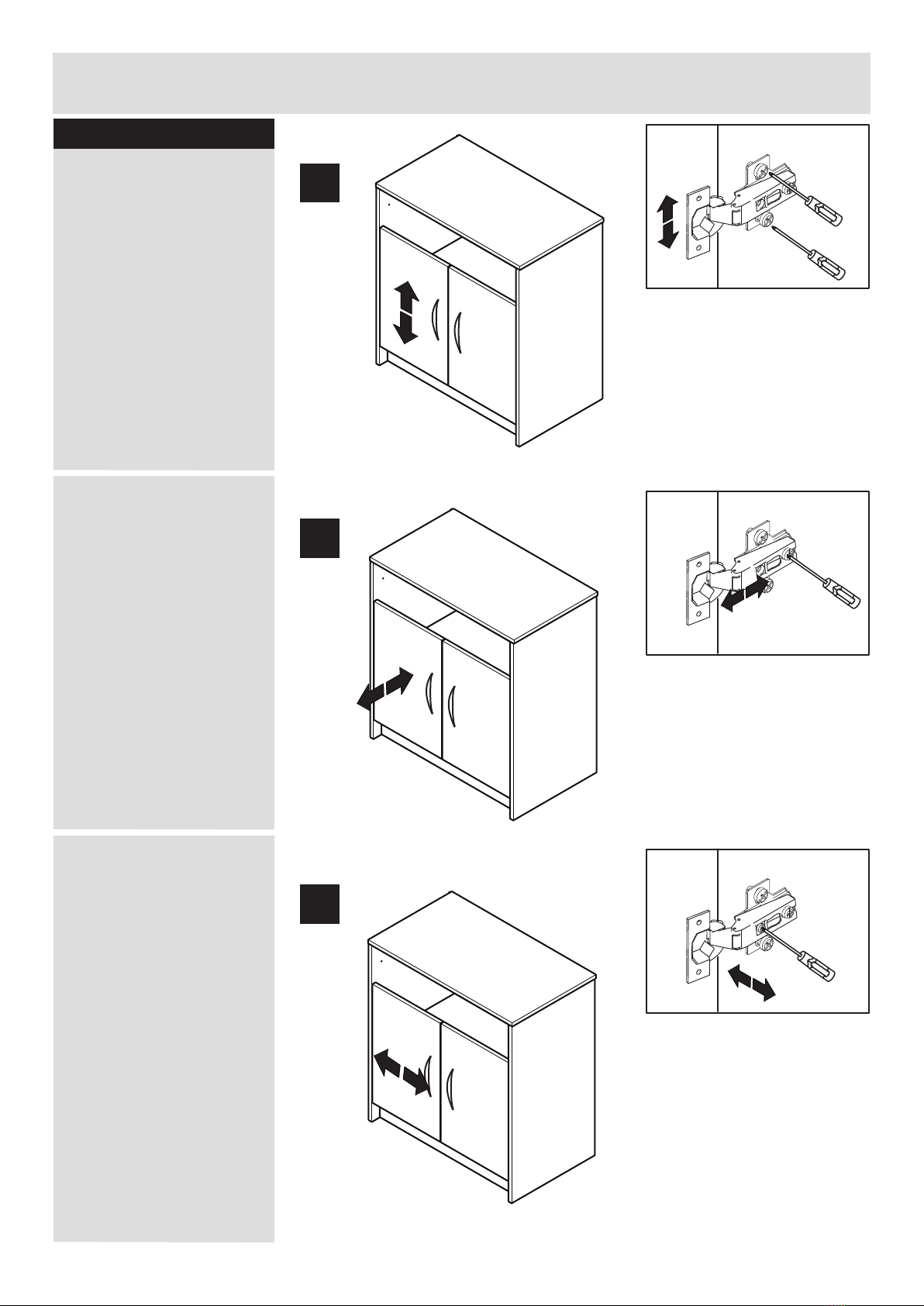

Step 15
a: To move doors up
or down: loosen screws
shown and move doors
to suit.
Re-tighten screws.
Hinge adjustment
b: To move doors in or
out: loosen screw
shown and move doors
to suit.
Re-tighten screws.
c: To move doors left
or right: loosen or
tighten screw as shown.
Be careful not to fully
unscrew.
A
B
C

Assembly Instructions
14
Step 16
Fitting the drawer.
For this step we
recommend you follow
the helpful hints on the
next page. 2nd Hole
M
M
x2

Assembly Instructions
15

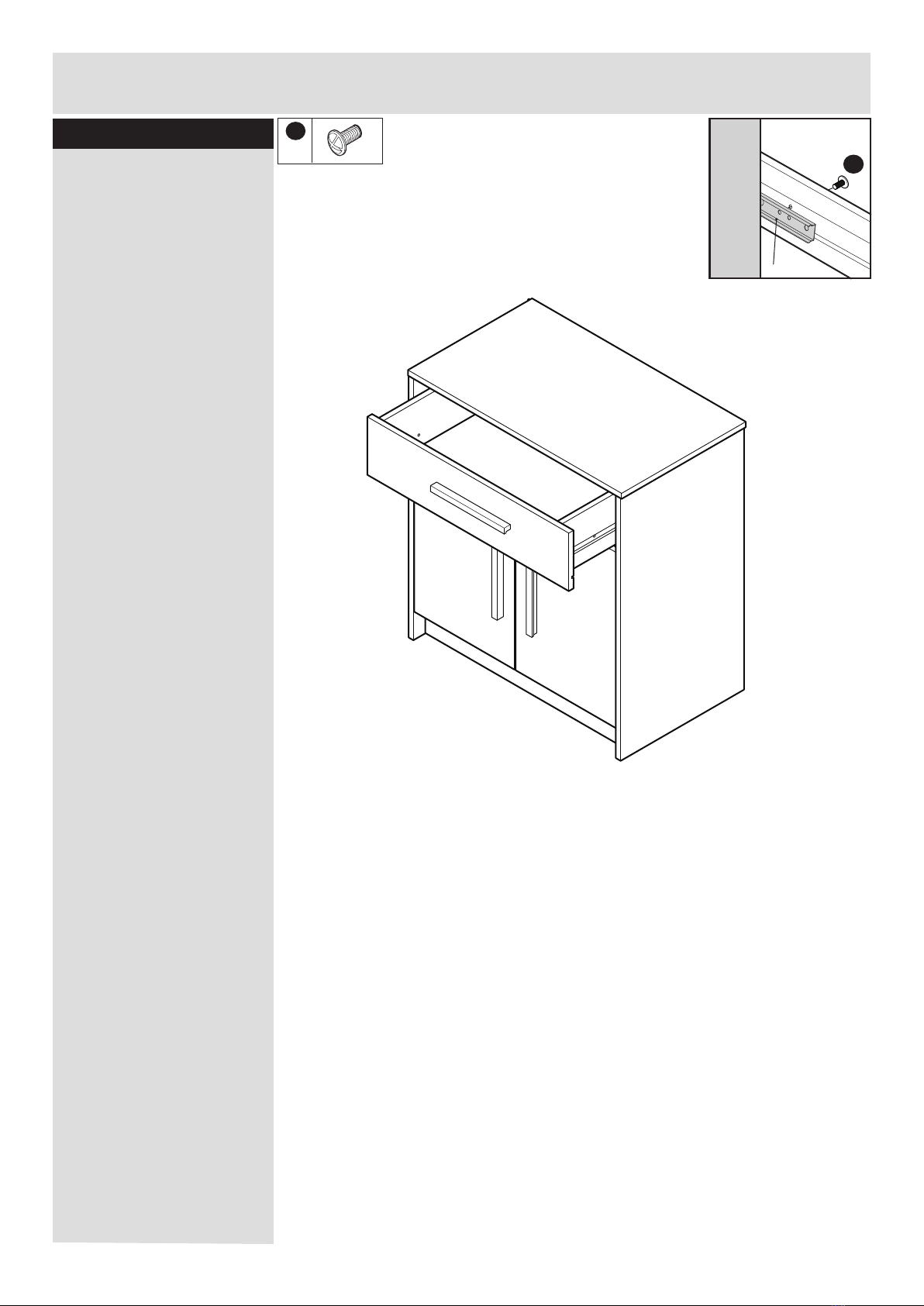

Step 17
J
M
J
D
EF
AB
C
2nd Hole
H
2nd Hole
J
L
L
L
M
J
J
J
J
a: Pull sliding part of
drawer runners out
so they are fully
extended.
Locate drawers helpful
hints
b: Locate drawer onto
runners.
c: Locate screwdriver
into second threaded
hole in drawer runner .
d: Keeping screwdriver
in place push the drawer
in until the screwdriver
pushes against the
panel.
Remove the screwdriver.
e/f: Pull drawer out slowly
and line the front hole in the
drawer side with the 2nd
threaded hole in runner .
Holding runner and
drawer side together
insert bolts through the
drawer side and
into threaded hole in
runner .
J
J
Now repeat these
steps for the other
side of the drawer.

Assembly Instructions
16

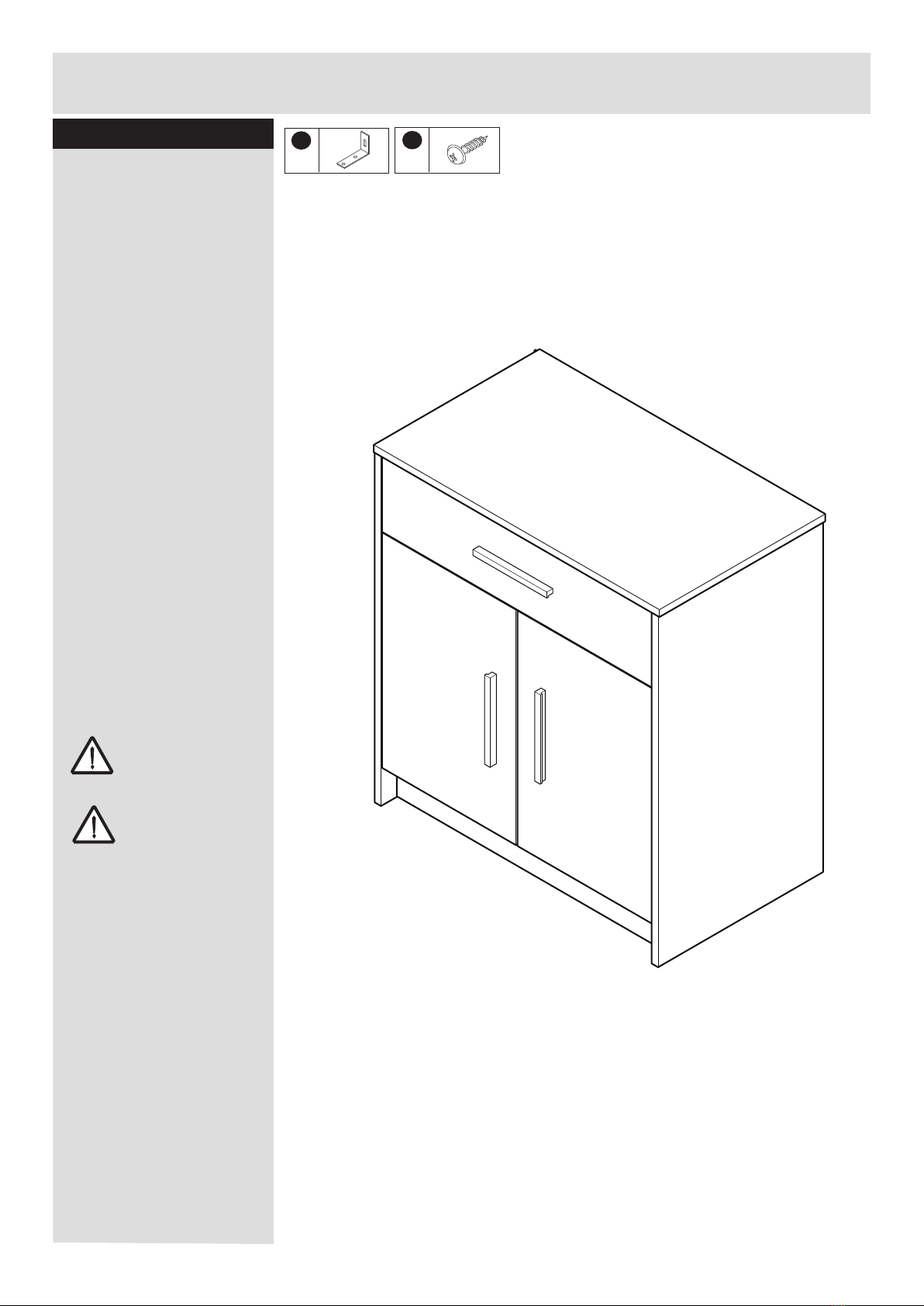

Step 18
We recommend that this
unit is fixed to a suitable
wall to prevent possible
overbalancing. We have
included a fixing bracket
for this. No fixing screws
are provided as they will
need to suit the wall
type, and the length of
screw will depend on
the distance from the
back of the unit to the
wall. Please ensure
fixings used are
appropriate to your wall
type. Locate the bracket
to the top panel or to the
end panel as close to
top as possible. We do
not specify exact
location for the bracket,
this is left to the
customer’s discretion.
Fixing to wall
Please take care when
drilling into the wall,
avoiding any pipes and
wires. Wear safety
goggles when drilling.
The use of residual
current device (RCD) is
recommended when
working with tools.If in
doubt consult a
qualified person.
With help move the
unit into position.
Warning:
2 people required.
Lift with care.
Warning:
N
x1
O
x2

Assembly Instructions
Congratulations! Your unit is complete.
Important Information
If you need help or have damaged or missing parts, call the Customer Helpline:
01709 534123 8am - 4.30pm (Monday toThursday)
8am - 2.30pm (Fridays)
Please have the following information to hand:
>> Unit Description
>> Product Code
>> Product Colour
>> Place of Purchase
>> Catalogue Ref. No.
>> Item Code
>> Assembly Instructions
You can also e-mail your requests to us at:
[e-mail]
Alternatively, you can write to us at: Customer Service Department, Addspace Furniture Limited,
Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, South Yorkshire, S66 8QY.
We do have an answer machine should you contact us out of office hours, so in addition to
the above information could you leave your name, address, daytime telephone number and
the nature of your call on the answerphone. All calls will be actioned asap.
(by contacting the customer service line your statutory rights are not affected)
