Notilo Plus Seasam User manual

Navigator - Cartography
1

Content
I - PREPARING FOR THE OPERATION
●Prepare your equipment
●Download the map
II - SET UP CHOICE AND INSTALLATION
●Choice of set up
●Setup - Navigator Only
○Connecting the battery
○Connection the Navigator to the drone - drone’s side
○Connection the Navigator to the drone - navigator’s side
○Set up the Navigator and the Ground Station
●Setup - Navigator with USBL
○Set up the USBL transmitter and receiver on the Navigator
and drone
○Connecting the battery
○Connection the Navigator to the drone - drone’s side
○Connection the Navigator to the drone - navigator’s side
○Set up the Navigator and the Ground Station
2

Content
III - STARTING UP THE EQUIPMENT
●Starting up the equipment
●Connecting to the Ground Station
●Connection of the controller
●Choice of configuration
●Map Selection
●Set up & Connection - Navigator with USBL
●Checking the connections
●USBL Calibration - Navigator with USBL
IV - USING CARTOGRAPHY
●Cartography interface
●Display the path
●Add a marker
●Waypoint
3

I - PREPARING
FOR THE
OPERATION
4

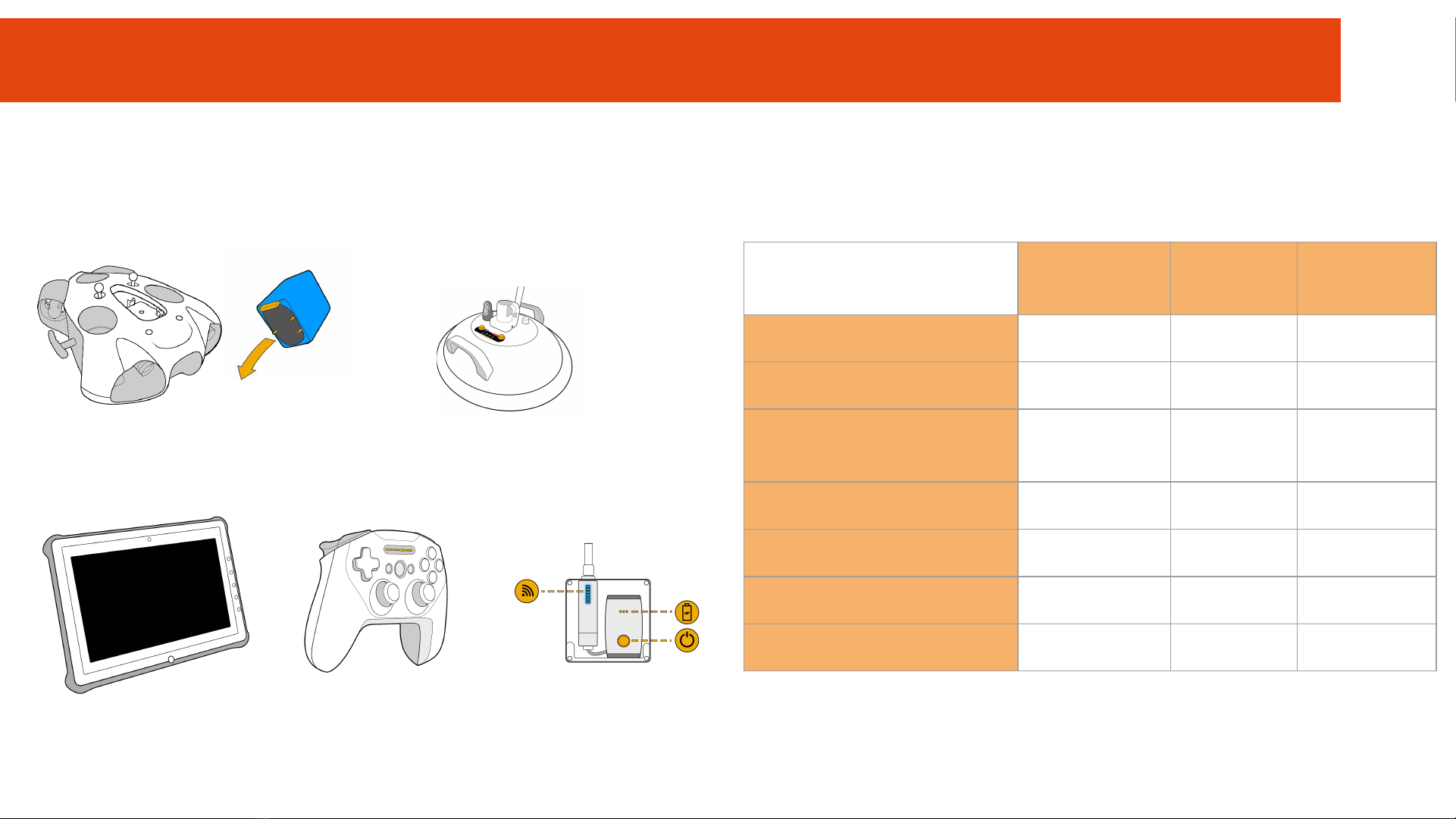

Prepare your equipment
Control Unit Controller
The day before the exploration, charge all devices.
*Require a specific charger
Navigator
Ground Station
Charging
Time
Usage
Time
Waterproof
M Batteries 2,5 hours 1 hours NO
L Batteries 3,5 hours 1,5 hour NO
XL Batteries * Up to 10
hours
4 hours NO
Control unit 3 hours 15 hours NO
Controller 2 hours 14 hours NO
Navigator 2,5 hours 4 hours YES
Ground Station 1,5 hour 3 hours NO
Battery for SEASAM Drone
5
I - PREPARING FOR THE OPERATION
Navigator - Cartography

Prepare your equipment
The day of the operation, verify the check list to avoid forget anything
Main equipment
❏Seasam Drone
❏Battery for the drone
❏Opening tool for battery compartment
❏Navigator and Ground Station
❏Cable to connect the drone to the Navigator
❏2 antennas
❏Controller
❏Control unit
❏Underwater remote control or Magnet to start the drone
❏The USBL if you have them
Additional
❏Grease for the O-ring
❏Towel to dry the drone
❏Allen key for the float/weight for the drone (according to your battery)
I - PREPARING FOR THE OPERATION
6
Navigator - Cartography

Download the map
Before setting up the equipment, you have to download the map on Seasam Control App.
To do so, turn on the control unit and connect it to internet
Open Seasam Control and go directly to the settings
7
I - PREPARING FOR THE OPERATION

Download the map
Access the “Map” settings and select “download a new map”
8
I - PREPARING FOR THE OPERATION

Download the map
The world map open, zoom in as much as possible to the place where you will use the drone then give a name and save the map
9
I - PREPARING FOR THE OPERATION

Download the map
In the maps settings, the map appears in the archived map, select the cloud to download it.
The map in now saved in the “downloaded maps”
10
I - PREPARING FOR THE OPERATION

II - SET UP
CHOICE AND
INSTALLATION
11

You can now prepare your equipment.
With the Navigator you have two choices of set up :
●Navigator Only
○To replace the WiFi Reel
○To use the cartography feature and see the Navigator on
the map
Go to page 12
Choice of set up
II - SET UP CHOICE AND INSTALLATION
12
●Navigator with USBL
○To use the cartography feature and see both the
Navigator and the drone on the map
Go to page 18

II - SET UP CHOICE AND INSTALLATION
13
Setup - Navigator Only
NAVIGATOR ONLY

Make sure the battery compartment is properly closed.
Use the dedicated tool.
Ensure that the emergency stop on the underside of the drone is
properly inserted.
Make sure that the safety guide is aligned in the right direction
14
Connecting the battery
II - SET UP CHOICE AND INSTALLATION
NAVIGATOR ONLY

Connecting the Navigator to the drone - drone’s side
Attach and lock the carabiner on the
drone to secure the Drone
Standard Connector
Subconn Connector
15
II - SET UP CHOICE AND INSTALLATION
NAVIGATOR ONLY

16
Connecting the Navigator to the drone - Navigator’s side
Attach and lock the carabiner on the
Navigator to secure the connection
Connect the cable under the Navigator on the connector with a drone’s image
●Mind the guide on the cap to be sure you place it in the correct position
●Ensure you connect it properly and hear a “click” when you screw the connector otherwise
the water could enter the connector and damage it.
II - SET UP CHOICE AND INSTALLATION
NAVIGATOR ONLY

Screw the two antennas with care on the Navigator and the the Ground Station
Secure the ring while screwing the antennas.
Be sure it is properly screw to ensure good connectivity and avoid losing the antennas.
Your setup is complete you can go to page 25
17
Set up the Navigator and the Ground Station
II - SET UP CHOICE AND INSTALLATION
NAVIGATOR ONLY

II - SET UP CHOICE AND INSTALLATION
18
Setup - Navigator with USBL
NAVIGATOR & USBL

19
II - SET UP CHOICE AND INSTALLATION
NAVIGATOR & USBL
Set up the USBL transmitter and receiver on the Navigator and drone
USBL Transmitter
Connect the USBL transmitter to the cable under the drone
before to place the battery inside the drone.
You can fix the transmitter on the ball’s drone thanks to the
clamp provided.
USBL Receiver
Place the plot of the USBL under the Navigator and secure it.
Connect the cable under the Navigator on the connector with a pinger
sticker.
●Mind the guide on the cap to be sure you place it in the correct
position
●Ensure you connect it properly and hear a “click” when you screw
the connector otherwise the water could enter the connector
and damage it.

Make sure the battery compartment is properly closed.
Use the dedicated tool.
Ensure that the emergency stop on the underside of the drone is
properly inserted.
Make sure that the safety guide is aligned in the right direction
20
Connecting the battery
II - SET UP CHOICE AND INSTALLATION
NAVIGATOR & USBL
