Notilo Plus Seasam User manual
Quick Start Guide Seasam
with OCULUS Camera
December 2022
Content
I - OCULUS CAMERA INSTALLATION
●Installation of the Oculus Camera
II - STARTING UP
●Connecting the battery
●Connecting the WiFi Reel to the drone
●Starting up the equipment
●Connecting to the WiFi Reel
○Delivery after September 2021
○Delivery before September 2021
●Choice of configuration
●Checking the connections
III - SET UP THE APPS
●Set up Seasam Control app to use the Oculus Camera
●Start the Oculus App
●At the end of the exploration
I - OCULUS
CAMERA
INSTALLATION
Installation of the Orphie Camera
I - OCULUS CAMERA INSTALLATION
Required Equipment
●Drone
●Sensor Network or Sensor Hub
●Structure with Oculus Camera
4
Secure the plugs of the connectors together to prevent them
from catching on anything else during operation
The battery must not be connected to the drone during this step.
5
I - OCULUS CAMERA INSTALLATION
Installation of the Oculus Camera
Sensor Network
Connect the Oculus camera to
the Sensor Network by
connecting the camera cable
to the Sensor Network
connector.
Sensor Hub
Connect the sensor hub to the
remote cable from the drone.
The Oculus camera is already
connected to the sensor hub.
Make sure the structure is properly
secured to the drone to prevent it from
moving during operation.
Place the structure on the drone
●Engage the structure on the 2 ball joints of the drone.
●Lower the front of the frame onto the drone.
●Press the red button on the front of the structure
●Engage the structure on the clip previously installed on the drone
6
I - OCULUS CAMERA INSTALLATION
Installation of the Oculus Camera
The battery must not be connected to the drone during this step.
II - STARTING UP
THE DRONE
Connecting the battery
Make sure the battery compartment is properly closed.
Use the dedicated tool.
Ensure that the emergency stop on the underside of the drone is
properly inserted.
Make sure that the safety guide is aligned in the right direction
II - STARTING UP THE DRONE
8
Turn the drone over and place it on the structure.
Be careful not to damage the camera.
Connecting the WiFi reel to the drone
Attach and lock the carabiner on the
structure to secure the Drone
Standard Connector
Subconn Connector
II - STARTING UP THE DRONE
9
Starting up the equipment
Press the "On" button once. After
several seconds the LED flashes
quickly blue
Place the magnet on the "Power" icon on top of the drone.
The drone will turn on and test all its components. It will make
sounds and activate its lights.
Make sure that nothing is in the way and that the motors are
not jammed.
When this process is complete, the green front LED will be solid.
Turn on the controller.
II - STARTING UP THE DRONE
10
Connecting to the WiFi Reel
Delivery after September 2021
Connect the tablet to the WiFI signal of the WiFI Reel.
The wifi network is: "Seasam-WiFiReel-XXXX".
The password is @Notilo+
Continue directly to page 13
II - STARTING UP THE DRONE
11
Delivery before September 2021
The wifi network is: “notilo-beacon-XXXX”
●Connect the tablet to the WiFi network of the drone "Seasam-XXXX".
●In the configuration part choose "Drone".
●Go to the application settings
●Select "WiFi Reel".
●The network name and password are displayed
●Copy the password
●Connect the tablet to the notilo-beacon-XXX WiFi network
II - STARTING UP THE DRONE
Connecting to the WiFi Reel
12
Choice of configuration
Start Seasam Control or select "Choice of Configuration" if you have already opened the application.
In the configuration menu, select "Basic".
II - STARTING UP THE DRONE
13
Check that the indicated steps have been completed and select "Next".
Checking the connections
II - STARTING UP THE DRONE
14

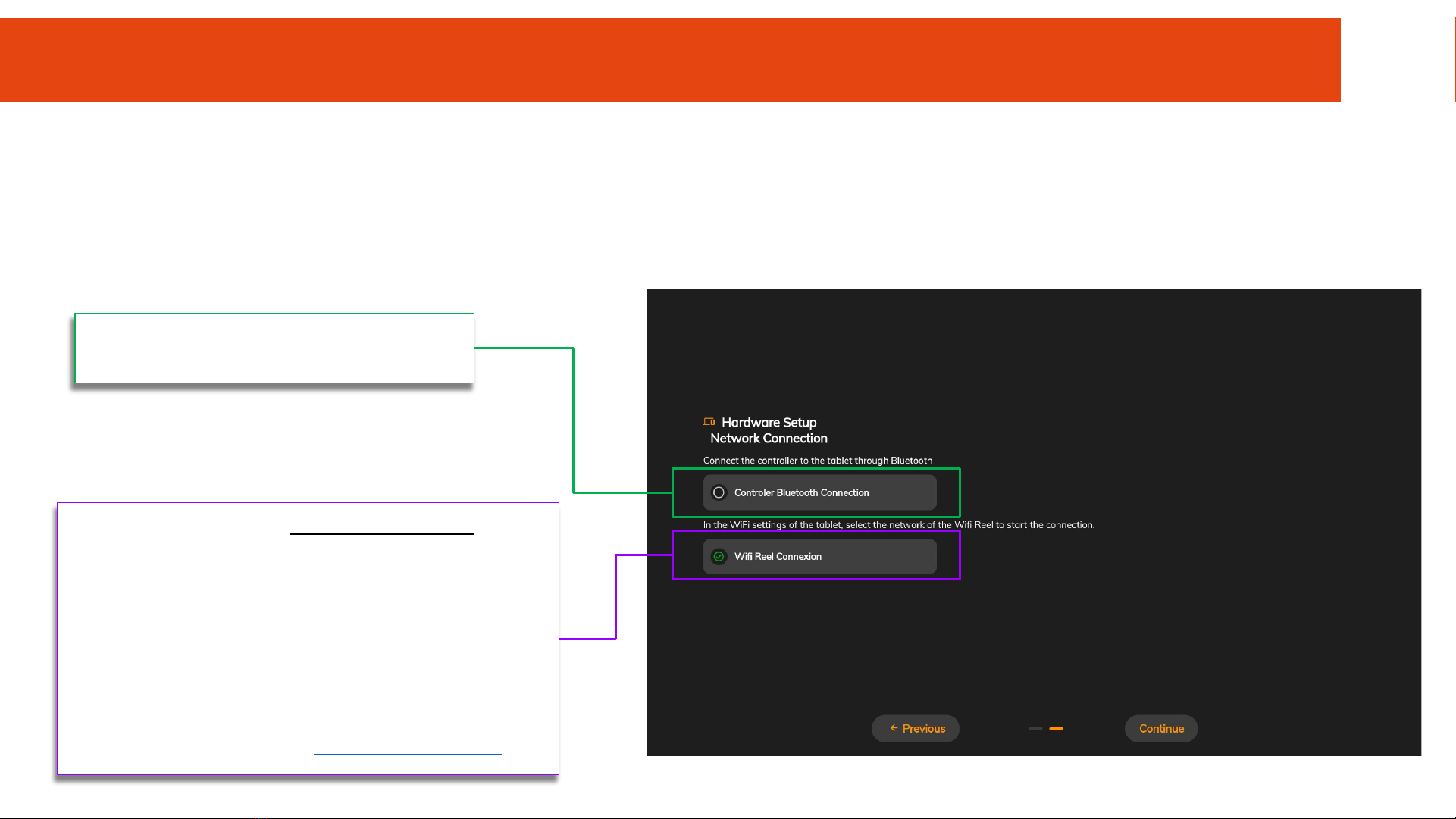

Checking the connections
This screen checks that all the equipment is connected correctly.
Once both connections are checked, click on "Continue" to access the control screen.
Move a joystick on the controller to have the
connection checked.
The system checks that the drone AND the WiFi Reel are
switched on and physically connected together.
If the green tick takes a long time to appear :
- Wait a few seconds
- Check the physical connections
- Make sure the drone is turned on
- Make sure the tablet is connected to the WiFi reel
network
- Go back to the previous page and press "Next" again
If the problem persists contact [email protected]
II - STARTING UP THE DRONE
15
III - SET UP THE
APPS
Set up Seasam Control app to use the Oculus Camera
Access the settings
17
III - SET UP THE APPS
Select “Sensors” and “turn on”
18
III - SET UP THE APPS
Set up Seasam Control app to use the Oculus Camera
At the end of the exploration
Turn o the drone Remove the battery Disconnect the ExploCam from the remote cable
of your drone
Always turn o the drone and remove
the battery BEFORE disconnecting the
Oculus camera or the Sensor Hub cable
and your drone.
20
III - USING SEASAM WITH THE ORPHIE CAMERA
