Nova NEBULA 55600 User manual

OPERATION MANUAL

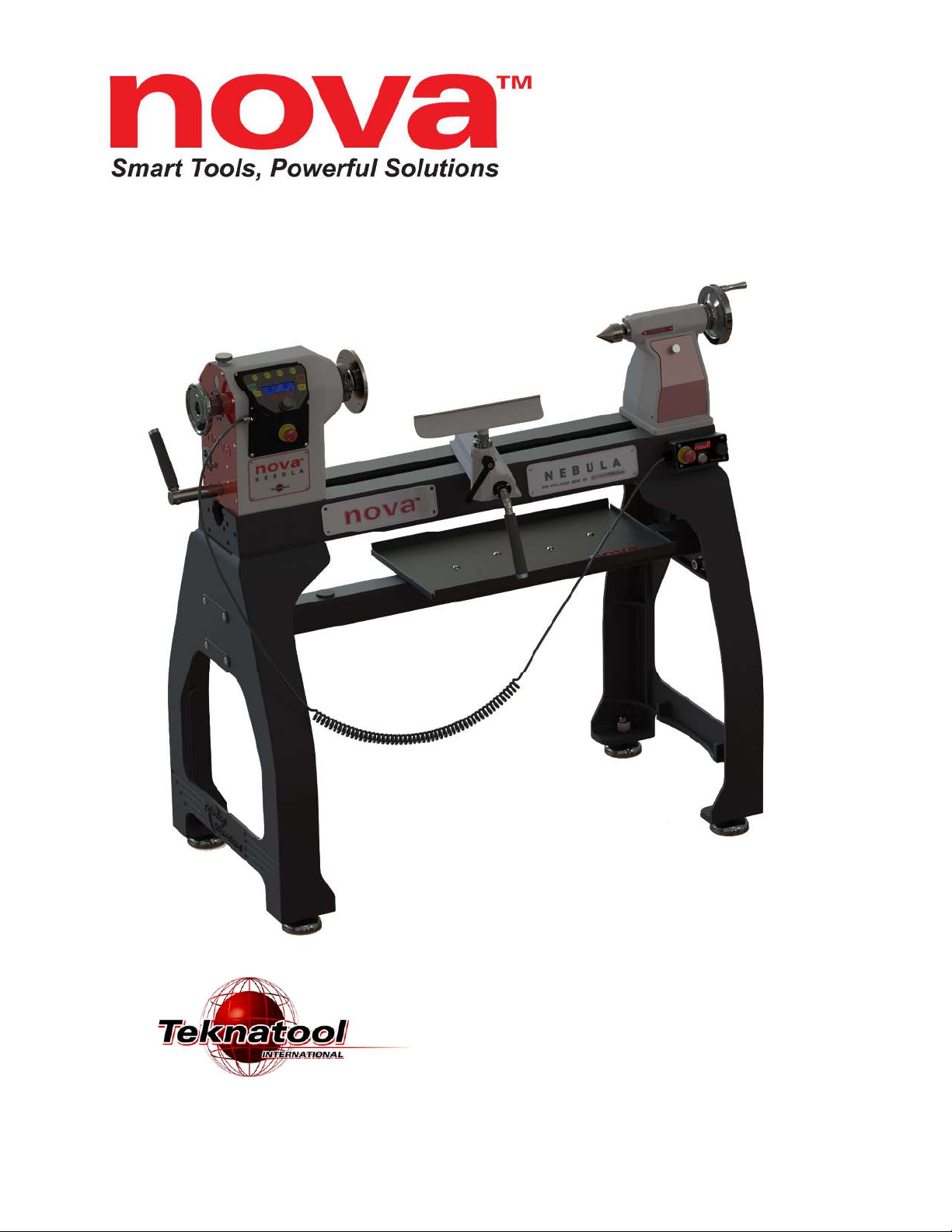

NEBULA 18” DVR LATHE™
Models:
55600 – USA
55601 – AUS/ NZ
55602 – UK
55603 – EU

2
128-0521-002
WELCOME:
Thank you for choosing the NOVA NEBULA 18” DVR Lathe and welcome to the NOVA product family. Your choice
shows that you want the best for your woodturning and you recognize the superb DVR drive technology
powered by STRIATECH and the host of other unique features the NOVA NEBULA Lathe has to offer.
We strive to achieve the best value for your money – providing quality, innovative features, a wide range of
accessories – plus comprehensive, ongoing support (latest manuals downloadable from our website,
newsletters, projects, etc.). We are only a phone call or email away with technical advice or assistance on the
operation of your lathe or your woodturning queries.
Please feel free to contact us about any aspect of our products or service – we regard our customers as our best
development and improvement team – we would love to hear from you!
Once again, welcome to the “NOVA Family.” We trust that you enjoy our products and hope they enhance the
pleasure you experience from the wonderful craft of woodturning!
Best Regards,
Brian Latimer
Marketing Director Teknatool International Ltd
Contact
Teknatool International Ltd
Phone: [phone]
Teknatool USA
Phone: [phone]
Customer Solutions
For all worldwide Inquiries, Repairs or Services (issues must be in writing)
Email: [email protected]
Or you can contact the retailer where you purchased your NOVA Nebula 18” DVR Lathe, for contact details
please see our website www.teknatool.com

3
128-0521-002
Table of Contents
Contact .................................................................................................................................................................................... 2
Table of Contents ................................................................................................................................................................... 3
1.General Safety Rules ........................................................................................................................................................... 5
2.NOVA Nebula 18” DVR Lathe Features & Specification ..................................................................................................... 6

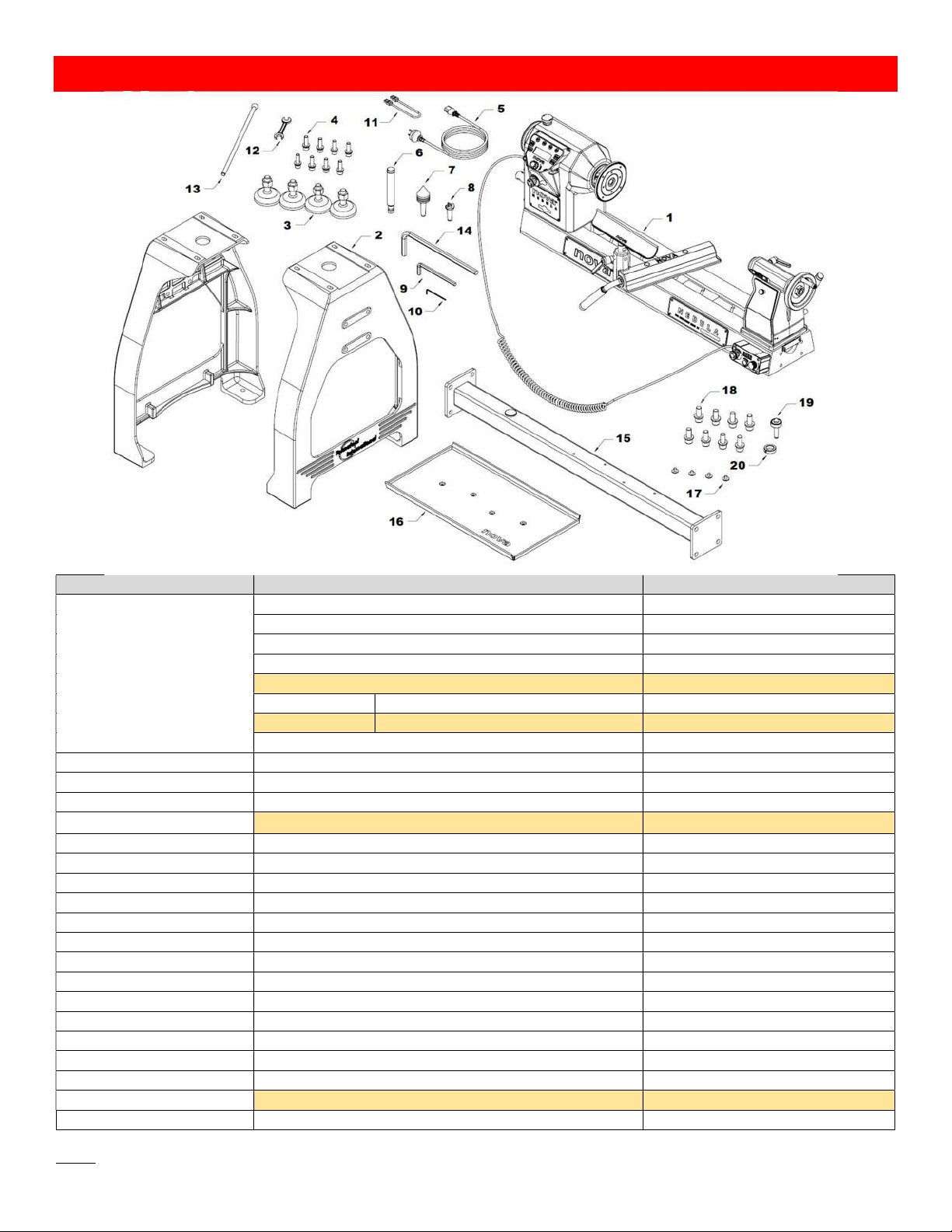

3.Shipping Contents ............................................................................................................................................................... 8
4.Setup and Assembling the Lathe ........................................................................................................................................ 9
4.1 Unpacking and Preparing the Lathe ................................................................................................................ 10

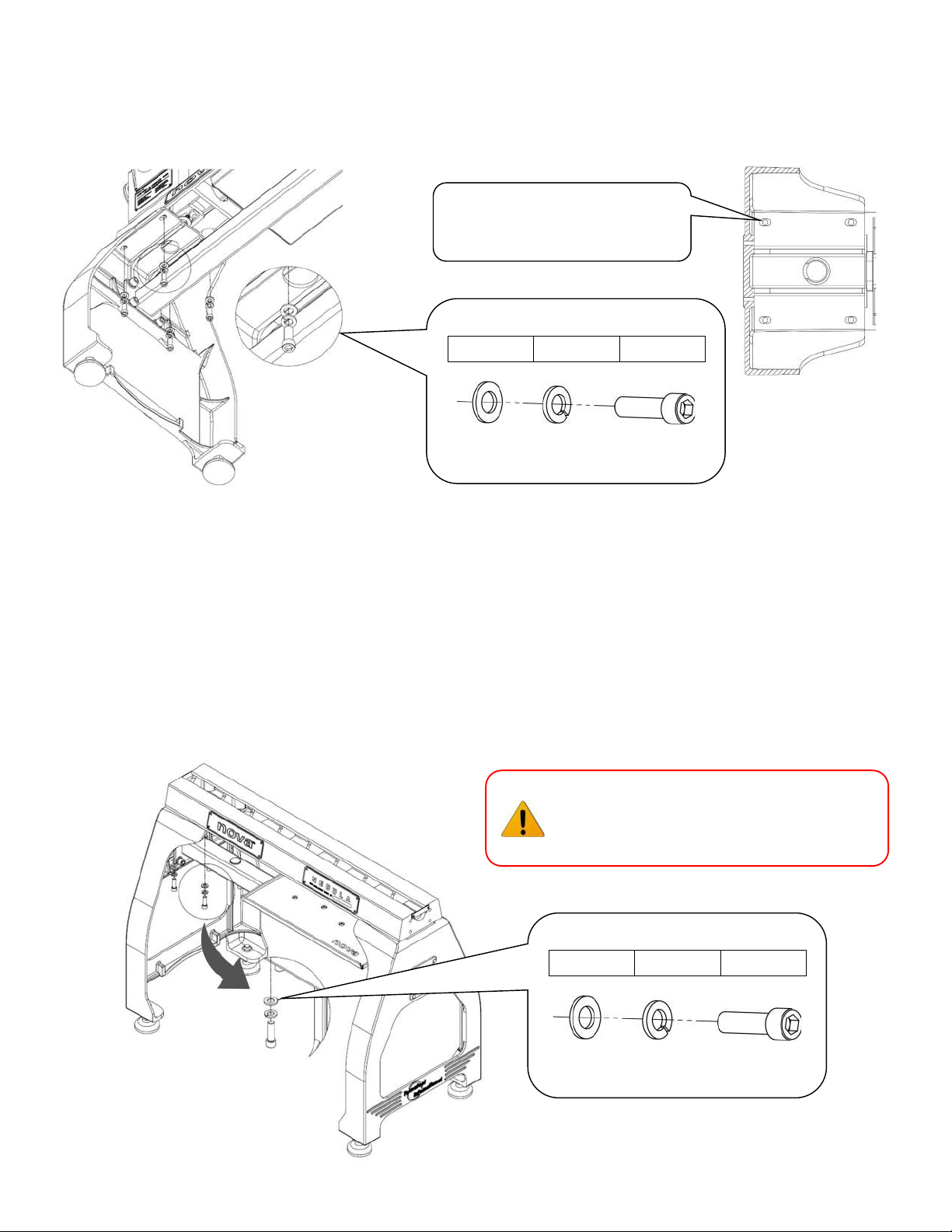

4.2 Installing Stand and Beam Set ........................................................................................................................ 10

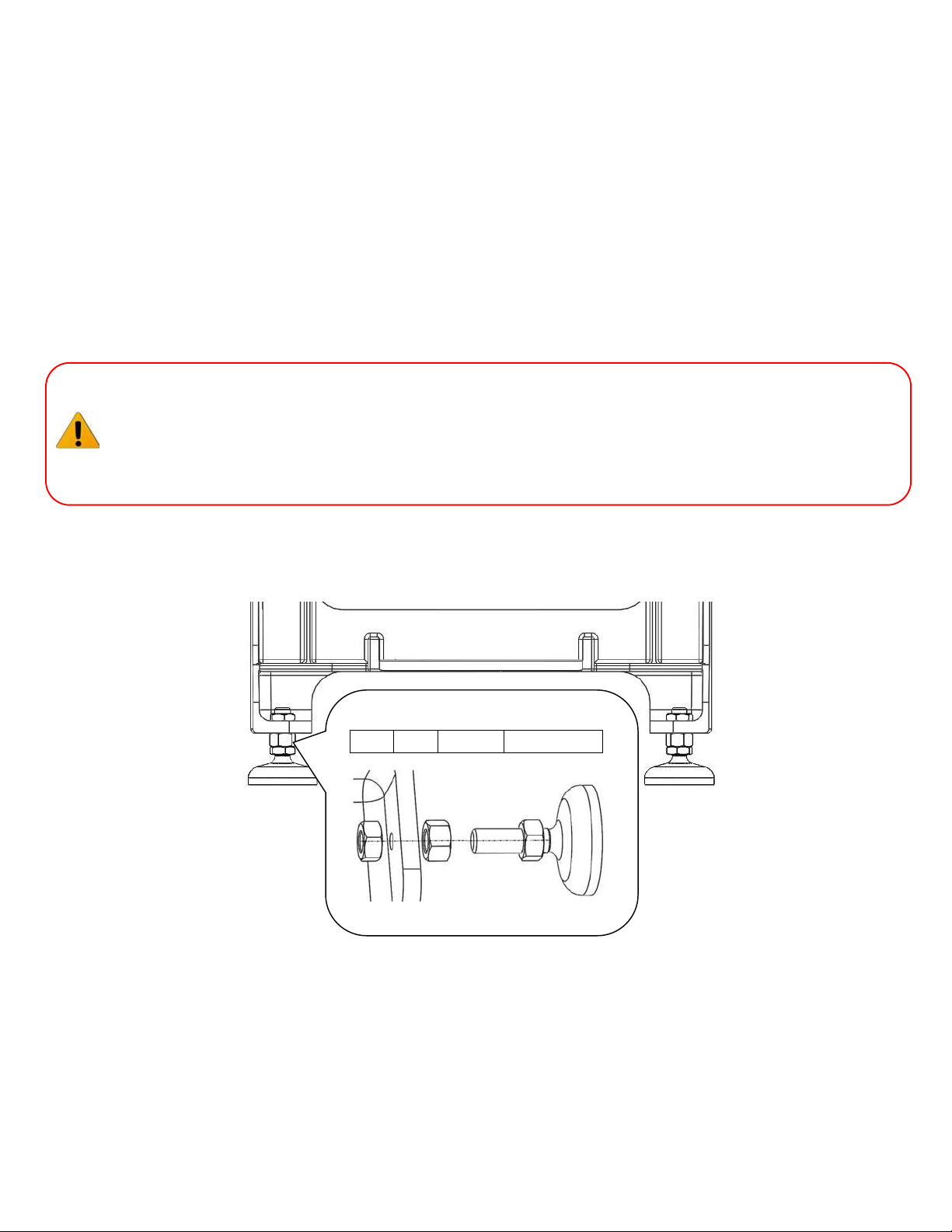

4.2.1 Lifting Mechanisms Method ............................................................................................................................................. 12
4.2.2 Manual Lifting Method .............................................................................................................................................. 12
4.3 Positioning the Headstock on the Bed ............................................................................................................ 14
4.4 Toolrest ......................................................................................................................................................... 15
4.5 Tailstock ........................................................................................................................................................ 15

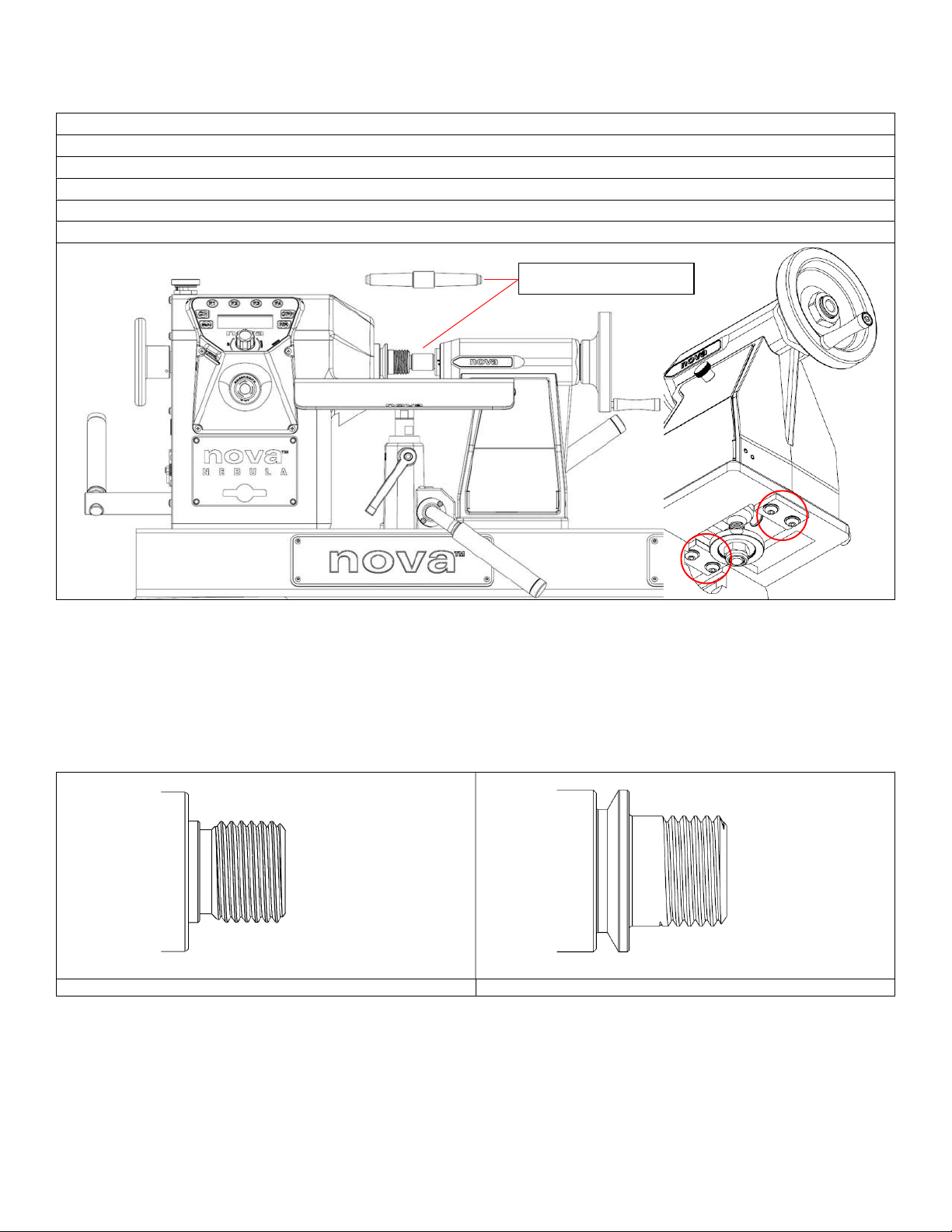

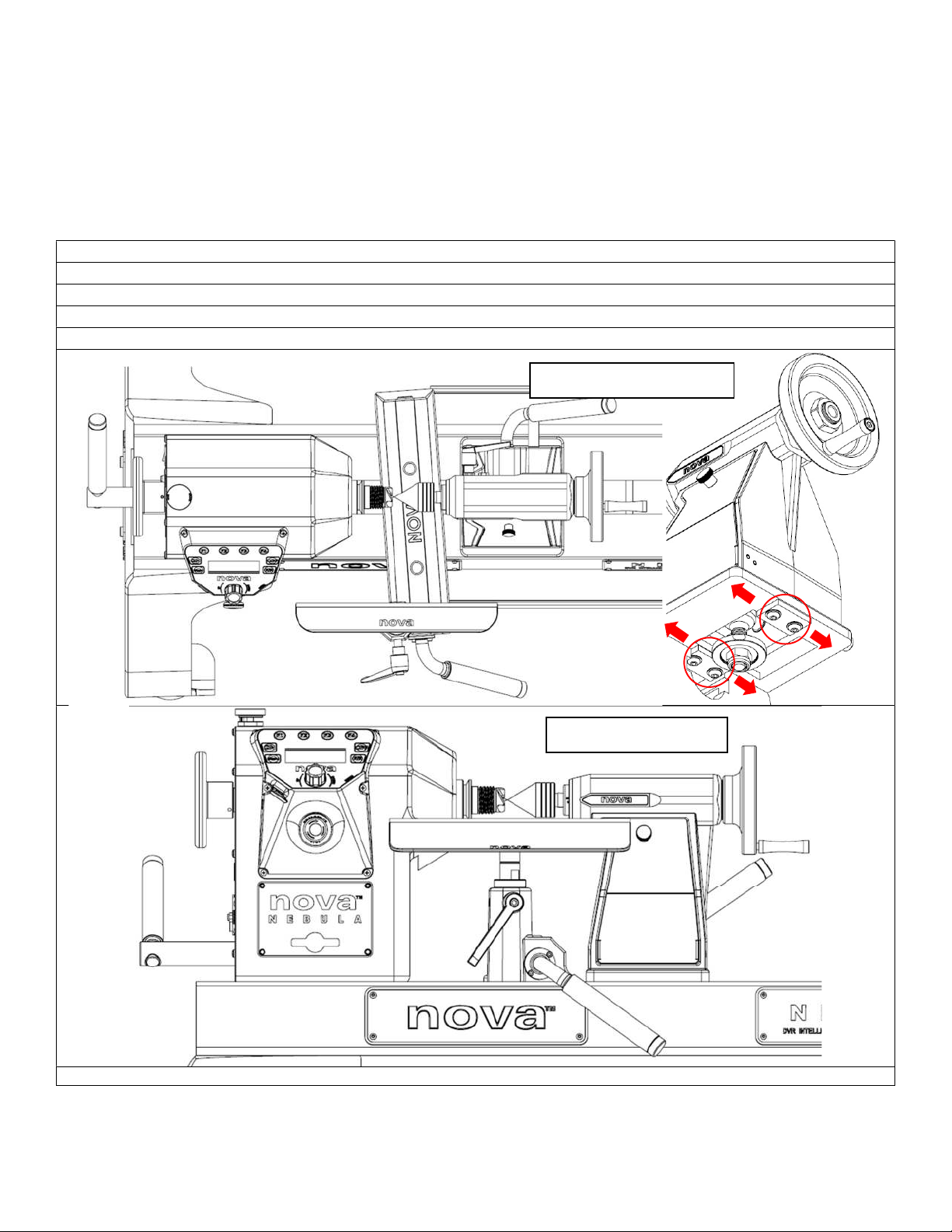

4.6 Lathe Alignment ............................................................................................................................................ 16
4.7 Mounting a Faceplate or a Chuck .................................................................................................................... 17
4.7.1 Mounting on the Standard Version Spindle ..................................................................................................................... 18

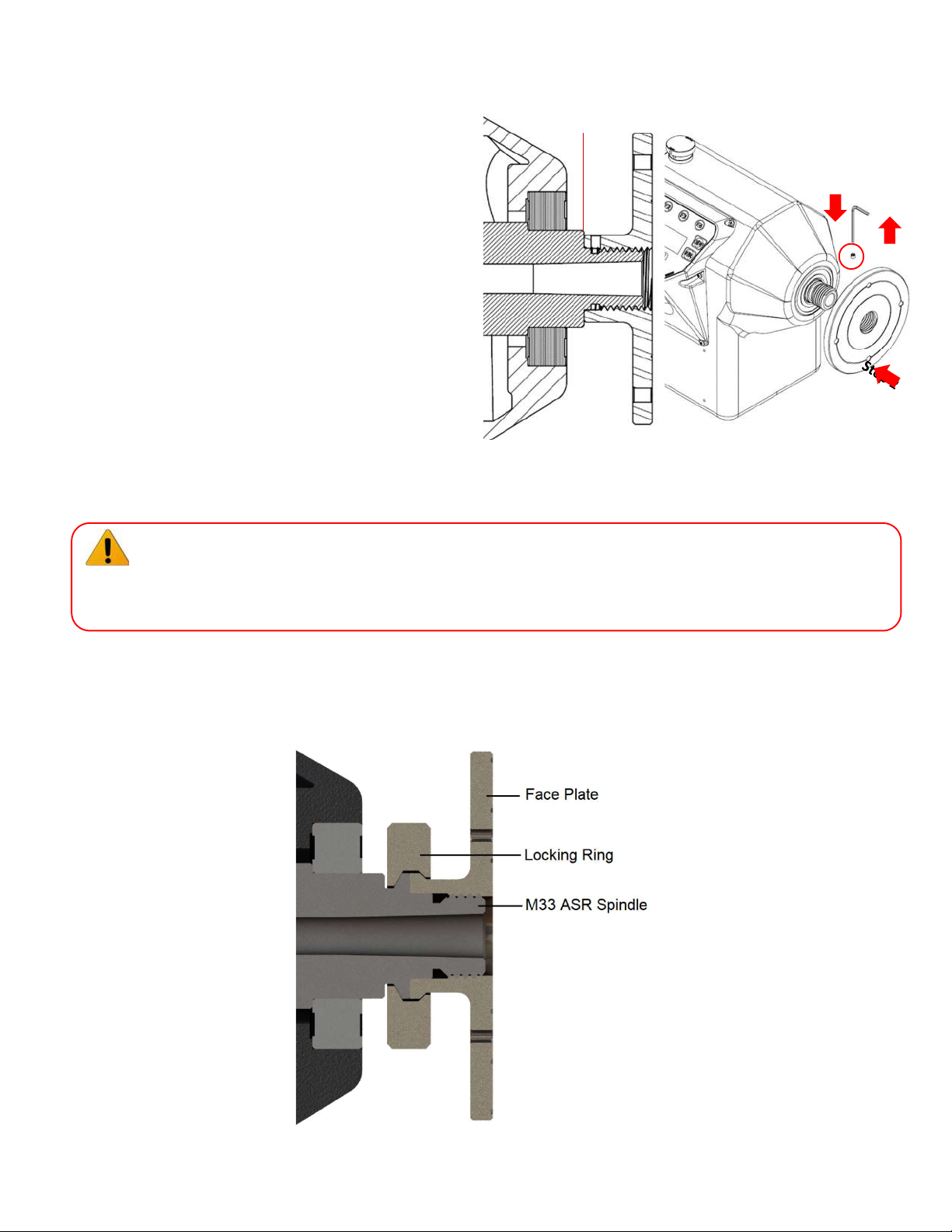

4.7.2 Mounting on the Euro ASR version spindle ...................................................................................................................... 18
5. Connecting to Power ........................................................................................................................................................ 20
5.1 Ground Fault Interrupters (GFI) ...................................................................................................................... 21

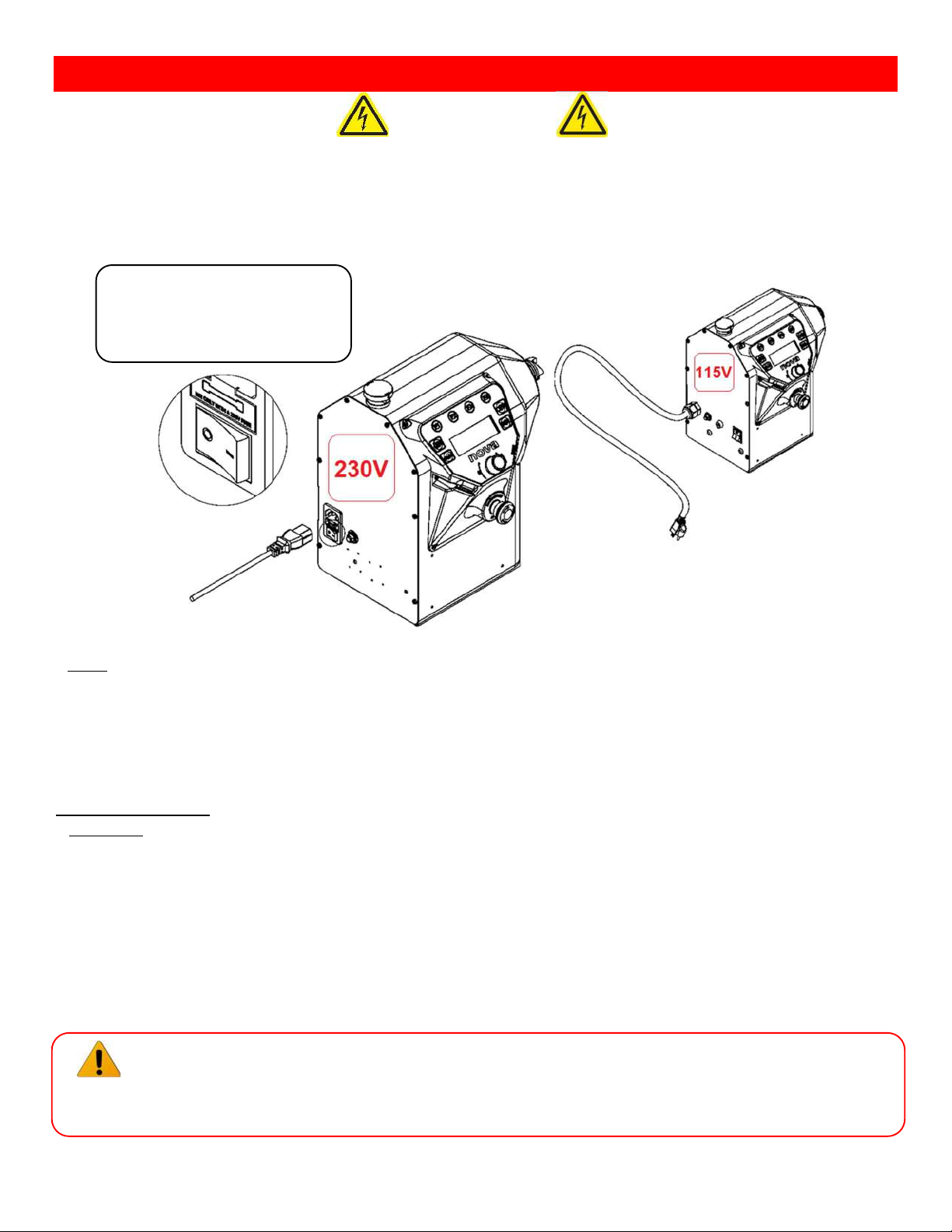

5.2 Input Voltage Selection .................................................................................................................................. 21
6. Lathe Operation on HMI Panel - Human Machine Interface Panel ................................................................................ 22
6.1 Keypad Definition on HMI Panel ..................................................................................................................... 22
6.2 Start-up ......................................................................................................................................................... 23
6.3 To Run the Lathe ............................................................................................................................................ 23
6.4 To Stop the Lathe ........................................................................................................................................... 24
6.4.1 Normal Stop. ..................................................................................................................................................................... 24
6.4.2 EMS Stop ........................................................................................................................................................................... 24
6.5 Forward/Reverse selection ............................................................................................................................ 25
6.6 Speed Control ................................................................................................................................................ 25
6.6.1 Fine/Coarse Speed adjustment by Speed Knob ................................................................................................................ 25
6.6.2 Pre-set Programmable Favourite Speed Function ............................................................................................................ 26
6.6.3 Speed adjustment by Speed Chart ................................................................................................................................... 26
6.6.4 Pre-set Speed by Input Set Speed ..................................................................................................................................... 26
6.7 Advanced Functions in <Menu> ...................................................................................................................... 27
6.7.1 Speed Chart ...................................................................................................................................................................... 28
6.7.2 Input Set Speed ................................................................................................................................................................. 28
6.7.3 Edit Favourite Speed ......................................................................................................................................................... 29
6.7.4 Profile ............................................................................................................................................................................... 29
6.7.5 Customize F Keys .............................................................................................................................................................. 30
6.7.6 Lathe Settings ................................................................................................................................................................... 31
6.7.7 Wireless Remote ............................................................................................................................................................... 32
6.7.8 Motor Parameters ............................................................................................................................................................ 32
6.7.9 Password Lock .................................................................................................................................................................. 33
6.7.10 Firmware Upgrade .......................................................................................................................................................... 34
6.7.11 Version Info .................................................................................................................................................................... 34
7. Maintenance ..................................................................................................................................................................... 35
8. Troubleshooting ............................................................................................................................................................... 36

4
128-0521-002
9. Teknatool Warranty ......................................................................................................................................................... 38
10. NOVA Nebula Lathe Breakdown .................................................................................................................................... 39
11. NOVA Nebula Lathe Parts List ........................................................................................................................................ 44
12. NOVA Nebula Wiring Diagram ....................................................................................................................................... 46

5
128-0521-002
1.General Safety Rules
WARNING
Failure to follow these rules may result in serious personal injury or death.
 IMPORTANT: Before switching the lathe on, ALWAYS check the machine for the correct setting and speed
1. BEFORE OPERATING THE TOOL READ THE
MANUAL! Learn the machine’s application and
limitations, plus the specific hazards particular to it.
2. ALWAYS USE SAFETY GLASSES (must be ANSI
approved) Everyday eyeglasses usually are only impact
resistant and safety glasses only protect eyes. A full-face
shield will protect the eyes and face. Also use face or dust
mask if sanding operation is dusty.
3. WEAR PROPER APPAREL. Do not wear loose clothing,
gloves, neckties, rings, bracelets or other jewelry which
may get caught in moving parts. Nonslip footwear is
recommended. Wear protective hair covering to contain
long hair.
4. USE EAR PROTECTORS. Use earmuffs for extended
period of operation. Use muffs rated to 103 DBA LEQ (8
hour).
5. DO NOT USE IN DANGEROUS ENVIRONMENT. Do
not use power tools in damp or wet locations or expose
them to rain. Keep work area well lighted. The NOVA
NEBULA is intended for indoor use only. Failure to do so
may void the warranty.
14. KEEP GUARDS IN PLACE and in working order.
15. USE CORRECT TOOLS. Do not use a tool or attachment to
do a job for which it was not designed.
16. USE RECOMMENDED NOVA ACCESSORIES. The use of
improper accessories may cause hazards.
17. DO NOT FORCE THE TOOL. It will do the job better and be
safer at the rate for which it was designed.
18. MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp
and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
19. NEVER STAND ON TOOL. Serious injury could occur if the
tool is tipped or if the cutting tool is accidentally contacted.
20. REMOVE ADJUSTING KEYS AND WRENCHES. Form a
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
21. DO NOT OVERREACH. Keep proper footing and balance at
all times.
22. DIRECTION OF FEED. Mind the direction of
spindle/chuck/work to ensure a safe environment.
23. PAY ATTENTION TO WORK. Concentrate on your work. If
you become tired or frustrated, leave it for a while and rest.
24. SECURE WORK. Use clamps or a vice to hold work when
practical. Severe injury or death can occur if an object comes
free as it can become a dangerous projectile.
25. CHECK DAMAGED PARTS. Before further use of the tool,
any part that is damaged should be carefully checked to
ensure that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of
moving parts, mounting, and any other conditions that may
affect its operation. Any damaged part should be properly
repaired or replaced.
26. DRUGS, ALCOHOL, MEDICATION. Do not operate
machine while under the influence of drugs, alcohol, or any
medication.
27. DUST WARNING. The dust generated by certain woods
and wood products can be harmful to your health. Always
operate machinery in well-ventilated areas and provide
means for proper dust removal. Use wood dust collection
systems whenever possible.
28. DO NOT MODIFY OR USE THE LATHE FOR USES
OTHER THAN FOR WHICH IT WAS DESIGNED.
29. CALIFORNIA PROPOSITION 65 – SEE PAGE 39
6. KEEP WORK AREA CLEAN. Cluttered areas/benches
invite accidents. Build-up of sawdust is a fire hazard.
7. KEEP CHILDREN AND VISITORS AWAY. The NOVA
NEBULA is not recommended for children and ailing
persons. Such personnel and onlookers should be kept a
safe distance from work area.
8. MAKE WORKSHOP CHILDPROOF with locks, master
switches, or by removing starter keys.
9. GROUND ALL TOOLS. If the tool is equipped with a
three-prong plug, it should be plugged into a three-hole
electrical receptacle. If an adapter is used to
accommodate a two-prong receptacle, the adapter plug
must be attached to a known ground. Never remove the
third prong and add surge protection.
10. MAKE SURE TOOL IS DISCONNECTED FROM POWER
SOURCE whilst in service/maintenance mode.
11. DISCONNECT TOOLS FROM WALL SOCKET before
servicing and when changing accessories such as bits,
cutters, fuses, etc.
12. AVOID ACCIDENTAL STARTING. Make sure switch is in
the “Off” position before plugging in power cord.
13. NEVER LEAVE MACHINE RUNNING UNATTENDED.
Do not leave machine unless it is turned off and has come
to a complete stop.

6
128-0521-002
2.NOVA Nebula 18” DVR Lathe Features & Specification
Feature Name Description
DIGITAL VARIABLE RELUCTANCE
(DVR) ELECTRONIC DRIVE
The DVR motor uses smart motor technology to provide an incredibly smooth and
powerful drive. The controller constantly monitors the spindle position and
maintains optimal spindle speed. Additional power is added as it senses extra load
from the tool.
POWER TO TURN AND BURN
220~240V / 10A 1.
8
KW (2.
5
HP)
110-120V / 15A 1.5KW (2.0HP) *
*For 110V / 15A, the motor power is derated to 2.0 HP by current limit in
software. To get 2.5HP, the input power is required change to 220V/10A or using
dual 110V input.
Slidable 360° SWIVEL
HEADSTOCK
Slid
able
headstock
Lock at any position, plus detent locating positions at 0°, 22.5°, 45° and 90°.
High accuracy and easy swivel
SOLID BED STRUCTURE CAD designed webbing to absorb vibration throughout the bed length.
Exceptional structural strength.
8 FAVOURITE SPEED FUNCTION
Program your favourite speeds for faster and more efficient project set ups
FLEXIBLE CAPACITY TO MATCH
YOUR PROJECT
- 18" / 457mm Capacity Over Bed
- 35" / 889mm Capacity Outboard (with optional outrigger accessory)
- 25”/ 640 mm Between Centres
SAFETY SENSING FEATURE
It senses faults in the setup and advises of safety issues - such as chisel dig in and
spindle lock. It then instantly shuts down power to the spindle.
ENERGY EFFICIENT
Intelligent (computer controlled) motor only draws as much power as it needs for
the application
INCREDIBLE VARIABLE SPEED
RANGE
50 RPM - 4,000 RPM
WARRANTY
* 5 Year Warranty on Parts and Components
* 2 Year Warranty on Motor and Electronics
* Restrictions apply

7
128-0521-002
Lathe Specifications
Metric Imperial
Swing Over Bed 457.2mm 18”
Distance Between Centres 640 mm 25”
Overall Size
1200mm (L) x 600mm (w) x 1250mm(H) 47.2” (L) x 23.6” (w) x 49.2” (H)
Package Size
1280mm (L) x 550mm (w) x 737mm (H) 50.4” (L) x 21.7” (w) x 28.9” (H)
Net Weight 206 Kg ± 2 Kg 454.2 lb ± 4.4 lb
Gross Weight 241 Kg ± 2 Kg 531.3 lb ± 4.4 lb
Headstock
Spindle Thread M33 x 3.5 RH* 1.25” x 8TPI
Headstock Spindle Taper Morse Taper #2 (MT2)
Headstock Swivel 360° With detent positions at: -45°, 0°, 22.5°, 45°, 90°, 180°
Headstock Slidable Sliding Headstock
Spindle Index 24 divisions (15 degrees apart)
Tailstock
Quill Taper Morse Taper #2 (MT2)
Quill Travel 120mm 4.7”
Hole Through Tailstock 12.5mm 0.48”
Tool Rest
Length 300mm 12”
Shaft Diameter 25.4mm 1”
Motor Specifications
Motor Type DVR Direct Drive Smart Motor
Motor Speed Range 50 RPM ~ 4000 RPM
Input Frequency 50/60 Hz
Motor Power Output 1.5KW (2.0HP) * 1.8KW (2.5HP)
Input Voltage 110~120V 220~240V
Input Current 15A (max) 10A (max)
* M33 x 3.5 RH thread spindle only available in European models. All other market models will have the
1.25inch x 8 TPI spindle.
* For 110V / 15A, the motor power is derated to 2.0 HP by current limit in software. To get 2.5HP at 110V, the
input power is required change to 220-240V /10A or using dual 110V input.
For Europe, Australasia, UK and South Africa
Directives this equipment complies with:
Low voltage directive (LVD) 73/23/EEC + 93/68/EEC+2006/95/EC
Machinery directive (MD) 89/392/EEC + 91/368 EEC + 93/68/EEC+2006/42/EC
Electromagnetic compatibility directive (EMCD) 89/336/EEC + 92/31/EEC + 93/68/EEC+2004/108/EC
Harmonized Standards applied in order to verify compliance with Directives: EN 61029-1:2009
Low Voltage Directive and Machinery Directive
EN 55014-1:2007
EN 55014-2:2009
EN 61000-3-2:Ed3 2006
EN 61000-3-3:1995 A1 + A2

8
128-0521-002
3.Shipping Contents
ITEM NUMBERS DESCRIPTION SKU
1
Headstock Assembly (+HMI) 5569002 + 5569008+5699005
Tool slide Assembly 5569004
Tailstock Assembly 5569003
Main Bed 5569013
Euro Locking Ring* 5569039
1 ¼ Model 6” (150mm) Face Plate FP150L
M33 Model ASR Faceplate (150mm) * 5569033
Remote controller 5569006
2 Lathe stand 5699018
3 Feet 5569061
4 Stand Mounting Bolts and washer sets C1240/SW12/FW12
5 220V Market Power Lead* 55106/55090/55063/55112
6 Headstock Camshaft Handle assembly 5569067
7 Heavy Duty 2MT Live Centre 4718069
8 2MT Spur Centre 2MTSPUR
9 10mm Allen Key AK10
10 3mm Allen Key AK3
11 USB A-A Cable 8379059
12 Open end Wrench 5569074
13 Operating Bar 5699033
14 14mm Allen Key AK16
15 Beam member and Beam cap 5569084/5569090
16 Tray set 5569085/5569086
17 Tray Mounting Bolts and Washer sets SBHCS0814/5569089/FW08
18 Beam Mounting Bolts and Washer sets C1640/SW16/FW16
19 2MT Live Centre* 2MTLC
20 Collars set 27007
Note: Only Euro model includes the Euro Locking Ring, ASR Faceplate and 2MT Live centre.

9
128-0521-002
4.Setup and Assembling the Lathe
Workshop Environment
Your workshop should set up appropriately for you to effectively use the lathe. The workshop should be setup with
the following factors taken into consideration:
1. Lathe location
Locate the NOVA Nebula lathe close to a power source in an area with good amount of lighting.
Leave enough clearance when the lathe headstock is swiveled around. Other machines in the
workshop should not interfere with the movement/operation of the lathe.
2. Lighting
The workshop should have adequate lighting. There should be enough lighting around the lathe
not to cast shadows upon the workpiece. A portable spotlight might be helpful.
3. Electrical
The NOVA Nebula lathe requires an appropriate power outlet nearby to power the motor. The
outlet wiring must meet the local electrical safety standards. If in any doubt, seek advice from
an electrician. The length of an extension cable should be reduced as must as possible.
4. Ventilation
Workshop must have an adequate level of ventilation. The level of required ventilation depends
on the size of the workshop and the amount of work that is done within the workshop. The use
of dust collectors and filters will minimize your health risk.

10
128-0521-002
4.1 Unpacking and Preparing the Lathe
1. Remove all smaller items from main carton. Do not discard carton or packing material until the lathe is assembled and
running satisfactorily.
2. Inspect contents for shipping damage; if any is found, report it to your distributor.
3. Compare contents of shipping carton with the contents list in this manual. Report shortages, if any, to your
distributor. Note: Check lathe first – some parts may have been pre-installed.
4. Exposed metal areas of the Lathe, such as bed ways and spindles, have been factory coated with a protectant. This
should be removed with a soft cloth and a cleaner degreaser. Clean the bed areas under headstock, tailstock and tool
support base. Do not use an abrasive pad, and do not allow solvents to contact painted or plastic areas.
WARNING! Seek help when moving the NOVA NEBULA DVR 1825 lathe and its heavier components to help avoid
risk of injury. Use straps in good condition. Straps/lifting mechanisms must be properly rated for lathe weight.
Read and understand the contents of this manual and recommended procedures before attempting to assemble
or operate the Lathe or its parts.
DO NOT CONNECT POWER ON LATHE UNTIL FULLY ASSEMBLED.
4.2 Installing Stand and Beam Set
1. Install adjustable feet into the bottom of legs (Figure above) and tighten the hex nut against leg casting. The feet
can be adjusted later.
ASSEMBLY NOTE
Lock
NUT
Stand Adjustable
NUT
Feet
Repeat for all 2 bolt holes on Stand

11
128-0521-002
2. Install Beam member between Stands (Figure above) and tighten the Bolts against beam mounting surface.
3. Position Tray onto Beam and secure with screws and washers
(Figure above) using 6mm Allen key.
4. * Optional additional weight (Quartz sand) in the stabilizing
beam, not included. (Figure right)
ASSEMBLY NOTE
Washer Tray Spring
Washer
Bolt
Repeat for all 4 bolt holes on Beam
ASSEMBLY NOTE
Washer Spring
Washer
Bolt
Repeat for all 8 bolt holes on Stand
Additional Weight
Quartz Sand

12
128-0521-002
4.2.1 Lifting Mechanisms Method
1. Position straps around lathe bed.
IMPORTANT: Do not place straps around spindle, near levers, knobs or other parts that can be damaged when lifting.
2. Position lathe onto stand and secure with screws and washers (Figure above) using 10mm Allan key.
3. Tighten screws firmly. Rotate adjustable nut on feet as needed to establish level for the lathe. Tighten locking nuts
on each foot against adjustable nut and leg casting.
4.2.2 Manual Lifting Method
1. For easier lifting of heavy components, take apart walls of shipping container, remove Phillips head screws and
stop plates at ends of bed, and slide headstock, tool rest, and tailstock off bed before lifting bed from container.
2. Attach bed to Stand set and secure with screws and washers using 10mm Allan key.
4. Tighten screws firmly. Rotate adjustable nut on feet as needed to establish level for the lathe. Tighten locking nuts
on each foot against adjustable nut and leg casting.
CAUTION! Seek help when moving the heavier
components (Stand, Bed and Headstock) to help
avoid risk of injury.
ASSEMBLY NOTE
Washer Spring
Washer
Bolt
Repeat for all 8 bolt holes on bed
ASSEMBLY NOTE
Washer Spring
Washer
Bolt
Repeat for all 8 bolt holes on bed
Align the lathe bed mounting holes
with the slots on the stand legs
before inserting the bolts.

13
128-0521-002
Mounting the Headstock, Toolrest and Tailstock onto the Bed
1. Slide headstock, toolrest, and tailstock onto bed, ensuring lock plate (A) is correctly lined up with bed way (B),
as shown below:
Note: Turn the lock handle to adjust the position of the lock plate if they cannot slide
onto the lathe bed section.
2. Replace stop plates on both ends of bed.
A
A
A
B
B
B

14
128-0521-002
4.3 Positioning the Headstock on the Bed
The headstock on the NOVA Nebula DVR 1825 Lathe uses a cam lock assembly for securing in place along the bed. To
move the headstock:
1. Insert the lock handle or knockout bar into the through hole in the locking shaft and loosen the shaft (shaft
can be tightened by rotating either direction, so rotate the opposite direction it was tightened).
2. Move the headstock along the bed and swivel the headstock to the desired position (-45°, 0°, 22.5°, 45°, 90°,
180°). The locking handle position be changed by adjusting the nut at bottom of the lock plate.
3. Re-tighten the locking shaft.
4. Ensure the headstock is secured before running the lathe.
WARNING! PINCH HAZARD – Remove hand from locking shaft when swivelling the
headstock.
4.3.1 Spindle Index/Lock
The spindle index pin locks the headstock spindle. It is selectable in 15-
degree increments (24 divisions). There is a window to read index numbers
(0 through 23).
1. Stop the lathe.
2. Pull the Spindle Index Locking Knob and turn it until the pin drops into
the hole. To lock the spindle, it must engage into a slot in the spindle
index plate.
WARNING! Make sure the index pin is disengaged before
operating the lathe. The locking knob must be secured in the
“Unlock” position to prevent it from engaging while the spindle is
turning.

15
128-0521-002
4.4 Toolrest
To move the Toolslide along the bed, loosen the Toolslide Clamp Handle, move the slide to the desired position, and
tighten the clamp handle.
Adjust the Toolrest close to the work piece. Exact positioning may be varied to suit the turner. Revolve the stock by hand
to make sure it clears the rest before starting the lathe.
At intervals, stop the lathe and readjust the Toolrest.
WARNING! Lathe tools and chisels should remain on the Toolrest whenever the tool is in contact
with the work piece. Remove the Toolrest when sanding or polishing so fingers do not get pinched.
4.5 Tailstock
To move the Tailstock along the bed, release the Cam Lock Lever,
slide the Tailstock to the desired position and tighten the Lever to lock into
place.
To move the Tailstock quill in or out, loosen the Quill Lock and turn
the Handwheel. Lock the quill in place with the Quill Lock.
The Tailstock Quill accepts centers and accessories with no. 2 Morse taper
(#2 MT). To install a taper, insert the accessory firmly by hand. Do not
pound the taper into the hole.
To remove a taper, either wind the quill into the tailstock until the taper is
ejected or insert the operating bar through the Tailstock Quill hole. While
holding the taper so it does not fall, and then tap it out.
The Tailstock Quill is hollow, allowing you to bore holes through turnings if
a hollow center is used.
WARNING! Never loosen the Tailstock Quill or Tailstock while the work piece is turning.
Starting Guidelines
Adjust Toolrest as Need
3mm (1/8in.)
Unlock
Lock
Unl
ock
Lock

16
128-0521-002
4.6 Lathe Alignment
Generally, new lathes are strictly inspected in factory and does not need to be aligned again. Over time, as the lathe
wears out, you may need to re-align your lathe. The following are two common alignment methods.
1. Sharp pointed method: Attach any known straight, sharp pointed tool (E.g., Spur and live centres) on the
headstock spindle and tailstock quill to check for axial alignment between headstock and tailstock.
2. Double ended 2 Morse Taper method (NOVA 2MTNA Acruline 2MT Alignment SKU 2MTNA).
1.
Sharp
pointed
method:
a.
Lock the Headstock
at 0°
by using the lock
ing
handle on the bed
.
b.
Firmly i
nstall a Spur center on headstock and live center on the Tailstock
.
c.
Slide the tailstock to
wards the headstock to
close
the
two sharp points.
d.
Adjust tailstock Alignment Plate to mak
e sure both points are touching each other in both directions
Vertical Alignment
Horizontal Alignment

17
128-0521-002
2.
D
ouble ended 2 Morse Taper method:
a.
Lock the Headstock at 0° by using the lock
ing
handle on the bed.
b.
Firmly i
nstall a
double ended 2MT alignment tool
on headstock
.
c.
Release the tailstock Alignment Plate
s by loosening the bolts underneath the tailstock.
d.
Slide the tailstock
firm
ly
into the other end of the alignment tool
as shown in t
h
e image below.
e.
Tighten
tailstock Alignment Plate
screws against
the
tailstock.
4.7 Mounting a Faceplate or a Chuck
The thread size of headstock Spindle is 1.25" RH (Standard version), or M33 ASR RH (Euro ASR version), depending on
your model.
1 ¼”
M33
Standard version spindle
Euro ASR version
spindle (with locking ring flange)
2MTNA Tool

18
128-0521-002
4.7.1 Mounting on the Standard Version Spindle
Use the Spindle Index Pin to lock the headstock
spindle before commencing.
Step 1:
Use the Allen key to remove the safety screw from
the faceplate or chuck before installation.
Step 2:
Thread the faceplate or chuck onto the spindle
thread all the way. Ensure the surface of the
faceplate is sitting flat against the spindle surface.
Step 3:
Tighten the safety screw on the faceplate or chuck
to lock the faceplate in place.
Unlock the spindle before turning the machine on.
WARNING! The faceplate or chuck body must contact the shoulder on the spindle bearing. When
installing or removing the Faceplate or Chuck from the spindle, the side-locking grub screws MUST
be completely removed. This avoids any potential damage to the spindle that the safety screws may
cause if it were not completely removed, when winding the Faceplate or Chuck on or off the spindle.
4.7.2 Mounting on the Euro ASR version spindle
The diagram below illustrates a cross sectional view of an M33 ASR Eurolock version spindle with an M33 ASR Eurolock
chuck mounted.
Step 1
Step 3
Make sure there is no
gap between faceplate
and spindle

19
128-0521-002
Locking Ring Installation Procedure
Use the Spindle Index Pin to lock the headstock spindle before commencing.
Step 1:
Thread the M33 ASR faceplate or chuck onto the spindle thread all the way in. Check that the spindle and the
faceplate/chuck are touching at the clamping ridge.
Step 2:
Put the lower part of the locking ring under the clamped rings.
Step 3:
Put the upper part of the locking ring above the clamped rings.
Step 4:
Use an Allen key to tighten up two bolts on the locking ring.
Unlock the spindle Index Pin before turning the machine on.
IMPORTANT NOTE: The Index Pin is designed for indexing purposes only, not for leveraging against
when removing faceplates, inserts and chucks. For this we recommend holding the spindle using a
spanner to clamp the lathe hand brake mounting surface.
Step 2
Step 3
Step 4

20
128-0521-002
5. Connecting to Power
Warning!
Improper power connection may result in a risk of electrical hazard.
Before plugging the NOVA Nebula lathe into the power source, check that the:
1. The main power switch is turned off.
2. Power source is switched off.
Note:
This image on the left
-
hand side is the European version of the NOVA
Nebula
wood lathe. Other versions will have
a hard-wired power cable (shown on the image on the right-hand side).
The power cord that is installed on the NOVA Nebula lathe will have a three-prong plug which includes a ground prong.
The plug must be connected to a matching outlet that his properly installed and grounded in accordance with local
electrical codes.
For 110V Outlet Only:
A temporary adapter can be used to plug into a two-pole outlet if a three-prong outlet is unavailable in your environment.
The ground tab on the adapter must be connected to the screw on the outlet for proper grounding. This adaptor should
only be used until a qualified electrician can install a properly grounded outlet.
 Note: If an extension cable is required, make sure to check the following:
1. Extension cable gauge is appropriate for the length and voltage.
2. Is the cable properly insulated?
If in any doubt, please contact your local electrician to inspect the cord according to the local electrical standards before
use.
IMPORTANT:
 A surge protection device is recommended when using the lathe.
 A surge protection device must be rated to at least 15A should be used in countries where 110V are used
as a standard. In countries where 240V is used, a surge protector must be rated to 10A.
Make sure the “0” side of the
rocker switch is pressed in before
connecting the power cable to the
power source.
220-240V Version
110-115V Version
