Jet JWL-1840EVS User manual

JWL-1840EVS
WOOD LATHE
Original:
GB
Operating Instructions
Translations:
D
Gebrauchsanleitung
F
Mode d´emploi
JPW (Tool) AG
Tämplerlistrasse 5
CH-8117 Fällanden
Switzerland
Phone [phone]
Fax [phone]
www.jettools.com
M-719600M 2016 -10

CE-Conformity Declaration
CE-Konformitätserklärung
Déclaration de conformité CE
Product / Produkt / Produit:
Wood lathe
Drechselmaschine
Tour à bois
JWL-1840EVS
719600M
Brand / Marke / Marque:
JET
Manufacturer / Hersteller / Fabricant:
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden, Switzerland
We hereby declare that this product complies with the regulations
Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht
Par la présente, nous déclarons que ce produit correspond aux directives suivantes
2006/42/EC
Machinery Directive / Maschinenrichtlinie / Directive Machines
2014/30/EU
electromagnetic compatibility / elektromagnetische Verträglichkeit / compatibilité électromagnétique
designed in consideration of the standards
und entspechend folgender zusätzlicher Normen entwickelt wurde
et été développé dans le respect des normes complémentaires suivantes
EN ISO 12100:2010
EN 60204-1:2006+A1:2009
EN 61000-6-4:2007+A1:2011
EN 61800-3:2004+A1:2012
EN 55011:2009+A1:2010
Responsible for the Documentation / Dokumentations-Verantwortung / Résponsabilité de Documentation:
Hansjörg Meier
Head Product-Mgmt / Leiter Produkt-Mgmt./ Resp. de Gestions Produits
JPW (Tool) AG
2016-10-10 Alain Schmid, General Manager
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden,
Schweiz / Suisse / Switzerland
2

GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been
prepared for the owner and operators of a JET JWL-1840EVS wood lathe to promote safety during installation, operation and
maintenance procedures. Please read and understand the information contained in these operating instructions and the
accompanying documents. To obtain maximum life and efficiency from your machine, and to use the machine s afely, read this
manual thoroughly and follow instructions carefully.
…Table of Contents
1. Declaration of conformity
2. Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Machine description
Technical data
Noise emission
Contents of delivery
5. Transport and start up
Transport and installation
Assembly
Mains connection
Dust collection
Starting operation
6. Machine operation
Correct operating position
Tool selection
Speed selection
Turning between centres
Bowl turning
Sanding and Finishing
7. Setup and adjustments
Changing spindle speeds
Headstock spindle lock
Headstock rotation
Headstock spindle index
Installing work holding
Adjusting tool rest
Adjusting tailstock
8. Maintenance and inspection
Adjusting bed clamping
Changing belt and bearings
9. Trouble shooting
10. Environmental protection
11. Available accessories
1. Declaration of conformity
On our own responsibility we hereby declare that this
product complies with the regulations* listed on page 2.
Designed in consideration with the standards**.
2. Warranty
The Seller guarantees that the supplied product is free from
material defects and manufacturing faults. This warranty
does not cover any defects which are caused, either directly
or indirectly, by incorrect use, carelessness, accidental
damage, repair, inadequate maintenance or cleaning and
normal wear and tear.
Guarantee and/or warranty claims must be made within
twelve months from the date of purchase (date of invoice).
Any further claims shall be excluded.
This warranty includes all guarantee obligations of the
Seller and replaces all previous declarations and
agreements concerning warranties.
The warranty period is valid for eight hours of daily use. If
this is exceeded, the warranty period shall be reduced in
proportion to the excess use, but to no less than three
months.
Returning rejected goods requires the prior express consent
of the Seller and is at the Buyer’s risk and expense.
Further warranty details can be found in the General Terms
and Conditions (GTC). The GTC can be viewed at
www.jettools.com or can be sent by post upon request.
The Seller reserves the right to make changes to the
product and accessories at any time.
3. Safety
3.1 Authorized use
This wood lathe is designed for turning wood only.
Machining of other materials is not permitted and may be
carried out in specific cases only after consulting with the
manufacturer.
The workpiece must allow to safely be loaded and
supported.
The proper use also includes compliance with the operating
and maintenance instructions given in this manual.
The machine must be operated only by persons familiar
with its operation and maintenance and who are familiar
with its hazards.
The required minimum age must be observed.

The machine must only be used in a technically perfect
condition.
When working on the machine, all safety mechanisms and
covers must be mounted.
In addition to the safety requirements contained in these
operating instructions and your country’s applicable
regulations, you should observe the generally recognized
technical rules concerning the operation of woodworking
machines.
Any other use exceeds authorization.
In the event of unauthorized use of the machine, the
manufacturer renounces all liability and the responsibility is
transferred exclusively to the operator
3.2 General safety notes
Woodworking machines can be dangerous if not used
properly. Therefore the appropriate general technical rules
as well as the following notes must be observed.
Read and understand the entire instruction manual before
attempting assembly or operation.
Keep this operating instruction close by the machine,
protected from dirt and humidity, and pass it over to the new
owner if you part with the tool.
No changes to the machine may be made.
Daily inspect the function and existence of the safety
appliances before you start the machine.
Do not attempt operation in this case, protect the machine
by unplugging the mains cable.
Before operating the machine, remove tie, rings, watches,
other jewellery, and roll up sleeves above the elbows.
Remove all loose clothing and confine long hair.
Wear safety shoes; never wear leisure shoes or sandals.
Always wear the approved working outfit:
- safety goggles
- ear protection
- dust protection
Do not wear gloves while operating this machine.
Install the machine so that there is sufficient space for safe
operation and workpiece handling.
Keep work area well lighted.
The machine is designed to operate in closed rooms and
must be placed stable on firm and levelled table surface.
Make sure that the power cord does not impede work and
cause people to trip.
Keep the floor around the machine clean and free of scrap
material, oil and grease.
Stay alert, give your work undivided attention.
Use common sense. Do not operate the machine when you
are tired.
Do not operate the machine under the influence of drugs,
alcohol or any medication. Be aware that medication can
change your behaviour.
Keep an ergonomic body position.
Maintain a balanced stance at all times.
Never reach into the machine while it is operating or
running down.
Keep children and visitors a safe distance from the work
area.
Never leave a running machine unattended. Before you
leave the workplace switch off the machine.
Do not operate the electric tool near inflammable liquids or
gases.
Observe the fire fighting and fire alert options, for example
the fire extinguisher operation and place.
Do not use the machine in a dump environment and do not
expose it to rain.
Wood dust is explosive and can also represent a risk to
health.
Dust form some tropical woods in particular, and from
hardwoods like beach and oak, is classified as a
carcinogenic substance.
Always use a suitable dust collection device
Before machining, remove any nails and other foreign
bodies from the workpiece.
Make sure to guide and hold the chisel with both hands safe
and tight during machining.
Work only with well sharpened tools.
Machine only stock which is chucked securely on the
machine, always check before switching the machine on.

If reversing spindle rotation, make sure face plate, chuck or
other work holding is secured with the set screws to the
spindle. To avoid threading loose.
Provide workpieces with centre holes before clamping
between centres.
Work large and unbalanced workpieces at low spindle
speed only.
When sanding, remove the tool rest from the machine.
Workpieces with cracks may not be used.
Use homogenous workpieces only.
Check the workpiece carefully for splits, knots or other
obstructions which may cause a safety risk while turning.
Remove the chuck key or dowel pins before turning the
machine on.
Always close the belt cover.
Specifications regarding the maximum or minimum size of
the workpiece must be observed.
Test each set-up by revolving the work by hand to insure it
clears the tool rest and bed. Check setup at the lowest
speed before you increase to the operating speed.
Do not remove chips and workpiece parts until the machine
is at a standstill.
Never stop work pieces with the hand during run out.
Do not attempt to engage the spindle lock pin until the
spindle has stopped.
Never take measurements on a rotating workpiece.
Do not stand on the machine.
Do not obstruct the air flow on heat sinks of AC-drive (allow
natural cooling).
Connection and repair work on the electrical installation
may be carried out by a qualified electrician only.
(Warning: Wait five minutes for DC-bus capacitors
discharge before accessing the AC drive unit.)
Have a damaged or worn power cord replaced immediately.
Make all machine adjustments or maintenance with the
machine unplugged from the power source.
3.3 Remaining hazards
When using the machine according to regulations some
remaining hazards may still exist.
The rotating workpiece can cause injury.
Workpieces that are inhomogeneous or weak can explode
when being processed due to centrifugal force.
Only process selected woods without defects.
Unbalanced workpieces can be hazardous.
Injuries can occur when feeding tooling, if tool supports are
not correctly adjusted or if turning tools are blunt.
Risk of kickback. The tooling is caught by the rotating
workpiece and thrown back to the operator.
Thrown workpieces and workpiece parts can lead to injury.
Dust and noise can be health hazards. Be sure to wear
personal protection gear such as safety goggles and dust
mask. Use a suitable dust collection system.
The use of incorrect mains supply or a damaged power
cord can lead to injuries caused by electricity.
4. Machine specifications
4.1 Machine description
Fig 1
A Motor
B Headstock lock handle
C Headstock hand wheel
D Index pin
E Spindle lock
F Headstock
G Digital readout
H Faceplate
I Tool rest base
J 350mm tool rest
K Bed
L Tailstock lock handle
M Live centre
N Tailstock
O Tailstock hand wheel
P Front-mounted controls
Q Headstock Swivel index

R Tool caddy with tools
S Casting stands
T...Riser block
U...Remote OFF-switch
4.2 Technical data
Swing over bed 470mm
Centre distance 1025 & 970mm
Number of mechanical speeds 2
Spindle speed range 1 40-1200 rpm
Spindle speed range 2 100-3200 rpm
Spindle nose M33x3.5 DIN 800
Headstock spindle taper MT 2
Headstock spindle bore 9.5 mm
Spindle index lock 36 x 10°
Headstock-Rotation 0°, 30°, 60°, 90°,
120°, 180°, 270
Tailstock spindle taper MT 2
Tailstock bore 9 mm
Tailstock ram travel 108mm
Centre above floor without riser 1000mm
Centre above floor with riser 1100mm
Overall (LxWxH) 1854 x 508 x 1334 mm
Net weight 190 kg
Mains 1~230V, PE, 50Hz
Output power 1.5 kW (2 HP) S1
Reference current 8 A
Extension cord (H07RN-F): 3x1.5mm²
Installation fuse protection 16A
Protection class I
4.3 Noise emission
Acoustic pressure level (according to EN ISO 11202):
Idling LpA 72.5 dB(A)
In operation LpA 78.4 dB(A)
The specified values are emission levels and are not
necessarily to be seen as safe operating levels.
As workplace conditions vary, this information is intended to
allow the user to make a better estimation of the hazards
and risks involved only.
4.4 Content of delivery
Lathe bed with headstock, tool support and tailstock – A
350mm Tool rest – B
Legs – C
Spur centre – D
Live centre – E
Live centre with cone – F
Live centre pin – G
Knockout rod – H
75mm Faceplate – J (installed on lathe)
Tool rest extension – K
Faceplate wrench – L
Levellers – M
Tool shelf – N
Riser block – P
8x Socket hd. cap screws, 5/16”x1-1/4” – HP001*
8x Lock washers, 5/16” – HP002*
8x Flat washers, 5/16” – HP003*
2x Socket hd. cap screws, 3/8”x1-1/4” – HP004
6x Lock washers, 3/8” – HP005
4x Hex cap screw, 3/4" x 1-1/4” – HP006
4x Flat washers, 3/8” – HP007*
User manual
Parts list
* included in hardware package JWL1440-HP1
Fig 2
5. Transport and start up
5.1 Transport and installation
The machine is designed to operate in closed rooms and
must be placed stable on firm and levelled ground.
The machine can be bolted to the floor if required.
For packing reasons the machine is not completely
assembled.

5.2 Assembly
If you notice transport damage while unpacking, notify your
supplier immediately. Do not operate the machine!
Dispose of the packing in an environmentally friendly
manner.
Clean all rust protected surfaces with a mild solvent.
Attach the leg stand :
At this point the headstock, tailstock and tool rest should be
removed.
Unscrew the stud (N, Fig 3) from each end of bed.
Fig 3
Remove headstock, tailstock and tool rest support from
bed.
The machine bed is heavy! With the help of a second
person. Carefully turn bed upside down. Place a mat or
cardboard beneath it to prevent scratching the bed ways.
Install legs with eight screws, lock washers and flat
washers. Tighten screws firmly with 6mm hex key (see Fig
4-1).
Fig 4-1
If you desire, install the riser blocks for a 100mm centre
height increase (see Fig 4-2).
Fig 4-2
Install the four levellers. These can be adjusted later.
(see Fig 5).
Fig 5
With the help of a second person, raise bed and leg
assembly right-side up.
Rotate the levellers as needed to establish level for the
lathe. Tighten the hex nut on each leveller against the leg
casting.
Now headstock, tool rest and tailstock can be installed
again (Fig 6).
Fig 6
Install both studs (N, Fig 3).
Attach the tool shelf :
The tool shelf (N, Fig 2) can be mounted on either end of
lathe with screws and washers (HP4, HP5).

Stand shelf :
You can make an extra shelf that rests between the legs if
you wish (see Fig 7).

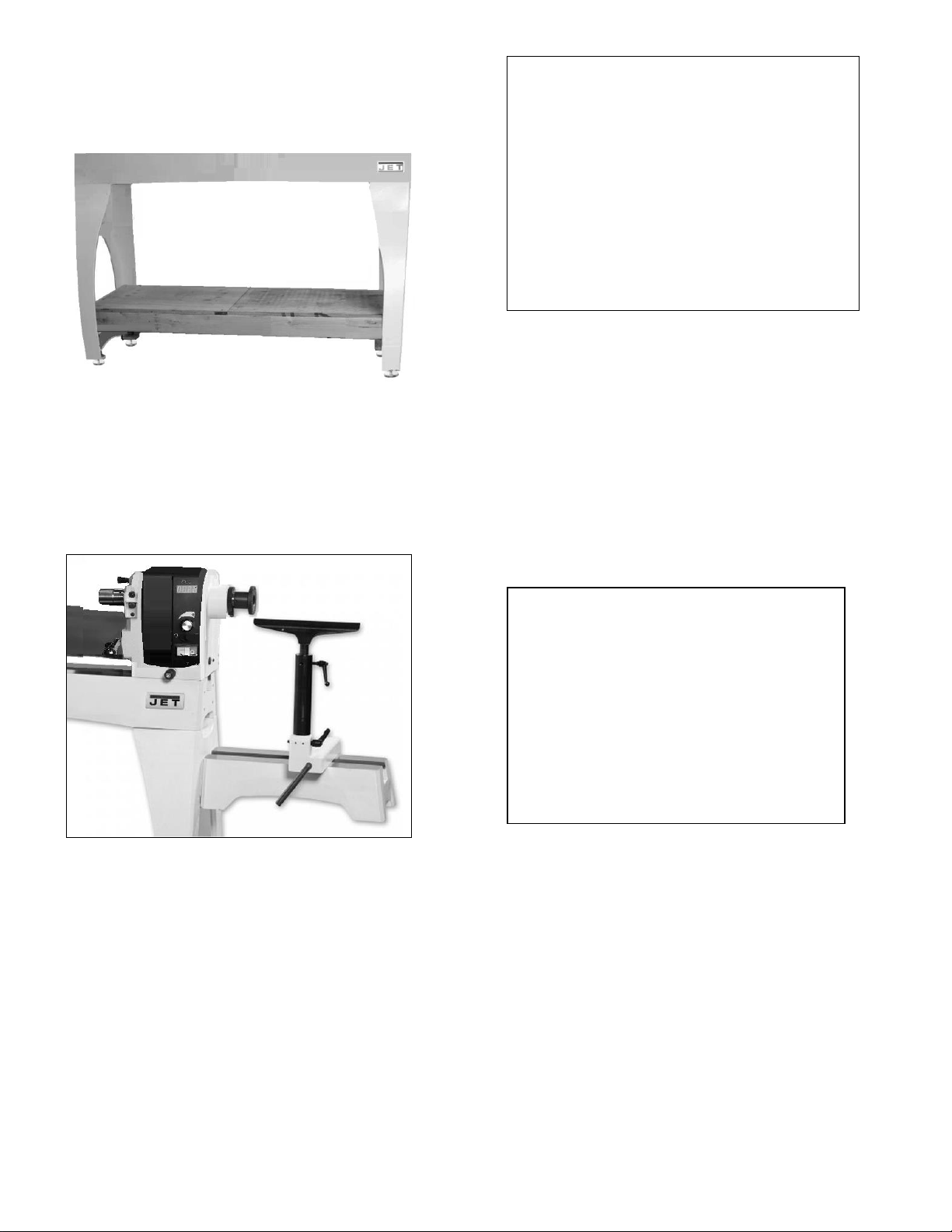

Fig 7
Installing bed extension : (JET Option # 719401)
The bed extension can be mounted to the upper or lower
holes of the lathe.
Mounting the extension to the lower holes allows use of the
tool support during outboard turning (Fig 8).
Fig 8
Mounting in upper holes increases the spindle length
capacity of the lathe.
Have an assistant hold bed extension flush to end of lathe
bed, and insert four screws with washers (P, Fig 9).
Snug screws just enough to hold bed extension to lathe
bed.
Unscrew stop bolt (N) from lathe bed and insert it into hole
at end of bed extension.
Fig 9
Top surfaces and inside ways must be flush to allow
smooth movement of tailstock.
Slide tailstock over joint where beds meet, so that clamping
nut is centred over joint. Lock tailstock clamping handle;
this will align the beds.
Securely tighten screws (P) in bed extension.
Installing cage guard : (JET Option # 719002)
Loosen set screw (B, Fig 10-1) and remove outer collar.
Attach guard to the bracket by inserting the rod and lifting
up on the plunger (A).
Fig 10-1
Place the collar against the bracket and tighten set screw
(B).
There are two detents that will hold the guard in place.
One is for turning and the other is for when you need the
guard up and out of the way (Fig 10-2).

Fig 10-2
Install sample comparator : (JET Option # 719601)
Mount the comparator rear bracket to the back of the
tailstock with two screws, lock washers and washers. Align
bracket until centres align (see Fig 11-1).
Fig 11-1
The comparator allows holding a sample workpiece for
optical reference and comparative measurement taking.
(see Fig 11-2).
Fig 11-2
5.3 Mains connection
Mains connection and any extension cords used must
comply with applicable regulations.
The mains voltage must comply with the information on the
machine licence plate.
The mains connection must have a
16 A surge-proof fuse.
Only use power cords marked H07RN-F
Connections and repairs to the electrical equipment may
only be carried out by qualified electricians.
5.4 Dust collection
Use a suitable dust collection and filtration system to avoid
a high dust concentrations in the air.
5.5 Starting operation
ON/OFF switch :
You can start the machine with the green ON-button (A, Fig
12).
The lathe will begin turning and driving the headstock
spindle.
The lathe will reach full speed in about 5 seconds.
Fig 12
The machine will stop when you push the red OFF button
(B) or the remote OFF-switch (U, Fig 1; Fig 13).
Wait until workpiece comes to a complete stop.
Remote OFF-switch :
The remote OFF-switch (U, Fig 1; Fig 13) stops the
machine.
Fig 13
When the remote OFF-switch is pushed, cycle the green
ON-button (A, Fig 12) on headstock to restart lathe.

Speed control knob :
Rotate speed control knob (D) clockwise to increase,
counter clockwise to decrease.
Speed is displayed as RPM (revolutions per minute) on
digital readout (E).
Forward/Reverse :
Use the switch (C) to reverse the spindle direction.
Caution :
For reversing spindle rotation, always make sure face plate,
chuck or other is secured with the set screws. To avoid
threading loose.
Always set the speed control knob to its lowest setting
before starting lathe. Never start a workpiece at maximum
speed.
The AC Inverter does not require any programming. It is
pre-programmed from the factory. Do not attempt any
changes.
2 Belt speeds :
The speeds of the lathe are controlled by the variable speed
select knob (D) as well as the position of the belt on the
pulleys (Fig 14).
Fig 14
“Low” speed range (40~1200 rpm) for maximum torque.
“High” speed range (100 ~ 3200 rpm) for maximum speed.
6. Machine operation
6.1 Correct operating position
Always support the tool on the tool rest and guide with the
palm of your hand keeping your fingers closed.
(see Fig 15-1 and 15-2).
Fig 15-1
Fig 15-2
6.2 Tool selection
Successful wood turning does not result from high speeds,
but rather, from the correct use of turning tools.
A perfect and sharp wood turner tool is a precondition for
professional wood-turning.
Major tools:
Fig 16
Gouge (A, Fig 16), used for rapidly cut raw wood into round
stock, for turning bowls and plates, for turning beds, coves
and other detail (Fig 17).
Fig 17
Scraper (B, Fig 16), used for diameter scraping and to
reduce ridges.
Skew Chisel (C, Fig 16), used to make vees, beads, etc.
(Fig 18). The bevel of skew is parallel to the cut.

Fig 18
Parting tool (D, Fig 16), used to cut directly into the
material, or to make a cut off. Also used for scraping and to
set diameters.
6.3 Speed selection
Use low speeds for roughing and for large diameter work. If
vibrations occur, stop the machine and correct the cause.
See speed recommendations.
Speed recommendations
Workpiece
Diameter
mm
Roughing
RPM
General
Cutting
RPM
Finishing
RPM
< 50
1500
3200
3200
50-100
700
1600
2500
100-150
500
1100
1600
150-200
370
800
1200
200-250
300
650
1000
250-300
250
500
800
300-350
220
450
700
350-400
180
400
600
6.4 Turning between centres
With a ruler locate and mark the centre on each end.
Put a dimple in each end of the shock. Extremely hard
woods may require kerfs cut into the spur drive end of stock
(see Fig 19).

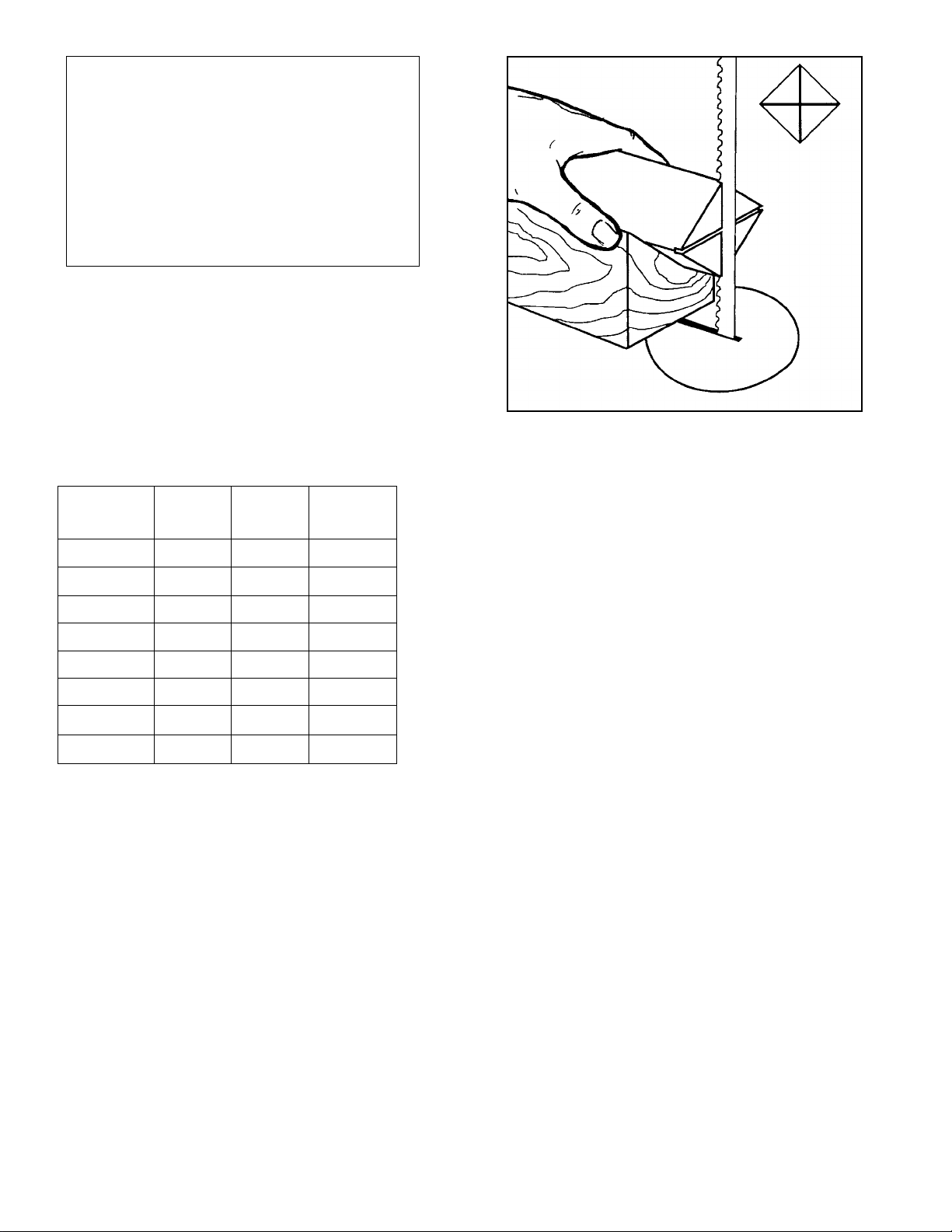

Fig 19
The spur drive centre locks into the spindle taper and can
be removed with the knockout rod (Fig 20).
Fig 20
The live centre locks into the tail stock taper and can be
removed by rotating the handwheel counter clockwise (Fig
21).
Fig 21
To screw off the cone (R, Fig 22) the life centre must be
locked against rotation with the supplied pin (S).

Fig 22
The centring pin can be knocked out to allow deep hole
drilling operations.
Mount the centred workpiece between the spur drive centre
and the tailstock mounted live centre (Fig 23).
Fig 23
Turn the tailstock hand wheel until the live centre well
penetrates the workpiece. Reverse the hand wheel by one
quarter turn and lock the tailstock spindle (M, Fig 21).
Turn the workpiece by hand to see if it rests securely
between centres and can be rotated freely.
Position the tool rest as close to the workpiece as possible.
Tighten locking handles.
For turning between centres the tool rest is set
approximately 3mm higher than centre line (Fig 24, 25 and
26).

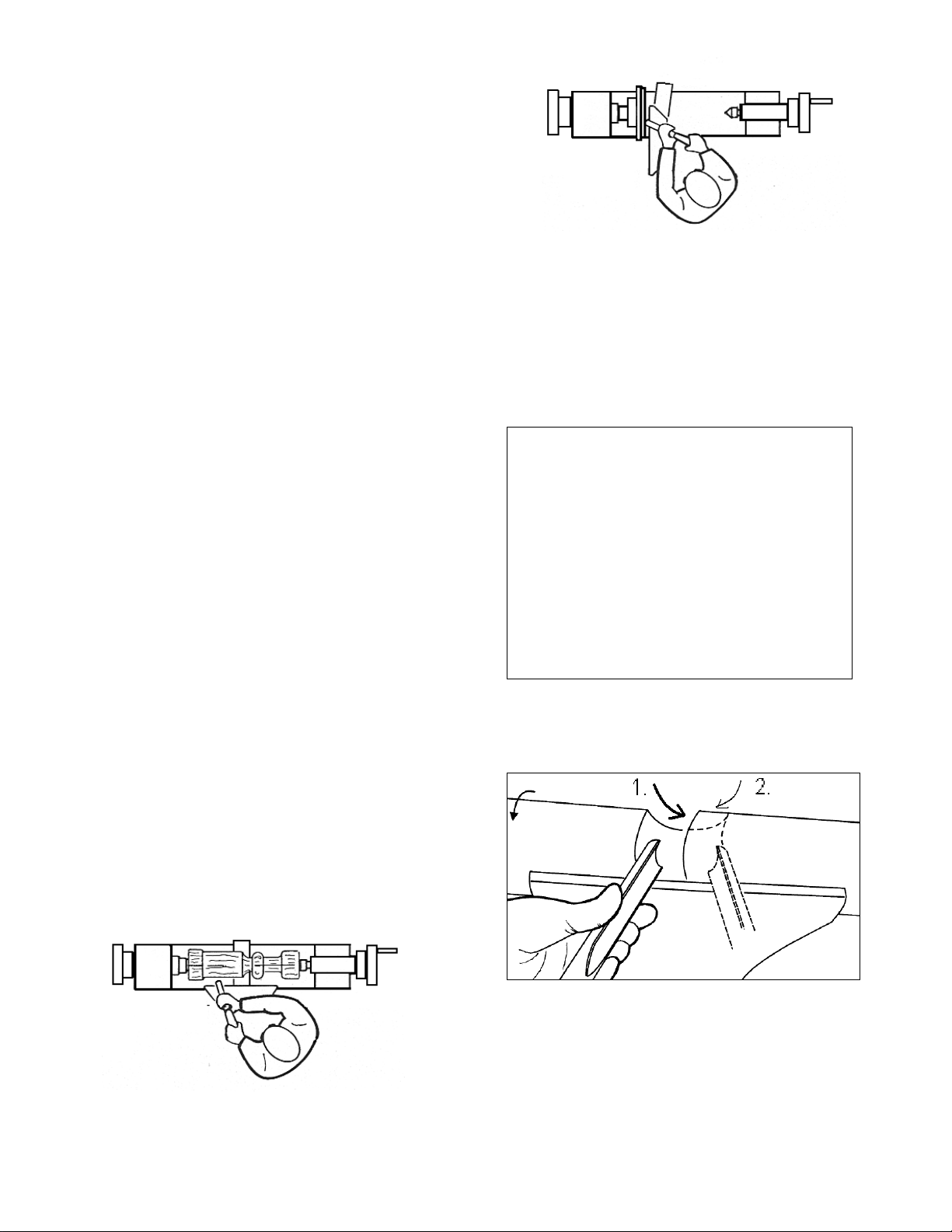

Fig 24
Fig 25
Fig 26
6.5 Bowl turning
Turn outside of bowl between centres.
Turn a short tenon the size of the hole in the faceplate
(T, Fig 27).
This will allow centring the workpiece.
Fig 27
Mount the workpiece (A, Fig 28) directly to the face plate
using 4 wood screws (C) from the back. Be careful to use
screws short enough not to interfere with the cutting
process but long enough to hold the workpiece securely to
the face plate.

Fig 28
If screw mounting is not allowed at all, the work may be
glued to a backing block (D) and the backing block screwed
to the face plate. A piece of paper in the glue joint will
prevent damaging the wood when separated later.
Mount the face plate with the workpiece already attached
onto the spindle nose thread and hand tighten.
If reversing spindle rotation, make sure face plate, chuck or
other work holding is secured with the set screws, to avoid
threading loose.
Move tailstock away, remove centre from tailstock to
prevent injury.
Turn the workpiece by hand to see if it rests securely and
can be rotated freely.
Position the tool rest as close to the workpiece as possible.
Tighten locking handles.
For face plate turning the tool rest is set slightly lower than
centre line.
Caution:
Cut with your chisel on the left side of the turning centre
only.
Use left hand to control cutting edge of gouge, while right
hand swings tool handle around toward your body (Fig 29).
Fig 29
Try to make one, very light continuous movement from the
rim to the bottom of the bowl to ensure a clean, sweeping
curve through the workpiece.
Move tool support to the exterior to re-define bottom of
bowl.
6.6 Sanding and Finishing
Remove the tool rest and begin with a fine grit sandpaper
(120 grit) and progress through each grit, using only light
pressure.
Use power sanding techniques to avoid concentric sanding
marks.
Finish sanding with 220 grit.
Apply first coat of finish. Allow to dry before sanding again
with 320 or 400 grit sandpaper.
Turn lathe back on and make a separation cut through the
base. Stop at about dia. 80mm and use a fine tooth saw to
separate the bowl from the waste.
Apply additional finish coats and allow drying before buffing.
7. Setup and adjustments
General note:
Setup and adjustment work may only be carried out
after the machine is protected against accidental
starting by pulling the mains plug.
7.1 Changing spindle speeds
Disconnect lathe from power source !
Loosen the locking screw and open the belt cover.
Loosen pivot lock handle (A, Fig 30).
Fig30
Lift up on the tensioning handle (B) to remove tension from
the Poly V-belt.
You can now position the belt in the desired speed range
(Fig 31).
Be sure that Poly-V belt seat properly in corresponding
grooves of pulleys.

Fig 31
Note:
The “High” speed range (100-3200) provides maximum
speed, where as the “Low” speed range (40-1200) will
provide maximum torque.
Lower the tensioning handle so that the weight of the motor
provides the needed belt tension and tighten the locking
handle.
Do not over-tension belt, a light pressure is adequate to
prevent belt slippage.
Close and lock the belt cover.
ON/ OFF switch :
You can start the machine with the green ON-button (A, Fig
32).
The lathe will begin turning and driving the headstock
spindle.
The lathe will reach full speed in about 5 seconds.
Fig 32
The machine will stop when you push the red OFF-button
(B) or the remote OFF-switch (Fig 33).
Remote OFF-switch :
The remote OFF-switch (Fig 33) stops the machine.
Fig 33
When the remote OFF-switch is pushed, cycle the green
ON-button (A, Fig 32) on headstock to restart lathe.
Speed control knob :
Rotate speed control knob (D) clockwise to increase,
counter clockwise to decrease.
Speed is displayed as RPM (revolutions per minute) on
digital readout (E).
Forward/Reverse :
Use the switch (C) to reverse the spindle direction.
Caution :
For reversing spindle rotation, always make sure face plate,
chuck or other is secured with the set screws. To avoid
threading loose.
Always set the speed control knob to its lowest setting
before starting lathe. Never start a workpiece at maximum
speed.
The AC Inverter does not require any programming. It is
pre-programmed from the factory. Do not attempt any
changes.
7.2 Headstock spindle lock
Push spindle lock pin (P, Figure 34) and rotate spindle
slightly until pin engages. Slide plate downward to hold pin
in locking position.
Release spindle lock by pushing plate upward.
Fig 34
Caution :
Never press the spindle lock while the spindle is turning!
7.3 Headstock Rotation
IMPORTANT: Remove anti-rotation block (Fig 35) with 4mm
hex key before attempting to rotate headstock.

Figure 35
Unscrew the index plunger (B, Fig 35) counter clockwise.
Loosen the headstock lock handle (A, Fig 36) and pull the
index plunger (B) to turn the headstock.
Fig 36
For larger workpieces the head stock will have to be turned
90° , the extension added to the tool rest.
Caution: always operate lathe with the headstock locked in
position.
The headstock can be positioned anywhere along the
machine bed.
7.4 Headstock spindle index
The index feature allows you to cut evenly spaced features
in a workpiece while keeping the Lathe spindle locked.
The lathe provides 36 index positions at 10° increments.
Thread index pin (L, Fig 37) into the headstock. Make sure
that it locates in one of the pulley holes.
Fig 37
Caution:
Release index pin before turning on the lathe.
Never press the index pin while the spindle is turning.
Do not use index pin to lock spindle, which will cause
unnecessary wear to the pin. Use spindle lock for this
purpose.
7.5 Installing work holding
The faceplate is used for tuning bowls. There are a number
of holes for mounting the workpiece. Thread the faceplate
onto the spindle in a clockwise direction, and tighten two
setscrews (E, Fig 38).
Fig 38
Remove the faceplate by loosening two set screws. Push in
the spindle lock and use the provided wrench on faceplate
flats.
7.6 Adjusting tool rest
A 350mm tool rest is provided with your lathe. It is designed
to allow adjustment for height and position.
Loosen locking handle on tool rest base (G, Fig 39) to slide
base forward or back, and to angle it to the bed. Tighten
locking handle firmly before operating lathe.
Loosen handle (H) to raise or lower tool rest and angle it to
the work. Tighten handle before operating lathe.
Fig 39
Tool rest extension :

The extension (J, Fig 40) mounts to the tool rest base and
offers greater reach for the tool rest when turning off the
bed using the headstock at an angle, as shown.
Make sure the clamp bushings (K) are pulled apart
sufficiently to accept the post of the extension.
Fig 40
7.7 Adjusting tailstock
Turn the hand wheel (R, Fig 41) clockwise to move tailstock
spindle forward. Lock tailstock spindle with the indexable
knob (Q).

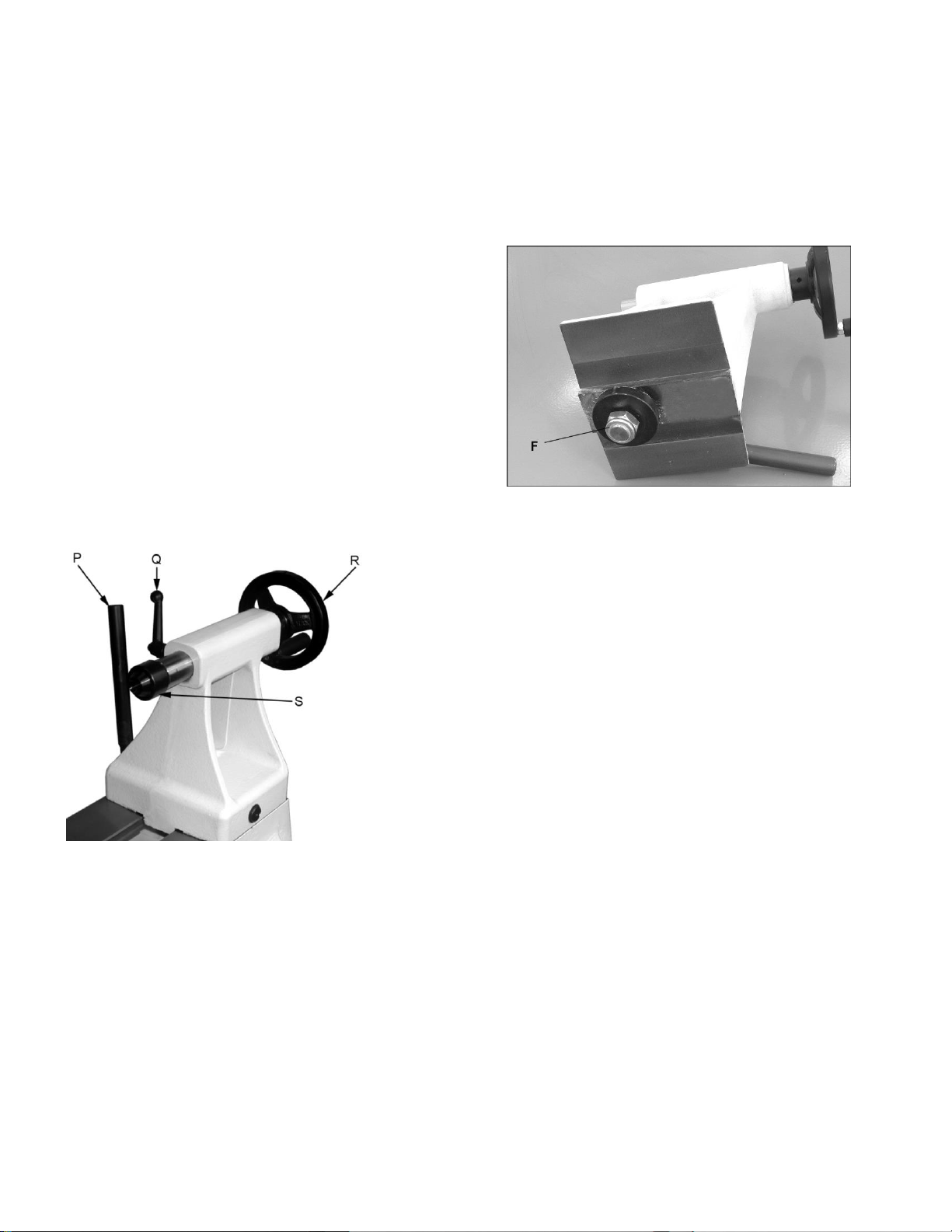

Fig 41
The handle (P) locks the tailstock in position on the bed.
The live centre (S) can be ejected by turning the hand
wheel counter-clockwise.
The live centre pin can be removed to allow deep hole
drilling operations.
8. Maintenance and inspection
General notes:
Maintenance, cleaning and repair work may only be
carried out after the machine is protected against
accidental starting by pulling the mains plug.
Clean the machine regularly.
Inspect the proper function of the dust collection daily.
Defective safety devices must be replaces immediately.
Repair and maintenance work on the electrical system may
only be carried out by a qualified electrician.
8.1 Adjusting bed clamping
If adjustment is needed, remove the stud (N, Fig 3).
Slide the headstock, tailstock or toolrest to the edge of the
bed and slightly turn the hex nut (F, Fig 42).
Test the handle to make sure it securely locks.
Fig 42
8.2 Changing belt and bearings
Changing belt and bearings can be a difficult task. By
chance remove headstock and take into a repair station
for servicing.
Disconnect the machine from the power source.
Open the door and remove the belt from the lower pulley.
Loosen two set screws (C Fig 43) and unscrew the hand
wheel.
Fig 43
Use a wood dowel, or aluminium stock to knock spindle
towards the tailstock. (Use a material that is softer than the
spindle so you do not mushroom end of spindle).
Go only far enough to remove the belt from spindle.
To reassemble reverse the procedure.

When reinstalling handwheel, thread it on to the spindle
until its snug. Then back off slightly and tighten the set
screws.
Note:
To remove the pulley for bearing replacement it is needed
to loosen the 2 set screws (E).
Make sure the pulleys are oriented properly after
reassembly for straight belt running.
9. Trouble shooting
Motor doesn’t start
*No electricity-
check mains and fuse.
*Defective switch, motor or cord-
consult an electrician.
*Overload detected on AC-drive unit-
wait and restart machine; chose low speed range belt
setting (40-1200 rpm) for better spindle torque.
Machine vibrates excessively
*Stand on uneven floor-
adjust stand for even support.
*Workpiece is not properly centred
*The speed is too high
Tailstock moves
*Cam lock nut needs adjusting-
Tighten cam lock nut.
*Bed and tailstock mating surfaces greasy or oily-
Remove tailstock and clean surfaces
*Excessive pressure applied-
Slide tailstock to right side of lathe against stop (N, Fig 10).
Move headstock into position and then apply pressure.
10. Environmental protection
Protect the environment.
Your appliance contains valuable materials which can be
recovered or recycled. Please leave it at a specialized
institution.
11. Available accessories
Stock number 719401
Bed extension 508mm with tool post extension
Stock number 719001
Tailstock swing away
Stock number 719002
Cage guard
Stock number 719601
Sample comparator kit
Stock number 708331
Live centre MT2
Stock number 708343K
Drill chuck 13 mm, with tapered mandrel MT-2
Stock number 709911
Face plate 75mm, M33x3.5
Stock number 709942
Four toothed spur centre MT2
Stock number 708349
Heavy outboard turning stand

Refer to the JET-Pricelist
for various tools and work holding.

DE - DEUTSCH
Gebrauchsanleitung
Sehr geehrter Kunde,
vielen Dank für das Vertrauen, welches Sie uns beim Kauf Ihrer neuen JET-Maschine entgegengebracht haben. Diese Anleitung ist
für den Inhaber und die Bediener zum Zweck einer sicheren Inbetriebnahme, Bedienung und Wartung der JET Drechselbank
JWL-1840EVS erstellt worden. Beachten Sie bitte die Informationen dieser Gebrauchsanleitung und der beiliegenden Dokumente.
Lesen Sie diese Anleitung vollständig, insbesondere die Sicherheitshinweise, bevor Sie die Maschine zusammenbauen, in Betrieb
nehmen oder warten. Um eine maximale Lebensdauer und Leistungsfähigkeit Ihrer Maschine zu erreichen befolgen Sie bitte
sorgfältig die Anweisungen.
Inhaltsverzeichnis
1. Konformitätserklärung
2. Garantie
3. Sicherheit
Bestimmungsgemäße Verwendung
Allgemeine Sicherheitshinweise
Restrisiken
4. Maschinenspezifikation
Maschinenbeschreibung
Technische Daten
Schallemission
Lieferumfang
5. Transport und Inbetriebnahme
Transport und Aufstellung
Montage
Elektrischer Anschluss
Absaug Anschluss
Inbetriebnahme
6. Betrieb der Maschine
Richtige Arbeitsstellung
Drehstahl Auswahl
Drehzahlwahl
Drehen zwischen Spitzen
Drehen von Schalen und Tellern
Schleifen und Imprägnieren
7. Rüst- und Einstellarbeiten
Drehzahlwechsel
Spindelarretierung
Spindelstock Schwenkung
Spindelteilung
Spannmittel Montage
Handstahlauflage Einstellung
Reitstock Einstellung
8. Wartung und Inspektion
Klemmexzenter-Einstellung
Riemen- und Lagerwechsel
9. Störungsabhilfe
10. Umweltschutz
11. Lieferbares Zubehör
1. Konformitätserklärung
Wir erklären in alleiniger Verantwortlichkeit, dass dieses
Produkt mit den auf Seite 2 angegebenen Richtlinien*
übereinstimmt.
Bei der Konstruktion wurden folgende Normen**
berücksichtigt.
2. Garantie
JPW (Tool) AG garantiert, dass das gelieferte Produkt frei von
Material- und Fertigungsfehlern ist. Diese Garantie trifft nicht
auf jene Defekte zu, welche auf direkten oder indirekten, nicht
fachgerechten Gebrauch, Unachtsamkeit, Unfallschaden,
Reparatur, mangelhafte Wartung bzw. Reinigung sowie
normalen Verschleiß zurückzuführen sind.
Die ausführlichen Garantieleistungen (z.B.
Gewährleistungsfrist) sind den Allgemeinen
Geschäftsbedingungen (AGB) zu entnehmen. Die AGB sind
auf der Internetseite ihres Händlers einzusehen oder werden
auf Anfrage per Post zugestellt.
JPT (Tool) AG behält sich das Recht vor, jederzeit
Änderungen am Produkt und Zubehör vorzunehmen.
3. Sicherheit
3.1 Bestimmungsgemäße Verwendung
Diese Drechselbank ist ausschließlich zum Drechseln von
Holz geeignet.
Die Bearbeitung anderer Werkstoffe ist nicht zulässig bzw.
darf in Sonderfällen nur nach Rücksprache mit dem
Maschinenhersteller erfolgen.
Es dürfen nur Werkstücke bearbeitet werden welche sicher
zugeführt und gespannt werden können.
Die bestimmungsgemäße Verwendung beinhaltet auch die
Einhaltung der vom Hersteller angegebenen Betriebs- und
Wartungsanweisungen.
Die Maschine darf ausschließlich von Personen bedient
werden, die mit Betrieb und Wartung vertraut und über die
Gefahren unterrichtet sind.
Das gesetzliche Mindestalter ist einzuhalten.
Die Maschine nur in technisch einwandfreiem Zustand
benützen.

Beim Arbeiten an der Maschine müssen alle
Sicherheitsvorrichtungen angebracht sein.
Neben den in der Gebrauchsanleitung enthaltenen
Sicherheitshinweisen und den besonderen Vorschriften Ihres
Landes sind die für den Betrieb von
Holzbearbeitungsmaschinen allgemein anerkannten
fachtechnischen Regeln zu beachten.
Jeder darüber hinaus gehende Gebrauch gilt als nicht
bestimmungsgemäß und für daraus resultierende Schäden
haftet der Hersteller nicht. Das Risiko trägt allein der
Benutzer.
3.2 Allgemeine Sicherheitshinweise
Holzbearbeitungsmaschinen können bei unsachgemäßem
Gebrauch gefährlich sein. Deshalb ist zum sicheren Betreiben
die Beachtung der zutreffenden Unfallverhütungs-
Vorschriften und der nachfolgenden Hinweise erforderlich.
Lesen und verstehen Sie die komplette Gebrauchsanleitung
bevor Sie mit Montage oder Betrieb der Maschine beginnen.
Bewahren Sie die Bedienungsanleitung, geschützt vor
Schmutz und Feuchtigkeit, bei der Maschine auf, und geben
Sie sie an einen neuen Eigentümer weiter.
An der Maschine dürfen keine Veränderungen, An- und
Umbauten vorgenommen werden.
Überprüfen Sie täglich vor dem Einschalten der Maschine die
einwandfreie Funktion und das Vorhandensein der
erforderlichen Schutzeinrichtungen.
Festgestellte Mängel an der Maschine oder den
Sicherheitseinrichtungen sind zu melden und von den
beauftragten Personen zu beheben.
Nehmen Sie die Maschine in solchen Fällen nicht in Betrieb,
sichern Sie die Maschine gegen Einschalten durch Ziehen des
Netzsteckers.
Zum Schutz von langem Kopfhaar Mütze oder Haarnetz
aufsetzen.
Enganliegende Kleidung tragen, Schmuck, Ringe und
Armbanduhren ablegen.
Tragen Sie Schutzschuhe, keinesfalls Freizeitschuhe oder
Sandalen.
Verwenden Sie die durch Vorschriften geforderte persönliche
Schutzausrüstung.
- Augenschutz
- Ohrenschutz
- Staubschutz
Beim Arbeiten an der Maschine keine Handschuhe tragen.
Die Maschine so aufstellen, dass genügend Platz zum
Bedienen und zum Führen der Werkstücke gegeben ist.
Sorgen Sie für gute Beleuchtung.
Achten Sie darauf, dass die Maschine standsicher auf fester
und ebener Tischfläche steht.
Beachten Sie dass die elektrische Zuleitung nicht den
Arbeitsablauf behindert und nicht zur Stolperstelle wird.
Den Arbeitsplatz frei von behindernden Werkstücken, etc.
halten.
Seien Sie aufmerksam und konzentriert. Gehen Sie mit
Vernunft an die Arbeit.
Achten Sie auf ergonomische Körperhaltung.
Sorgen Sie für sicheren Stand und halten Sie jederzeit das
Gleichgewicht.
Arbeiten Sie niemals unter dem Einfluss von Rauschmitteln
wie Alkohol und Drogen an der Maschine. Beachten Sie, dass
auch Medikamente Einfluss auf Ihr Verhalten nehmen
können.
Niemals in die laufende Maschine greifen.
Halten Sie Unbeteiligte, insbesondere Kinder vom
Gefahrenbereich fern.
Die laufende Maschine nie unbeaufsichtigt lassen.
Vor dem Verlassen des Arbeitsplatzes die Maschine
ausschalten.
Benützen Sie die Maschine nicht in der Nähe von brennbaren
Flüssigkeiten oder Gasen.
Beachten Sie die Brandmelde- und
Brandbekämpfungsmöglichkeiten z.B. Standort und
Bedienung von Feuerlöschern.
Benützen Sie die Maschine nicht in feuchter Umgebung und
setzen Sie sie nicht dem Regen aus.
Achten Sie stets darauf, dass keine zu große
Staubkonzentration entsteht – verwenden Sie stets eine
geeignete Absauganlage
Holzstaub ist explosiv und kann gesundheitsschädigend sein.
