Novae Sure-Trac ST6008 User manual

5x8 Galvanized Tilt Trailer
Assembly
104/9/2013 www.sure-trac.com
1-800-372-1755

This booklet will guide you
through unpacking and
assembling your new Sure-
Trac tilt bed trailer.
Figure 1
Figure 2
Figure 3 Remove the wood blocks and
trailer parts from the bottom
trailer.
Cut the banding holding the
two trailers together. Lift the
top trailer off. Use caution as
fenders and other parts are
packed between the trailers
and can be damaged when
unstacking.
2

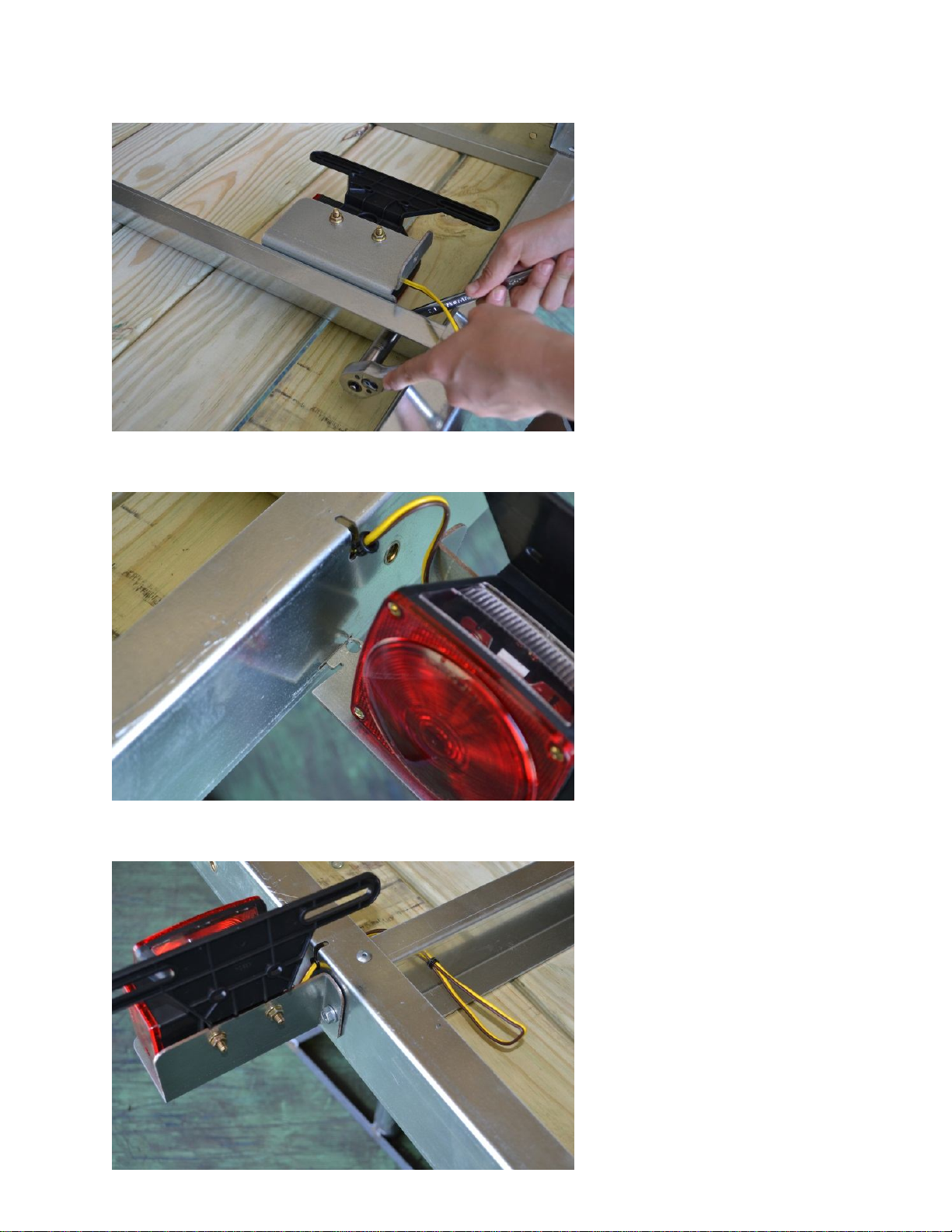

Unbolt the light brackets from
their storage positions.
(Figure 4) You will not re-use
the nut from the light bracket
but you will need the bolt.
Insert the tab into the slot on
the trailer side frame (Figure
5) and slide the bracket to the
rear to fully engage the tab.
Install the bolt you removed
from the light bracket. The
bolt will tighten into the rivet-
nut that is in the side of the
trailer. Insert the grommet
into the frame hole to protect
the wire going through the
side frame. Feed the excess
wire through the bolt hole
that the light bracket was
stored in and insert the
grommet to protect the
folded over wire. (Figure 6)
Repeat this process forthe
other tail light.
Figure 4
Figure 5
Figure 6
3

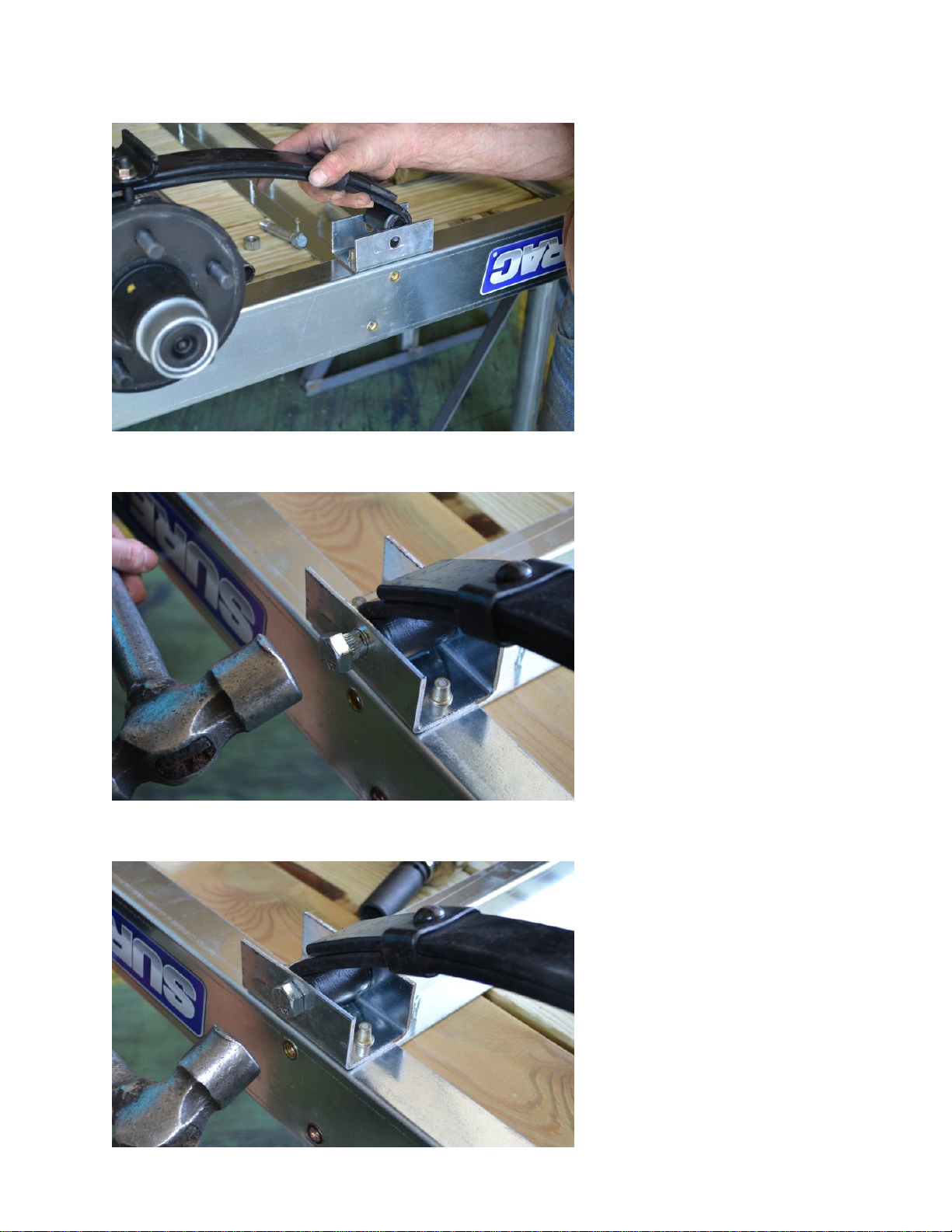

Place the axle into the
shackles on the side
frame of the trailer.
(Figure 7) The large
formed eye on the
spring should go to the
front of the trailer.
Hammer the large
serrated shackle bolt
(Figure 8) into the front
shackle until the head
touches the shackle side
(Figure 9). These bolts
are shipped in the
hardware bag.
Figure 7
Figure 8
Figure 9
4

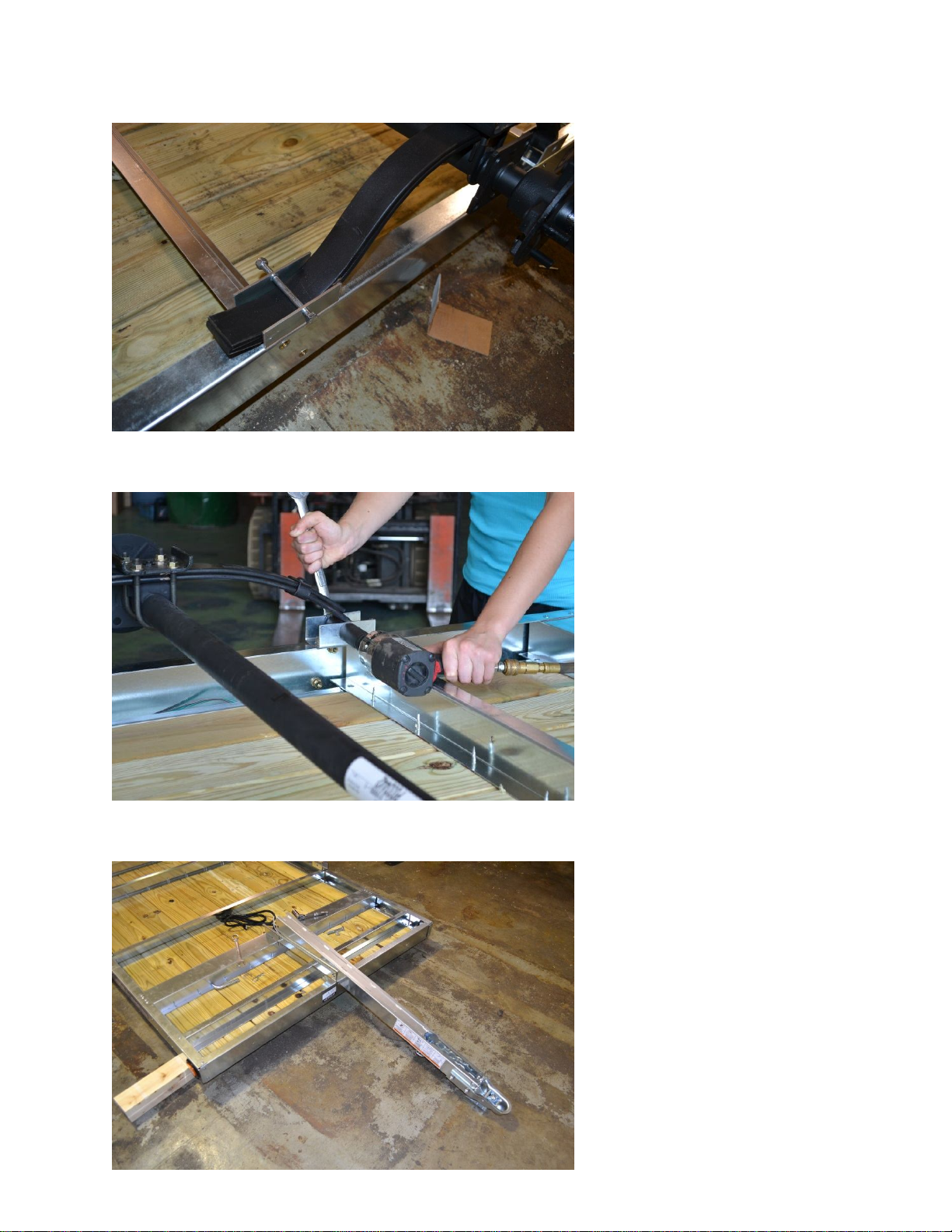

Install the 5/16 x 3-1/4
bolts and lock nuts over
the spring and into the
rear shackles. These bolts
and nuts are also in the
hardware bag. Tighten
these bolts to 15 lbf.
Tighten the front shackle
bolts using an impact
wrench. Be sure to hold
the bolt with a wrench so
that the bolt does not
turn. Spinning this bolt in
the shackle will lead to
axle mount failure.
Tighten the nut until the
shackle almost touches
the spring sides.
Place the tongue into the
tongue channel on the
trailer. And align the
holes. (Figure 12)
Figure 10
Figure 11
Figure 12
5

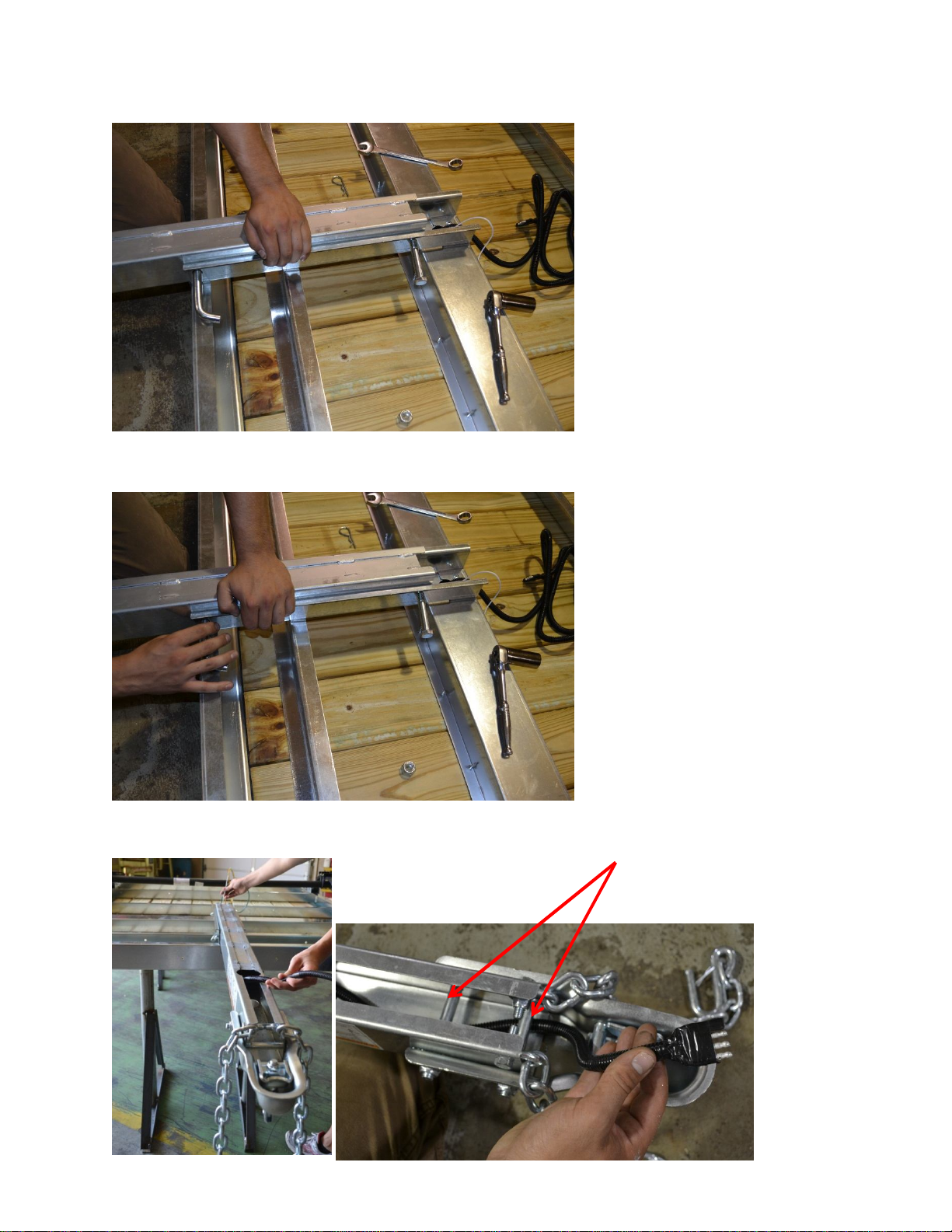

Insert the 9/16 x 4 pivot
bolt into the tongue.
Install the nylon lock nut
and tighten until the sides
of the rail start to touch
the tongue.
Insert the front pin and
cotter through the tongue
and the tongue mount.
Feed the trailer wiring
harness through the
tongue and out the front
so that the coupler
mounting bolts keep the
wire from dropping out
the front of the tongue.
Figure 14
Figure 13
Figure 15
6

Flip the trailer and
support it on sturdy
stands so that you can
finish the assembly.
Remove the 3 self
tapping screws installed
in the tongue. Insert the
jack through the tongue
using caution not to
damage the wiring
harness.
Tighten the 3 self tapping
screws into the pre
drilled holes in the
tongue. Tighten to 10 lbf.
Install both fenders by
bolting through the
fender brackets and into
the preplaced nuts in the
frame. Use the 5/16-18 x
¾ bolts from the
hardware bag. Tighten all
4 bolts on each fender to
15 lbf.
Figure 16
Figure 17
Figure 18
7

Install the tires and tighten
the lug nuts (from the
hardware bag) to 100 lbf of
torque. Be sure and put the
coned surface of the nut
against the rim. Use a criss
crosspattern to tighten the
lug nuts working up to the
final torque in three stages
of tightening. Re-torque the
lug nuts after 25, 50 and 100
miles of travel.
Install the tire stops on the
front of the trailer using the
hardware removed earlier.
Place a bolt in each corner of
the tire stop and use the
serrated nuts to secure
them. Tighten to 15 lbf of
torque.
Using the 5/16-18 x ¾ bolts
from the hardware bag,
install the stake pockets, 2
per side of the trailer; and
tighten the bolts to 15 lbf.
*Note, if you are installing a
factory side board kit, do not
install the stake pockets. The
sideboard kit instructions
are at the end of this
manual.
Figure 21
Figure 20
Figure 19
8

When towing the trailer,
the front pin must be
installed with its keeper or
cotter pin through it. This
prevents the trailer from
tipping up.
To tilt the trailer, ensure
that the trailer is secure to
the towing ball of the tow
vehicle. Then, remove the
cotter and pull the pin
from the tongue. The
trailer can now be tilted by
lifting on the front of the
trailer frame.
Trailer shown tilted
without tow vehicle for
demonstration purposes
only. Tilting the trailer
while not attached to the
tow vehicle can be
dangerous and could
result in personal injury.
Figure 23
Figure 24
Figure 22
9

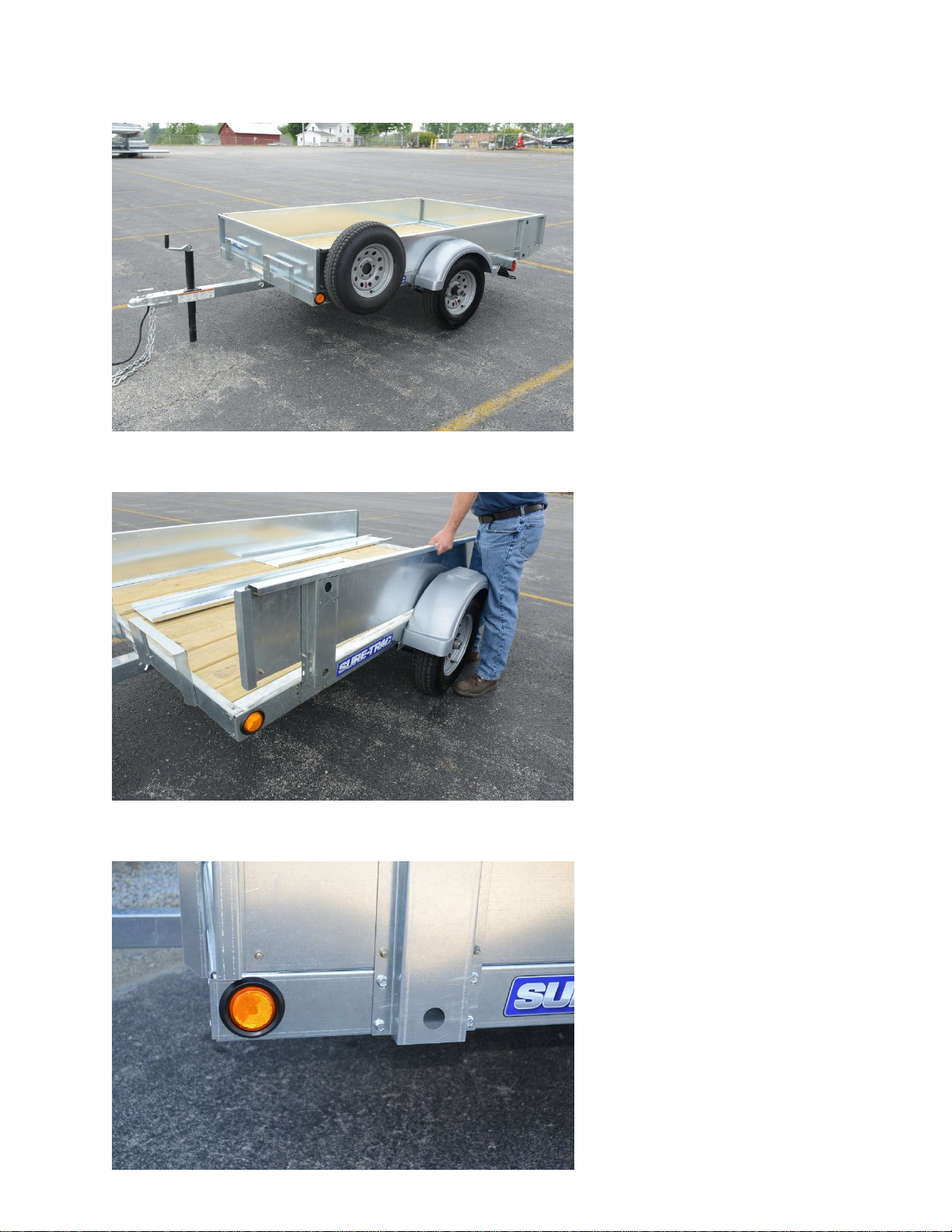

An optional side board kit
with spare tire mount can
be installed on your
trailer.
Remove all 4 of the stake
pockets, if installed, and
keep the bolts. Place a
side rail onto the trailer,
inside of the fender, with
the upright
reinforcements facing
out. Both side rails are
the same and work on
either side.
Reinstall the bolts
through the uprights and
into the rivet nuts.
Tighten to 15 lbf.
Figure 26
Figure 27
Figure 25
10

Slide an end gate into the
front and the back of the
side rails. The end gates are
identical and can be used in
the front or the rear.
The end gates canbe nested
into each other and placed
at either the front or the
back of the trailer when
hauling long items that
won’t fit inside the gates.
The slot in the upright of the
sideboard kit is for mounting
a spare tire to the trailer.
Slide the included carriage
bolt into the slot from the
side and pull it away from
the trailer to seat the square
head into the slot.
Figure 29
Figure 30
Figure 28
11

Place the tire over the bolt
and tighten the included
lock nut to hold the tire in
place against the side of
the trailer.

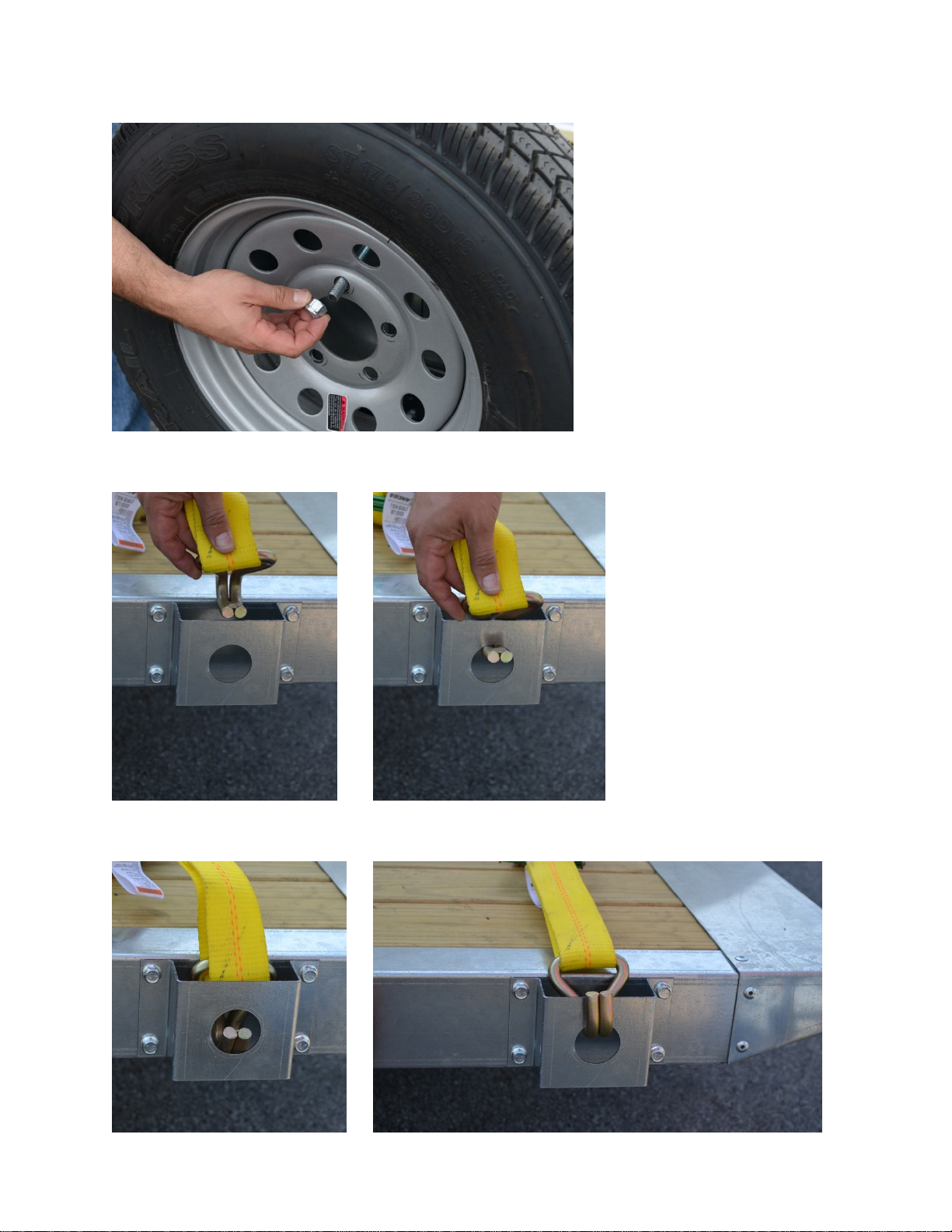

The stake pockets are
designed to be used as tie
down points. Most
standard 2” straps have a
wire formed hook that fits
inside the pocket by
twisting it in. Roll the strap
hook into place as shown
in Figure 32-33. The hook
will not fall out when
slacked (Figure 34), and it
is located correctly when
tension is applied (Figure
35).
Figure 32-33
Figure 31
Figure 34-35
12

13
ST6008-GALT PARTS DIAGRAM 4-9-2013

14
ID Part# Description Qty Part# Decals Qty
1 70015 Fab, Tire Stop 2 ST4069 Label, Sure Trac15.6 2
1a 70018 Screw,5/16-18x 3/4HHSerr. Gr5zinc 4 ST3527 Label, Bumper Pull Combo 1
1b 30624 Nut, 5/16-18whiz flange serrated 4 32154 Decal, Patent Pending 1x 6 1
2 70006 Fab, Front Frame 1 ST1273 Label, WWW.sure-trac.com on clear 1
3 70003 Fab, Stake Pocket Bolted 4 ST3637 Label, Final Inspection 1
3a 30624 Nut, 5/16-18whiz flange serrated 4
3b 70020 Rivet nut 5/16-18.027-.150Ribbed STLZ 4 *Rivet Nuts- Part70020require installation tool
4 70008 Fab, Side Frame Left 1
5 ST3287 Wheel assly, 13silver mod 2
6 70032 Fender, grey 13inch wheel 2
6a 70001L Fab, fender brace left 1
6b 70001R Fab, fenderbrace right 1
6c 70018 Screw, 5/16-18x 3/4HHSerr. Gr5zinc 4
6d 70020 Rivetnut 5/16-18.027-.150RibbedSTLZ 4
7 ST1173 Hanger, License Plate plastic 1
8 ST1175 Light, Tail License Illum Red 12V 1
9 70016 Fab, Light Bracket B 1
9a 70018 Screw,5/16-18x 3/4HHSerr. Gr5zinc 1
9b 70020 Rivetnut 5/16-18.027-.150RibbedSTLZ 1
10 70007 Fab, RearTilt Frame 1
11 70017 Fab, Light BracketBmir 1
11a 70018 Screw, 5/16-18x 3/4HHSerr.Gr5zinc 1
11b 70020 Rivetnut 5/16-18.027-.150RibbedSTLZ 1
12 70009 Fab, Side Frame Right 1
13 70040 Tongue W/A 1
14 ST7089 Jack, A-Fram5k ZN plated 1
14a 70021 Screw, 5/16-18x 1/2HHTrilobe 3
14b ST6686 Foot Plate Small bolt on 1
15 70023 Coupler2in ball 3wide CLII 3500ZN 1
15c 70026 Screw, 1/2-13x 4HHGR5ZN 2
15d 70027 Nut, 1/2-13 Nylon Lock GR5ZN 2
16 70014 Fab, Tilt Tongue Bracket 1
16a 70022 Screw, 9/16-12x 4HHGr5ZN 1
16b 70024 Nut, 9/16-12Nylon Lock, Zinc 1
16c 70025 Pull Pin, 5/8x 4.5withCotter 1
17 70004 Fab, Front Shackle MountD 2
17a ST1015 Screw, 9/16-18x3Shackle Bolt Zinc 1
17b ST1016 Nut, 9/16-18forShackle Bolt 1
18 70031 Axle, 2k idler 58.5/70EZslipper 1
19 70005 Fab, RearShackle Mount 2
19a ST1737 Bolt, 5/16-18x 3-1/4, HHGR5 1
19b ST1819 Nut, 5/16Nylon Lock 1
20 70010 Fab, Crossmember Z 5
21 ST1170 Board, 5/4x 8ft treated 10
21a ST1007 Screw, 12-14x 2tek dek screw 3
22 ST2116 Light, Recessed Refl Rnd 2.5Amber 12V 2
22a ST2117 Grommet, 2-1/2Round Flush W/Wire 1
23 70041 Tube CMW/A 5W 1
24 ST1174 Light, Surface Mt Red 12v 1
25 ST1014 Chain, Trailer Safety with Hook 27 2
25a 1294 Washer, Flat3/8Zinc 1
25b 102055 Screw, 3/8-16x 1-1/4HHGR5Zinc 1
25c 70028 Nut, 3/8-16Nylon Lock GR5ZN 1
26 31206 Nut, Cone lug 1/2-20 10
27 ST1108 Wire Harness, 4pole 30ft 1
27a ST1107 Loom, 3/8PlasticWire 7
