Novamatic TK7656 User manual

Condensation dryer TK 7656
Operating Instructions

2
Dear customer,
Please read this User Information carefully and keep
it to refer to at a later date.
Pass this User Information on to any subsequent
owner of the appliance.
The following symbols are used in the
text:
1Safety instructions
Warning: Notes that concern your personal
safety.
Attention: Notes that show how to avoid
damage to the appliance.
3Useful tips and hints
2Environmental information

3
Contents
Instructions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Environmental tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operating screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Before the first drying cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Sorting and preparing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview of programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Switching machine on / switching light on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Opening loading door / filling laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Selecting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

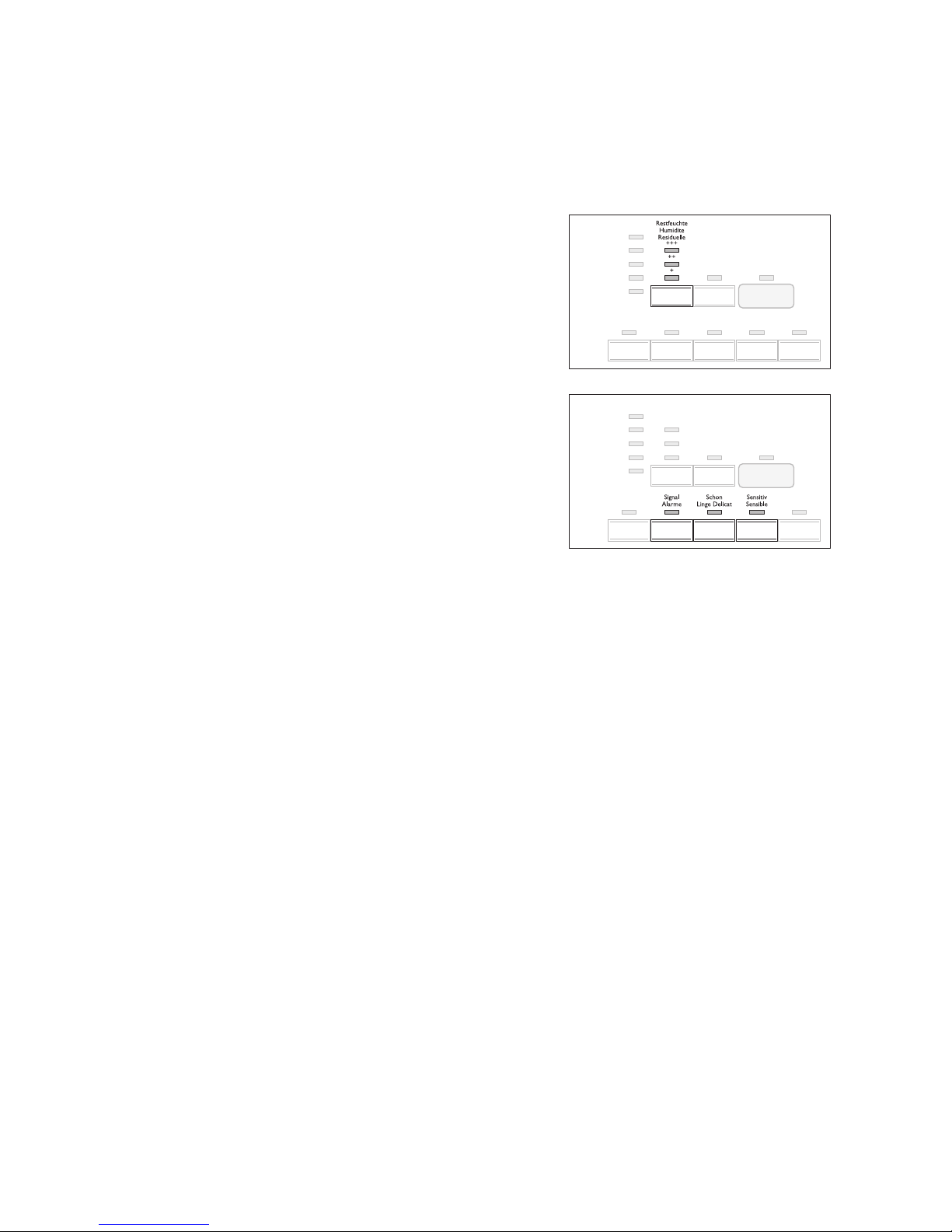

Selecting additional functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
INTENSITY (RESTFEUCHTE). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
AUDIBLE SIGNAL (SIGNAL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SPECIAL CARE (SCHON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SENSITIVE (SENSITIV). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setting time delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Changing programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Putting in extra items or taking items out before end of programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Drying cycle complete / removing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

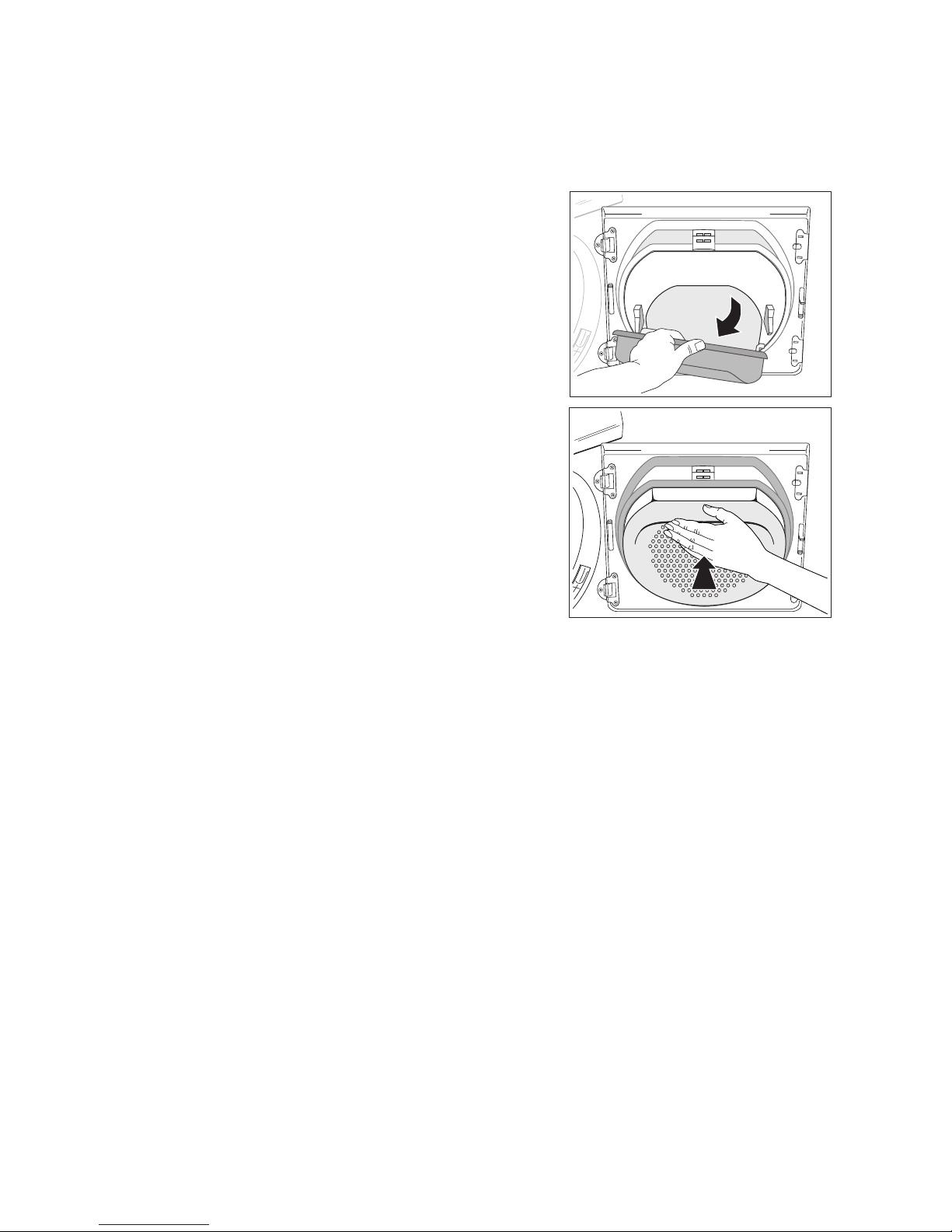

Cleaning fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Emptying the condensate tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

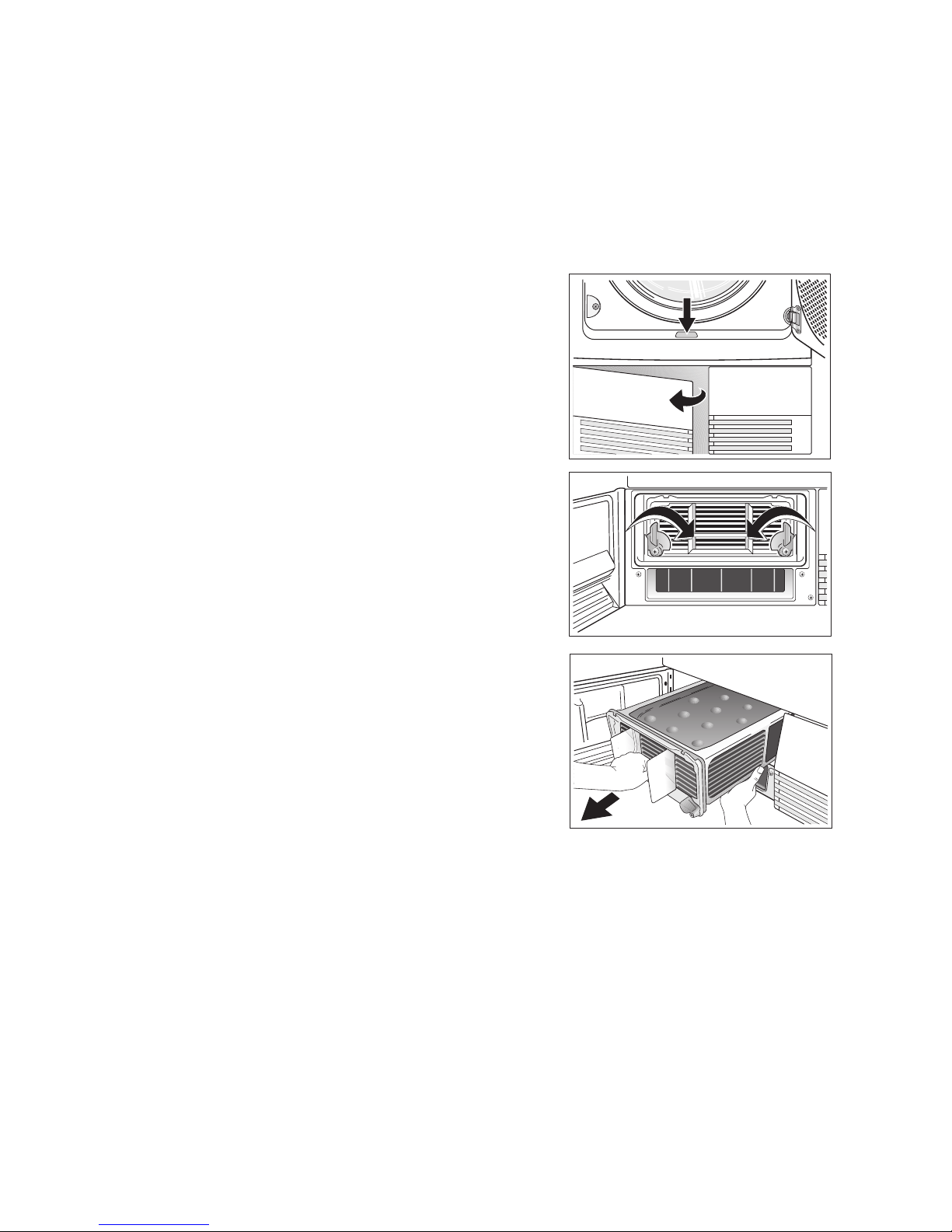

Cleaning heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning the drum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clean operating screen and housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting by yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Changing bulb for inside light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Programming options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Consumption values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation and connection instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Removing transport safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing door stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Customer Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4
Instructions for use
1Safety
Before first starting up
•Note the ”Installation and connection instruc-
tions”
•Before first starting up, check the machine for any
damage incurred during transport. Never connect
up a damaged machine. If parts are damaged,
contact your supplier.
Intended use
•The dryer is intended for drying standard laundry in
domestic applications.
•Conversions or modifications to the dryer are not
permitted.
•The laundry must not contain flammable solvents
(benzene, alcohol, stain remover, etc.) . Risk of fire
and/or explosion! Laundry which has come into
contact with such substances must be rinsed thor-
oughly by hand before drying.
•When using dry-cleaning sets: Only use those
products which are declared as suitable for the
dryer by the manufacturer.
•Do not place items of laundry in the dryer which
contain foam rubber or materials similar to rubber.
Risk of fire!
•Do not place heavily worn laundry items in the dry-
er. Risk of fire!
•Do not place laundry items with loose fillings (e.g.
cushions) in the dryer. Risk of fire!
•Parts with rigid components (e.g. door mats) may
cover the air slots. Risk of fire! Do not place such
items in the dryer.
•Do not overfill the dryer. Risk of fire! Observe max.
loading volume of 6 kg.
•Ensure that explosive objects (e.g. cigarette light-
ers, spray cans, etc.) do not enter the dryer with
the laundry. Risk of fire and/or explosion!
•Risk of fire: items that have been spotted or
soaked with vegetable or cooking oil constitute a
fire hazard and should not be placed in the tumble
dryer.
•If you have washed your laundry with stain remover
you must execute an extra rinse cycle before load-
ing your tumble dryer.
•Clean the micro-fine filter and fine strainer after
each drying cycle.
•Do not use the machine if there are no lint filters or
if these are damaged. Risk of fire!
•Clean the heat exchanger regularly.
•With stacked washer and dryer: Do not place ob-
jects on the dryer. These may fall off during opera-
tion.
•The covering bonnet of the bulb for the drum light
must be screwed down tightly.
Child safety
•Keep packaging away from children. Risk of suffo-
cation!
•Children can often not see the dangers associated
with electric machines. Never leave unsupervised
children near the dryer.
•Ensure that children and small animals cannot
climb into the dryer’s drum. Risk of death! Keep
the dryer door shut whenever it is not being used.
General safety
•Only specialists may undertake repairs on the dry-
er.
•Never start up the dryer if the mains cable is dam-
aged or if the operating screen, operating plate or
base area are damaged so that the inside of the
machine is open and accessible.
•Switch off the dryer before all cleaning, care or
maintenance work. Also disconnect the mains plug
from the socket or – with permanent connections –
switch off the LS switch in the fuse box and/or fully
unscrew the screwed-in fuse.
•Disconnect the machine from the power supply
during long pauses in operations.
•When removing from the socket, never pull the
mains plug by the cable, instead take a hold of the
plug.
•Manifold plugs, couplings and extension cables
must not be used. Risk of fire from overheating!
•Do not spray down the dryer with jets of water.
Risk of electric shock!
•Do not lean on the open door. The machine may tip
over.
•Once the drying cycle has been interrupted, the
laundry and drum may be hot. Risk of burns! Take
care when removing the laundry.

5
Disposal
2Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic com-
ponents are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging
materials in the appropriate container at the
community waste disposal facilities.
2Old appliance
The symbol Won the product or on its pack-
aging indicates that this product may not be
treated as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment. By ensuring this product is dis-
posed of correctly, you will help prevent po-
tential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed in-
formation about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
1Warning! Remove mains plug from socket
when you have no further use for the machine.
Cut off mains cable and dispose of together
with plug.
Destroy loading door lock. Children cannot
then lock themselves in the machine and put
their lives at risk.
2Environmental tips
•In the dryer, laundry becomes fluffy and soft. Fab-
ric softeners are not therefore needed when wash-
ing.
•Your dryer will function most economically if you:
–always keep the ventilation slots on the base of
the dryer unobstructed;
–use the loading volumes specified in the pro-
gramme overview;
–ensure you have good ventilation in the installa-
tion room;
–clean the micro-fine filter and fine strainer after
each drying cycle;
–spin the laundry well before drying. Example:
Consumption data – depending on spinning
speed – for 6kg of laundry, dried using the COT-
TONS STORAGE DRY (BAUMWOLLE
SCHRANKTROCKEN) programme.
Pre-draining Drying cycle
Revolutions
per minute
Residual dampness
in litres
Residual dampness
as a %
Energy
in kWh
800 4.2 70 3,84
1000 3,6 60 3,36
1200 3.2 53 3,10
1400 3.0 50 3,00
1800 2.5 42 2,60

6
Description of machine
Operating screen
Drawer containing
condensate tank
Screwed feet
(with height
adjustment)
Loading door
(interchangeable stop)
Operating screen
Large mesh filter
(lint filter)
Air slots
Lamp for inside light
Type plate
Base door
upstream of
heat exchanger
M
icro-fine filter
(
lint filter)
Fine strainer
(lint filter)
Display showing level
of dryness
Programme progress display
Programme selector
Maintenance displays
–HEAT EXCHANGER (WÄRMETAUSCHER - clean!)
–EMPTY WATER (BEHÄLTER - empty!)
–CLEAN FILTER (SIEB - clean lint filter!)
Block of buttons and displays
Multi-display
DELAY TIMER
button
INTENSITY button

7
Before the first drying cycle
In order to remove any residue which may have been
produced during production, wipe the dryer drum
with a damp cloth or undertake a brief drying cycle
(30 MIN) with damp cloths.
Sorting and preparing laundry
Sorting laundry
•Sort by fabric type:
–Cotton/linen for programmes in COTTONS
(BAUMWOLLE) programme group.
–Mixtures and synthetics for programmes in EASY
CARES (MISCHGEWEBE) programme group.
•Sorting by care label. The care labels mean:
•Do not dry new, coloured textiles together with
light-coloured laundry items. Textile colours may
bleed.
•Do not dry tricot or knitted items with the EXTRA
DRY (EXTRA TROCKEN) programme. Items may
become stuck!
•Do not dry wool in the dryer. May become entan-
gled! After air-drying, wool may be dried with the
WOOL CARE (WOLLPFLEGE) programme.
Preparing laundry
•To avoid laundry becoming tangled: Close zips,
button up coverings and tie loose bands or ribbons
(e.g. of aprons).
•Empty pockets. Remove metallic items (paper-
clips, safety pins etc).
•Turn items with double-layered fabrics inside out
(e.g. with cotton-lined anoraks, the cotton layer
should be outermost). These fabrics will then dry
better.
nm l k
Basic drying in tumble
dryer possible
Drying at
normal
temperature
Drying at
reduced temperature
(press SPECIAL CARE (SCHON)
button!)
Drying in tumble
dryer not
possible

8
Overview of programmes
Programme
max. loading volume (weight when dry)
Additional
functions
Application/properties Care
symbols
AUDIBLE SIGNAL (SIGNAL) SPECIAL CARE (SCHON) 1)
1) SPECIAL CARE (SCHON) and SENSITIVE (SENSITIV) cannot both be selected at the same time.
SENSITIVE (SENSITIV) 1) INTENSITY (RESTFEUCHTE)
COTTONS (BAUMWOLLE)
EXTRA DRY
(EXTRA-
TROCKEN)
6kg • • • •
Drying thick or multi-layered textiles,
e.g. terry towelling items, bathing cos-
tumes.
mn
INTENSIVE
DRY
(STARK-
TROCKEN)
6kg • • • • Drying thick textiles, e.g. terry towelling
items, towels.
mn
STORAGE
DRY
(SCHRANK-
TROCKEN)
6kg • • • •
Drying textiles of even thicknesses, e.g.
terry towelling items, knitted items,
towels.
mn
DAMP
(LEICHT-
TROCKEN)
6kg • • • • For thin textiles which are still to be
ironed, e.g. knitted items, cotton shirts.
mn
HAND
IRON
(BÜGEL-
TROCKEN)
6kg • • • • For normal thickness cotton or linen
laundry, e.g. bedding, table linen.
mn
MACHINE
DRY
(MANGEL-
TROCKEN)
6kg • • • •
For cotton or linen laundry which are
still to be put through a machine, e.g.
bedding, table linen.
mn
EASY CARES (MISCHGEWEBE)
EXTRA DRY
(EXTRA-
TROCKEN)
3kg • • • • Drying thick or multi-layered textiles,
e.g. pullovers, bedding, table linen.
ml2) n
2) Press the SPECIAL CARE (SCHON) button!
STORAGE
DRY
(SCHRANK-
TROCKEN)
3kg • • • •
For thin textiles which are not ironed,
e.g. easy care shirts, table linen, baby’s
clothes, socks, corsetry.
ml2)
n
DAMP
(LEICHT-
TROCKEN)
3kg • • • • For thin textiles which are still to be
ironed, e.g. knitted items, cotton shirts.
ml2)
n

9
Programme
max. loading volume (weight when dry)
Additional
functions
Application/properties Care
symbols
AUDIBLE SIGNAL (SIGNAL) SPECIAL CARE (SCHON) 1)
1) SPECIAL CARE (SCHON) and SENSITIVE (SENSITIV) cannot both be selected at the same time.
SENSITIVE (SENSITIV) 1) INTENSITY (RESTFEUCHTE)
30 MIN 1kg • • - - For drying individual items of laundry or for
small volumes of less than 1kg.
ml2)
n
2) Press the SPECIAL CARE (SCHON) button!
LEISURE
(FREIZEIT) 6kg • • • •
Special programme for leisure clothing, such
as jeans, sweat-shirts, etc., of different mate-
rial thicknesses (e.g. at the cuffs and seams).
mn
EASY IRON
(LEICHT-
BÜGELN)
1kg • • - -
Special programme with anti-crease mecha-
nism for easy care textiles such shirts and
blouses; for minimum ironing effort. The re-
sult depends on the type and quality of tex-
tiles. (The loading volume corresponds to
approx. 5 to 7 shirts.)
Recommendation: Place textiles in the dryer
straight after spinning. Once dried, immedi-
ately remove textiles and place on clothes
hanger.
ml2) n
WOOL CARE
(WOLL-
PFLEGE)
1kg • • - -
Special programme for briefly treating wool-
lens with warm air after they have been dried
naturally, worn or stored for long periods.
Wool fibres are aligned and the wool be-
comes soft and snugly.
Recommendation: Remove textiles immedi-
ately after drying.
REFRESH
(AUF-
FRISCHEN)
1kg • • - -
Special programme, lasting around 35 min-
utes, for refreshing or gently cleaning textiles
with commercially available dry cleaning
sets.
(Only use those products which are declared
as suitable for the drier by the manufacturer;
please observe the manufacturer’s instruc-
tions for use.)

10
Drying
Switching machine on /
switching light on
Turn the programme selector to any programme or
turn it to LIGHT (BELEUCHTUNG). The machine has
been switched on. When the loading door is opened,
the drum is illuminated.
Opening loading door / fill-
ing laundry
1. Open loading door:
–Either use force to push against the loading door
(push point )
–or if the machine is switched on: Press the DOOR
(TÜR) button.
2. Load your laundry (do not force it in).
1Caution! Do not jam laundry in between the
loading door and rubber seal.
3. Close loading door securely. Lock must audibly
lock.
Selecting the programme
Use the programme selector to set the programme
you require.
The probable programme run time is displayed (in
minutes) on the multi-display.

11
Selecting additional func-
tions
INTENSITY (RESTFEUCHTE)
Precise setting of humidity content of laundry. Laun-
dry becomes dryer from + to +++.
1. Press the INTENSITY (RESTFEUCHTE) button as
many times as necessary until the small light at the
level of residual dampness required is illuminated.
If required, press the AUDIBLE SIGNAL (SIGNAL),
SPECIAL CARE (SCHON) or SENSITIVE (SENSITIV)
buttons.
AUDIBLE SIGNAL (SIGNAL)
When the drying cycle has finished, an intermittent
audible signal will sound.
SPECIAL CARE (SCHON)
For especially gentle drying of sensitive fabrics with
the lcare label and for temperature-sensitive tex-
tiles (e.g. acrylic, viscose). Programme is executed
with reduced heat.
SPECIAL CARE (SCHON) is only suitable for use
with loads of up to 3kg!
SENSITIVE (SENSITIV)
For gentle drying of frequently-worn textiles. Pro-
gramme starts on full heat setting, which is then re-
duced towards the end of the programme to ensure
gentle care of laundry.
3SPECIAL CARE (SCHON) and SENSITIVE
(SENSITIV) cannot be selected together.

12
Setting time delay
3With the DELAY TIMER (ZEITVORWAHL) but-
ton, you can delay the start of a programme by
between 30 minutes (30' and a maximum of
23 hours (23h).
1. Select the programme
2. Press the DELAY TIMER (ZEITVORWAHL) button
as many times as necessary until the required start
delay appears on the multi display, e.g. 12h if the
programme is to be started in 12 hours. The DE-
LAY TIMER (ZEITVORWAHL) display is illuminated.
3If 23h is displayed and you press the button
again, the time delay will be cancelled. The
display will show 0' and then the duration of
the selected programme.
3. To activate the delay timer, press the START/
PAUSE button. The amount of time remaining until
the programme is set to start is continuously dis-
played (e.g. 12h, 11h, 10h, … 30'etc).
3Until the start of the programme the drum is
moved at longish intervals to loosen the laun-
dry.
Starting the programme
Press the START/PAUSE button. The programme is
started.
The programme progress display and the display
showing the level of dryness show drying progress.
Changing programme
To change a programme which has been selected by
mistake once the programme has started, first turn
the programme selector to OFF (AUS) and then reset
the programme.
3The programme can no longer be changed di-
rectly once the programme has started. If nev-
ertheless there is an attempt to change the
programme on the programme knob, the pro-
gramme progress display and the mainte-
nance indicators flash. If an option button
(excluding the AUDIBLE SIGNAL (SIGNAL)
button) is pressed, Err appears in the multi-
display. The drying programme is not however
affected by this (laundry protection).
Putting in extra items or
taking items out before end
of programme
1. Open door.
1Warning! Laundry and drum can become hot.
Risk of burns!
2. Load or remove laundry items.
3. Close door securely.
4. Press the START/PAUSE button to continue the
drying cycle.
Drying cycle complete / re-
moving laundry
Once the drying cycle is complete, the END (ENDE)
and CREASE GUARD (KNITTERSCHUTZ) displays
light up. If the AUDIBLE SIGNAL (SIGNAL) button
has been pressed, an audible signal sounds intermit-
tently.
3The drying cycle is automatically followed by a
crease guard phase which lasts around 30
minutes. The drum rotates in intervals during
this phase. The laundry thereby remains re-
laxed and free of creases. The laundry can be
removed at any time during the crease guard
phase. (The laundry should be taken out to-
wards the end of the crease guard phase at
the latest to prevent creases from forming.)
1. Open loading door
2. Before removing the laundry, remove lint from the
micro-fine filter. It is best to use a damp hand for
this purpose (refer to “Cleaning and maintenance”
section).
3. Remove laundry.
4. Turn the programme selector to OFF (AUS).
Important! After each drying cycle
–clean the micro-fine filter and fine strainer,
–drain the condensate tank
(refer to the “Cleaning and maintenance” section).
5. Close loading door.

13
Cleaning and maintenance
Cleaning fluff filter
To ensure that the dryer works perfectly, the fluff fil-
ters (micro-fine filter and fine strainer) must be
cleaned after every drying cycle.
1Caution! Never operate the dryer without fluff
filters or with damaged or blocked fluff filters.
1. Open loading door
2. Use a damp hand to clean the micro-fine filter,
which is built into the lower part of the loading ap-
erture.
3. Push down unlock button on large mesh filter.
Large mesh filter jumps up.
4. Take out fine straine r.
5. Remove fluff from fine strainer. It is best to use a
damp hand for this purpose.

14
Clean the entire filter area
3The strainer area does not have to be cleaned
after every drying cycle, but should be
checked regularly and cleaned of fluff if neces-
sary.
6. To do this, grip the top of the large mesh filter and
pull it forwards until it comes loose from the two
brackets.
7. Remove fluff from the entire filter area. It is best to
use a vacuum cleaner for this purpose.
8. Press both journals of the large mesh filter into the
brackets on the loading door until they snap into
place.
9. Re-insert fine strainer.
10.Press against the large mesh filter until it locks
into the interlock.
3If the fine strainer is not fitted, the large mesh
filter will not snap into place and the loading
door cannot be closed.
Cleaning the door seal
Wipe the door seal with a damp cloth immediately
after the drying cycle has finished.

15
Emptying the condensate
tank
Empty condensate tank after every drying cycle.
If the condensate tank is full, an active programme
will break off automatically and the EMPTY WATER
(BEHÄLTER) display will light up. In order to continue
the programme, the condensate tank must first be
emptied.
1Warning! The condensate is not suitable for
drinking or for preparing foodstuffs.
1. Pull drawer containing condensate tank out all the
way (1). Pull out condensate tank’s outlet connec-
tions (2).
2. Pour condensate out into basin or other suitable
container.
3. Slide outlet connections in and refit condensate
tank.
If the programme has been interrupted as a result of
the condensate tank being full:
Press the START/PAUSE button to continue the dry-
ing cycle.
3The condensate tank has a volume of approx.
4 litres. This is sufficient for around 6kg of
laundry which has previously been spun at
800 revolutions/minute.
3The condensate can be used as distilled wa-
ter, e.g. for steam ironing. However first filter
the condensate (e.g. with a coffee filter) to re-
move any residue and small pieces of fluff.

16
Cleaning heat exchanger
If the HEAT EXCHANGER (WÄRMETAUSCHER) dis-
play is illuminated, the heat exchanger needs to be
cleaned.
1Caution! Operating when the heat exchanger
is clogged with lint can damage the dryer. This
also increases energy consumption.
1. Open loading door
2. Open base door. To do this, press the release but-
ton located beneath the loading aperture and open
the base door to the left.
3. Remove lint from the inside of the door and the
heat exchange chamber. Wipe the door seal with a
damp cloth.
4. Turn both lock washers inwards.
5. Use the handle to pull the heat exchanger out of
the base and carry it horizontally to prevent any re-
maining water from spilling.
6. To empty the heat exchanger, hold vertically over a
washing-up bowl.
1Caution! Do not use sharp objects to clean.
The heat exchanger could develop leaks.
7. Clean heat exchanger.
It is best to use a brush or to rinse thoroughly with
a shower head.
8. Replace heat exchanger and lock into place (turn
both lock washers outwards until they snap into
place).
9. Close base door.
3The dryer will not operate if the HEAT EX-
CHANGER (WÄRMETAUSCHER) indicator is
still lit.
1Caution! Never operate the dryer without the
heat exchanger.

17
Cleaning the drum
1Caution! Do not use abrasives or steel wool to
clean the drum.
3Lime in the water or cleaning agents may form
a barely visible lining on the inside of the drum.
The degree to which the laundry has been
dried is then no longer detected reliably. The
laundry is damper than expected when re-
moved from the dryer.
Use a standard domestic cleaner (e.g. vinegar-based
cleaner) to wipe down the inside of the drum and
drum ribs.
Clean operating screen and
housing
1Caution! Do not use furniture cleaners or ag-
gressive cleaning agents to clean the ma-
chine.
Use a damp cloth to wipe down the operating screen
and housing.
What to do if …
Troubleshooting by your-
self
If, during operation, the error code (Eplus number or
letter) appears on the multi-display: Switch the ma-
chine off and on again. Reset programme. Press the
START/PAUSE button
If the error is still displayed, please inform our after-
sales service and quote the error code.
Problem Possible cause Remedy
Dryer does not work.
Mains plug is not plugged in or fuse
is not working correctly.
Plug in at mains socket. Check fuse in
fuse box (domestic installation).
Loading door is open. Close loading door.
Have you pressed the START/
PAUSE button? Press the START/PAUSE button again.
Drying results unsatisfactory.
Wrong programme selected.
Select a different programme the next
time you dry (see “Overview of pro-
grammes” section).
Lint filter clogged. Clean lint filter.
Heat exchanger clogged with lint. Clean heat exchanger.
Incorrect volume of laundry. Observe recommended loading vol-
umes.
Ventilation slots in base area cov-
ered up. Uncover ventilation slots in base area.
Residue on inside surface of drum or
drum ribs.
Clean inside surface of drum and drum
ribs.
Make an adjustment using the INTEN-
SITY (RESTFEUCHTE) function (see
chapter ”Drying, Selecting additional
functions”).

18
Loading door does not open
with DOOR (TÜR) button.
Mains plug disconnected. Plug in at mains socket.
Programme selector in OFF (AUS)
position.
Set programme. Loading door can be
opened at any time by exerting pres-
sure on the door.
Loading door does not close. Fine strainer not in place and/or
large mesh filter not locked in place.
Install fine strainer and/or snap large
mesh filter into place.
When a button is pressed,
Err appears in the multi-dis-
play.
Washing protection. After the start of
the programme, the option can no
longer be set.
Turn the programme knob to OFF
(AUS). Set the programme again.
Drum light does not work.
Programme selector in OFF (AUS)
position.
Turn programme selector to LIGHT (BE-
LEUCHTUNG) or to any programme.
Defective light bulb. Replace light bulb (see next section).
PROGRAMME TIME
(LAUFZEIT) display changes
erratically or stays unchanged
for a long time.
Programme time is corrected auto-
matically depending on type and
volume of laundry and level of
dampness.
Automatic process; this is not a ma-
chine fault.
Programme inactive, EMPTY
WATER (BEHÄLTER) display
illuminated.
Condensate tank is full. Empty condensate tank, then start pro-
gramme with START/PAUSE button.
Drying cycle ends shortly after
programme starts. END
(ENDE) display illuminated.
Not enough washing loaded or
washing loaded is too dry for select-
ed programme.
Select time programme or higher drying
level (e.g. INTENSIVE DRY [STARK-
TROCKEN] instead of STORAGE DRY
[SCHRANKTROCKEN]).
Drying cycle lasts an unusual-
ly long time.
Note:
After around 5 hours the dry-
ing cycle ends automatically
(see „Drying cycle complete“).
Lint filter clogged. Clean lint filter.
Heat exchanger clogged with lint. Clean heat exchanger.
SPECIAL CARE (SCHON) button
pressed and load volume too big.
SPECIAL CARE (SCHON) is only suita-
ble for use with loads of up to 3kg!
Load volume too big. Reduce load volume.
Laundry insufficiently pre-drained. Laundry must be adequately pre-
drained.
Problem Possible cause Remedy

19
Changing bulb for inside
light
Only use a special bulb which is designed specially
for dryers. The special bulb is available from the af-
ter-sales service,
ET-Nr. 112 552 000-5.
1Warning! Do not use standard bulbs! These
develop too much heat and may damage the
machine!
1Warning! Before replacing the bulb, discon-
nect the mains plug; with a permanent con-
nection: fully unscrew or deactivate the fuse.
1. Unscrew covering bonnet from above bulb (this
can be found directly behind the loading aperture,
at the top; refer to “Description of machine” sec-
tion.)
2. Replace defective bulb.
3. Screw covering bonnet back down.
1Warning! For reasons associated with safety,
the covering bonnet must be screwed down
tightly. If this is not done, the dryer must not
be operated.

20
Programming options
Objective Implementation
Permanently program in the au-
dible signal which reminds you
that the programme is complete.
1. Turn the programme selector to any programme.
2. Press the AUDIBLE SIGNAL (SIGNAL) button and hold down for approx.
5 seconds.
A brief signal sounds several times. The AUDIBLE SIGNAL (SIGNAL) dis-
play flashes several times.
The setting is permanently programmed.
The setting is cancelled as described under 1 and 2.
Adjust detection of degree of
drying:
If the laundry is slightly drier or
slightly damper at the end of the
programme than with the stand-
ard setting.
1. Turn the programme selector to any programme.
2. Press the AUDIBLE SIGNAL (SIGNAL) and SENSITIVE (SENSITIV) but-
tons at the same time and hold down for approx. 5 seconds.
The current setting appears on the multi-display:
–C0: Setting for drier laundry
–C1: Standard setting
–C2: Setting for damper laundry
3. Press the START/PAUSE button until the setting required appears on the
multi-display.
4. Turn the programme selector to OFF (AUS).
The setting is permanently programmed.
If the EMPTY WATER (BEHÄL-
TER) display is to remain perma-
nently deactivated when using
an external condensate drain.
1. Turn the programme selector to any programme.
2. Press the DOOR (TÜR) and SPECIAL CARE (SCHON) buttons at the
same time and hold down for approx. 5 seconds. The multi-display briefly
displays ”0”
The EMPTY WATER (BEHÄLTER) display is permanently deactivated.
The setting is cancelled as described under 1 and 2; the multi-display how-
ever briefly displays ”1” (rather than ”0”).
