Novogratz DL8876-1 User manual

DL8876-1 (WHITE)
0-65857-20990-7 (WHITE)
0-65857-20991-4 (WALNUT)
FUTURE REFERENCE.
LOT NUMBER:
(LOCATED ON CARTON)
DO NOT RETURN PRODUCT TO THE RETAILER
If a part is missing or damaged, Contact our
customer service department. We will
replace the part FREE of charge.
Email: [email protected]
Tel: [phone]
READ AND KEEP FOR
DATE OF PURCHASE:
______ / ______ / ______
INFORMATION. PLEASE
INSTRUCTION MANUAL
MODEL NO:
DL8876-1WN (WALNUT)
3-Drawer
Dresser
UPC CODE:
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY

*
*
*
Use the wall safety strap provided to secure the unit to the wall.
*
A Phillips head screw driver is not included.
*
*
*
*
*
WARNING: Should this product become
damaged, and/or components are broken
or missing, DO NOT USE.
DHP Consumer Service
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
CARE AND CLEANING
Assembly will require two people.
Estimated assembly time: 60 minutes.
To avoid unnecessary damage, when levelers have been extended, DO NOT drag
across surface when moving. Be sure to lift and carry the item to its location.
Check bolts/screws periodically and tighten them if necessary.
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage
finish. Excessive exposure to sunlight and extreme changes in temperature and moisture
can damage wood furniture.
MAINTENANCE
Dorel warrants its product to be free from defects in material and workmanship and agrees
to remedy any such defect. This warranty covers 1 year from the date of original purchase.
This warranty is valid only upon presentation of proof of purchase. This is solely limited to
the repair or replacement of defective furniture components and no assembly labor is
included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State.
LIMITED WARRANTY
WARNING
Serious or fatal crushing injuries can occur from furniture tipover. To help prevent tipover:
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product model
number, color and a detailed description of your enquiry.
NOTES
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to the product finish.
* Never open more than one drawer at a time.
* Do not defeat or remove the drawer interlock system.
* Use of tipover restraints may only reduce, but not eliminate, the risk of tipover.
CAUTION: Adult assembly required.
DO NOT use power tools.
* Install tipover restraint provided.
* Place heaviest items in the lower drawers.
* Unless specifically designed to accommodate, do not set TVs or other heavy objects
on top of this product.
* Never allow children to climb or hang on drawers, doors or shelves.

1 2 3
4 5 6
7 8 9
10 11
12 13
ALLEN KEY
LLAVE ALLEN
CLÉ ALLEN
1 PC
4 PCS
1/4" x 13 x 90mm
SAFETY STRAP
CORREA DE SEGURIDAD
SANGLE DE SÉCURITÉ
1 KIT
BOLT
TORNILLO
BOULON
4 PCS
1/4" x 13 x 30mm
BOLT
TORNILLO
BOULON
BARREL NUT
TUERCA DE BARRIL
Écrou de baril
SCREW
TORNILLO
VIS
SCREW
TORNILLO
VIS
4 PCS
12 PCS
16 PCS
18 PCS
18 PCS
24 PCS
M3 X 15mm M4 X 25mm
Ø6 * 20mm
SMALL CAM BOLT
TORNILLO PEQUEÑO
BOULON DE PETIT CAM
SMALL CAM LOCK
BLOQUEO DE LEVAS PEQUEÑAS
Petite serrure à came
SMALL WOOD DOWEL
TAPON MADERA PEQUEÑA
PETIT BOIS GOUJON
LARGE CAM BOLT
PERNO DE LEVA GRANDE
GRAND BOULON DE CAME
LARGE CAM LOCK
GRAN CERRADURA DE LEVA
GRANDE SERRURE
LARGE WOOD DOWEL
TAPÓN DE MADERA GRANDE
GRAND GOUPILLE EN BOIS
14 PCS
14 PCS
16 PCS
HARDWARE LIST
Ø8 * 30mm
3-Drawer Dresser
DL8876-1, DL8876-1WN

PARTS LIST
A B C D
E F G H
I J K L
M N O
DRAWER BOTTOM
FOND DE TIROIR
FONDO DE CAJÓN
4 PCS
LEG
PIED
PATA
DRAWER FRONT
DEVANT DE TIROIR
FRENTE DE CAJÓN
3 PCS
DRAWER SUPPORT BAR
BARRA DE SOPORTE
BARRE DE SUPPORT
3 PCS3 PCS
3-Drawer Dresser
DL8876-1, DL8876-1WN
3 PCS 3 PCS 3 PCS
DRAWER BACK
ARRIÈRE TIROIR
POSTERIOR CAJÓN
BOTTOM PANEL
PANNEAU DU BAS
PANEL INFERIOR
BACK BOTTOM PANEL
PANEL INFERIOR
POSTERIOR
PANNEAU INFÉRIEUR
ARRIÈRE
DRAWER RIGHT SIDE
CÔTÉ DROIT TIROIR
LADO DERECHO CAJÓN
BACK TOP PANEL
PANEL SUP. POSTERIOR
PANNEAU SUPÉRIEUR
ARRIÈRE
1 PC
DRAWER LEFT SIDE
CÔTÉ GAUCHE TIROIR
LADO IZQUIERDO CAJÓN
1 PC
BACK RAIL
BORDURE ARRIÈRE
BORDE POSTERIOR
1 PC1 PC
RIGHT SIDE PANEL
CÔTÉ DROIT
LADO DERECHO
LEFT SIDE PANEL
CÔTÉ GAUCHE
LADO IZQUIERDOL
1 PC
TOP PANEL
PANNEAU DU HAUT
TAPA DE LA CÓMODA
1 PC 1 PC
FRONT RAIL
BORDURE AVANT
BORDE ANTERIOR
1 PC

STEP 1
114 PCS
Insert large cam bolts (1) into the top panel (A), left / right side panel (B&C) and bottom
panel (H) as shown.
3-Drawer Dresser
DL8876-1, DL8876-1WN
1
1
1
1
1
1
111
11
1
1
1
A
B
C
H

STEP 2
28 PCS
38 PCS
3-Drawer Dresser
DL8876-1, DL8876-1WN
Insert large cam locks (2) and large wood dowels (3) into the back / front rail (D&E) and
back bottom panel (G).
Attach left / right side panel (B&C) to the back / front rail (D&E) and back bottom panel (G)
and secure by rotating the large cam lock (2) 1/2 turn clockwise using a Phillips head
screwdriver (not included).
2
2
2
2
2
2
2
3
33
3
3
2
3
D
E
G
B
C

STEP 3
11 4 PCS
3-Drawer Dresser
DL8876-1, DL8876-1WN
Attach legs (I) to bottom panel (H) with bolts (11), Use the Allen key (12) to tighten the
bolts.
I
I
I
11
11
11
11
I
H

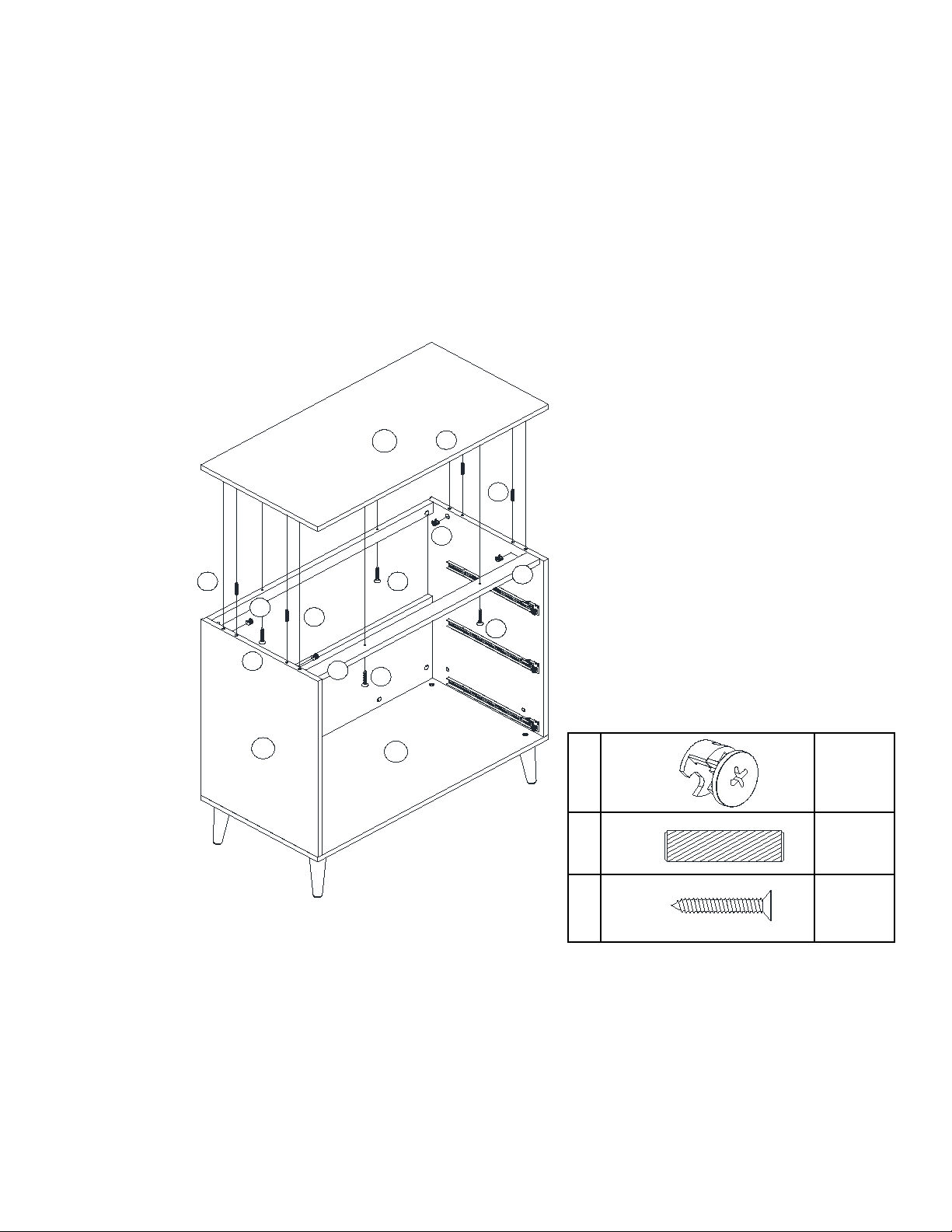

STEP 5
24 PCS
34 PCS
94 PCS
Insert large cam lock (2) and large wood dowel (3) to left / right side panel (B&C) as shown.
Attach top panel (A) to assembled unit with screws (9) and secure by rotating the large cam
locks (2) 1/2 turn clockwise using a Phillips head screwdriver (not included).
3-Drawer Dresser
DL8876-1, DL8876-1WN
9
9
9
3
3
32
2
2
3
2
9
BH
A

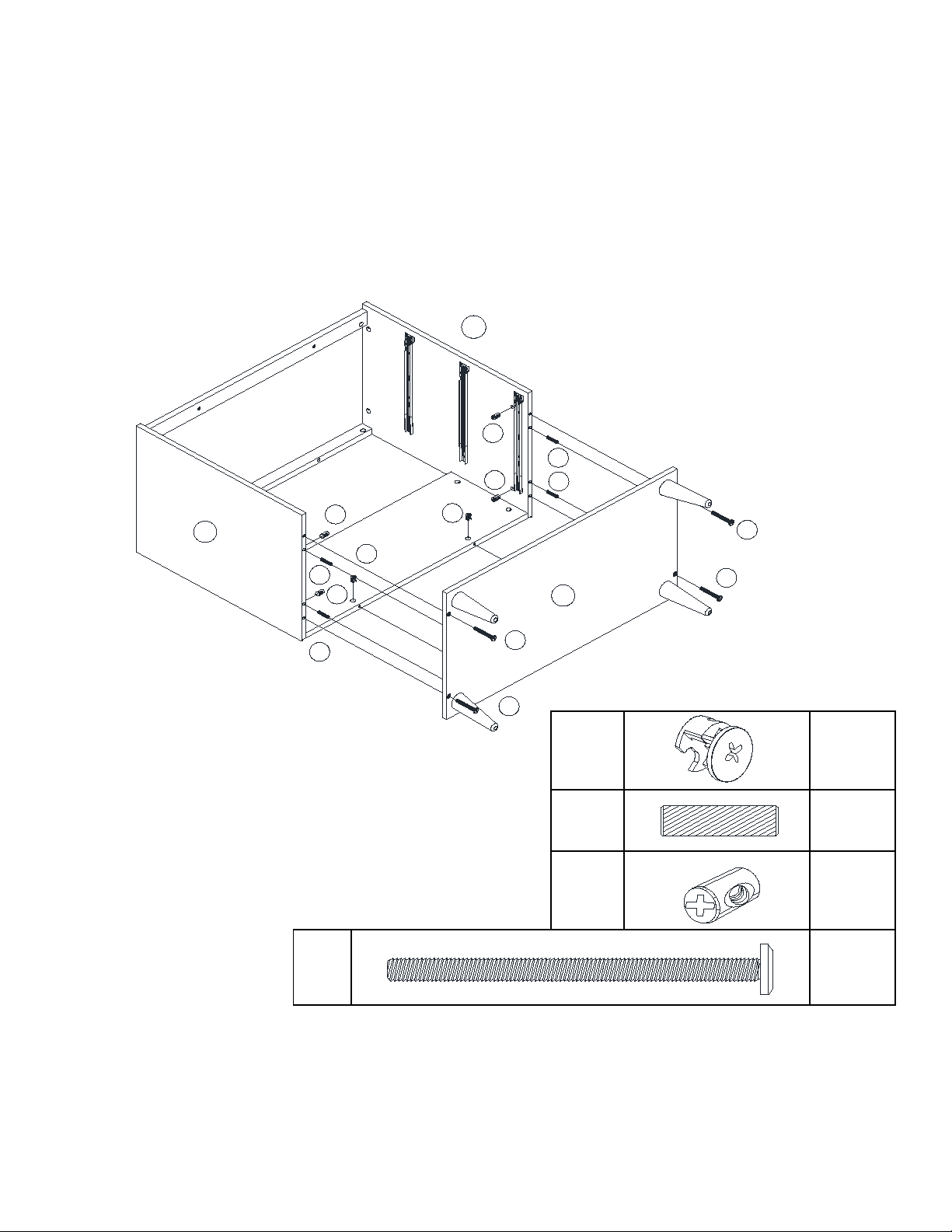

STEP 4
22 PCS
34 PCS
74 PCS
10 4 PCS
3-Drawer Dresser
DL8876-1, DL8876-1WN
Insert large cam locks (2) into back bottom panel (G) as shown below.
Insert large wood dowel (3) and barrel nut (7) into the left / right side panel as shown.
Attach bottom panel (H) to the back bottom panel (G) and secure by rotating the large cam
locks (2) 1/2 turn clockwise using a Phillips head screwdriver (not included).
Attach bottom panel (H) to left / right side panel (B&C) with bolts (10), Use the Allen key (12)
to tighten the bolts.
3
3
10
10
10
2
7
7
7
3
2
3
7
10
B
H
C

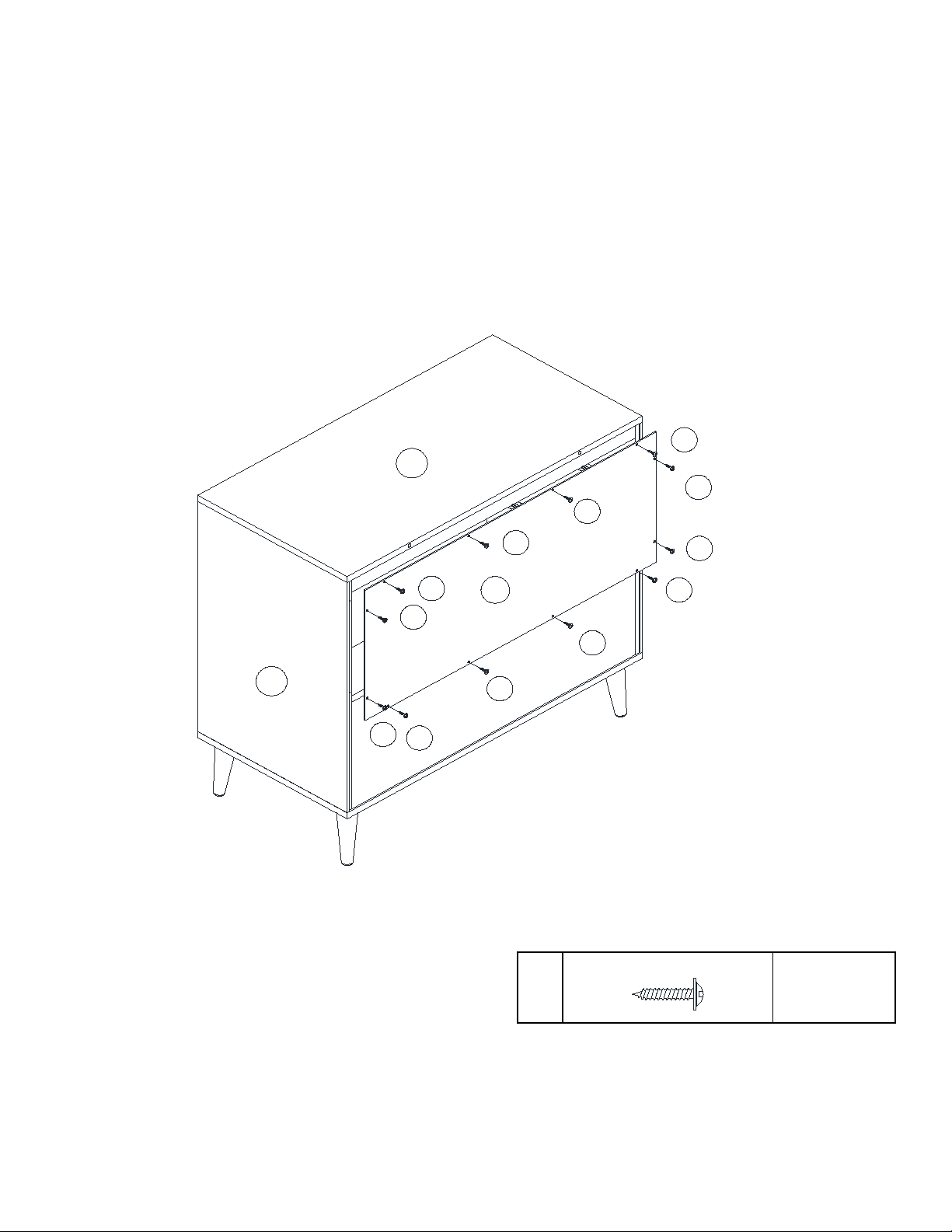

STEP 6
812 PCS
3-Drawer Dresser
DL8876-1, DL8876-1WN
Attach back top panel (F) to assembled unit with screws (8) as shown.
8
8
8
8
8
8
8
8
88
8
8
F
C
A

STEP 7
418 PCS
512 PCS
612 PCS
3-Drawer Dresser
DL8876-1, DL8876-1WN
Insert small cam bolts (4) into drawer front (J) and drawer back (M).
Insert small wood dowels (6) into drawer front (J) as shown.
Insert small cam lock to drawer left / right side panel (L&K).
Attach drawer left / right side panel (L&K) to the drawer front (J) and secure by rotating the
small cam locks (5) 1/2 turn clockwise using a Phillips head screwdriver (not included).
4
4
4
4
4
5
5
5
6
6
6
6
4
5
J
K
L
M

STEP 8
56 PCS
612 PCS
912 PCS
3-Drawer Dresser
DL8876-1, DL8876-1WN
Insert small wood dowels (6) into the drawer front (J), and small cam lock (5) into the drawer
support bar (O) as shown.
Slide the drawer bottom panel (N) into the grooves of bottom drawer left / right side panel
(K&L).
Attach the drawer support bar (O) to drawer front (J) by rotating the small cam locks (5) 1/2 turn
clockwise using a Phillips head screwdriver (not included).
Insert small wood dowel (6) into the drawer support bar (O).
Attach drawer back (M) to the drawer left / right side (L&K) with screw (9), and drawer support
bar (O) by rotating the small cam locks (5) 1/2 turn clockwise using a Phillips head screwdriver
(not included).
Repeat steps 7 and 8 to assemble the other drawers.
J
K
L
M
K
L
66
5
9
9
66
5
O
9
9
NO

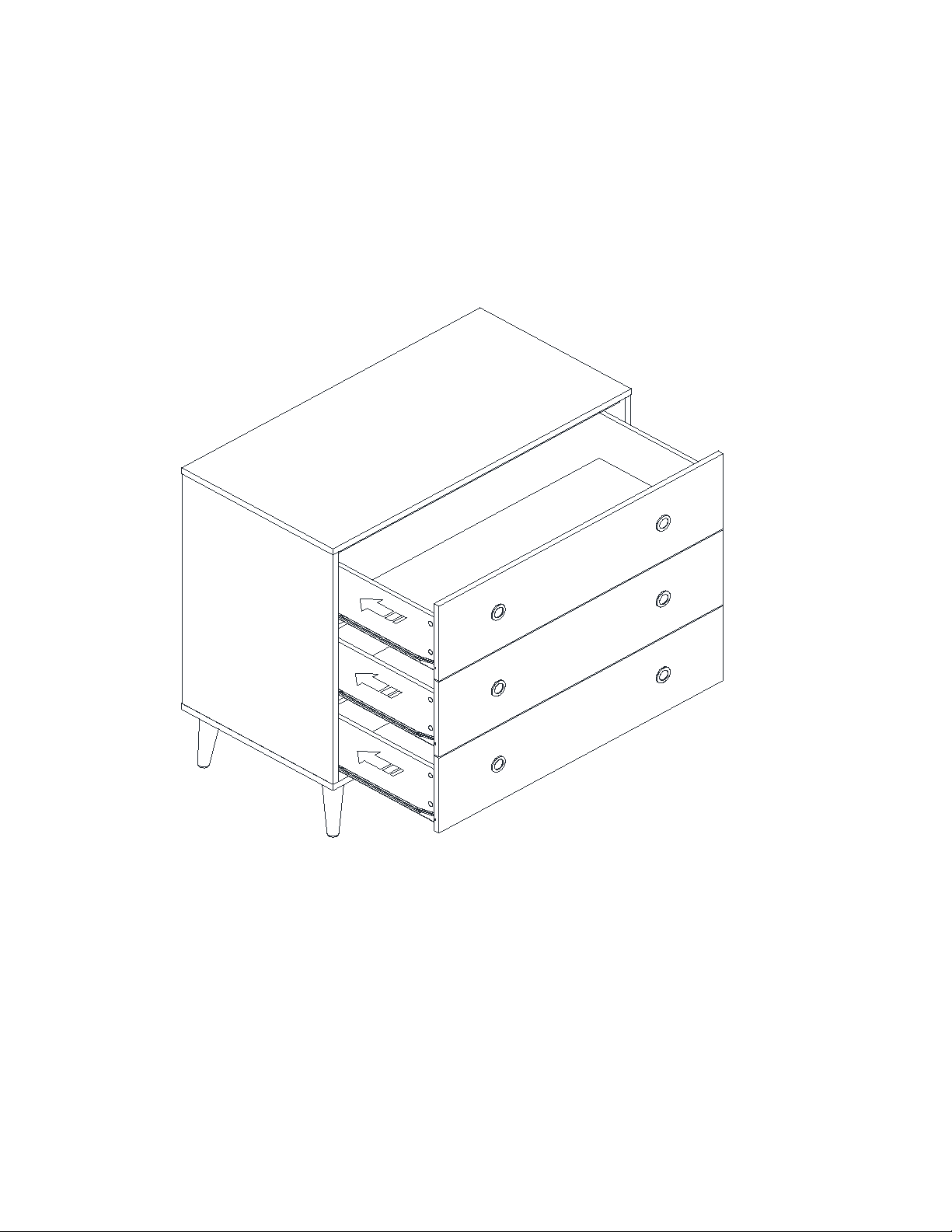

STEP 9
Insert all drawers into the assembled unit.
3-Drawer Dresser
DL8876-1, DL8876-1WN

That's it! You've finished assembling your 3-Drawer Dresser!

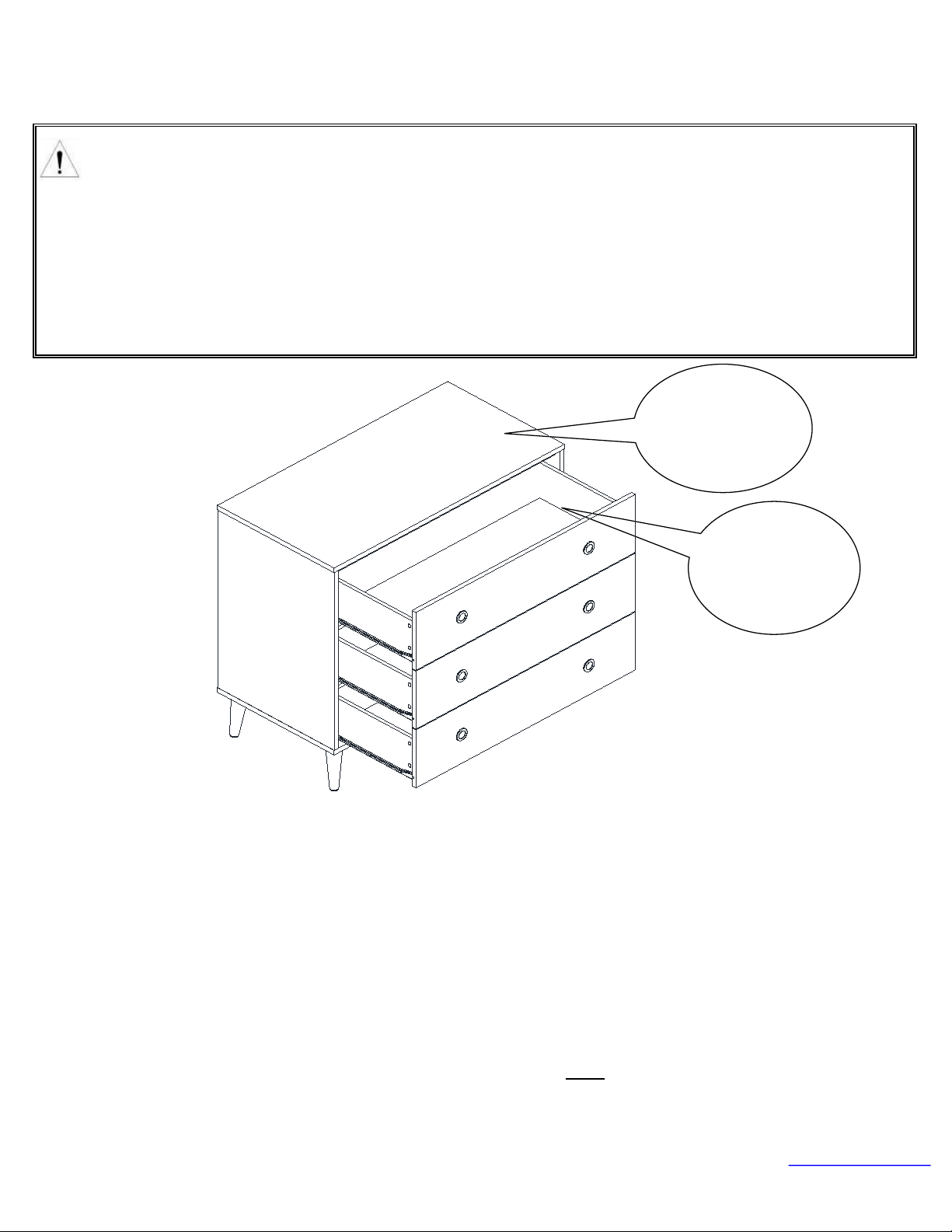

CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
3-Drawer Dresser
DL8876-1, DL8876-1WN
Top panel
maximum
weight 30 lbs.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Email: [e-mail]
Tel: [phone]
Maximum
weight per
drawer 15
lbs.

Furniture Wall Safety Strap
A B C D
TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED.
NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE
USING THIS PRODUCT AND KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, PLEASE
CALL OUR CUSTOMER SERVICE NUMBER: 1-800-295-1980.
MOUNTING BRACKET
4 PCS
SAFETY WALL STRAP
2 PCS
LONG SCREW
2 PCS
SHORT SCREW
2 PCS
WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE FURNITURE MAY
TIP OVER. PLEASE INSTALL THE SAFETY WALL STRAP BEHIND THE
FURNITURE TO ENSURE SAFETY.
Step 1:
ATTACH A MOUNTING BRACKET (A) SECURELY TO THE BACK EDGE OF THE FURNITURE USING THE
SHORT SCREW (D), THROUGH THE SMALLER HOLE.
Step 2:
LOCATE THE OTHER MOUNTING BRACKET (A) ON THE WALL OVER A WALL STUD AND 2 INCHES BELOW
THE MOUNTING BRACKET SECURED TO THE BACK OF YOUR UNIT. ATTACH TO THE WALL STUD USING
THE LONG SCREW (C) PROVIDED, THROUGH THE SMALLER HOLE.
Step 3:
PLACE THE FURNITURE INTO POSITION SO BOTH MOUNTING BRACKETS ARE VERTICALLY IN LINE. LACE
THE END OF THE SAFETY WALL STRAP (B) THROUGH THE LARGER HOLE IN EACH MOUNTING BRACKET
(A). BRING BOTH ENDS TOGETHER AND SLIDE THE FLAT END THROUGH THE LOCKING END AND DRAW IT
THROUGH UNTIL ALL SLACK IS REMOVED.
Step 4:
CONFIRM THAT THE STRAP IS SECURELY LACED AND LOCKED.
TO MOVE THE FURNITURE AFTER THE SAFETY WALL STRAP HAS BEEN INSTALLED, SIMPLY
REMOVE THE SCREW FROM THE WALL TO LOOSEN THE SAFETY WALL STRAP.
HOLE
HOLE

DL8876-1 (BLANCO)
0-65857-20990-7 (BLANCO)
0-65857-20991-4 (NUEZ)
PARA REFERENCIA FUTURA.
Numero de lote:
(TOMADO DEL CARTON)
POR FAVOR LÉALO Y CONSÉRVELO
Fecha de compra:
______ / ______ / ______
SEGURIDAD IMPORTANTE.
MANUAL DE INSTRUCCIONES
Modelo No:
DL8876-1WN (NUEZ)
Cómoda de
3 Cajones
CODIGO UPC:
NOTA:
ESTE MANUEL DE INSTRUCCIONES
CONTIENE INFORMACIÓN DE
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de
servicio a la clientela. Reemplazaremos la pieza SIN cargo.
Tel #: [phone]
Correo electrónico: c[email protected]

* El destornillador en cruz no está incluido.
* El armado y la manipulación pueden requerir dos personas.
* El tiempo de armado se estima en 60 minutos.
GARANTÍA LIMITADA
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se compromete a remediar
cualquiera de esos defectos. Esta garantía cubre 1 año a partir de la fecha de compra original. Esta garantía es
válida únicamente si se presenta una prueba de compra. Esto se limita solamente a la reparación o reemplazo de
componentes defectuosos de los muebles y no incluye el trabajo de armado. Esta garantía no se aplica a ningún
producto que haya sido armado de manera inadecuada, sujeto a un mal uso o abuso o que haya sufrido cualquier
tipo de alteración o reparación. Esta garantía le da las derechas legales específicas y usted puede también tener
otras derechas que varíen de estado al estado.
ADVERTENCIA: Si este producto se ha dañado, y/o sus
componentes están rotos o faltan, NO LO USE.
* El uso de la sujeción provista reduce el riesgo de que el mueble se vuelque, pero no lo elimina totalmente.
CUIDADO Y LIMPIEZA
Límpiela regularmente con un paño suave para evitar la acumulación de suciedad. Ocasionalmente se puede usar
un paño húmedo para limpiar la superficie. Séquela inmediatamente. No utilice productos abrasivos que puedan
dañar la terminación. Una exposición excesiva a la luz del sol y a cambios extremos de temperatura y humedad
puede dañar los muebles de madera.
MANTENIMIENTO
Verifique las arandelas/tornillos periódicamente y ajústelos si es necesario.
* No eliminar o retirar el dispositivo que asegura los cajones.
* Utilice la correa de seguridad provista para fijar el mueble a la pared.
*No use herramientas eléctricas.
* PRECAUCIÓN: Requiere ser armado por un adulto.
* Para evitar dañar la superficie, una vez instalados los niveladores, NO arrastrar el mueble para desplazarlo.
Asegúrese de levantarlo.
ADVERTENCIA:
Pueden producirse lesiones graves o fatales si el mueble se vuelca. Para prevenirlo:
* Instalar la sujeción provista.
* Colocar los artículos más pesados en los cajones más bajos.
* No colocar aparatos de TV u otros objetos pesados sobre este producto, a menos que esté
específicamente diseñado para ese uso.
* Nunca permitir que los niños trepen sobre los cajones, puertas o estantes o se cuelguen de ellos.
* Nunca abrir más de un cajón a la vez.
* Ensamble sobre una superficie suave, lisa para evitar daños en el acabado del producto.
SERVICIO A LA CLIENTELA
También puede pedir piezas escribiendo a la dirección indicada abajo. Por favor incluya el número de modelo, color
y una descripción detallada de la pieza.
DHP Consumer Service
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canadá H1G 3L1
NOTA
* Para evitar que se raye, por favor retire todo el embalaje y ármelo sobre una superficie limpia y suave.

ETAPA 1
114 PCS
Cómoda de 3 Cajones
DL8876-1, DL8876-1WN
Inserte los pernos de leva grandes (1) en el panel superior (A), el panel lateral izquierdo /
derecho (B y C) y el panel inferior (H) como se muestra.
1
1
1
1
1
1
111
11
1
1
1
A
B
C
H

ETAPA 2
28 PCS
38 PCS
Cómoda de 3 Cajones
DL8876-1, DL8876-1WN
Inserte los bloqueos de leva grandes (2) y los pasadores de madera grandes (3) en el riel
trasero / delantero (D&E) y el panel inferior trasero (G).
Fije el panel lateral izquierdo / derecho (B y C) al riel posterior / delantero (D&E) y al panel
inferior posterior (G) y asegúrelo girando el bloqueo de leva grande (2) 1/2 vuelta en
sentido horario con un destornillador Phillips (no incluido) .
2
2
2
2
2
2
2
3
33
3
3
2
3
D
E
G
B
C

ETAPA 3
11 4 PCS
Cómoda de 3 Cajones
DL8876-1, DL8876-1WN
Fije las patas (I) al panel inferior (H) con los pernos (11). Use la llave Allen (12) para
apretar los pernos.
I
I
I
11
11
11
11
I
H
