U s e r ’s m a n u a l
NVAHD-2DN3102SD/IR-1

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
2
INFORMATION
EMC (2004/108/EC) and LVD (2006/95/EC ) Directives
CE Marking
Our products are manufactured to comply with the requirements of the following directives and
national regulations implementing the directives:
 Electromagnetic compatibility EMC 2004/108/EC.
 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical
equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well
as 75VDC and 1500VDC.
WEEE Directive 2002/96/EC
Information on Disposal for Users of Waste Electrical and Electronic Equipment
This appliance is marked according to the European Directive on Waste Electrical and
Electronic Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of
correctly, you will help to prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or the documents accompanying the product, indicates that this appliance
may not be treated as household waste. It shall be handed over to the applicable collection point for
used up electrical and electronic equipment for recycling purpose. For more information about
recycling of this product, please contact your local authorities, your household waste disposal service
or the shop where you purchased the product.
RoHS Directive 2002/95/EC
Out of concern for human health protection and friendly environment, we assure that our
products falling under RoHS Directive regulations, regarding the restriction of the use of
hazardous substances in electrical and electronic equipment, have been designed and manufactured in
compliance with the above mentioned regulations. Simultaneously, we claim that our products have
been tested and do not contain hazardous substances whose exceeding limits could have negative
impact on human health or natural environment.
Information
The device, as a part of professional CCTV system used for surveillance and control, is not designed
for self installation in households by individuals without technical knowledge.
The manufacturer is not responsible for defects and damages that result from improper or inconsistent
with user’s manual installation of the device in the system.

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
3
WARNING
WARNING!
THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A
PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE
YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER
DEVICE OPERATION.
WARNING!
USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER-
SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL
MAY OPEN THE UNIT
INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE
PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS
WARNING!
PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN
PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE
PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE
PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF
EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN
ACTION.
IMPORTANT SAFEGUARDS AND WARNINGS
1. Prior to undertaking any action please consult the following manual and read all the safety and
operating instructions before starting the device.
2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual
is necessary;
3. All the safety precautions referred to in this manual should be strictly followed, as they have a
direct influence on user’s safety and durability and reliability of the device;
4. All actions conducted by the servicemen and users must be accomplished in accordance with the
user’s manual;
5. The device should be disconnected from power sources during maintenance procedures;
6. Usage of additional devices and components neither provided nor recommended by the producer
is forbidden;
7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers
etc.) is not recommended since it may lead to heat build-up and damaging the device itself
as a consequence;
8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.
Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The
camera must be mounted by qualified personnel with proper authorization, in accordance with this
user’s manual.

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
4
WARNING
9. Device should be supplied only from a power sources whose parameters are in accordance with
those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply
the camera from a power sources with unknown parameters, unstable or not meeting producer’s
requirements;
10. Signal cables (conducting TV or / and telemetric signal) should be placed in a way excluding the
possibility of damaging them by accident. Special attention must be paid to cables getting from
the camera and connecting the power supply;
11. To avoid equipment damage, whole TV circuit should be equipped with properly made
discharge-, overload- and lightning protection devices. Usage of separating transformers is
advised;
12. Electric installation supplying the device should be designed to meet the specifications given
by the producer in such a way that overloading is impossible;
13. User cannot repair or upgrade the equipment himself. All maintenance actions and repairs should
be conducted only by qualified service personnel;
14. Unplug the camera from the power source immediately and contact the proper maintenance
department when the following occurs:
 Damages to the power cord or to the plug itself;
 Liquids getting inside the device or exposure to strong mechanical shock;
 Device behaves in a way not described in the manual and all adjustments approved by the
manufacturer and possible to apply by user himself, seem not to have any effect;
 Camera is damaged;
 Atypical behaviour of the camera components may be seen (heard).
16. In necessity of repairs attention to using only original replacement parts (with their parameters
in accordance with those specified by the producer) should be paid. Non-licensed service and
non-genuine replacement parts may cause fire or electrocution;
17. After maintenance activities tests should be run to ensure proper operation of all the functional
components of the device.
Novus AHD cameras are dedicated to work with Novus AHD DVRs. Using only Novus products
guarantees the highest image quality. Connecting Novus AHD cameras to DVRs from other
manufacturers may decrease video quality.
Attention!
Technical changes reserved without prior notice and printing errors possible.

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
5
1. BASIC INFORMATION
1.1. Overall Characteristic
 The AHD high speed day/night dome camera
 Mechanical IR filter
 Video resolution: 1920 x 1080
 IR Operation capability - built-in IR LED illuminator
 IR distance up to 60 m
 Sensor resolution: 2.0 megapixel
 Sensitivity: from 0.001 lx/F=1.2
 Lens type: motor-zoom lens with AF
 AGC - Automatic Gain Control
 WDR - Wide Dynamic Range
 2DNR - Digital Noise Reduction
 OSD in English
 8 Patrols
 4 Patterns
 220 Presets
 10x optical zoom
 Auto-flip
 Park function
 IP Protection: IP 66
 Wall bracket included
 Power Supply: 12 VDC
1.2. Package contents
The box contains
If any of the listed equipment has been damaged during transport or if the package is incomplete, the
contents of package should be packed back in to the original box. Please contact your local NOVUS
distributor for further assistance.
FOREWORD INFORMATION
Camera PTZ NVAHD-2DN3102SD/IR-1 1 pcs.
Wall Bracket 1 pcs.
Power Supply AC230V/AC212V –2A 1 pcs.
Wall Bracket Rubber 1 pcs.
Screws 4 pcs.
Manual 1 pcs.
Mounting template 1 pcs.

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
6
SPECIFICATION
1.3 Technical Data
Pick-up element 1/2.8” SONY 2.0 Mega Pixel CMOS
Number of effective pixels 1920x1080
Horizontal resolution 1080p
Min. illumination
0.01 lx/F=1.2 - color mode
0.001 lx/F=1.2 - B/W mode
0 lx (IR on) - B/W mode
S/N Ratio > 50 dB (AGC Off)
Electronic shutter automatic/manual (1/25 ~ 1/10 000 s)
Operating mode AHD 1080p
Lens
Type of Lens motor-zoom with automatic shutter and auto-focus,
f=5 ~ 50 mm F1.2
Angle of View (H) 64.2° - 7.3°
Zoom 10 x optical
Day/Night
Type mechanical IR filter
Switching mode automatic/manual
Othef functions
OSD English
Automatic Gain Control (AGC) automatic/manual
White Balance (WB) automatic/manual
Digital Noise Reduction (DNR) yes
Back Light Compensation (BLC) yes
Park Function presets, patrols, patterns, auto-scanning
Presets 220
Patrols 8 (32 presets ech patrol)
Automatic Scans 1
Patterns 4 (up to 100 commends)
Tilt Range 0° ~ 90°
Pan Range 360°
Pan/Tilt Speed 0.6°/s - 200°/s, 3.5°/s - 35° /s
Auto-flip yes
Image processing 180˚ image rotation, mirror effect
IR Illuminator
LED number 6
Range up to 60 m depends on optical zoom
Angle up to 90° depends on optical zoom
Interfaces
Vide output BNC, 1.0 Vp-p, 75 Ohm
Installation Parameters
Dimensions (mm) camera: 136 (W) x 199 (H) with bracket: 136 (W) x 199 (H) x 218 (L)
Weight 1.7 kg (with bracket)
Enclosure Aluminium, White
Power Supply 12 VDC
Power consumption up to 20 W
Operating Temperature -20°C ~ 60°C
Degree of protection IP 66

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
7
SPECIFICATION
1.4. Camera Dimensions

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
8
2. INSTALLATION OF AHD CAMERA
2.1 Mounting
Put mounting template on the wall on selected location.
Drill mounting holes and insert dowels
Drill (if needed) another hole for video and power cables.
Unscrew cover protection of the DIP switch complement
Use DIP switches to set Camera RS-485 adress (1-255)
NOTE:
How to address the camera please look Point 2.3 page 11
INSTALLATION

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
9

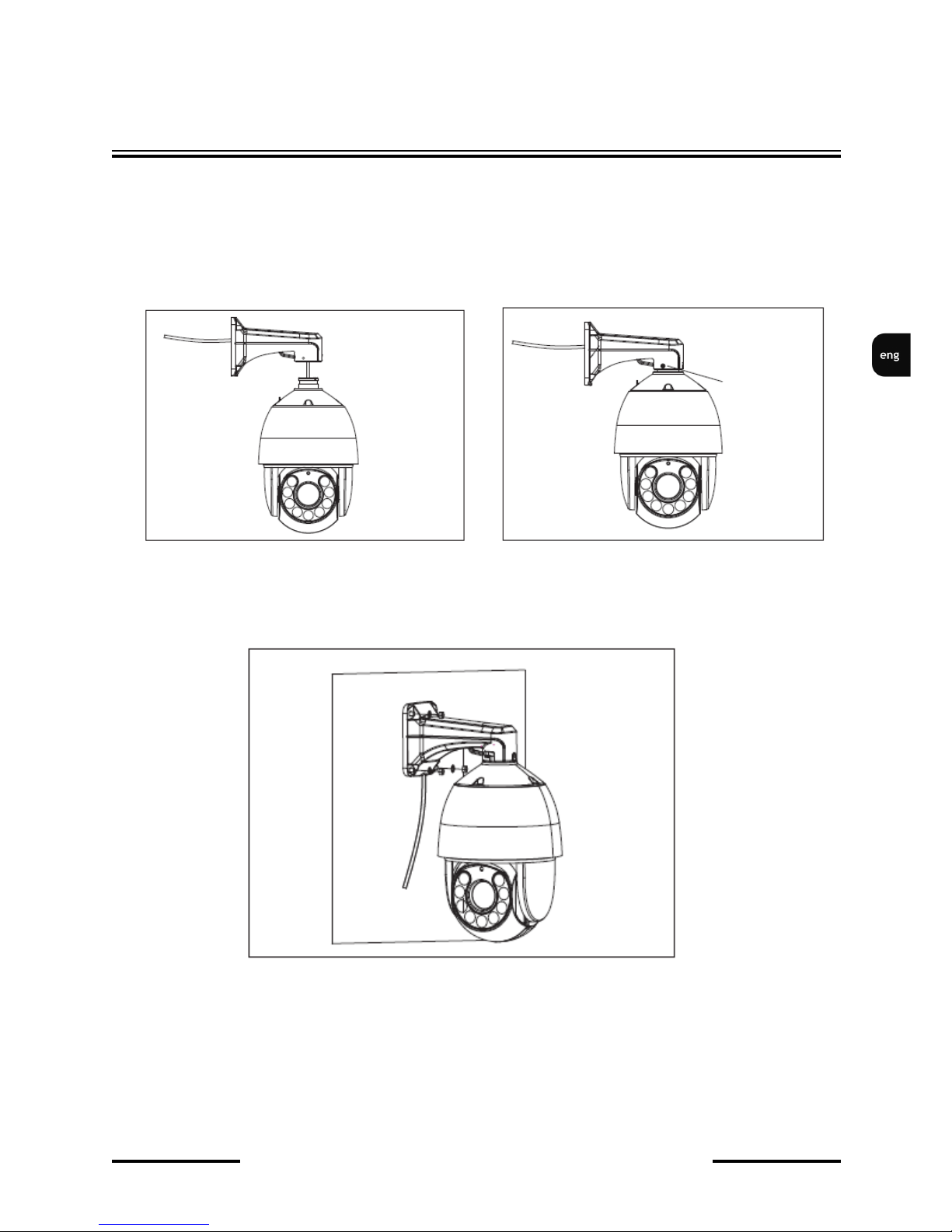

Put cables trough hole in the bracket and then connect bracket with the camera.
CAUTION!!!
In order to ensure a good seal, first install the rubber seals in the arm camera as well as run the wires
through the hole in the mount. Additionally secure by silicone cables output.
Hold the bracket to the previously drilled holes, and then tighten it to the wall with screws.
Connect cables to the connector (more info at point 2.5 page 12)
INSTALLATION

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
10
2.2 Baud Speed Settings
Camera features DIP-switch blocks for configuring addresses and transmission parameters for RS-485
protocol. Switches are located under the cover located underneath camera module.
Camera has automatic protocol detection:
Automatic identify allows detection of speed, when using Pelco-D protocol.
In case using N-Control speed is fixed at 2400bps.
For RS-485 connections, RS485+ and RS485– wires should be used. They should be connected
to respective TX+ and TX– connectors of the controller, e.g. NV-KBD50 keyboard. Next camera in the
cascade is connected also using same RS485+ and RS485– connectors.
START-UP AND INITIAL CAMERA CONFIGURATION

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
11
START-UP AND INITIAL CAMERA CONFIGURATION
RS485 control bus need all device which connect to it shall be in parallel mode, and each end of the
system shall be connected to a 120ohm resistor. Our speed dome has a 120ohm resistor built inside,
you need only set it up through dip switch. Put the 4th switch on, then the resistor will be connected,
details as below:
2.3 Camera AddressSettings
In order to avoid control conflicts, each camera should be assigned with unique address in the system.
Switches numbered 1 to 8 are responsible for assigning an address.
When building a system containing a single DVR, assign addresses is recommended to accordance with
their respective video inputs numbering.
Number visible on the DIP switch and their values are described in table below. Sum of the values
determines the physical ID address of the camera.
ATTENTION!
Remember each camera has its address set to 1 by default!
120 ohm resistor connected 120 ohm resistor disconnected
Switch no: 1 2 3 4 5 6 7 8
Value: 1 2 4 8 16 32 64 128
1 ON OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF OFF OFF
5 ON OFF ON OFF OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
12
2.4. Power Supply
CAUTION!!!
Please check power source before you plug in Camera!
2.5 Connecting wires
Connect RS485 bus wires connector to the keyboard or DVR. In case of use more then one device
make parallel connections.
1. Protocol and baud speed can be set by user, (remember to set same parameters for camera and
device that you're using)
2. Set individual address for each camera that you use on single bus.
Connect camera as shown on diagram below.
START-UP AND INITIAL CAMERA CONFIGURATION
Power Range Current
DC12V ± 10% 2A
BNC Connector
RS485 Cable
DC Connector
DC 12V
RS485A
RS485B
Video Cable
Port Mark Name Color How to join
Power Cable DC12V input power DC connector Power Connector
RS485A 485 Communication Bus A White Cable connected to
RS485+
RS485B 485 Communication Bus B Green Cable connected to
RS485-
Video cable Video Cable BNC port Connect Monitor or
DVR (AHD)

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
13
3. BASIC FUNCTIONS
After plug in power supply, camera start self-check mode. After connecting PTZ keyboard, you can
check pan tilt and zoom positions.
There is a possibility to program Presets, Patrols and Patterns with external keyboard without using
OSD menu.
CAUTION!!!
Ways of Setting and Calling presets could be different depending on model of external keyboard
that you're using. Presented configuration is for NV-KBD50. Please refer to the user manual of
keyboard.
3.1 Preset Setting
Operation steps as below:
1. Select camera ID
2. Operate joystick or zoom +/- button to adjust camera image
3. Press [N] (input specific preset number) + hold [PRESET] for a 3 sec. to save current position
parameters as Preset
3.2 Call a Preset
To call previously saved preset you have to:
1. Select camera ID
2. Press [PRESET] + [N] (input specific preset number) + Camera move to corresponding preset
position at once.
3.3 Function realization by preset
Adopting the method of double function presets, achieve all the functions of the camera by preset call,
Specific correspond <<Preset Function Table of General Function>> and <<Preset Function of Specific
Function>>
Call mode: Specific function is achieved by the mode of preset call, for example: [92]+[PRESET]+[1]
+[PRESET] witch is call PATROL 1
Preset function table of general function:
CONFIGURATION
General Function PRESET Remarks
IR 90
Zoom Module 91
Patrol Scan 92
Pattern Scan 93
PTZ Control 94

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
14
CONFIGURATION
Preset function of specific function
MENU 95 OSD Menu
System Setting 96
Reservation 97
Hig speed Auto-scan 98
Low speed Auto-scan 99
General Function Preset Number Call mode Set mode CAUTION
IR Function (90)
1 Auto ON/OFF
2 Forced ON
3 Forced OFF
11 High Sensitivity
12 Medium Sensitivity
13 Low Sensitivity
Camera Module
Setting (91)
1 IRCUT - On
2 IRCUT - Off
3 IRCUT - Auto On
4 IRCUT - Auto Off
50 Zoom Camera Automatic
Diagnosis
80 Enter module menu Module support OSD
function
81 Confirm function in OSD menu
Patrol Scan (92)
1 Call Patrol 1 Patrol 1 setting start
2 Call Patrol 2 Patrol 2 setting start
3 Call Patrol 3 Patrol 3 setting start
4 Call Patrol 4 Patrol 4 setting start
5 Call Patrol 5 Patrol 5 setting start
6 Call Patrol 6 Patrol 6 setting start
7 Call Patrol 7 Patrol 7 setting start
8 Call Patrol 8 Patrol 8 setting start
9 Patrol setting end
10 Patrol time setting (5-240s)
11 Patrol speed setting (1-63)
Pattern Scan (93)
1 Call Pattern 1 Pattern1 setting start
2 Call Pattern2 Pattern2 setting start
3 Call Pattern3 Pattern3 setting start

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
15
CONFIGURATION
\
CAUTION !!!
In case of using N-Control there is a possibility to use function, patrols, presets and patterns
directly form keyboard (please check keyboard user manual).
Pattern Scan (93) 4 Call Pattern 4 Pattern4 setting start
5 Pattern setting end
PTZ Control (94)
1-8 Park Preset 1-8
9-16 Park Patrol 1-8
17-20 Park Pattern 1-4
21 Park Auto Scan
22 Park Line A-B
30 Park time 0 (off)
31 Park time 10s
32 Park time 30s
33 Park time 60s
41 A - line scan setting
42 B - line scan setting
43 High speed line scan
44 Middle speed line scan
45 Low speed line scan
46 Inner arc line-scan
47 Outer arc line-scan
50 Open autotracking
51 Off autotracking
52 Open auto zoom
53 Off auto zoom
System Setting (96)
Continuous
call 10, 12,
14
Restore factory setting
30 On/Off Auto-Flip

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
16
CAUTION!!!
Presets 35 - 42 by default call Patrols 1 - 8.
PATROL 1 by default has programmed Presets from 1 to 8, with parameters: SPD 50 TIME 10
3.4 Patrol Setting
Start patrol order “set preset 92 + call corresponding preset of patrol number", then
add preset “call preset”, every patrol path can add max. 32 presets. After adding,
save the setting by “set preset 92 + call preset 9”
The setting of preset standing time: “set preset 92 + call preset 10 + call
corresponding preset of time”.
The setting of preset running speed in patrol: “set preset 92 + call preset 11 +
call corresponding preset of speed;
[For example] add 1-4 presets in patrol 1, standing time 30s, speed 40, follow
the instructions below:
Add presets in patrol path:
(1) Set preset 92, call preset 1, start patrol 1 setting.
(2) Call preset 1, add preset 1 to patrol 1.
(3) Call preset 2, add preset 2 to patrol 1.
(4) Call preset 3, add preset 3 to patrol 1.
(5) Call preset 4, add preset 4 to patrol 1.
(6) Call preset 92, then call preset 9, save patrol 1.
The setting of preset standing time in patrol:
(1) Set preset 92,then call preset 10,start the setting of preset standing time.
(2) Call preset 30, set standing time to 30s.
The setting of preset running speed in patrol:
(1) Set preset 92,then call preset 11,start the setting of preset running speed.
(2) Call preset 40, set preset running time to 40.
CONFIGURATION

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
17
4.0. OSD MENU
To call OSD menu you need use external keyboard or DVR with PTZ function . To open OSD menu
we use Call PRESET 95 commend. To move through menu we use joystick or DVR system
navigator. Main Menu got three sub-menus, that we can enter moving joystick right or pressing
IRIS+. After selecting option sign & will change on *, that allow us to make a change through
joystick move UP or DOWN. To leave sub-menu, we move joystick left or press IRIS-. Further every
menu got EXIT option that allow us to lave selected menu.

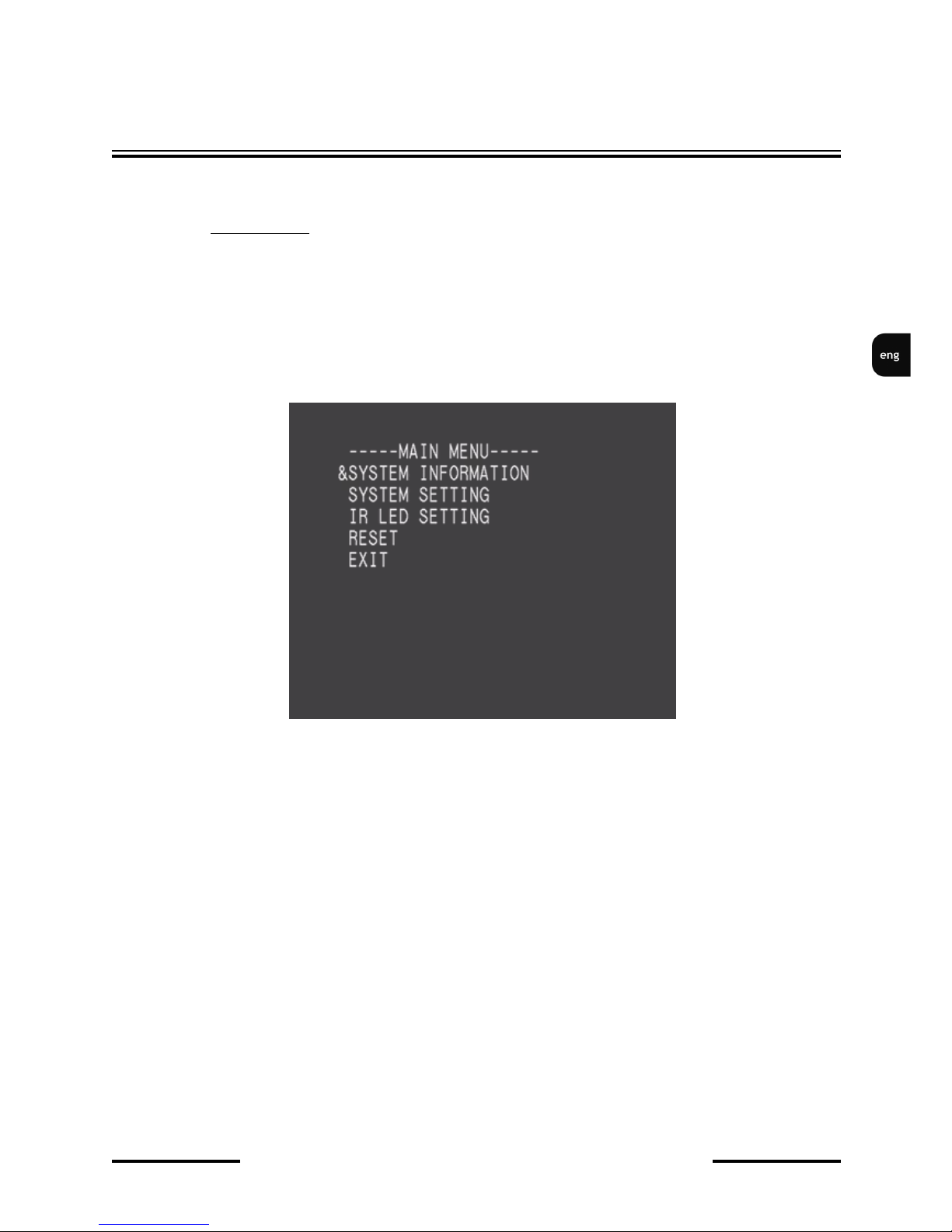

4.1 Main Menu
Main menu got 3 sub-menus that allow us to configure camera options.
SYSTEM INFORMATION - sub-menu that got basic information's about camera and their settings
SYSTEM SETTING - sub-menu that allow us to change default settings and program PTZ control
functions.
IR LED SETTING - sub-menu that allow us to configure IR LED settings
RESET– brings back to default settings
EXIT - leaving OSD menu
CONFIGURATION

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
18
CONFIGURATION
4.2 System Information Menu
System Information menu shows us default information about AHD camera.
PROTOCOL - information about protocol that camera is currently using to PTZ control, default
AUTO
BAUD RATE - information about baud rate with PTZ control, default AUTO
HARD ADDR - information about physical camera address, set by DIP switches
SOFT ADDR - changing software address of the camera
SOFT ADDR ENABLE - enable software address, default OFF
VERSION - actual Software version
EXIT - back to previous menu

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
19
CONFIGURATION

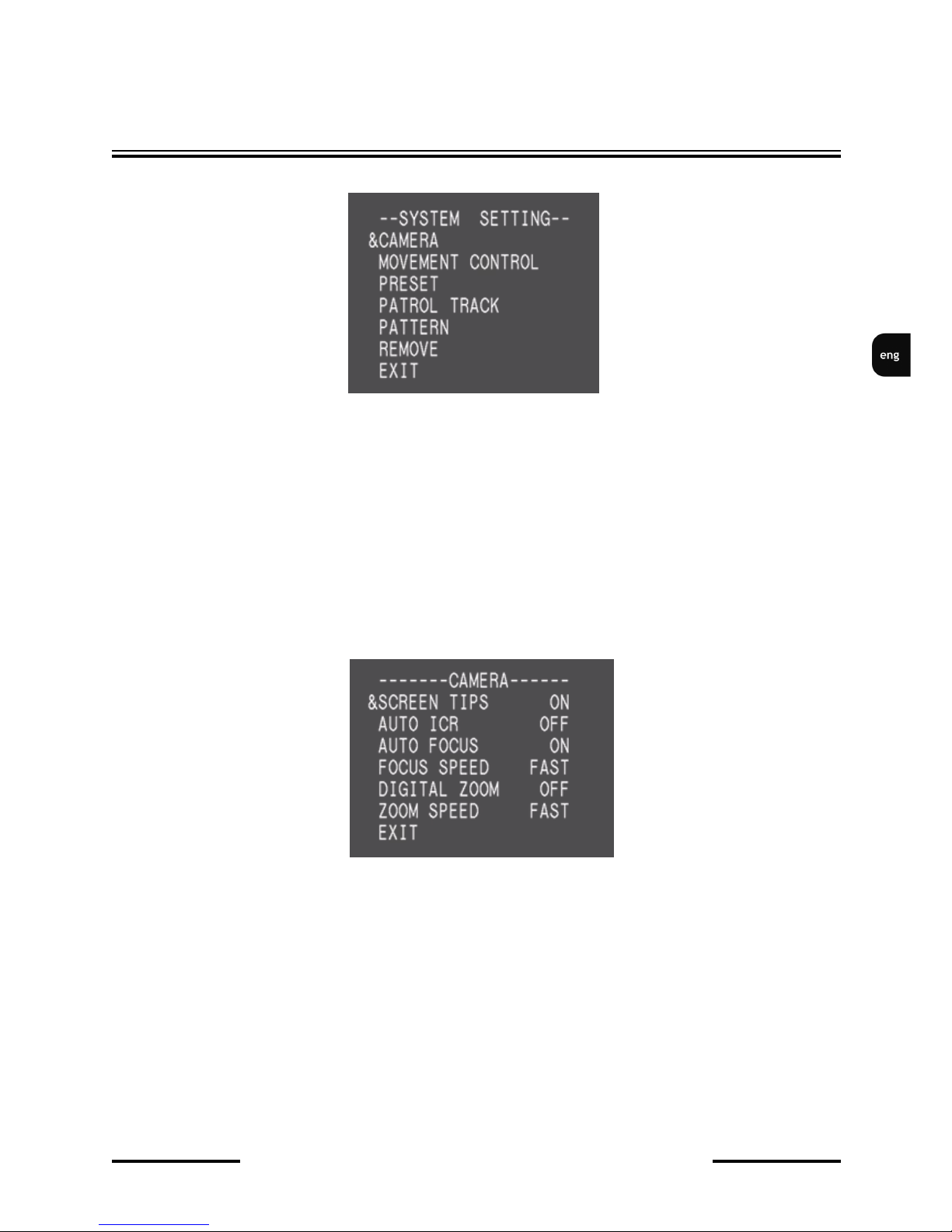

4.3 System Settings Menu
CAMERA - sub-menu that allows you to configure camera.
MOVEMENT CONTROL - sub-menu that allows you configure default movement settings
PRESET - sub-menu for programming presets
PATROL TRACK - sub-menu for configuration of patrols
PATTERN - sub-menu for configuration of patterns
REMOVE - remove all settings and bring it to default
EXIT– back to previous menu
4.3.1 Camera Menu
SCREEN TIPS - information about camera settings are displayed on screen, default OFF
AUTO ICR - setting automatic IR filter, default OFF
AUTO FOCUS - setting auto focus function, default ON
FOCUS SPEED - setting focus speed (FAST/SLOW), default FAST
DIGITAL ZOOM - function not available
ZOOM SPEED - settings of zoom speed (FAST/SLOW), default FAST
EXIT - back to previous menu

User manual for Speed Dome Camera NVAHD-2DN3102SD/IR-1 ver. 1.0
All rights reserved © AAT Holding S.A.
20
CONFIGURATION
4.3.2 Movement Control Menu
AUTO FLIP - auto flip function (ON/OFF), default ON
PROPORTION PAN - proportion function that adjust camera speed depending on zoom, default ON
PARK TIME - time after camera goes to park mode (5-255s), default NO
PARK ACT - PTZ action that would start after set time in previous function (PRESET 1-8/PATROL
1-8/PATTERN 0-4/AUTO SCAN/AB SCAN), default NO
POWER ACT - PTZ action that would start after power on (PRESET 1-8/PATROL 1-8/PATTERN 0-
4/AUTO SCAN/AB SCAN), default NO
CONTROL SPEED - speed of programmed movement (LOW/MEDIUM/HIGH), default HIGH
AB SCAN SETTING - setting AB mode, setup two presets among witch camera start patrol
AB SCAN PATCH - choose patch of patrol in AB scan mode (I-ARC/0-ARC), short way: I-ARC, or
long way: 0-ARC default I-ARC
AB SCAN SPEED - scan speed in AB Scan mode (LOW/MEDIUM/HIGH), default HIGH
